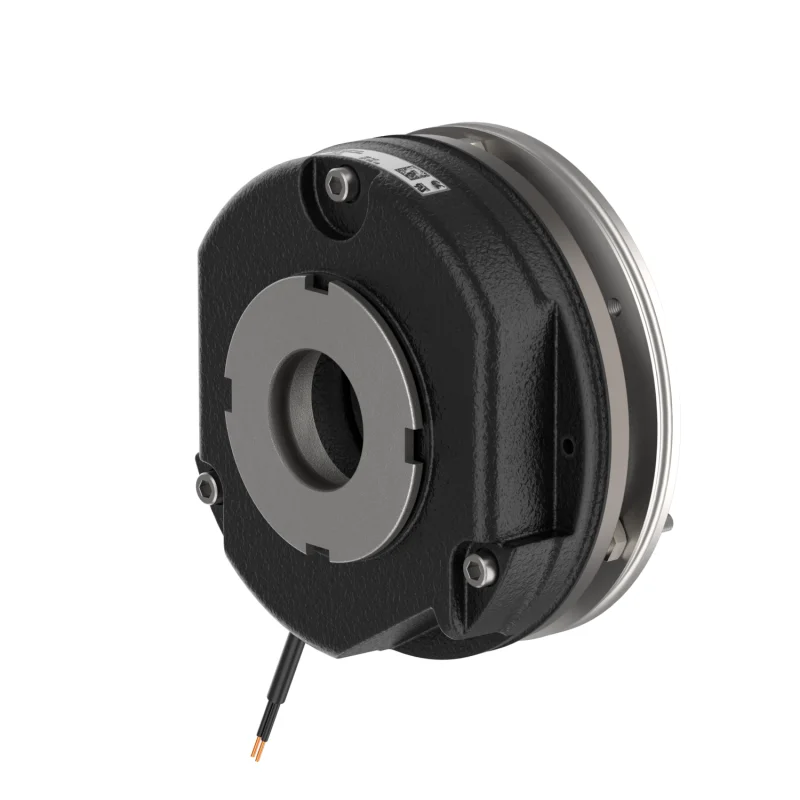

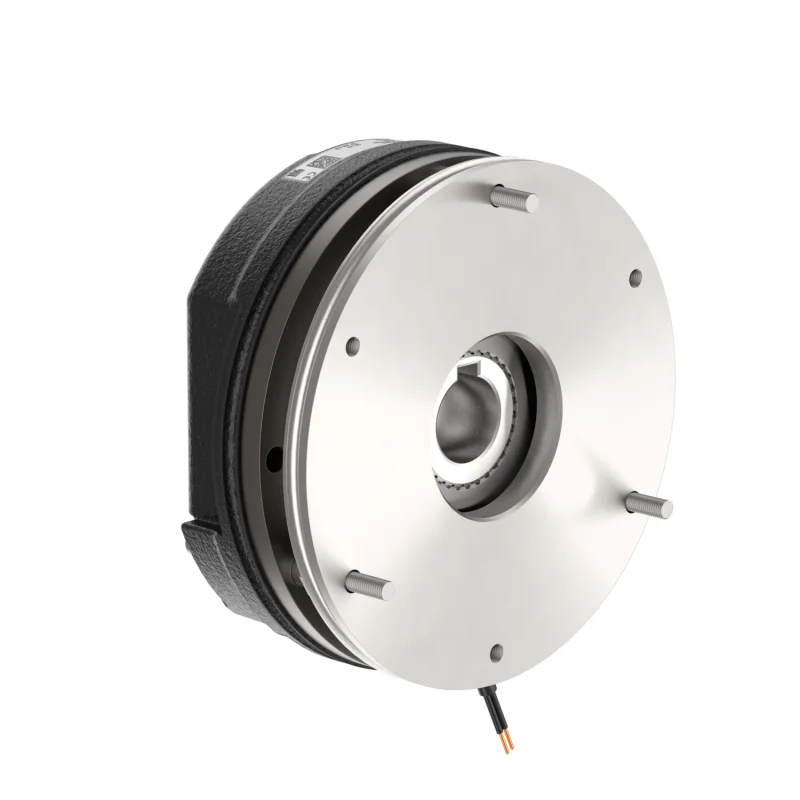

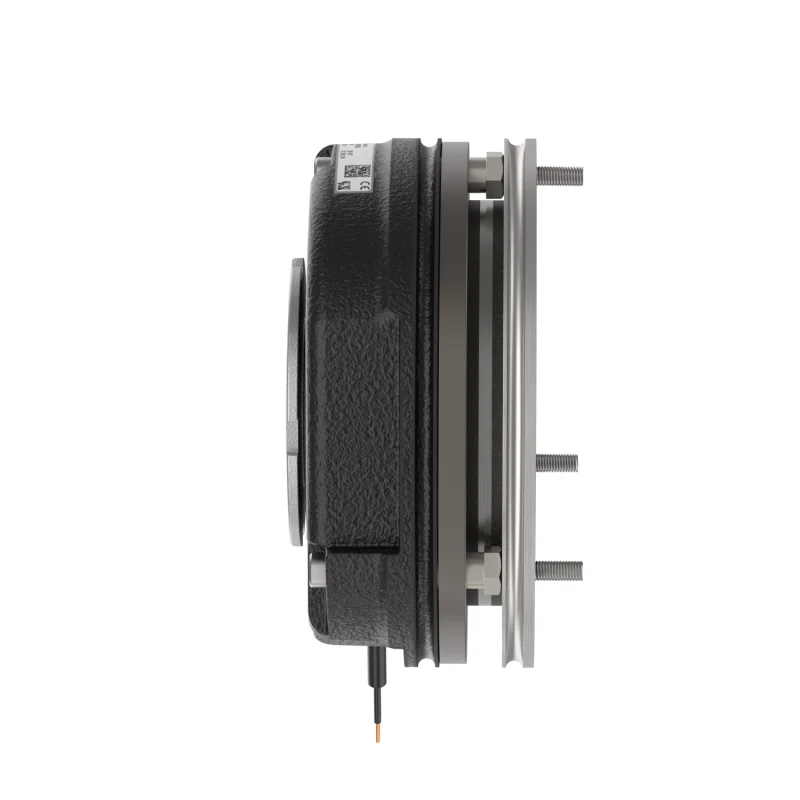

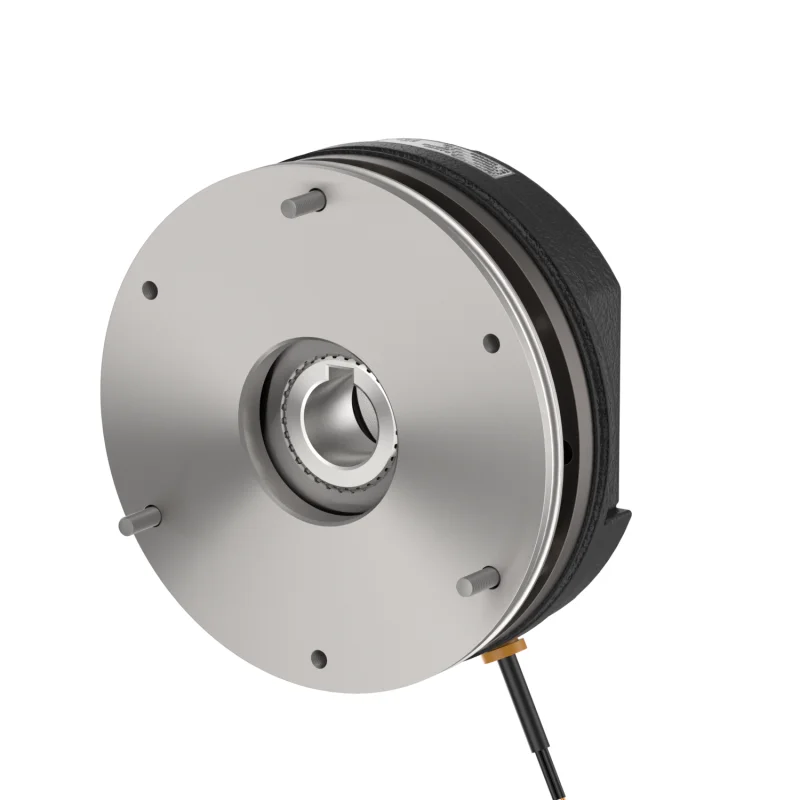

DZS3 05N Electric power brake floodgate

Product Overview

Description

  Electromagnetic brake(power loss) is a friction brake with power-on release and power-off spring braking. It is mainly matched with general-purpose motor to form a three-phase asynchronous motor for braking purposes, which is widely used in metallurgy, construction, chemical industry, food, machine tools, packaging and other machinery, and in places where safe braking is needed when power is cut off, so as to realize rapid parking and accurate positioning. This kind of brake has the advantages of compact structure, convenient installation, wide adaptability, low noise, high working frequency, sensitive action, reliable braking, etc. It can be added with manual release device and is an ideal automatic control actuator, which can be divided into two types: torque adjustable and non-adjustable.



More information: www.orlanpower.com



Product name	DZS3 05N	Weight (KG)	1.9
Condition	New	Min. Order	1 Piece
Lift Speed	2~8m/min	Maximum Lifting Height	20m
Chain Falls	1	Certification	CE,ISO9001:2000
Type	Electric Hoist	Sling Type	Chain



Specifications:

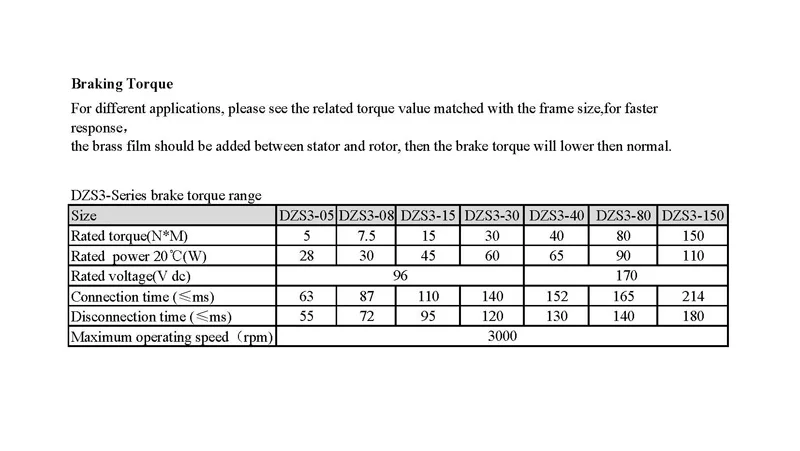

      Braking torques: 05-150N;
      10 sizes, keep interchangeability with national standard motor size ;
      Common voltages: 24,96,180,205VDC, other voltages on request;
      Temperature class F (155°C), heat resistance of rotor up to 200ºC;
      Compact design, modular design, easy disassembly and replacement;
      Preset brake gap, adjustable air gap;
      Single and double brake structures with a mute device can be selected.;
      Hand release available as an option;
      High quality spring material, long service life, reasonable design, never invalid;


Applications:

      Lift, escalator
      Brake motors
      Port machinery
      Cranes
      Conveyors
      Hoisting equipment
      Metallurgical machinery
      Material handling equipment
      Light industrial packaging
      Controlled drives
      Automation technology
      Textile and printing
      Forklift truck
      Wood working machines
