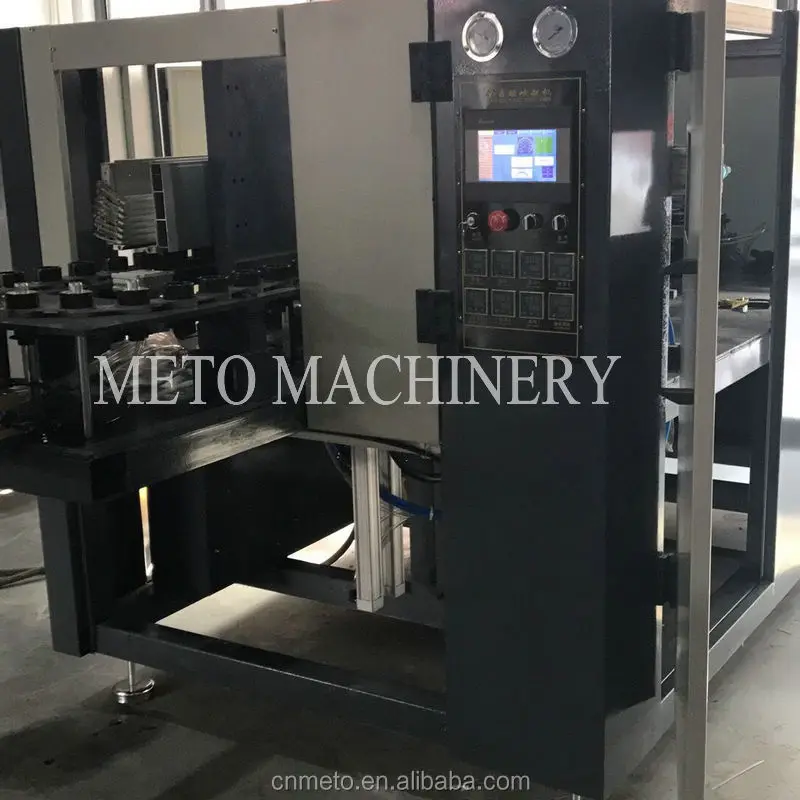

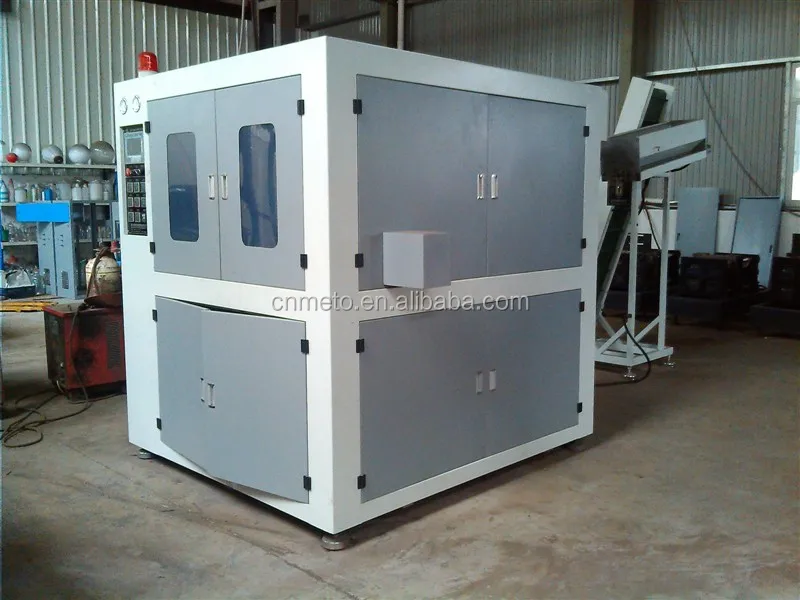

2 Cavity 500ML hand feeding Automatic Preform Blow Molding Mould Processing Blower Plastic PET Bottle Blowing Making Machine
- Category: >>>
- Supplier: Taizhou Huangyan Meto Mould Machinery Co. Ltd.
Share on (1600469372134):
Product Overview
Description
Product Parameter
2 Cavity 500ML hand feeding Automatic Preform Blow Molding Mould Processing Blower Plastic PET Bottle Blowing Making Machine
Feature
1. High safety factor: avoid the danger of semi machine to take the bottle by hand, improved the production efficiency.
2. Saving work: many single operation or sevral machine work at the same time, saving labor for 2 to 3 times than the semi machine.

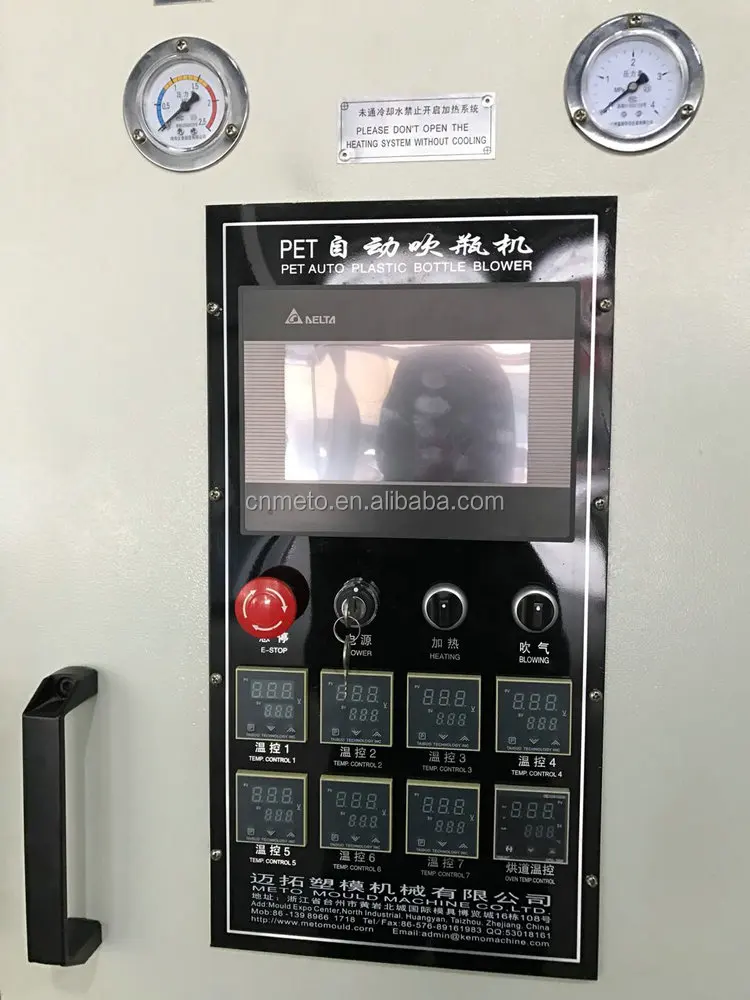

3. Stable performance: Adopt the imported touch-screen computer interface, precise, fast and strong stability. Simple structure, oven adopt the chute type integration, easy maintenance.
4. The detecting element use the Japanese Omron electronics, high voltage control choose the imported famous quality products, with reliable performance and accurate response.
5. Adopt the infrared lamp heating, strong penetrating power and uniform heating, the width and the height of the baffle-board can be adjusted, to fit the bottle preform heating of different structure.
6. With the function of automatic alarm, and self-check of the fault detection and judgment..
7. Imported from Germany, Japan, Taiwan, pneumatic components, to ensure high speed run zero failure rate.
8. The gas circuit design and the blow is divided into two parts, in order to satisfy the demands of bottle blowing and action of different pressure, to achieve the high pressure blowing products. Also if choose and buy high pressure bottle blowing exhaust gas recycling system, can save 10-15% of the air.
9. Adopt hyperbolic cubits, with strong clamping force of the main link hinge, have C-mold pressurization function when blowing bottle in high pressure, stable and reliable.
10. Moving parts adopt high speed linear guide, with advantage of high wear resistance, opening and closing mould high speed running fast without trembling, etc.
1. High safety factor: avoid the danger of semi machine to take the bottle by hand, improved the production efficiency.
2. Saving work: many single operation or sevral machine work at the same time, saving labor for 2 to 3 times than the semi machine.
3. Stable performance: Adopt the imported touch-screen computer interface, precise, fast and strong stability. Simple structure, oven adopt the chute type integration, easy maintenance.
4. The detecting element use the Japanese Omron electronics, high voltage control choose the imported famous quality products, with reliable performance and accurate response.
5. Adopt the infrared lamp heating, strong penetrating power and uniform heating, the width and the height of the baffle-board can be adjusted, to fit the bottle preform heating of different structure.
6. With the function of automatic alarm, and self-check of the fault detection and judgment..
7. Imported from Germany, Japan, Taiwan, pneumatic components, to ensure high speed run zero failure rate.
8. The gas circuit design and the blow is divided into two parts, in order to satisfy the demands of bottle blowing and action of different pressure, to achieve the high pressure blowing products. Also if choose and buy high pressure bottle blowing exhaust gas recycling system, can save 10-15% of the air.
9. Adopt hyperbolic cubits, with strong clamping force of the main link hinge, have C-mold pressurization function when blowing bottle in high pressure, stable and reliable.
10. Moving parts adopt high speed linear guide, with advantage of high wear resistance, opening and closing mould high speed running fast without trembling, etc.
ITEM | KM-S200 | KM-S600 |
Theoretical output | 1700 | 1200-1300 |
Max.container volume | 2L | 5L |
Max.neck diameter | 45MM | 65MM |
Max.container diameter | 120MM | 160MM |
Max.container height | 325MM | 325MM |
Number of cavity | 2 | 2 |
Number of lamp | 24 | 24 |
Max.heating power | 35KW | 35KW |
Installation power | 30KW | 50KW |
Actual power consumption | 12KW | 18KW |
Operating low pressure | 0.7-1.0Mpa | 0.7-1.0Mpa |
Blowing pressure | 2.0-3.0Mpa | 2.0-3.0Mpa |
Operating pressure | 0.3-0.5Mpa | 0.3-0.5Mpa |
Temperature | 16 degree | 16 degree |
Flow rater | 30 L/min | 40 L/min |
Machine dimension | 2.0×1.6×1.8 | 2.4×1.8×1.8 |
Machine weight | 1800Kg | 2200Kg |
Product Display

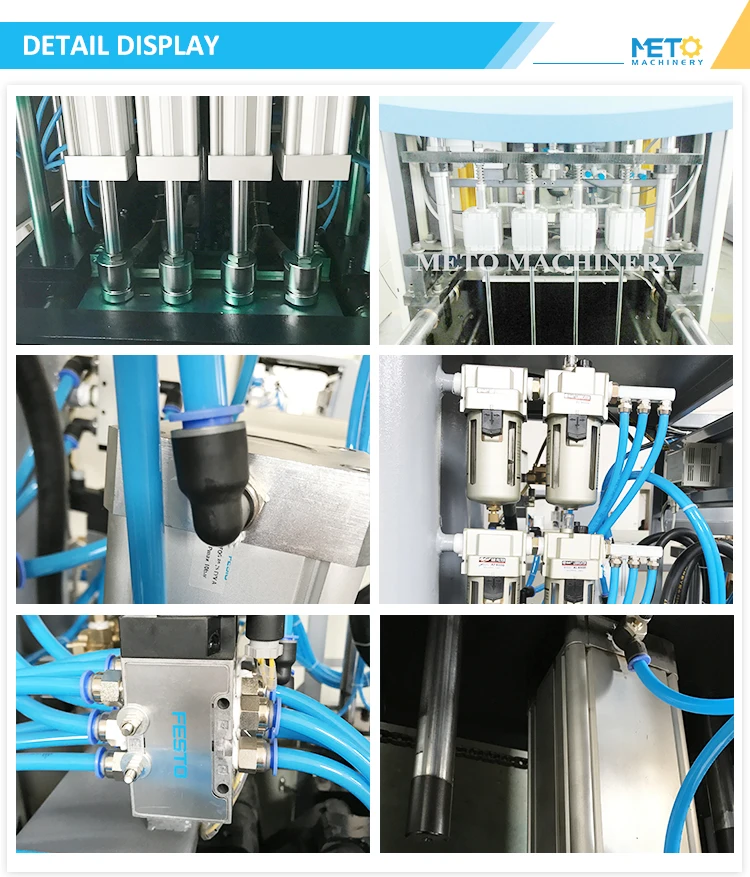

Detail Display

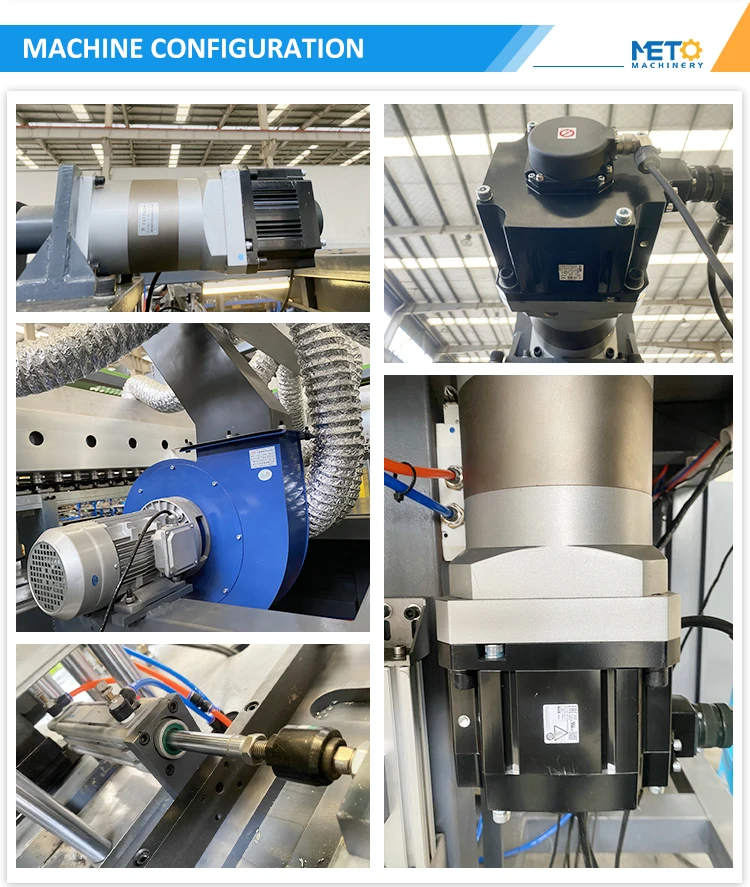

Machine Configuration
Related Products
Company Information
Our Certificates
FAQ
Q: Are You A Factory Or Trading Company?
A: We Are Factory.
A: We Are Factory.
Q: How Long The Warranty Period?
A: All Of Products Have 3 Years Warranty And Lifetime Maintenance.
Q: What Is Your Delivery Time And Payment Term?
A: About 30 Days After Deposit , The Payment Term Is 30% As Deposit And 70% Should Pay Before Shipment.
Q: How About The Quality Of Machine?
A: Meto Machine With Ce Certificate, We Have Been Focusing On Quality Issues,quality Control From Beginning To The End, And We Will Test Machine Strictly Before Packing And Delivery.
Q:do You Have Any Other Services About Your Products?
A:we Have A Lot Of Experience On Making Projects And Specifications For Our Clients, Also We Have A Fixed Service System.
A: All Of Products Have 3 Years Warranty And Lifetime Maintenance.
Q: What Is Your Delivery Time And Payment Term?
A: About 30 Days After Deposit , The Payment Term Is 30% As Deposit And 70% Should Pay Before Shipment.
Q: How About The Quality Of Machine?
A: Meto Machine With Ce Certificate, We Have Been Focusing On Quality Issues,quality Control From Beginning To The End, And We Will Test Machine Strictly Before Packing And Delivery.
Q:do You Have Any Other Services About Your Products?
A:we Have A Lot Of Experience On Making Projects And Specifications For Our Clients, Also We Have A Fixed Service System.
