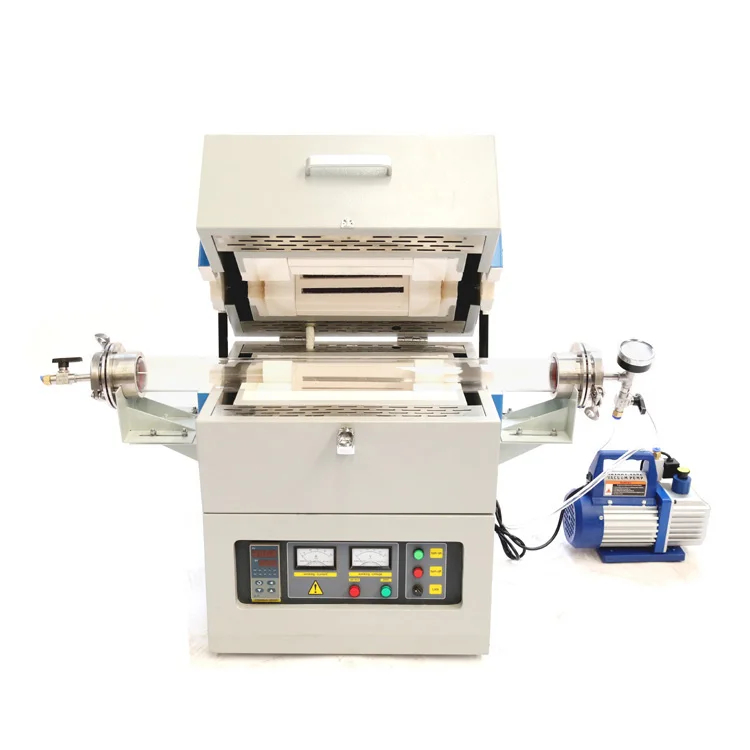

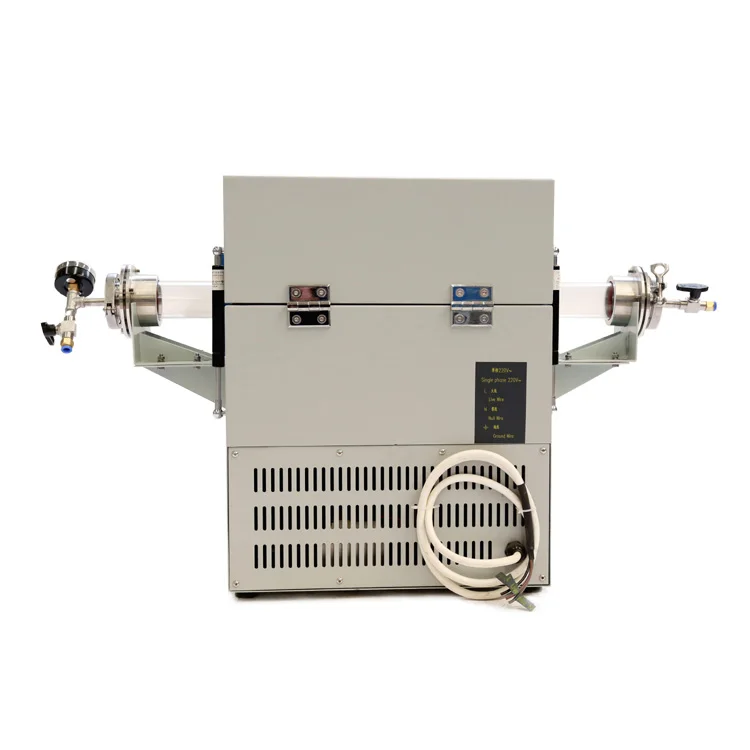

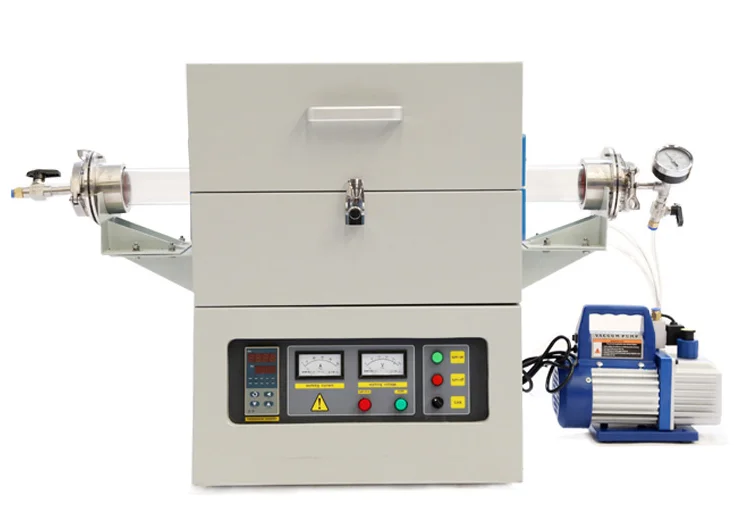

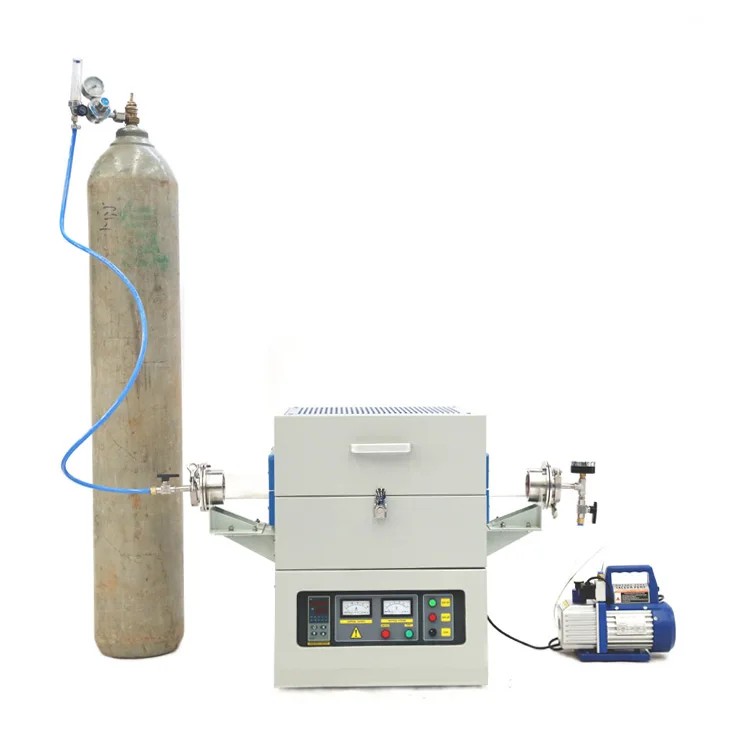

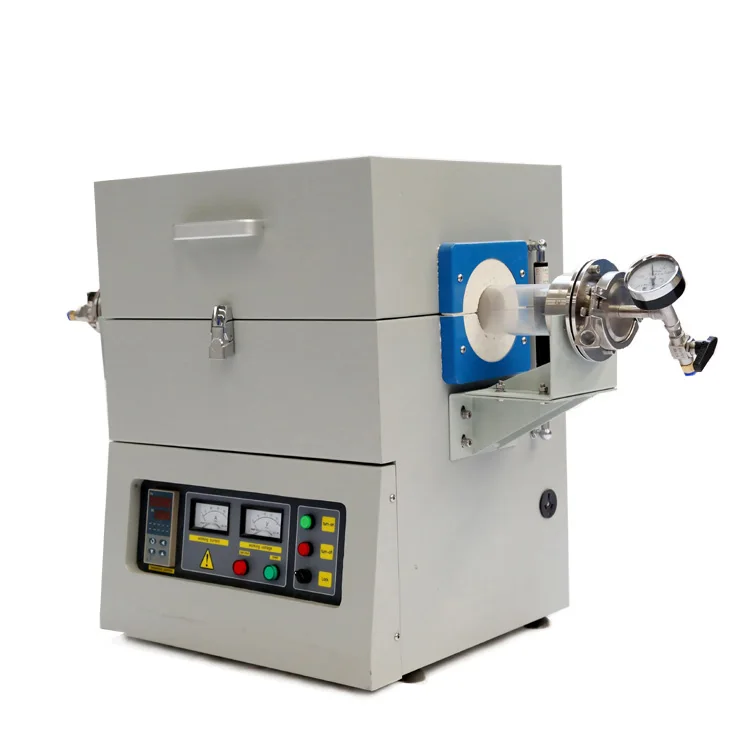

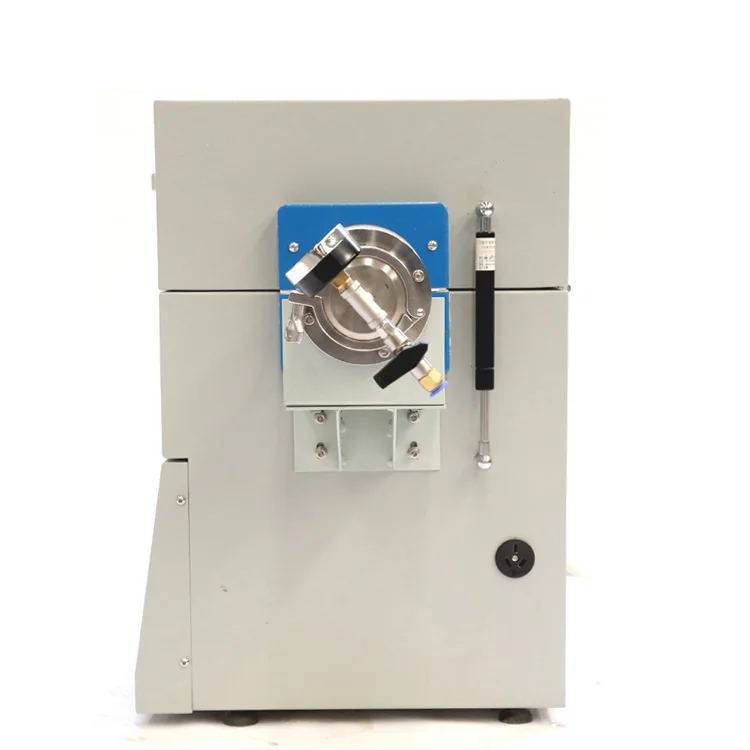

Factory price Nitrogen argon atmosphere horizontal vacuum tube furnace laboratory 1200C
- Category: >>>
- Supplier: Nanyang Dadi Electric Equipment Co. Ltd.
Share on (1600469377931):
Product Overview
Description
Factory price Nitrogen argon atmosphere horizontal vacuum tube furnace laboratory 1200C
Our Services
Product Description
XY-1200RTF rotary tube furnace is designed for calcining inorganic compound with better uniformity,especially excellent for preparing Li-Ion battery cathode materials with conductive coating, such as LiFePO3,LiMnNiO3,etc in R&D Laboratory.
Technology parameter
Product application: Widely used in enterprises and institutions scientific research and small batch production, as well as colleges and universities involved in scientific research and teaching of ceramics, metallurgy, electronics, glass, chemical, machinery, refractory materials, new material development, special materials, building materials in the field.
The detail specifications of Factory price Nitrogen argon atmosphere horizontal vacuum tube furnace laboratory 1200C
| Max.temperature | 1200C |
| Working temperature | 0-1100C |
| Tube diameter | 40mm or as your requirement |
| Tube heating length | 205mm |
| Tube material | High quality 99% quartz tube |
| Heat element | Resistance wire |
| voltage and frequency | 220v 50Hz/60Hz |
| Heating rate | 0-20C/min |
| Temperature accuracy | ±1°C |
| Thermocouple | K type |
Temperature control | Adopt international advanced temperature controller, with 30-50 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty. |
Max.vacuum | -0.1Mpa |
Inlet gas/Atmosphere | It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc |
| Gas control | The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump. |
| Vacuum system | Use Stainless steel vacuum flange with vacuum gauge,valve;Easy to unload, double seal |
Furnace shell structure | Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury. |
Temperature control security | The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe. |
| Furnace Chamber material | Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace. |
| Sandard accessories | Vacuum pump 1pc, Crucible tongs 1pc, Thermal gloves 1 pair,User manual 1 pc,other small tools for assembly furnace |
| Other temperature options | 1200C,1400C,1700C,1800C |
| Furnace standard Tube size | Tube diameter:40mm,60mm,80mm,100mm or other OEM size; Heating zone length:200mm,350mm,440mm or other OEM size. |
| Waranty | One year |

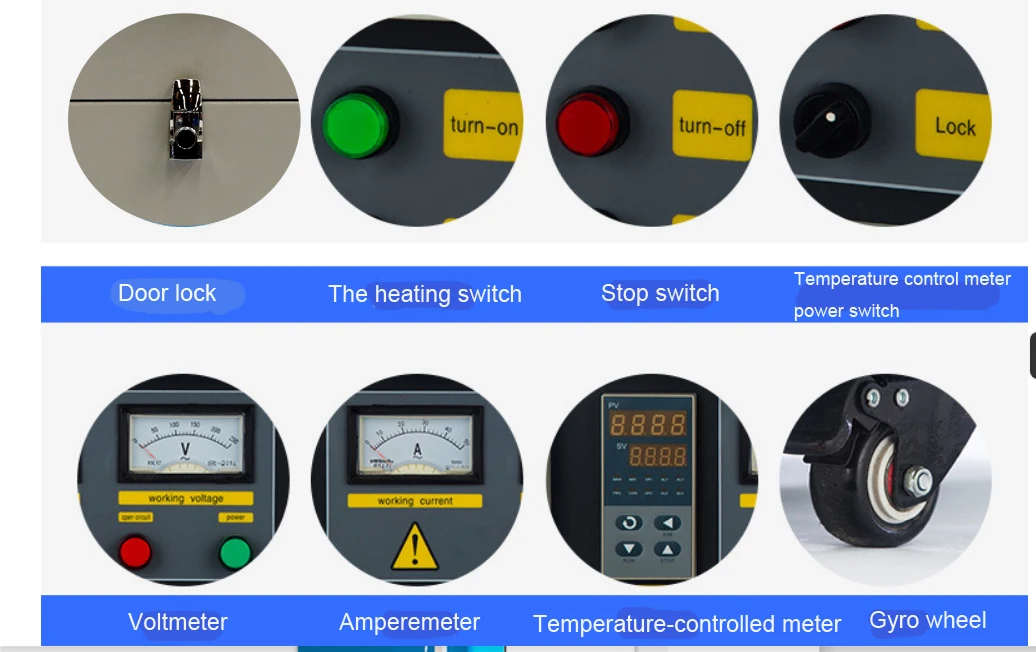

Detailed Images

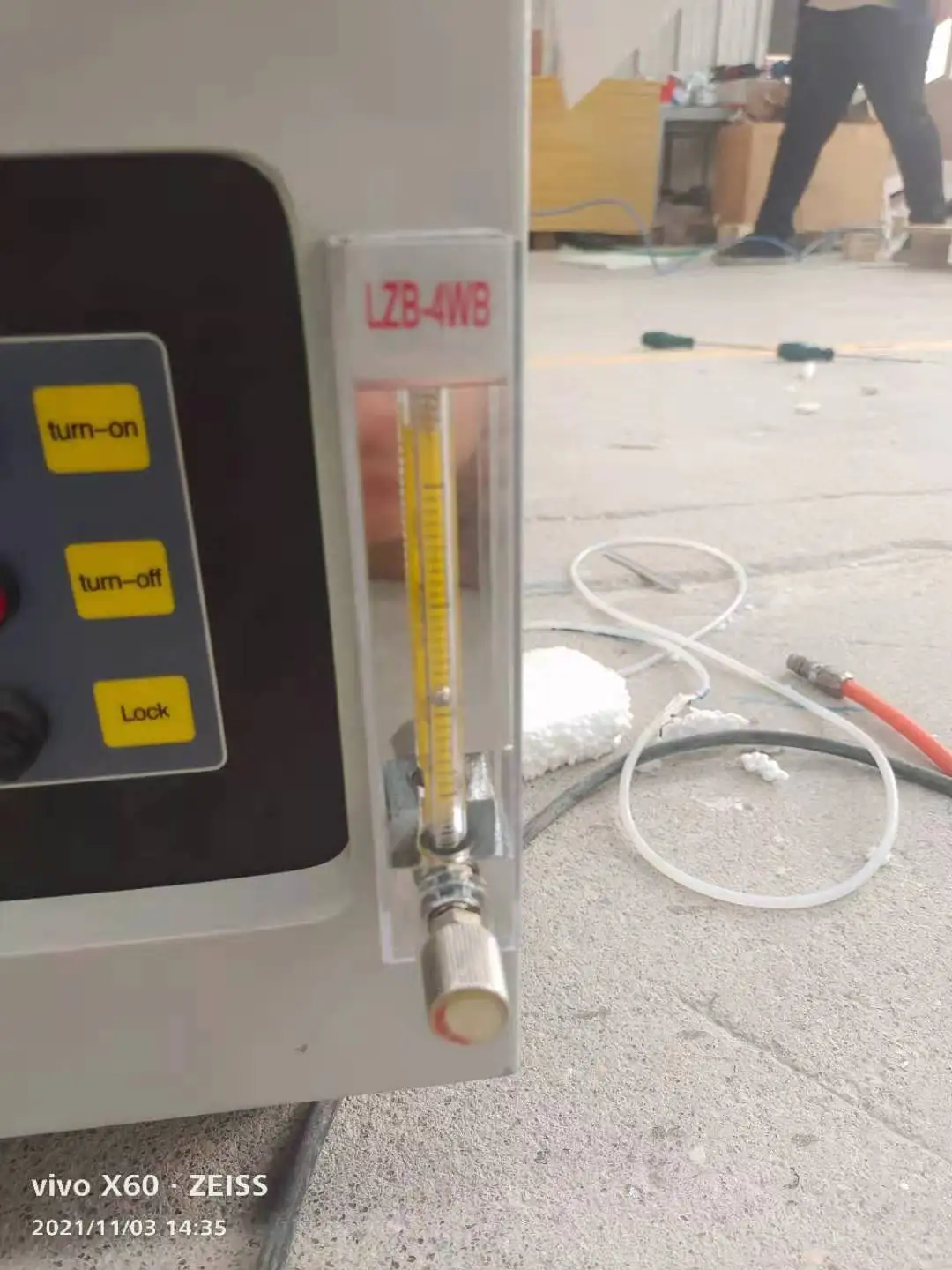

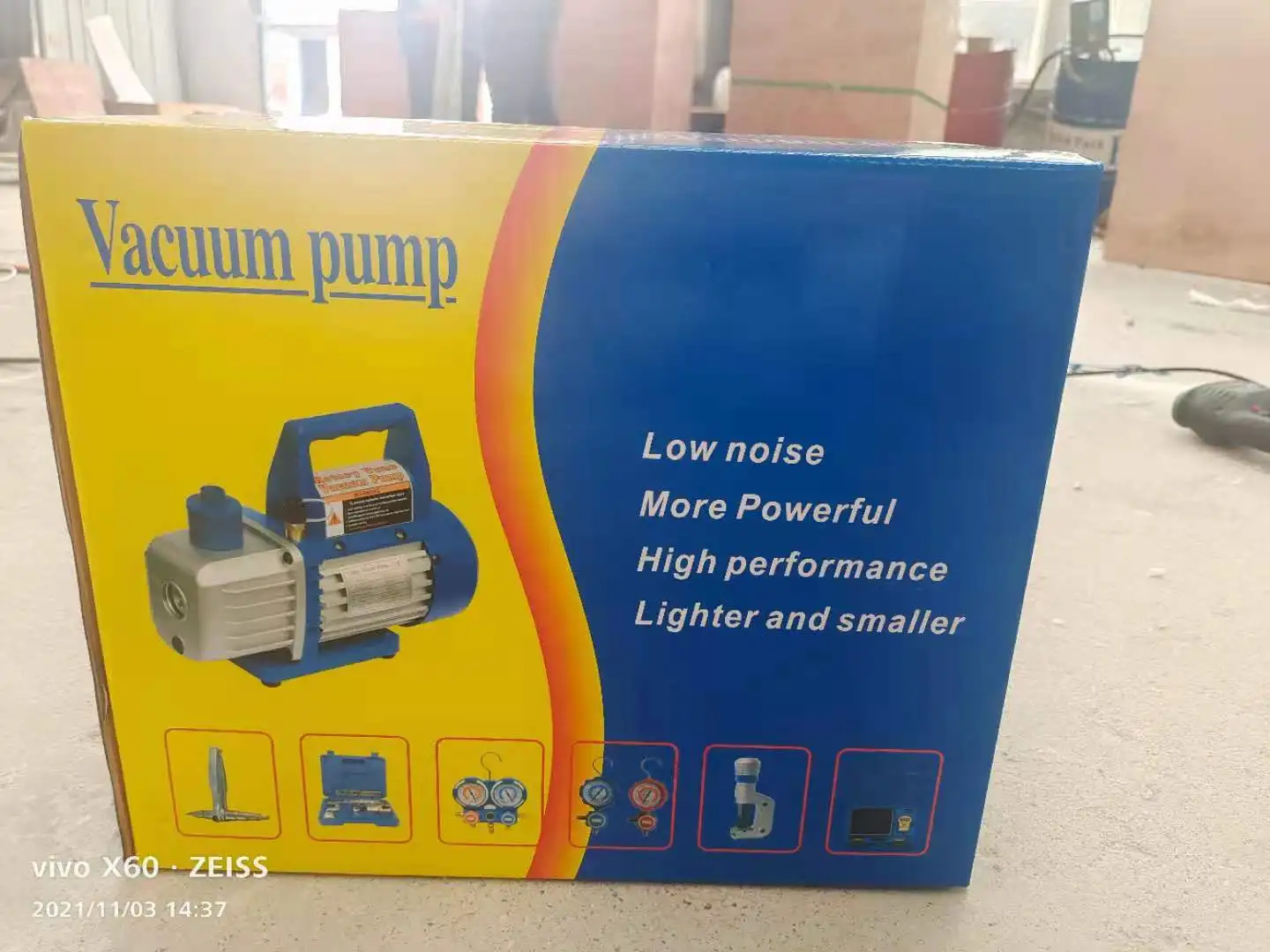

1.Float flowmeter 2.Vacuum system
Clear and accurate measurement of airflowClear Adopt VP125/VP180
and accurate measurement of airflow monoblock pump
3.High quality quartz tube 4.Vacuum system
Resistance to high temperature and oxidation 314 High vacuum stainless steel flange with vacuum gauge and valve

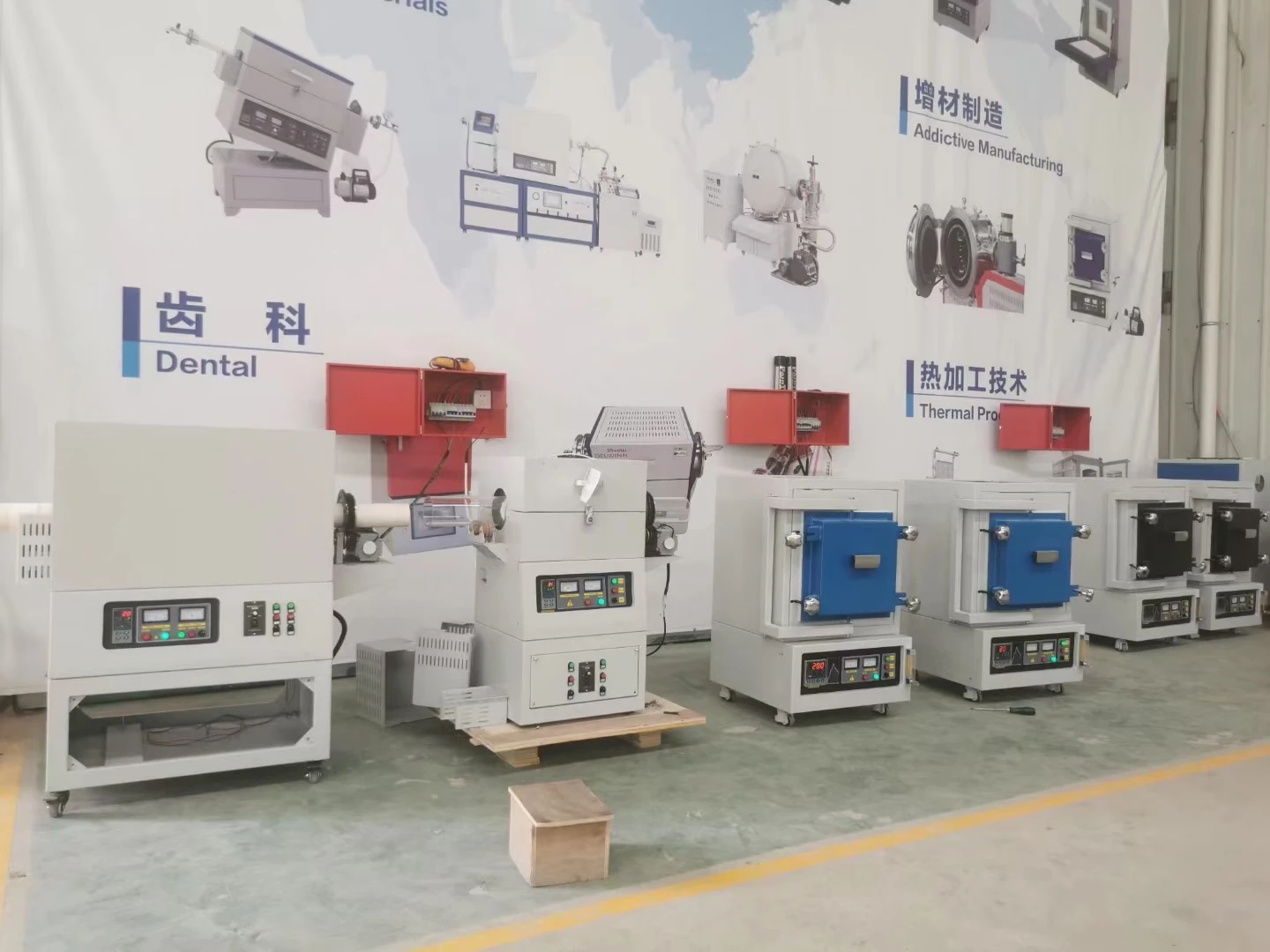

High temperature furnace test area
Certifications
Our products have passed CE certification, SGS,UL,ISO9001 and other certificates.
Company Information
Nanyang Xinyu New Material Technology Co., Ltd is a professional Heat treatment furnace manufacture which with more than 15 years experiences.
We have Professional technical engineers team, complete scientific management system, standard workshop and strict quality-monitoring framework.
The most important thing is that we have our own furnace shell processing factory, which has a great advantage for delivery time and price.
Our furnaces have been exported to more than 30 countries and with good feedback from our customers.
Our quality policy is "first-class Quality, first-class technology and sincere service to make customers satisfy".Our eternal faith is "living on quality, reputation on honesty, development on mutual benefit". We are looking forward to offering our best services to our friends from at home and abroad.
Mainly products:
Car bottom furnace | High vacuum furnace | Tube furnace |
Muffle furnace | Atmosphere furnace | Crucible furnace |
Bottom loading furnace | Dental sintering furnace | Etc. |
How to make an order
FAQ
1. Q:Are you muffle furnace manufacturer?
A: Yes, we are professional muffle furnace manufacturer of China.
2. Q:What kind terms of payment can be accepted?
A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc.
3. Q: Can I ask for customized furnace?
A: Yes, customized furnace is accepted.
4. Q: What about the delivery time?
A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.
5. Q: What about the guarantee period?
A: The guarantee period is 12 months.
6. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
