Professional manufacturer digital colposcope for gynecology vagina video colposcopy
- Category: >>>
- Supplier: Xuzhou Lianchuang Medical Equipment Co. Ltd.
Share on (1600469396347):
Product Overview
Description
Professional manufacturer digital colposcope for gynecology vagina video colposcopy
Products Description

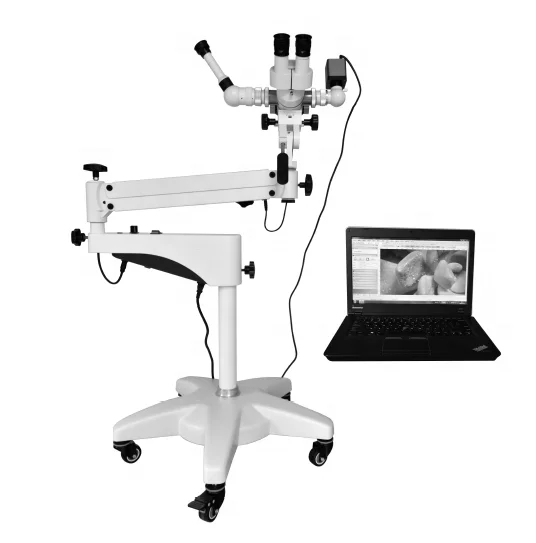

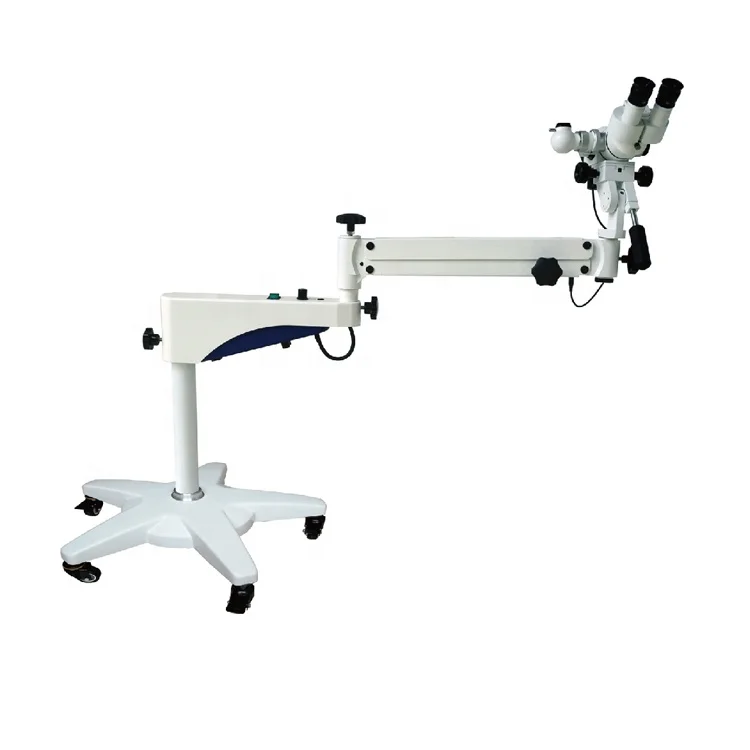

LC-9200C was developed for the diagnosis and study of vagina and cervix pathologies.
Equipped with stereoscopic microscope, video system, powerful LED lighter and ergonomic stand, whereby meets highest quality and functional standards.
Premium optical system allows to obtain three-dimensional image of the examined area excluding color or size geometric distortion.
Premium optical system allows to obtain three-dimensional image of the examined area excluding color or size geometric distortion.

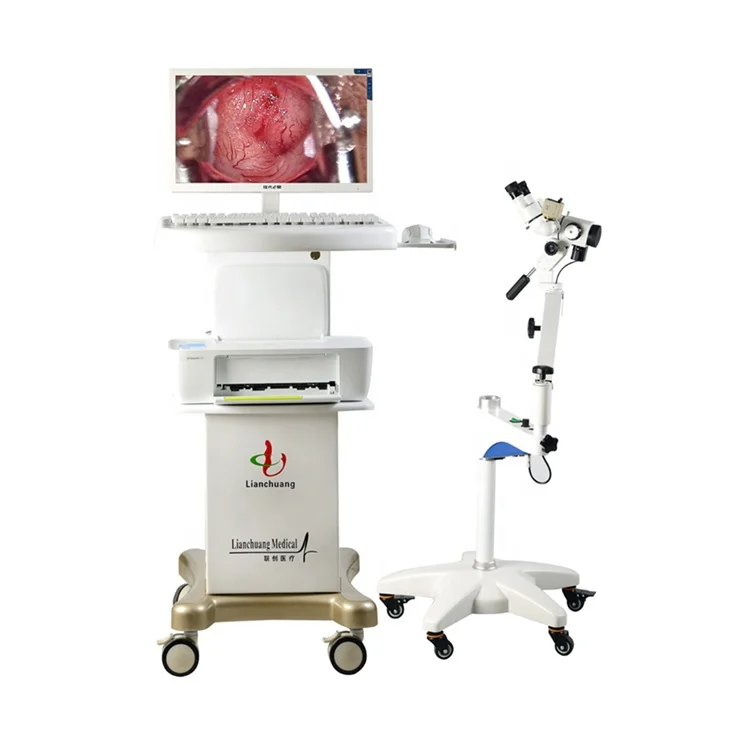

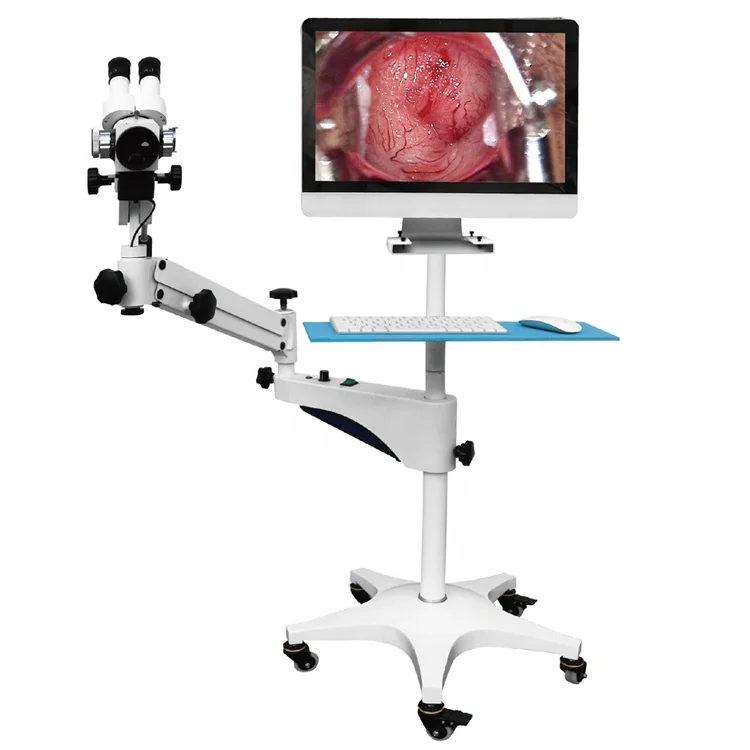

The colposcope video system provides output to HD LCD monitor or Lap-top and simultaneous connection to a PC with the software package which is developed by ourselves.
Compatible with all types gynecological examination chairs
Compatible with all types gynecological examination chairs

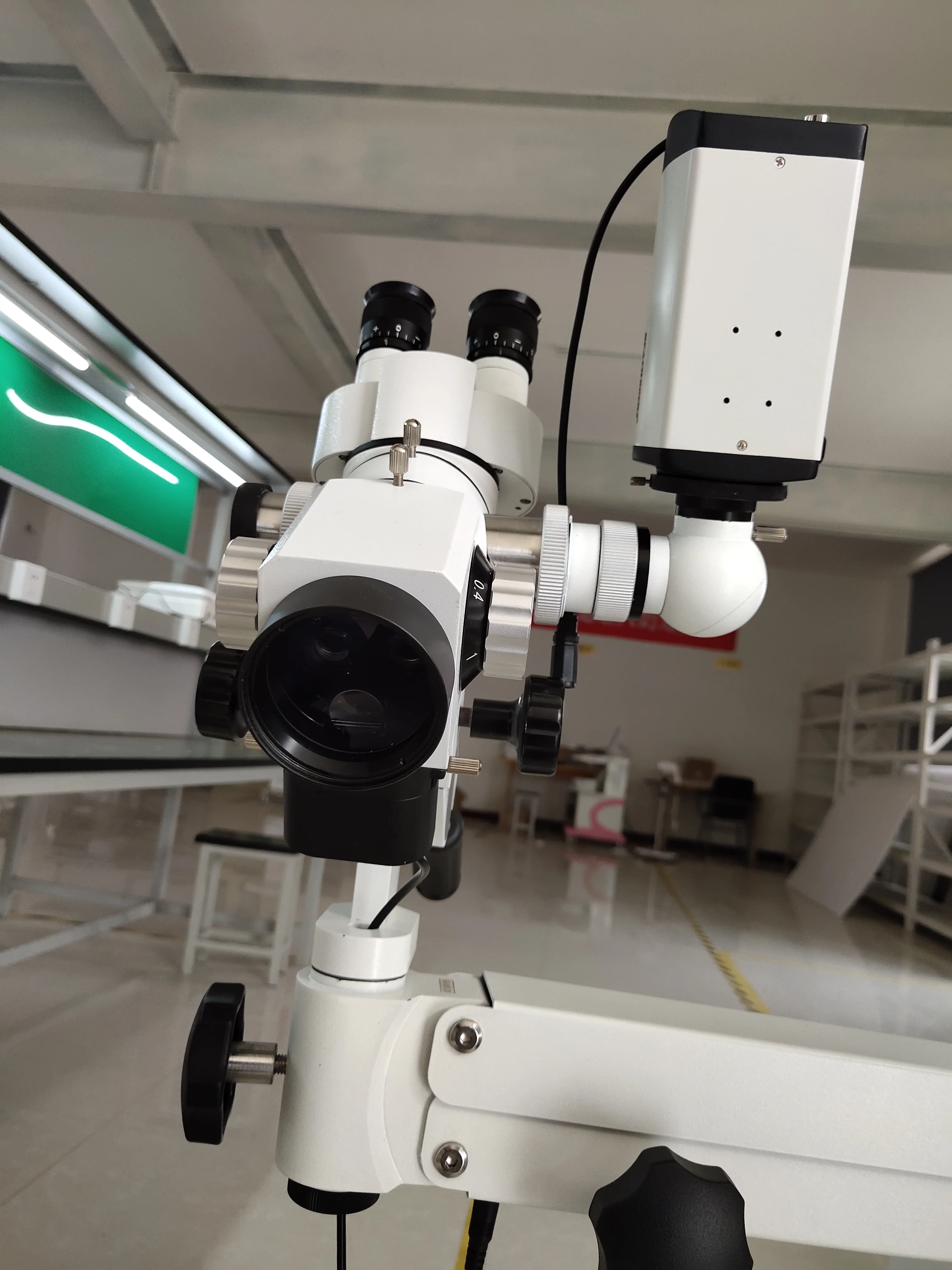

Camera Optical System
pre-cancerous,pathological changes before the point of blood vessels,colunar epithelial and some small lesions to provide true 3D
visual Effects.

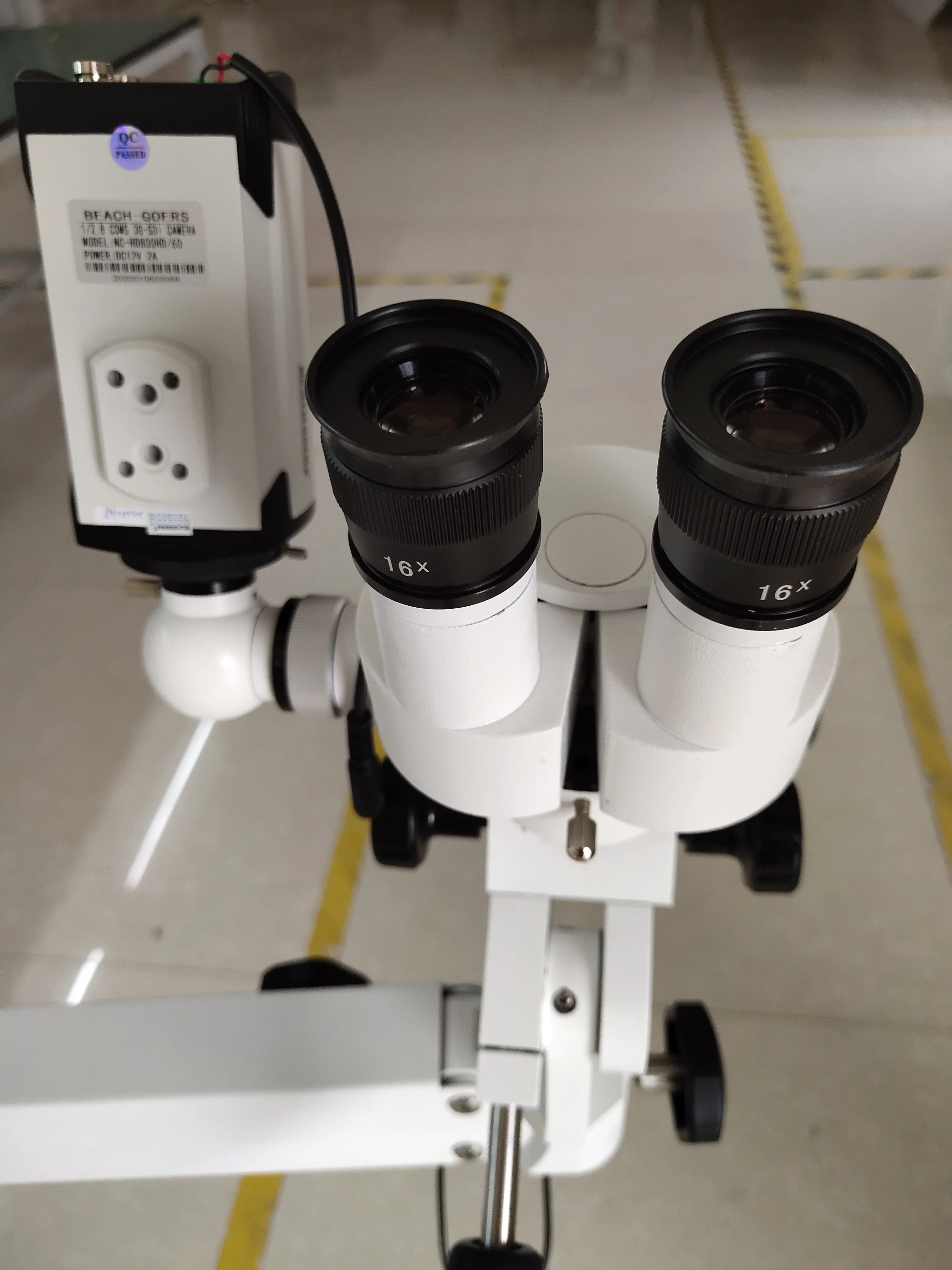

Binocular eyepieces
Five-step Zoom

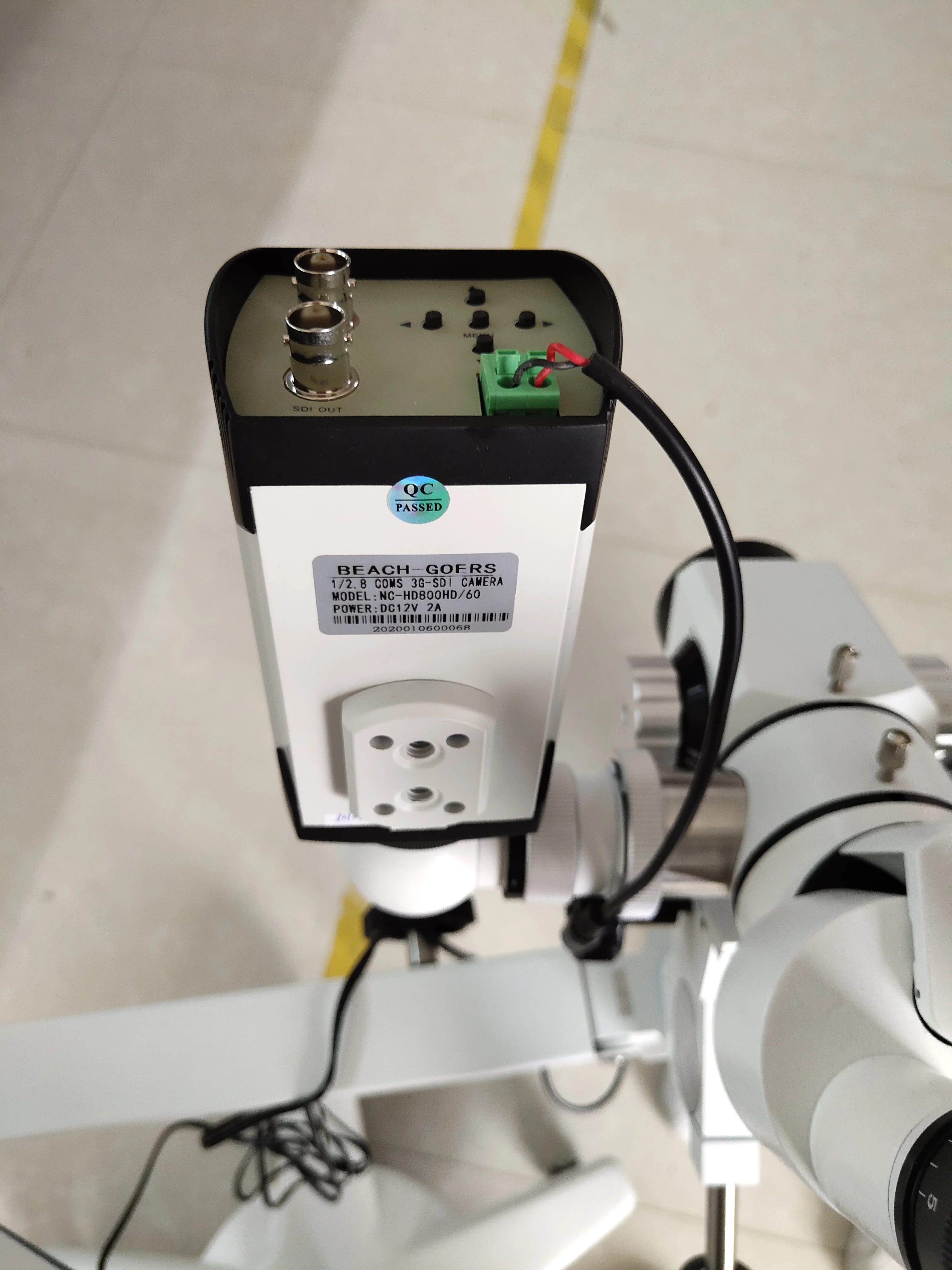

HD CCD Camera
1200000 pixels
Horizontal resolution:1080p/60
CCD interface Type:USB 3.0
CCD Objective focal length:65mm
Standart complet set:
Optical eyepiece system
1/3 Sony HD CCD with 2.1 Million effective pixels
LED Light source

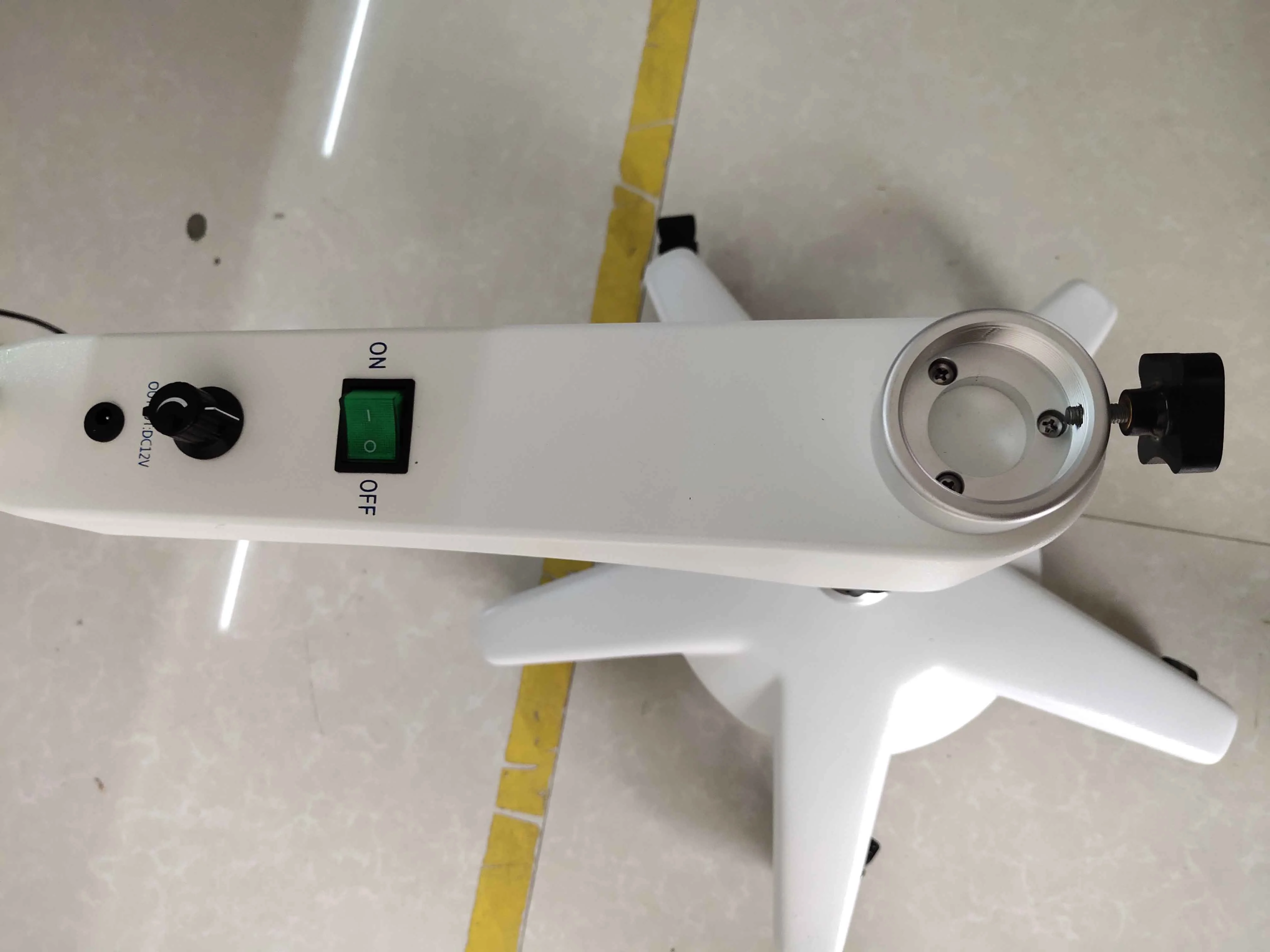

Comfortable stable 5-wheel base
Software for saving and printing
USB interface
Foot switch for image capturing and video record.
1/3 Sony HD CCD with 2.1 Million effective pixels
LED Light source
Comfortable stable 5-wheel base
Software for saving and printing
USB interface
Foot switch for image capturing and video record.

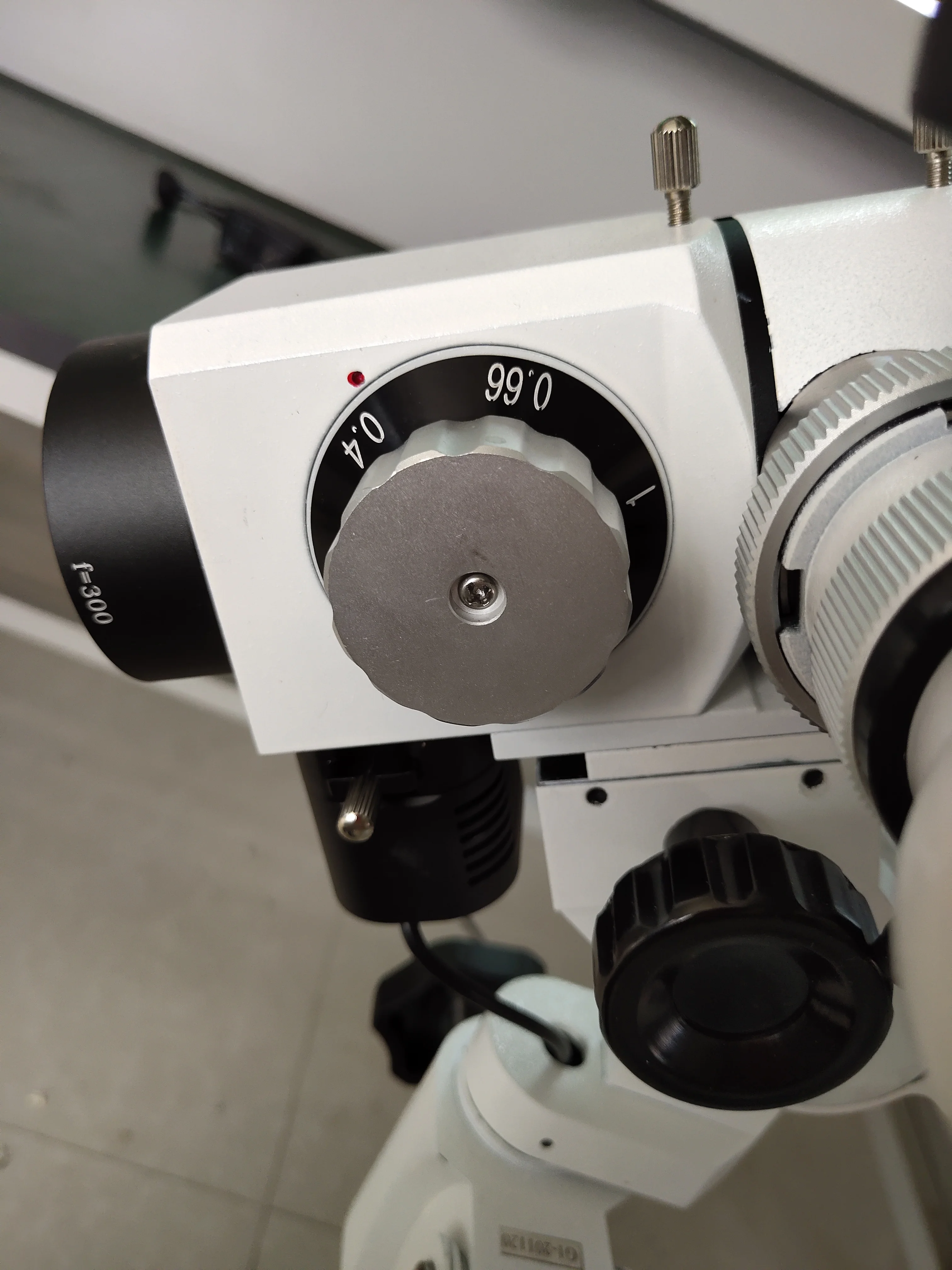

5-step zoom
5-step magnification (2.7X-16.6X) provides larger magnifying range and more selection on magnification to meet the requirement of your practice, from lowest magnification for an overview to high magnification for precise and close inspection and treatment.

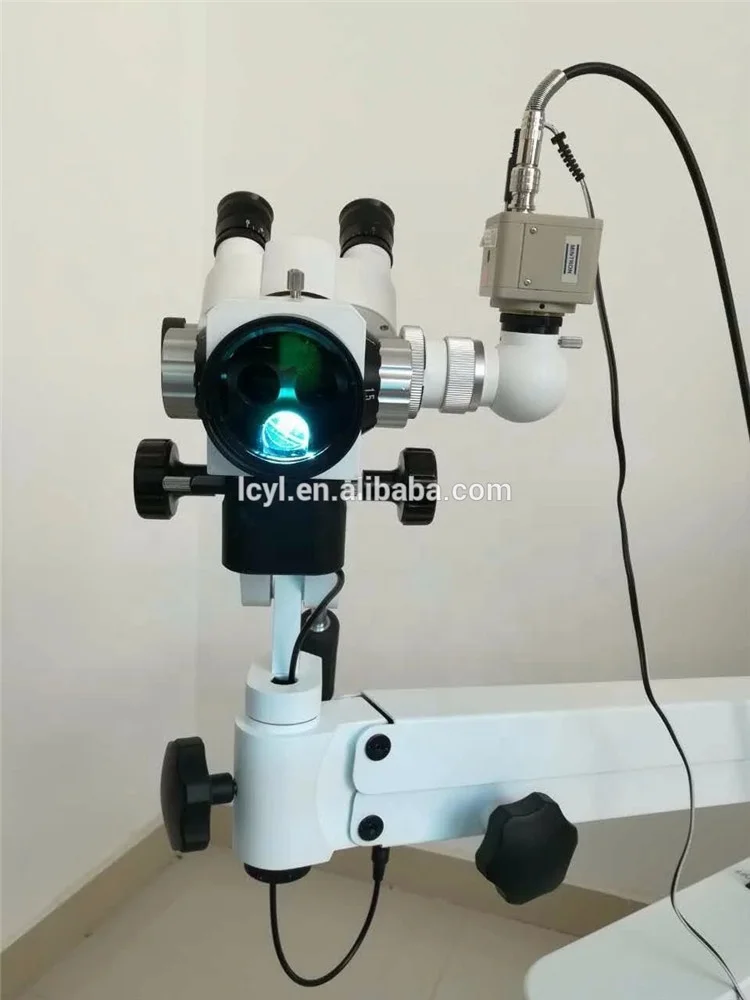

LED illumination
LED light source, high brightness, long life, concentrated lighting, can clearly distinguish the condition of the disease.
Cold light source fiber optic lighting system, equipped with green filter, color temperature 5500K, high brightness, low power consumption.
Service life ≥ 50000 hours, no light loss, no distortion. The system is equipped with a green filter to improve the contrast of blood vessel images and observe the heterosexual blood vessels on the surface of the cervix more clearly.
Product Presentation
Powerful software management
Unique image capture function | With foot switch and software two ways of capturing, recording, and can realize dynamic, static, full screen image capture, 100 color images can be collected at each checkeach inspection is able to collect 100 color images. |
Powerful image processing function | With dynamic and static image comparison function, can be compared with standard image, and the collected images can be zoomed in,zoomed out, negatively imaged, marked, text annotated, partial magnified , area perimeter calculated etc, which is more convenientfor doctors to identify the diseased tissue |
Professional clinical diagnostic function | Professional case database (up to 175),satisfied cases images can be added,suitable for clinical contrast. The professional clinical diagnosis knowledge database provides a large number of editable clinical terms. With RCI automatic assessment system to make the inspection more objective and accurate. |
Rich report editing function | Built-in standard case report template,convenient for editing and printing. It can display 1-6 pictures in the same screen . The report template can be designed, modified, and output in PDF format. Provides evidence for prevention of medical disputes. |
Convenient and quick query statistics function | Search cases via case number,name, bar code, date of birth and date of examination ;Image display,datamodification,save,re-examination and video reply to the retrieved cases.Convenient for hospital information management, improve management efficiency. |
Technical Parameters: | ||
Focal length of objective | F'=230mm,F'=280mm | |
Magnification of eyepiece | 16X | |
Exit pupil diameter | 1.3mm/11.3mm | |
5-step magnification change | 0.4x 0.6x 1x 1.6x 2.5x | |
Total magnification | 2.7X-25X | |
Linear field of view | 11~84mm | |
Working distance | 250mm~350mm | |
Tilted angle of the viewers | 0°, 45° | |
Field of view | 8.8mm~55.0mm | |
Fine tuning | ±9mm | |
Lens Resolution | 1/3'CCD, effective pixels,1200,000 | |
Horizontal resolution | >500 line | |
SNR(Signal to Noise Ratio) | 48db | |
Lens Illumination(min) | 0.4Lx | |
Imange output of camera lens inteface | signal of NTSC/PAL vedio | |
Recommend Products

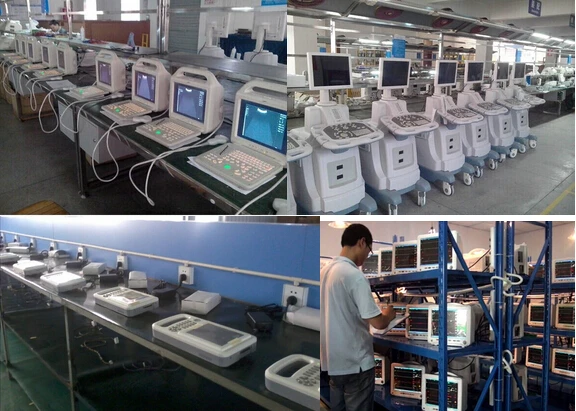

Company introduction
Xuzhou Lianchuang Medical Equipment Co., Ltd
We are a professional company specialized in the R&D, manufacturing, marketing and distribution of medical equipment.
We now supply our customers a wide selection if meical products which are used in hospital and clinics universally.
We are a professional company specialized in the R&D, manufacturing, marketing and distribution of medical equipment.
We now supply our customers a wide selection if meical products which are used in hospital and clinics universally.
The products cover Gynecological Digital Electronic Colposcope, Optical Colposcope, Infrared Brest Diseases Diagnostic Machine, Transcranial Doppler, Sperm Quality Analyzer, ENT Treatment Unit, Anorectal Treatment Device, Ultrasound Scanner, Color Doppler Ultrasound System, ECG, Pulse Oximeter and home care products etc.
Company Profile

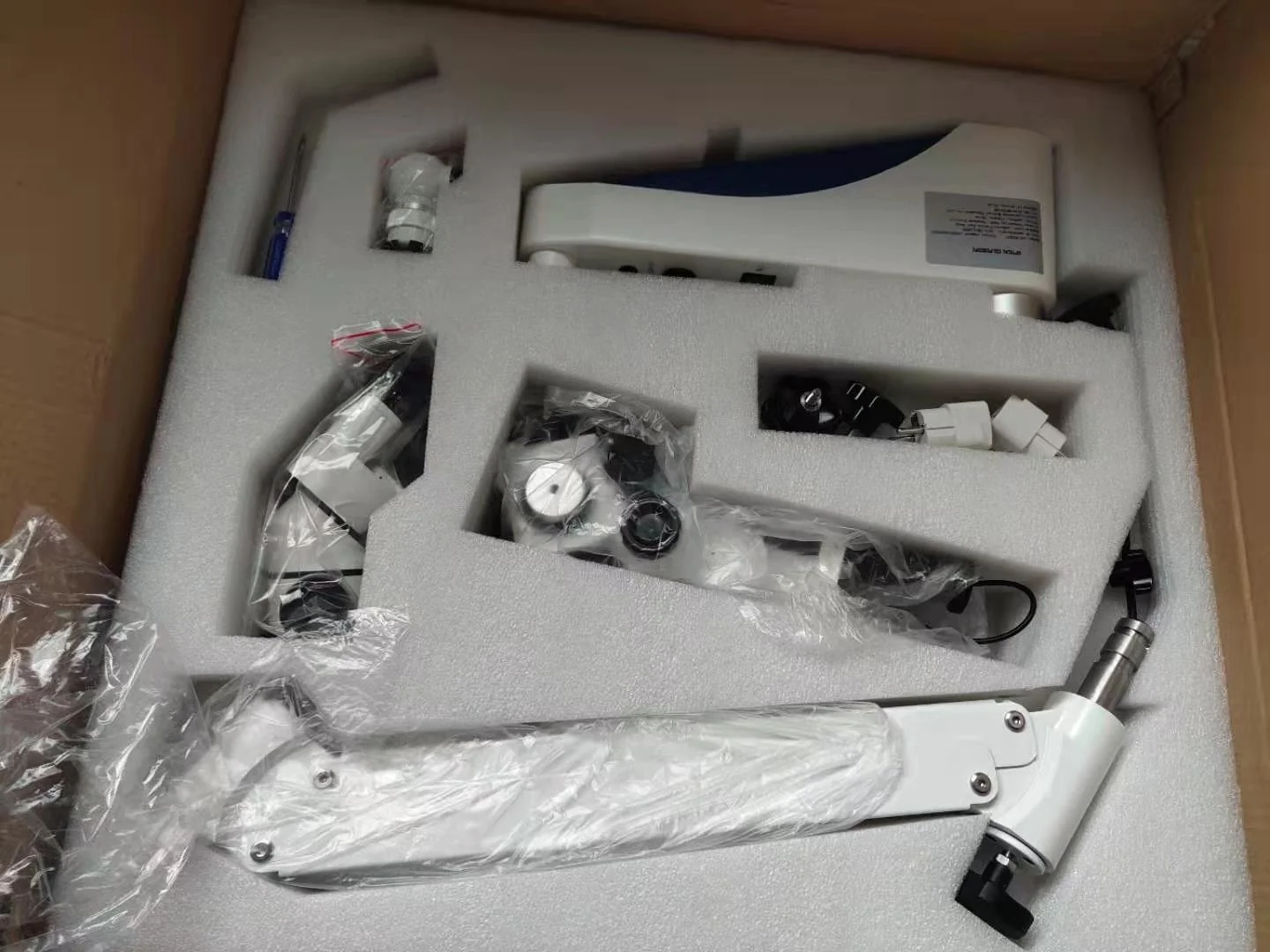

Packing&Shipping
