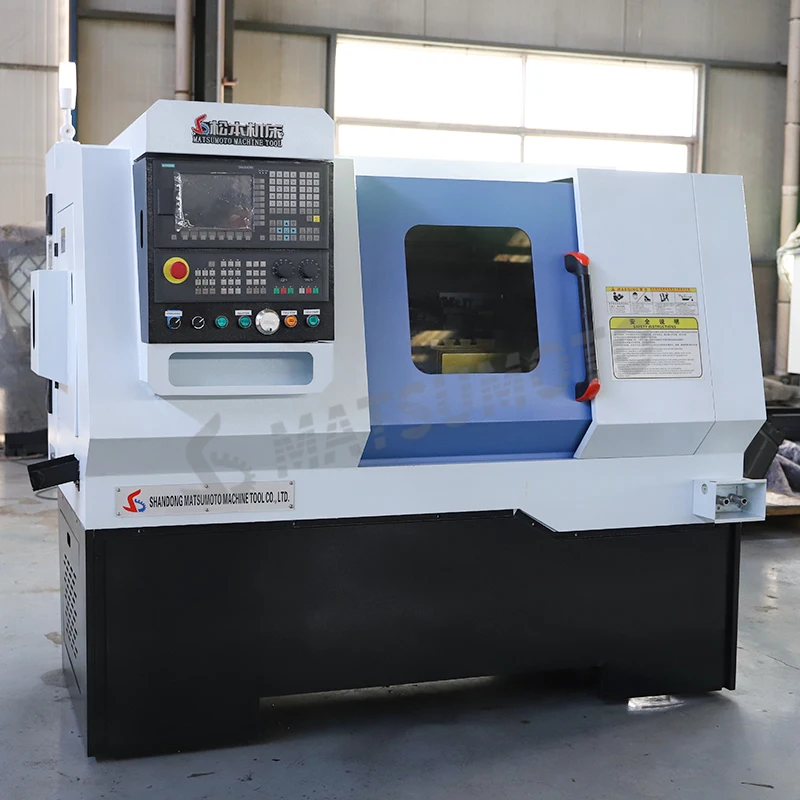

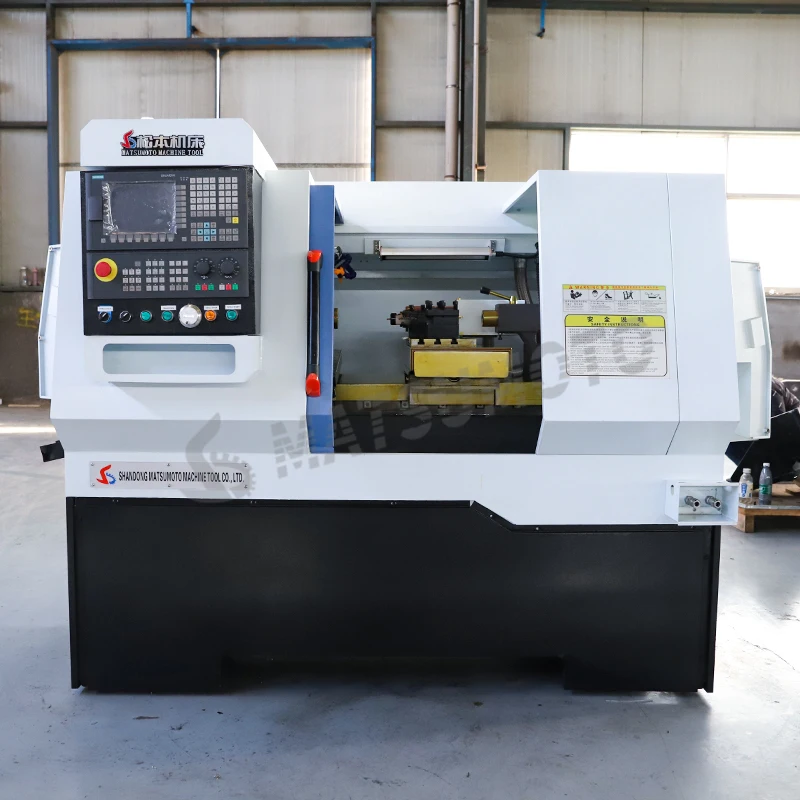

High Quality Swiss Type Cnc Lathe Machine Ck6132 Sliding Head Cnc Lathe machine from china type cnc automatic lathe
- Category: >>>
- Supplier: Shandong Matsumoto Machine Tool Co. Ltd.
Share on (1600469402447):
Product Overview
Description
Recommend Products
Products Description
Product Paramenters
Auto cnc machine programming high precision metal lathe CK6132 for sale uses the design of mechanical and electrical integration,generous appearance beautiful, reasonable structure, easy operation. The machine adopts the integral bed foot, the stability is better. Wear-resistant cast iron after ultra-audio quenching treatment, to ensure the accuracy of the equipment and stability. The fully enclosed cover ensures that a drop of water does not leak out of the machine.
Model | CK6132 |
Max. swing dia. over bed | 320mm |
Max. swing dia. over cross slide | 130mm |
Max. processing length | 400mm |
Dia. of spindle | 49mm |
Spindle taper | MT5 |
Through hole dia. of drawing pipe | 41.5mm |
Spindle tie rod thread | M48×1.5 |
Spindle speed | 10-3000mm |
Spindle head type | A2-5 |
Taper of spindle bore | 21° |
Tool holder | 3 gang tools |
Tool bar section | 20*20 mm |
Main motor power | 3.7 kw servo （3phase 380v 50hz） |
X/Z axis torque | 4N.M/6N.M |
X/Z axis travel | 550/400 |
X/Z axis fast feeding speed | 12/12 m/min |
Tailstock sleeve travel | 100mm |
Tailstock taper | MT4 |
Dimension | 2100*1500*1700mm |
Weight | 1200/1300kg |
Standard Configuration:
1) System:GSK928TD-L, servo motor and drive.

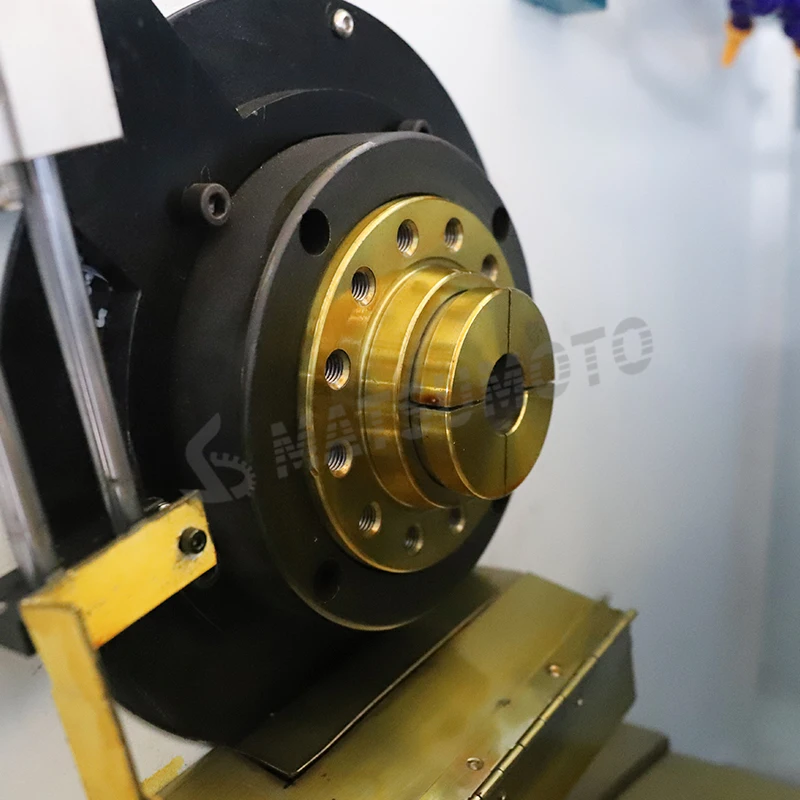

2) Pneumatic collet.

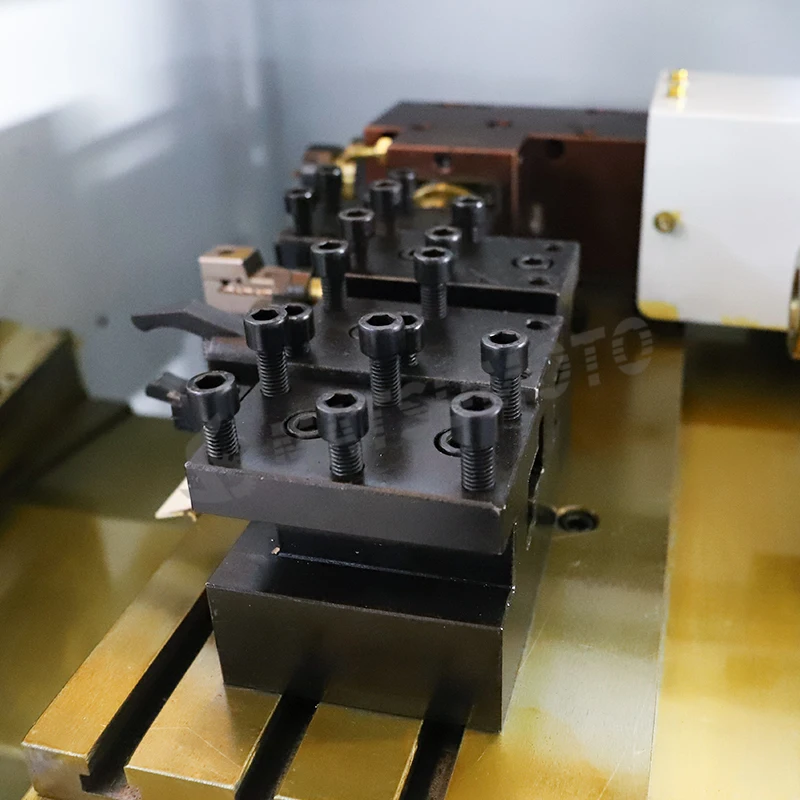

3) Gang type tool post.
4) Cooling system.
5) Lighten system.
6) Automatic lubrication system.
Optional Configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2). Hydraulic chuck, Pneumatic chuck .
3). Hydraulic tailstock, Pneumatic tailstock.
4). 4/6/8-station electric turret.
5). Automatic bar feeder, Chip conveyor.
1) System:GSK928TD-L, servo motor and drive.
2) Pneumatic collet.
3) Gang type tool post.
4) Cooling system.
5) Lighten system.
6) Automatic lubrication system.
Optional Configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2). Hydraulic chuck, Pneumatic chuck .
3). Hydraulic tailstock, Pneumatic tailstock.
4). 4/6/8-station electric turret.
5). Automatic bar feeder, Chip conveyor.
Details Images
Company Profile
Certifications
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
