Product Overview
Description
Product Overview
A3 uv dtf printer stickers printing machine uv inkjet printers with varnish
UV dtf printer with new printing technology for printing on AB film crystal label sticker. It can print on wood, ceramic, glass, metal etc... it also can print on bottles and cups with cylinder printing device. The max printing size is 36*42 cm. You can print different materials and size objects. Printed sticker can stick on different objects.
FEATURES AT A GLANCE

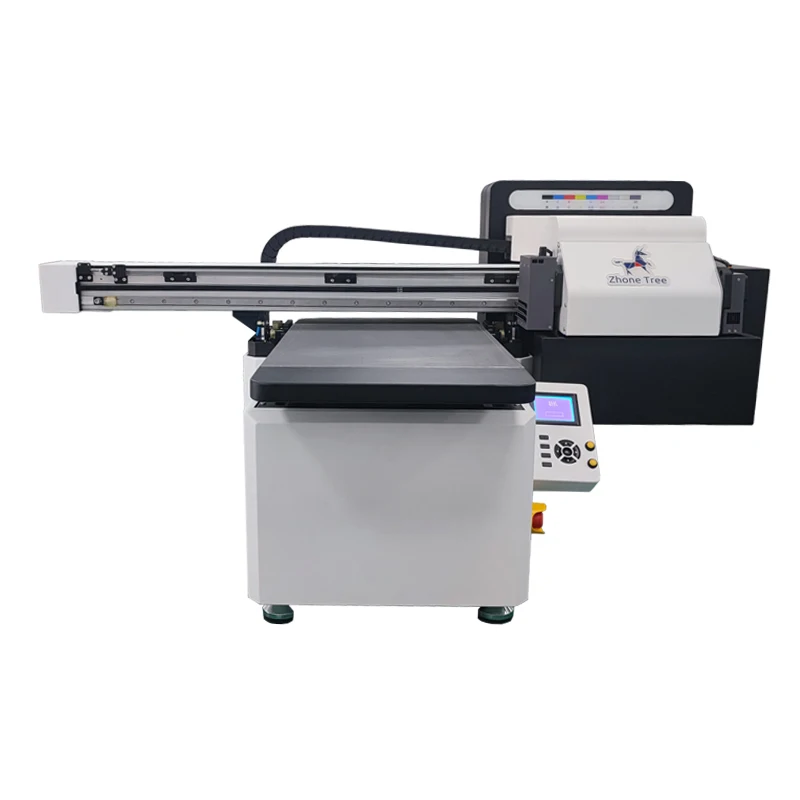

A3 uv dtf printer stickers printing machine
CMYK LC LM W V 8 colors uv ink metal printing machine uv inkjet printers with varnish
CMYK LC LM W V 8 colors uv ink metal printing machine uv inkjet printers with varnish
SUTIBLE DIMENSIONS
MULTIFUNCTION
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
UV FLATBED PRINTER
DTF FILM PRINTING MACHINE
BOTTLE PRINTING MACHINE
ZT-3350X ProRotary device for bottle
ZT-3350X Pro bottle printing
Bottle printing sample show
PRODUCT SPECIFICATIONS
No | Item | Data | ||||
1 | Power | 300W | N/A | N/A | ||
2 | Max Printing size | 36*42CM | N/A | N/A | ||
3 | Ink System | UV Curing Ink, Coating, Cleaning solution | Coating | Cleaning solution | ||
4 | Ink Colors | CMYKLCLM, CMYKLCLM+W, CMYKLCLM+W | CMYKLCLM+W+V | |||
5 | Printing materials | plastic, glass, wood, ceramic tiles, acrylic, etc... | glass | wood | ||
6 | Printing height | 20cm | N/A | N/A | ||
7 | Print head | XP600 | i3200 | G5 | ||
8 | After sale service | Using manual, installation videos, online training | Training videos | Online support | ||
PRODUCT CONFIGURATION
High rigid aviation industry aluminum integral casting fuselage to ensure machine stability. The whole machining center ensures machine precision.
Adopt Japanese imported THK guide rail to ensure stable movement of machine.
High performance screw Y-axis drive screw: adopt Taiwan HIWIN high-precision grinding screw, high precision, low noise, wear resistance.
Big format Vacuum platform 36*42cm. All-aluminum lightweight vacuum platform. The Teflon coated adsorption vacuum table can print on the flexible material but without scratch the print head.
Direct printing of solid media up to 200 mm thick makes printing materials more extensive.
It can print the object with Max 200 mm thickness. More printing options.
High quality linear rail for carriage moving under high speed just for make sure the high precision and printing quality.Imported high-speed silent drag chain stable operation and silent, greatly reducing the wear of the wiring harness
High-precision print head bottom plate
It can ensure the installation standard of the print head and ensure the improvement of printing quality.
Acrylic dust cover protects print head more effectively
Three LED UV Lamp The light intensity can be adjusted arbitrarily, adapted to different products and UV ink printing. The life of the LED lamp is five times that of the mercury lamp.
White ink circulation pump.
To make white ink more smoothly. To keep it circulation in the white ink bottle in limited time.
Automatic height measurement function. Includes automatic height measurement function for printing materials, and the anti-scratch function of the inductive print head, which makes printing height measurement more convenient and quick, and greatly improves the service life of the print head
Complete ink tank system with CMYKLCLM+W+Varnish. It config white ink circulation system, Ink shortage alarm system, each ink bottle has air-filter to make ink go through more smoothly to ink tube.
LED metal display button for Power button and vacuum table button.
Easy to control the vacuum table to hold flexible materials.
Emergency stop switch to Ensure the safety of the machine during printing.
Successful Project

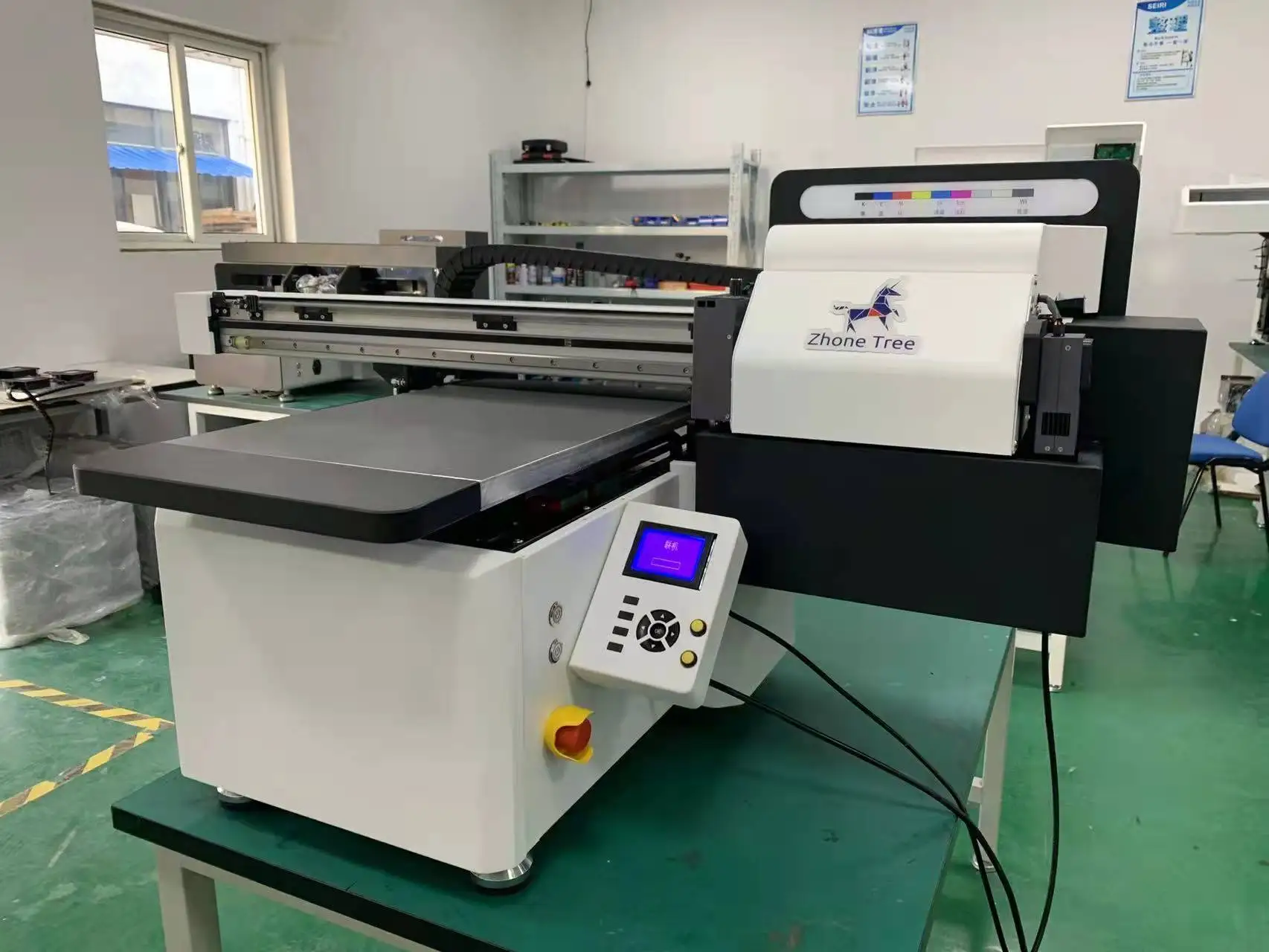

UV printer a3 with XP600 Print Head uv hybrid flatbed printer
A3 uv dtf printer stickers printing machine uv inkjet printers with varnish
A3 uv dtf printer stickers printing machine uv inkjet printers with varnish
Zhone Tree ZT-3350X Pro sample printing show. It can print on phone cases, plastic, Stone crafts, Gift box, metal, acrylic, crystal, etc... different materials different items with the max printing height 200 mm.
UV Printer Ceramic tile Printing
UV Printer for canvas oil Painting
UV Printer plastic box Printing
UV Printer for wood printing
UV Printer for rotary bottle printing
UV Printer plastic phone case printing
Gold printing result with gold film
Gold printing result with gold film
Gold printing result with gold film
UV printer with I3200 Print Head Metal Acrylic UV Flatbed Printer for Business Card can also do crystal AB film printing and gold film printing.A3 uv dtf printer stickers printing machine uv inkjet printers with varnish
It can print on the A film first, then transfer the B film, and then transfer to the object.This is new technology recently. Hot sale methods in many countries. The advantage is that there is no need to make all the printing tools, and it is more convenient to print on the product which the surface is not flat. And the printing material will be more diverse.
UV Printer for AB crystal film printing
UV Printer for AB crystal film printing
UV Printer for AB crystal film printing
UV Printer for AB crystal film printing
UV Printer for AB crystal film printing
UV Printer for AB crystal film printing
UV Printer for silver film printing
UV Printer for gold film printing
UV Printer for gold film printing

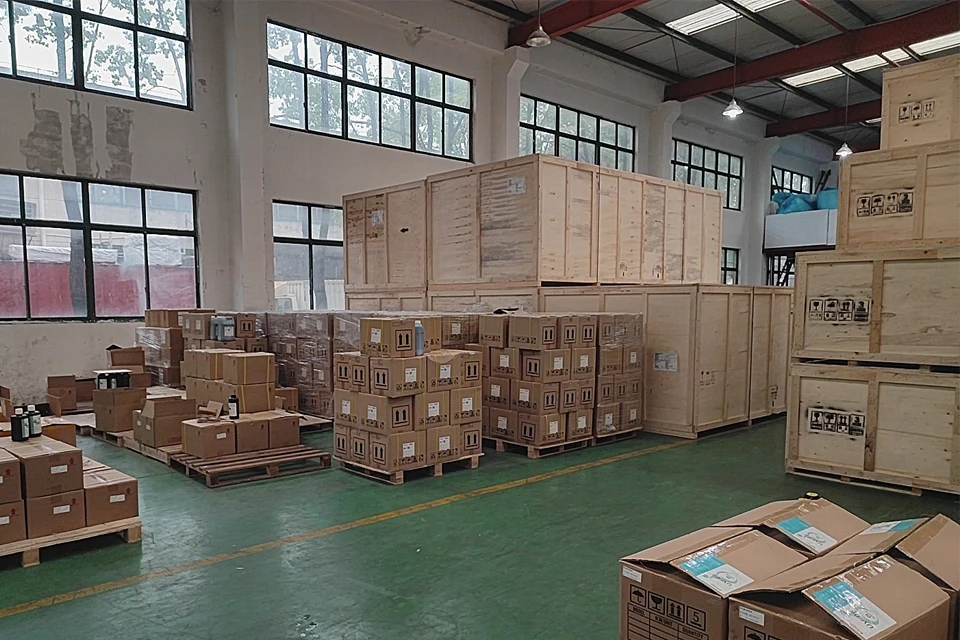

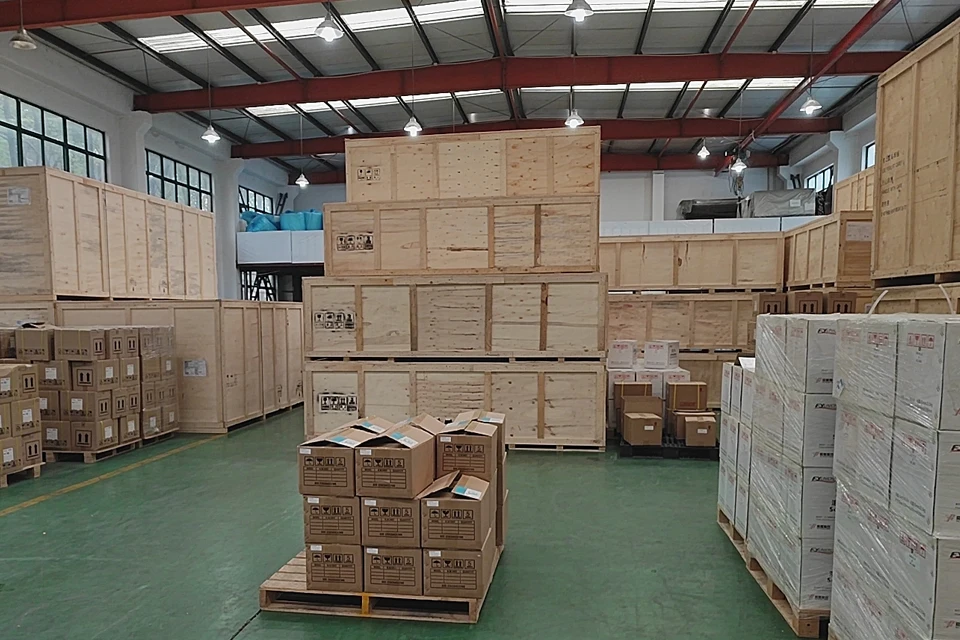

COMPANY PROFILE

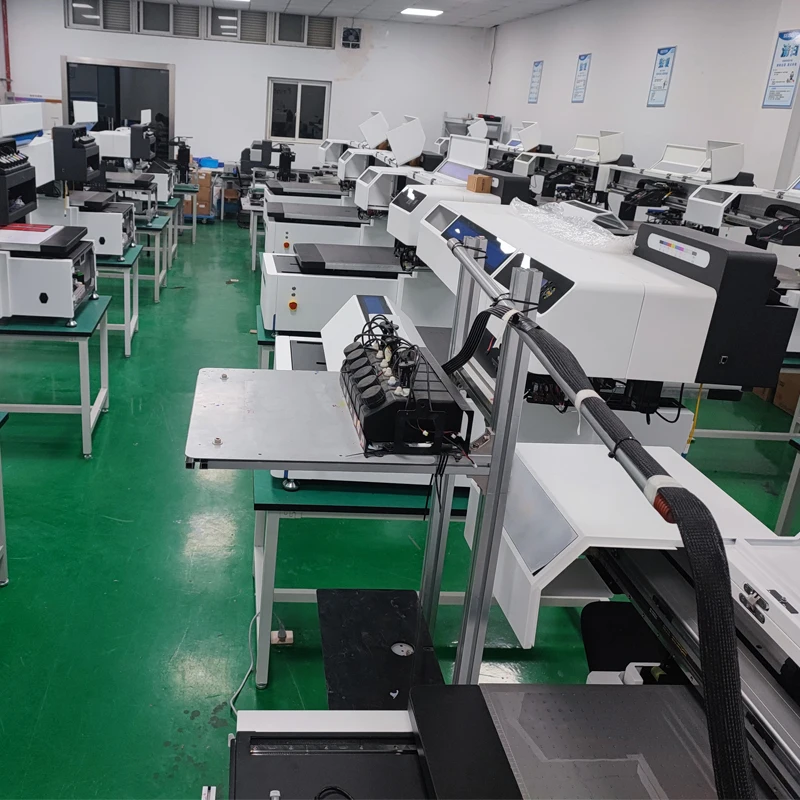

Zhone Tree Industrial (shanghai) company was set up in Shanghai, China, who is a manufacturer to R&D the best and potential DTG printer, digital UV flatbed printer, signs &adverting products. Our main products are UV printer, DTG printer, edible ink printer, DTF printer...etc.
With 12 years of experience, we have the ability to supply all products at a reasonable price and real-time support lean upon our own production line, professional engineers, strict parts purchase channel and altitudinal responsible action.
Our mission is to make the best solution for the international printing industry!
Welcome to visit our company and contact us.
With 12 years of experience, we have the ability to supply all products at a reasonable price and real-time support lean upon our own production line, professional engineers, strict parts purchase channel and altitudinal responsible action.
Our mission is to make the best solution for the international printing industry!
Welcome to visit our company and contact us.
