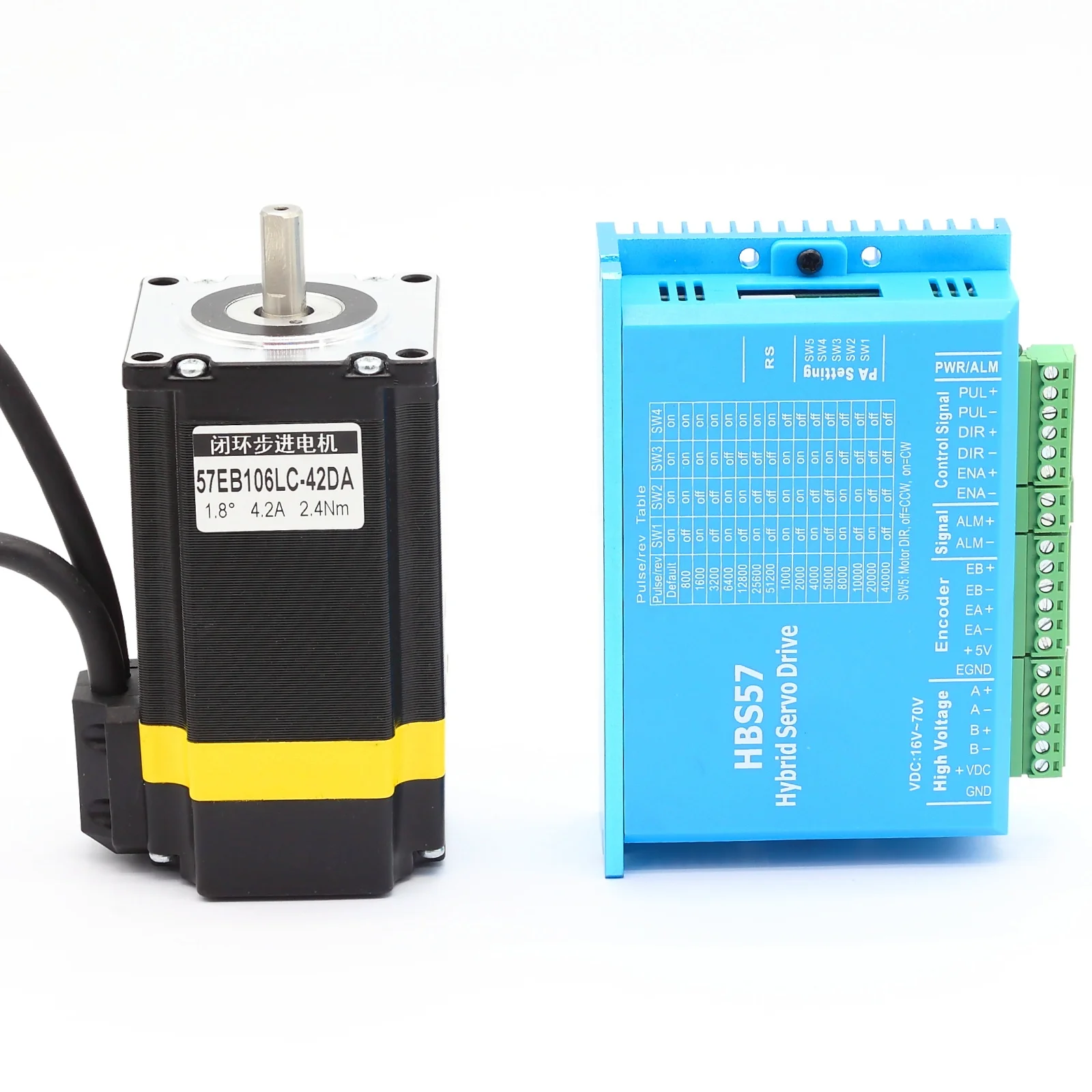

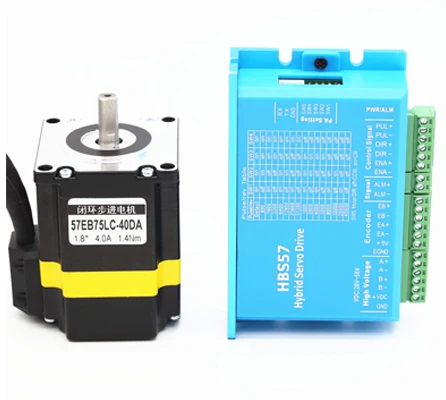

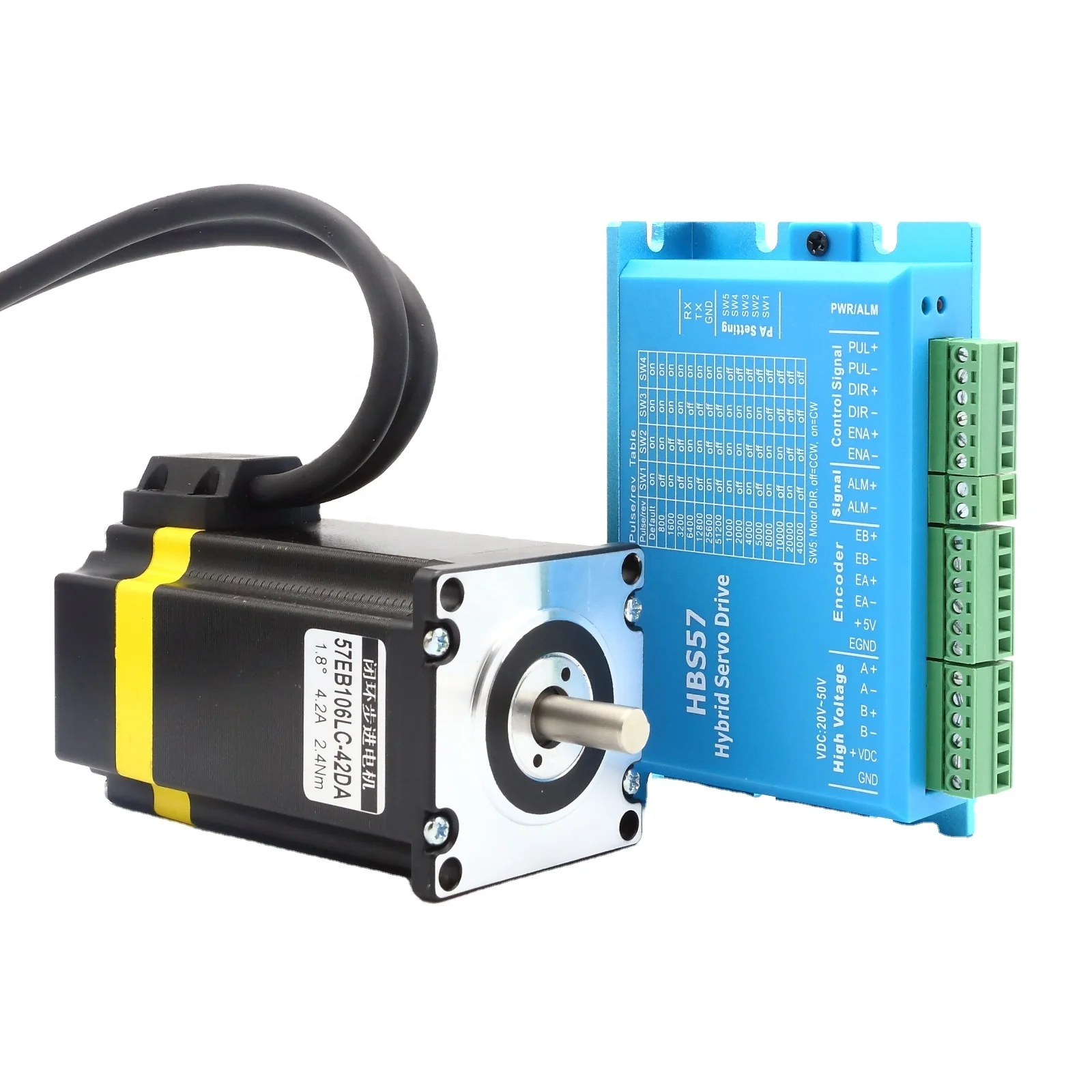

Nema 23 closed loop stepper moter kit
BeiJing HaiJieJiaChuang Closed-loop stepper motor adopts Chinese technology and high-quality silicon steel sheet. It has high speed, stable and accurate operation.


FEATURES AT A GLANCE






High efficiency and low energy consumption
Smooth and accurate operation
High speed and high torque
Wide application
Low noise and long service life
Technical support and good aftermarket

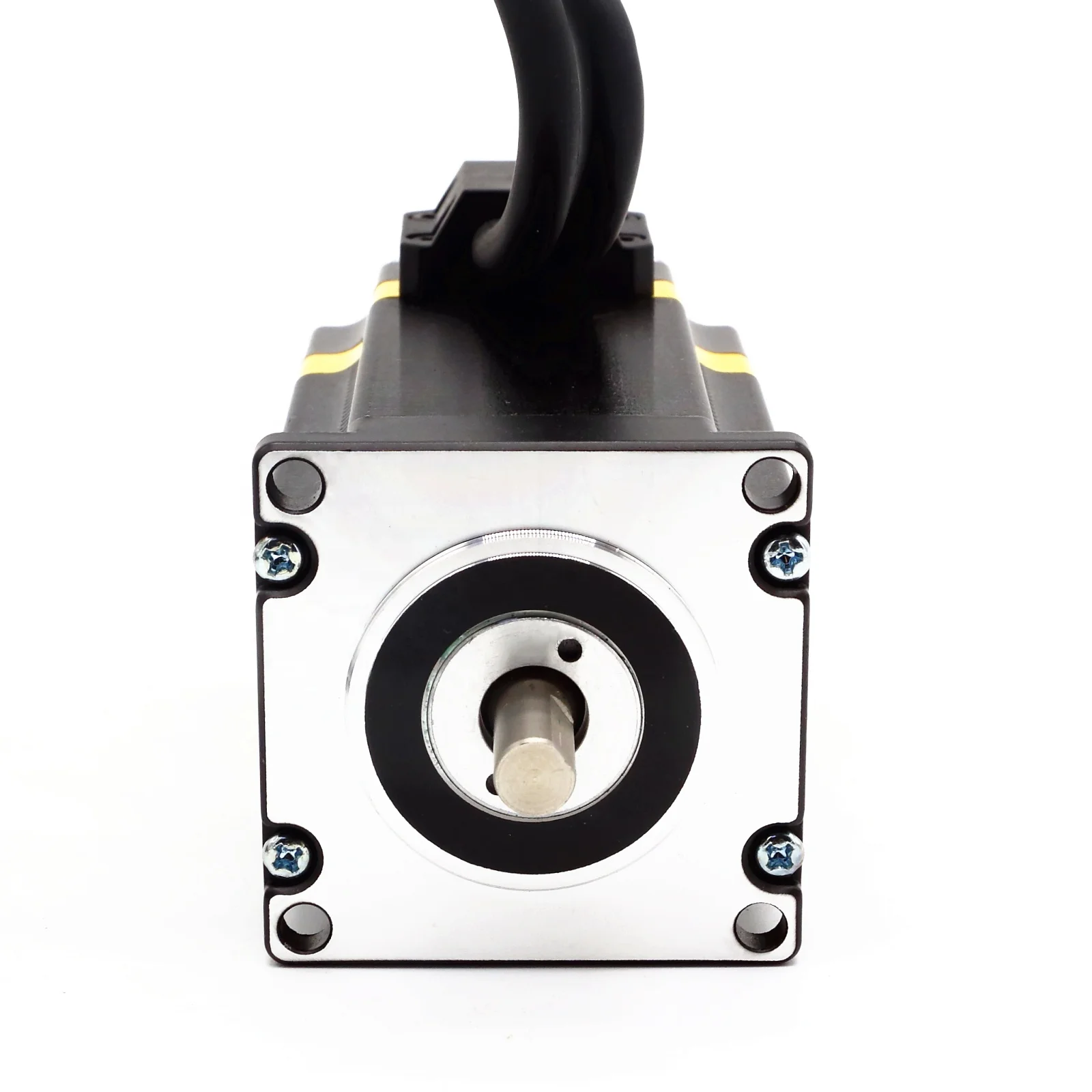

Right elevation

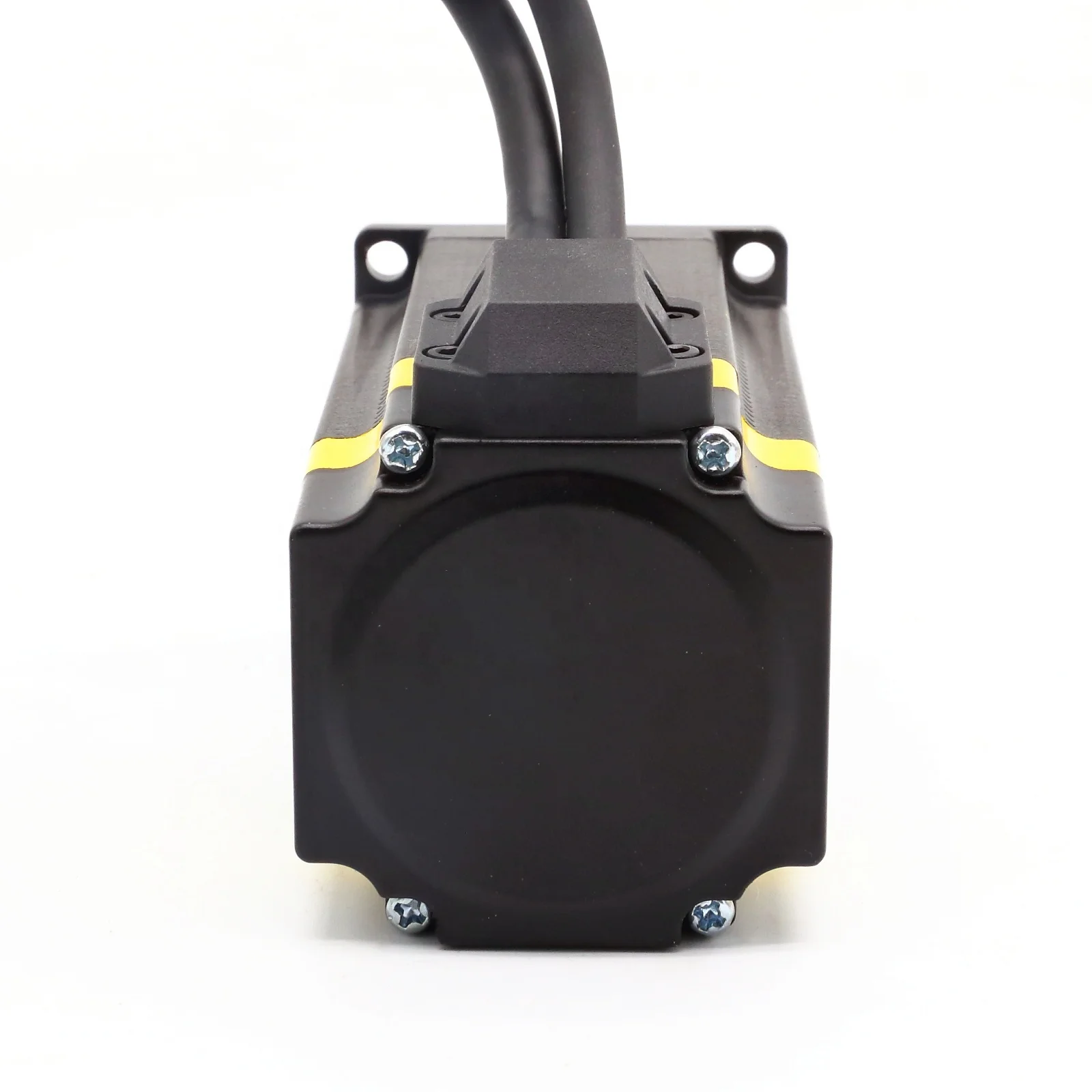

back view



PRODUCT SPECIFICATIONS


Model
57EB75LC-40DA
57EB98LC-40DA
57EB106LC-40DA
Phase
2
2
2
Voltage
1.8°
1.8°
1.8°
Amp/Phase
4A
4A
4.2A
Holding Torque
1.4Nm
2.2Nm
2.4Nm
Number of encoder lines
1000 lines
1000 lines
1000 lines
Rated speed
1200rpm
1200rpm
1000rpm
No-load speed
≥3000rpm
≥3000rpm
≥2500rpm
Body length
75±1mm
98±1mm
106±1mm
Motor weight
0.93kg
1.27kg
1.43kg

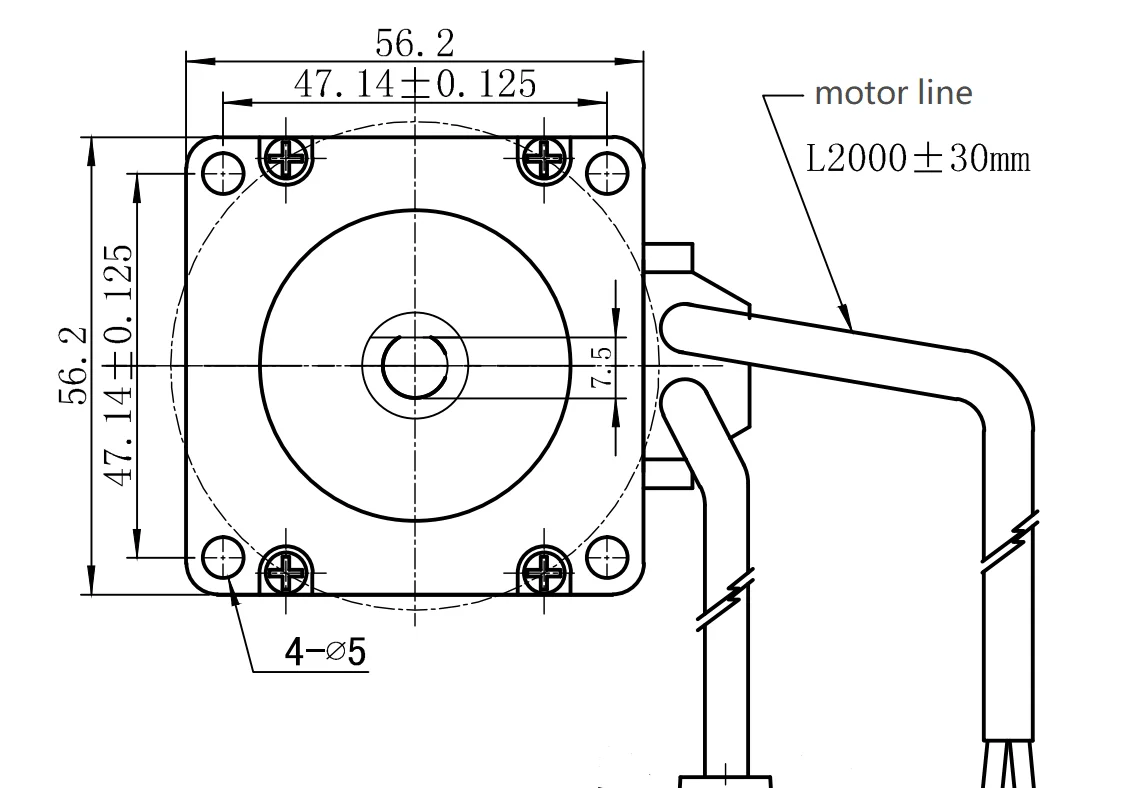

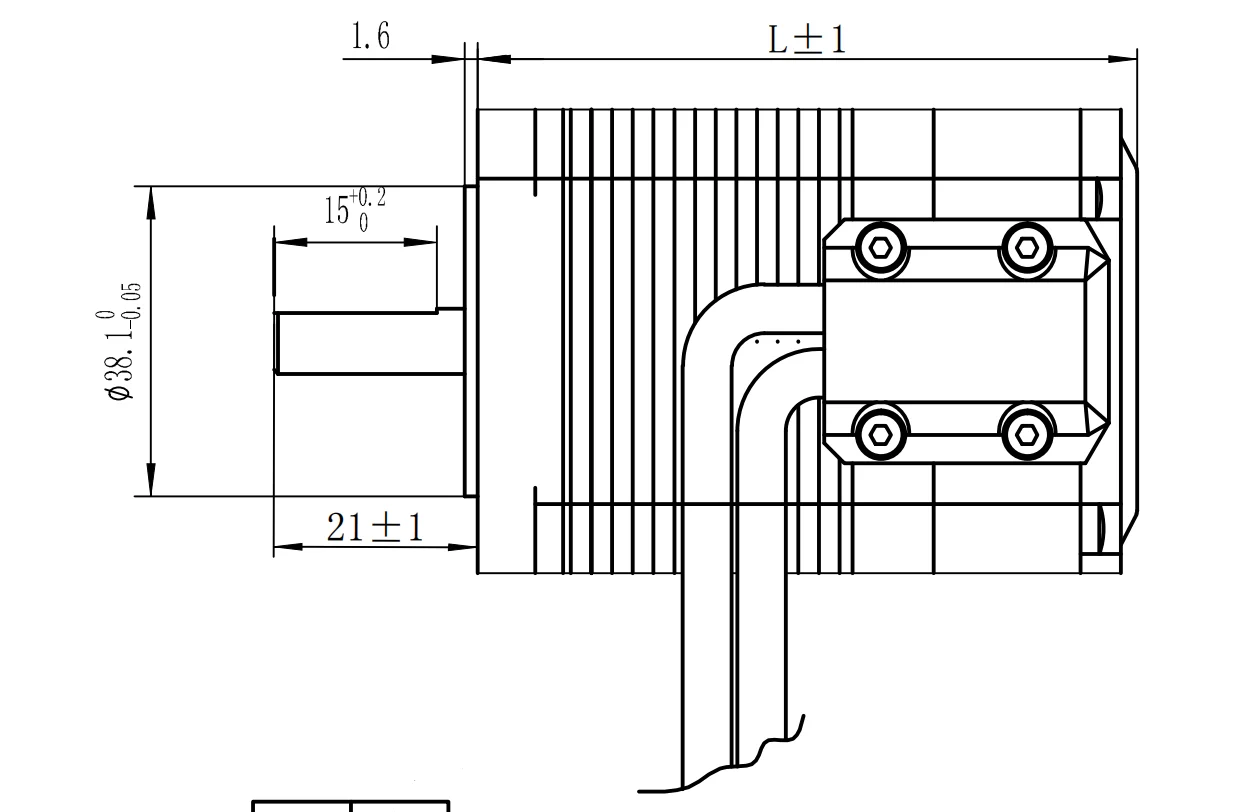

Mechanical Dimensions

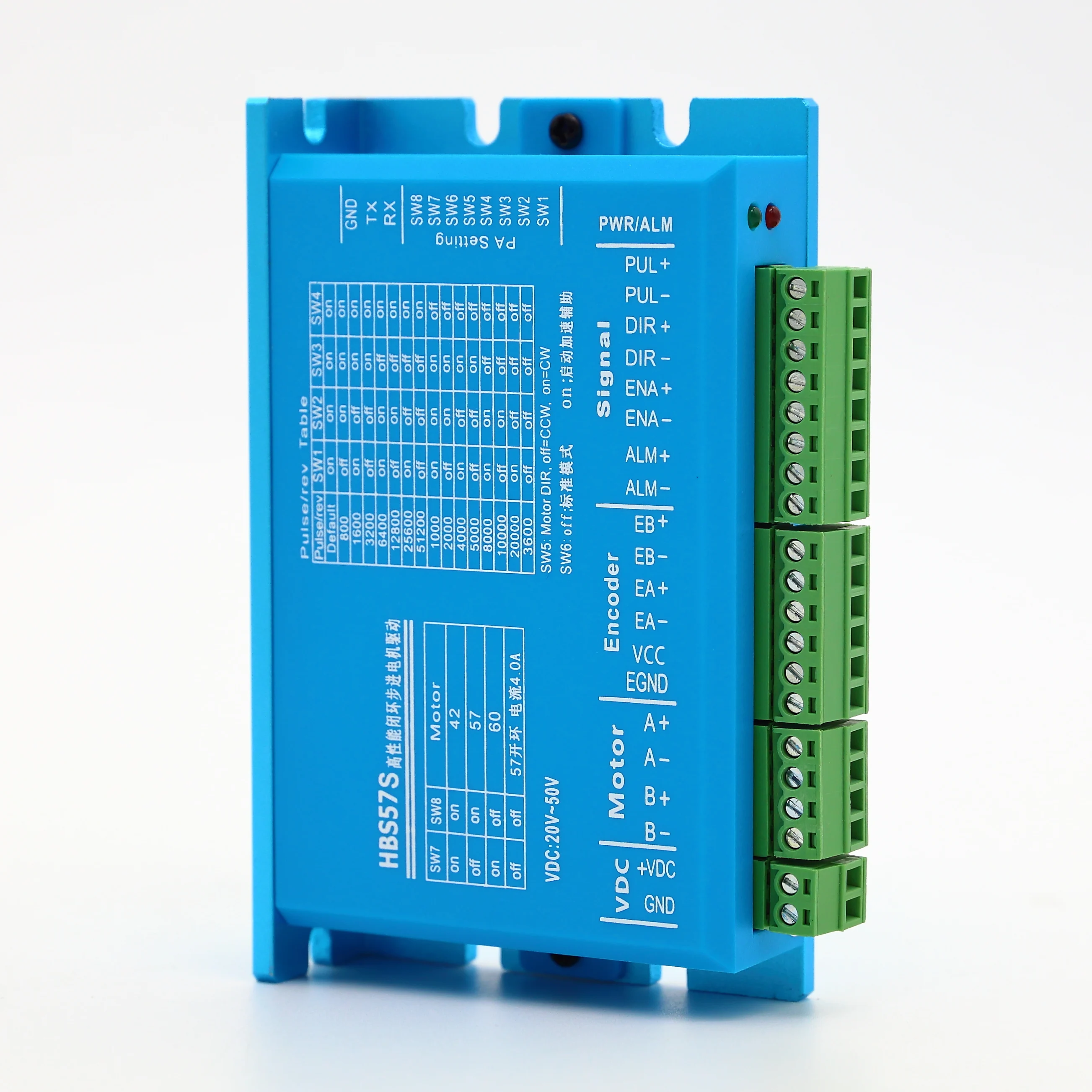

High performance closed loop motor driver
Product Superiority
1**Adopts new 32 - bit motor control dual - core DSP chip.
2**Adopting advanced vector current and speed and position closed-loop control algorithm.
3**The ratio of static current and dynamic current can be set arbitrarily (within the range of 0-- 7A)
4**Accurate positioning, motor will not be out of step.
5**Stable positioning, it will automatically return to its original position even if affected by external forces, such as
mechanical
vibration or vertical positioning


Our advantage:
1. 3-5days delivery time.
2. 48 hours testing before shipment.
3. 1 year quality assurance.
