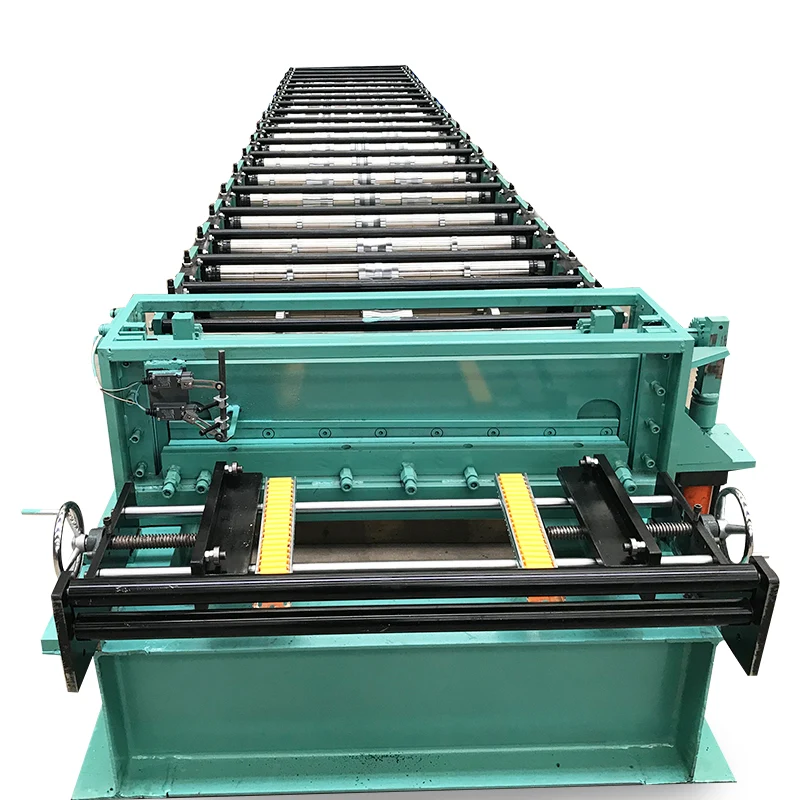

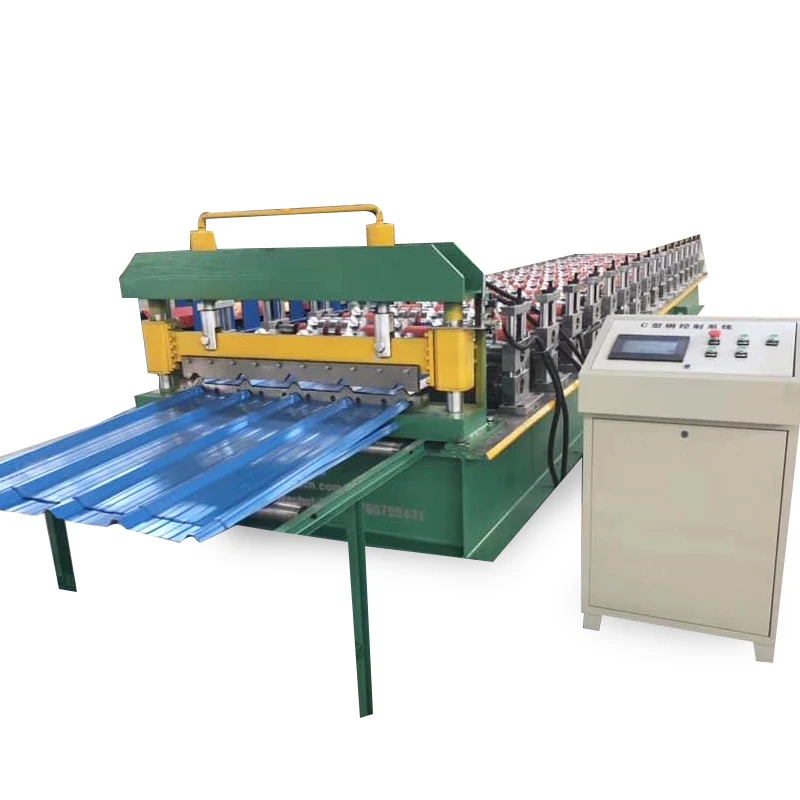

Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine,Cold Galvanizing Line
- Category: >>>
- Supplier: Wuxi Sunway Machinery Co. Ltd.
Share on (1600469479143):
Product Overview
Description
Product Description
This machine adopts steel coils as material and gets roofing sheets after the process of uncoiling, feeding, roll forming, cutting into length and output with table. Whole machine adopts PLC controlling, AC frequency speed regulating to fulfill the automatic production, which is very suitable for the metal cold rolled processing industry.
Product Details

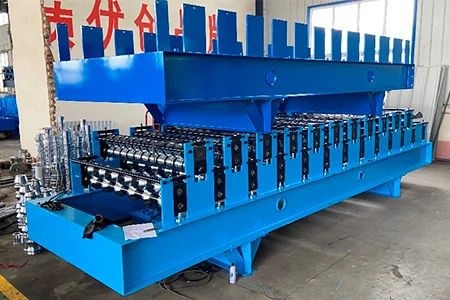

Stand Base
Select high quality steel as raw material with high strength and heavy duty, which has strong resistance to deformation.

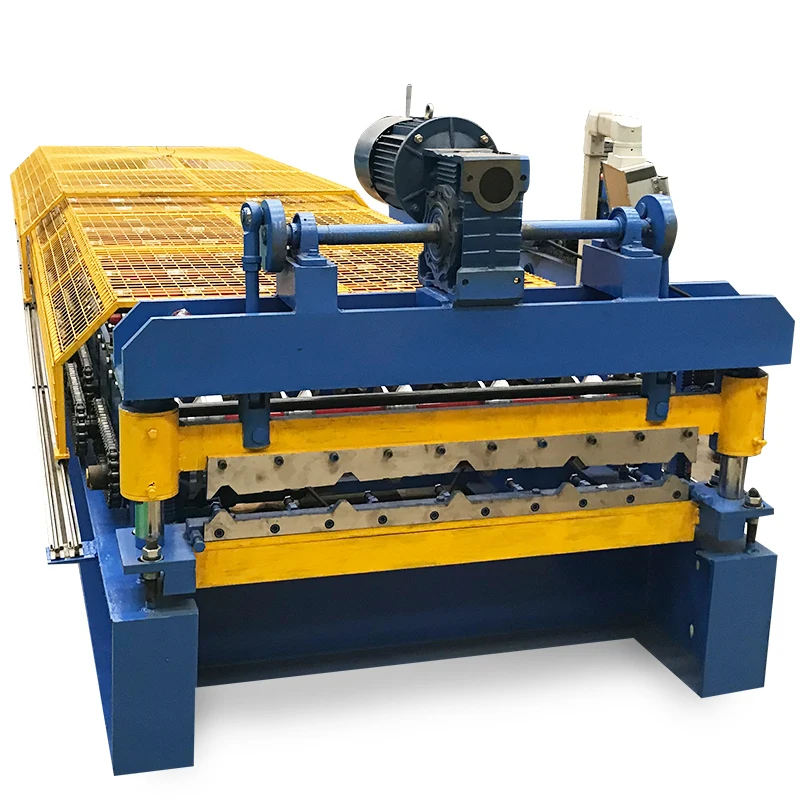

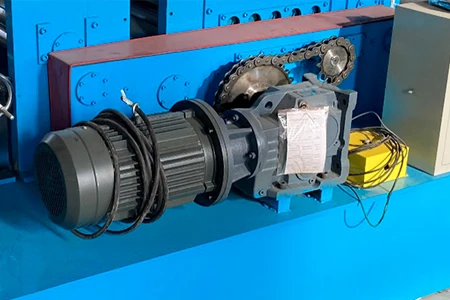

Motor
Adopt top brand motor for drive system, more stable and effective.

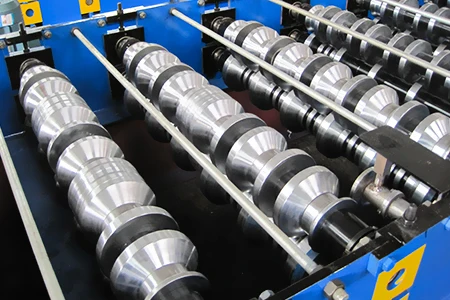

Rollers&Shafts
With many years of production experience, more professional and more precision.
Customization
Senior and experienced engineer control the whole process for your customize.
Product Paramenters
Product | Roof sheet roll forming machine |
Model | Corrugated Trapezoidal (Customizable ) |
Base Material | GI/GL, PPGI/PPGL, Aluminum Coil |
Thickness | 0.3mm-0.8mm |
Effective Width | 600-1250mm (According To Customer Requirements /Customizable) |
Roller Station | 14-18 Stations |
Roller Material | 45# Steel / Bearing Steel/ Cr12Mov |
Roller Driven Type | By Chain/ Gearbox |
Color | According To Customer Requirements / Customizable |
Brand | SUNWAY |
Control System | Worldwide Famous Brand PLC (Panasonic, Siemens, Delta, etc) |
Power | 4KW-5.5KW-7.5KW |
Frame | 350 H Steel / 400 H Steel |
Cutting Drive | Hydraulic Drive |
Cutting&Hydraulic Type | Type:Double Guide Pillar Hydraulic Cutting. Hydraulic Pump Station :4kw Blade:Cr12mov HRC:58-62 |

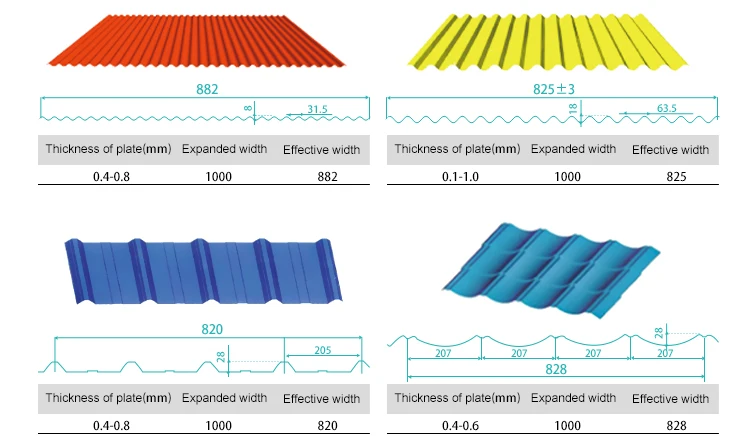

Product Type

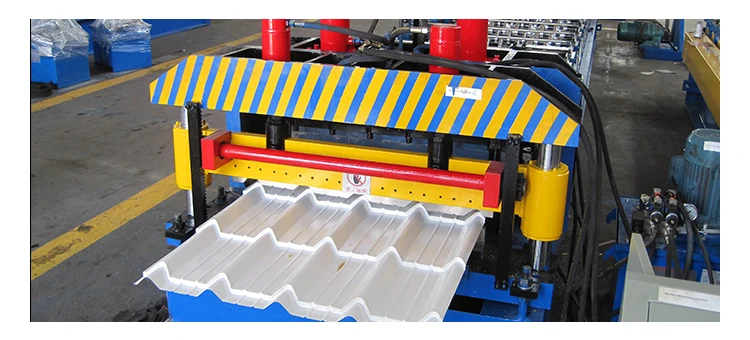

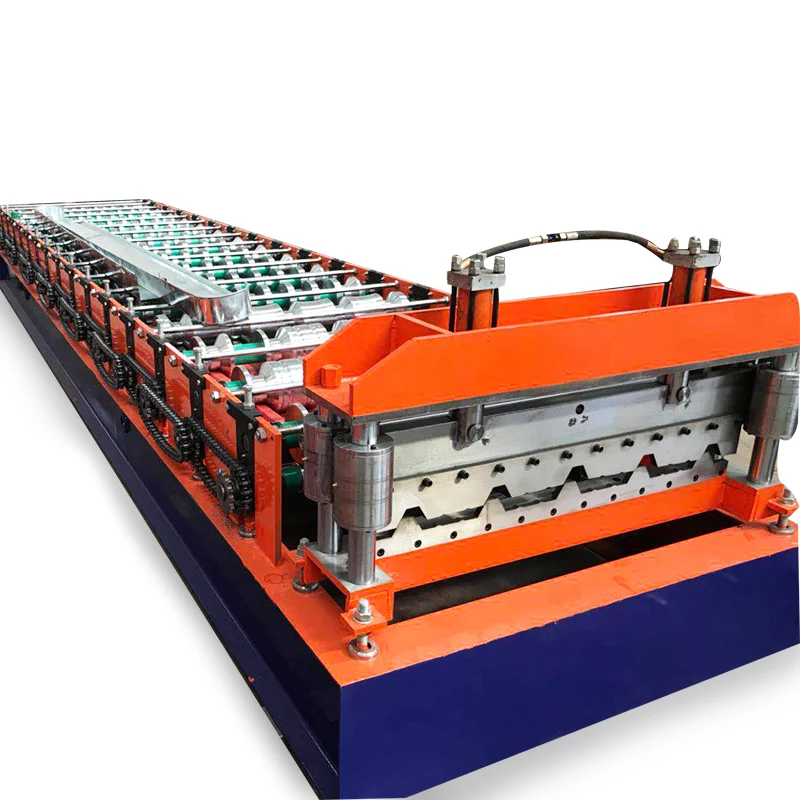

Roof/Wall Trapezoidal Sheet Forming Machine

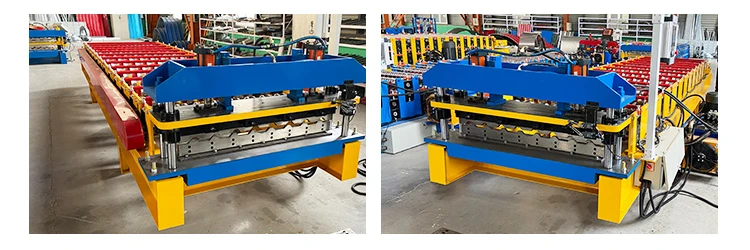

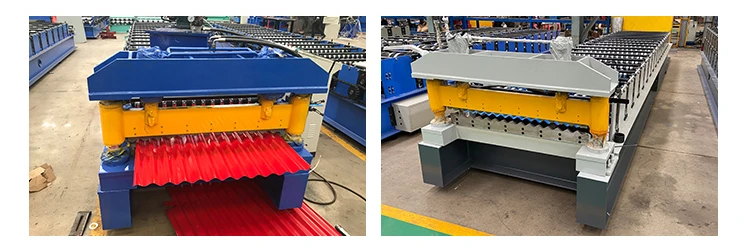

Corrugated Sheet Roll Forming Machine

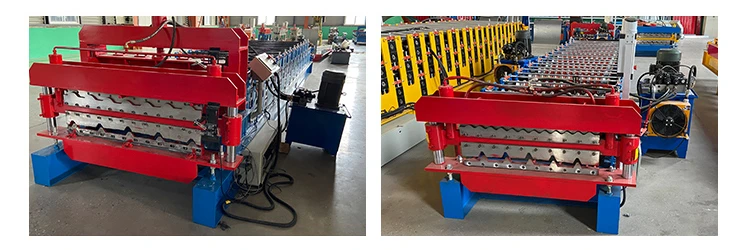

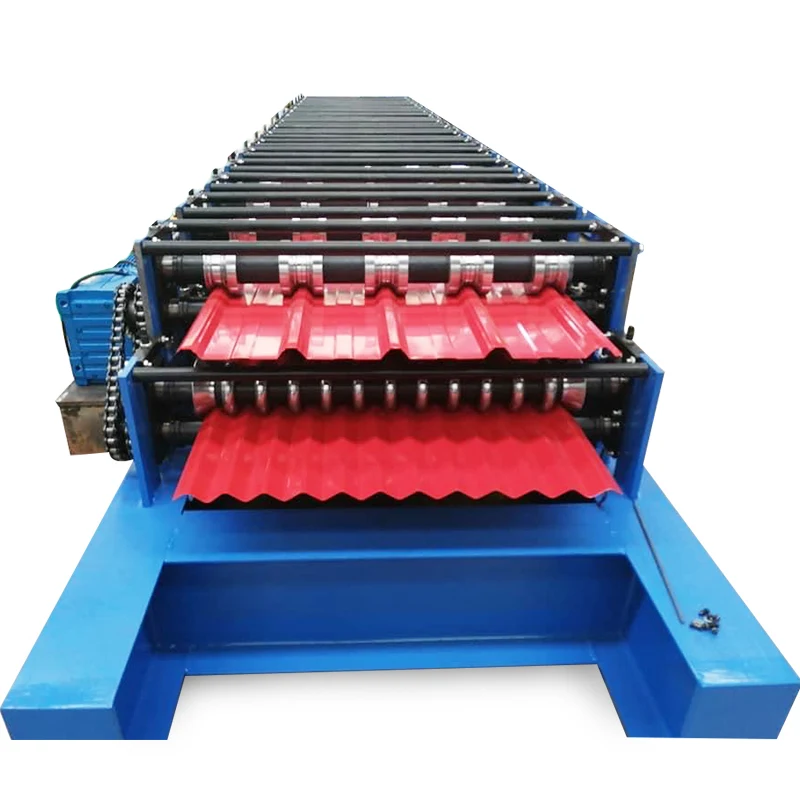

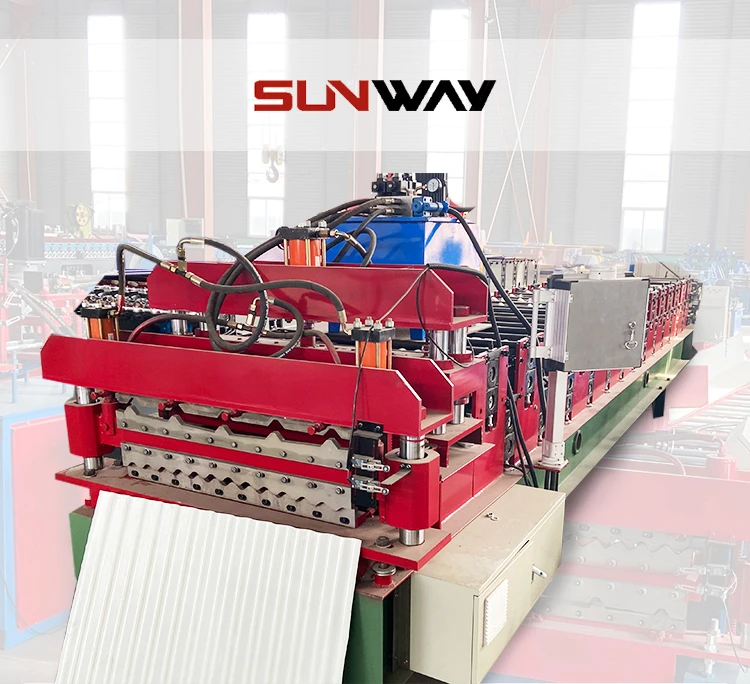

Double Layer Metal Sheet Forming Machine
Tile Roof Roll Forming Machine
Our Advantages
1.High qualified raw material guarantees quality of machine.
2.CNC processing of main parts guarantees high accuracy of machine.
3.Electrical control components of famous brands achieve easy operating.
4.High running speed of machine guarantees high production efficiency.
5.Well painted machine shows beautiful appearance.
6.No wrinkle or scratch on the metal panel surface.
Company Profile

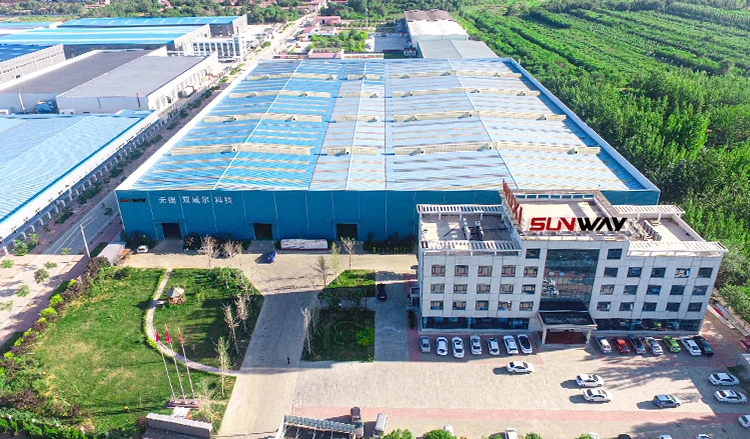

WUXI SUNWAY MACHINERY CO..LTD is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. It has gained a global sales network.
Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on.Strong technical resources are the most stable guarantee for our products' quality.
Our company is specialized in manufacturing Color steel forming machinery. C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms ？
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: Will you deliver the right goods as ordered? How can I trust you?
A:Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBAB’s Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A:No, most of our machines are designed according to customers’ specifications, using famous brand components.
Q: How to visit our company ？
Fly to Shanghai airport: By high speed train From Shanghai to Wuxi (30 min),then we can pick up you.
A:We are factory with professional production team and service consciousness.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms ？
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: Will you deliver the right goods as ordered? How can I trust you?
A:Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBAB’s Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A:No, most of our machines are designed according to customers’ specifications, using famous brand components.
Q: How to visit our company ？
Fly to Shanghai airport: By high speed train From Shanghai to Wuxi (30 min),then we can pick up you.
