Integrated Portable 48v 10kw Lithium Battery Supply Three Phase Solar Home Energy Storage System Ess Household Pv Energy Storage
- Category: >>>
- Supplier: Zigong Xingchuan Photoelectric Co. Ltd.
Share on (1600469487980):
Product Overview
Description
Product Description

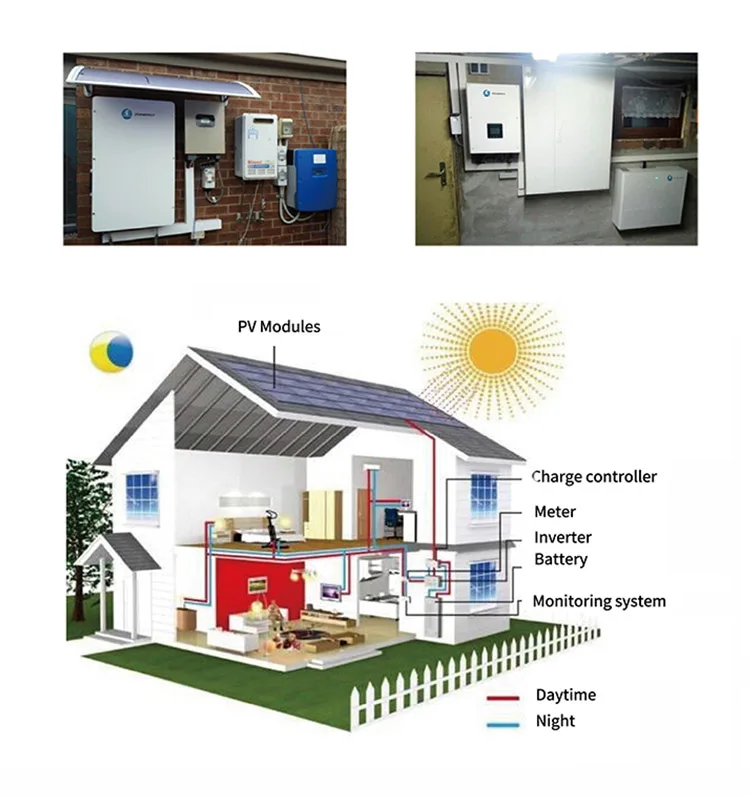

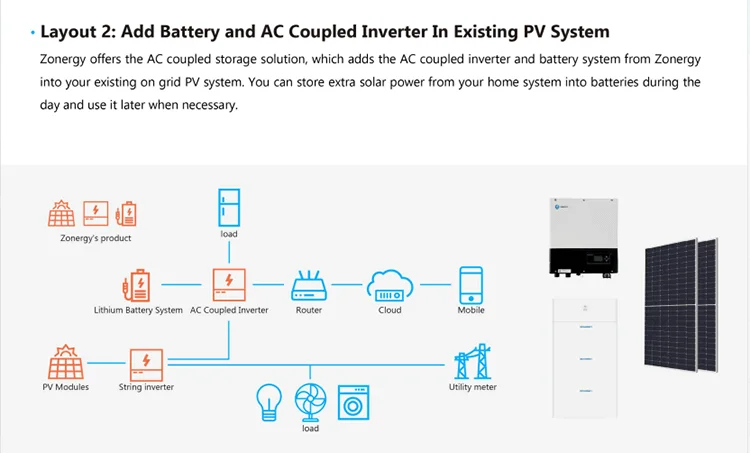

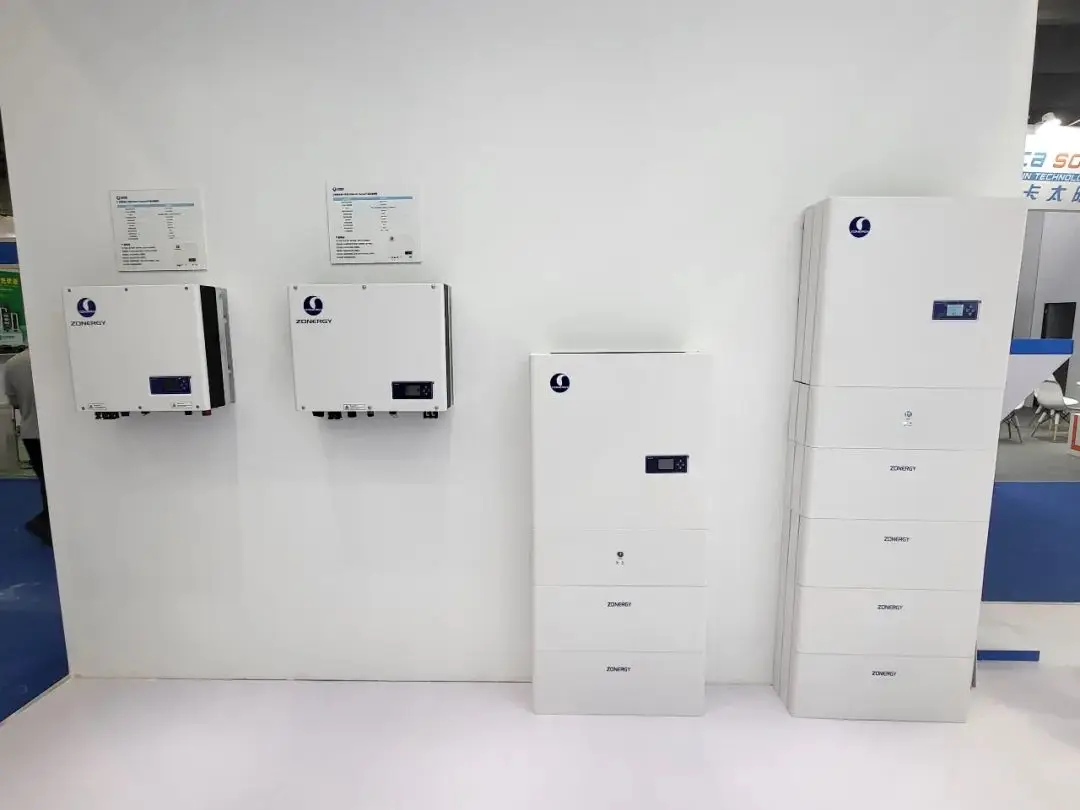

Distributed PV-ESS Solution
Zonergy offers solutions for the distributed Photovoltaic Energy Storage System, Including Zonergy-made Solar panels, Energy Storage Inverters, Lithium Battery Modules, and WiFi stick, to store the surplus energy from solar power generation. Our solution not only keeps the darkness away from your family when power outage, but also save extra on your electricity bill. Zonergy selects high-class core components, applies brilliant electrical and structural design, continues the concept of standardized modules, and realizes flexible expansion of nominal capacity and power. Meanwhile, Zonergy uninterruptedly investigates the product application scenarios and configures the 9-Level Safety Protection design to build a high-security, high-performing, and easy-to-install Energy Storage System.
Specification
Model | ZSPA5000-TGW | ZSPA8000-TGW | ZSPA010K-TGW | ||
Phase | Three Phase | ||||
MPPT Number | 2 | ||||
Max. PV Input Current | 12A | ||||
Max.PV Input Voltage | 1000V | ||||
MPPT voltage range at full Power | 250-850V | ||||
Power Factor | Adjustable from 0.8leading to 0.8 lagging | ||||
Start Up DC Voltage | 160V | ||||
Max.AC Output Current | 7.5A | 15A | 15A | ||
Max. charging/ Discharging Current | 20A | ||||
Rated voltage Rated frequency | 230/400V 50/60Hz | ||||
Dimension（W×D×H） | 660*210*640mm 520*200*480mm | ||||
Weight | 30kg | ||||
Grid regulation | CEI0-21,VDE-AR-N 4105,G83/G59, VDE0126-1-1,AS4777,AS/NZS 3100 | ||||
Safety | IEC 62109-1&-2,IEC62040-1 | ||||
EMC | EN61000-6-1/2/3/4 EN61000-4-16/18/29 | ||||
EMC | EN61000-6-1/2/3/4 EN61000-4-16/18/29 | ||||
Model | ZSPP7500 | ZSPP010k | ZSPP013k | ZSPS015K | ZSPS018K | ZSPA021K | |||||
Battery Module | 3 | 4 | 5 | 6 | 7 | 8 | |||||
Battery System Capacity | 7.68kWh | 10.24kWh | 12.8kwh | 15.36kwh | 17.92kwh | 20.48kwh | |||||
Battery chemistry | LFP | ||||||||||
IP Protection | IP65 | ||||||||||
Dimensions (W / H / D) | 660*1000*200 | 1320*740*200 | 1320*1000*200 | 1320*1000*200 | 1320*1040*200 | 1980*1000*200 | |||||
Weight | 106kg | 138kg | 170kg | 202kg | 234kg | 266kg | |||||
Warranty | 10 Years | ||||||||||
Single module DC voltage range | 46-56.5V | ||||||||||
Operating Temperature Range | discharge -20~55℃；charge 3~55℃ | ||||||||||
Deep of discharge | 90% | ||||||||||
Cycle life | ≥6000 | ||||||||||
Max.charging/ Discharging current | 75A(0.5C) | 100A(0.5C) | 125A(0.5C) | 150A(0.5C) | 175A(0.5C) | 200A(0.5C) | |||||

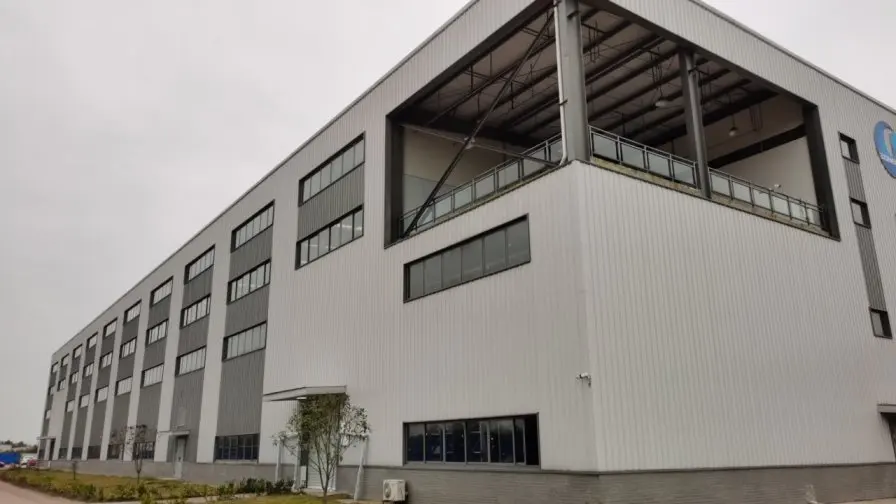

Company Profile

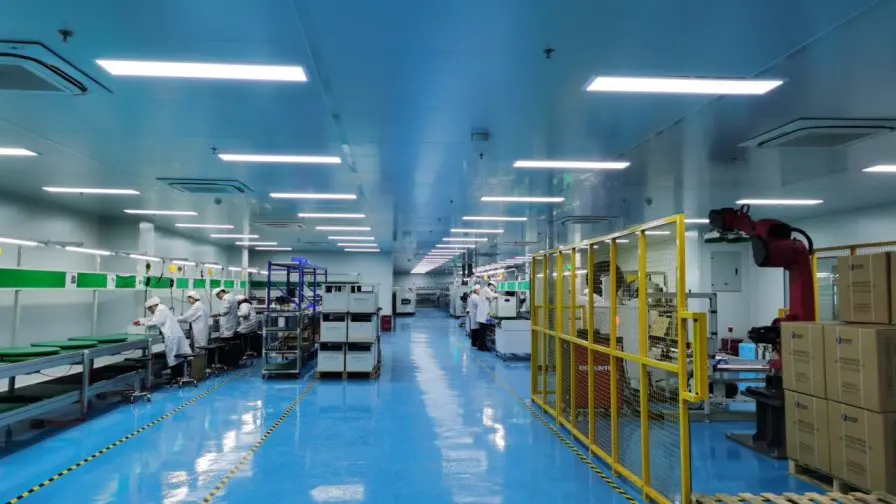

As a wholly-owned subsidiary of Zonergy, Zigong Xingchuan Photoelectric Co., Ltd. (hereinafter referred to as "ZXPCL") is a physical technology platform bearing the development concept of Zonergy "Building a Solid Foundation in Technology and Serving the Country with Industry". ZXPCL has gathered the R&D and production team of photoelectric and energy storage, and built the R&D center of smart renewable energy technology and generic technology for big data application of the National Development and Reform Commission, and the engineering technology research center of Sichuan Optoelectronics Storage Smart Micro Grid. Under the guidance and leadership of President Guo Jun with the concept of "Solid technology, New Products", Zonergy has created production lines of photovoltaic controllers, inverters and energy storage batteries, accelerated the research and development of inverse control and energy storage series of new products, and created more value for customers and the society.
Looking forward to the future, Zonergy R&D and production base will be built into the southwest center of technological innovation breakthroughs and industrial agglomeration and coordination in the energy industry. Zonergy is committed to leading technological change and promoting industrial upgrading, making new contributions to the leapfrog development of local industrial economy and innovation and reform of the energy industry.
Looking forward to the future, Zonergy R&D and production base will be built into the southwest center of technological innovation breakthroughs and industrial agglomeration and coordination in the energy industry. Zonergy is committed to leading technological change and promoting industrial upgrading, making new contributions to the leapfrog development of local industrial economy and innovation and reform of the energy industry.
FAQ
1. who are we?
We are based in Sichuan, China, start from 2018,sell to South Asia(70.00%),Domestic Market(20.00%),Southeast Asia(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panels/ Solar Kit/ Energy Storage Products/ Solar Energy System,Inverter and Control,Floor Heating System and Parts
4. why should you buy from us not from other suppliers?
We have been in the photovoltaic industry for many years and has a deep understanding of products. R&D personnel are 100% bachelor or above, of which more than 30% are master and doctorate.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Sichuan, China, start from 2018,sell to South Asia(70.00%),Domestic Market(20.00%),Southeast Asia(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panels/ Solar Kit/ Energy Storage Products/ Solar Energy System,Inverter and Control,Floor Heating System and Parts
4. why should you buy from us not from other suppliers?
We have been in the photovoltaic industry for many years and has a deep understanding of products. R&D personnel are 100% bachelor or above, of which more than 30% are master and doctorate.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
