2R5001 Universal anti shear safety electric motorcycle remote alarm system equipped with keys
- Category: >>>
- Supplier: Wenzhou Sunwolf Electronic Technology Co. Ltd.
Share on (1600469499132):
Product Overview
Description
Product Description
Large color box packaging
Foam inner box + large color box packing (1 set/box) +40 boxes/piece
Packaged in small color box
Foam inner box + small color box packing (1 set/box) +50
boxes/piece
boxes/piece
Manual for motorcycle alarm system
Motorcycle Alarm System
Before use, please read this manual carefully
This product is a motorcycle alarm, deter thieves, increasing the difficulty of theft.

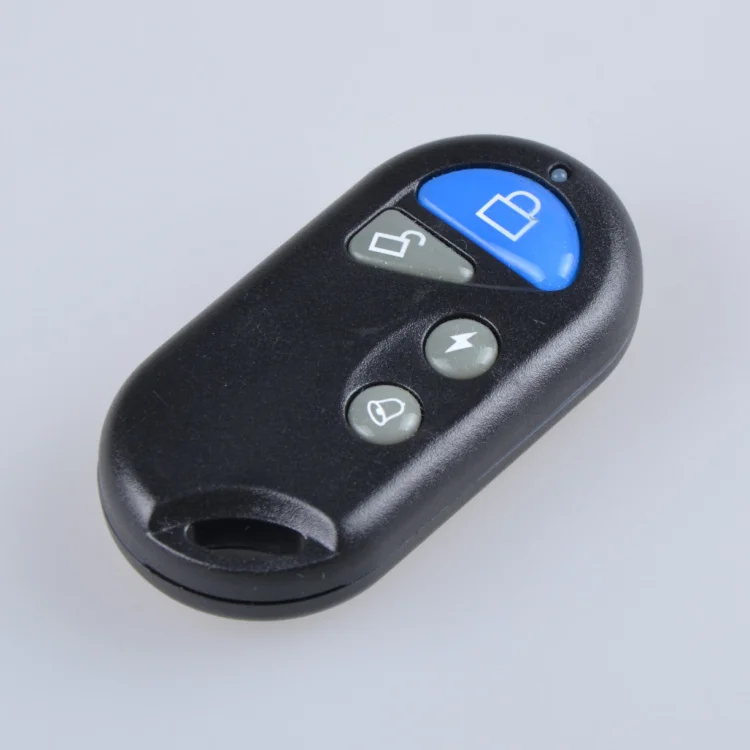

Remote control function key introduction
Arm/Anti-robbery：Set the sound and light security burglar alarm status.
Disarm：Disarm fortification, remote control engine flame out.
Remote Start Engine(option)：Remote start, smart warm car.
Find Vehicle:Sound and light find the car.
Disarm：Disarm fortification, remote control engine flame out.
Remote Start Engine(option)：Remote start, smart warm car.
Find Vehicle:Sound and light find the car.
Technical parameters
Working voltage：DC 12V (9V-14V)
Static Current：≦6mA
Working Temperature：-20℃~+70℃
Alarm loudness:125dB
Remote control battery: 2 * CR2025 or 2 * CR2016 or 27A Voltage:DC 6V or 9V or 12V;
Remote Control Frequency Range：315MHz or 433MHz
Remote Control Distance：Open Areas ≧60M
Static Current：≦6mA
Working Temperature：-20℃~+70℃
Alarm loudness:125dB
Remote control battery: 2 * CR2025 or 2 * CR2016 or 27A Voltage:DC 6V or 9V or 12V;
Remote Control Frequency Range：315MHz or 433MHz
Remote Control Distance：Open Areas ≧60M
Features
Sound and flash alarm：
After parking, short press the button, the direction light a flash , speaker a "Bi", Into the sound and light alert state。
Mute anti-theft (option)：
After parking press and hold the button for 3 seconds, the direction light flashes three times, entering the silent state of alert.
(in this state, if the vibration is triggered, there is no sound alarm, and the directional light flashes)
Disarm：
Short press button, the direction light flashes twice, the speaker "Bi, Bi" twice, disarming;
Fortified prompt（option）：
After parking, if there is no defense in 20 seconds,The speaker will "Bi Bi Bi" 3 sound,the direction light is flashing,will automatically prompt the car owner to setup security guard in time.
Attack alert：
In the alert state, forced to start, sound and light alarm, the engine power off.
Find car：
Press the button to look for the vehicle,Horn tweet, the directional light flashes at the same time, and tells the location of the vehicle.
Remote Start ON（option）：
The connection press the button twice，to start the engine，Or press and hold the button until the start is successful, you can drive without a key.In the start state,Press the button to stop the engine.
Anti-robbery(option)：
Encounter robbed while driving, press the button, the direction light flashing, horn periodic alarm, play a deterrent and call role, press the button to stop.
LED anti-theft warning(option)：
In the anti-theft alert state, LED lights flashing warning.
After parking, short press the button, the direction light a flash , speaker a "Bi", Into the sound and light alert state。
Mute anti-theft (option)：
After parking press and hold the button for 3 seconds, the direction light flashes three times, entering the silent state of alert.
(in this state, if the vibration is triggered, there is no sound alarm, and the directional light flashes)
Disarm：
Short press button, the direction light flashes twice, the speaker "Bi, Bi" twice, disarming;
Fortified prompt（option）：
After parking, if there is no defense in 20 seconds,The speaker will "Bi Bi Bi" 3 sound,the direction light is flashing,will automatically prompt the car owner to setup security guard in time.
Attack alert：
In the alert state, forced to start, sound and light alarm, the engine power off.
Find car：
Press the button to look for the vehicle,Horn tweet, the directional light flashes at the same time, and tells the location of the vehicle.
Remote Start ON（option）：
The connection press the button twice，to start the engine，Or press and hold the button until the start is successful, you can drive without a key.In the start state,Press the button to stop the engine.
Anti-robbery(option)：
Encounter robbed while driving, press the button, the direction light flashing, horn periodic alarm, play a deterrent and call role, press the button to stop.
LED anti-theft warning(option)：
In the anti-theft alert state, LED lights flashing warning.
Vibration sensitivity sett（Factory default level 2）
Press and hold the button,the remote can adjust the sensor sensitivity of level 1 to 3,according the number of siren beep to set level,(level 1 lowest,level 2 moderate,level 3 highest).When adjusted to the desired number of levels, release the button, the speaker called, save the currently selected sensitivity, the system automatically enter the armed state.
Press and hold the button,the remote can adjust the sensor sensitivity of level 1 to 3,according the number of siren beep to set level,(level 1 lowest,level 2 moderate,level 3 highest).When adjusted to the desired number of levels, release the button, the speaker called, save the currently selected sensitivity, the system automatically enter the armed state.
Vibration sensing alarm
One level shock alarm: horn 5 times, the light of direction flashes 5 times;
Two level vibration alarm: horn ring 15 seconds, at the same time, the light of direction flashes 15 seconds;
Two level vibration alarm: horn ring 15 seconds, at the same time, the light of direction flashes 15 seconds;
Remote control learning method(option)
In the disarm state, the key from Acc-Off to Acc-On rotation 6 times, horn "BIBIBI" to enter the learning state, click on any button on the remote control,Speaker "BIBI", learning to succeed and automatically exit.Repeat the above operation, learn another remote control, the system can only save two remote control.
AC ignition alarm
AC ignition motorcycle recommended "AC ignition alarm" to install, For example A wiring diagram.
ignition motorcycle-B wiring diagram
If the ignition lock is only two lines of motorcycles, for the DC ignition motorcycle.Note: If the DC ignition motorcycle with the
"AC ignition alarm" to install，Need to buy a relay，For example B wiring diagram.
"AC ignition alarm" to install，Need to buy a relay，For example B wiring diagram.
DC ignition alarm
DC ignition motorcycle recommended "DC ignition alarm" to install, For example C wiring diagram.
Host installation
When installing the main unit, the connection port should be facing the ground to avoid the infiltration of rainwater.
Antenna Do not bundle with the wire,And try to straighten,Stay away from metal,To ensure the best signal reception.
Antenna Do not bundle with the wire,And try to straighten,Stay away from metal,To ensure the best signal reception.
Speaker installation
Speaker installation, the sound port should be slightly downward, to prevent rain infiltration.
Reminder
The remote control is made of precision, do not throw or water.
When it is found that the remote control distance is shortened or the remote LED is dimmed, replace the battery.
Anti-theft device to increase the difficulty of theft, deter thieves and remind owners of the role.
The remote control is made of precision, do not throw or water.
When it is found that the remote control distance is shortened or the remote LED is dimmed, replace the battery.
Anti-theft device to increase the difficulty of theft, deter thieves and remind owners of the role.
Product warranty
Warranty time: from the first day of installation, warranty within six months.
Warranty is limited to the product itself, such as malfunction, invalid, wire damage.
Alarm horn, remote control, the host due to flooding and failure, the battery is damaged, self-replacement circuit parts, are not warranty.
Remote control batteries are consumables, the installation is not correct burn, man-made vandalism, are not within the warranty.
Warranty is limited to the product itself, such as malfunction, invalid, wire damage.
Alarm horn, remote control, the host due to flooding and failure, the battery is damaged, self-replacement circuit parts, are not warranty.
Remote control batteries are consumables, the installation is not correct burn, man-made vandalism, are not within the warranty.
Specification
item | value |
Brand Name | sunwolf |
Material | The product comes with button batteries |
Model Number | Universal |
Place of Origin | China |
Zhejiang | |
Warranty | 1 Year |
Model Number: | M558-2R5001 |
Size: | 78*64*24mm |
Working Vlotage: | 12V±3V |
Working | -20℃~+85℃ |
Alarm loudness: | 120dB-125dB |
MOQ: | 200 sets |
Package: | 1 set in color box; 50 or 40 sets in a carton |
Packing & Delivery
Company Profile
Wenzhou business electronic technology co., LTD. Is located in wenzhou city, zhejiang province, was founded in 2015, the registered capital of RMB 3 million, committed to the automobile tire pressure sensor production, sales and product development for automobile parts company. My company in wenzhou, known as the birthplace of Oriental jews China owns production base, and several dealers in China. In recent 6 years, SUNWOLF has been the tire pressure sensor production and export of experts. We focus on the automobile tire pressure sensor. We have a comprehensive production technology and production capacity of tire pressure sensor. Can provide you with the best quality, most professional information and the best service. If you are interested in any of our products or want to discuss a custom order, please feel free to contact us.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2015,sell to Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tire pressure monitoring sensor,Tire pressure sensor,TPMS
4. why should you buy from us not from other suppliers?
We are specializing in the production of automobile tire pressure sensors, has a comprehensive production technology and production capacity. The main products: TPMS tire pressure sensor, suitable for 98% cars on the market
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
We are based in Zhejiang, China, start from 2015,sell to Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tire pressure monitoring sensor,Tire pressure sensor,TPMS
4. why should you buy from us not from other suppliers?
We are specializing in the production of automobile tire pressure sensors, has a comprehensive production technology and production capacity. The main products: TPMS tire pressure sensor, suitable for 98% cars on the market
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
