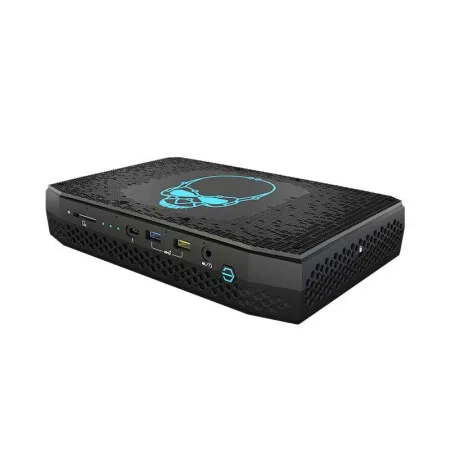

Original Intel NUC11 Mini PC NUC11PHKi7C Host i7 1165G7 Processor 11th Generation Phantom Canyon Wi Fi6

Product Overview

Description

Intel NUC11 Mini PC NUC11PHKi7C i7-1165G7 processor 11th Generation Phantom Canyon

Features:

11th Generation Core Processor

New Intel Iris Xe core graphics card with greatly improved performance

Equipped with a high-performance discrete graphics card

Intel @ AX201 wireless network card, Support Wi-Fi6, Intel i225-LM Ethernet interface, the highest 2500 Mbps download speed, support BT 5.0

Support 4 digital ports to provide 3 high-definition audio streams simultaneously

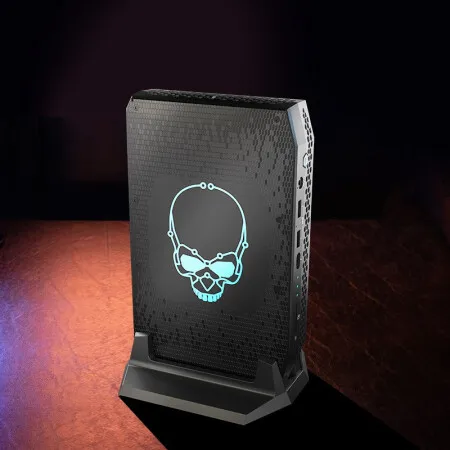

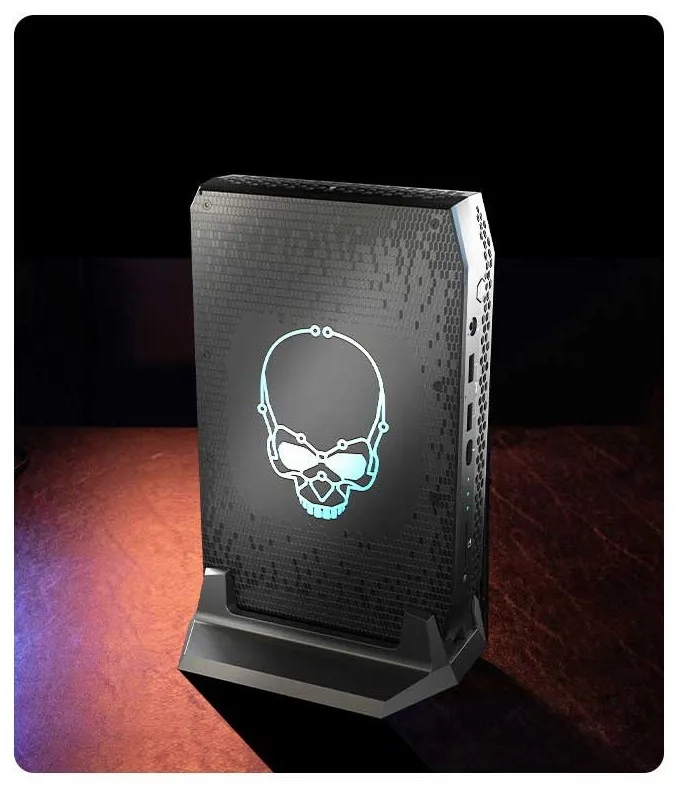

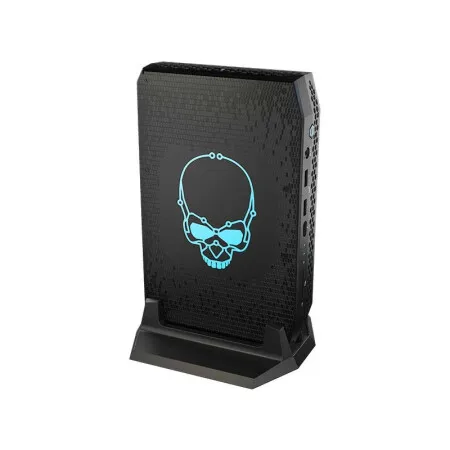

Vertical stand, adjustable RGB skull light





SALE WARRANTY:

Three-year original warranty for Intel

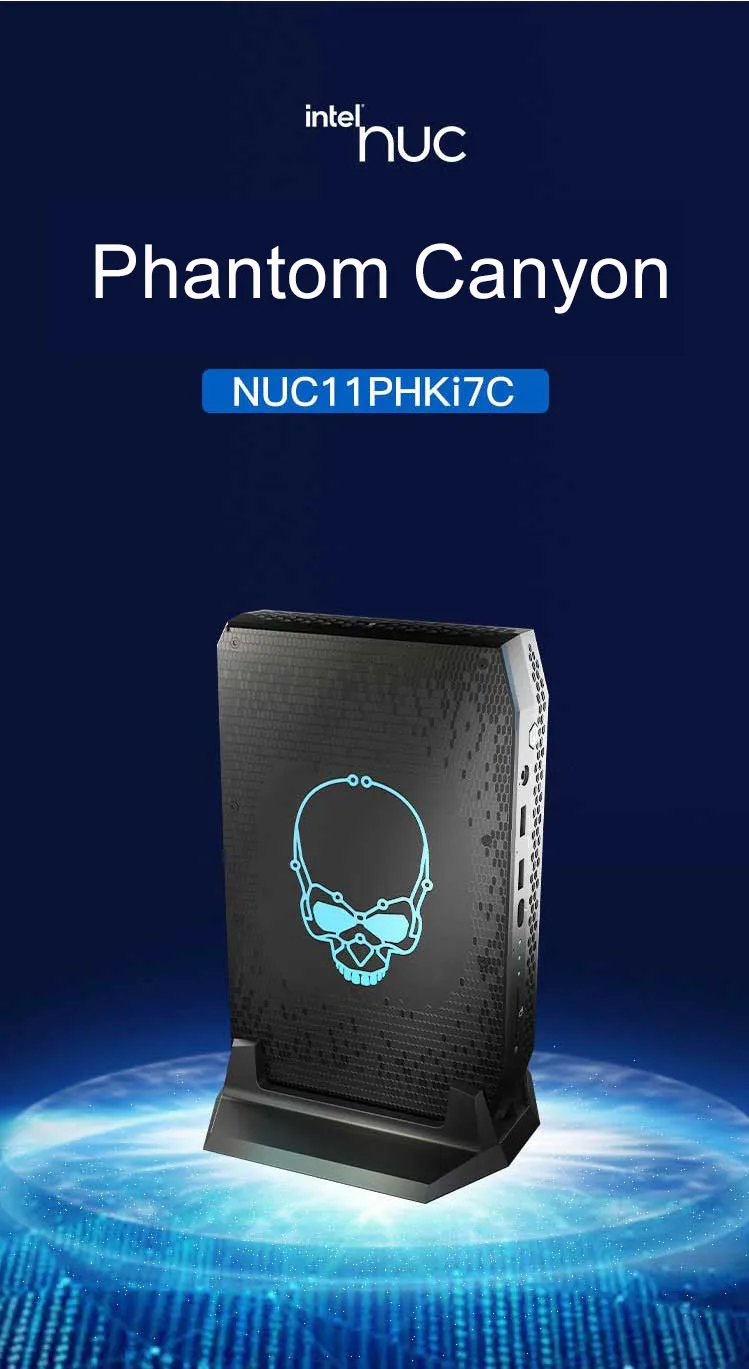

Intel phantom canyon

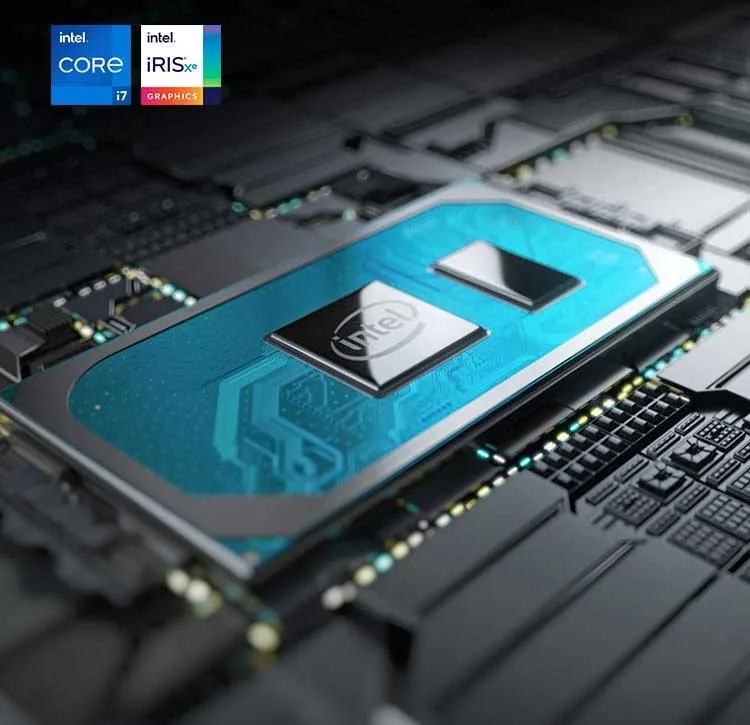

11 Generation of intelligent Intel core processor

NUC11PHKi7C

Upgrade Chip

Intel® Iris™ Xe Graphics ,up to 1.3 GHz, 96 EU unit

i7-1165G7 Processor, 2.8 GHz-4.7 GHz, 4 core, 8 thread

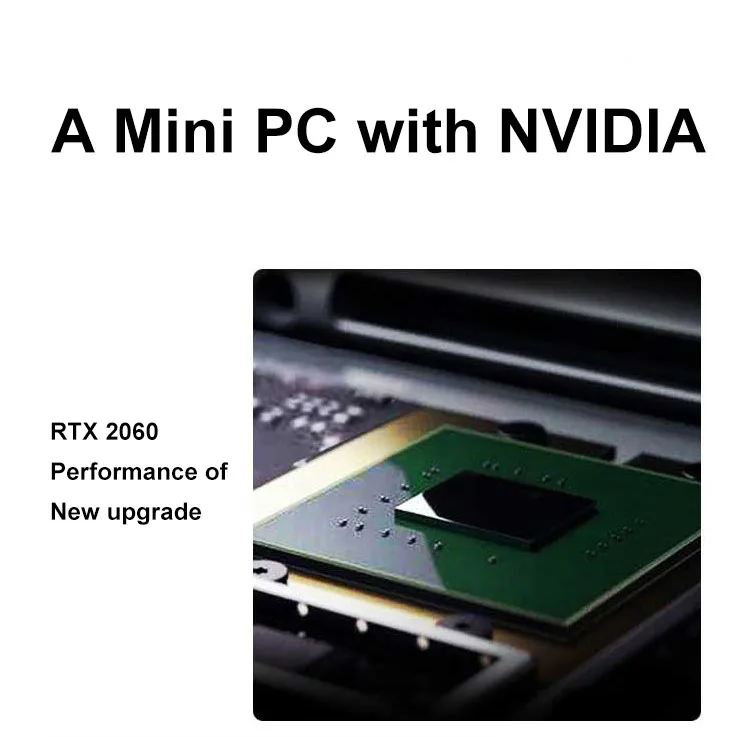

A MINI PC with NVIDIA

RTX 2060 ,Performance of new upgrade



Graphics More real

Ray tracing



Large memory
6GB GDDR6
Support higher resolution

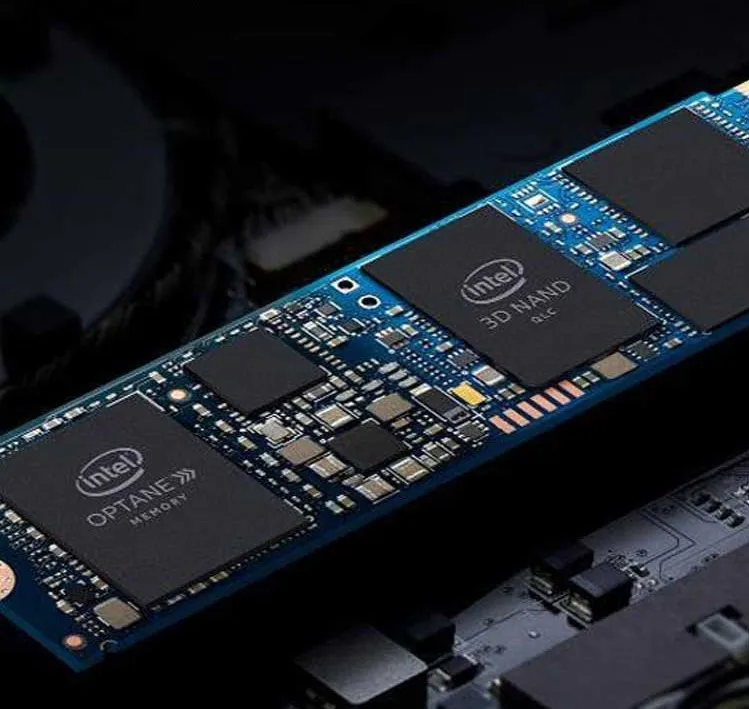

Support OPTANE Memory Chip

Highly adaptive to accelerate your computer performance

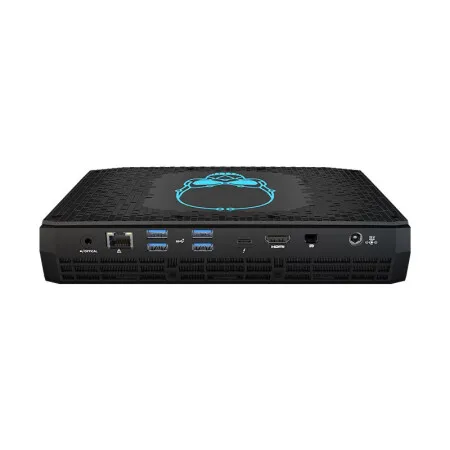

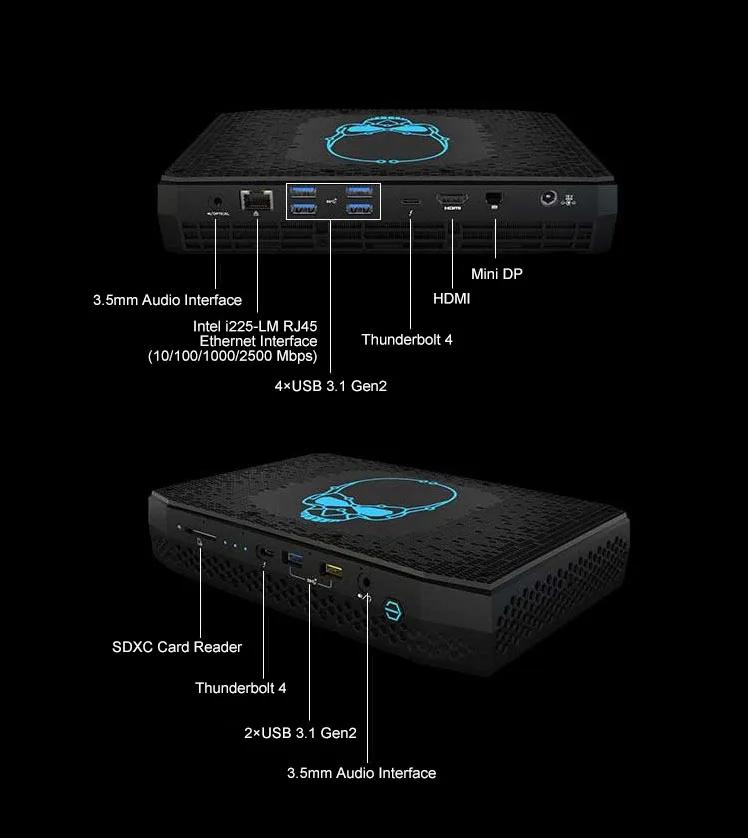

Rich Interfaces

2 x Thunderbolt 4

6×USB 3.1 Gen2

1 x SDXC Card Reader

1×intel i225-LM RJ45 Ethernet Interface

(10/100/1000/2500 Mbps)

1×H-D-M-I

1×Mini DP

2×3.5mm Audio Interface




 Parameters Table

Product Name	Intel UNC11 mini PC
Model	NUC11PHKi7C
OS	Support Win10, 64bit
Processor	i7-1165G7
CPU	2.8-4.7GHz 4 cores 12M cache 28W
Graphics Card	Intel® Iris™ Xe Graphics ,up to 1.3 GHz NVIDIA® GeForce® RTX2060 Discrete graphics card (6GB GDDR6 )
RAM	Dual channel DDR4-3200 SODIMMs up to 64G
Hard Disk	1 * M.2 22x80/110 PCIe x4 Gen3 support NVMe  1 * M.2 22x80 PCIe x4 Gen3 support NVMe or SATA3 SSD
USB	2 front USB 3.1 gen2 4 rear USB 3.1 gen2 2 internal USB 2.0 (expansion ports)
Thunderbolt Interface	2 Thunderbolt 4 ports with 5V/9V fast charging mode for mobile phones
Display	1 * H-D-M-I 2.0b  1* mini DP 1.4 2 * Thunderbolt 4 ports (Intel® Iris™ Xe Graphics)
LAN	Intel® 2.5Gb (i225-LM) network card
Wi-Fi	Intel® Wireless AX201, IEEE 802.11ax WiFi 6 BT 5.0
Power Supply	19V, 230W, AC-DC power adapter
Size	221mm*142mm*42mm (~1.3L)
