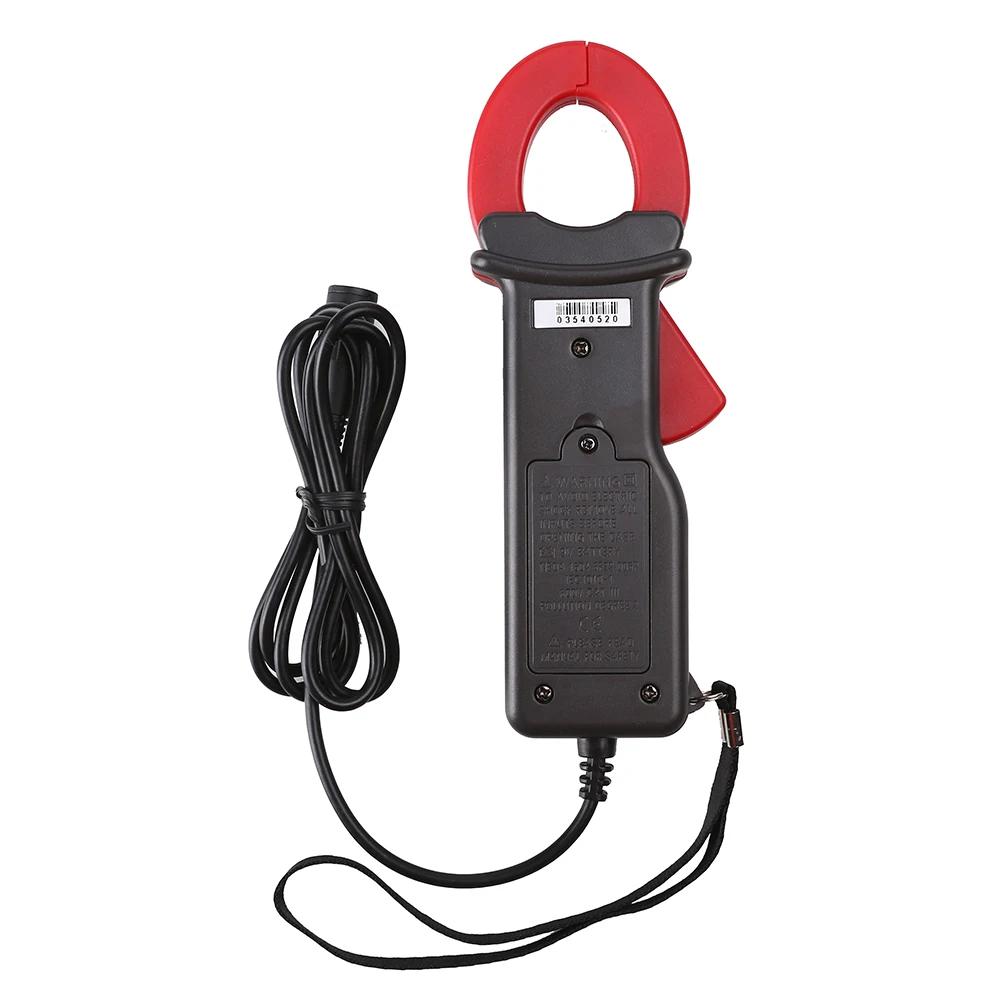

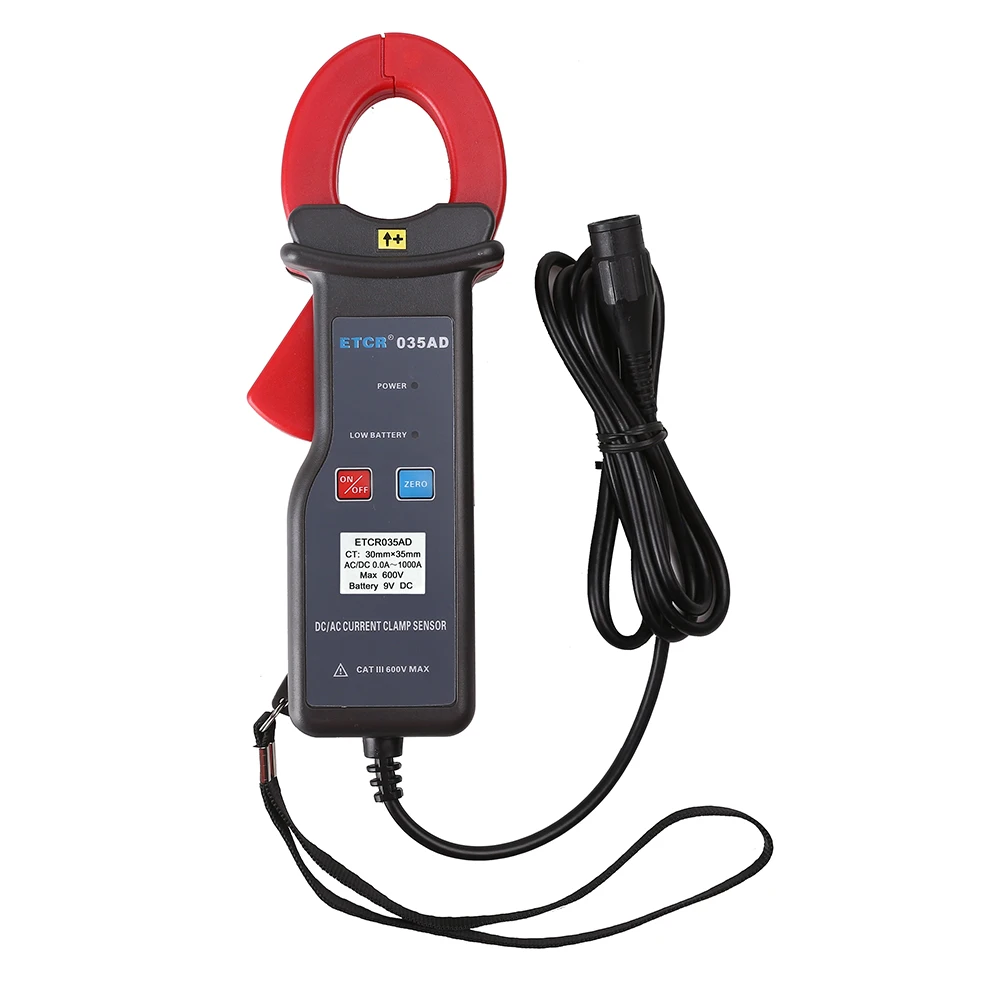

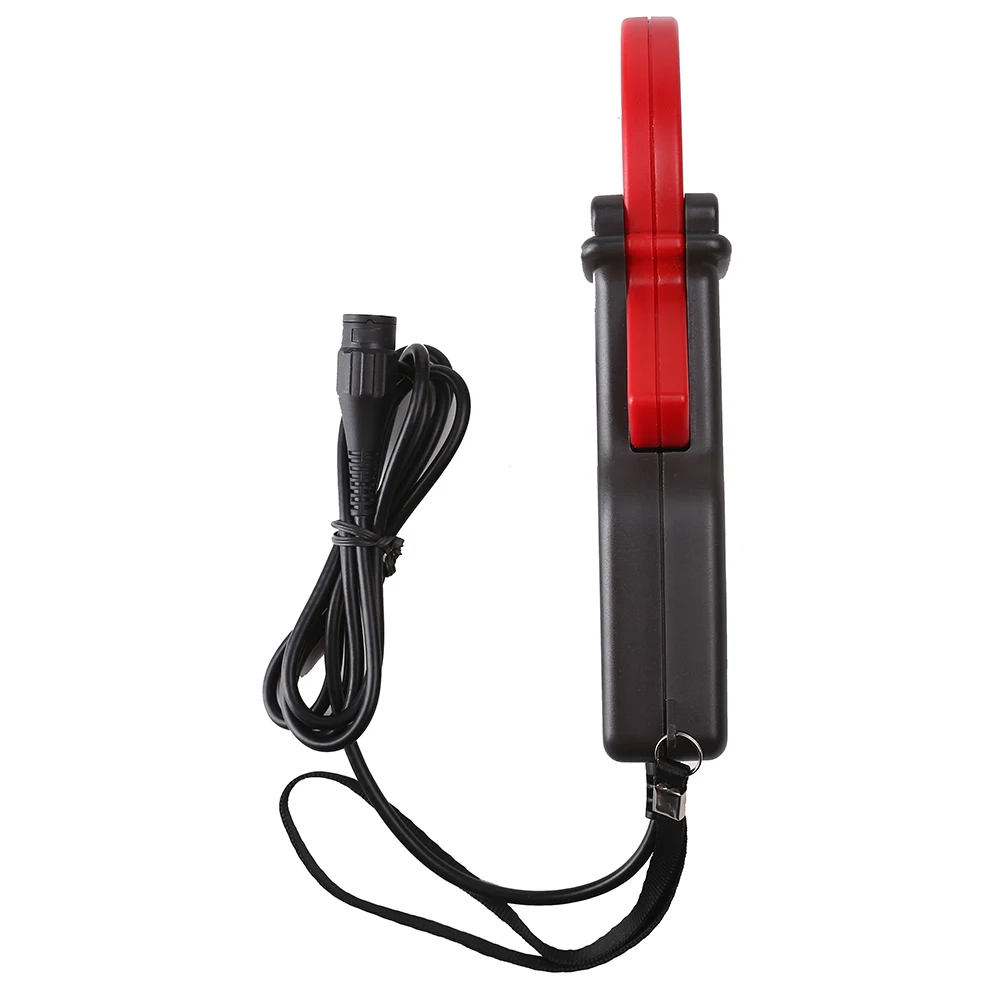

ETCR035AD Ac/Dc Current On Line Detecting Mini Clamp AC DC Current Sensor
- Category: >>>
- Supplier: Guangzhou ETCR Electronic Technology Co. Ltd.
Share on (1600469507584):
Product Overview
Description

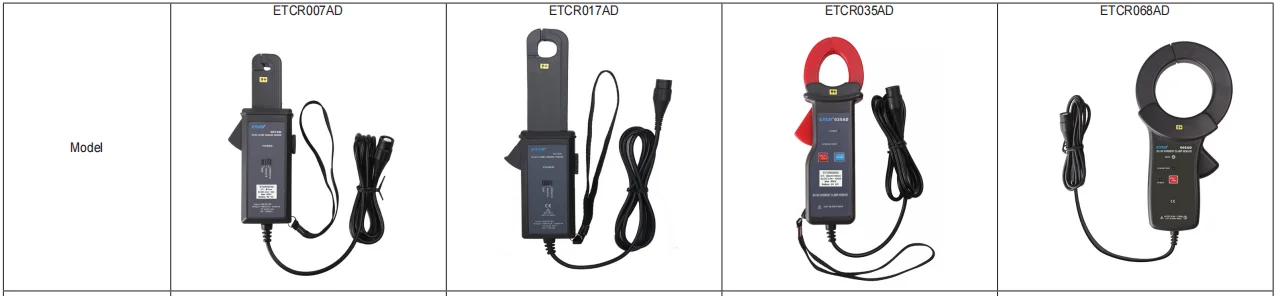

Range | 0mA~50A AC/DC | OmA～ 60A AC/DC | 0.0A~1000AAC/DC | 0.0A～1500AAC/DC |
Resolution | 1mA | 1mA | 0.1A | 0.1A |
Accuracy Class | ±3.0% | ±3.0% | ±2.0% | ±3.0% |
Output Signal | 10mV/1A or 100mV/1A(manual shift) | 10mV/1A or 100mV/1A | 1mV/1A | 1mV/1A |
Phase Eor | ≤3° | ≤3° | ≤3° | ≤3° |
Reset Mode | ZERO reset rotary knob | ZERO reset rotary knob | ZERO reset rotary knob | ZERO reset rotary knob |
Clamp Size | Φ7mm | 16mm x18mm | 30mm×35mm | Φ68mm |
Dimension | 168mmx61mmx32mm | 215mmx65mmx34mm | 122mmx 70mmx33mm | 224mm×115mmx43mm |
Weight | 170g | 202g | 180g | 483g |
Power Supply | 9VDC 6F22 | 9VDC 6F22 | 9VDC 6F22 | 9VDC 6F22 |
Product Function
On-line detecting of AC/DC current
Product Feature
1.Clamp structure, no need disconnect the line being tested, easy to carry and especially suitable for on-site online testing.Non-contact measurement, easy to operate, fast, safe and reliable..
2.Adopts Hall induction technology, with high performance and high accuracy, high anti-interference ability.
3.Output current or voltage signal, the range, transformation ratio, output interface of the sensor could OEM.
4.Output interface: 1.5m shield wires, the terminal interface: Φ3.5mm Audio plug/BNC plug/4.0mm double banana plug (optional).
5.Insulating strength: AC3700V/ms (between the core and coil)
6.Safety class: CAT 600V Ⅲ
7.Working temperature: -15°C~50°C.
2.Adopts Hall induction technology, with high performance and high accuracy, high anti-interference ability.
3.Output current or voltage signal, the range, transformation ratio, output interface of the sensor could OEM.
4.Output interface: 1.5m shield wires, the terminal interface: Φ3.5mm Audio plug/BNC plug/4.0mm double banana plug (optional).
5.Insulating strength: AC3700V/ms (between the core and coil)
6.Safety class: CAT 600V Ⅲ
7.Working temperature: -15°C~50°C.
