Zetron HF Hydrogen Fluoride Gas Leak Detector MIC600 24h Continuously Wall Mounted Suction Type
- Category: >>>
- Supplier: Beijing Zetron Technology Co. Ltd.
Share on (1600469524860):
Product Overview
Description
overview

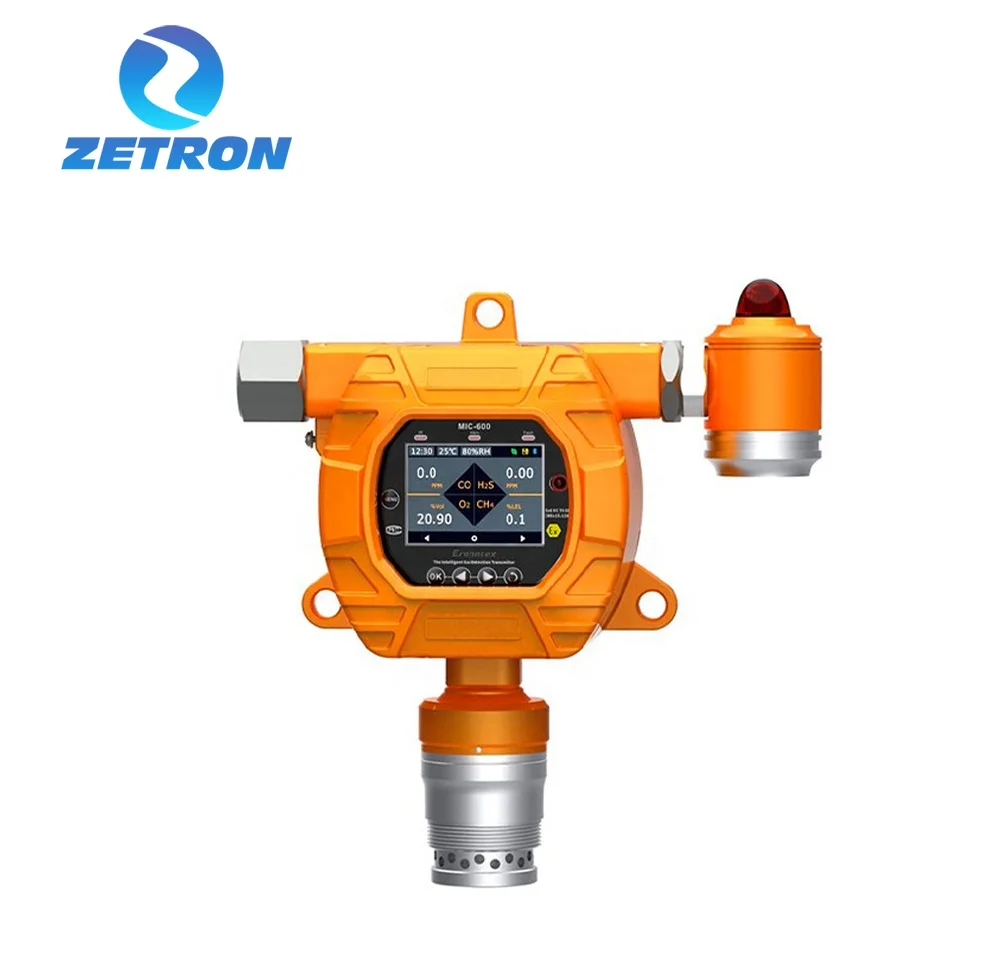

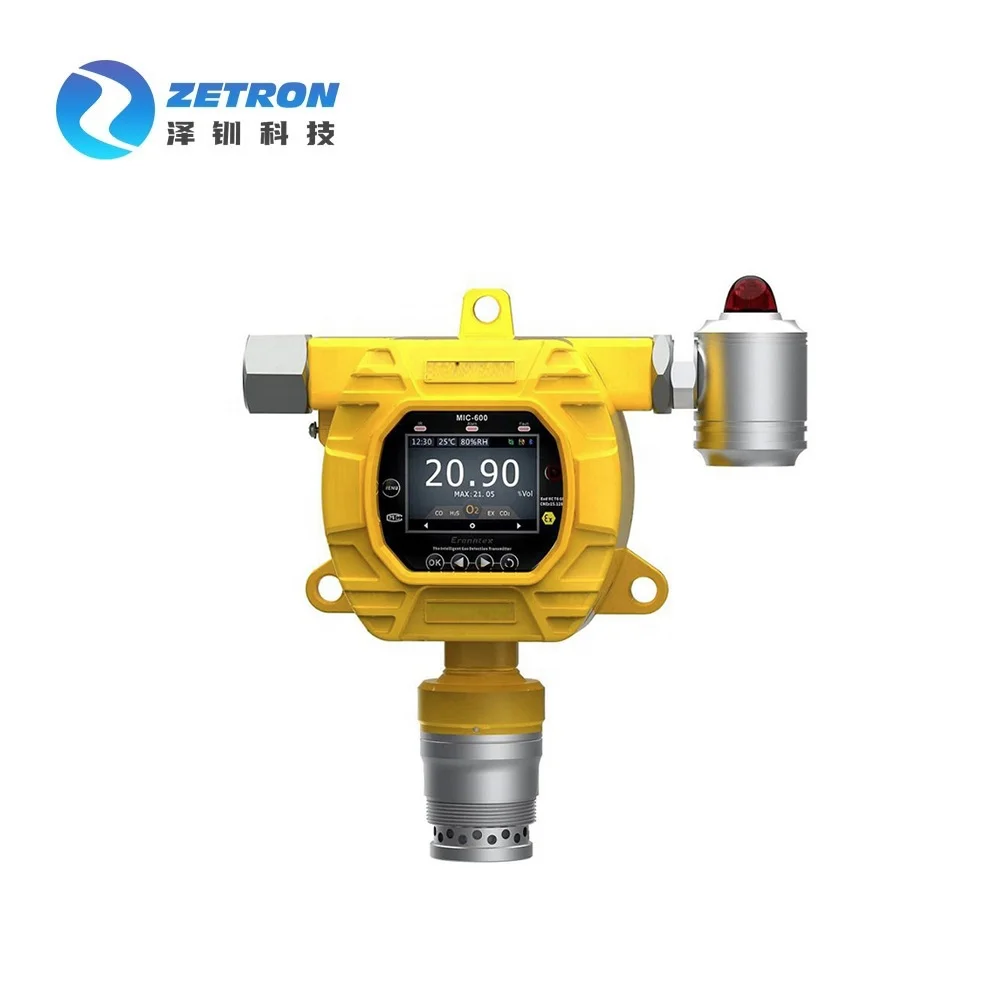

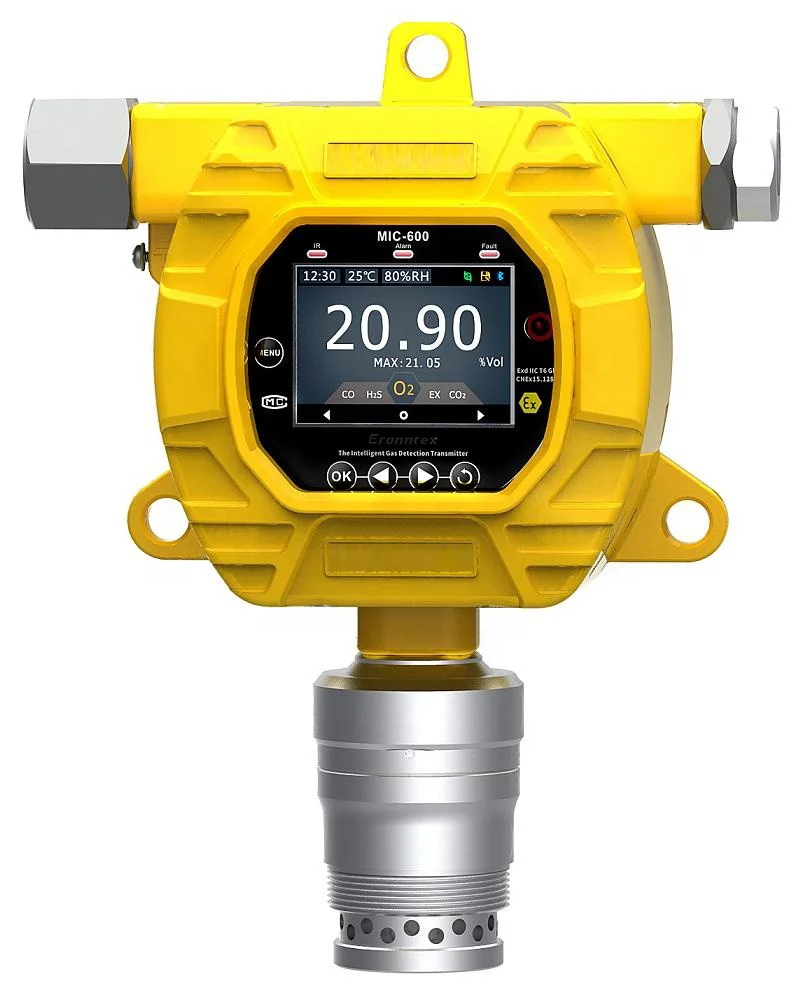

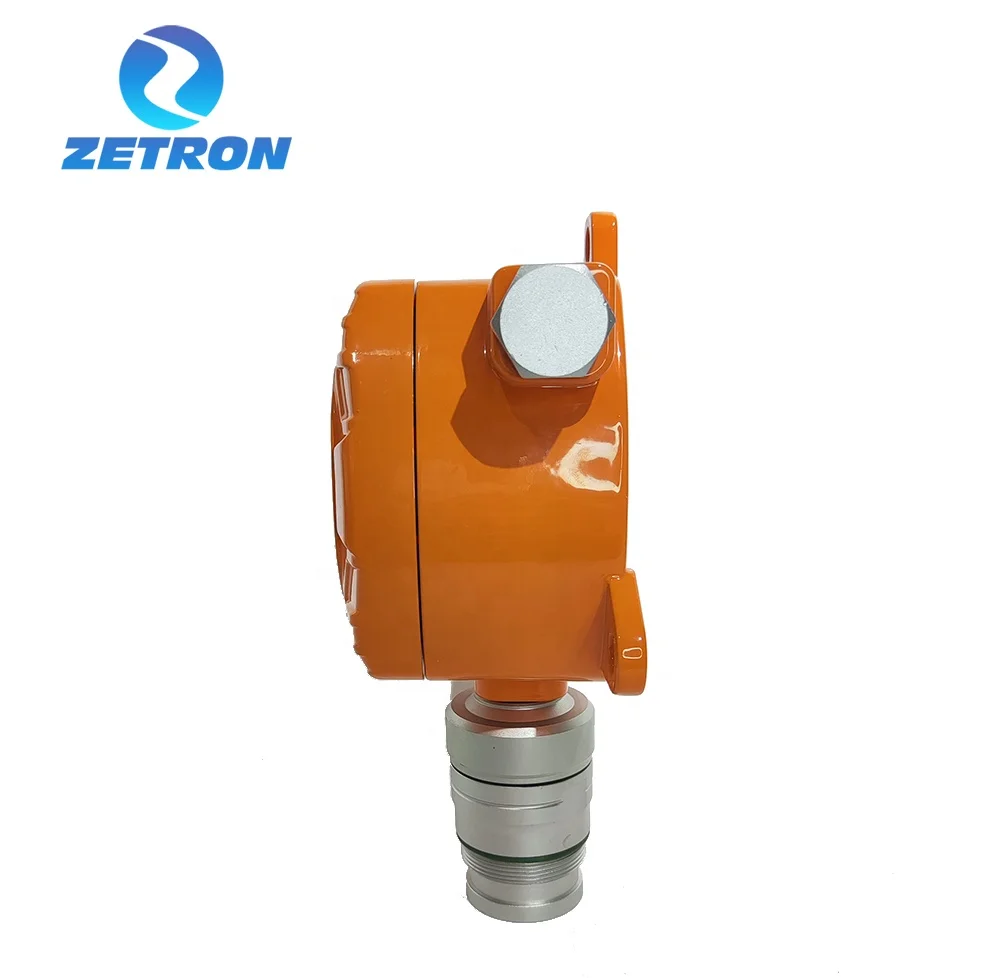

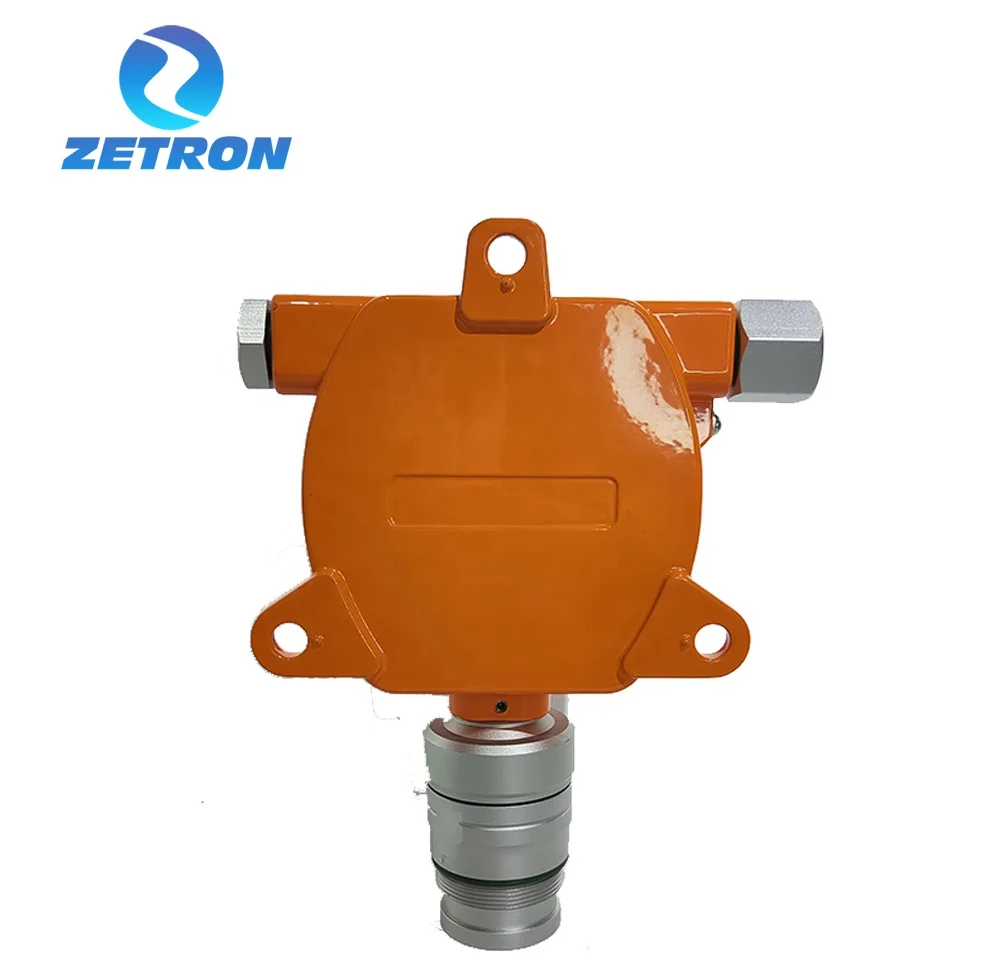

Zetron HF Hydrogen Fluoride Gas Leak Detector MIC600
In 24h Continuously Wall Mounted Suction Type
2.5-inch high-definition color screen, display the information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on; the menu interface adopted high definition simulation graphics to display the function name of each menu.
Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration, real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored; it is
supported to use the local host to view, and delete data, and upload the data via RS485 interface to the computer for data analysis or printing.
The optional high-temperature high-humidity pretreatment system will be possible to detect the smoke gas at the temperature of 1300 ℃. The detection for the gases at other temperatures can be customized.
Simultaneously display the concentrations of multiple types of gases, repeatedly display the concentration of single-channel gases in large font, and display the realtime curve.
Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration, real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored; it is
supported to use the local host to view, and delete data, and upload the data via RS485 interface to the computer for data analysis or printing.
The optional high-temperature high-humidity pretreatment system will be possible to detect the smoke gas at the temperature of 1300 ℃. The detection for the gases at other temperatures can be customized.
Simultaneously display the concentrations of multiple types of gases, repeatedly display the concentration of single-channel gases in large font, and display the realtime curve.
Gases to be detected | Range | Accurancy | Resolution | Response time T90 |
Phosgene ( COCL2 ) | 0-1ppm | ＜±2%(F.S) | 0.001ppm | ≤20 seconds |
Silane ( SiH4 ) | 0-50ppm | ＜±2%(F.S) | 0.01ppm | ≤30 seconds |
Fluorine gas ( F2 ) | 0-10ppm | ＜±2%(F.S) | 0.01ppm | ≤30 seconds |
Hydrogen sulfide ( H2S ) | 0-100ppm | ＜±2%(F.S) | 0.01ppm | ≤30 seconds |
Tetrahydrothiophene ( THT ) | 0-100mg/m3 | ＜±2%(F.S) | 0.01 mg/ m3 | ≤60 seconds |
Bromine gas ( Br2 ) | 0-10ppm | ＜±2%(F.S) | 0.001ppm | ≤30 seconds |
Ethyne ( C2 H2 ) | 0-100%LEL | ＜±2%(F.S) | 0.1%LEL | ≤30 seconds |
Iodine gas ( I2 ) | 0-50ppm | ＜±2%(F.S) | 0.01ppm | ≤30 seconds |
Styrene ( C8 H8 ) | 0-200ppm | ＜±2%(F.S) | 0.1ppm | ≤30 seconds |
Chloroethylene ( C2 H3CL ) | 0-100ppm | ＜±2%(F.S) | 0.01ppm | ≤30 seconds |
Note: Not all gases and range are listed, if you need more information, please contact us.
Product Parameter
Gas | COCL2 | Range | 0-1ppm, other ranges can be customized | ||
Size | 210×170×85mm (L×H×W) | Weight | 1.8 Kg | ||
Installation method | Pipeline TypeWall Mounting Type | Display | 2.5-inch high-definition color screen | ||
Environment | Temperature: -40 ℃ ~ + 70 ℃Humidity: ≤10 ~ 95% RH (regular) | Approvals | IP66; Exd Ⅱ CT6 | ||
Accessories | Manual, qualification certificate, warranty card, outer packaging box | ||||
Optional items | Alarms;Wireless Transmission;Pretreatment System; SD Card;Temperature and Humidity Measurement;Accessory for connection with computer for monitoring. | ||||
Installation Type Accessories(Optional configuration) | Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe), stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...), rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m), vacuum pump (sampling distance is 40 m), 24V switching power supply, pressure reducing valve, flow meters | ||||
