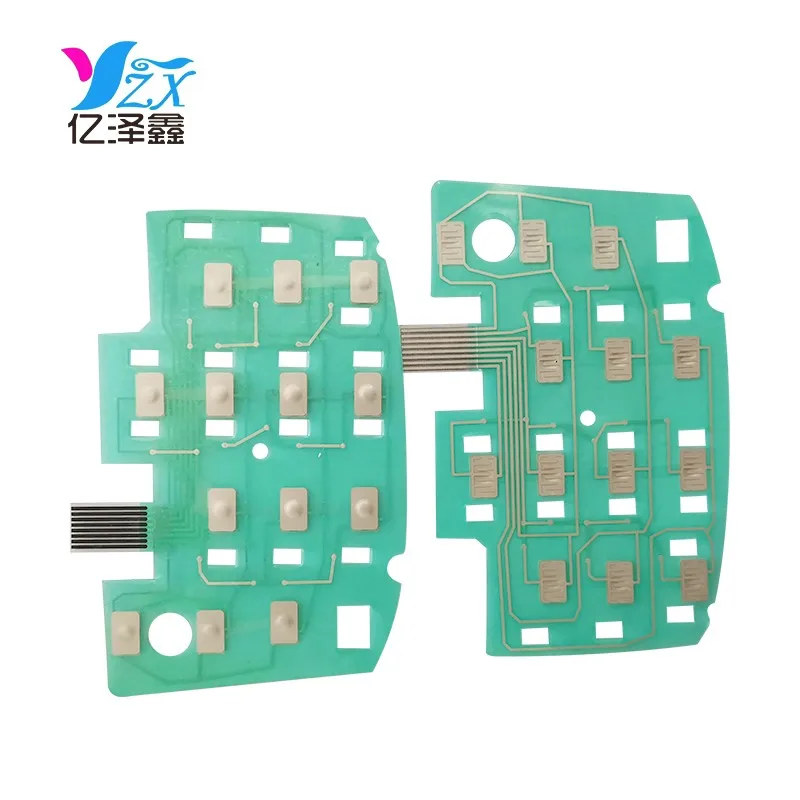

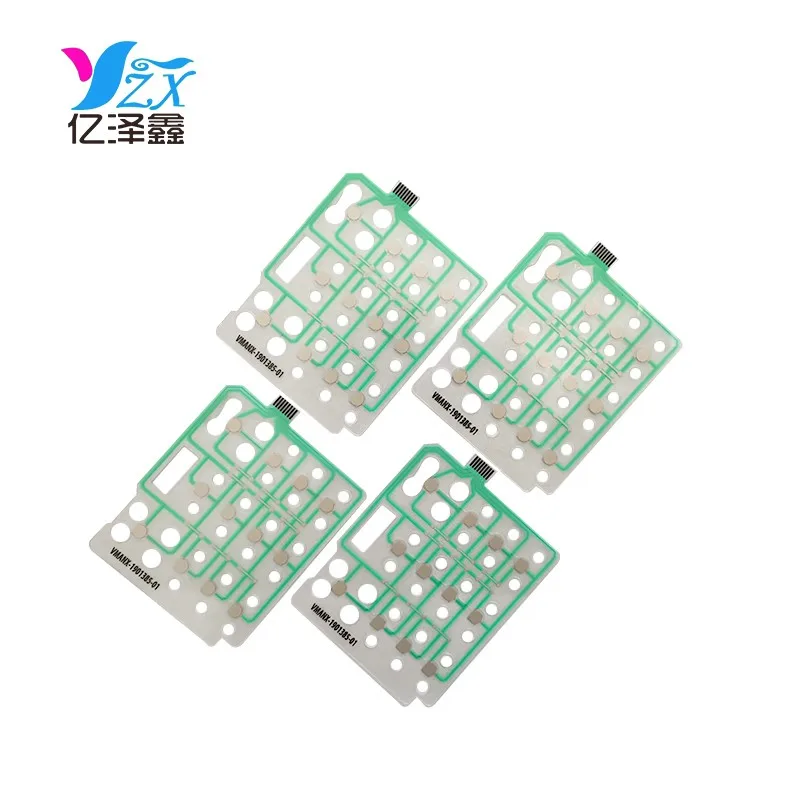

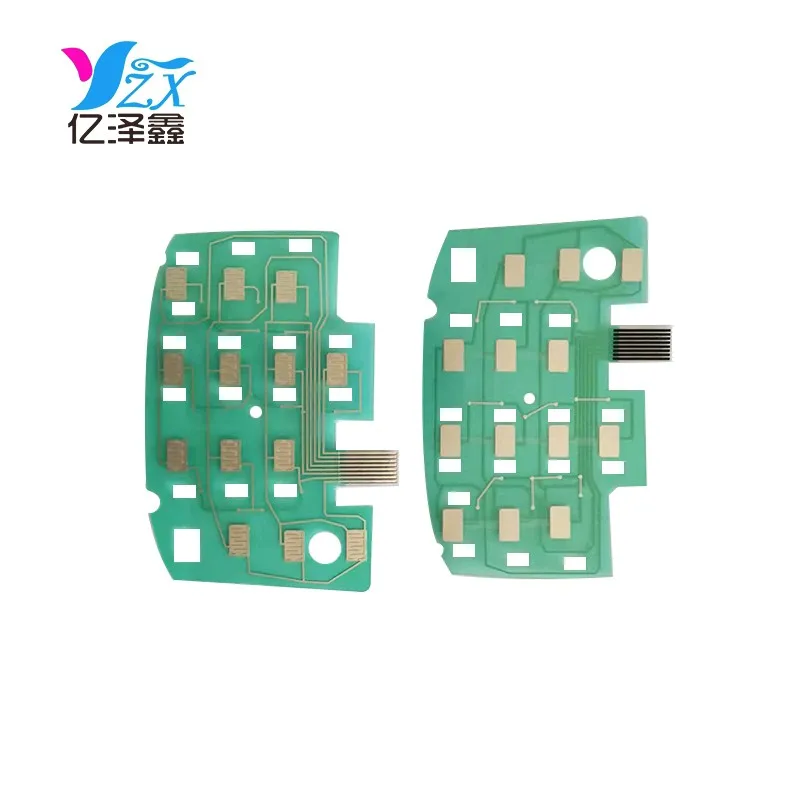

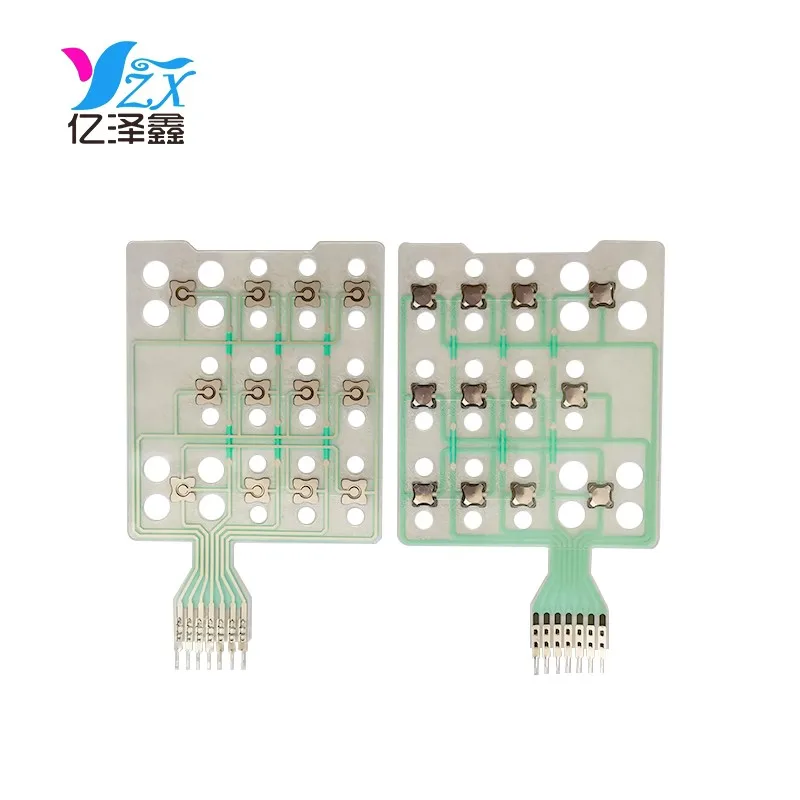

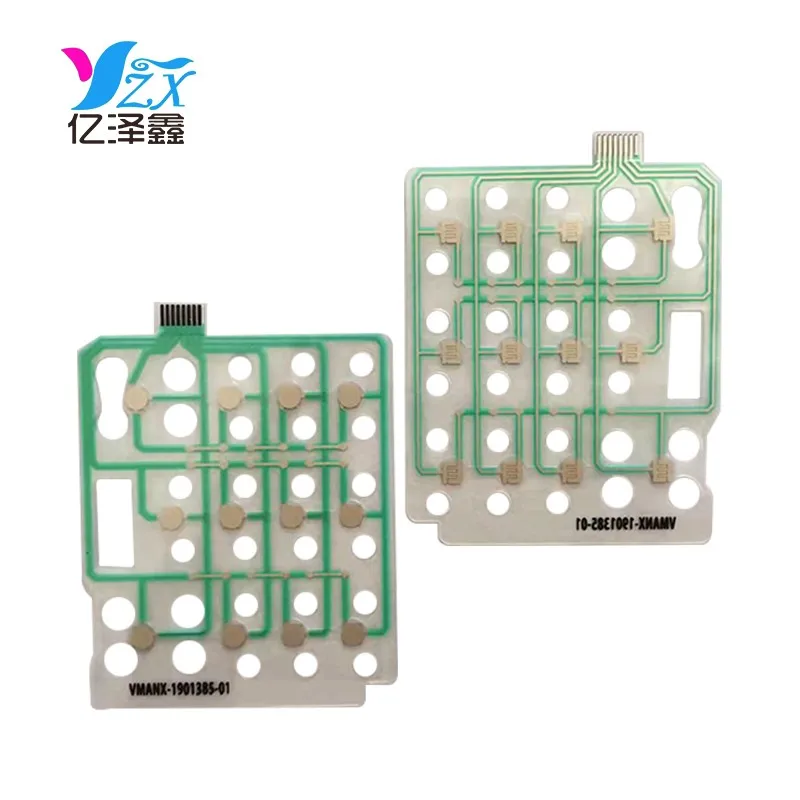

High Quality Metal Dome Tactile 4 x 4 Matrix Array 16 Key Membrane Switch Keypad Keyboard
- Category: >>>
- Supplier: Shenzhen Yizexin Technology Co. Ltd.
Share on (1600469526233):
Product Overview
Description
Company Profile
Favorable Environment
Shenzhen Yizexin Technology Co., Ltd has two branch companies, one is Yizexin (HK) Technology Co., Ltd. and the other is Shenzhen An Xing Kang Technology Co., Ltd. Founded in 2004, It's an industry leading producing and R&D manufacturer in silk screen printing, gift and electronic areas with deep domain expertise and best service to help clients get high-quality and competitive products with 16 years history. Based on our professional and innovative technologies, our factory specializes in producing membrane switch, flexible circuit, membrane panel, lens, crystal epoxy, adhesive sticker, touch panel, name plate and so on.
Dust-free Workshop
here are more than 500 staffs in our factory .
Production workshop's total space about:
20,000㎡
Office, R&D space and warehouse'stotal space about: 20,00㎡

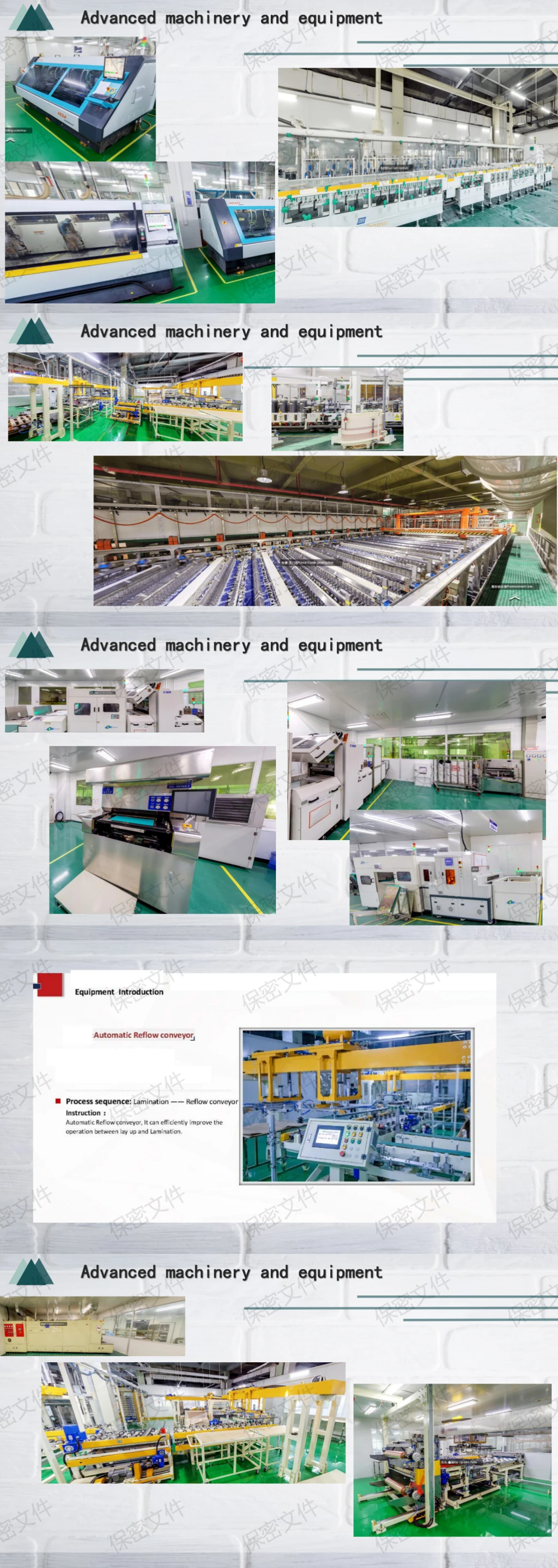

High Sophisticated Model Equipment
There are many testing equipments in the labs, like binary tester,high and low temperature tester, tension tester, height tester, membrane switch life tester, membrane switch lead tester, etc. With a variety of sophisticated high-end modern equipments, like all-auto silk-screen printer, semi-auto silk screen printer (20 sets), six-color printer, CNC engraving machine (35 sets), digital control cutting machines, laser cutter, injection molding machine, punching machine, etc
Our Certifications
Product Description
Introduction:
Flexible Printed Circuits (FPC): Principle of Operation
Flexible Printed Circuits consist of one or more etched conductor layers (usually copper) on one or two sides of a dielectric film (usually Polyimide or PET). Line width and spaces of 80 um or less are possible but are dictated by copper thickness. A soldermask or adhesive coated dielectric coverlayer is often applied over the conductive pattern to insulate and protect the conductors and to dictate component placement areas. Additional layers may be laminated together to create flex or flex rigid multilayer FPC’s and plated through holes (PTH’s) are used to electrically connect between layers.
Shielding for EMC (electro-magnetic compliance) using silver ink or additional copper layers, and impedance control can be designed into FPC’s.
Selectively placed rigid or film dielectric material can be used to stiffen areas that need additional mechanical support.
Circuitry can be populated with SMT (surface mount technology) or through hole components using lead free solder assembly processes or conductive adhesive assembly processes (if lower temperature base dielectrics and coverlayers are used). 0402 (and up) sized SMT and through hole components can be placed on FPC’s and flip chip or wire bonding of bare semiconductor dies can also be done in certain circumstances.
FPC's can be designed as 'flex-to-install' (i.e. one time bend during installation) or to flex continually throughout their life, often in circumstances where millions of flex cycles are required (i.e. connecting to the moving head of a printer).
FPC type | Single sided (SS) ，Double sided (DS) ，Flex multilaer ，Rigidflex multilayer |
Base Materials | Polyimide( PI), Polyester (PET) |
Base Materials Thickness | 25 μm+adhesive-less 50 μm+adhesive |
Coverlay Material: | Polyimide( PI), Polyester (PET) |
Overlay Material Thickness: | 50 μm and up 25 μm PI/ 25 μm adh |
Available Copper Thickness(Weight) | 12 μm （1/3 oz），17.5 μm （1/2 0z), 35 μm （1 oz）， 70 μm （2 oz） |
Soldermask Materials | Flexible soldermask |
Soldermask Thickness | 20 μm -25 μm typical |

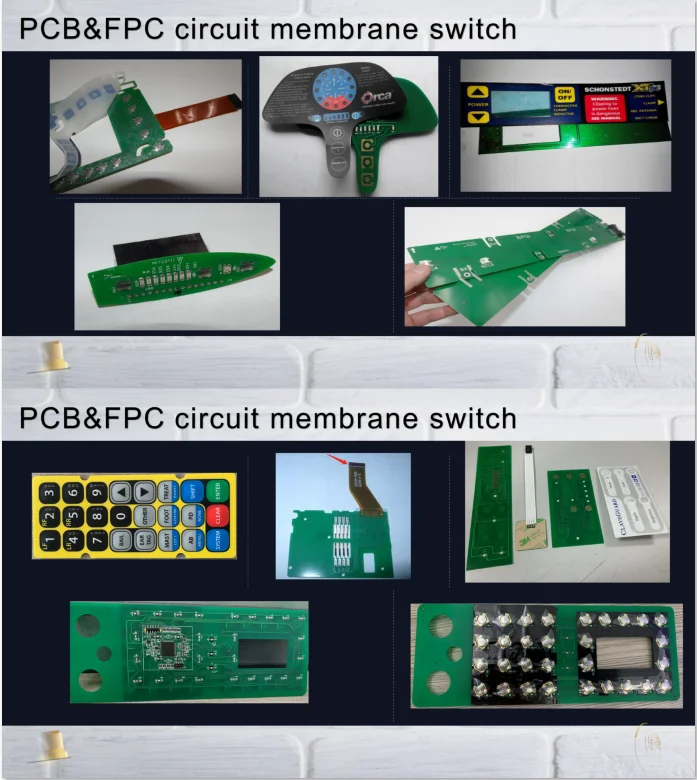

Products Show
Our Service
Fast delivery time
About 3-7 days for a batch order
TNT/FedEX/EMS/DHL/UPS and so on.
High quality
We are authorized by Disney (Japan), UNIVERSAL STUDIOS (Japan), BANDAI (Japan) and the supplier designated by Foxconn.
We have passed ISO9001, ISO14001, QC 080000, SGS.BV,TUV quality management system certification and other related product certification (CCC, FCC, CE, RoHS, ASTM F963-16 SGS, etc).
Secure after-sales service
Exhibition
Application Field
We have a very widde range of products: We own a full set of equipments, with abundant product line in three main sector: nameplates, gifts and electronic products,which are apply in manay many sections.
