Good Price T856 Pneumatic Diaphragm Single Sealing New Sleeve Flow Control Valves Gas Pressure Reducing Valve
- Category: >>>
- Supplier: Shanghai Best Automation Technology Co. Ltd.
Share on (1600469526371):
Product Overview
Description
VR
Product Overview
Key Specifications/Special Features:

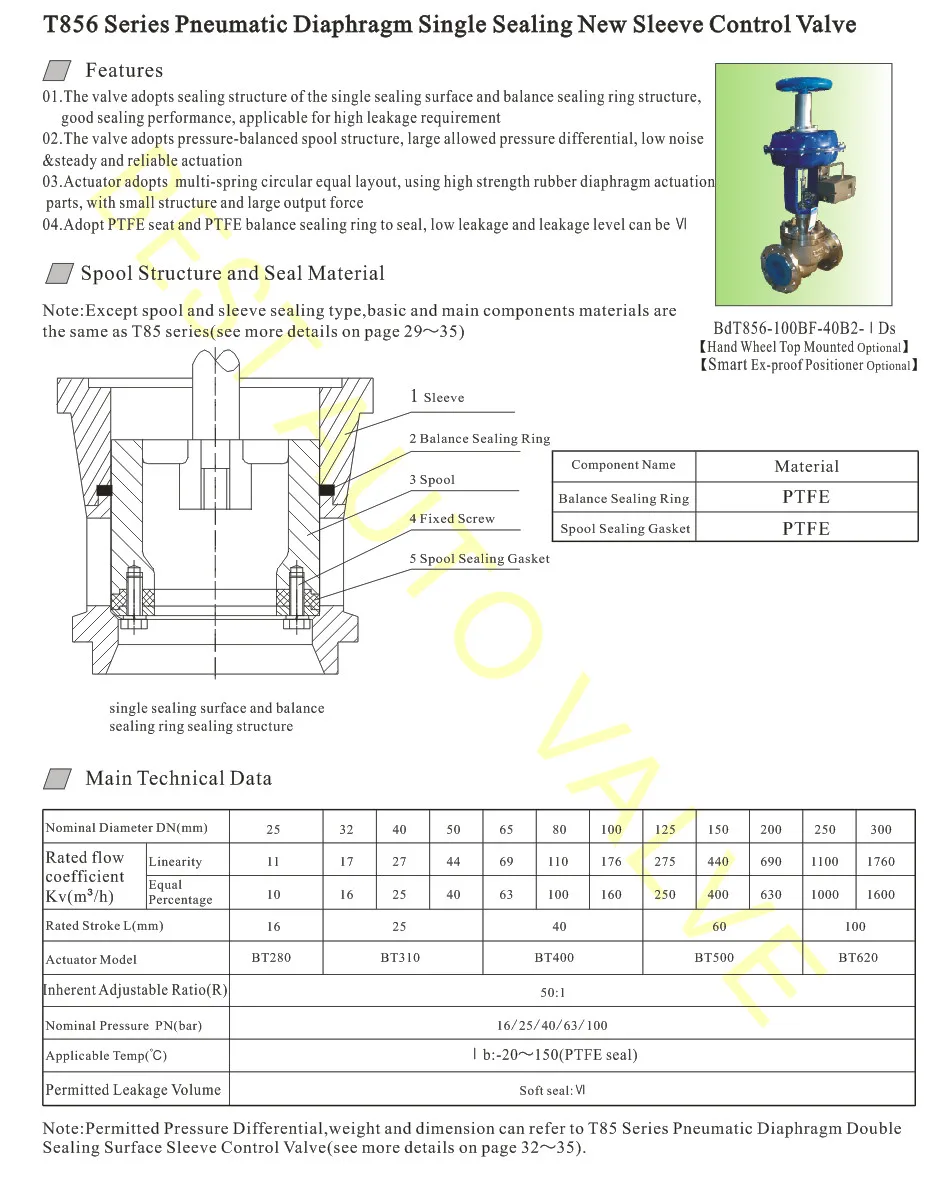

01.The valve adopts sealing structure of the single sealing surface and balance sealing ring structure, good sealing performance, applicable for high leakage requirement
02.The valve adopts pressure-balanced spool structure, large allowed pressure differential, low noise&steady and reliable actuation
03.Actuator adopts multi-spring circular equal layout, using high strength rubber diaphragm actuation parts, with small structure and large output force
04.Adopt PTFE seat and PTFE balance sealing ring to seal, low leakage and leakage level can be Ⅵ
02.The valve adopts pressure-balanced spool structure, large allowed pressure differential, low noise&steady and reliable actuation
03.Actuator adopts multi-spring circular equal layout, using high strength rubber diaphragm actuation parts, with small structure and large output force
04.Adopt PTFE seat and PTFE balance sealing ring to seal, low leakage and leakage level can be Ⅵ
FEATURES AT A GLANCE
Name | Nominal diameter | Vavle body material | Nominal pressure | Suitable temp. | ||||
Sleeve Control Valve | DN25~300 | Carbon steel Stainless Steel | 16/25/40/63/100bar | ＜150℃ | ||||
Others can customize according to your requirements | ||||||||
