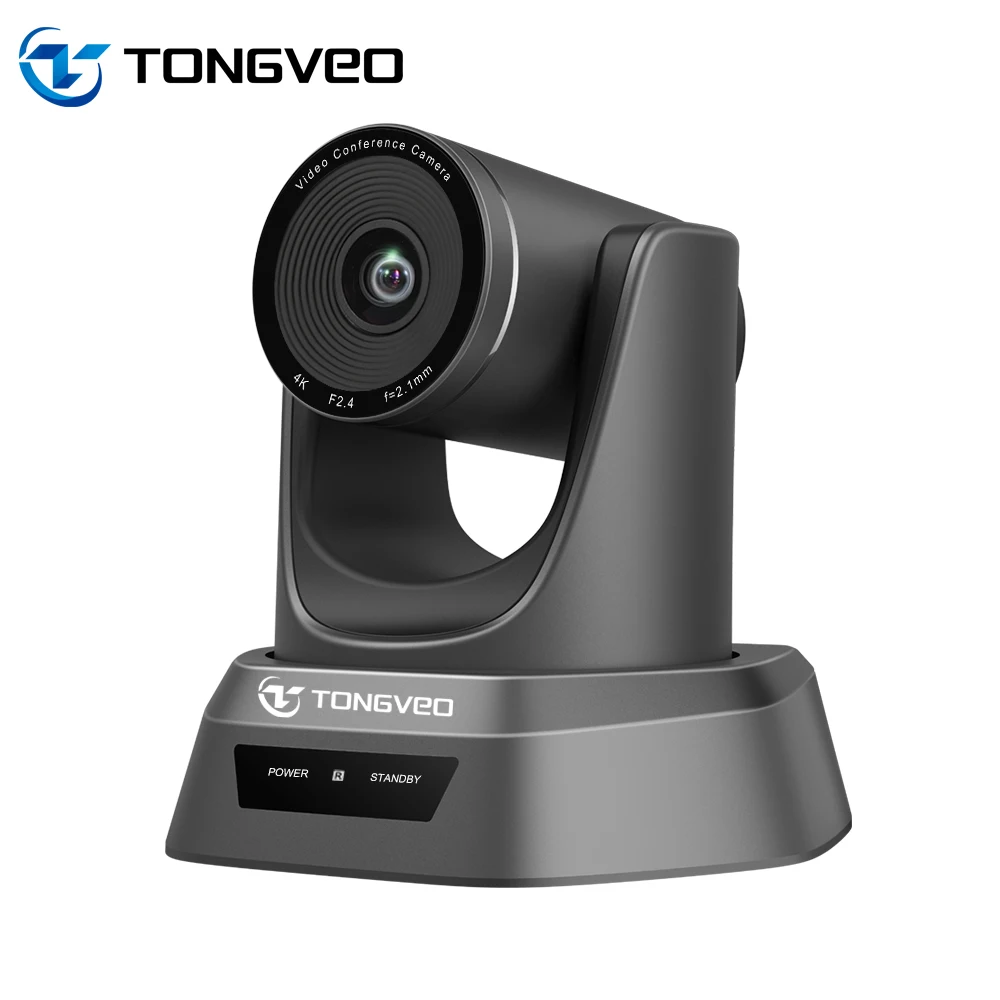

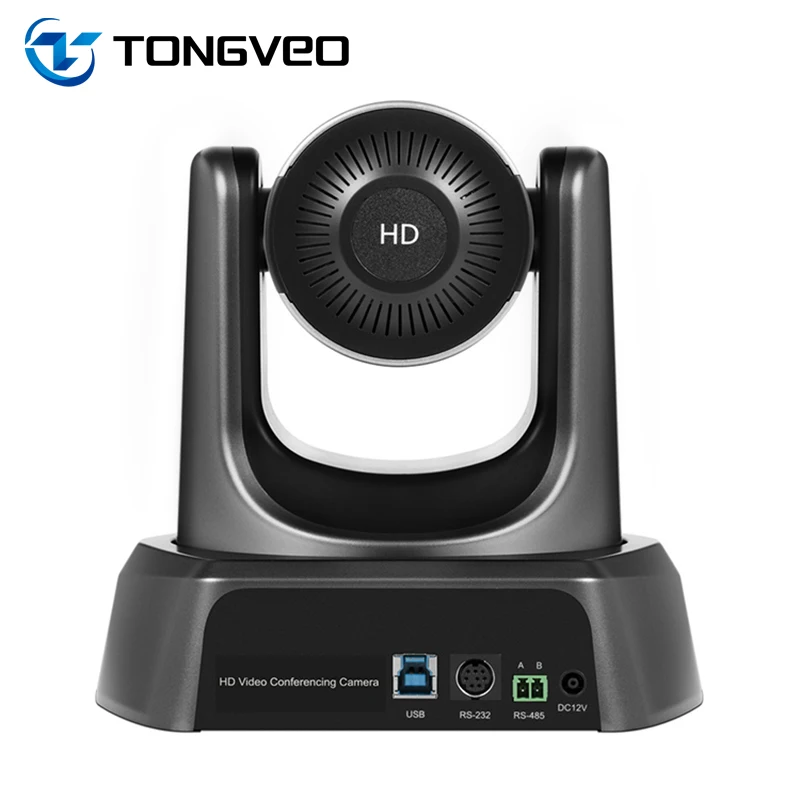

Professional Ultra 4K PTZ USB2.0 for Broadcasting Video Conference Equipment Camera
- Category: >>>
- Supplier: Xian Tongveo Video Technology Co. Ltd.
Share on (1600469531341):
Product Overview
Description
Products Description
Main Features:
* Automatic camera control* 1/2.5″CMOS Sensor（SONY IMX274）
* 4k(3840X2160 )Ultra HD video resolution
* Preset: 10 via IR remote setting (255 via PELCO-P/D/64 via VISCA)
* Equipped with IR remote control, easy to operate

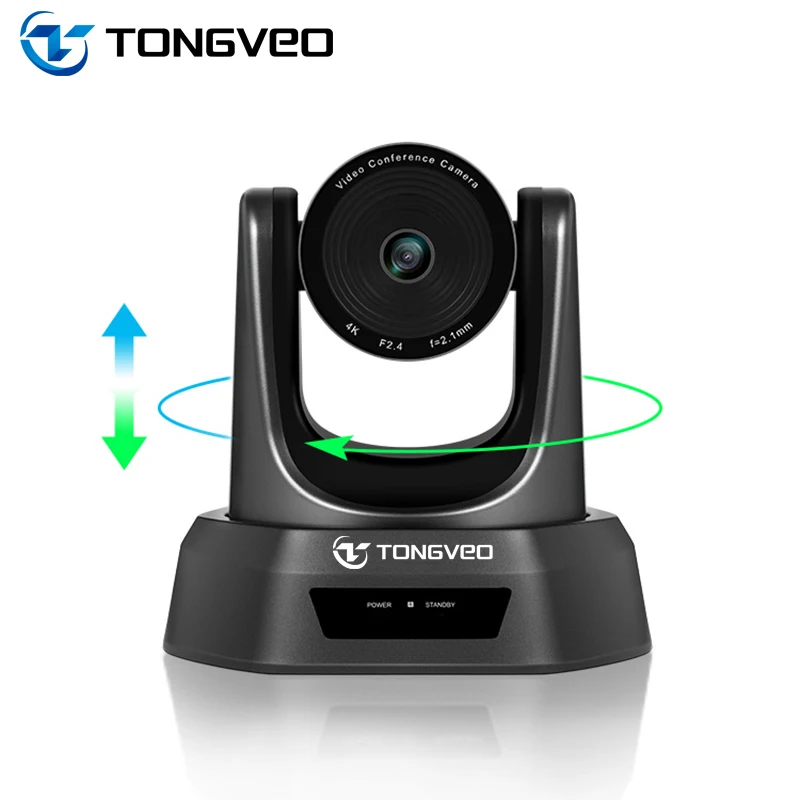

* High precise motor positioning (Pan:350°,Tilt: -35°~+55°)
* UVC/plug-and-play at MJPEG via USB, 4K@30FPS
* Support ceiling mount, wall mount and tripod mount

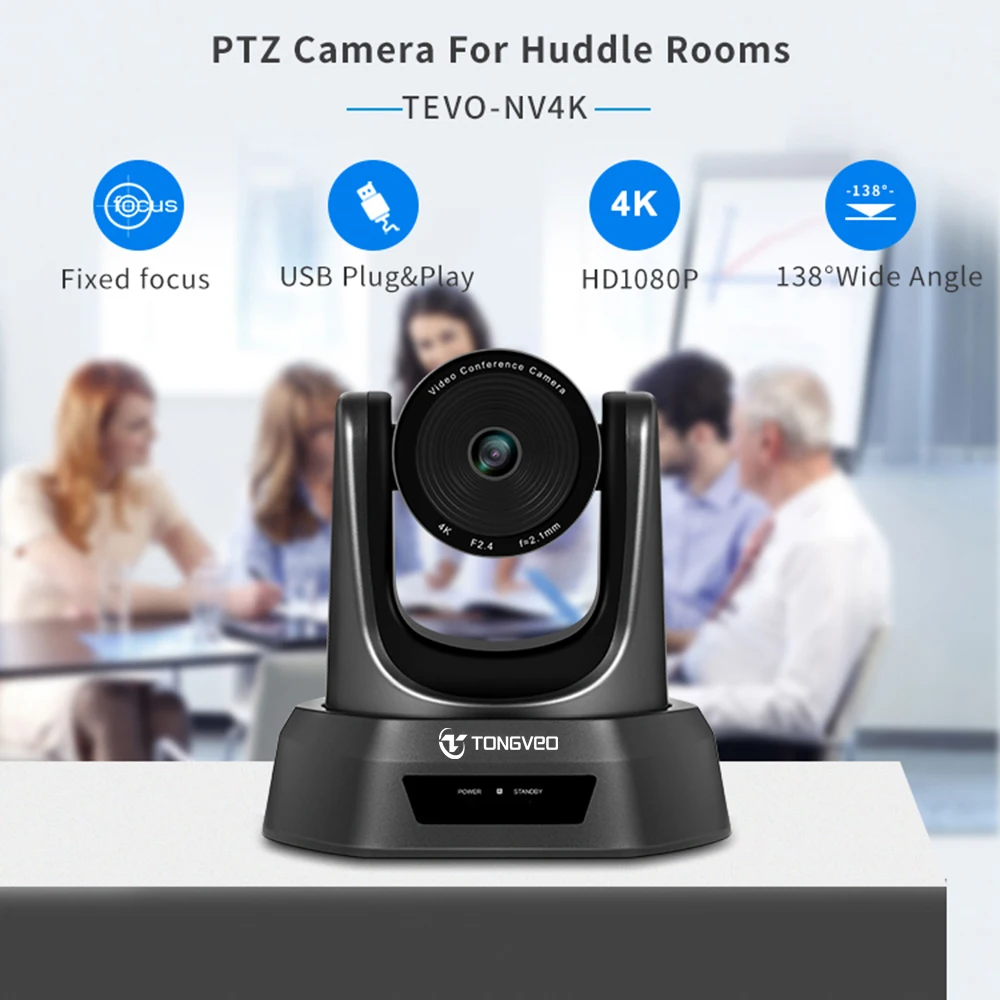

* 138 degrees Wide field of view with no video distortion
* Quiet & smooth mechanism movement, accurate & fast focus
* Support Visca, Pelco-P&Pelco-D protocol, RS232/RS485 Camera Control
* Compatible with most leading video conferencing software and platform
Product advantages
Full HD 4K camera for business meeting
Achieve customers with a face to face full HD video conferencing

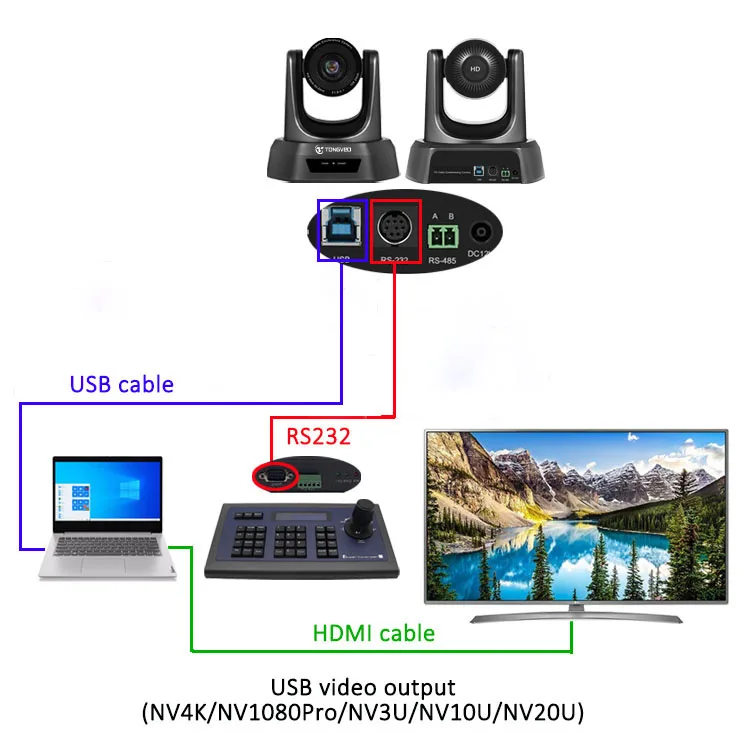

USB Plug and Play
Multiple modes of control
More details
Model | TEVO-NV4K | ||||||
Image sensor | 1/2.7 inch HD Color COMS | ||||||
Effective pixel | 8.29 mega pixel(16:9) | ||||||
Horizontal Resolution | 4K(3840*2160), 2K(2560*1440), 1080P(1290*1080) | ||||||
Focal length | Fixed focus 2.1mm wide angle lens | ||||||
Signal standard | NTSC/PAL | ||||||
Field of View | Fixed focus, 138° | ||||||
Gain control | Auto/manual | ||||||
SNR ratio | ≥50dB | ||||||
Preset position | Remote-controller supports 9 presets PELCO Control Protocol supports 255 presets | ||||||

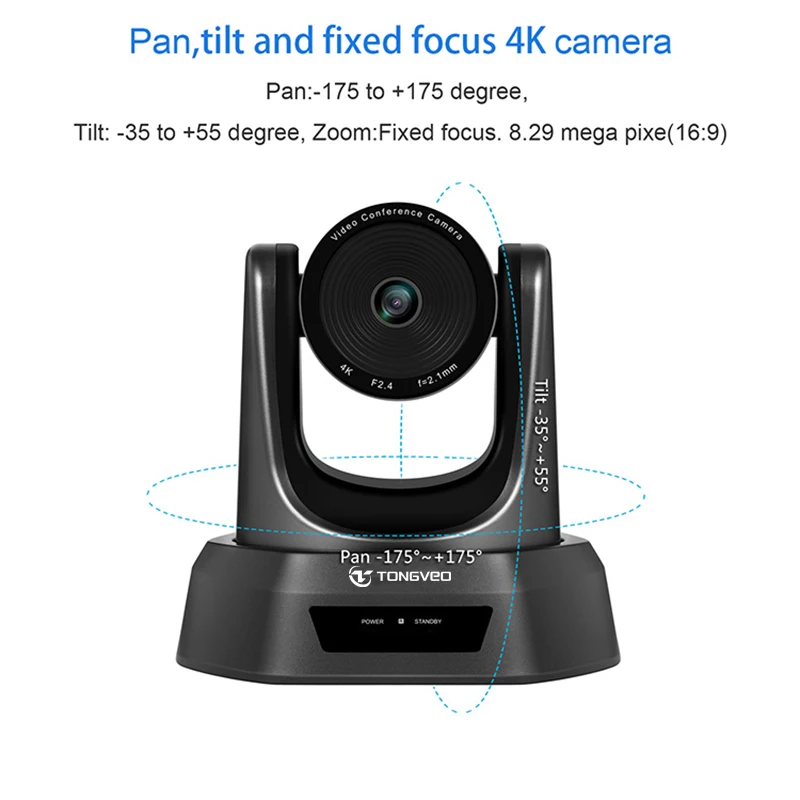

Pan/Tilt movement range | Pan: ±°(Max Speed 80°/s) Tilt: 120°(Max Speed 60°/s) | ||||||

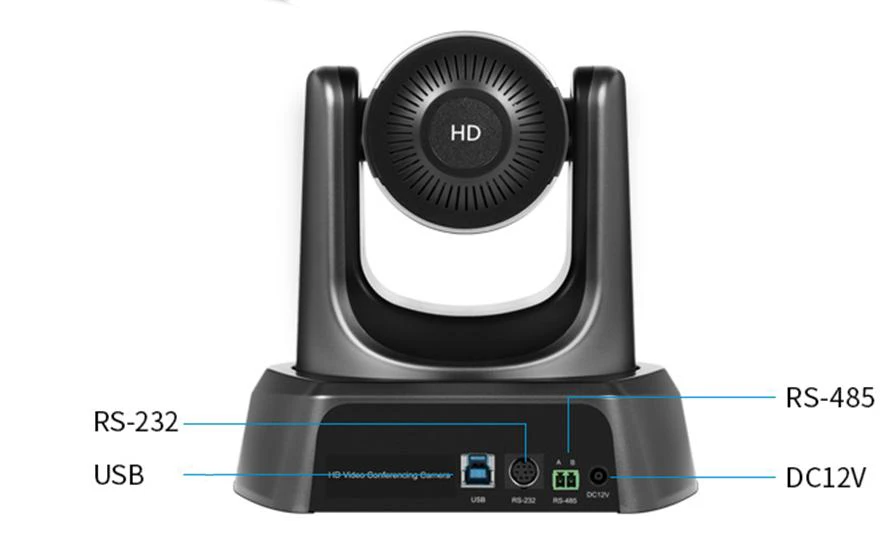

Control terminal | RS-232, RS-485 | ||||||
Control Protocol | VISCA, PELCO-D, PECLO-P (RS-232, RS-485) | ||||||
Video output | USB, SDI, H-D-M-I | ||||||
Noise Reduction | 2D/3D | ||||||
work Temperature | -10°~50° | ||||||
Work Humidity | -20°~60° | ||||||
Baud rate | 34800/9600bps | ||||||
Address Set | 1~64 | ||||||
Weight | 1.7kg/3.5kg | ||||||
Decoder | Built-in | ||||||
Power | 12w | ||||||

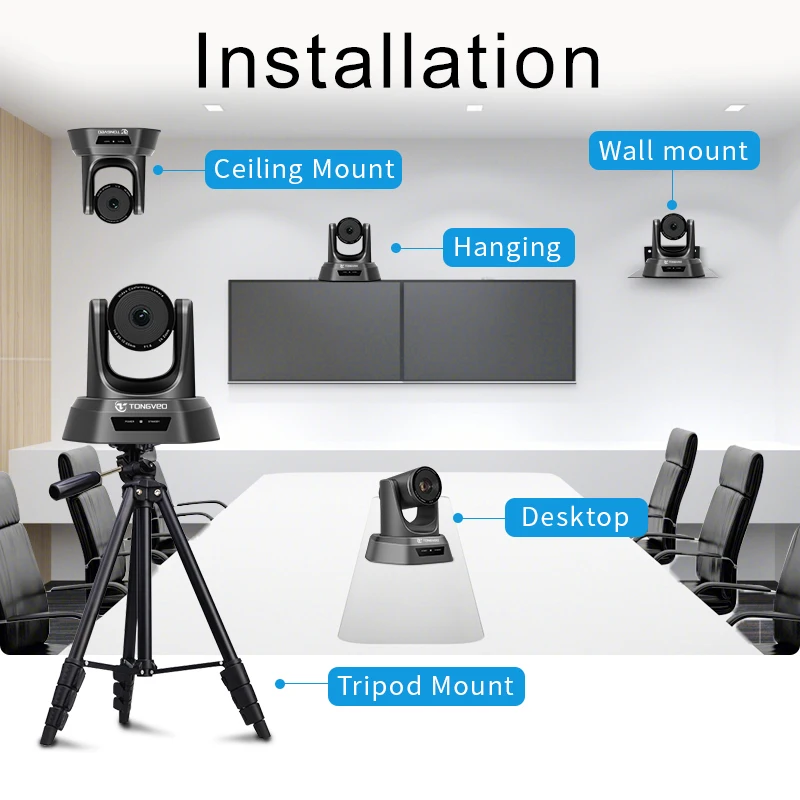

Installation | Support desktop, Tripod, Wall mount and Ceiling mount | ||||||

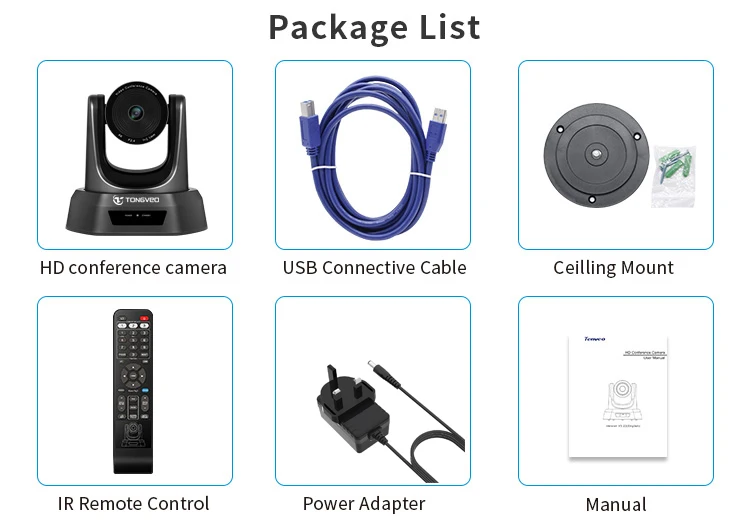

Accessories | DC 12V Power adaptor, IR remote control, Ceiling brackets & screws, Manual, USB Cable | ||||||
Size | 260*175*180mm / 296*225*223* (before/after packing) | ||||||
Product Paramenters
Package and shipping
Company Profile
WHO WE ARE?
We, Tongveo is focusing on developing and implicating the technology of video conferencing products,SD,HD PTZ video conference camera and omni-directional conference microphone speakers.We are professional and we have good reputation in product development, production, sales and after service. We can design produce and sale directly in order to ensure the most competitive price and excellent quality under control.All of our products are compliant with CE,FCC and ROHS standards. We have established a sound sales & service network.Offices has been set up in Shenzhen, Hongkong, Beijing, Guangzhou, Xi'an,etc.We also successfully sold our products to many foreign countries. We are sincerely to make any meeting better and easier! Welcome your OEM/ODM orders.
WHAT WE DO?
Tongveo, which is a professional Audio &Video integration and conference solution supplier, was founded in 2011. Tongveo has more than 10 years OEM/ODM/JDM experience, been focusing on Full HD, Ultra HD video camera and audio devices covering HD video conferencing PTZ camera, HD Webcam, All-in-one camera, speakerphone, etc.
Certifications
WHY CHOOSE US?
1.Strictly QC process
-- Four times strict 100% inspection Raw Material Inpection + Semi-finished product inspection + Finished product inspection + Customer commissioned inspection (AQL 2.5 Standard) -- 72 hours of pre-delivery aging test. We owns our independent aging test lab and all products undergo 72-hour aging test before shipment.
2.Warranty We provide 24 months
warranty guarantee, replacement within 3 months, and 24 months free maintainence. Enjoy lifetime technical support service. (firmware upgrade service etc )
3. Qualified Certificates.
Our products are produced in strict compliance with international standards ( CE, FCC, RoHS, VCCI, ISO9001 ).
4. Japanese Production Guide.
Completely follow the strict Japanese production standards to guide production.
FAQ
Q1: Which kind of software does your camera compatible with?
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, FFT, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 3 years.
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,lable,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, FFT, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 3 years.
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,lable,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
