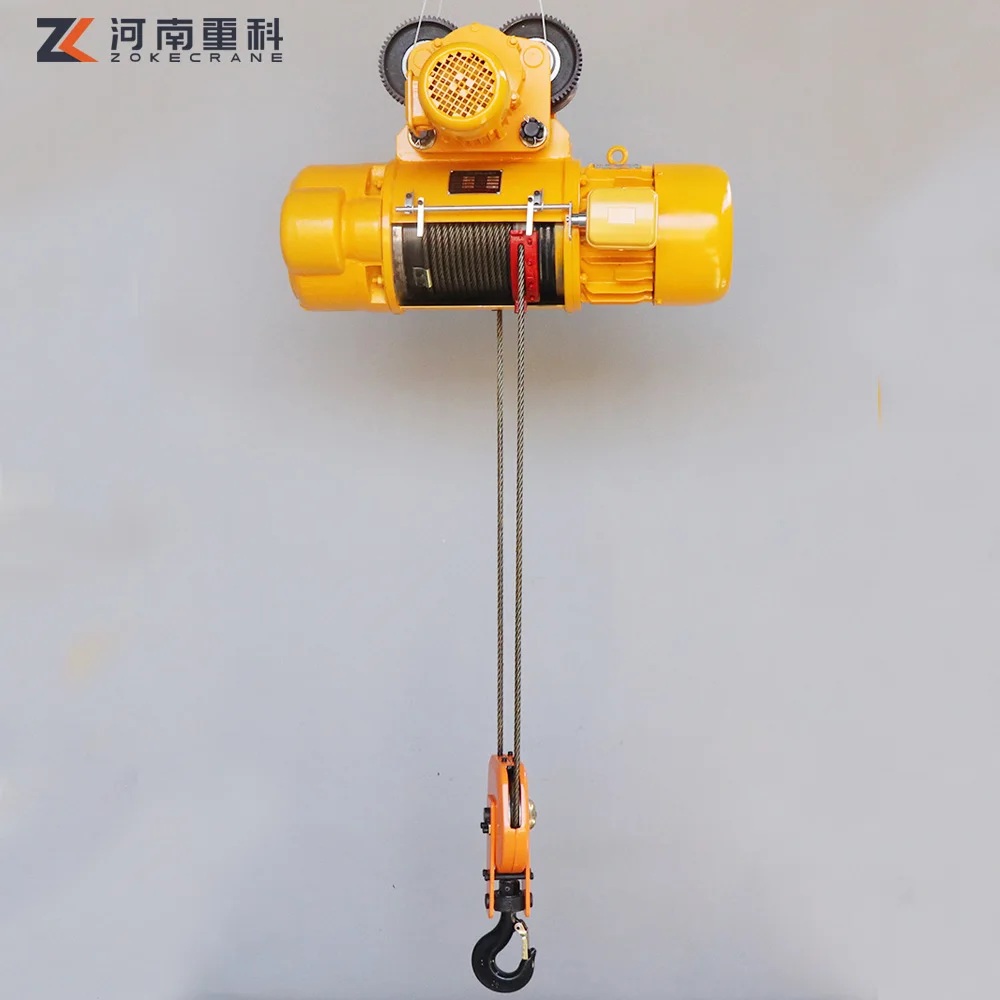

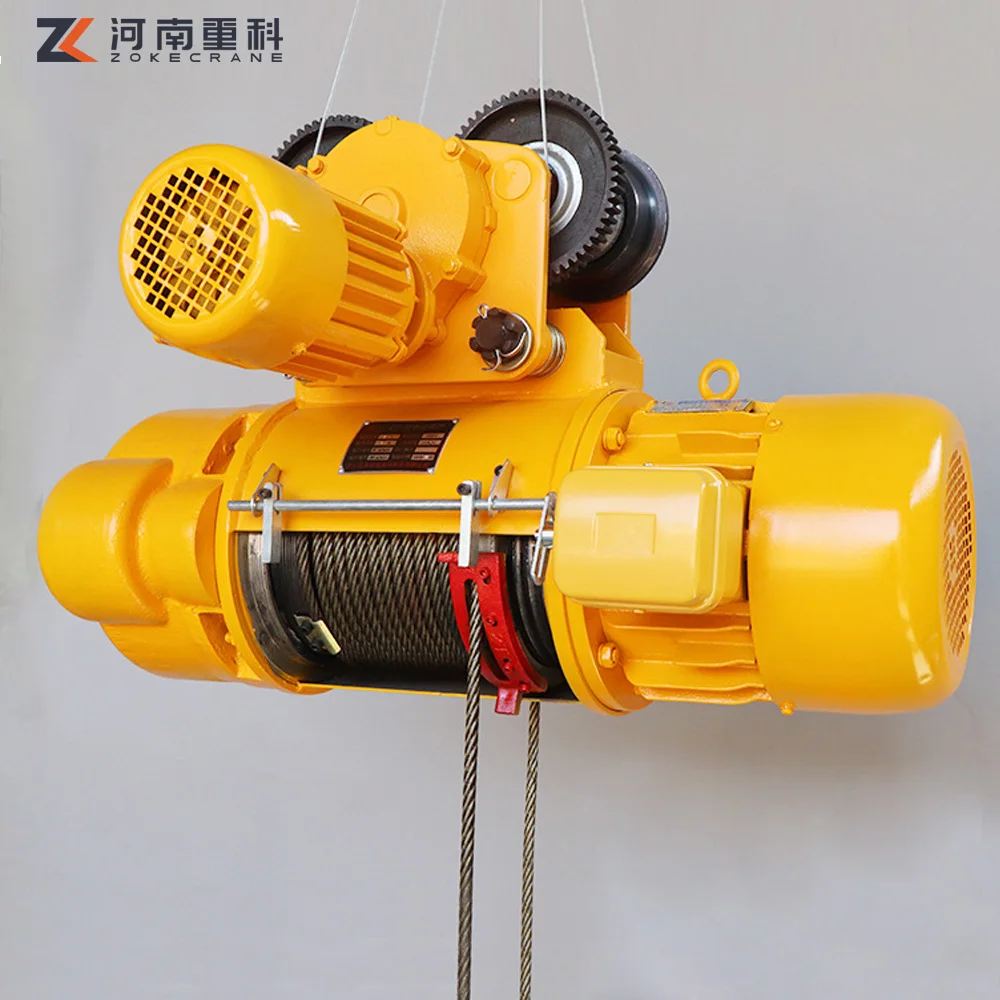

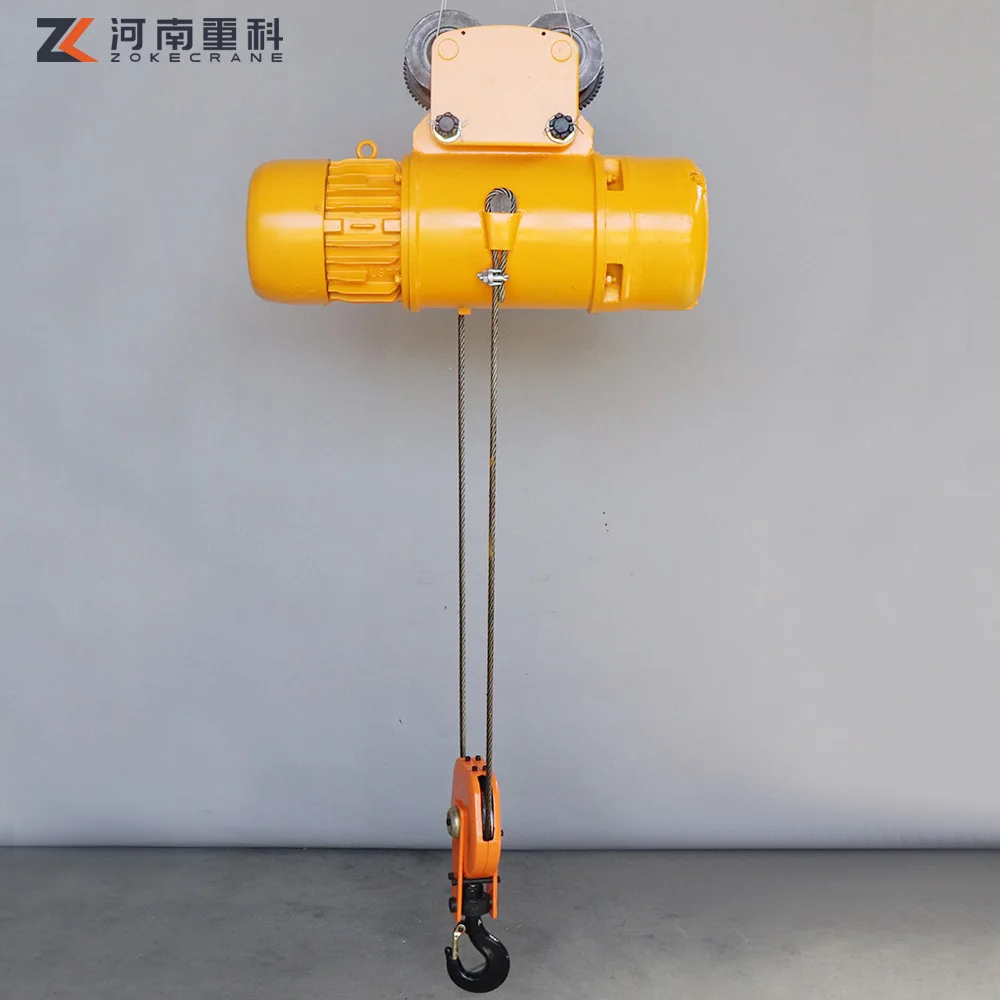

Wholesale electric wire hoist 1000 kg 2000 kg 3000 kg 5000kg
- Category: >>>
- Supplier: Henan Zoke Crane Co. Ltd.
Share on (1600469537555):
Product Overview
Description

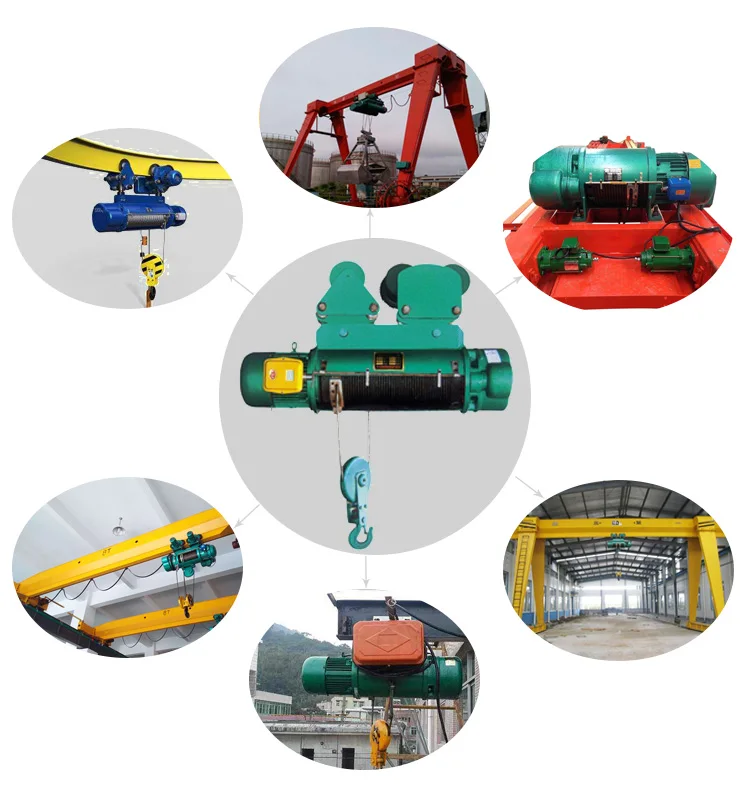

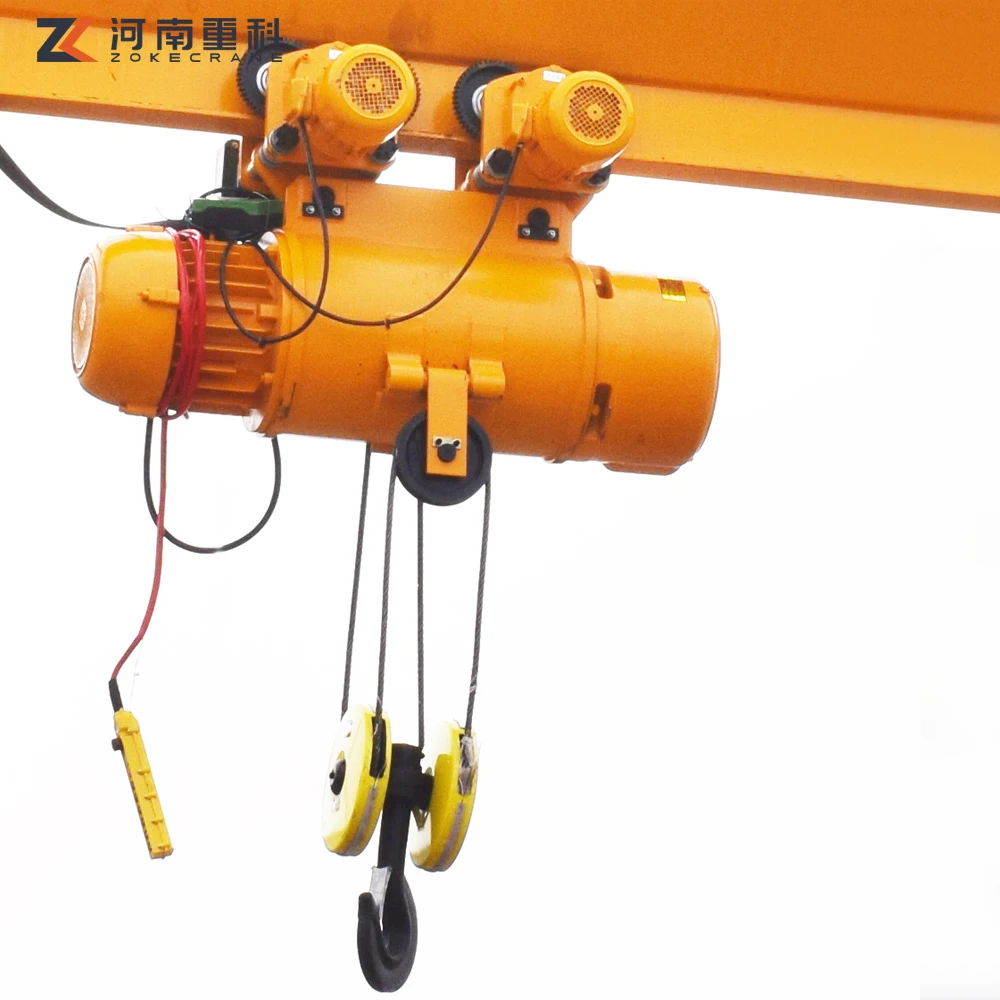

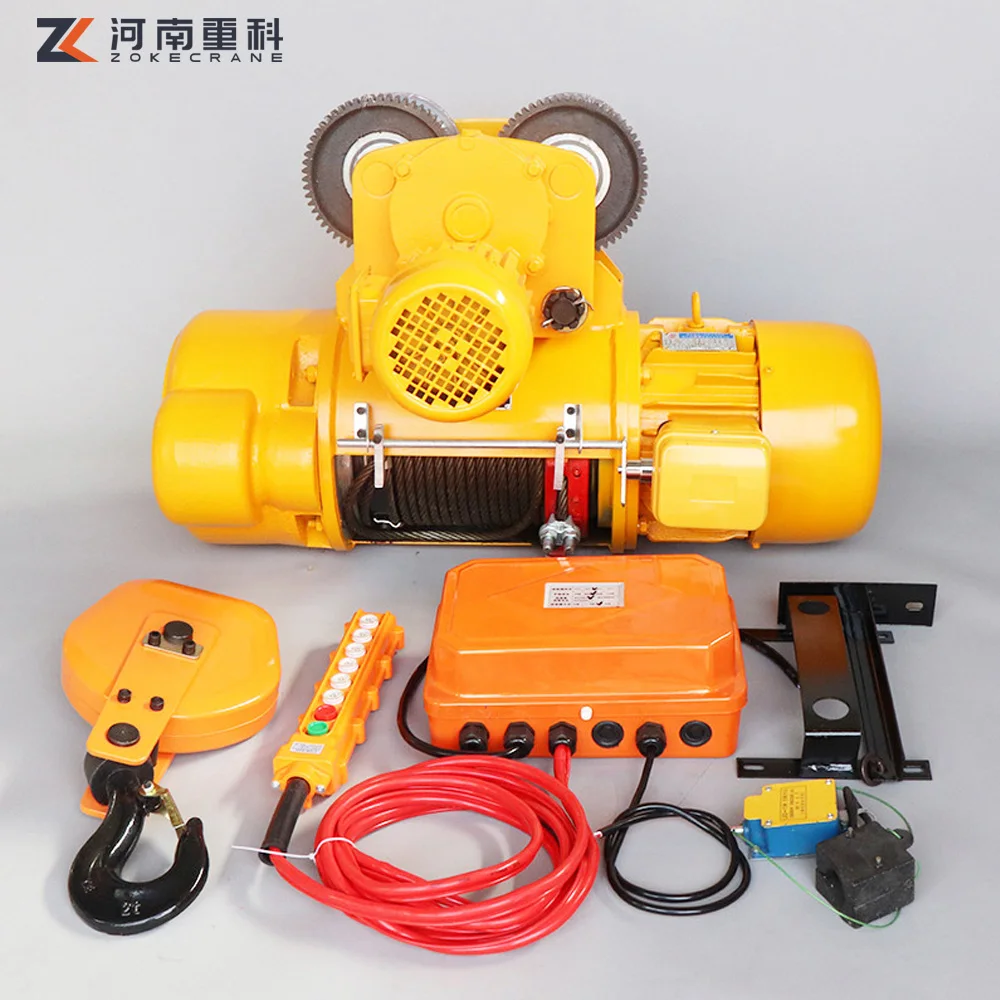

Model CD Wire rope Electric Hoist is a small-sized lifting equipment , which can be mounted on singlebeam , bridge , gantry and arm cranes . With slight modification , it can also be used as a winch . It is widely used in factories , mines , harbours ,warehouses , cargo storage areas and shops , es sential in raising working efficiency and improving working conditions .
As the widely using lifting machine, wire rope hoist has been used with crane or mono rail to handle material lifting work. We have made plenty of successful customization projects for the clients over 50 countries.

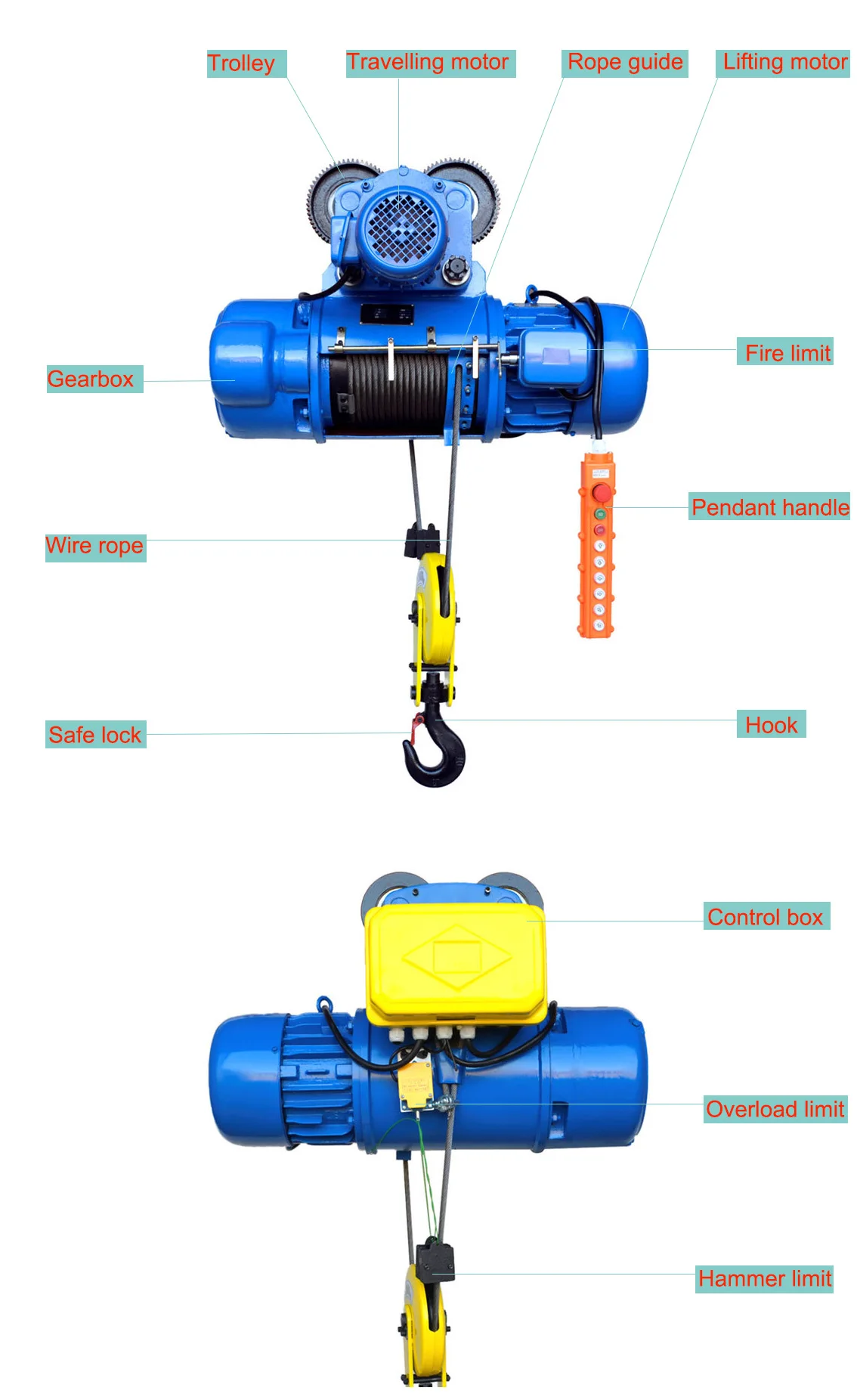

> Motor: Hoist Motor is a taper type rotor motor with braking; it is one of the best quality motors, which has bigg er torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.
> Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.
> Wire Rope: Hoisting ropes comply with the exporting standards. The leading rope taken by the drum does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six.
> Rope Drum: Grooved hoist Drum, seamless pipe of adequate length to be wounded in one layer and to provid eproper
support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.
> Electric apparatus control box: Model CD1 and MD1 hoist is composed of the contactor box, controlling switch, cut-off limiter, the working voltage of controlling switch is 380V, 36V or 24V(safety voltage).
> Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thicken and dilated, so that it is not easy to be damaged.
> Hook:The Hook Block is tested to 150 % of full load before assembly.
| Capacity/ ton | Lifting height/ m | |||||
| 6 | 9 | 12 | 18 | 24 | 30 | |
| 1 | USD440 | USD452 | USD520 | USD560 | USD600 | USD640 |
| 2 | USD610 | USD640 | USD710 | USD760 | USD820 | USD860 |
| 3 | USD700 | USD720 | USD810 | USD860 | USD920 | USD970 |
| 5 | USD980 | USD1,010 | USD1,140 | USD1,200 | USD1,280 | USD1,360 |
| 10 | USD1,960 | USD2,060 | USD2,280 | USD2,400 | USD2,540 | |
Lifting height 6m, the above price is for reference.
Capacity ton | Lifting height m | Lifting speed m/min | CT speed m/min | Work duty ISO | Lifting motor KW | CT motor KW |
Width of CT mm |
| 1 | 6~30 | 8 | 20 | M3 | 1.5 | 0.4 | 70~150 |
| 2 | 6~30 | 8 | 20 | M3 | 3 | 0.4 | 70~150 |
| 3 | 6-30 | 8 | 20 | M3 | 4.5 | 0.4 | 70~150 |
| 5 | 6~30 | 8 | 20 | M3 | 7.5 | 0.8 | 70~150 |
| 10 | 9~30 | 7 | 20 | M3 | 13 | 0.8*2 | 70~150 |
