High efficiency coil coating line with double surface coater for galvanized steel
- Category: >>>
- Supplier: Qingzhou Reachfly Environment Technology Co. Ltd.
Share on (1600469578208):
Product Overview
Description
Product Description
High efficiency coil coating line with double surface coater for galvanized steel

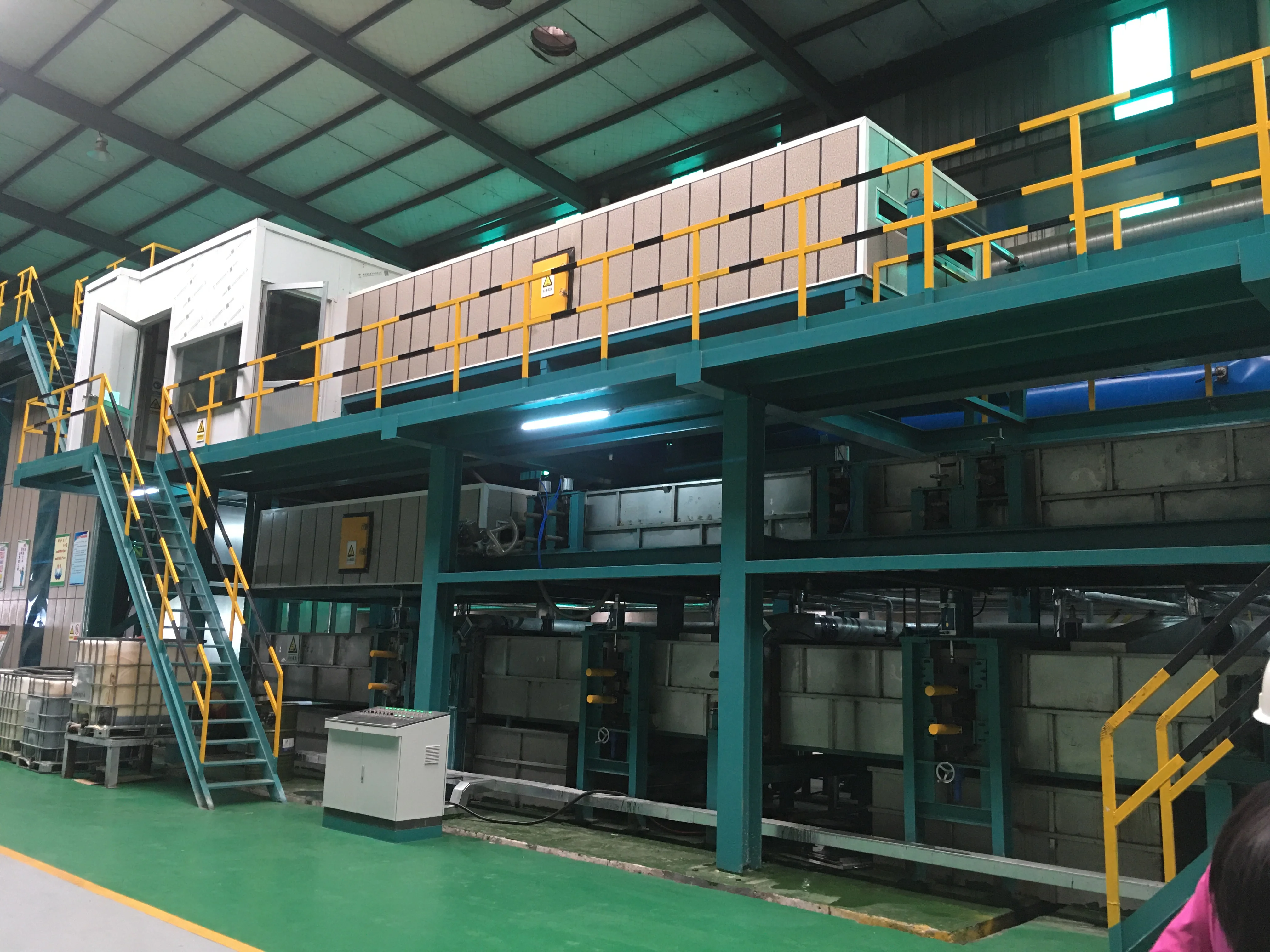

The printing production line of colored steel plate is a complete of production equipment for colored steel plate. The production line is composed of equipment of uncoiler, sewing machine,tension machine, storage machine, degreasing and washing unit, roller-coating machine, printing machine, curing furnace, shear, coiler etc..
Reachfly can customize the production line required by customers according to their needs. The products include multi-function: printing, embossing, monochrome color coating, multi-color color coating, hot laminating, cold laminating, tension straightening, etc
Product Specification
Material of base plate | Electro-galvanized plate, hot-dip galvanized plate, hot-dip Al-Zn plate, cold-rolled steel plate etc. |
Width of strip steel | 600-1650mm |
Thickness of strip steel | 0.2-2.0mm |
Outer diameter of steel coil | φ800-2000mm |
Process speed | 30-220 m/min |
Thickness of coating | 5-25μm for the single-layer dry film on the front face(regulated as required) 5-15μm for the single-layer dry film on the back face(regulated as required) |
Thickness of printing layer | ≤1μm(oil ink or polyester) |
Production capacity | 30,000-240,000t/year |
Energy type | Electricity, natural gas, liquefied petroleum gas, coal gas, steam, compressed air etc. |
Detail Image

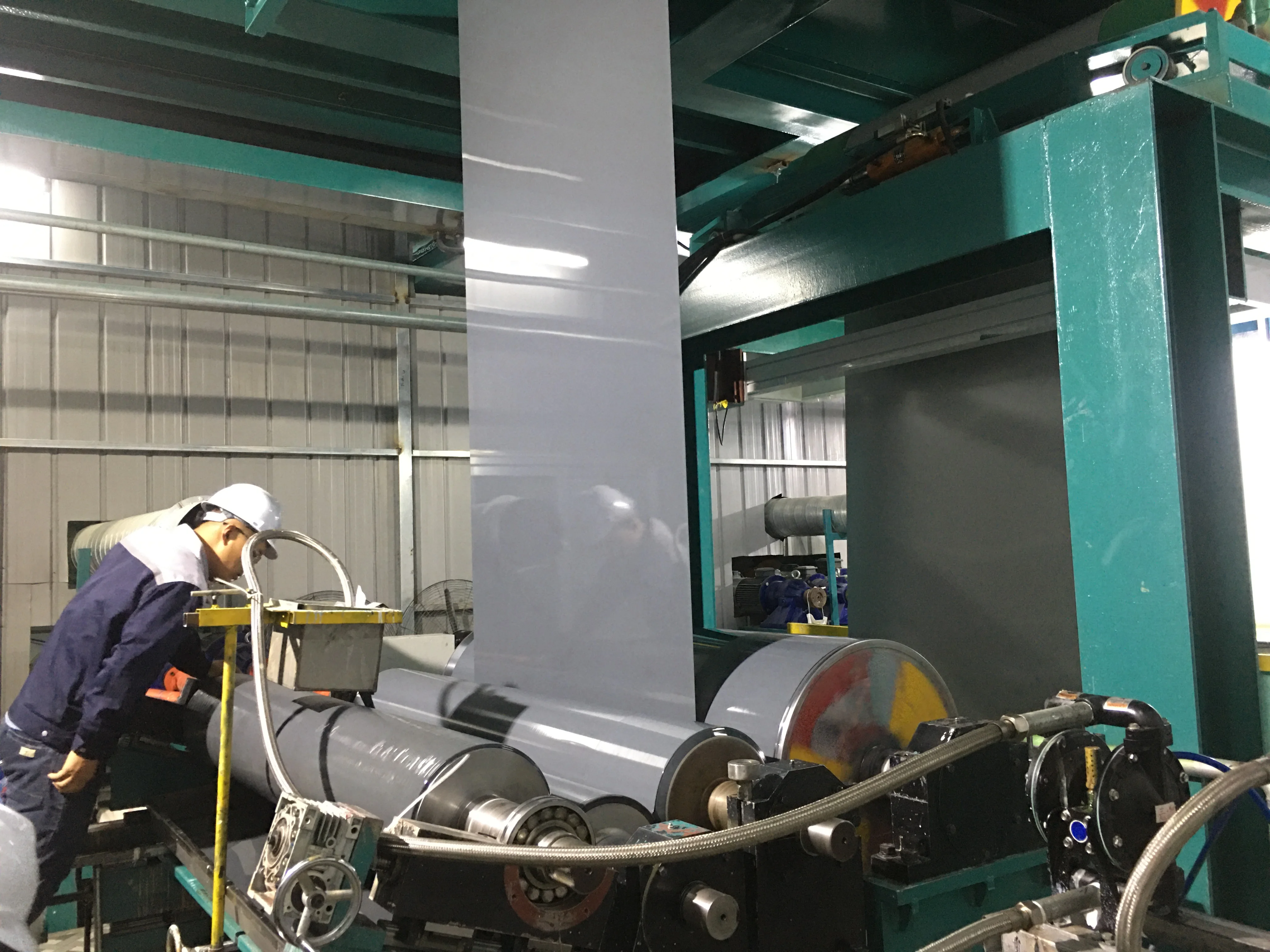

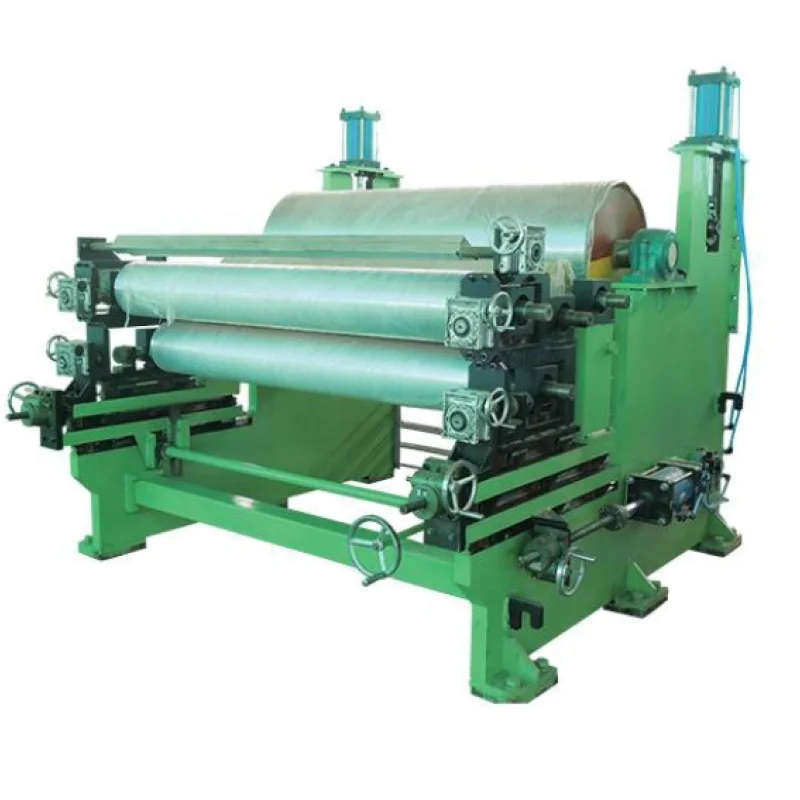

Integrated Cover-coating and Back-coating Machine
1.To guarantee precise coating, the coating machine can coat the steel plate by means of direct coating, reverse coating or whole reverse coating.
2.The front face and the back face of the steel plate can be coated simultaneously, and the heads of the two coating machines for the front face and the back face all have drive equipment.
3.The coating machine heads for the front face and the back face are set on the slideway, when the joint part of the steel plate passes, the two coating machine heads controlled by the hydraulic cylinder or air cylinder act to separate the coating roller from the steel plate, so as to prevent the coating roller from being damaged.

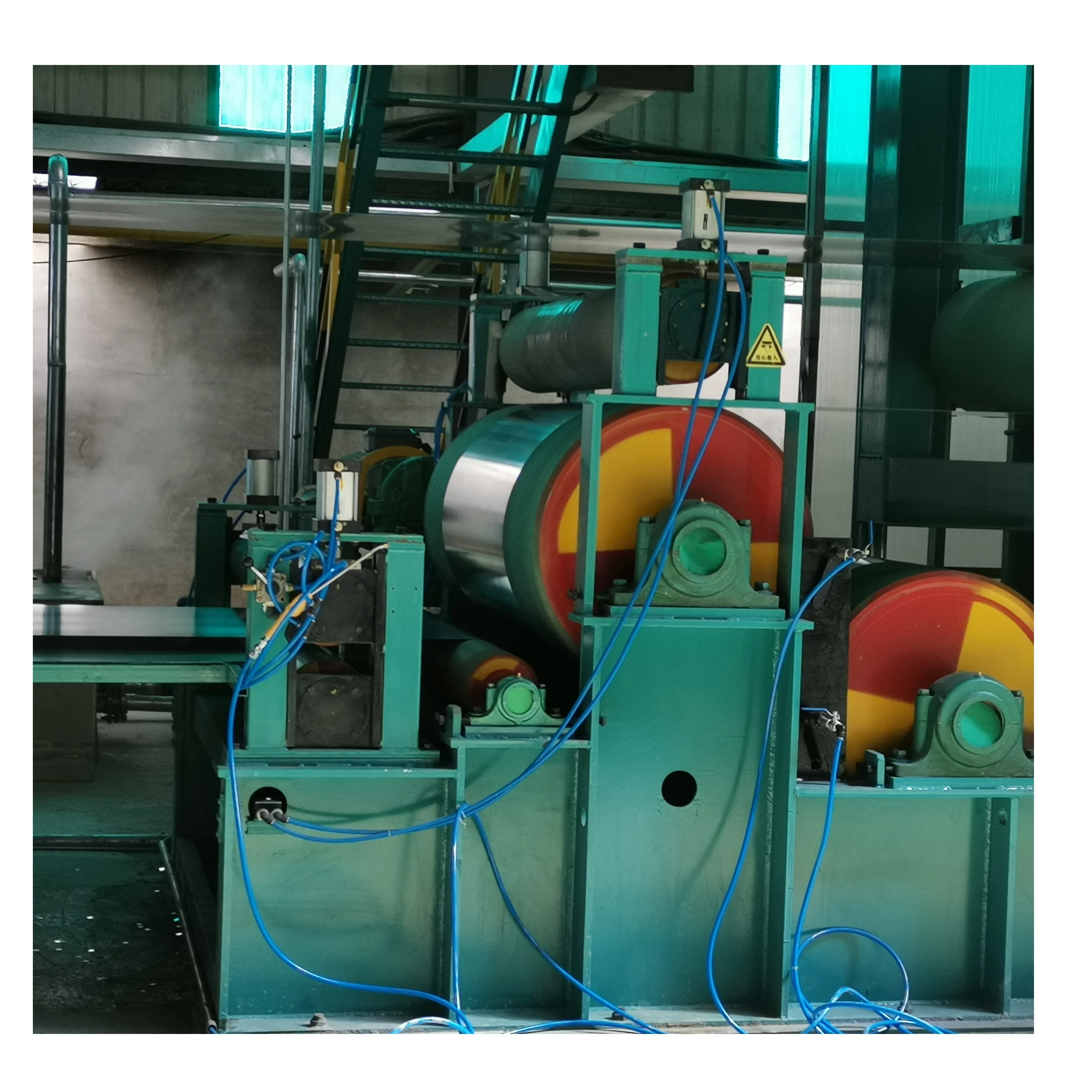

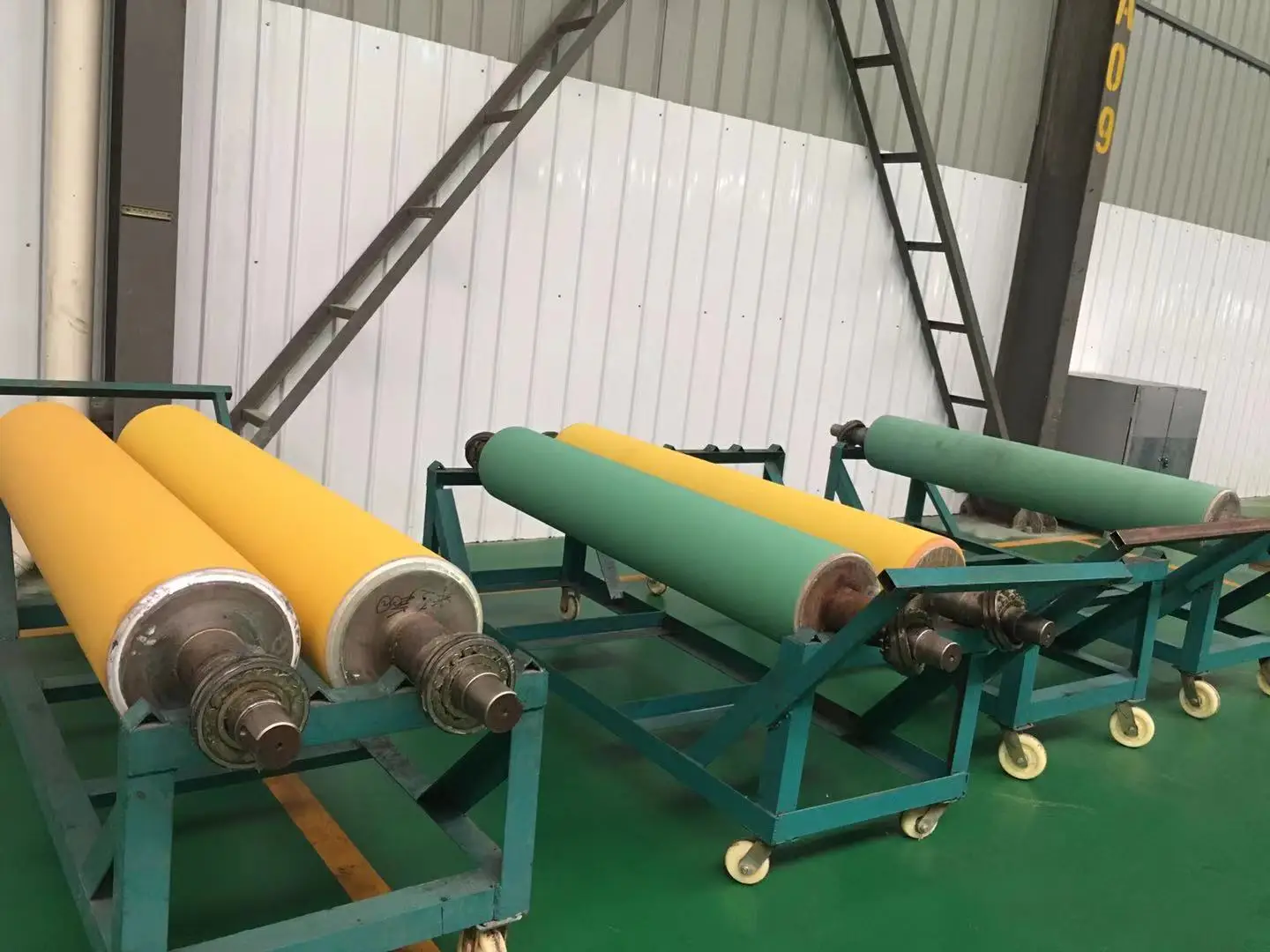

Tension Roller
The tension roller device is a kind of equipment used to implement tension regulation on the continuous production line of strips. The principle is as follows: the strip steel is winded on the tension roller and generates friction on the winding contact, making the outlet tension and the inlet tension change according to some rules for the reason, and the tension value is thus changed to implement tension control of the unit.
The tension roller is used to make the torque acted on it by driving device transforms to strip tension through the friction between the roller face and strip, the quantity and layout form of the tension rollers depends on the maximum tensile strength and the site conditions required by strips.
Processing Procedure
1#2# uncoiler------steering pinch roller------steering roller------confluent pinch roller------inlet shear------stitcher------press burr and pinch roller------1# tension roller------inlet looper------2# tension roller------degreasing------brushing------water washing------drying------chemical coating machine------chemical coating oven------1# deviation-correcting machine------3# tension roller------prime coating machine------prime coating oven------cooling unit------2# deviation-correcting machine------dryer------3# deviation-correcting machine------4# tension roller------printing unit------finish coating machine------finish coating oven------cooling unit------dryer------4# deviation-correcting machine------5# tension roller------outlet looper------6# tension roller------pinch shear------steering roller------EPC deviation-correcting machine------inspection------package------entering warehouse
Packing & Delivery
1. Export standard wooden cases packed in suitable container.
2. Cooperate with reliable shipping company to ensure the delivery time.
3. Customized Packing is allowed.
2. Cooperate with reliable shipping company to ensure the delivery time.
3. Customized Packing is allowed.
Company Profile
Qingzhou Reachfly Environment Technology Co., Ltd
►Focus on the research and development, production and sales of mental coating machinery and equipment.
►Now has the world's leading color steel/color aluminum coating production line, galvanized production line.
►Integrate design and development, material production, construction and after-sales service to create a one-stop service platform.
►The products sell well all over the world and are well received by users.
►Integrate design and development, material production, construction and after-sales service to create a one-stop service platform.
►The products sell well all over the world and are well received by users.
Why Choose Us
√ We are the leading manufacture of metal coating machines in China, and we can give you the best price. We warmly welcome you to visit our factory at any time.
√ We have a professional foreign trade team and a professional small language salesman, such as Japanese, Korean and Spanish.
√ We have professional design engineers who can design and customize production lines according to your requirements.
√ Professional installation, good after-sales service and rich installation experience.
FAQ
1.What can you buy from us?
Color coating line,Metal coating machinery, Color coating machine,Galvanizing steel line, Slitting line, Traverse cutting line and ppgi/ppgl coils.
Color coating line,Metal coating machinery, Color coating machine,Galvanizing steel line, Slitting line, Traverse cutting line and ppgi/ppgl coils.
2. Why should you buy from us not from other suppliers?
*More than 10 years of experience in design and development.
*More than 200 production lines have been built. Exports to Russia, Vietnam, India, Dubai and many other countries.
3. How to ensure the quality?
* In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
* Each component before assembly needs strictly control by inspecting personnel.
* Each assembly is in charged by a master who has working experience for more than 5 years.
* After all the equipment are completed, we will assembling all the machines and run parts testing for at least 12 hours to ensure the stable running in customers' factory.
* In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
* Each component before assembly needs strictly control by inspecting personnel.
* Each assembly is in charged by a master who has working experience for more than 5 years.
* After all the equipment are completed, we will assembling all the machines and run parts testing for at least 12 hours to ensure the stable running in customers' factory.
Welcome to visit our factory!
