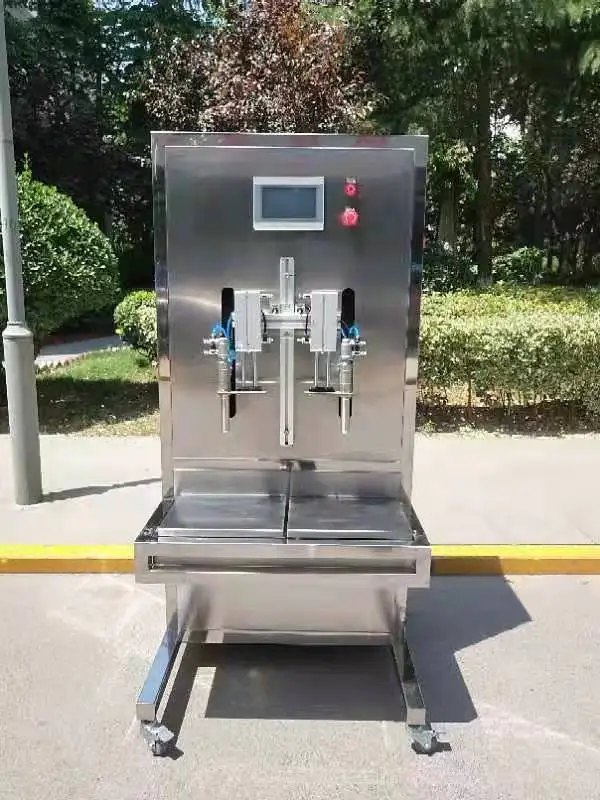

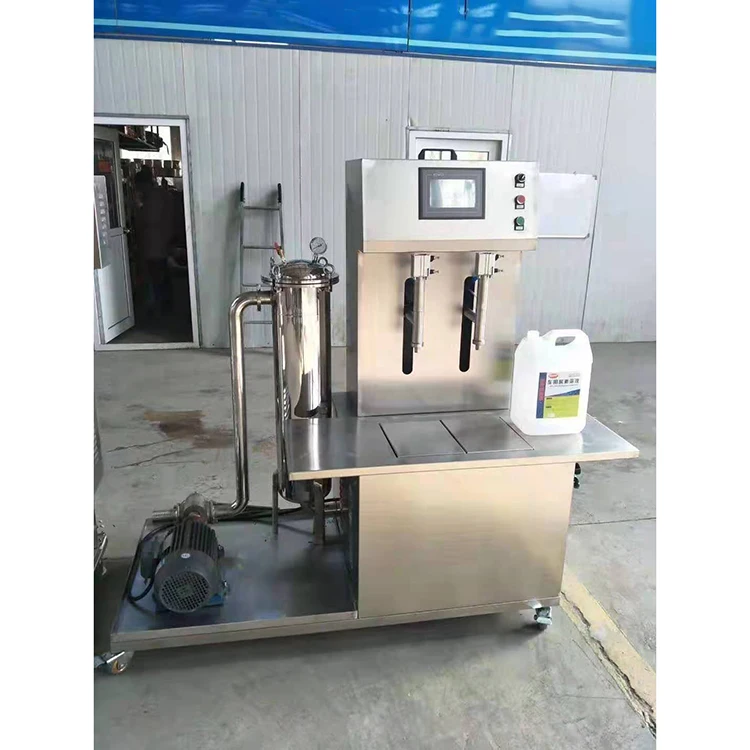

Semi Automatic Production Line Double Head Bucket Pail Weighing Type Lube Oil Liquid Jar Filling Machine Bottler Filling AC220V
- Category: >>>
- Supplier: Boloni (Jinan) International Trade Co. Ltd.
Share on (1600469582464):
Product Overview
Description
Product Details
Equipment Introduction
The machine adopts the weighing type quantitative filling principle, monitors the current filling volume and feeds it back to the controller, and the controller outputs fast, medium and slow filling control signals according to the set data. Enables fast and accurate filling of larger filling sizes. PLC control, English touch screen operation, only need to input the weight parameters, the system automatically calculates the fast addition value and the slow addition value. Double-head filling, no drip, no splash, anti-corrosion, is an ideal filling equipment for toxic, corrosive, volatile liquids such as pesticides, veterinary drugs, oils and viscous materials.
Working Process
Put the container on the weighing platform → lift the cylinder to work, the filling head dives into the bottle → start the fast feed → reach the quick feed weight, start the middle feed → reach the medium feed weight, start the slow feed → reach the slow feed weight → fill At the end of the installation, the lift cylinder rises
Performance Advantage
1. The control system is industrial-grade PLC with strong anti-interference.
2. The operation is English touch screen operation, various parameters are clear at a glance, simple and convenient, suitable for new workers, easy to teach, easy to learn, easy to guide.
3. The filling valve adopts Swiss technology pneumatic valve, and the overall material is 304 and PTFE material, strong corrosion resistance (316 material can also be customized).
4. Valves are installed at the front end of each filling valve: one can adjust the flow; two can reduce the impulse and reduce foam; three is convenient for maintenance.
5. After filling, there is a closing device at the outlet of the pneumatic valve to prevent dripping.
6. The position of the filling valve can be adjusted up and down, left and right, so as to be suitable for bottles of different sizes.
7. Each filling valve can be used alone without affecting each other.
8. With weight measurement and volume measurement, the measurement method can be changed at any time.
9. When measuring by weight, it has three levels of filling speed and filling volume: fast, medium and slow, so as to ensure extremely high filling accuracy.
10. During volume measurement, the pulse value can be set arbitrarily.
11. Submersible filling to minimize the overflow of bubbles.
12. Install moving wheels with brakes.
Standard Model Technical Parameters (tested by water):
1. Filling specification: 100g to 25Kg
2. Filling accuracy: better than 0.2%
3. Filling speed: 240-1200 bottles/hour
4. Power supply: AC220V
5. Air source: 0.4-0.6mpa
6. Power: 3KW
7. Machine weight: 70Kg

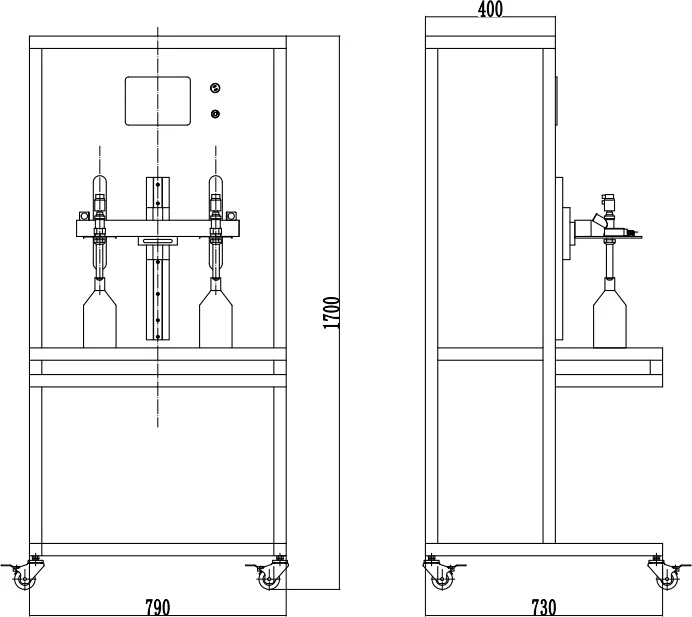

8. Host size: length✘width✘height:790✘730✘1700 (mm)
The machine adopts the weighing type quantitative filling principle, monitors the current filling volume and feeds it back to the controller, and the controller outputs fast, medium and slow filling control signals according to the set data. Enables fast and accurate filling of larger filling sizes. PLC control, English touch screen operation, only need to input the weight parameters, the system automatically calculates the fast addition value and the slow addition value. Double-head filling, no drip, no splash, anti-corrosion, is an ideal filling equipment for toxic, corrosive, volatile liquids such as pesticides, veterinary drugs, oils and viscous materials.
Working Process
Put the container on the weighing platform → lift the cylinder to work, the filling head dives into the bottle → start the fast feed → reach the quick feed weight, start the middle feed → reach the medium feed weight, start the slow feed → reach the slow feed weight → fill At the end of the installation, the lift cylinder rises
Performance Advantage
1. The control system is industrial-grade PLC with strong anti-interference.
2. The operation is English touch screen operation, various parameters are clear at a glance, simple and convenient, suitable for new workers, easy to teach, easy to learn, easy to guide.
3. The filling valve adopts Swiss technology pneumatic valve, and the overall material is 304 and PTFE material, strong corrosion resistance (316 material can also be customized).
4. Valves are installed at the front end of each filling valve: one can adjust the flow; two can reduce the impulse and reduce foam; three is convenient for maintenance.
5. After filling, there is a closing device at the outlet of the pneumatic valve to prevent dripping.
6. The position of the filling valve can be adjusted up and down, left and right, so as to be suitable for bottles of different sizes.
7. Each filling valve can be used alone without affecting each other.
8. With weight measurement and volume measurement, the measurement method can be changed at any time.
9. When measuring by weight, it has three levels of filling speed and filling volume: fast, medium and slow, so as to ensure extremely high filling accuracy.
10. During volume measurement, the pulse value can be set arbitrarily.
11. Submersible filling to minimize the overflow of bubbles.
12. Install moving wheels with brakes.
Standard Model Technical Parameters (tested by water):
1. Filling specification: 100g to 25Kg
2. Filling accuracy: better than 0.2%
3. Filling speed: 240-1200 bottles/hour
4. Power supply: AC220V
5. Air source: 0.4-0.6mpa
6. Power: 3KW
7. Machine weight: 70Kg
8. Host size: length✘width✘height:790✘730✘1700 (mm)
NO | NAME | BRAND | ORIGINAL | MARK |
1 | Stainless steel | SUS304 | China | |
2 | PLC | Siemens/Delta | Germany | |
3 | Touch screen | Siemens/Delta | Germany | |
4 | Weighing module | METTLER TOLEDO | Switzerland | |
5 | Weighing sensor | METTLER TOLEDO | China | |
6 | Gear pump | Jingyi | China | |
7 | Servo motor | Haide | China | |
8 | Server Driver | Haide | China | |
9 | Pneumatic valves | Jingrui | China | |
10 | Electromagnetic valve | Simaige | China | |
11 | Low voltage electrical | Chint | China |
