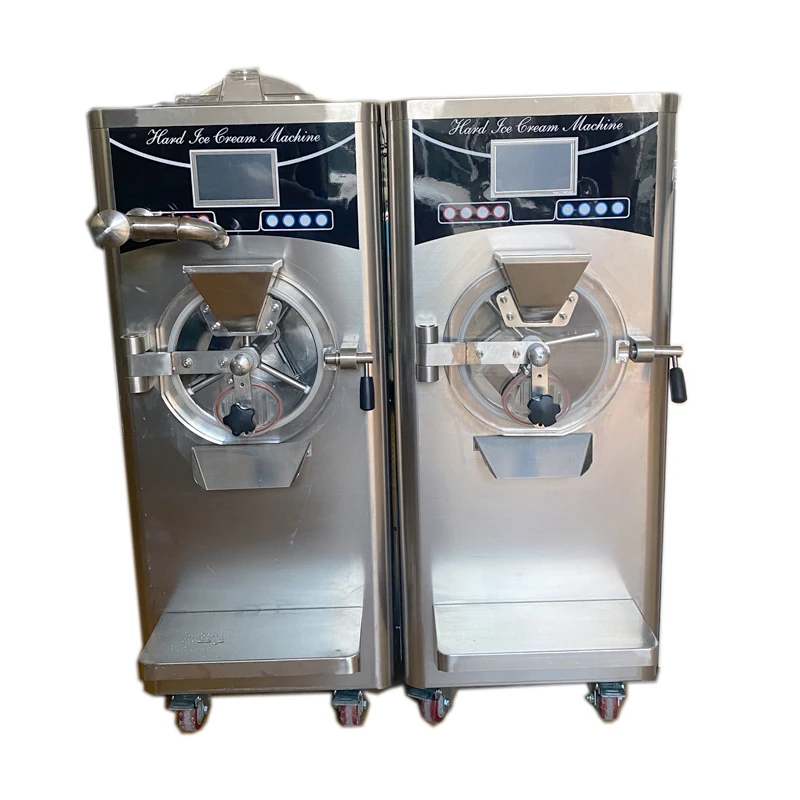

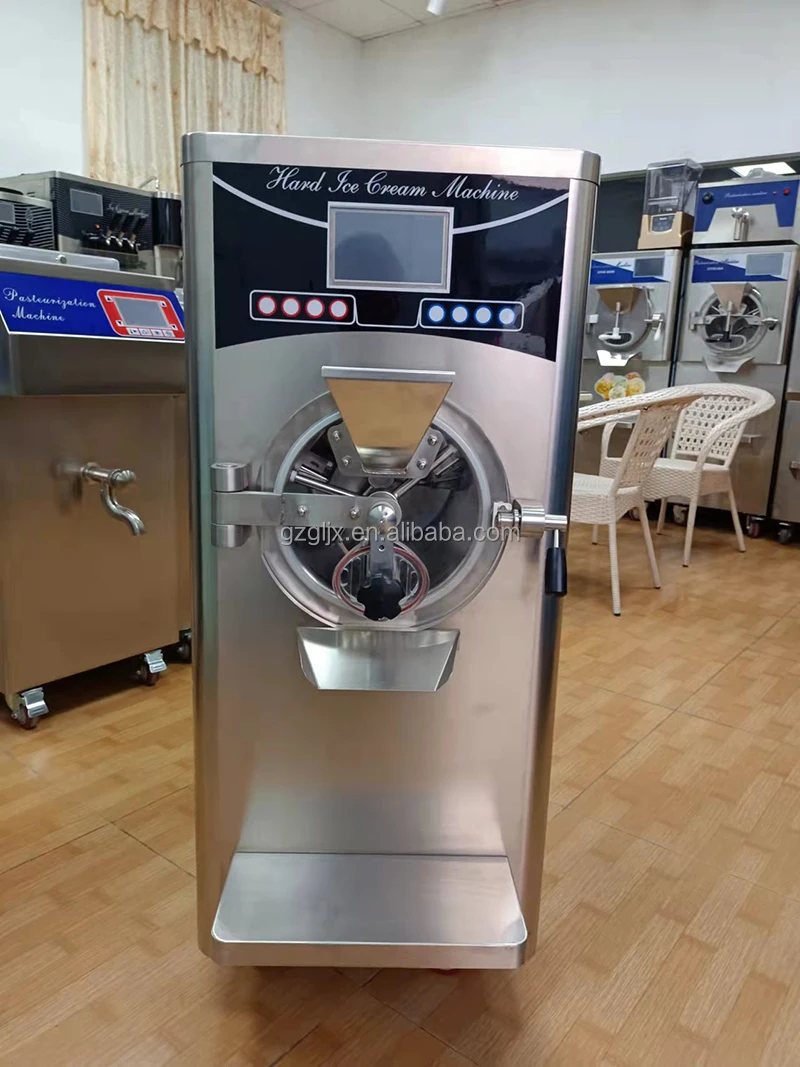

New design commercial vertical 45L/h gelato hard icecream maker machine ice cream batch freezer with pasteurizer

Product Overview

Description

New design commercial vertical 45L/h gelato hard icecream maker machine ice cream batch freezer with pasteurizer







CFHS68A



Pasteurize Heating and Freezing Combined Gelato Ice Cream Machine

This is a machine that combines heating and freezing to commercially produce the best ice cream, ice cream, smoothies or other frozen desserts. The 2-in-1 structure is used to mix ingredients and pasteurization in the upper horizontal cylinder, while freezing and producing ice cream / ice cream in the bottom cylinder at the same time.

Self-pasteurizing:

Auto heating, with 11 to 13 minutes to accomplish pasteurizing when heating to 85°C

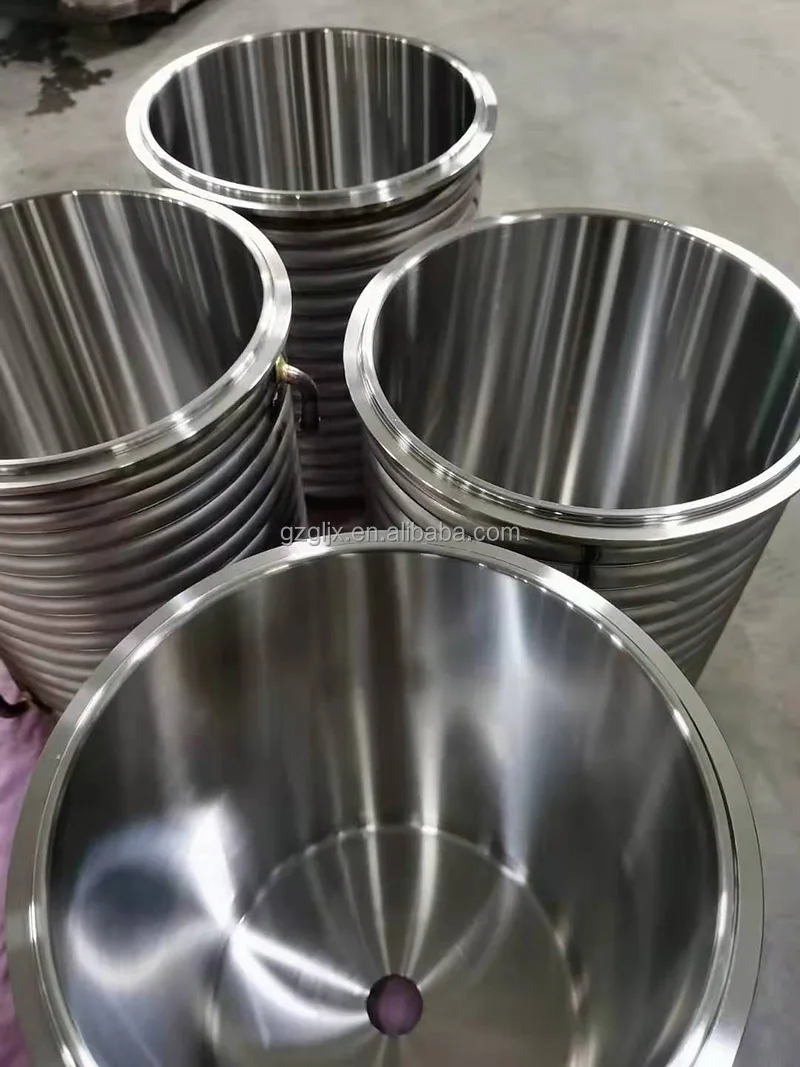

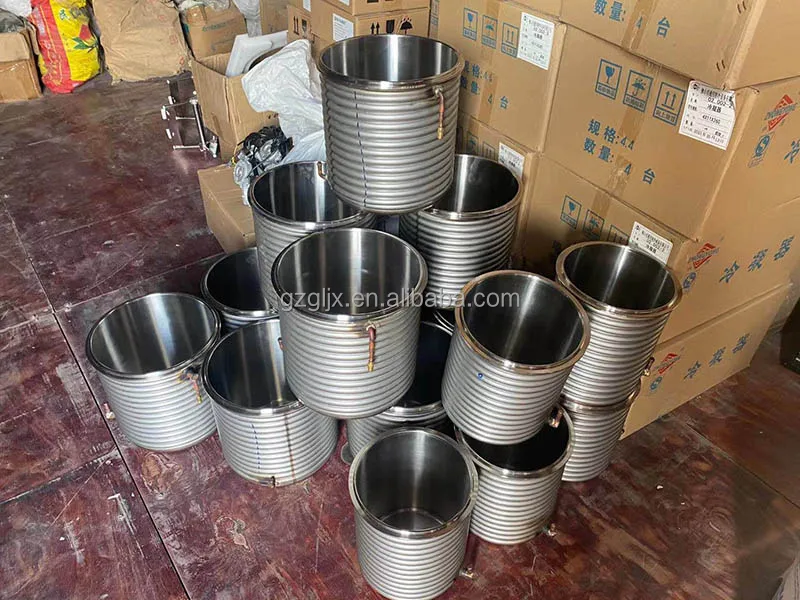

Food Grade cylinders

Food Grade 304 stainless steel, No dead ends, prevent bacterial growth.

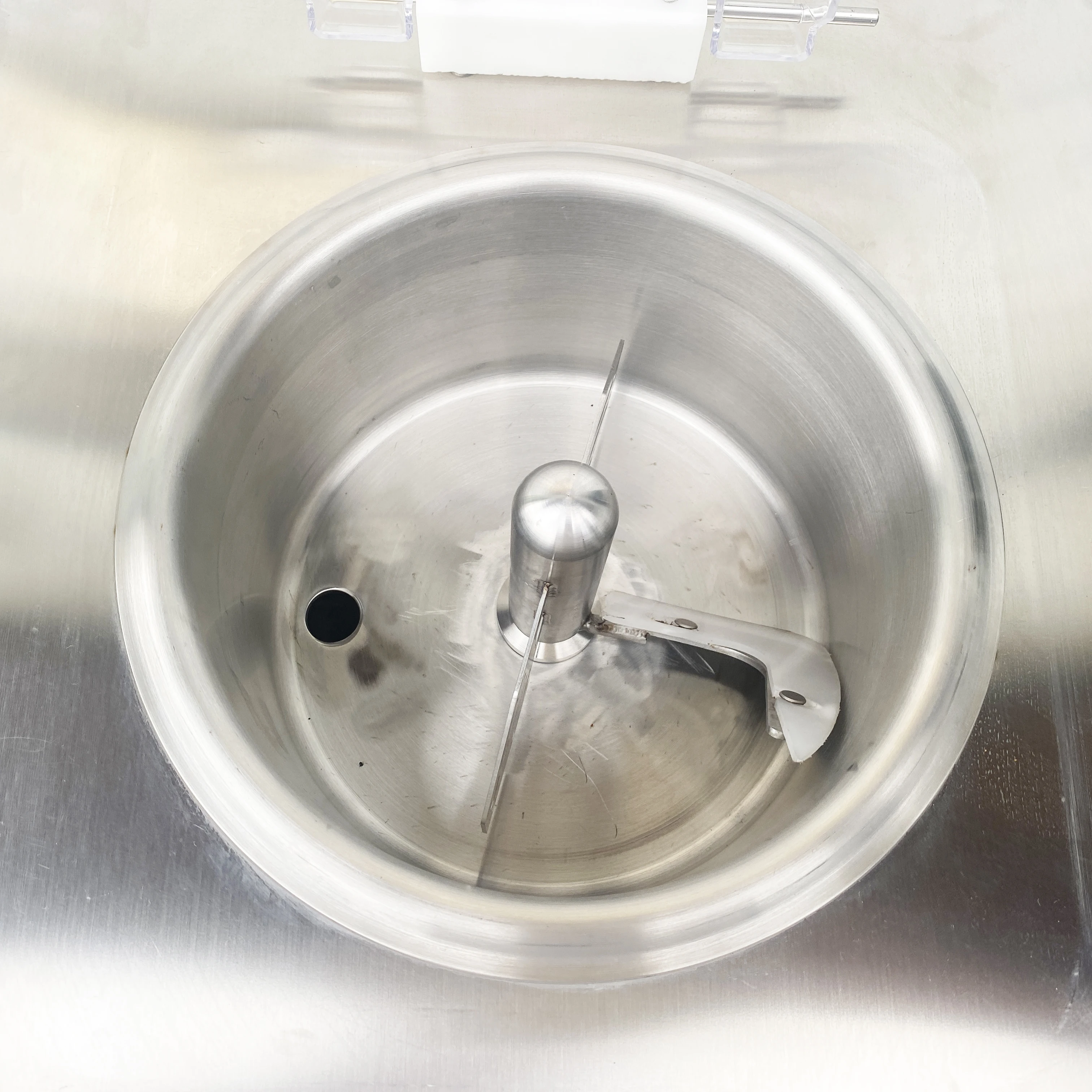

Used to heat and auto pasteurize the mixer. The cylinder is integrally formed, quickly freeze.

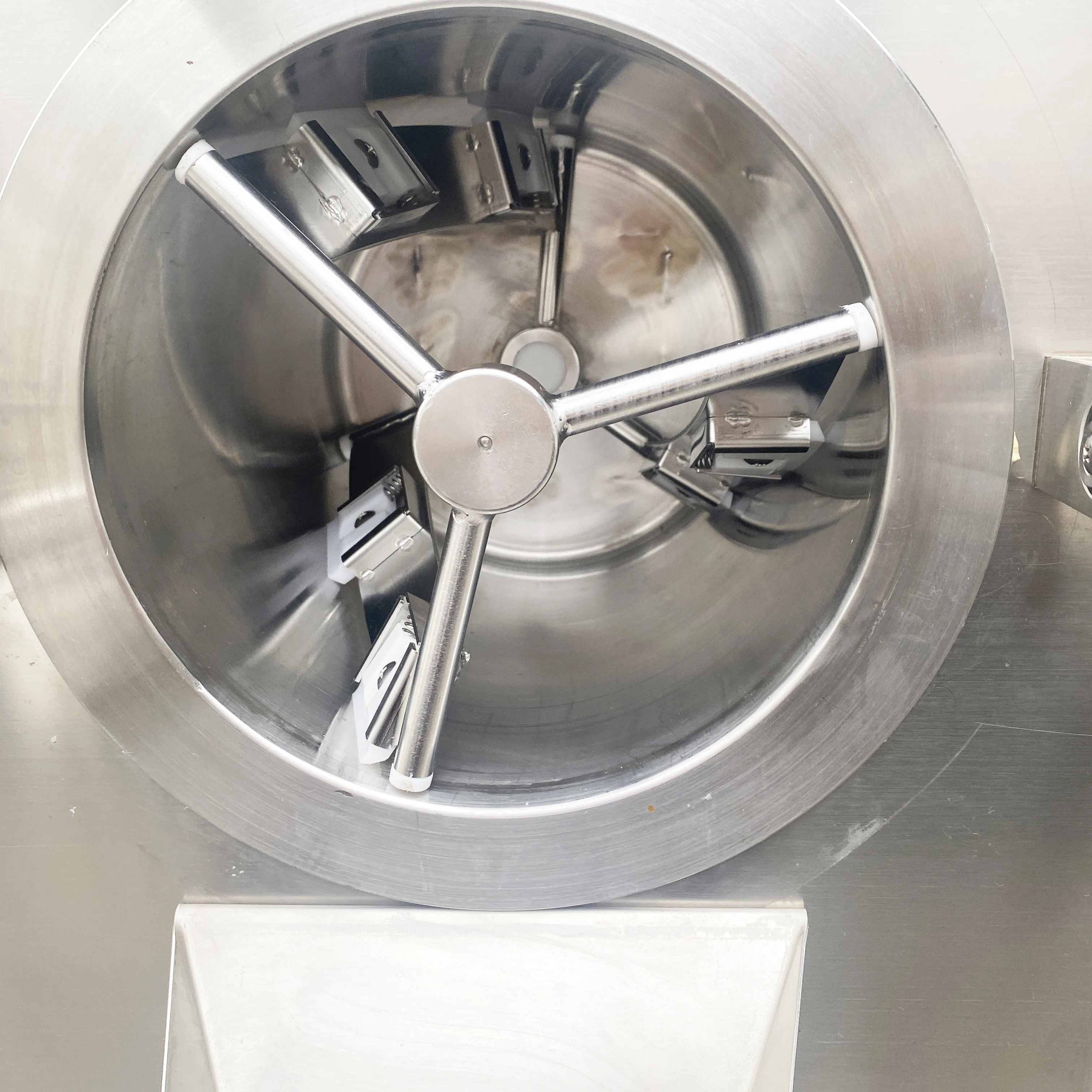

Bottom cylinder

Freezing and producing ice cream after pasteurizing accomplished.

Electrical

A dedicated electrical connection is required. 220V/50Hz standard, you need to check local wire and socket the support of 220V 50Hz or 60Hz.

Safety Protection

Shut down for self-protection when the motor or compressor is overloaded or overheated due to power surge or abnormal power supply voltage.

Customization available

Customization is always available upon different requirement.





TECHNICAL SPECIFICATIONS

Model	CFHS68A
Dimension	660*440*1050mm
Weight Net	60kgs/80kgs
Power	220V/50Hz/2.5kw
Upper cylinder (Pasteurization)	6L
Bottom cylinder (Ice Cream)	10L
Output	30-45L/h
Cycle Time	15-25min
Compressor Brand	Embraco
Refrigerant	R404A
Cooling system	Air cooling

Notice: At the end of the batch freezing process, the capacity may vary depending on the ingredients used, the temperature, or the consistency of the product. All mentioned specifications must be considered approximate. Guangwan/BeJady reserves the right to modify all parts deemed necessary without prior notice.
