1080P 25MM Camera Head 7 inch 20M Cable Sewer Pipe Endoscope Inspection Video Camera System With DVR Used for Pipe Inspection

Product Overview

Description

1080P 25MM Camera Head 7 inch 20M Cable Sewer Pipe Endoscope Inspection Video Camera System With DVR Used for Pipe Inspection

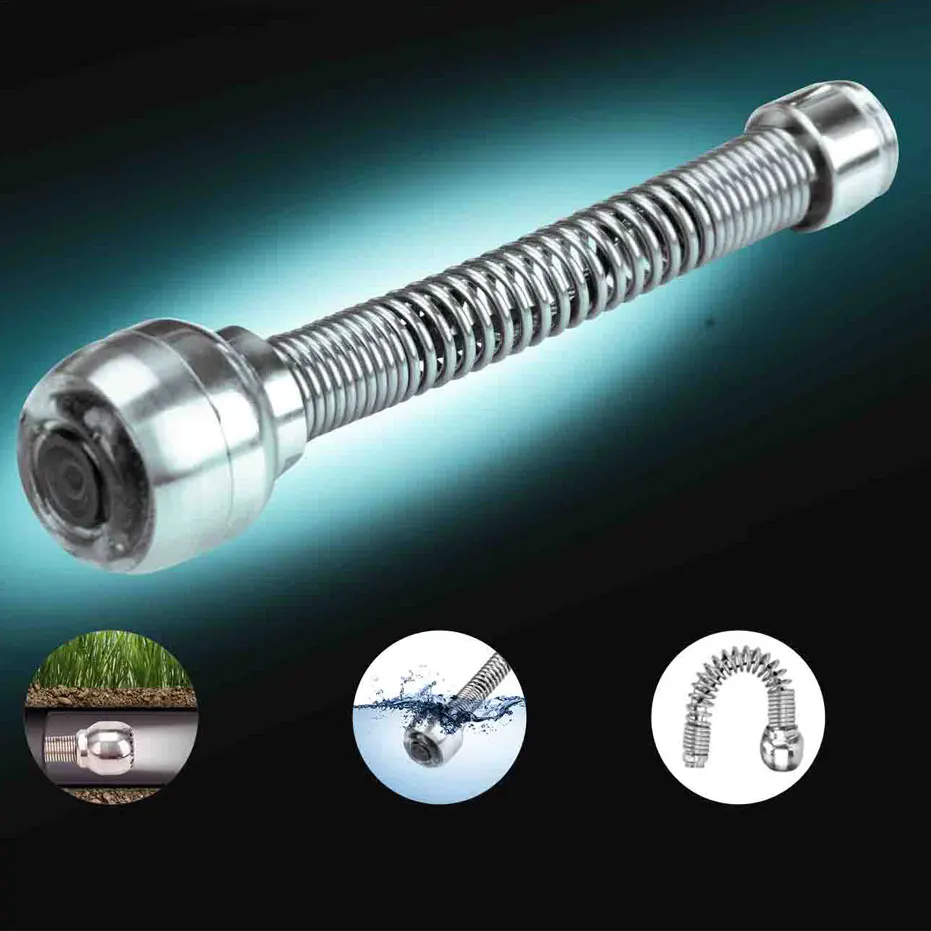

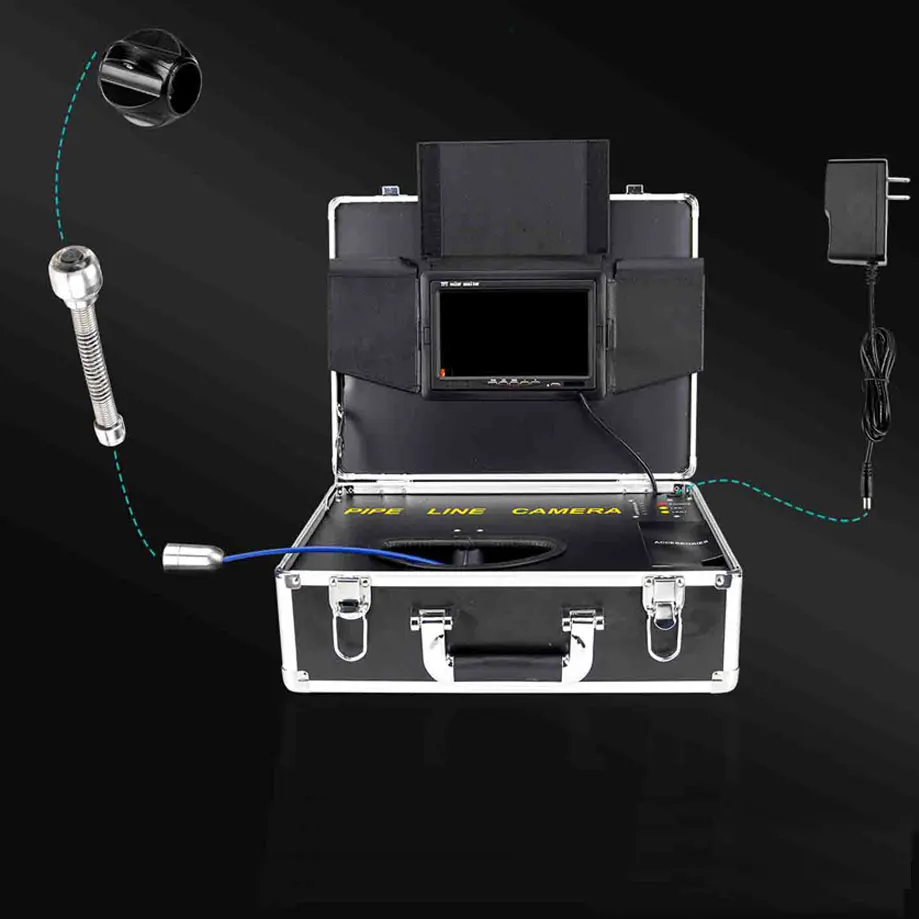

This Pipe Inspection Camera System is a cost-effective portable device designed to deliver high quality video images for a wide range of applications including; sewers, building ducts/piping, wells and power plants. The camera head itself contains 12 adjustable white LED lights to illuminate the inspection area with a flexible spring-coiled joint to easily navigate corners.



This product is suitable to inspect the pipeline, sewer, air duct, tank, underwater and others dark environment, check the internal cracks, corrosion, weld, plugs and other unusual circumstance.







Specification-----------------------------------------------------------------------------------------

Charger	AC100-240V DC12.6V  1000MA
Battery	12V 4500MAh
Use time for battery	About 4-7 hours
Investigation depth	20M
Wire material	Fiberglass rod
Camera light source	12 LED with high white light (adjustable)
Camera viewing angle	145°

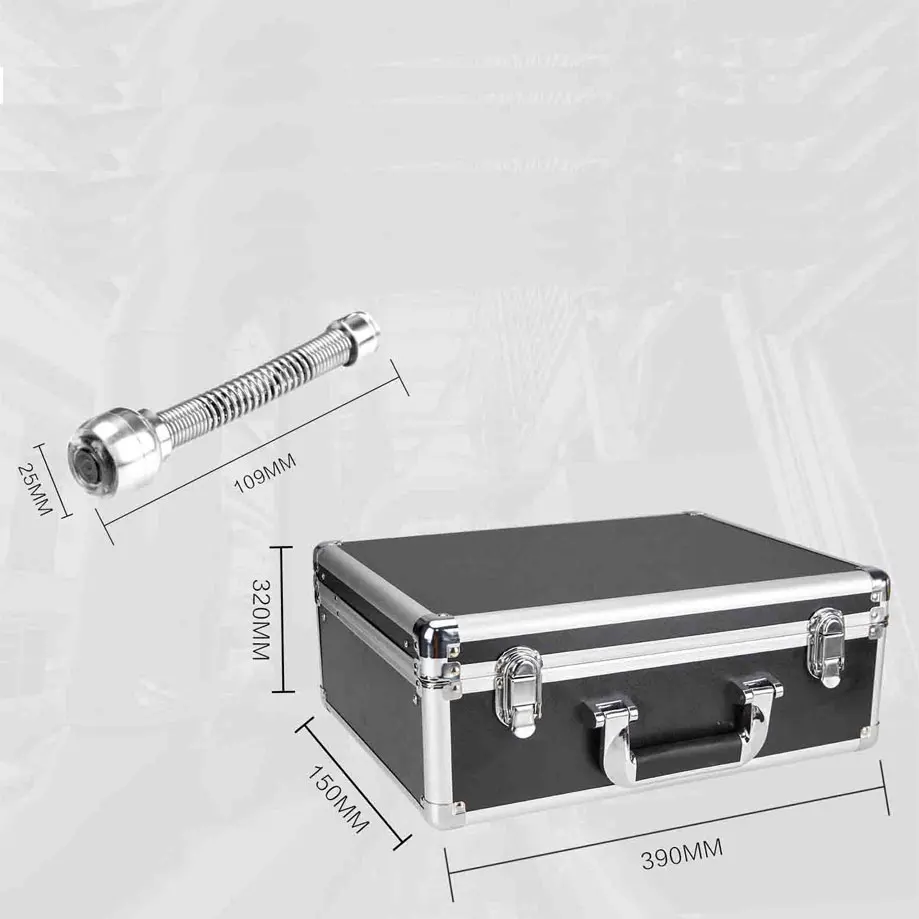

Camera size/material	109MM* 25MM / stainless steel
Fiberglass diameter	5MM
Camera picture	color
Operating temperature	-20-60°
Storage temperature	-50-60°
Aluminium box size	390*320*160mm
Switchboard net weight	5 KG
