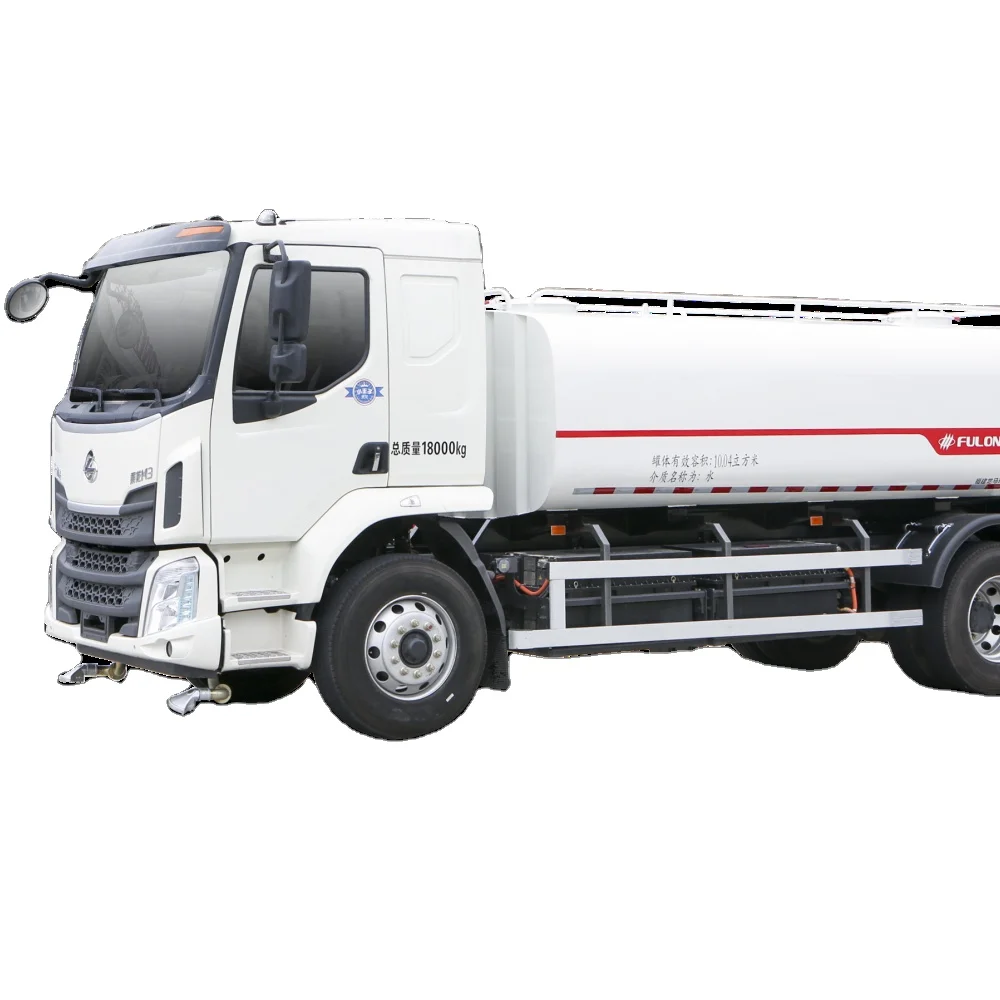

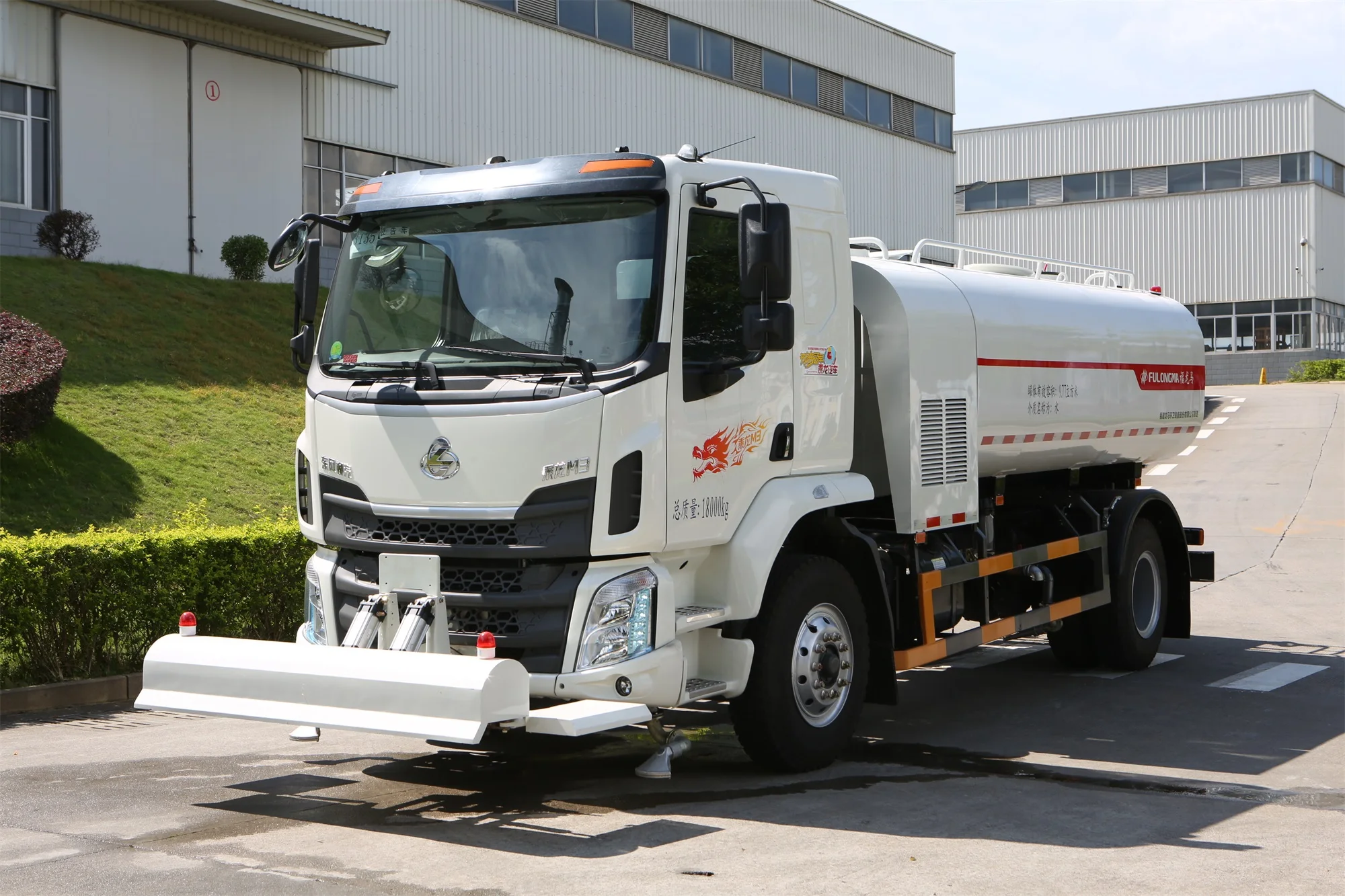

Multi functional Water Tanker Cleaning Truck Spray Vehicle for Street Washing
- Category: >>>
- Supplier: Dongfeng Liuzhou Motor Co. ltd.
Share on (1600469686758):
Product Overview
Description
Items | Specifications | ||||||
Chassis Model | LZ1186M3ACT (China Ⅵ) | ||||||
Chassis Manufacturer | Dongfeng Liuzhou Automobile Co., Ltd. | ||||||
Engine Model | Commins D6.7NS6B230 (Optional) | Yuchai YCS06245-60 (Standard) | |||||
Engine Rated Power/Rotation Speed (kW/(r/min)) | 169/2300 | 180/2300 | |||||
Engine Maximum Power/Rotation Speed (kW/(r/min)) | 166/1800 | 176/2300 | |||||
Auxiliary Engine Model | 4JB1-TCH | ||||||
Auxiliary Engine Power (kW) | 68 | ||||||
Dimension (L*W*H) (mm) | 9035×2500×2960 | ||||||
GVW (kg) | 18000 | ||||||
Curb Weight(kg) | 8500 | ||||||
Payload (kg) | 9305 | ||||||
Top Speed (km/h) | 90 | ||||||
Wheelbase (mm) | 4500 | ||||||
Passengers | 3 | ||||||
Front/Rear Overhang (mm) | 2385/2150 | ||||||
Approach/Departure Angle (°) | 14/16 | ||||||
Water Tank Volume (m³) | 9.77 | ||||||
High-pressure Water Pump Model | PF36 (PINFL) | ||||||
High-pressure Water Pump Rotation Speed (r/min) | 800 | 900 | 1000 | ||||
High-pressure Water Pump Pressure (Mpa） | 16 | 14 | 13 | ||||
High-pressure Water Pump Flow (L/min) | 122 | 137 | 153 | ||||
Front Spraying Bar Operation Modes | With automatic obstacle avoidance function, it can swing 30 left and right | ||||||
Cleaning Width (m) | ≥3 | ||||||
Sprinkling Pump Model | 65QZB-50/110 | ||||||
Sprinkling Pump Flow (m3/h) (m3/h) | 50 | ||||||
Sprinkling Pump Head (m) | 110 | ||||||
Rear Water Gun Range (m) | ≥50 | ||||||
Sprinkling Width (m) | ≥16 | ||||||
Flushing Width (m) | ≥24 | ||||||
Air Conditioning | Warm/Cold | ||||||
Speed Limiting Device | The pump speed has been adjusted to within the rated range before leaving the factory to avoid overspeed | ||||||
Dongfeng Liuzhou Motor Co., Ltd, founded in 1954, is an auto limited company built by Liuzhou Industrial Holdings Corporation and Dongfeng Auto Corporation. Located in Guangxi, it gradually covers more than 40 countries in the world, and has become a mainstream well-known brand in the key ASEAN countries.
It covers an area of 2.13 million square meters and has developed the commercial vehicle brand "Dongfeng Chenglong" with nearly 7000 employees currently. Its marketing and service network is throughout the whole country, and the products have been exported to many countries in Southeast Asia, the Middle East, South America and Africa.
Dongfeng Liuzhou Motor has formed an annual production capacity of 200,000 commercial vehicles and 400,000 passenger vehicles. Based on the concept of “create value for customers and create wealth for the society”, it pays great attention to market trends and constantly develops high quality products and provides relevant services.
By the chances of our overseas marketing developing, we're warmly welcome our potential partners from all over the world to visit us, we hope to achieve a long-run mutual cooperation and create a bright future together.
It covers an area of 2.13 million square meters and has developed the commercial vehicle brand "Dongfeng Chenglong" with nearly 7000 employees currently. Its marketing and service network is throughout the whole country, and the products have been exported to many countries in Southeast Asia, the Middle East, South America and Africa.
Dongfeng Liuzhou Motor has formed an annual production capacity of 200,000 commercial vehicles and 400,000 passenger vehicles. Based on the concept of “create value for customers and create wealth for the society”, it pays great attention to market trends and constantly develops high quality products and provides relevant services.
By the chances of our overseas marketing developing, we're warmly welcome our potential partners from all over the world to visit us, we hope to achieve a long-run mutual cooperation and create a bright future together.
