Product Overview

Description

Product name:

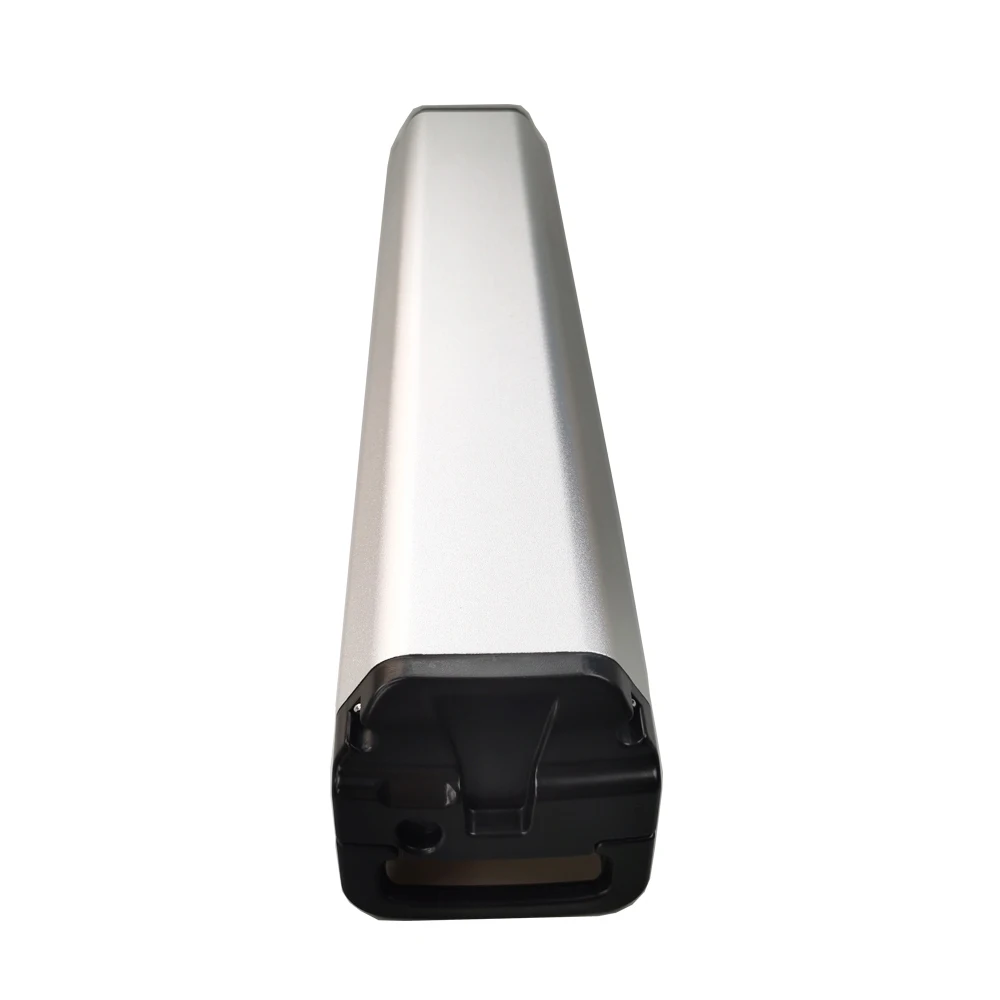

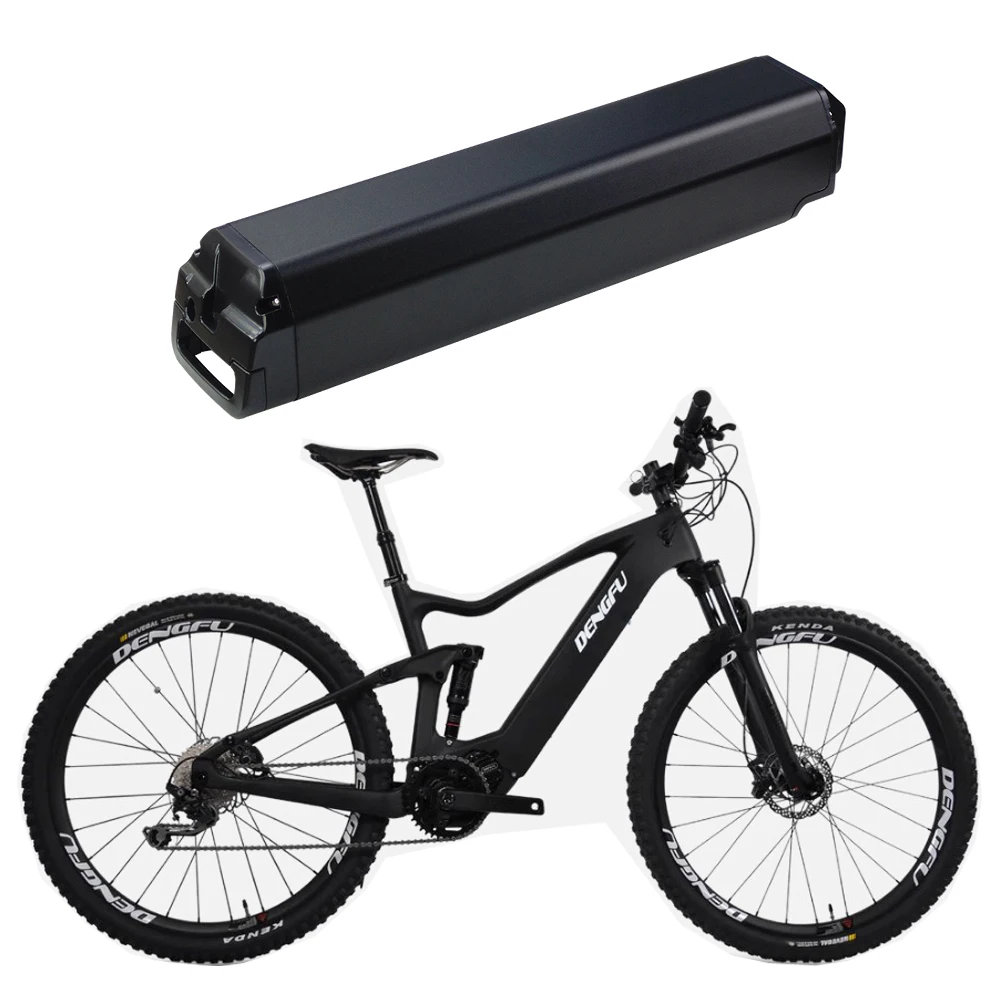

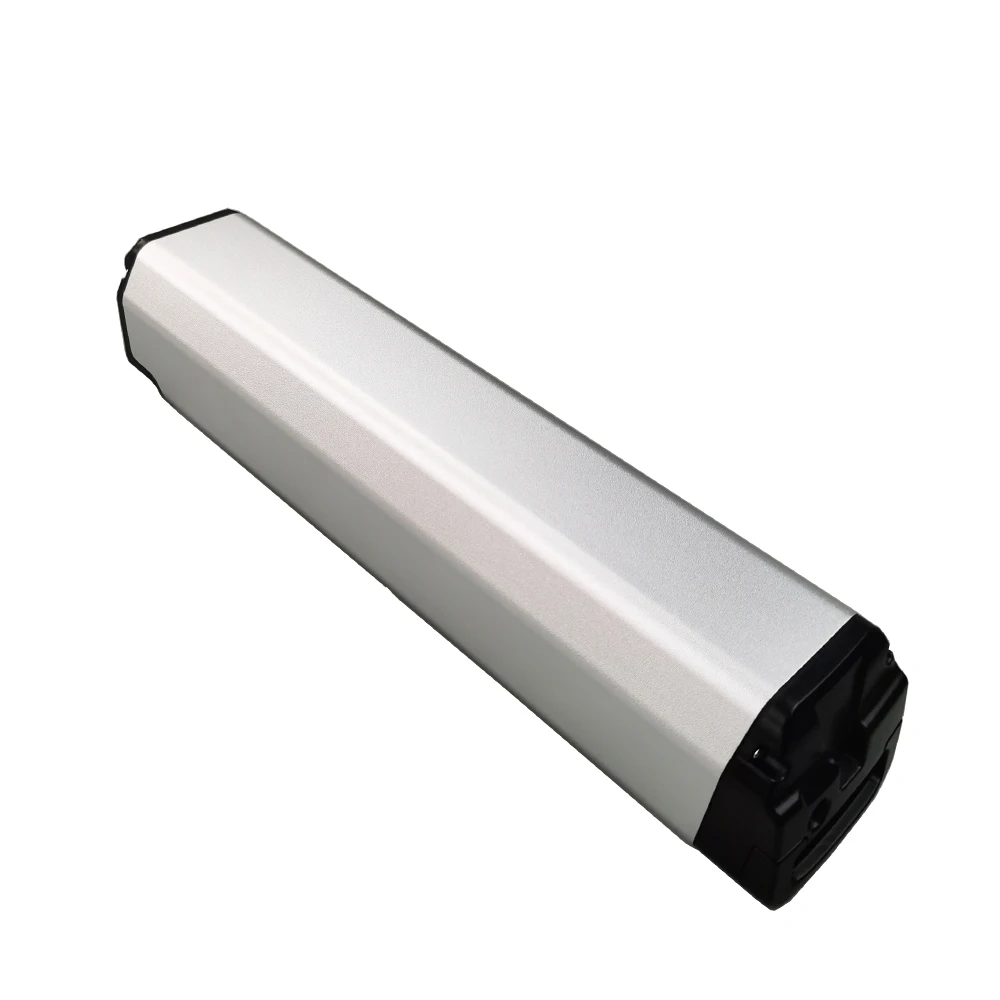

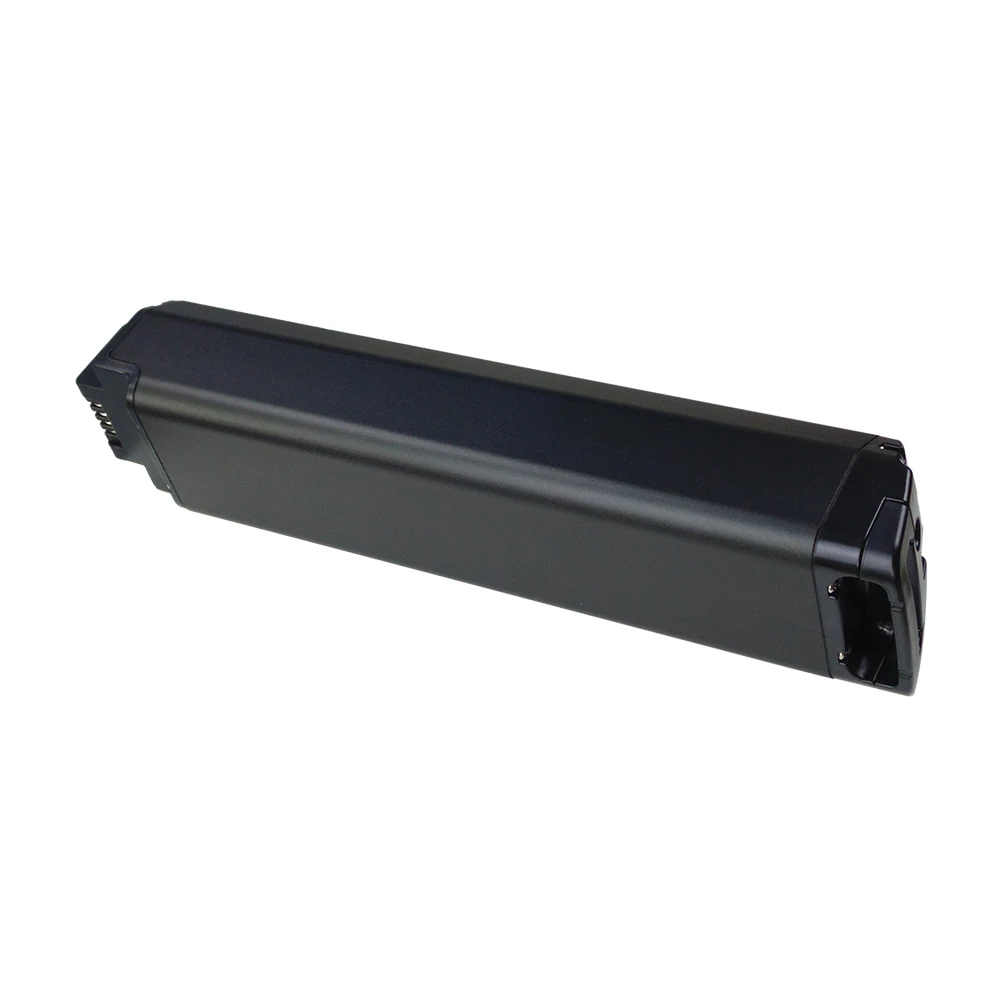

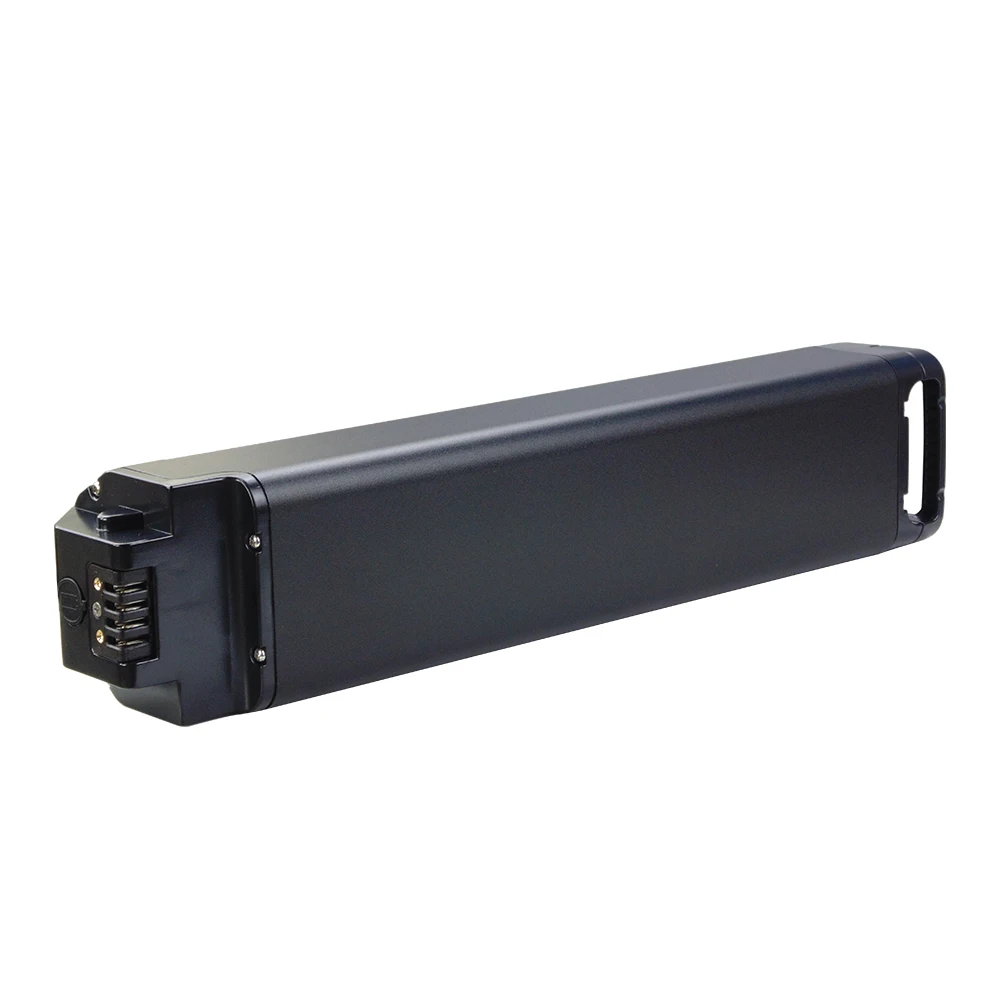

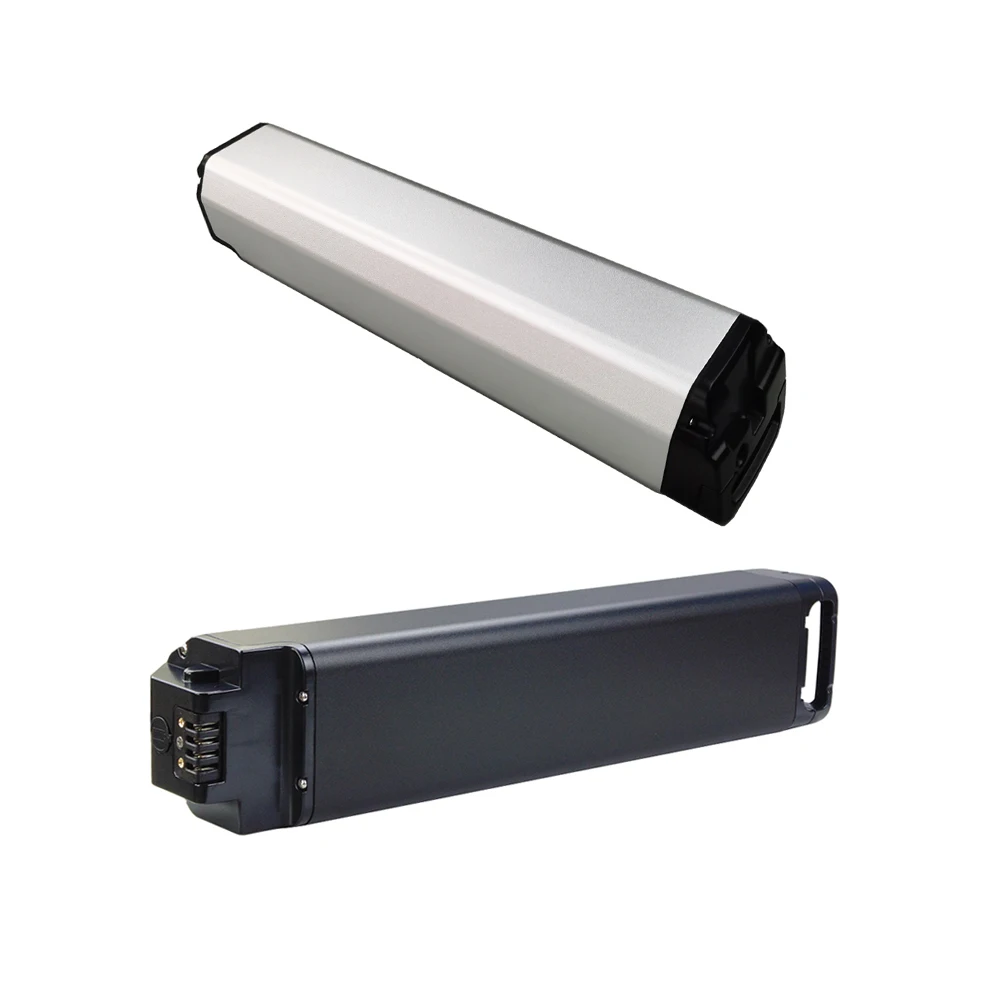

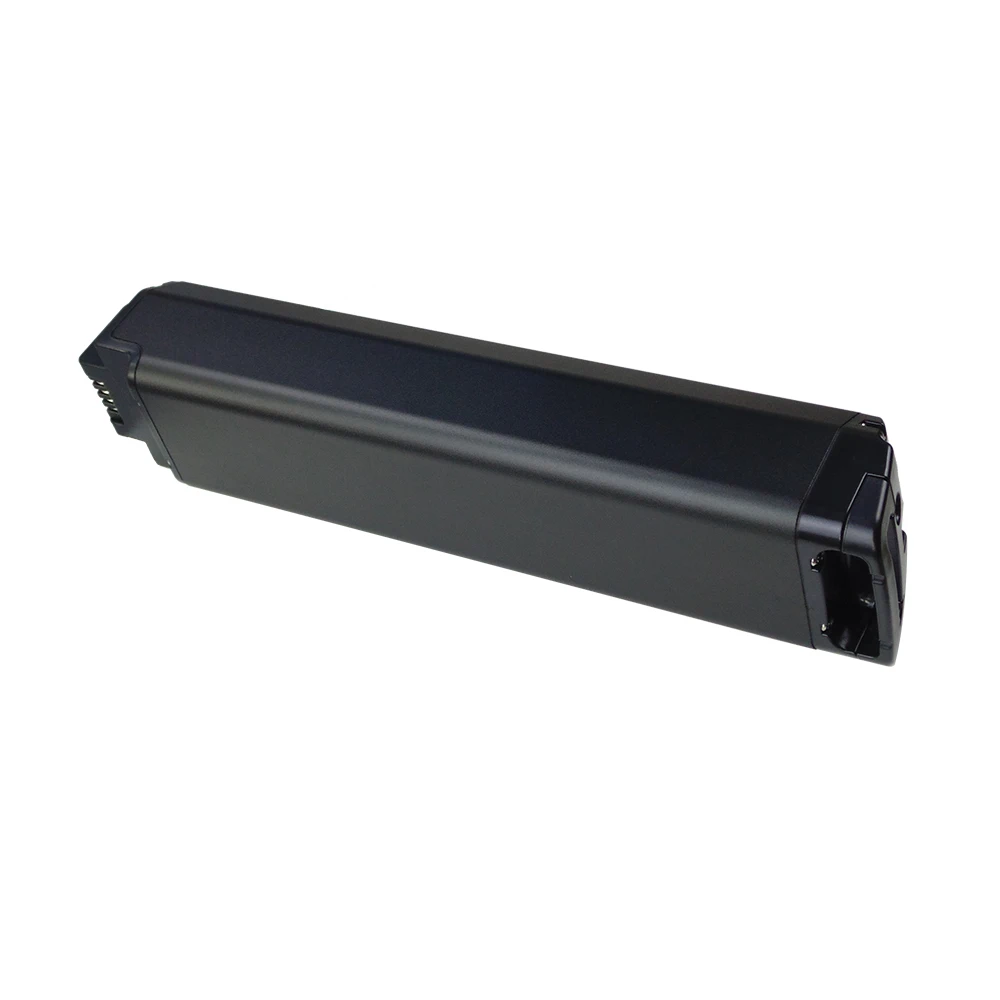

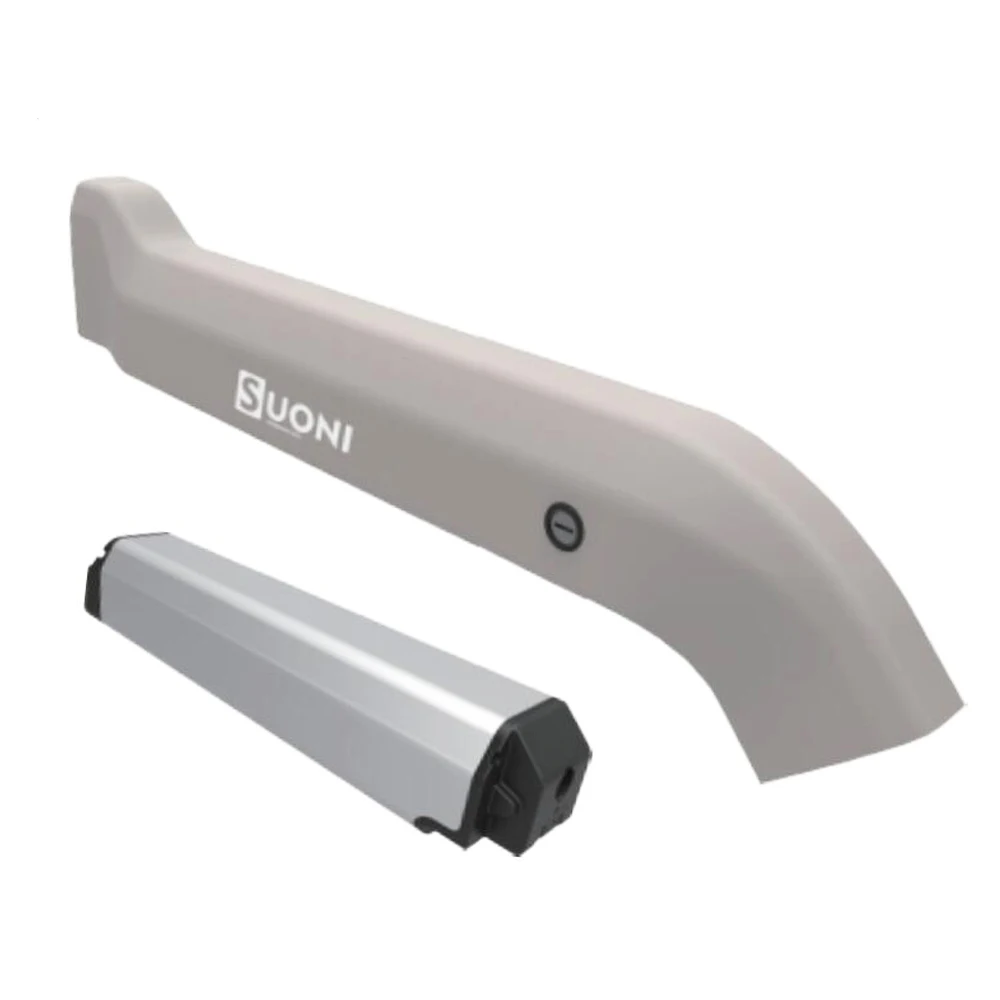

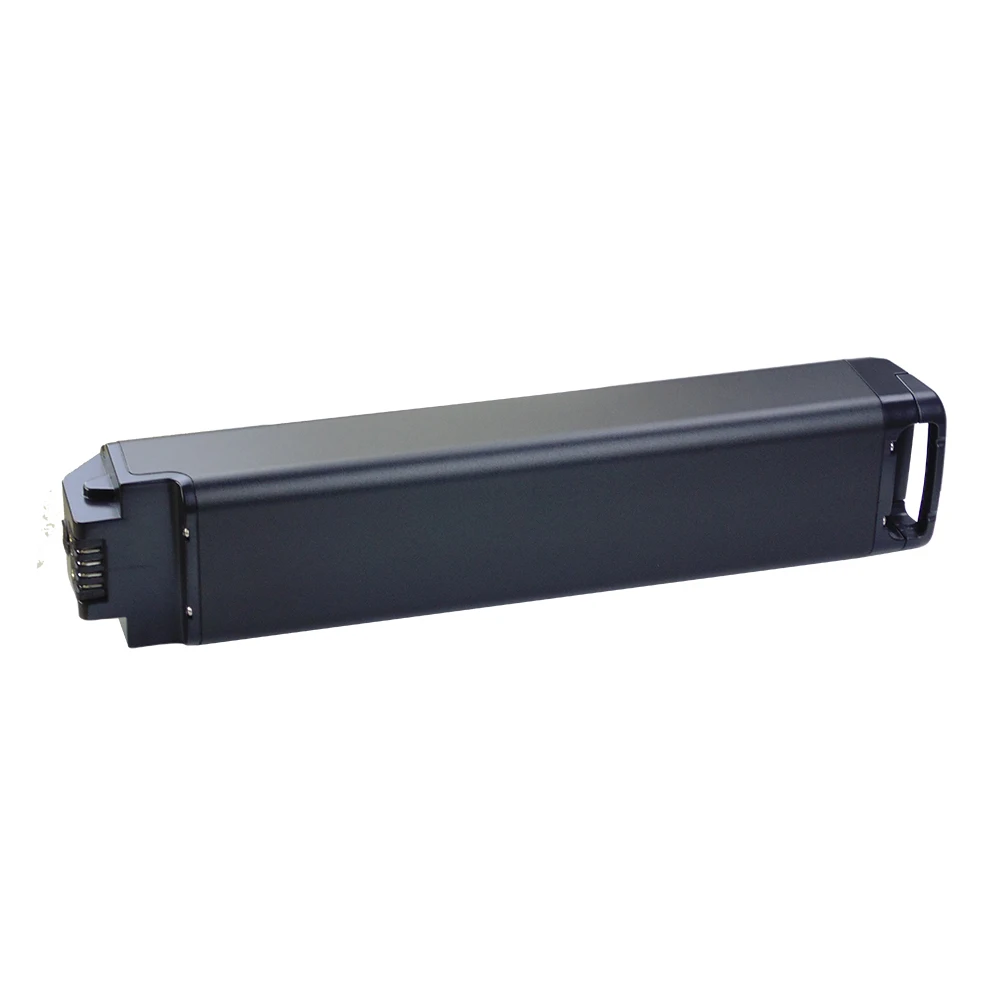

Dengfu E10 bike replacement Lithium battery SUONI SSE-103 48V 16Ah 768Wh built-in battery 500W 750W 1000W 8FUN M500/M600 motor



Product details:

DTB Electric bicycle battery Datasheet
Model	SSE-103
Chemistry	Li-ion
Nominal Voltage	48V
Nominal Capacity	16Ah
Weight	Approx 4.2KG
Outer case	SSE-103

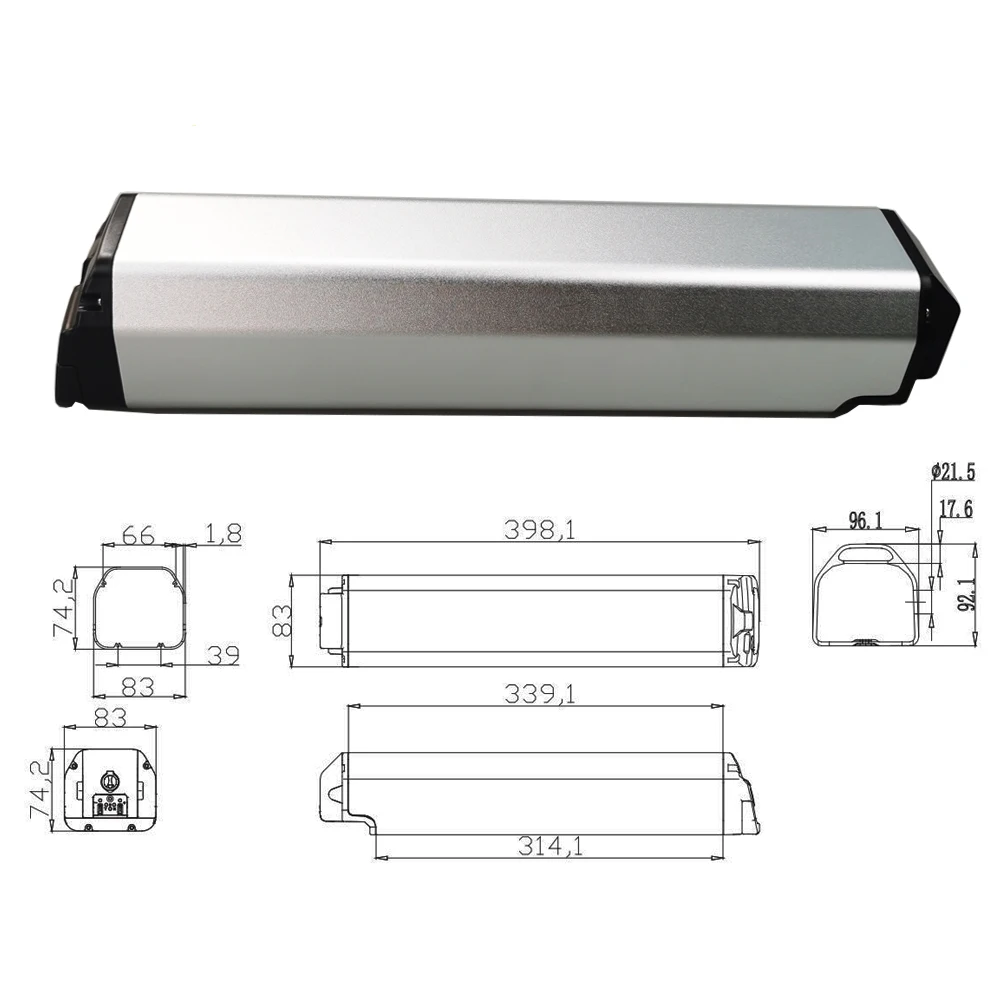

Dimension	83*74*398mm
Standard Charge	Constant Current 0.2C, Constant Voltage 54.6v 100mA Cut-off
Fast Charge	Constant Current 0.5C, Constant Voltage 54.6v 100mA Cut-off
Standard Discharge	Constant Current 0.2C/End Voltage -approx 39V
Discharge Current	30A depending on motor power
BMS function	Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Balanc5



Battery Manuel:

1. Charge:Connecting the battery pack to the charge controller, connect the charger to recharge.

2. Discharge:Connecting the battery pack to the load ,connect the load to discharge.

3. When you combine the battery with series or parallels, if there are oxidation layer on the surface, you

should brush surface to the metal glow with thin steel brush to lower the connective resistance to the minimal resistance.

4. When combining with many batteries, if the voltage between the two electrodes is over 24V, the safe
voltage for human beings, to guarantee the safety, you should not touch the two electrodes with your body.

5.  If shelve a long time suggested that the battery keep 80% capacity, need for regular recharging (even if

not use), must charge and discharge for three months one time;

6.  Do not expose the battery to extreme heat or flame.

7.  Do not short circuit, over-charge or over-discharge the battery pack;

8.  Do not disassemble or modify the battery pack.

9.  Do not handle or store with metallic like necklaces, coins or hairpins, etc.

10.  Do not reverse the polarity of the battery pack for any reason.

11.  Do not immerse the battery pack in water or sea water, or get it wet.

12.  Use a constant current, constant voltage (CC/CV) lithium-ion (Li+) battery charge controller.
