MPR5000S Color Paperless Recorder Data Logger
7'' 32 Multi Channel Industrial Universal Digital Smart USB Modbus Data Logger for Temperature Pressure Flow Humidity
Specification | ||||||
Accuracy | ±(0.2%FS +1) digital | |||||
Display | 7' Color LCD TFT | |||||
Size/Installation Size | 180x150x160mm/ 138x138mm | |||||
Power supply | 100-240VAC/24VDC | |||||
Sampling & Memory Specification | ||||||
Sampling | 1 second per 8channels | |||||
Memory capacity can be set flexibly according to the memory interval time setting. | ||||||
Huge capacity for Long time data saving up to 10 years with power -off protection | ||||||
Memory Interval time | 1, 2.......3600seconds, can be set flexibly as required in recorder | |||||

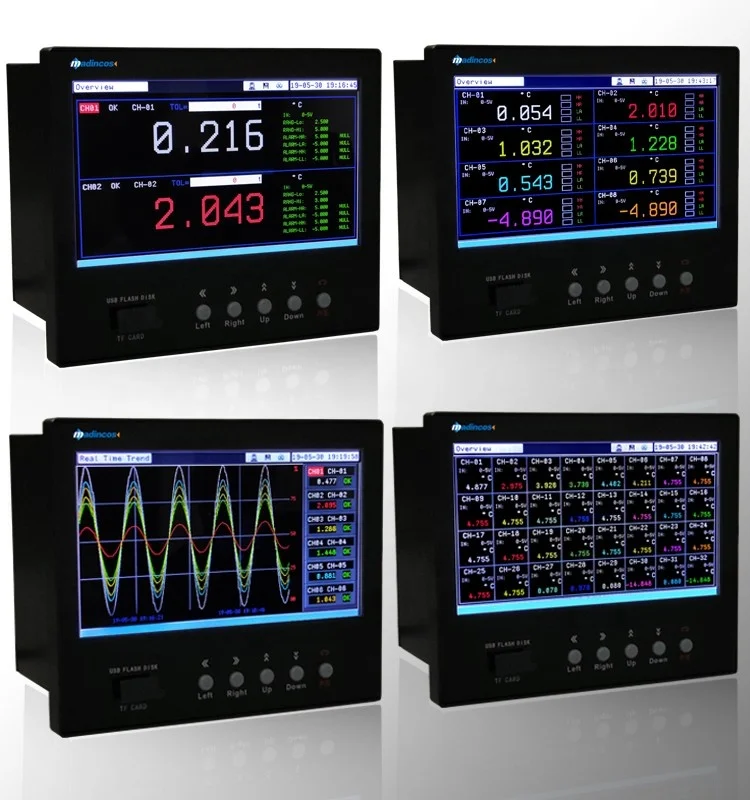

Screen Display | Various screen display in digital, trend, barograph, circular chat display | |||||
PC software | Powerful software function: to display memorized data in digital curve, Print Data and export the data to excel for further analysis. | |||||
Input & Output Specifiation | ||||||
Univeral Input | Themocouple, RTD, Analog, mV, input; programmable | |||||
Input Channels | 1,2,3,4,5,6,7,8......16.....24....32, optional | |||||
Channels Isolation | 400VAC photoelectrical isolation | |||||
Sample Rate | 1 seconds /8 channels | |||||
Output (Optional) | ||||||
Relay output | 3A, NO, max 16 relay output, configurable for channels | |||||
RS485 communication | standard Modbus-rtu protocol, | |||||
Ethernet Communication | standard Etherent MODBUS-TCP/IP protocol | |||||
feed output | auxiliary 24VDC output for transmitter | |||||
Print | printing output for data in digital and curve | |||||
Flow totalizer | with temperature, pressure compensation for channels | |||||
Math | +, -, x, /, ,max, min, average; linear math | |||||
Detailed Images
Feature: Multi Parameters Reading, Recording in a Recorder, Powerful and Programmabel each channels.
Temperature, Pressure, Flow ,lEVEL ,Humidity Application：
.Waste water dealing, water supply, pool,buliting automation
.Waste water dealing, water supply, pool,buliting automation
a.agricuture: greemhouse, mushroom, poultry room, organic factory
b. building autoamtion, room, warehouse, cold chain room, medical industry
c. HVAC, dryer industry, intergrated equpement, machine
d.Petroleum, Chemical, Pharmaceutical, Metallurgy, Paper, Electricity, Nuclear power,
e.Food, Cement, Building, aviation, Medical,University lab, Marine, Sewage treatment
b. building autoamtion, room, warehouse, cold chain room, medical industry
c. HVAC, dryer industry, intergrated equpement, machine
d.Petroleum, Chemical, Pharmaceutical, Metallurgy, Paper, Electricity, Nuclear power,
e.Food, Cement, Building, aviation, Medical,University lab, Marine, Sewage treatment

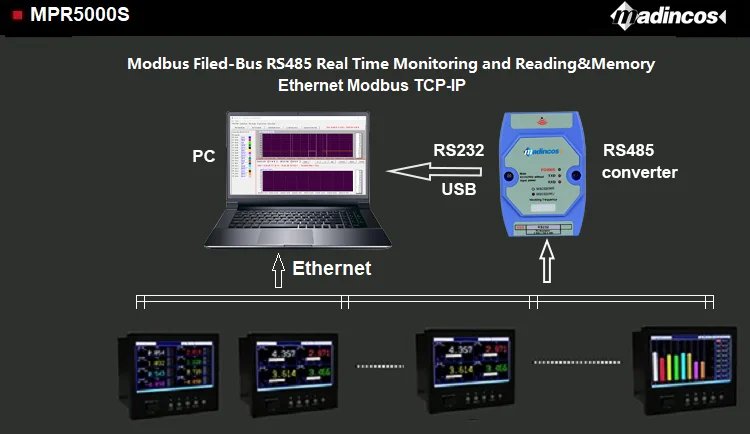

Remote Real Time Reading and Monitoring
*Photoelectrical isolated Serial MOdbus-TRU RS485 or Ethernet Modbus-TCP/IP communication output
*Standard MODBUS-RTU protocol, can be configurable flexibly with SCADA, DCS, PLC, HMI, OPC server ,IOT Clound Monitor for real time reading and monitoring in control room remotely
*Powerful PC software
real time monitoring and reading while memory data in PC automatically, Powerful pc software
*Standard MODBUS-RTU protocol, can be configurable flexibly with SCADA, DCS, PLC, HMI, OPC server ,IOT Clound Monitor for real time reading and monitoring in control room remotely
*Powerful PC software
real time monitoring and reading while memory data in PC automatically, Powerful pc software

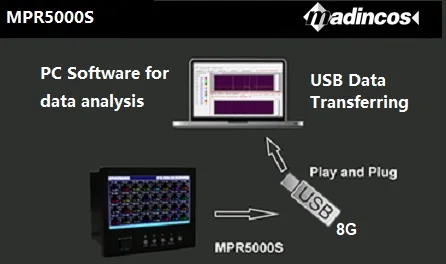

USB Data Transferring, Plug and Play
*Huge Capacity 8G/16G/32G USB pen driver for data transfer automatically only for 1-2 munities when u need to transfer the data, Fast and Easy operation.
* Powerful PC software
To display and read the memoried data in digital and curve, print the chart data by prnter; also export the data as Excel for further analysis.
Packing & Delivery
Packaging | ||
Size | 250(L) * 250 (W) * 230(D)mm | |
Weight | 2.5kg | |
Packaging &Delivery | Package: The normal package is paper box. PC+Bubble box +paper box with prection further to garantee the delivery the goods to you great. Delivery: by DHL, TNT, UPS, FEDEX; by air, by sea | |
Related Transmitter
MPT2100 Smart Pressure Transmitter
Absolute, Gauge,
Accuracy:0.2%FS,0.1%FS
Range:0- 600Mpa
Output: 4-20ma, 0-10vdc,rs485,hart
MLT6300 Digital Submersible Throw-in Level Transitter
Accuracy:0.5%FS, 0.2%FS
Range: 0-170m
Temperaure: 0-300degC
MTH500S Wall Type Temperature Humidity Transmitter
Accuracy: 0.3degc, 3%RH Range:-20 to 80℃, -40 to 60℃, 0-50℃
Output:4-20ma, 0-5V,0-10VDC, RS485
MTS200 Temperature Sensor, Thermocouple, RTD
Accuracy:Class A, Class II Thermocouple:K, S, B, E, T, R
RTD:PT100
