Match Different Wire Rope Crane Wire Rope Drum For Double Beam Crane
- Category: >>>
- Supplier: Henan Boutique Mechanical Equipment Co. Ltd.
Share on (1600469720007):
Product Overview
Description

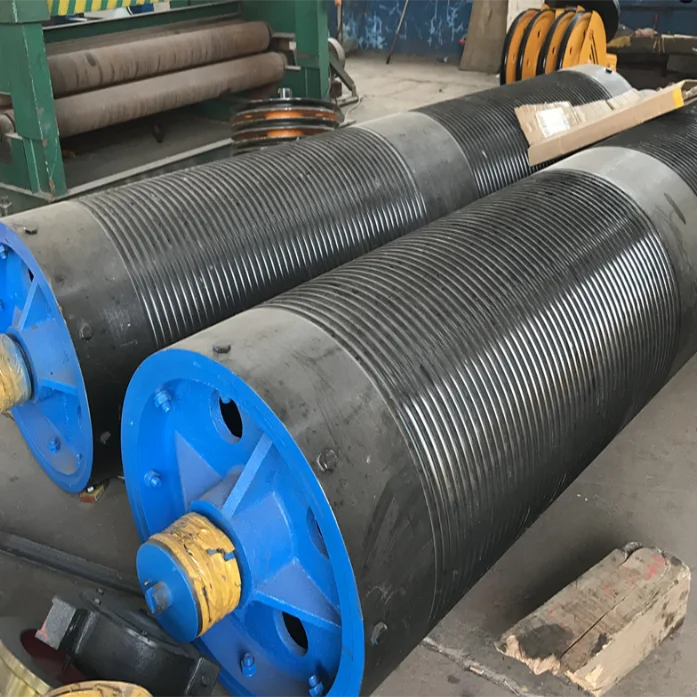

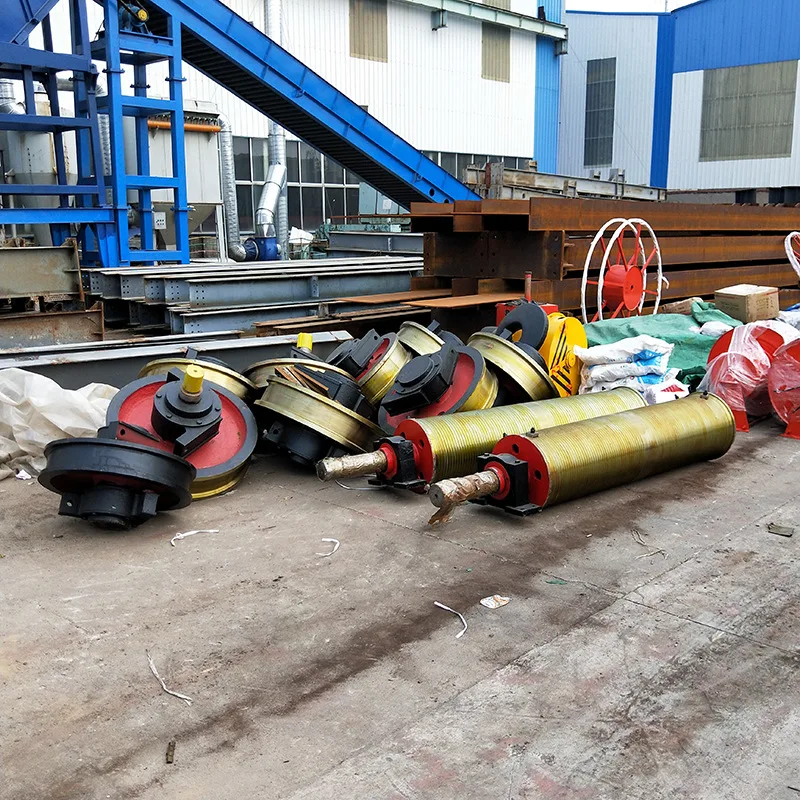

The function of the Drum is to wind the steel wire rope in the lifting mechanism or the traction mechanism, transmit power, and change the rotary motion into linear motion. The drums commonly used on cranes are mostly cylindrical.
Cast iron type crane drum

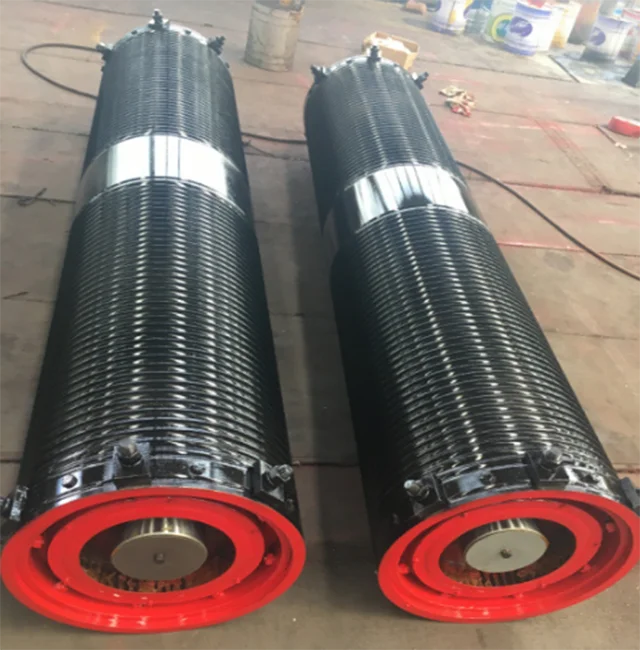

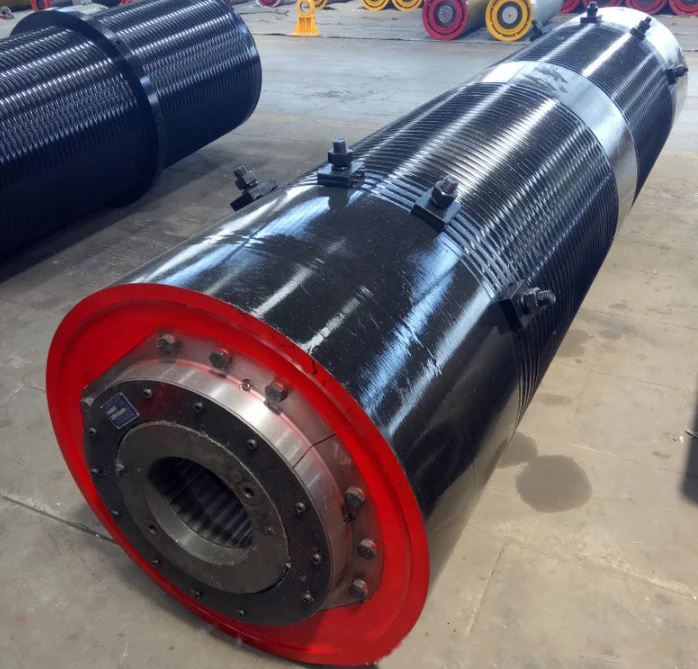

Cast steel type crane drum

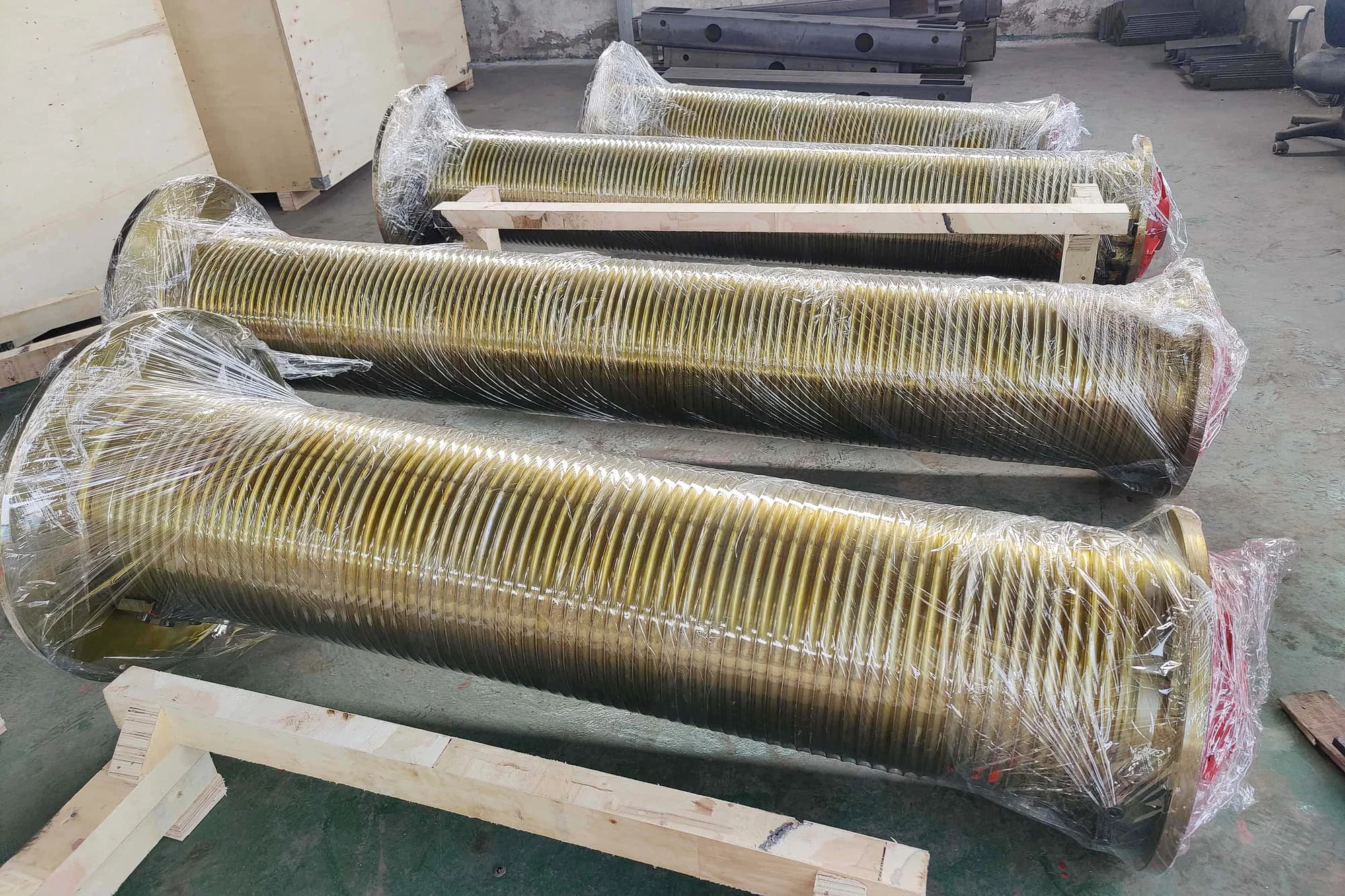

Wire Rope Drum | Description | Q345B material seamless steel tubes | |||||
Large diameter of the drum extends the life of the wire rope, and small placement deflection of heavy objects . The wire rope is fixed by clamps, at least 3 circles of wire rope are fixed, and the heavy-weight bearing is made of seamless steel pipe. | |||||||
The depth of the rope groove is 1/2 of the rope diameter , which effectively prevents the groove from being unwound, so that the rope and the reel are wound in the rope groove in order. | |||||||
The inner wall of the rope grooves was grinded by the molding cutters, to slow the abrasion of the wire rope. | |||||||
Technical Details | Diameter | Pitch | |||||
3t | Ø140mm | 7.2 | |||||
5t | Ø190mm | 9 | |||||
10t | Ø268mm | 12.5 | |||||
20t | Ø295mm | 17 | |||||
32t | Ø405mm | 12.5 | |||||
50t | Ø405mm | 17 | |||||
63t | Ø405mm | 16 | |||||
80t | Ø405mm | 16 | |||||
Recommend Products
Our Advantages
Henan Boutique Machinery Equipment Co., Ltd. mainly produces more than 110 kinds of lifting equipment and accessories in five series, including electric hoist, single beam crane, gantry crane, European crane and European electric hoist. The company has 50 employees, with assets of 5 million yuan, 48 service agencies at home and abroad, and 8 middle and senior engineering and technical personnel. At present, all products have passed the GB / T 19001 / ISO9001 quality management system, GB / t24001 / ISO14001 environmental management system and GB / T28001 occupational health and safety management system standard certification.
Our products are sold to Pakistan, India, Kazakhstan, Russia, Romania, South Africa, Algeria, Australia, New Zealand, Mexico, Panama, Brazil, Argentina, etc More than countries have successively provided users with large tonnage lightweight cranes, intelligent storage cranes, precision positioning cranes, automatic container gantry cranes, unmanned cranes, mucking gantry cranes for subway construction, clean explosion-proof automatic cranes, multi fulcrum flexible suspension cranes and special cranes for insulation, explosion-proof and metallurgy. We not only provide customers with one-stop preferential procurement, but also provide customers with professional crane procurement solutions. "One hand in Boutique, a lifelong friendship"
Our products are sold to Pakistan, India, Kazakhstan, Russia, Romania, South Africa, Algeria, Australia, New Zealand, Mexico, Panama, Brazil, Argentina, etc More than countries have successively provided users with large tonnage lightweight cranes, intelligent storage cranes, precision positioning cranes, automatic container gantry cranes, unmanned cranes, mucking gantry cranes for subway construction, clean explosion-proof automatic cranes, multi fulcrum flexible suspension cranes and special cranes for insulation, explosion-proof and metallurgy. We not only provide customers with one-stop preferential procurement, but also provide customers with professional crane procurement solutions. "One hand in Boutique, a lifelong friendship"

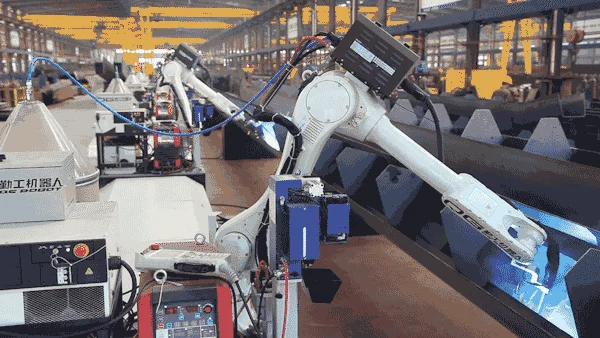

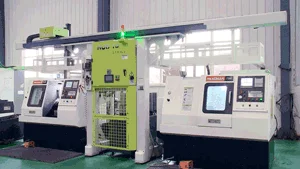

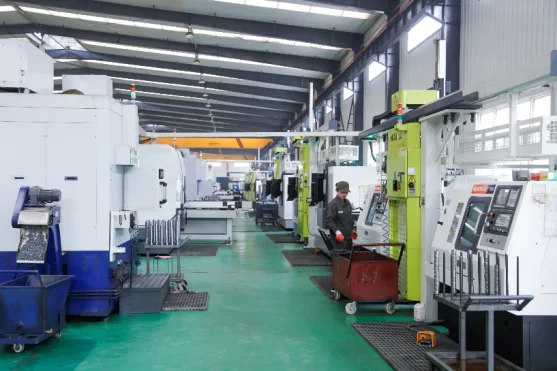

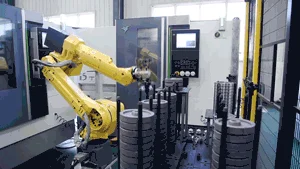

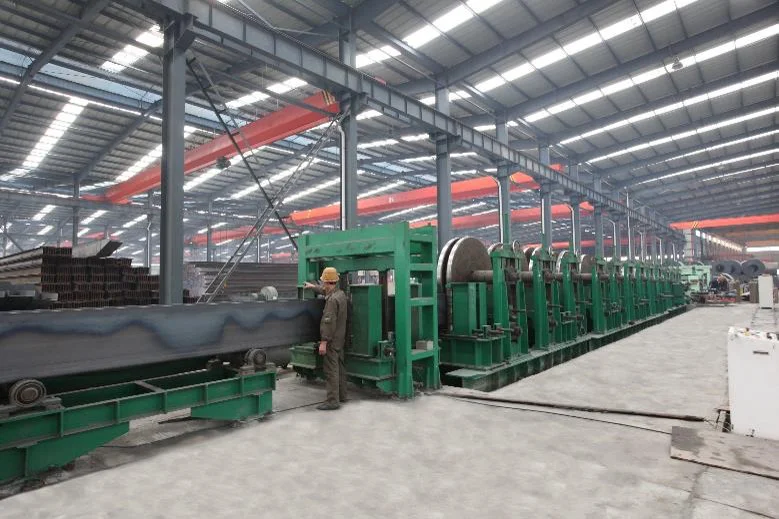

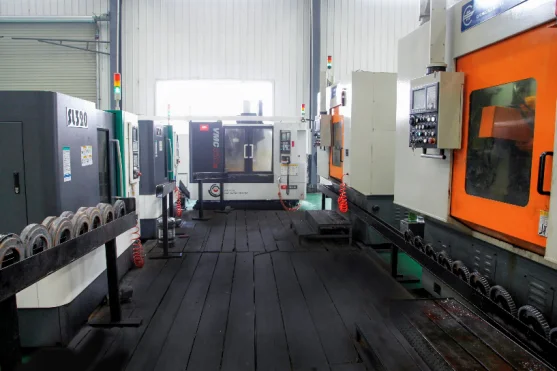

Workshop and R&D Lab
The standardized workshop can meet your demand for standardized cranes with low cost and high efficiency;
R & D team and lab meet your needs for customized products.
R & D team and lab meet your needs for customized products.
Service Team
Sales manager has many years of customer service experience, to provide you with intimate, professional, all-round quality service
FAQ
Q. What's the information should I provide when inquiry?
More details or drawings, better.
Lift capacity ?
span ?
lift height ?
power sourceor other specials you give us will be more appreciated ?
Q. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit yourcountry.
Q:The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
More details or drawings, better.
Lift capacity ?
span ?
lift height ?
power sourceor other specials you give us will be more appreciated ?
Q. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit yourcountry.
Q:The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
