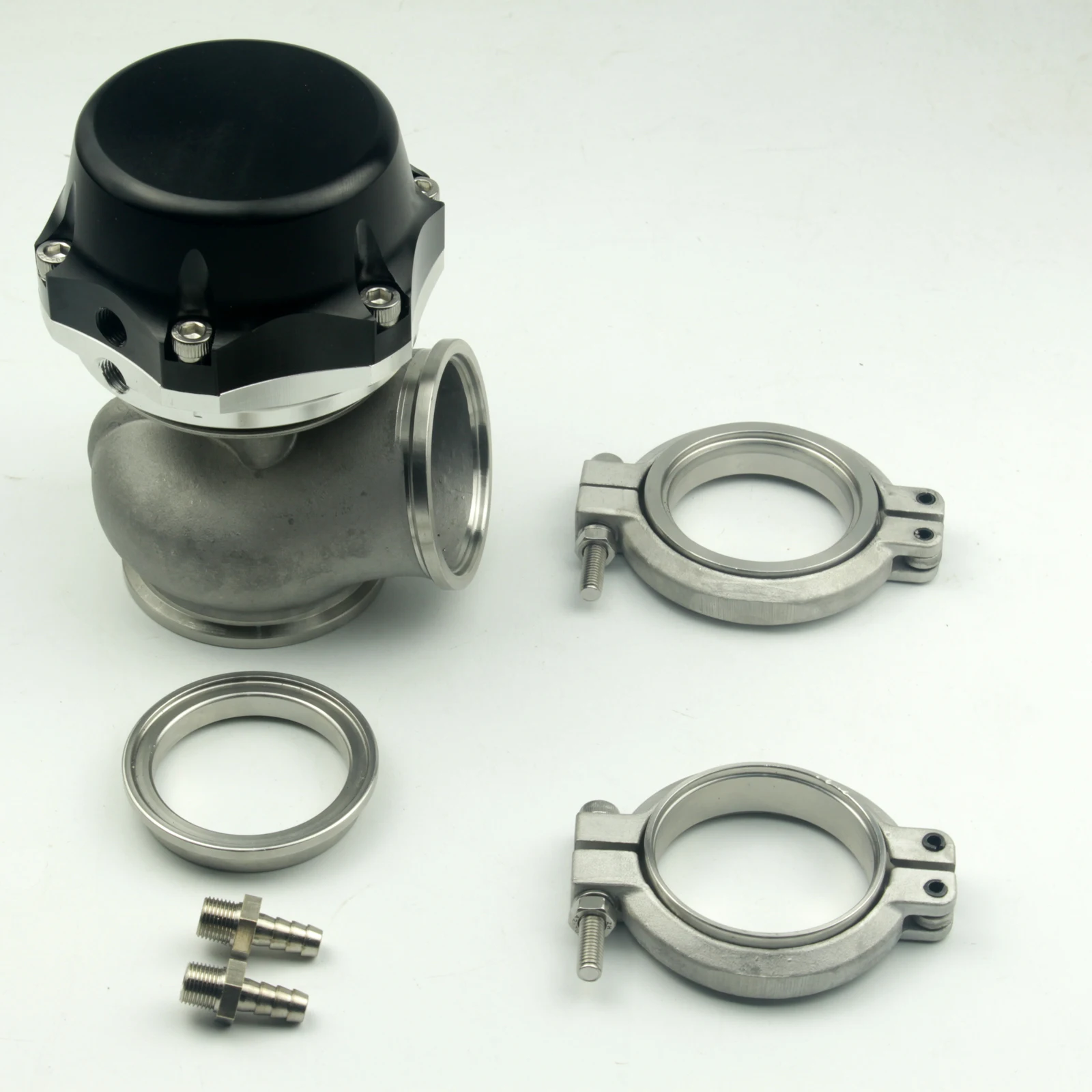

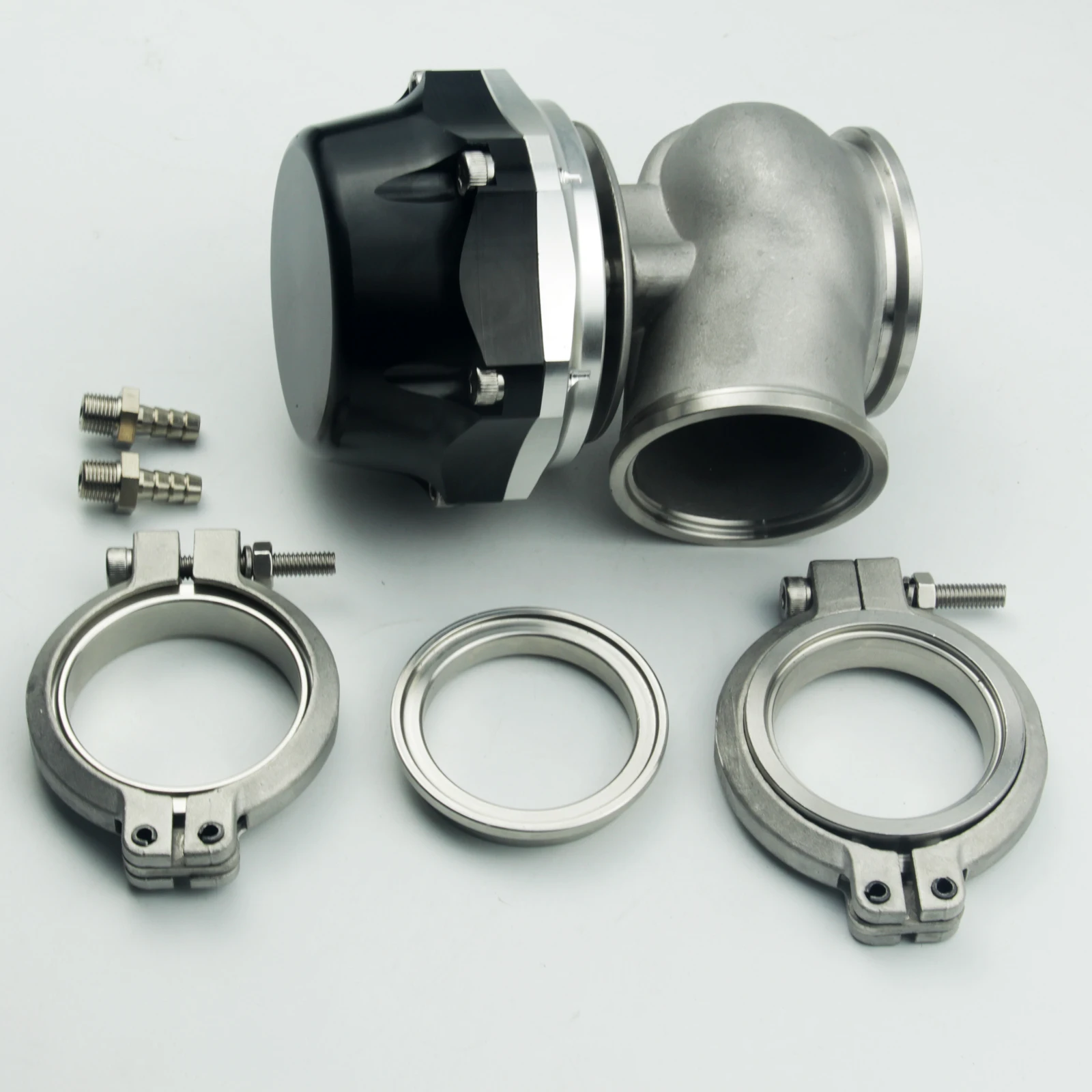

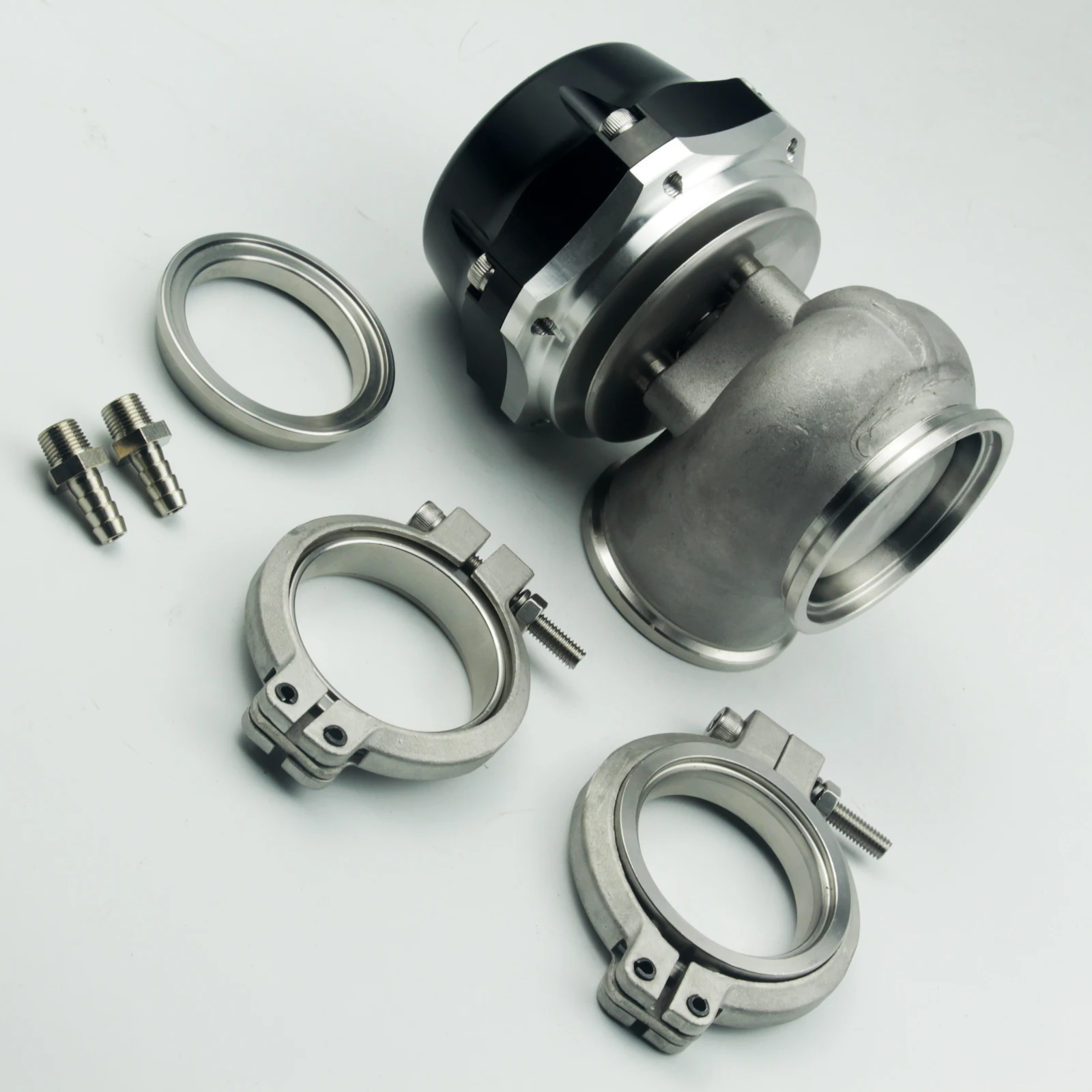

50mm ProGate turbo TS Wastegate
- Category: >>>
- Supplier: Suzhou 3v Technology Co. Ltd.
Share on (1600469794103):
Product Overview
Description
Product Description
Wastegates provide a means to control the boost pressure of the turbo charged engine. Wastegates work to bypass exhaust flow from the turbine wheel. Bypassing the exhaust flow reduces the power driving the turbine wheel to match the power required for a given boost level. Similar to the BOV, the Wastegates uses boost pressure and spring force to regulate the flow bypassing the turbine.
Wastegates are bolted to exhaust manifold or header. The advantage of external Wastegates is that the bypassed flow can be reintroduced into the exhaust stream further downstream of the turbine. This tends to improve the turbine''''s performance.
Wastegates are bolted to exhaust manifold or header. The advantage of external Wastegates is that the bypassed flow can be reintroduced into the exhaust stream further downstream of the turbine. This tends to improve the turbine''''s performance.
Easy to Remove Locking Collar for Fast Spring Changes.
Weldable Flange Inlet / Outlet Flanges for Manifold Downpipe (Fits 2.00" OD pipes).
Weldable Flange Inlet / Outlet Flanges for Dump Pipe (Fits 2.00" OD pipes).
Professional Installation is Highly Recommended (No instructions Included).
Weldable Flange Inlet / Outlet Flanges for Manifold Downpipe (Fits 2.00" OD pipes).
Weldable Flange Inlet / Outlet Flanges for Dump Pipe (Fits 2.00" OD pipes).
Professional Installation is Highly Recommended (No instructions Included).
HB-2-2005
Specification
Material: | Body: Cast Iron, Top: Aluminum, Valve: Stainlee Steel |
Fit for | V-Band Clamp-On Flange |
Wastegate Port Size: | 50mm |
Spring PSI: | 14 PSI Spring Included |
Dimensions: | H: 5.3"=135mm, W: 3.74"=95mm at Widest Point (Flange), Diameter: 3.5"=89mm at Body |
Top Finished: | Anodized Aluminum |
Package included: | 1 x Wastegate with Hardware (Flange/Clamp/Fitting) |
Color: | Black /Blue |
similar production
We have other size too,please check freely!
(38mm/40mm/44mm/46mm/50mm/60mm), please contact me when you need others.
Packing & Delivery
We ship worldwide by FEDEX, UPS, DHL, EMS, TNT, China post and so on !
The whole way tracking is available for all items in my store!
For successful deliver,Please note your correct telephone number,address,E-mail and post code !
For successful deliver,Please note your correct telephone number,address,E-mail and post code !
Company Profile
3V-TECH is approved by the Ministry of Commerce in 2011, located in Yangtze River Delta-Suzhou, which is a famous land of milk and honey nearby Taihu Lake,around 1hour to Shanghai Port.
We are a comprehensive supplier in China,mainly focus on Auto Parts&Industries,Fiber Optoelectronics parts,Optical
Instrument&Parts. With a wealth of experienced research and developing group, professional technical support, high standards of service, faithful service concept ,we have established reliable supply and procurement chain and favorable business reputation in domestic and foreign market. Our main markets throughout Europe, America, South Africa, South Korea, Japan and Southeast Asia countries.Enterprise Tenet: Professional; Honest; Thanks-Giving; Win-win.
Enterprise objective: Towards to the development direction of technology-creative and energy-saving environmental protection, to build a century-old enterprise and create wealth for community.
We hope more opportunities of cooperation with you and initiate a splendid tomorrow together.
We are a comprehensive supplier in China,mainly focus on Auto Parts&Industries,Fiber Optoelectronics parts,Optical
Instrument&Parts. With a wealth of experienced research and developing group, professional technical support, high standards of service, faithful service concept ,we have established reliable supply and procurement chain and favorable business reputation in domestic and foreign market. Our main markets throughout Europe, America, South Africa, South Korea, Japan and Southeast Asia countries.Enterprise Tenet: Professional; Honest; Thanks-Giving; Win-win.
Enterprise objective: Towards to the development direction of technology-creative and energy-saving environmental protection, to build a century-old enterprise and create wealth for community.
We hope more opportunities of cooperation with you and initiate a splendid tomorrow together.
FAQ
Q:How long can i get the feedback after i send the inquiry?
A:Within 24 hours
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: We can supply the sample if we have in stock, but the customers need to pay the sample cost and
the courier cost. you can get back the sample fee after you order in bulk.
A:Within 24 hours
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: We can supply the sample if we have in stock, but the customers need to pay the sample cost and
the courier cost. you can get back the sample fee after you order in bulk.
Q:Do you test all your goods before delivery?
A:Yes,we have quality control all through our production and have final inspection by QC before shipment.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect all the customers as our friends and we do business and make friends with them, no matter where they come from.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect all the customers as our friends and we do business and make friends with them, no matter where they come from.
