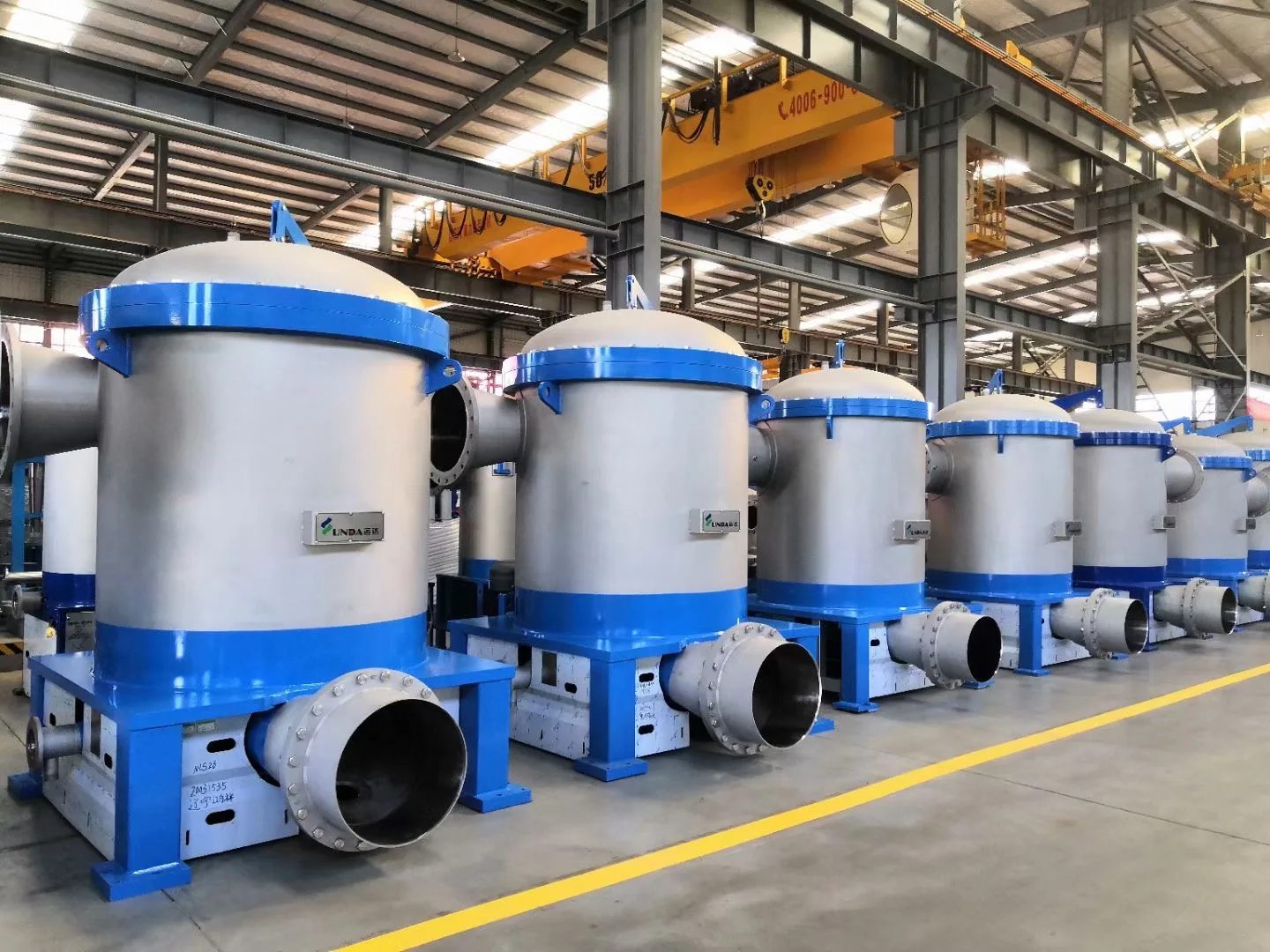

Pulp Automation Fine Screening stainless steel OutFlow Pressure Screen for Pulp Mill
- Category: >>>
- Supplier: Guangxi Grecho Industry Co. Ltd.
Share on (1600469859957):
Product Overview
Description
▶ Screening Of Recycled Fiber Pulps
Wide Range Of Applications To Produce High Pulp Qualities
The Grecho Grescreen Product Family Is Used In a Wide Variety Of Screening Applications In Recycled Fiber Pulps To Provide High Final Pulp Qualities. For Each Screening Stage a Grescreen Unit Is Designed To Fulfill The Requirements And Demands For Achieving Best Results In Terms Of Pulp Cleanness And Lowest Operating Costs.
Different Design Principals – Inflow And Outflow Types – Can Be Matched With Numerous Screen Basket And Rotor Combinations To Handle All Screening Applications.
Grescreen Units Are Applied To Effectively Remove Contaminants But Keep Good Fiber Losses To a Minimum.
Different Design Principals – Inflow And Outflow Types – Can Be Matched With Numerous Screen Basket And Rotor Combinations To Handle All Screening Applications.
Grescreen Units Are Applied To Effectively Remove Contaminants But Keep Good Fiber Losses To a Minimum.
Features Of The Grescreen Product Family
Rugged Mechanical Design
Wide Range Of Hole/Slot Sizes To Accommodate Different Screening Goals
Spare Parts Compatible Within The Entire Grescreen Product Family
Wide Range Of Hole/Slot Sizes To Accommodate Different Screening Goals
Spare Parts Compatible Within The Entire Grescreen Product Family

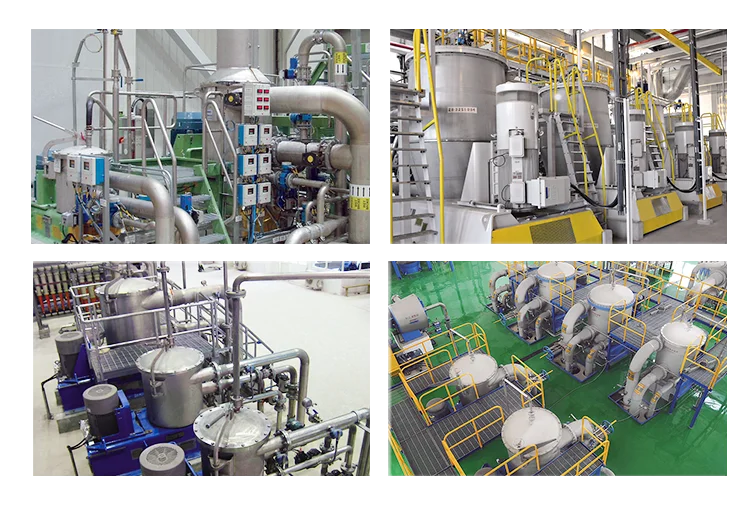

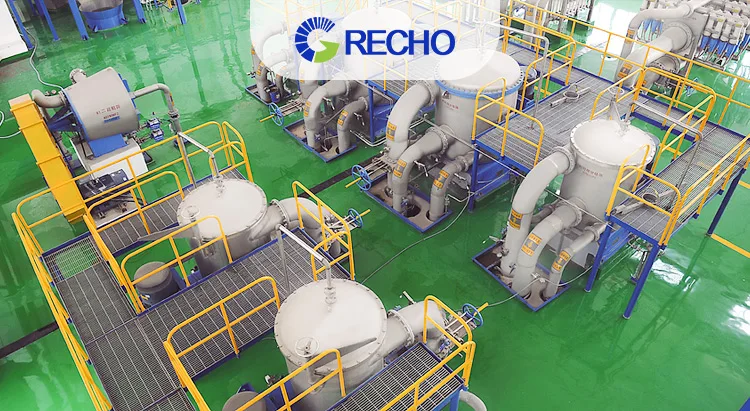

Screening System
Benefits Of The Grescreen Product Family
● Advanced Rotor And Screen Basket Design And Technology
● High Screening Efficiency
● Trouble-Free Operation
● Modular Design
● Low Energy Consumption
● Low Maintenance Costs
The Grescreen Product Family Is Applied For The Following Recycled Fiber
Screening Applications
● Coarse Screening

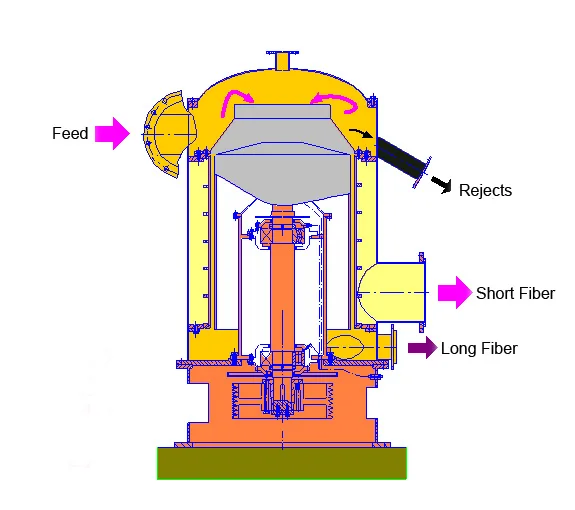

● Fractionation
● Fine Screening
● Tail Screening
● Headbox Screen
● Advanced Rotor And Screen Basket Design And Technology
● High Screening Efficiency
● Trouble-Free Operation
● Modular Design
● Low Energy Consumption
● Low Maintenance Costs
The Grescreen Product Family Is Applied For The Following Recycled Fiber
Screening Applications
● Coarse Screening
● Fractionation
● Fine Screening
● Tail Screening
● Headbox Screen
Pressure Screen Type | UpFlo | OutFlo | InFlo | Fractionating | ||
Application Position On Stock Prep. Line | Coarse Screening | Fine Screening | Approach Flow System Fine Screening | Fiber Classification | ||
Screen Area(m2) | 0.6~4.0 | 0.3~4.0 | 0.6~6.0 | 1.2~4.0 | ||
Capacity(Ton/Day) | 30~500 | 10~400 | 10~600 | 100~800 | ||
Stock Consistency(%) | 2~3 | 0.8~1.5 | 0.3~1.0 | 1.5~2.5 | ||
Basket Slot (Hole) Size(mm) | Φ1.6~Φ3.0 | Φ0.1~Φ0.45 | Φ0.2~Φ0.45 | Φ0.15~Φ0.25 | ||
Inlet Pressure(MPa) | 0.1~0.25 | 0.15~0.30 | ||||
Motor Working Voltage & Hertz | 30~315 | 15~160 | 15~90 | 75~200 | ||
Raw Material | Waste Paper Fiber | Waste Paper Fiber | Water Paper Fiber Virgin Fiber | Waste Paper Fiber | ||
▶ Grescreen CR- Recycled Fiber Coarse Screening
The Grecho Grescreen Cr Screen Is a Good Solution For Heavy Particle Removal From Recycled Fiber Furnish. The Screen
Design Combines The Benefits Of Hd Cleaners And Conventional Coarse Screening In One Unit.
Typically, The Grescreen Cr Is Applied In Recycled Fiber Lines, But It Also Has Several Other Applications In Papermaking. Its Unique Rotating Screen Cylinder Has Enabled The Grescreen Cr To Be The Best Technical Solution For Coarse Screening Today.
● Low Maintenance Costs
● Low Energy Consumption
● Gentle Screening Process
● Large Impurities Removal Efficiency
● Continuous, Automatic Operation
● Simple Process Control
● Efficient Fiber/Reject Separation- Minimum Fiber Losses
● Efficient Fiber/Reject Separation- Minimum Fiber Losses
of all kinds of furnishes.
● High screening efficiency due to advanced basket/rotor design
● Optimized hydraulic flow patterns improving runnability
● Flexible basket/rotor combinations allowing easy and quick adaptations for different raw materials
● Common base for screen and motor saving installation costs

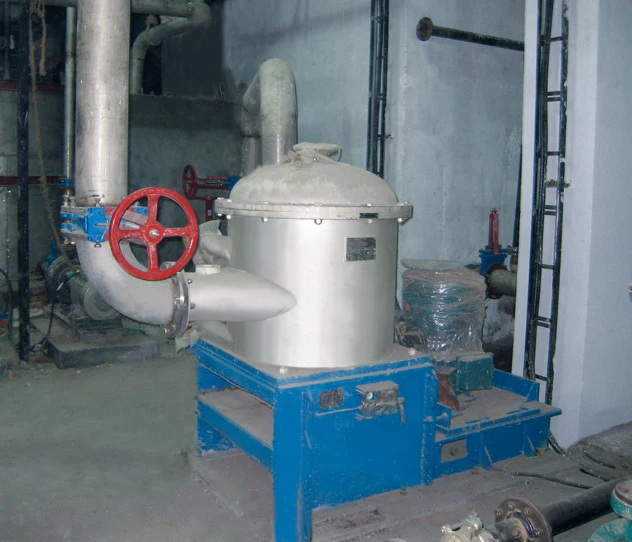

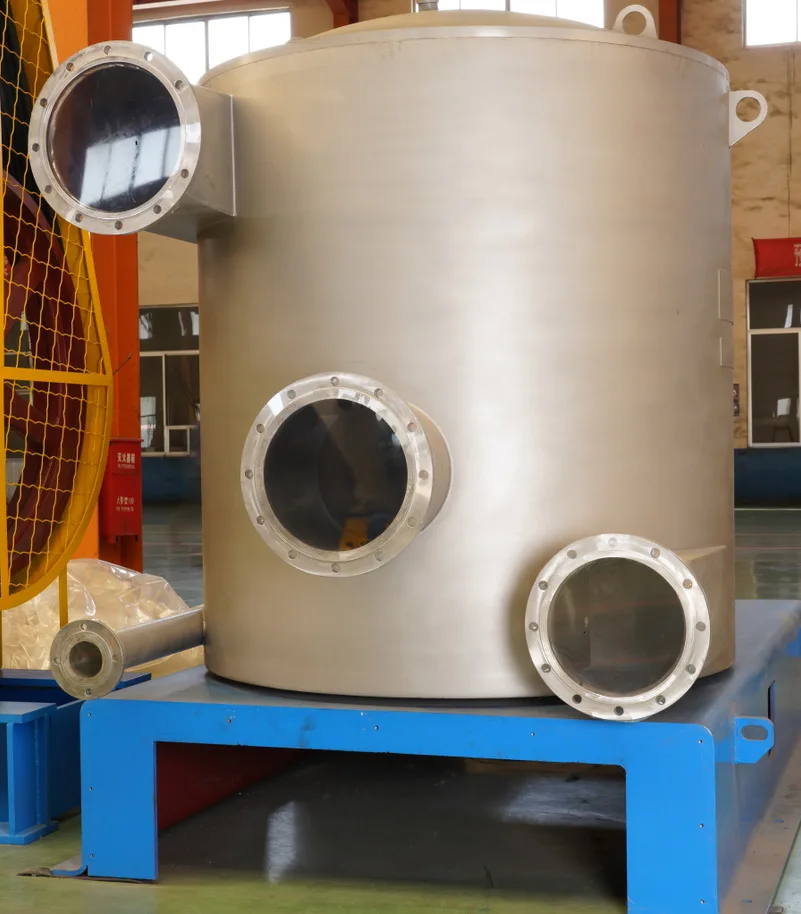

The Fine screen is part of the highly successful GreScreen family of GRECHO pressure screens and is perfectly suitable for processing all types of furnishes:
● In recycled fiber applications such as MC/LC fine screen
● In virgin and mechanical pulp applications as MC/LC fine screen
● In thick stock screening
● In recycled fiber applications such as MC/LC fine screen
● In virgin and mechanical pulp applications as MC/LC fine screen
● In thick stock screening
The GreScreen TS is part of the highly successful GreScreen family of GRECHO pressure screens and is perfectly suited to handle various screening applications. It can be used as:
● Tailing screen in the coarse screening section
● Stand-along screen in low-capacity lines
● Intermediate screen for deflaking in fine screening systems
● Tailing screen in the coarse screening section
● Stand-along screen in low-capacity lines
● Intermediate screen for deflaking in fine screening systems
● Minimum fiber content in rejects
● Simple process with well-controlled reject flow
● High reject dryness
● Continuous operation
● Extremely flexible for handling a wide
● Simple process with well-controlled reject flow
● High reject dryness
● Continuous operation
● Extremely flexible for handling a wide
range of screening applications
▶ GreScreen HBS - For Superior paper machine performance
The GreScreen HBS is part of the highly successful GreScreen family of GRECHO pressure screens and is designed to meet the most stringent requirements for paper stock quality and operating performance.
The proven and successful inflow design of the screen, combined with the correct application of slotted or perforated screen cylinders, can be applied to any machine for paper or board manufacturing.
The proven and successful inflow design of the screen, combined with the correct application of slotted or perforated screen cylinders, can be applied to any machine for paper or board manufacturing.
Benefits
● Low energy consumption with inflow screening
● Very low pulsation thanks to unique accept chamber design
● No deposits due to polished surfaces- easy to drain and wash
● High screening efficiency with low reject rates
● Modular design
● Easy to operate and maintain
● Very low pulsation thanks to unique accept chamber design
● No deposits due to polished surfaces- easy to drain and wash
● High screening efficiency with low reject rates
● Modular design
● Easy to operate and maintain
GRECHO screening tech. incorporate a wide variety of screen basket and rotor designs to allow our screening specialists to deliver individual screening solutions to all our customers.
GRECHO is one of the leading suppliers of screen baskets and rotors for all major OEM screens and for all screening applications:
● Recycled fiber
● Chemical pulp
● Mechanical pulp
● Approach flow
GRECHO is one of the leading suppliers of screen baskets and rotors for all major OEM screens and for all screening applications:
● Recycled fiber
● Chemical pulp
● Mechanical pulp
● Approach flow

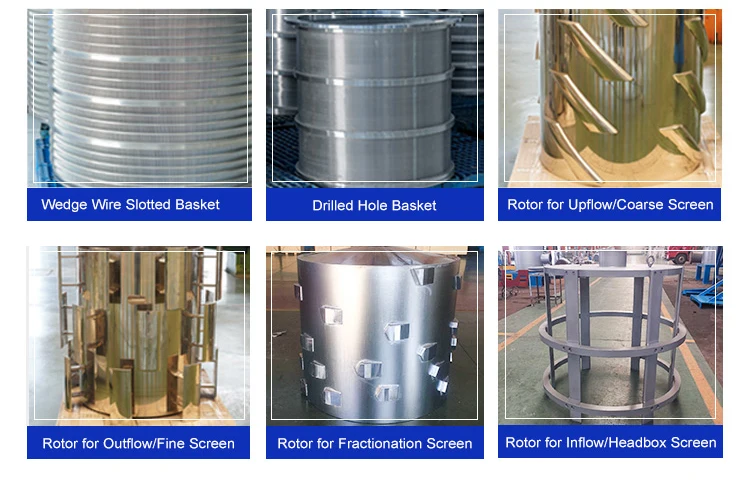

Pressure screen sieve drum

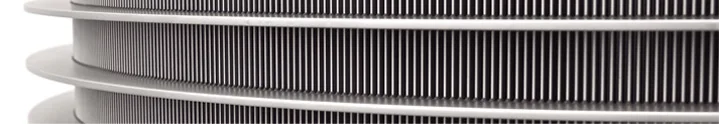

● Wedge Wire Slotted Basket
● Drilled Hole Basket
● Rotor for Upflow/Coarse Screen
● Rotor for Outflow/Fine Screen
● Rotor for Fractionation Screen
● Rotor for Inflow/Headbox Screen

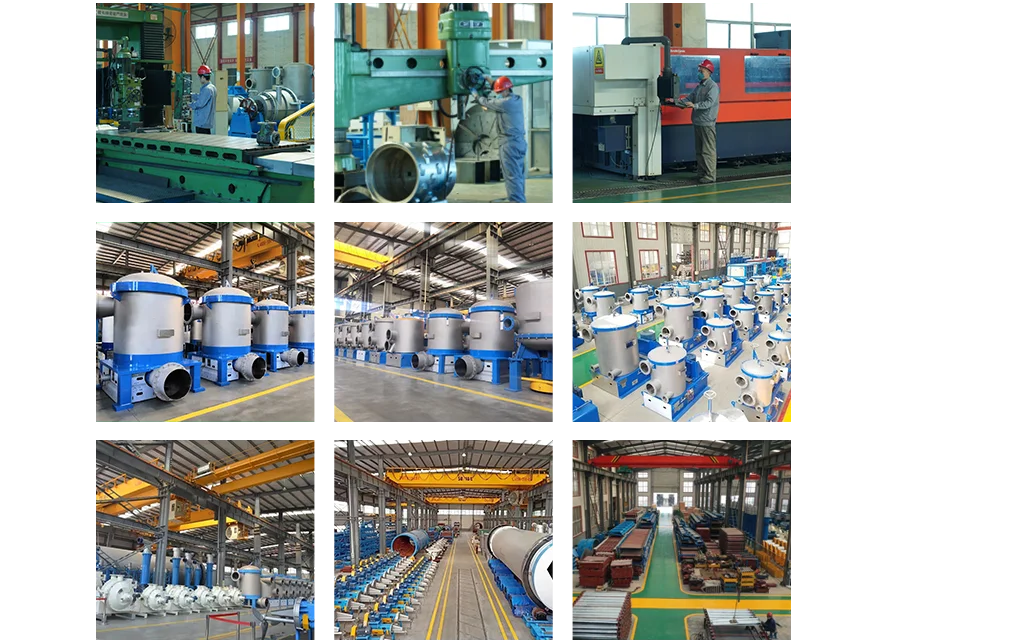

▶ GRECHO's references
▶ More about GRECHO
The GRECHO Industrial Corp. has active efforts to promote paper industry worldwide for years, by offering the best machinery and chemistry to the makers of pulp and paper products. We help our customers reaching their best business goals and giving solutions & services improve operational efficiency. We are capable of delivering a quality that meets your expectations, providing you the Quality Assurances you require! With products and services across full range of pulp and paper industry, our experts deliver new, sustainable ways of growing your business.
▶ Our Service
◼ Small Order: Low MOQ 1 sample order acceptable.
◼ Secret Agreement: We would like to sign secret agreement if customers ask for it .
◼ Refund Policy: If there is problem cause by our company about your goods, You can contact us and we will try to help you solve the problem.
◼ Contract Policy : We would like to sign order contract to ensure interests of both sides.
◼ Product Certificate: We would like to provide certificate if customers ask for it .
◼ promotion: We will hold store promotions from time to time and provide great discount during promotion.

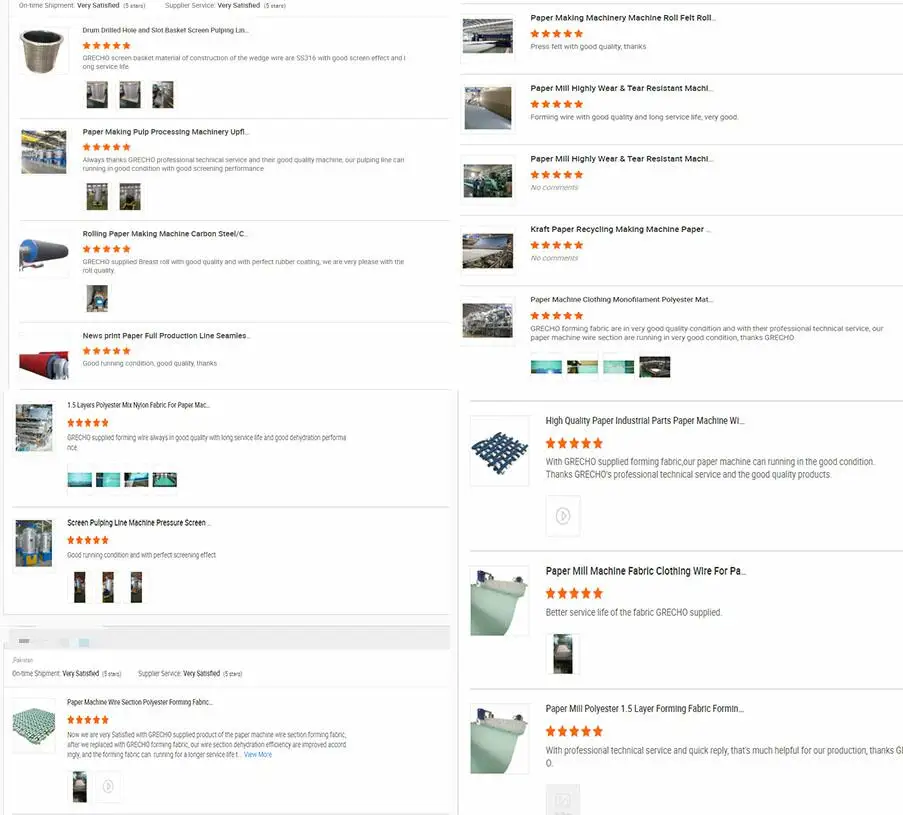

▶ Customer Reviews
