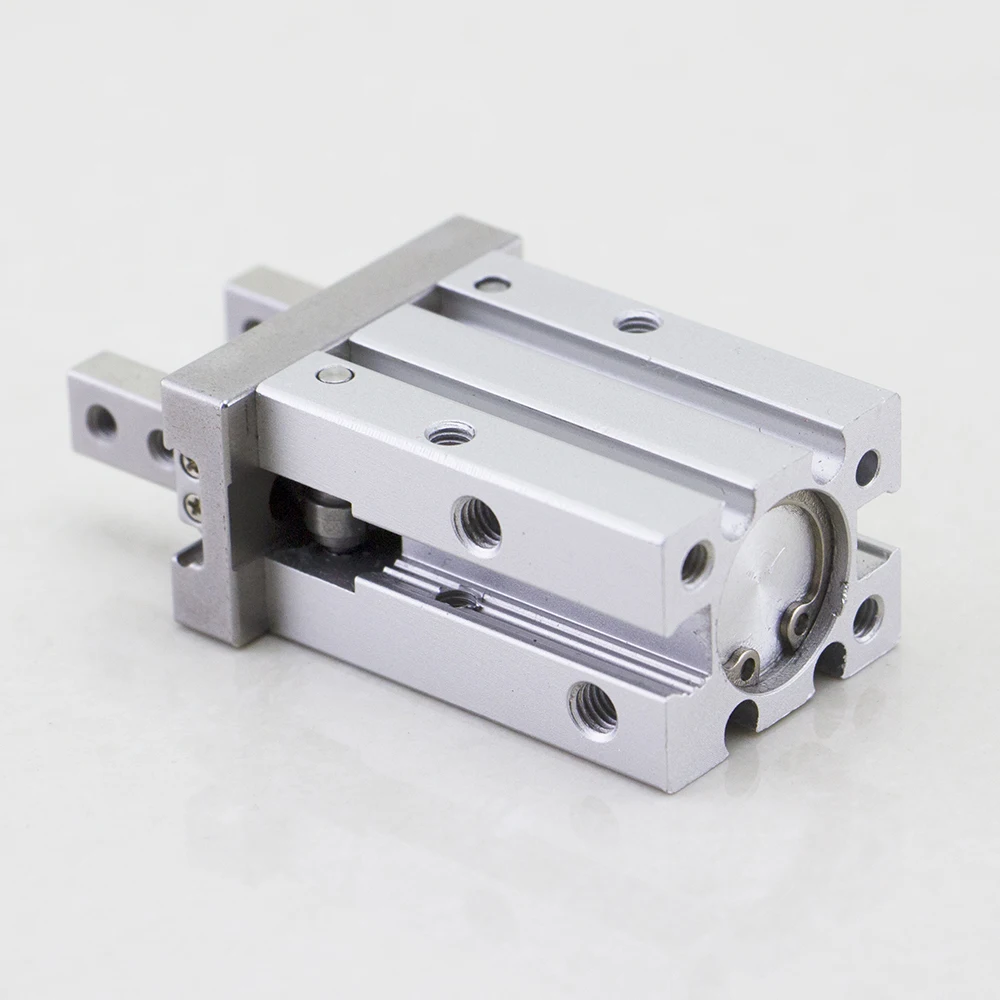

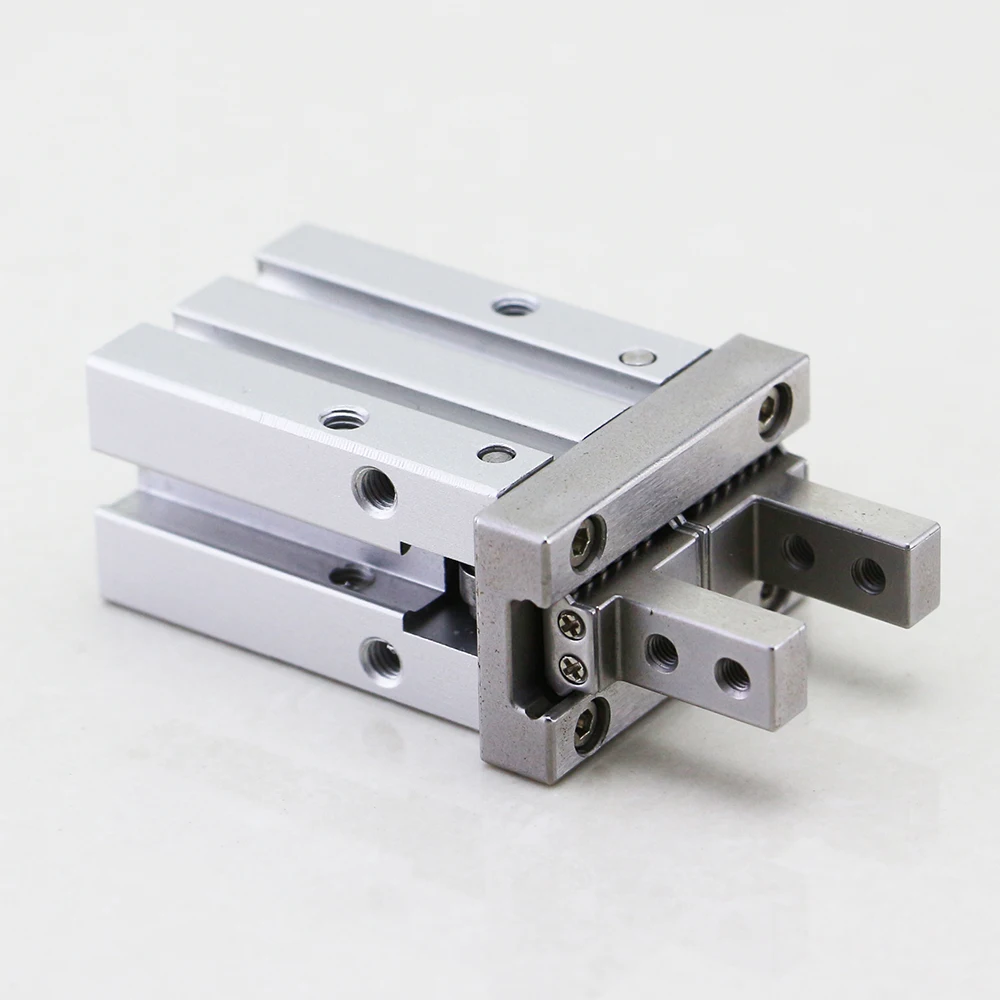

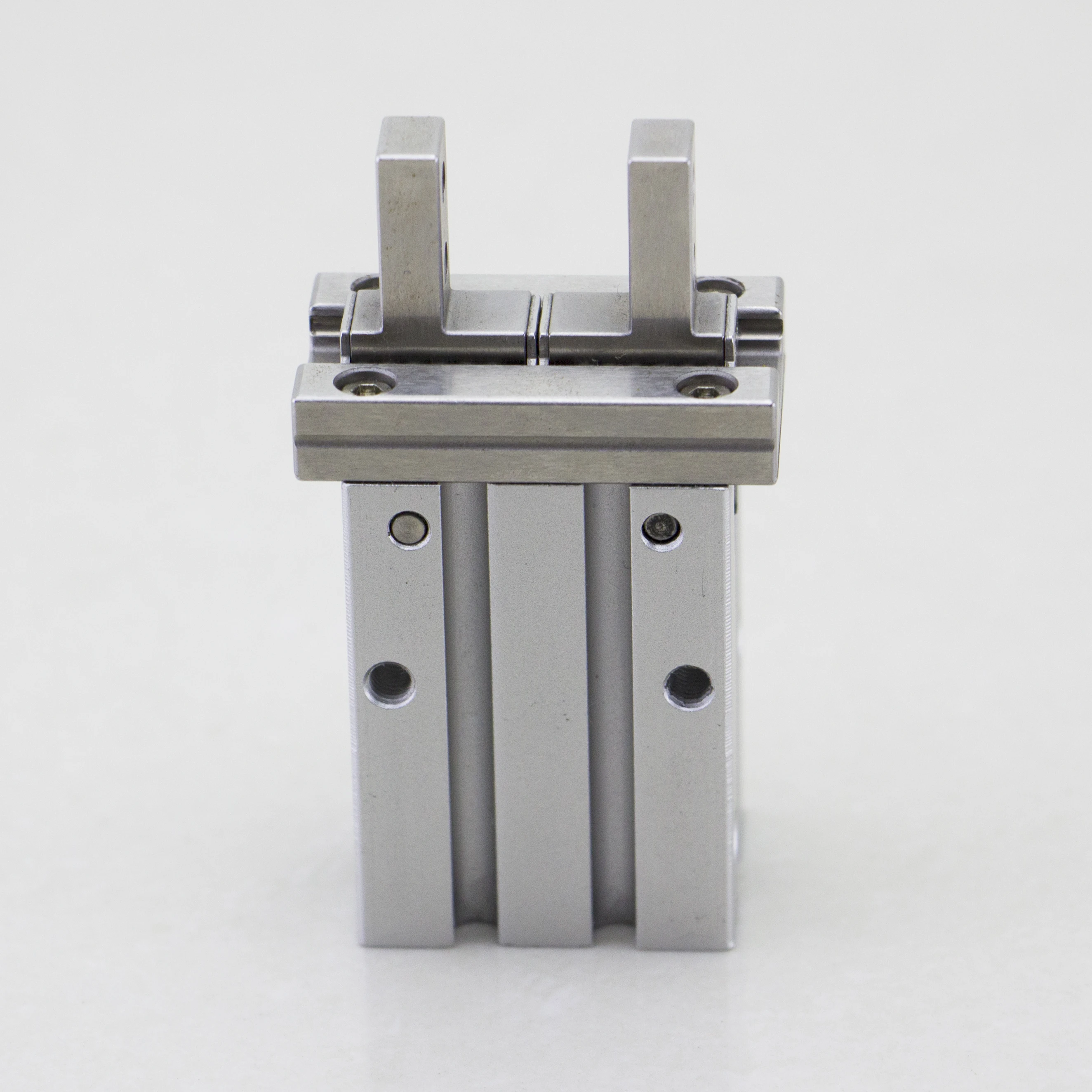

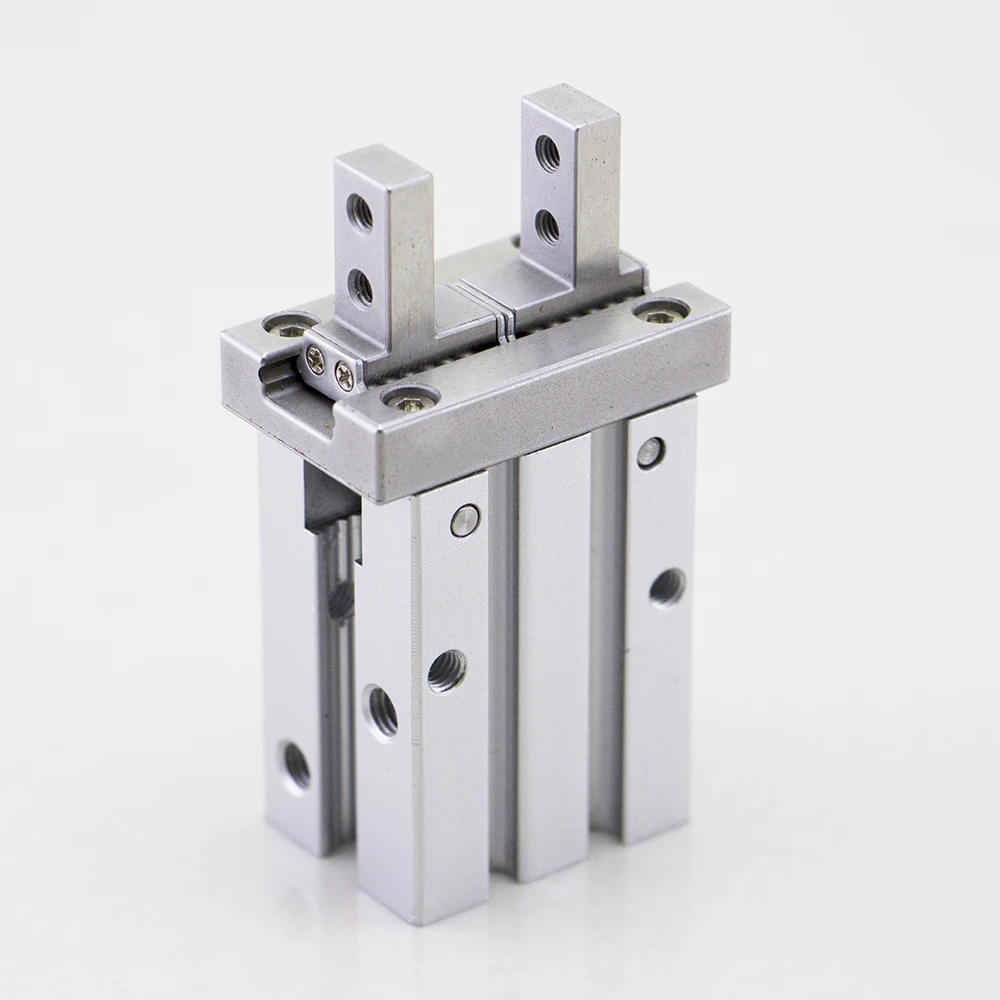

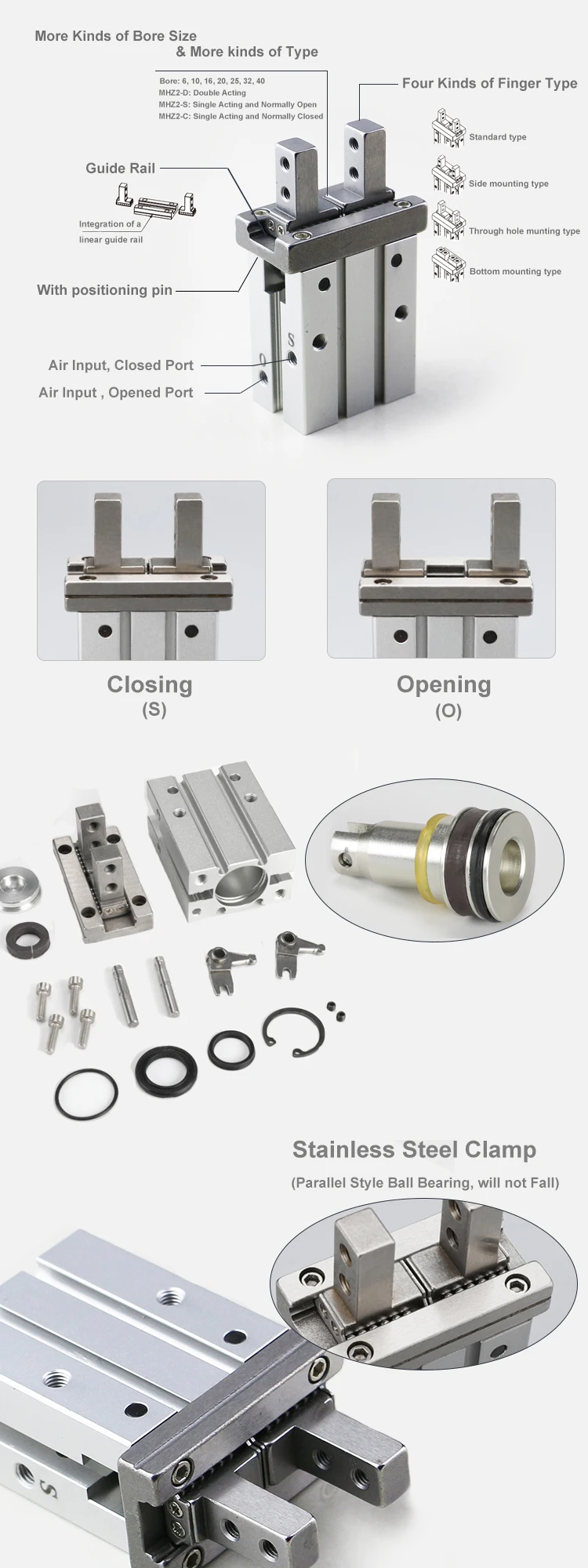

SMC Standard HFZ MHZ2 Series Robot Pneumatic Grippers Cylinder Pneumatic Clamp

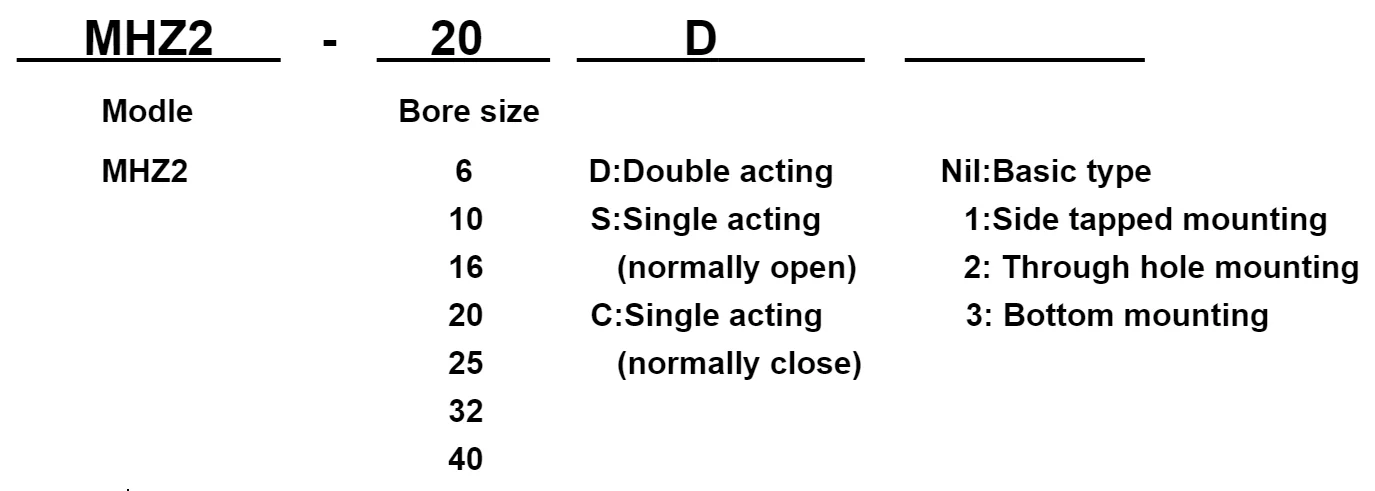

Ordering Code:

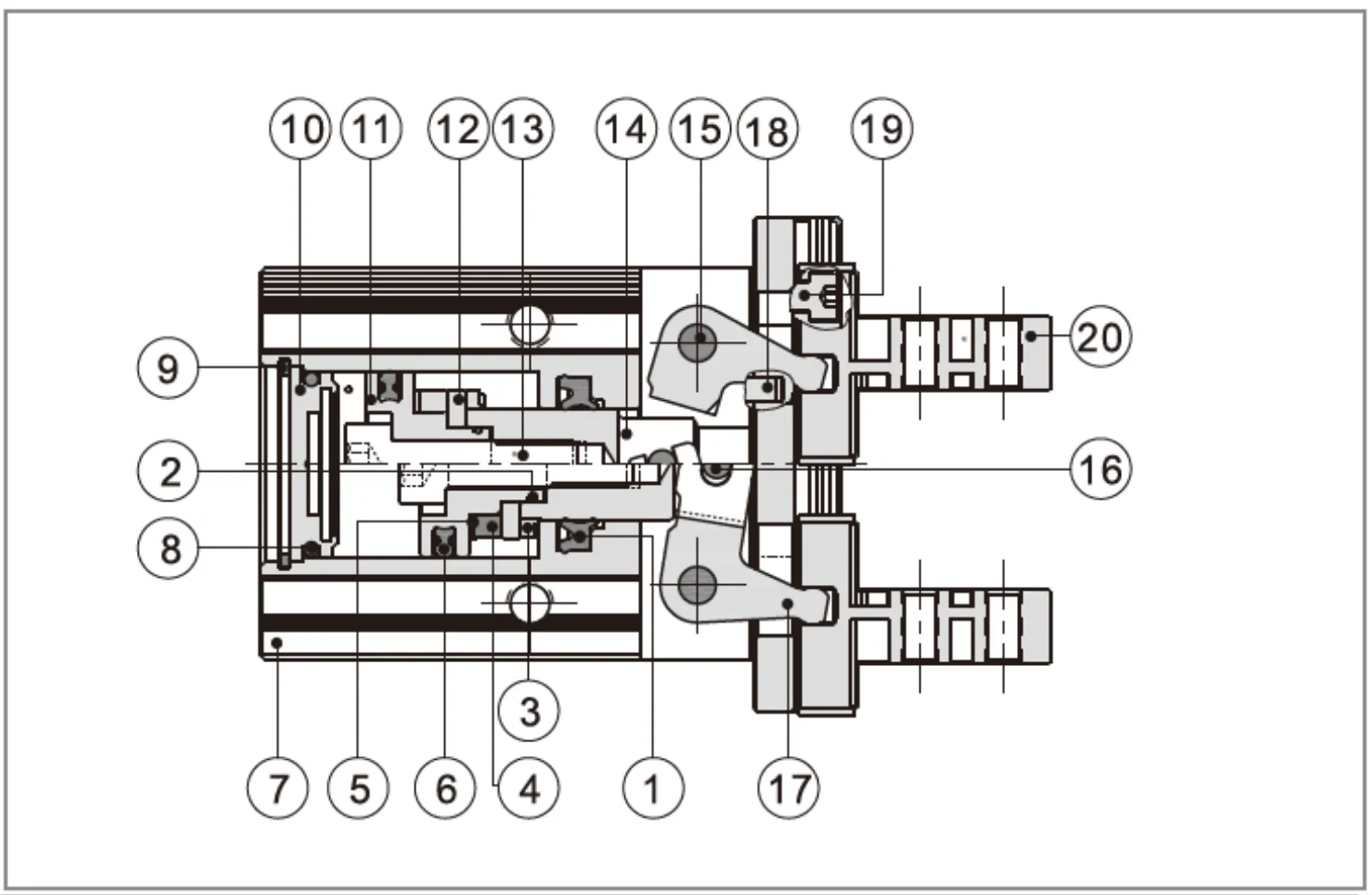

Inner structure and material of major parts
NO | Item | Material | NO | Item | Material |
1 | Rod packing | NBR | 11 | Piston | Aluminum alloy/Stainless steel |
2 | O-ring | NBR | 12 | Magnet fixed | Stainless steel |
3 | Bumper | TPU | 13 | Screw | Carbon steel |
4 | Magnet | Sintered metal | 14 | Piston rod | Aluminum alloy/Stainless steel |
5 | Magnet washer | NBR | 15 | Pin | Stainless steel |
6 | Piston seal | NBR | 16 | Pin | Stainless steel |
7 | Body | Aluminum alloy | 17 | Curved bar | Stainless steel |
8 | O-ring | NBR | 18 | Pin | Stainless steel |
9 | C clip | Spring steel | 19 | Countersink screw | Carbon steel |
10 | Back cover | Aluminum alloy | 20 | Assembly of clamping jaw and guide rail | Stainless steel |
Specifications
Bore size | 6 | 10 | 16 | 20 | 25 | 32 | 4 | ||||||||||
Acting type | Double acting Single acting | ||||||||||||||||
Fluid | Air(to be filtered by 40 µm filter element) | ||||||||||||||||
Operating pressure | Double acting | ∅6, ∅10 | 0.2MPa~0.7MPa(28~100psi)(2~7.0bar) | ||||||||||||||
Others | 0.15MPa~1.0MPa(22~100psi)(1.5~7.0bar) | ||||||||||||||||
Single acting | ∅6, ∅10 | 0.35~0.7MPa(50~100psi)(3.5~7bar) | |||||||||||||||
Others | 0.25~0.7MPa(36~100psi)(2.5~7bar) | ||||||||||||||||
Temperature °C | -20~70 | ||||||||||||||||
Lubrication | Not required | ||||||||||||||||
Repeatability mm | ±0.01 | ±0.02 | |||||||||||||||
Max.frequency | 180(c.p.m) | 60(c.p.m) | |||||||||||||||
Port size | M3×0.8 | M5×0.8 | |||||||||||||||

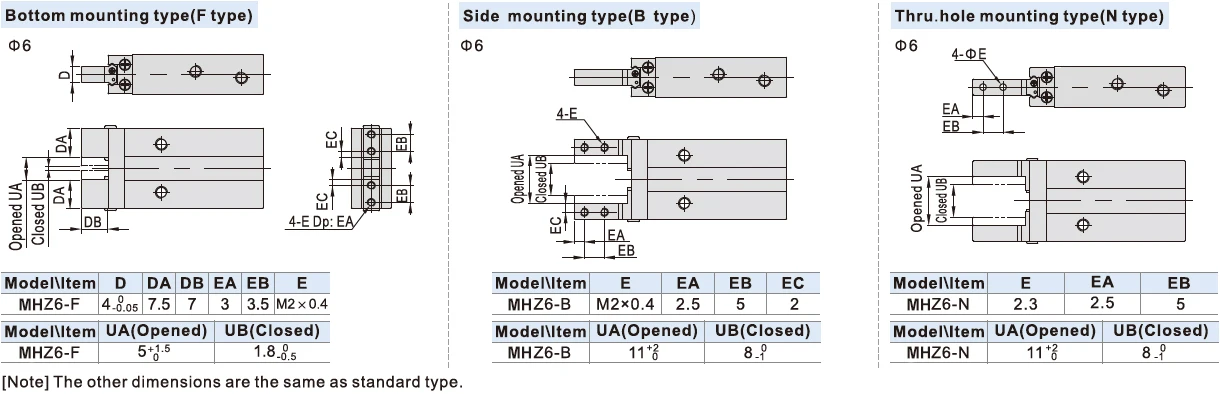

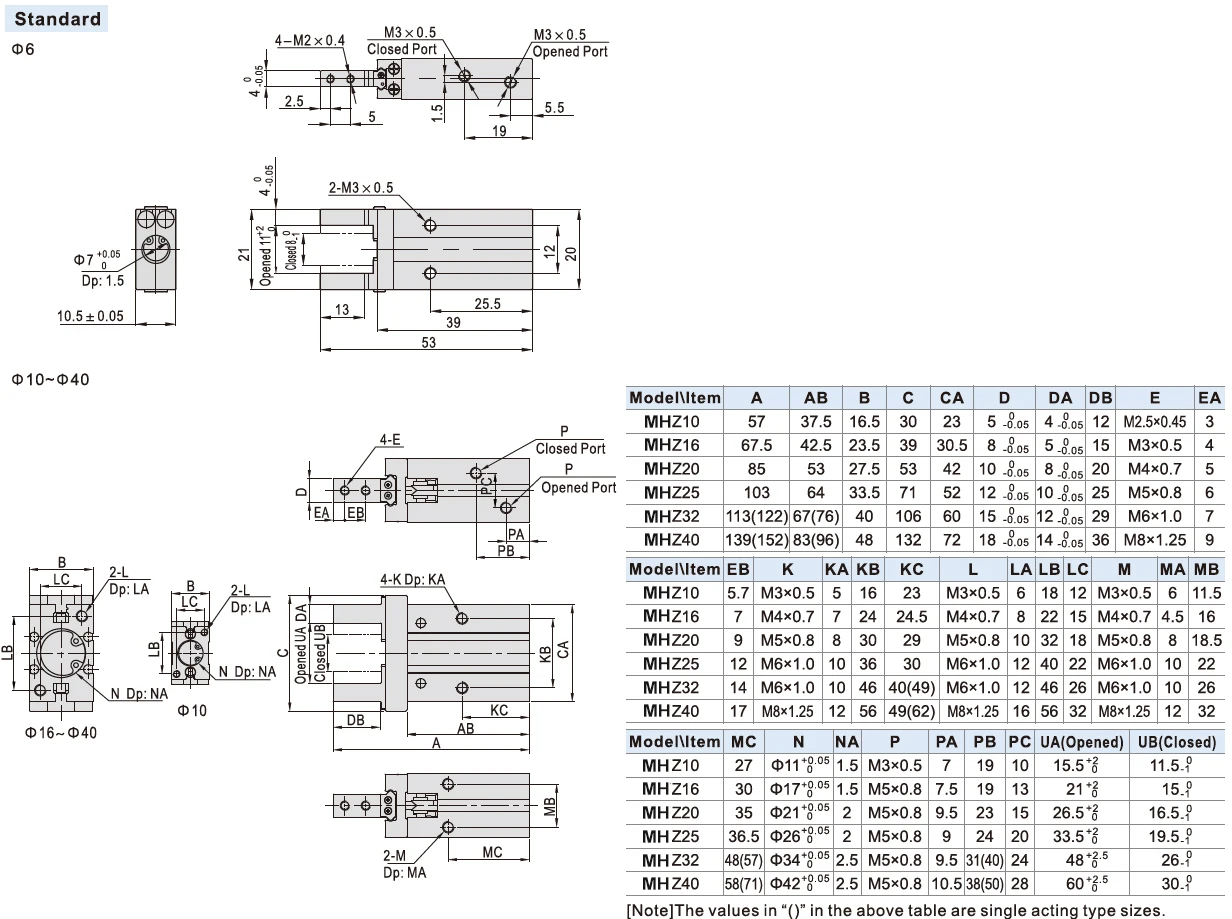

Dimensions
