China Seller Aramid Paper Core Aramid Honeycomb With Factory Direct Sale Price
- Category: Functional Fabric & Outdoor Fabric >>>
- Supplier: Wuxi GDE Technology Co. Ltd.
Share on (1600470070935):
Product Overview
Description
Product Description
The nomex honeycomb core soaks the being flame-resistant by the aramid processing and the process to be made.
has the extremely high fatigue resistance to be able with anti-chemical etching ability,and has the fine dielectric
properties and the radar conduction performance.the nomex honeycomb sandwich uses in domains and so on
aircraft,high speed ship,very high-speed train,radar. aerospace field

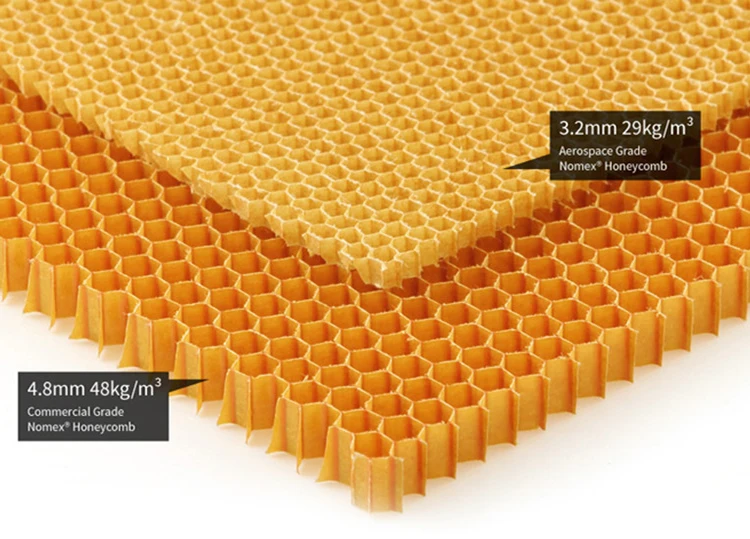

Nomex honeycomb is the standard for lightweight non-metallic composite construction. Commercial Grade honeycomb
made with aramid fiber paper ( Nomex or equivalent) coated with heat resistant phenolic resin offers excellent resiliency,
low density, lower pricing and high strength to weight ratio.
Nomex Honeycomb cores are one of the most preferred core materials for very strong and light composite panels.
Our Nomex Honeycomb cores are made from Meta-Aramid papers impregnated with high modulus Phenolic resin.
Products Parameters
Mm(hole size) |
Density Kg/m3 | Compression strength | L-Shear | W-shear |
N/m | N/mM2 | N/mM2 | ||
3.2 | 48 | 1.9 | 1.16 | 0.62 |
3.2 | 64 | 3.1 | 1.48 | 0.82 |
3.2 | 80 | 4.7 | 1.95 | 1.05 |
3.2 | 96 | 6.6 | 2.45 | 1.42 |
3.2 | 128 | 11.3 | 2.95 | 1.78 |
3.2 | 144 | 13.2 | 3.05 | 1.9 |
4 | 29 | 0.6 | 0.45 | 0.26 |
4 | 80 | 5.1 | 1.9 | 0.98 |
4 | 144 | 13 | 3.6 | 2 |
4.8 | 32 | 0.9 | 0.58 | 0.36 |
4.8 | 48 | 2.6 | 0.98 | 0.56 |

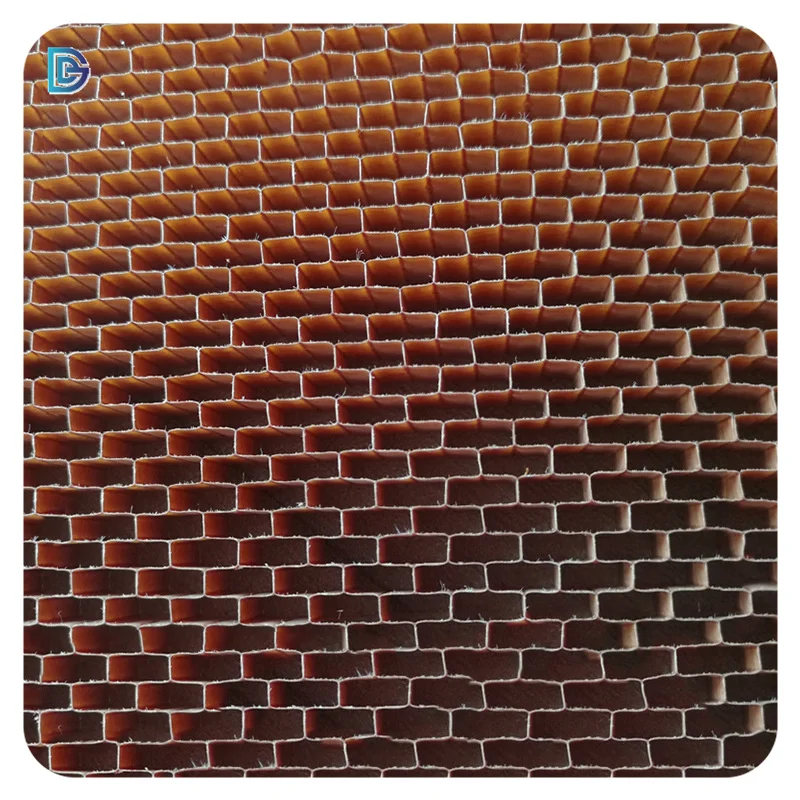

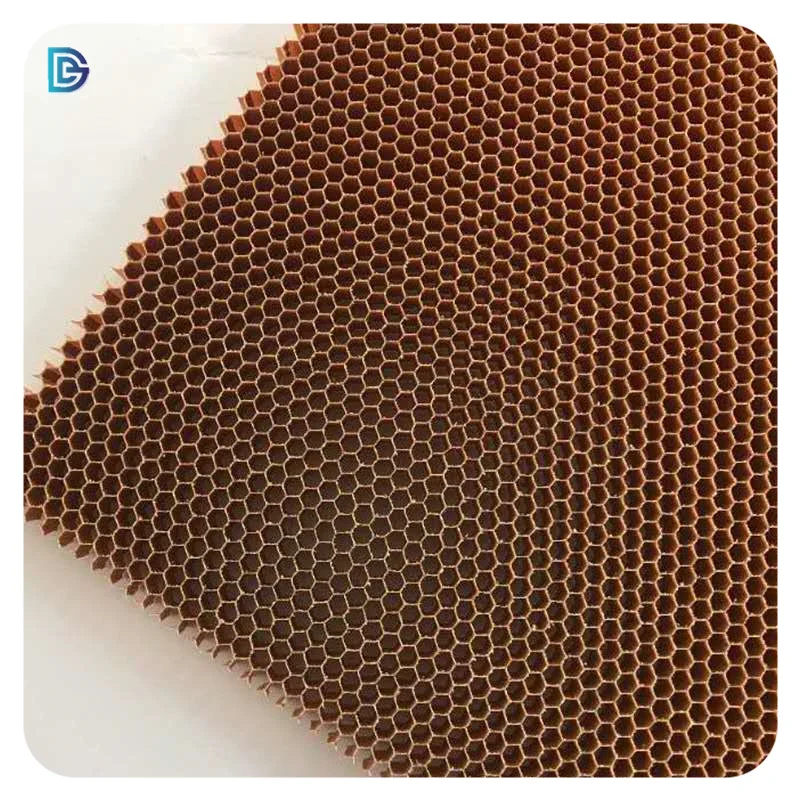

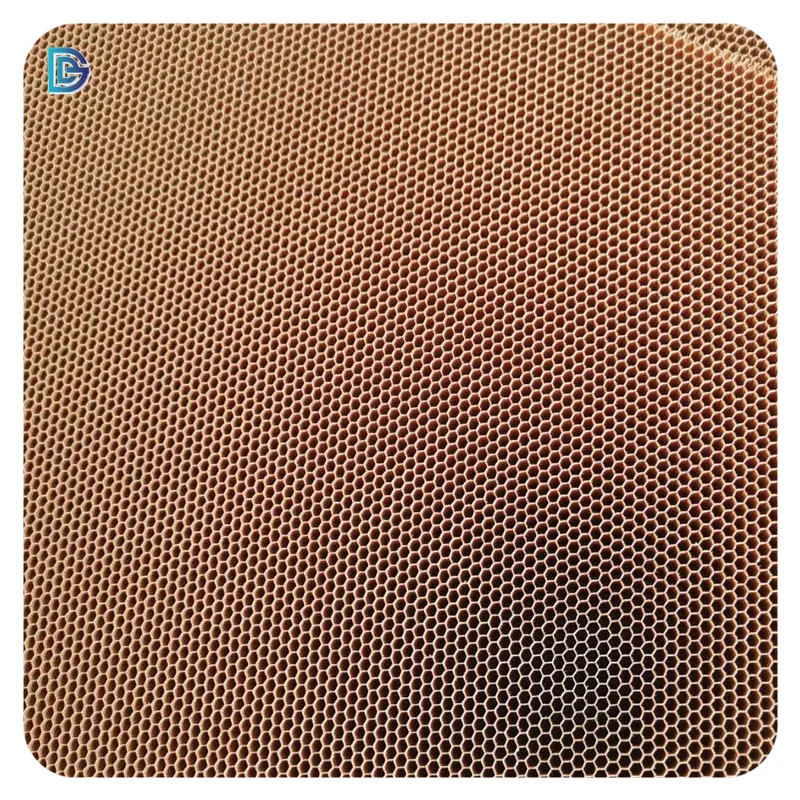

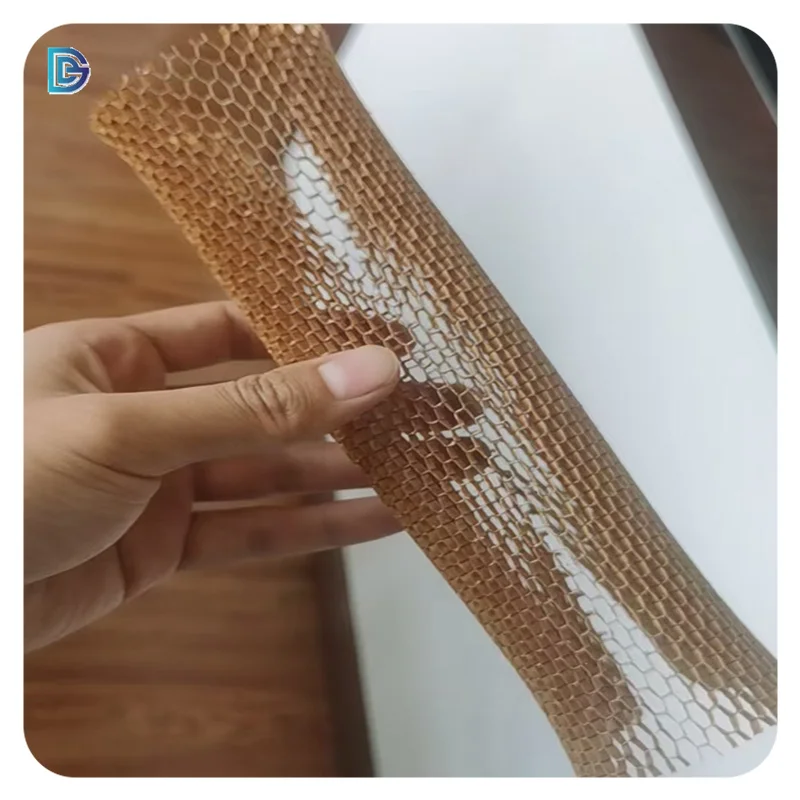

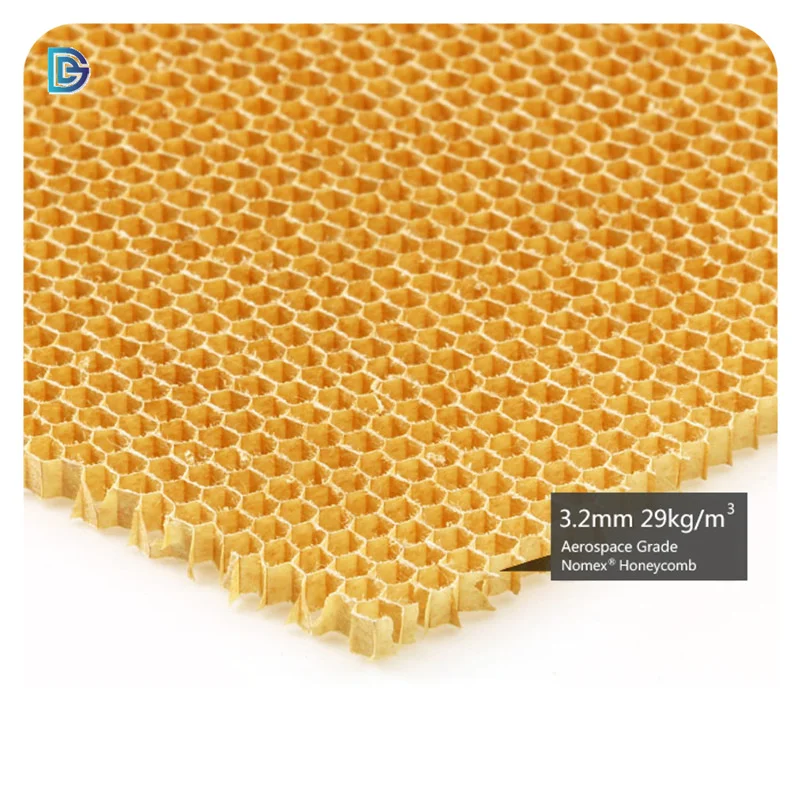

Detailed Photos
