Big Payload 10KG Cable Cam System for Sports Video Shooting
- Category: >>>
- Supplier: TL Technology (Shenzhen) Co. Ltd.
Share on (1600470116628):
Product Overview
Description
Product Description

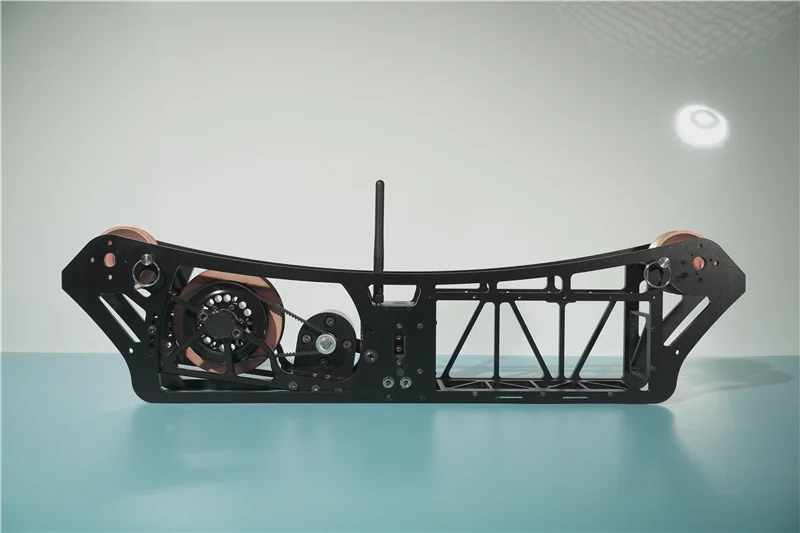

Big Payload 10KG Cable Cam System for Sports Video Shooting
Model#CCM10
Payload: 10KGS
Operating Distance: 2000M
Max Operating Speed: 18KM/H
Product Features
Product Dimension 600*180*90mm

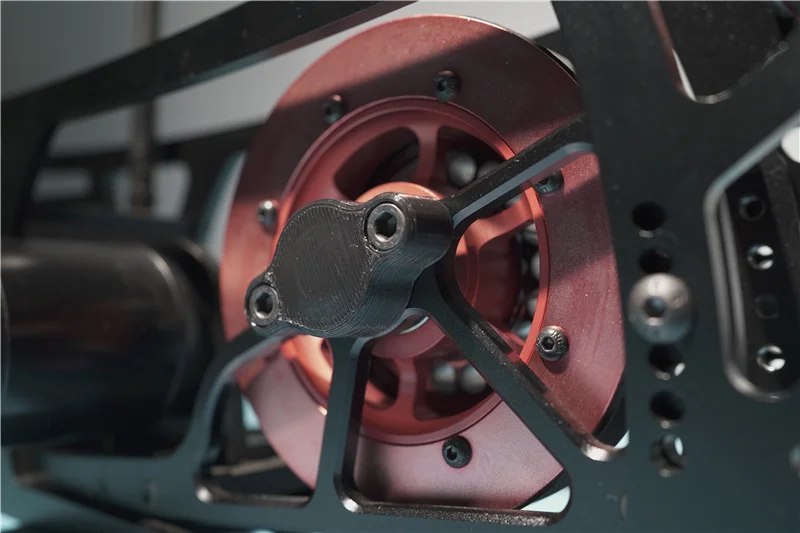

CNC finishing of aviation aluminum
Integrated 2.4G wireless control
Integrated dual power supply
Position,speed and acceleration limit
FOC control technology
Voltage,current and temperature protection

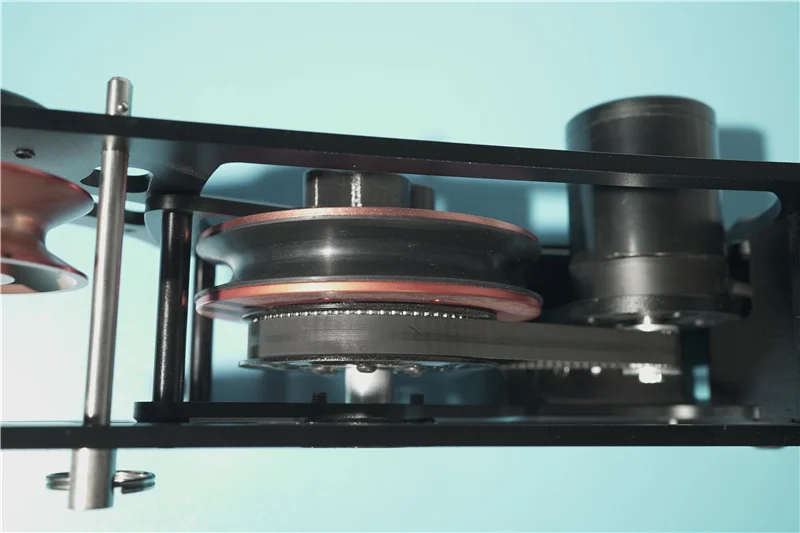

Tension adjustment of driving wheel
Rubber tyres are replaceable
Kevlar UHMWPE mixed rope

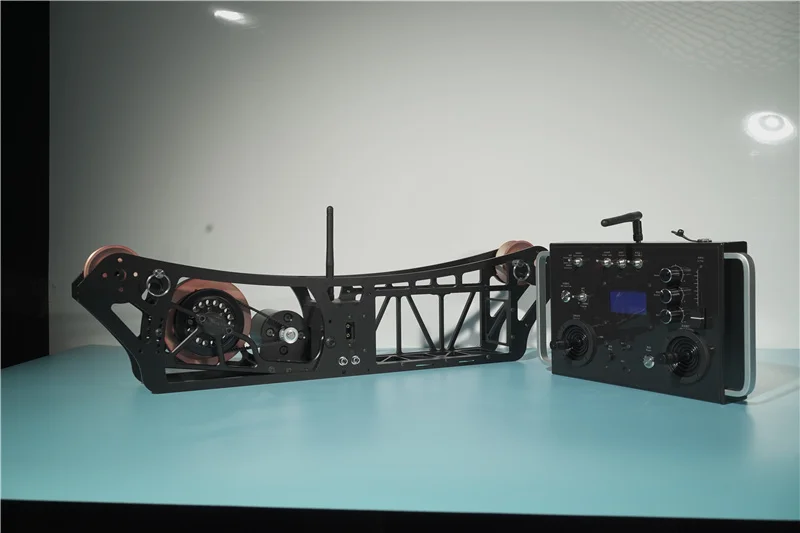

Integrated 2.4G wireless controller
2.4G automatic frequency hopping
You can control brushless gimbal
Built in 5000mAh lithium battery
Cablecam low voltage alarm
Position.speed and acceleration limit
Throttle curve,throttle direction adjustment
Runaway protection,rocker adjustment
Control signal interface
Control brushless gimbal steering and pitch
Use self-locking aviation plug
Gold Plated pin ensures good signal
Signal line with safety rope
Power Output Interface
Provide 5V and 15V power output
Use self-locking aviation plug
Gold Plated pin ensures good power supply
Integrated Gimbal Interface
7075 aviation aluminum CNC finishing
PCB power supply contact
Gold Plated pin ensures good power supply

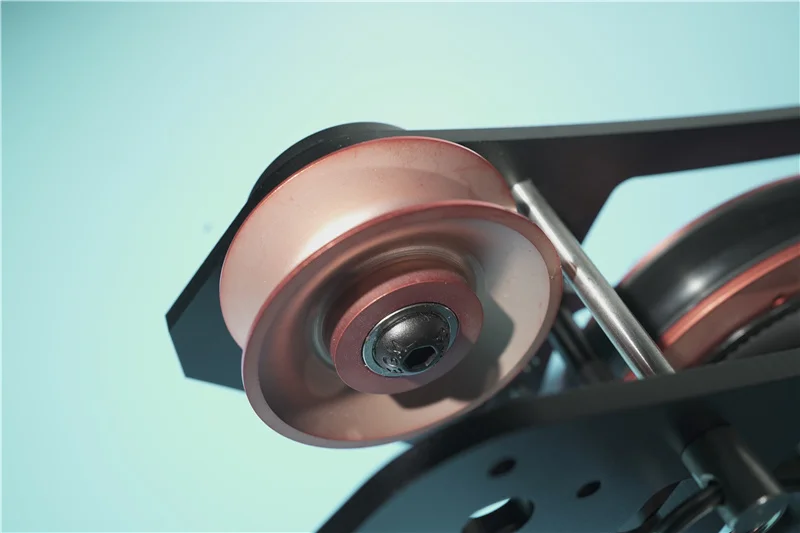

Replaceable rubber tire
Natural rubber composites are selected
Precision mold injection molding
Provide high friction and wear resistance
Kevlar UHMWPE mixed rope
Can withstand continuous friction
The mixed rope contains silver plated fibers
Provide high friction and wear resistance
Breaking force 2.7 tons
Configuration List
Cable cam * 1
Remote Controller * 1
Charger with Accessories * 1
Power Cable * 1
Bracket with 100mtr Rope (9mm) * 1
Flight Transport Case * 1
Packing Information
Fly Case
Package size 82*60*47cm
Volume Weight: 47KGS
Specification
Unit Size | 600*180*90mm |
Payload | 10KGS |
Operating Distance | 2KM |
Max Operating Speed | 18KM/H |
