Hemodialysis chair Adjusted by manually

Product Overview

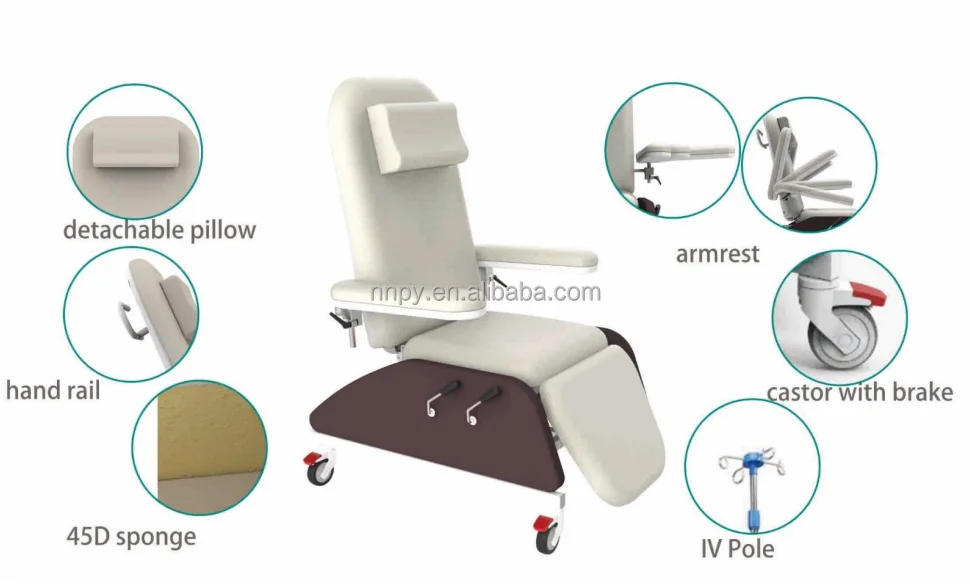

Description

Manual Hemodialysis Chair: PY-YS upgraded

• Whole chair with steel frame provide strong bearing capability, safe working load up to 240kg.


• High density(45D)polyurethane foam for mattress with moderate elasticity and durability provides additional comfort for patients having to sit for long periods.


• Soft upholstery makes of breathable PVC material, is waterproof, fire retardant, anti-corrosion, easily clean & disinfection.


• Four upholstery colors to choose from. Warm & light colors of upholstery contribute to patient's mental well-being.


• Gas spring allow for adjusting positions manually.


• Mute medical castors of diameter 100mm with separate brakes.


• The detachable headrest pillow can be adjusted according to the height of each patient.


• Several OPTIONAL accessories: Paper roll holder, Over-bed Table.


Specification

Model	PY-YS upgraded
Lying length/Sit length	1980mm /1130mm±20mm
Total Width including armrests	920 mm±20mm
Seat Width	600 mm±20mm
Backrest length	870 mm±20mm
Seat length	530mm±20mm
Leg rest length	550mm±20mm
Seat height	Cushion to the floor 550mm±20mm
Armrest Dimension	L600*W170*D75mm±20mm
Height of armrest and seat	Armrest to cushion:185~245mm±20mm
Chassis Dimension	1040mm×680mm±20mm
Castor	4xφ100mm swivel castors with separate brakes
Pillow	400 mm×230 mm×80 mm±20mm
Safe Maximum Load	240 KGS
Weight	62 KGS±3KGS

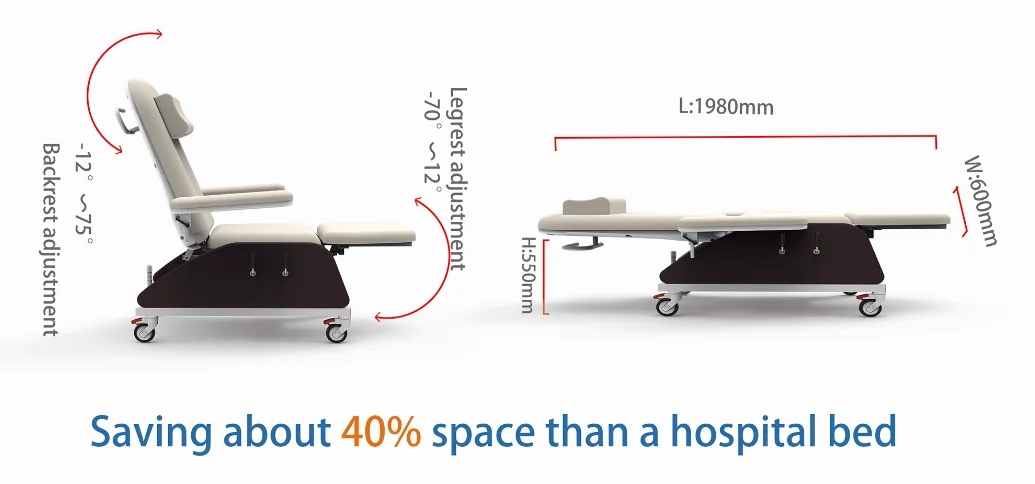

Saving Space
Overall chair dimension: L 1980mm x W 600mm x H 550 mm. Smaller overall chair dimension to save up to 40% of floor space.

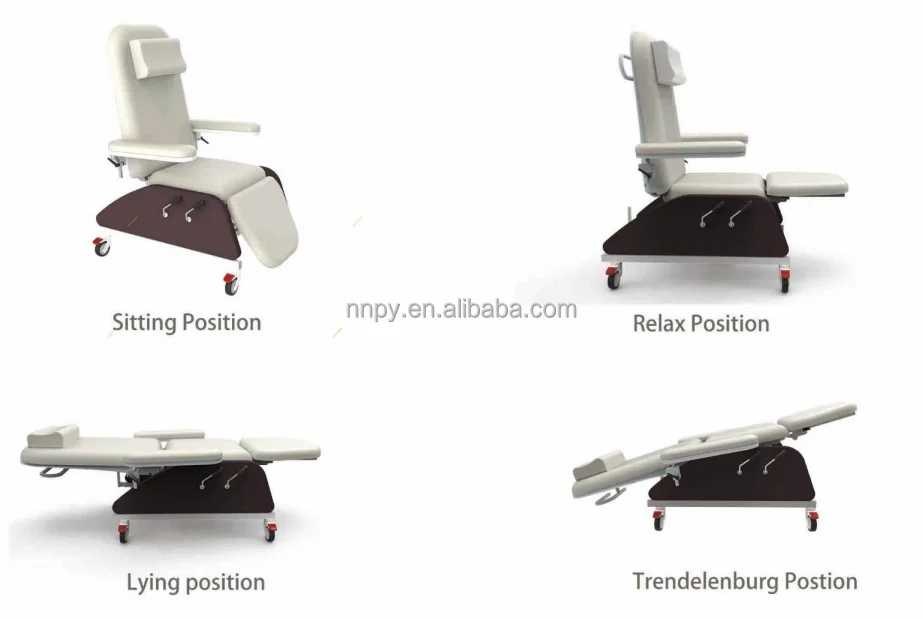

 Multi-position adjustment
With gas springs via Pneumatic Hydraulic,staff can adjust backrest & legrest manually.
