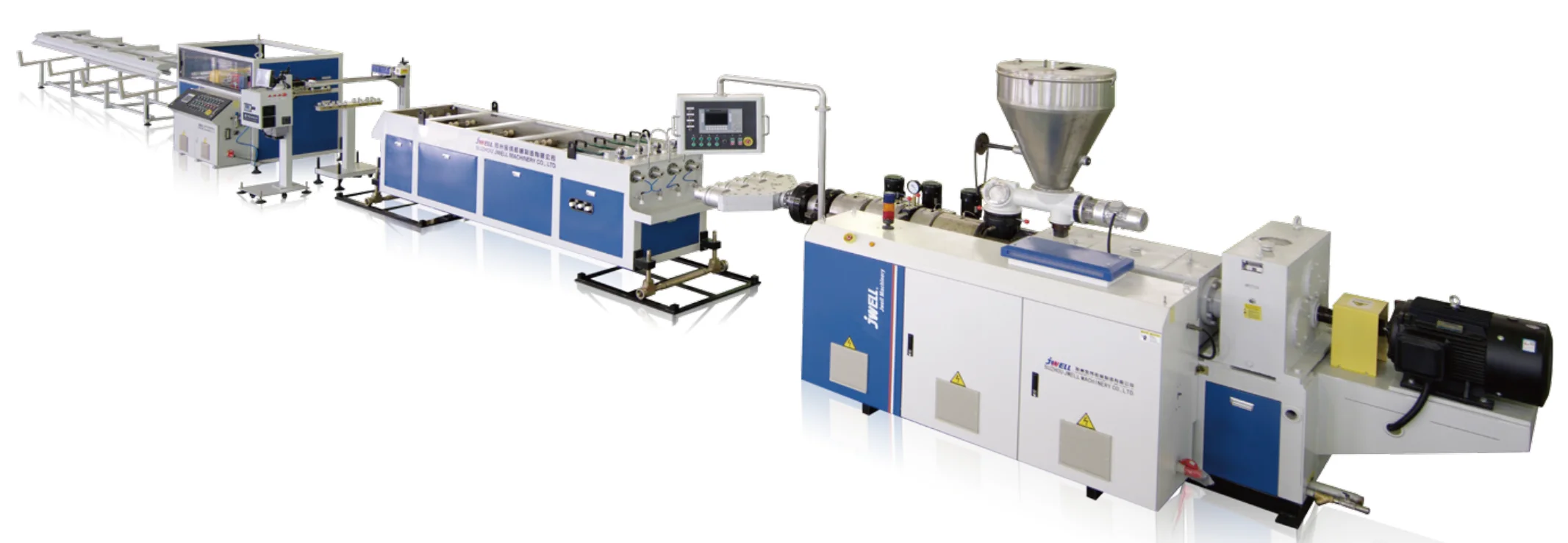

Jwell Extruder Machine PVC HDPE PPR Pipe Extruder Manufacturing Machines list 3d Filament Extruder PVC Pipe machine at factory p
- Category: >>>
- Supplier: Changzhou Dyun Environmental Technology Co. Ltd.
Share on (1600470202319):
Product Overview
Description
Product description

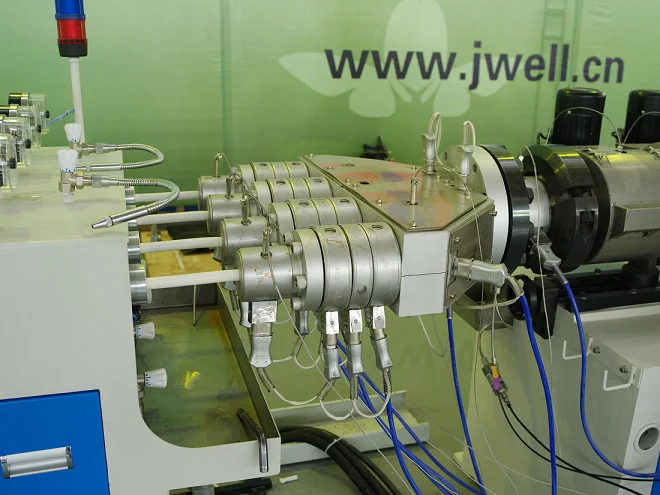

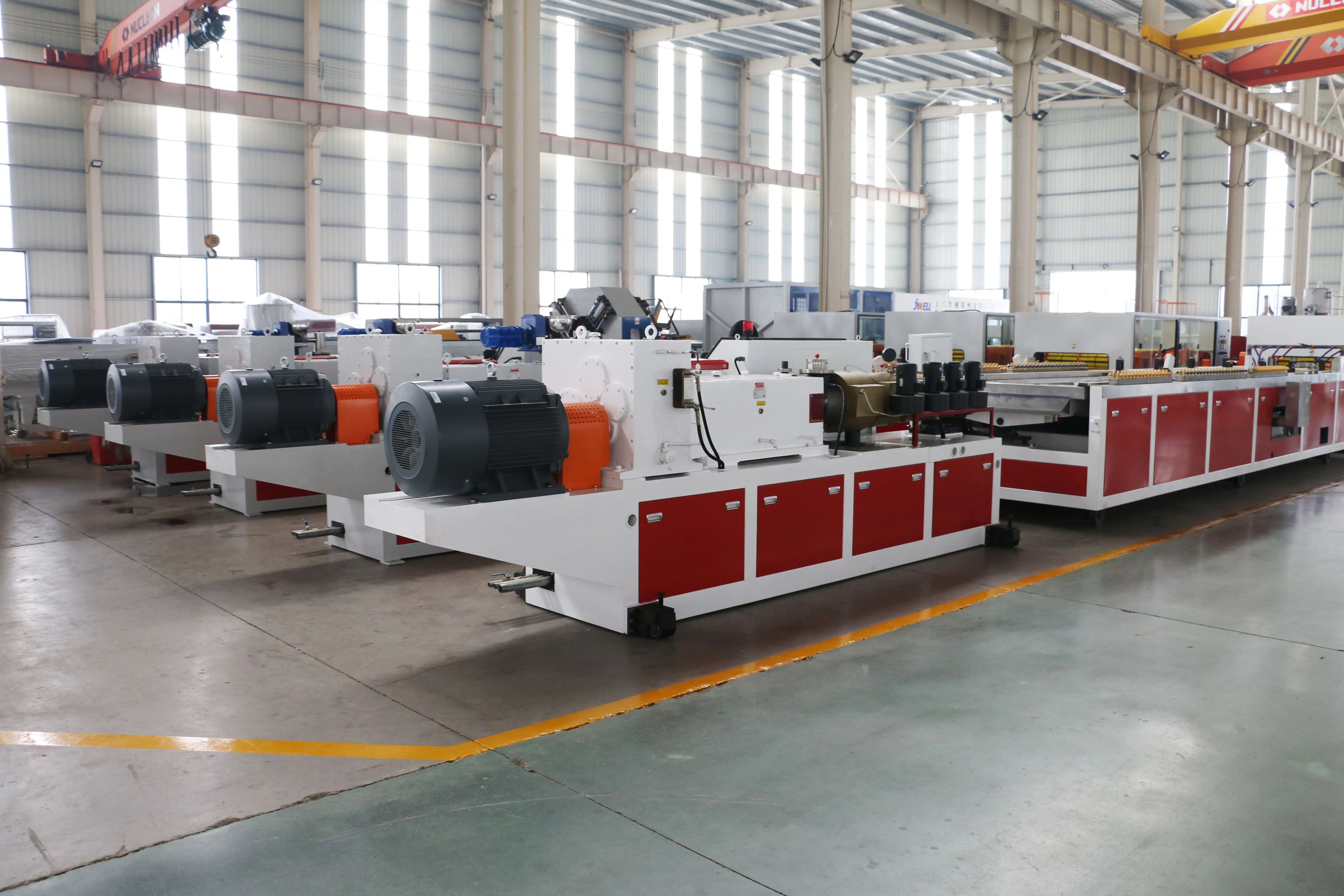

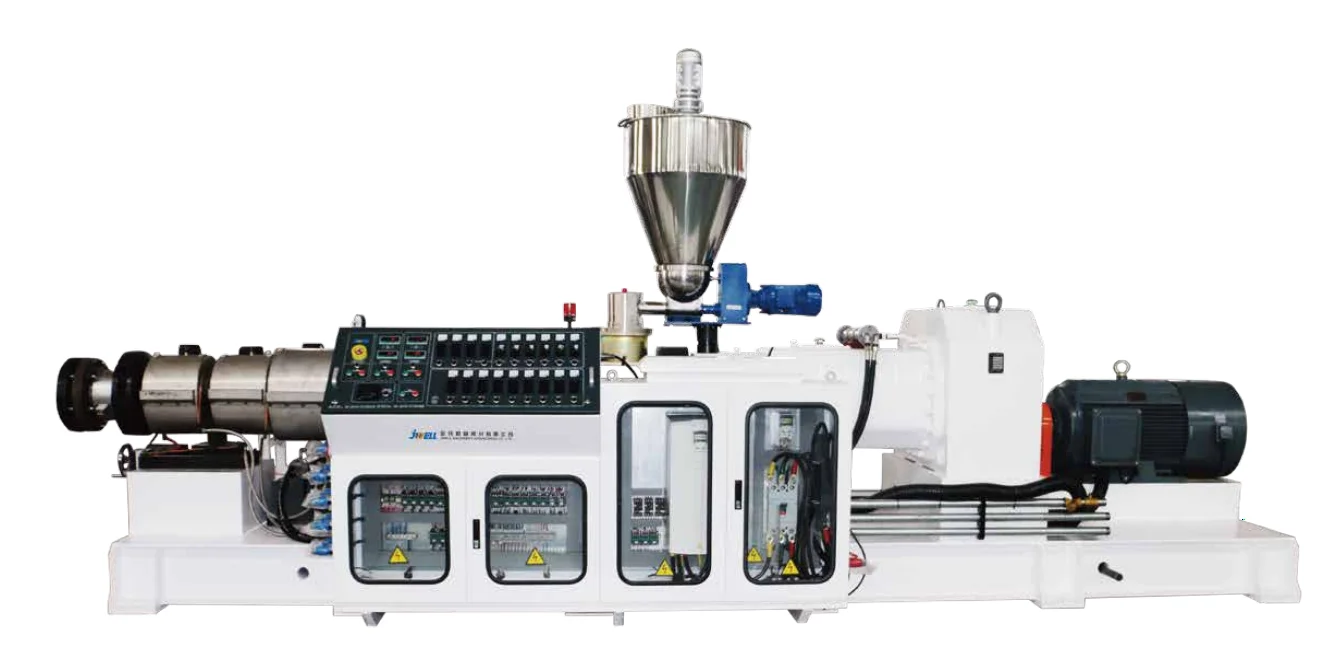

Extruder :
--Extruder type: JWS75/33 --Output (kg/h): 200-350
--Screw material: 38CrMoAlA the first screw in China was born in JinHaiLuo company of JWELL

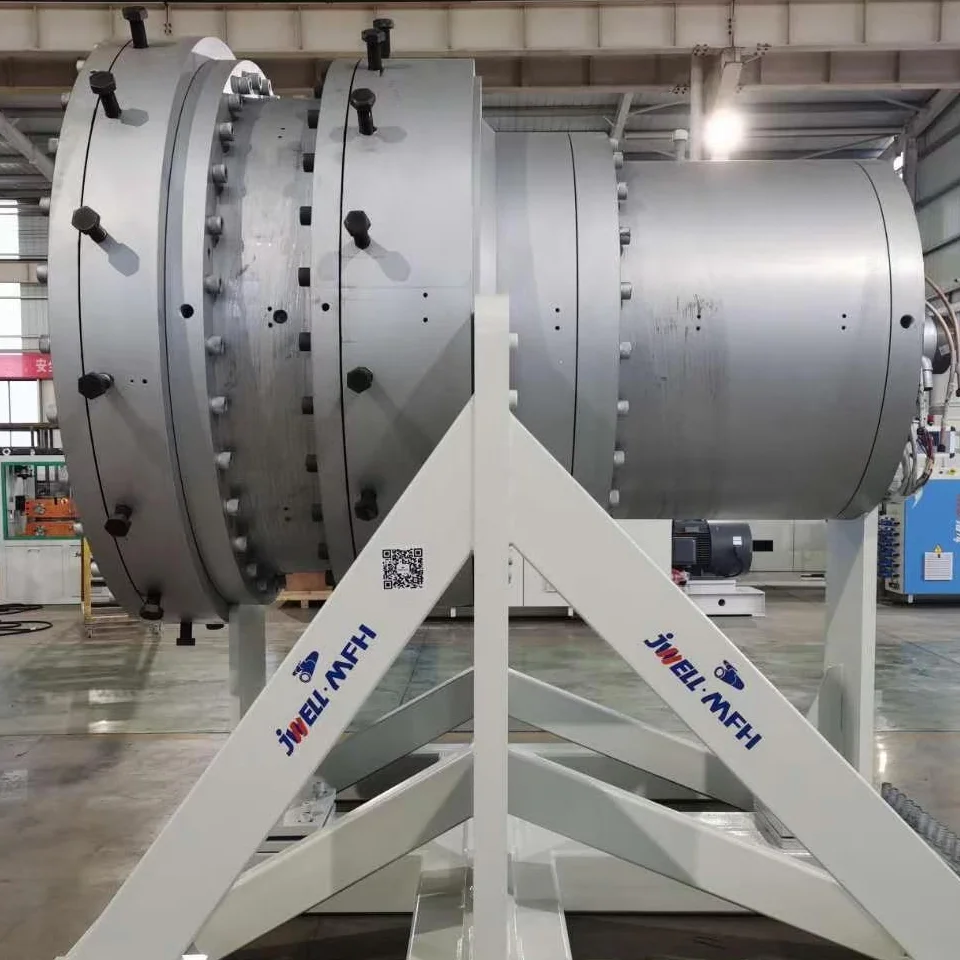

--Mould material: 40Cr --Main motor power(kw):90kw
--Screw material: 38CrMoAlA the first screw in China was born in JinHaiLuo company of JWELL
--Mould material: 40Cr --Main motor power(kw):90kw
--Color: customized --High torque gearbox with NSK bearing
--Electrical component: World famous brand,Siemens,ABB,OMORN,Schneider ect
--Intelligent PLC controlling system with human-friendly interface
--High efficience, save energy
--High efficience, save energy
It will be much better if you can tell us the specific pipe size(pipe diameter & pipe thickness or pressure) you want to produce,then we can suggest you the most suitable machine based on your requirements.
Are you interested? Contact us whatsapp:+86 18851201080

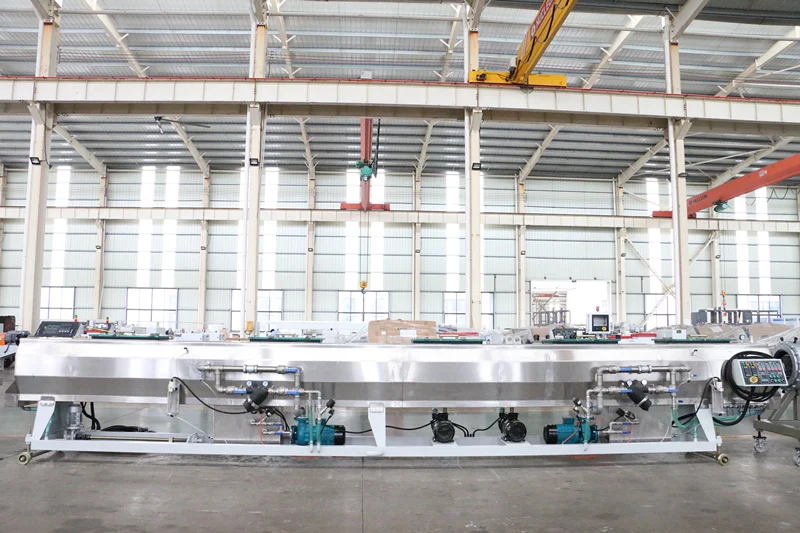

Calibration Tank :
--Material: Stainless steel
--Length: 6000mm or customized
--Other parts: Vacuum pump and water pump
--Length: 6000mm or customized
--Other parts: Vacuum pump and water pump

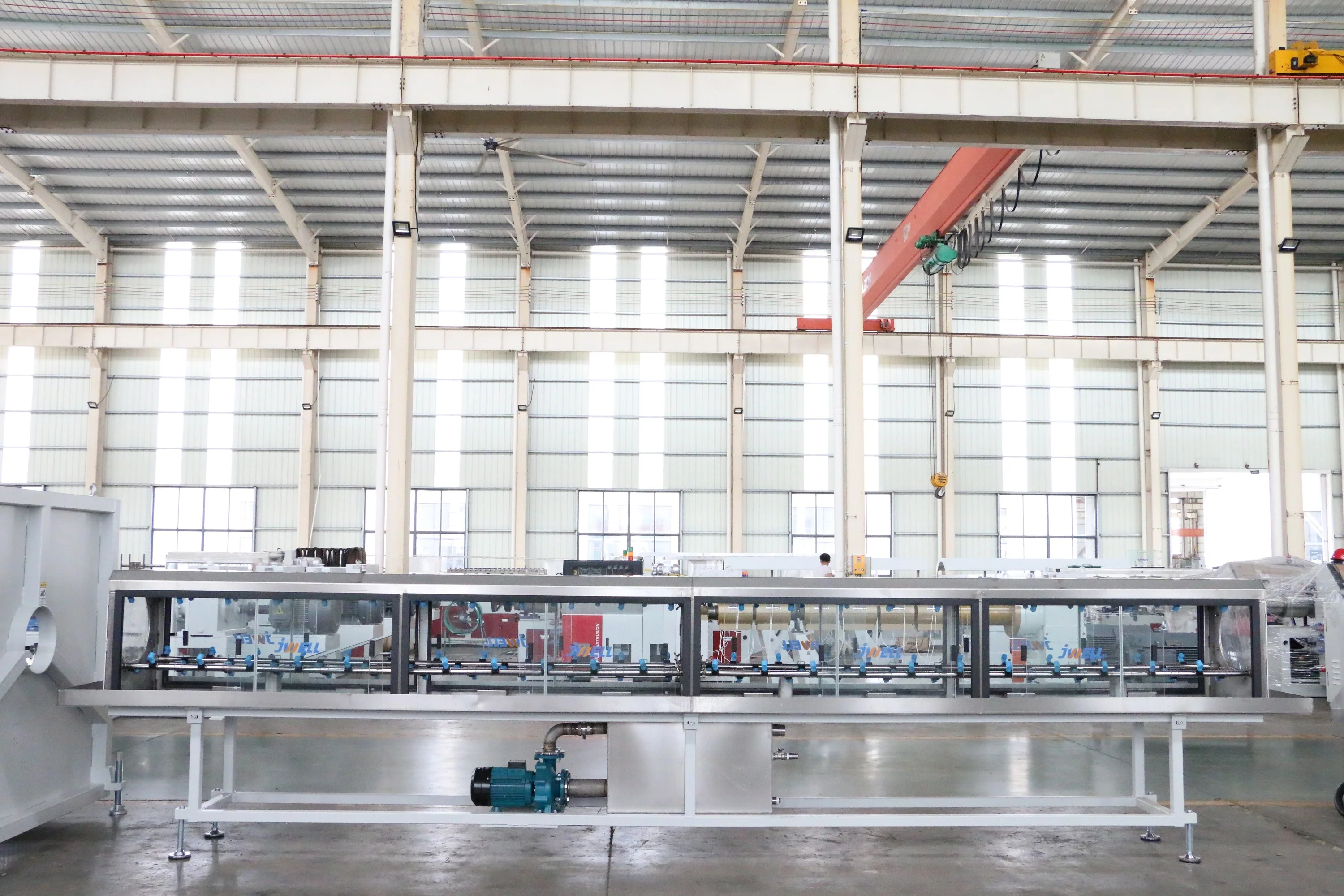

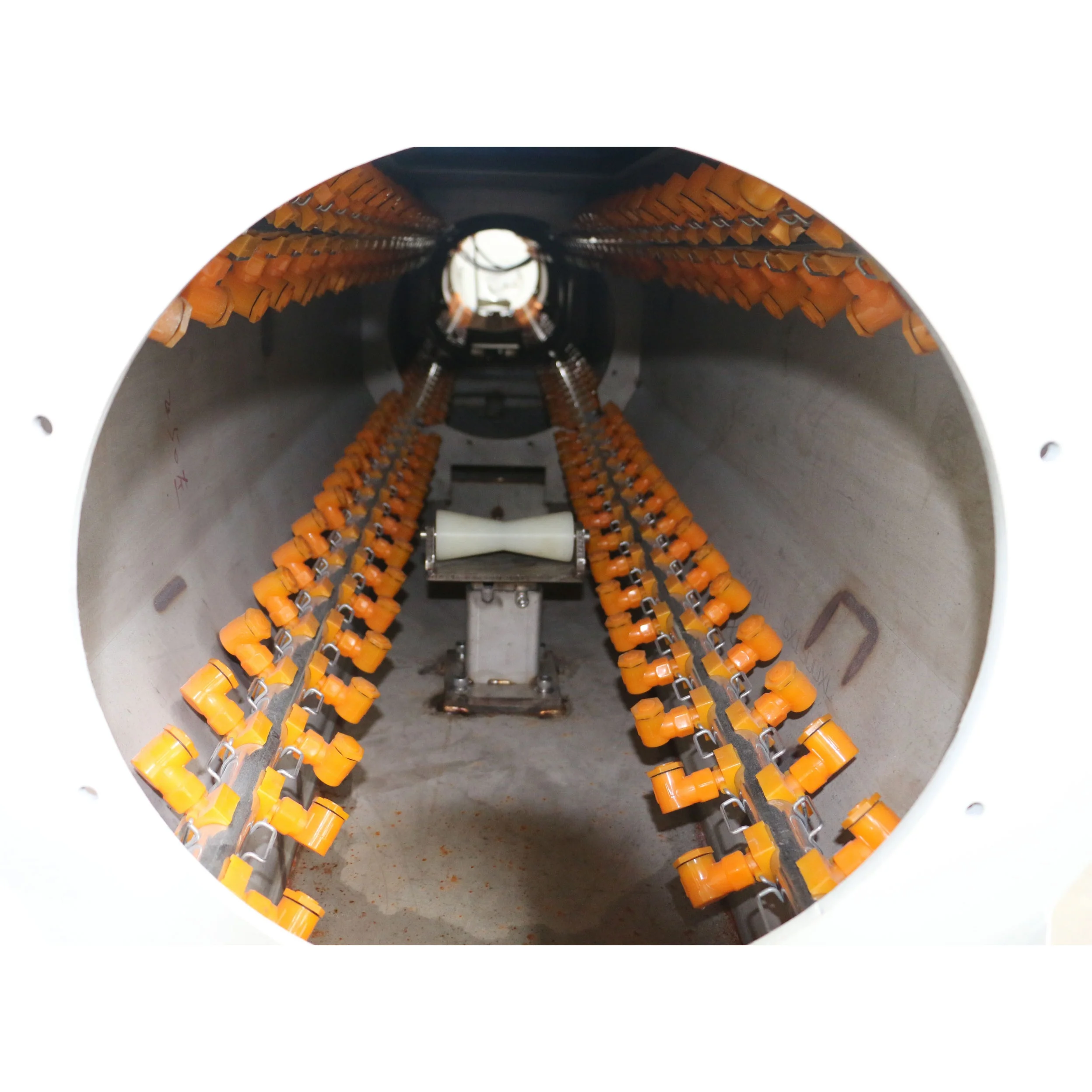

Spraying Cooling Tank :
--Material: Stainless steel
--Length: 6000m or customized
--Length: 6000m or customized

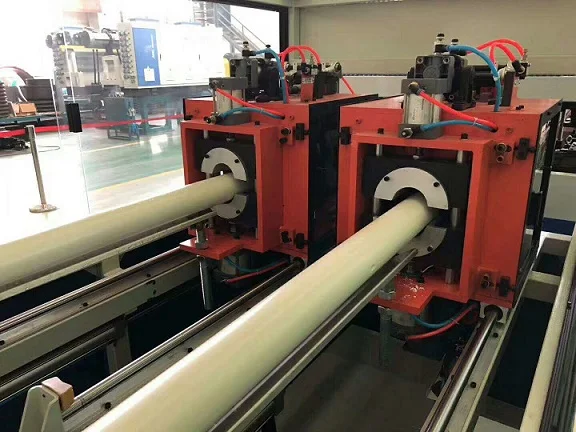

Haul-off Machine :
--Haul-off Speed Adjustive: ABB inverter
--Above Haul-off Bracket Compaction Mode: Adopt pneumatic gas cylinder
--Above Haul-off Bracket Compaction Mode: Adopt pneumatic gas cylinder

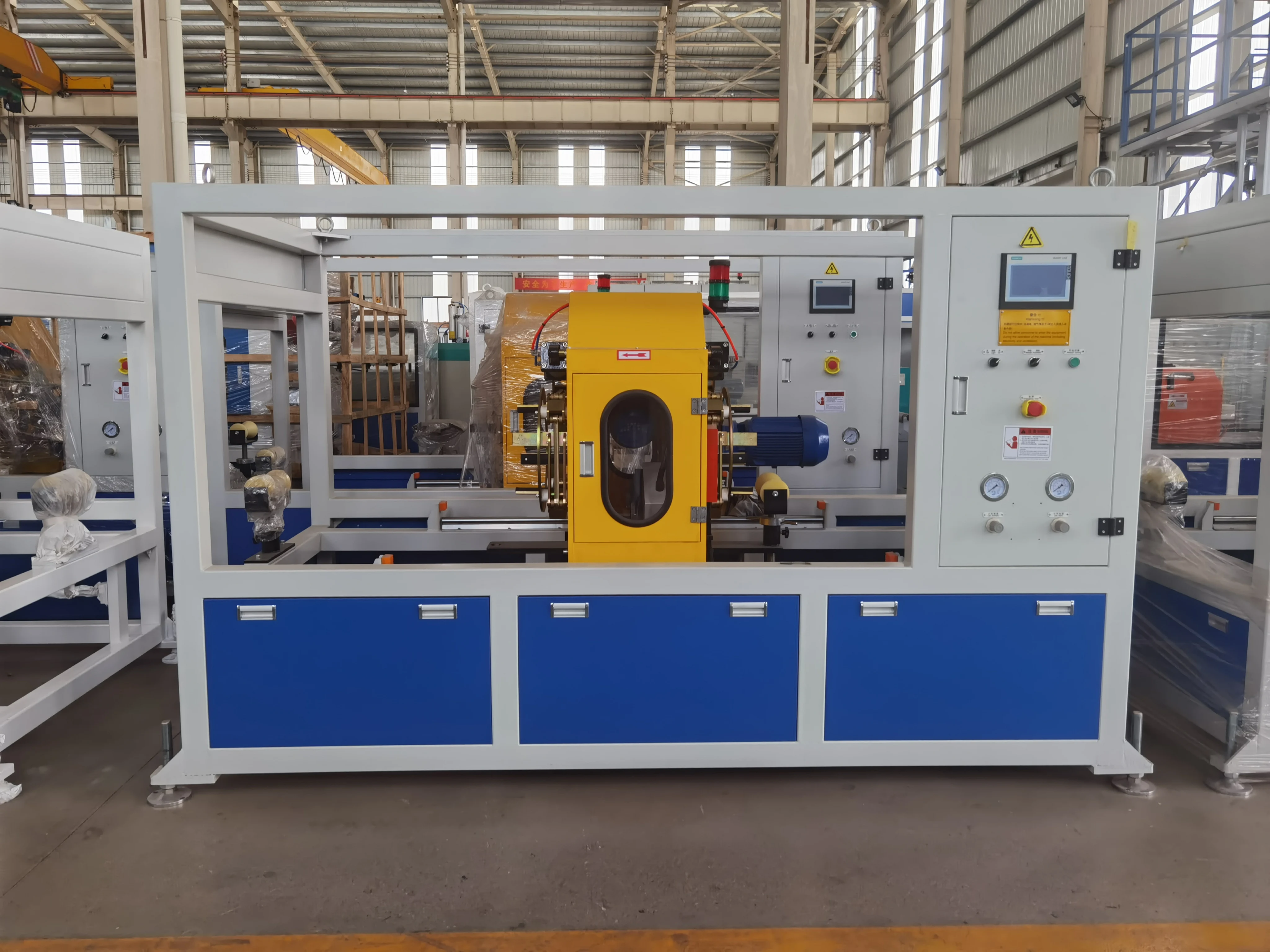

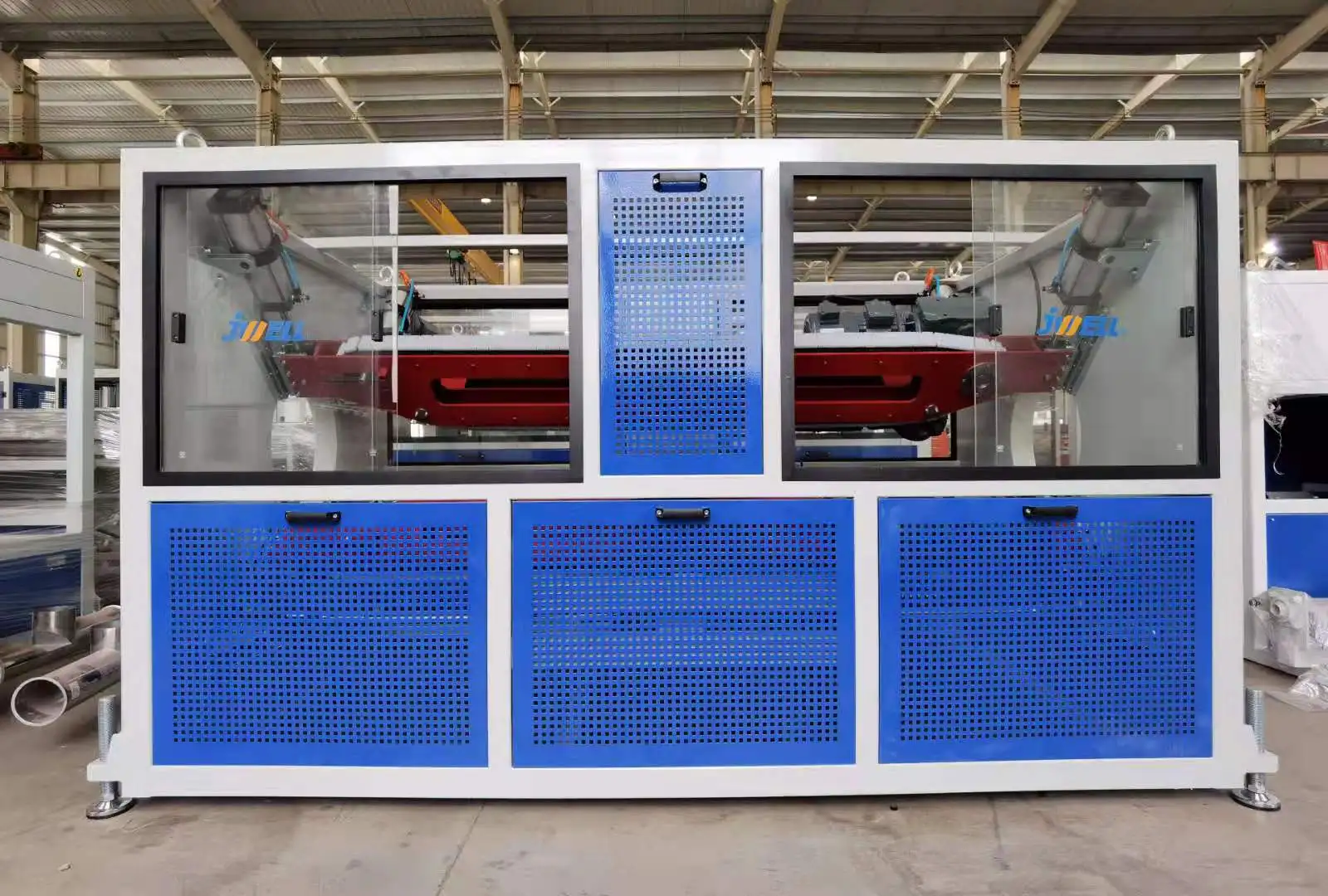

Cutting Machine :
--Cutting Saw: Adopt Alloy Steel Saw
--Machine Type: No dust cutting machine
--Machine Type: No dust cutting machine
--This type cutting machine can reduce the dust in your factory, and with lower noise.
Stacker :
--Laying Board Material: 1.5mm Stainless Steel Board
--Stacking Mode: Stacking by Gas Cylinder, adopt Limited Switch Send out Cutting Signal
--Stacking Mode: Stacking by Gas Cylinder, adopt Limited Switch Send out Cutting Signal

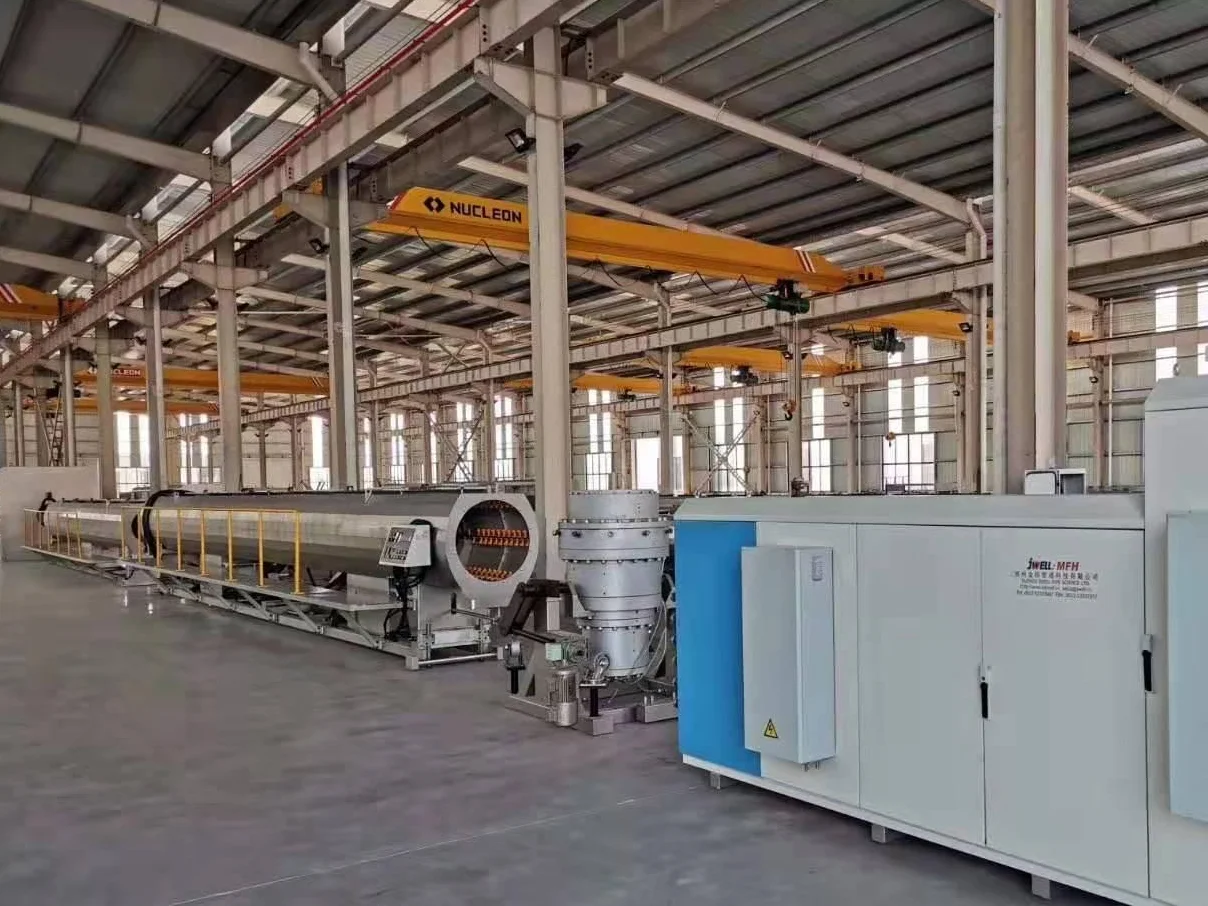

Process :

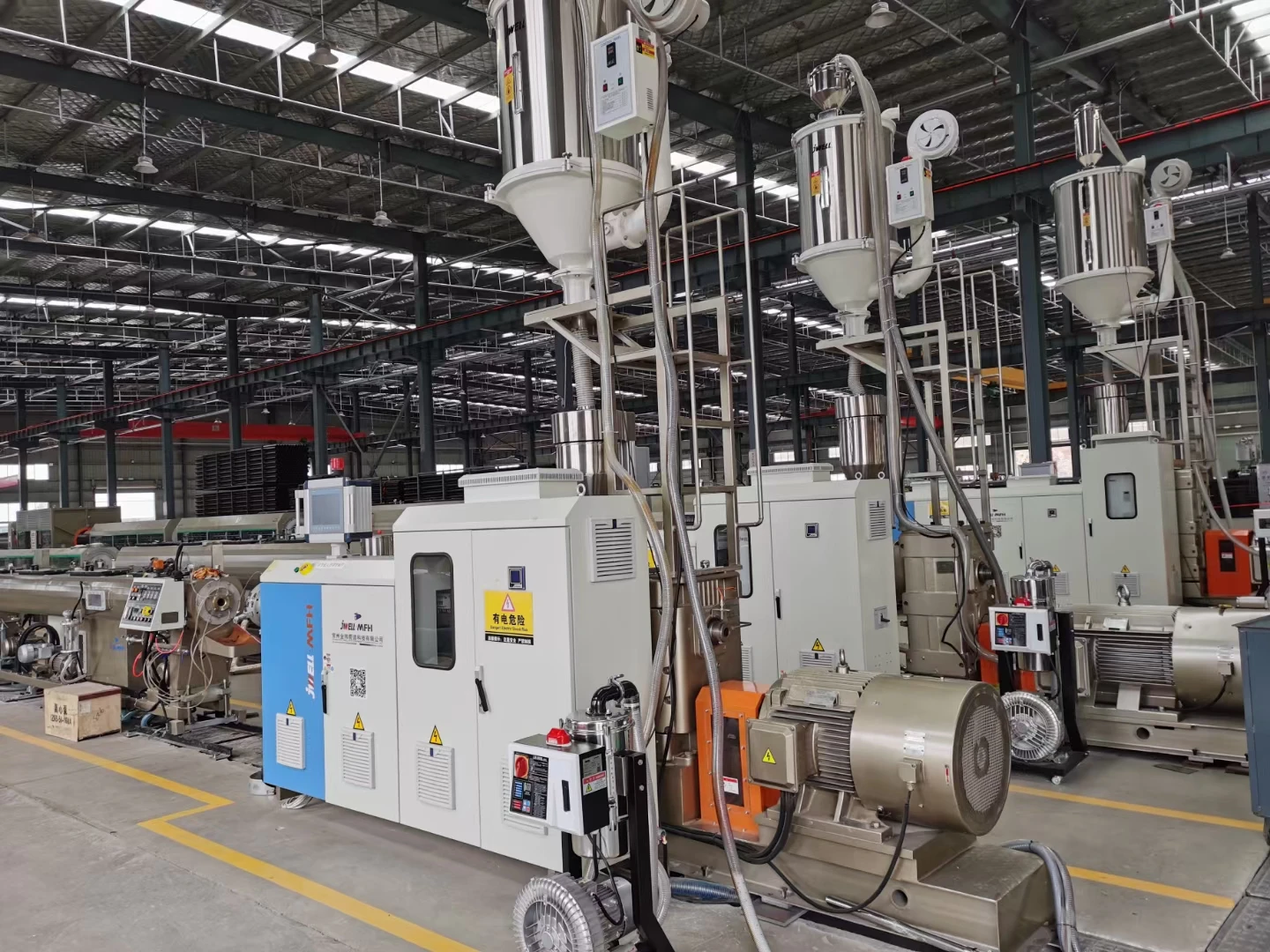

Material Hopper → PVC pipe extruder → Mould → Calibrator → Vacuum calibration tank → Spray cooling water tank → Printer →Haul-off→ Cutter → Stacker
Parameter :
our company provide ten types of this production line as following:
Type | Diameter(mm) | Extruder type | Main motor power(kw) | Capacity(kg/h) |
JWPEG-63 | Φ20~Φ63 | JWS65/33 | 45 | 80-120 |
JWPEG-110 | Φ20~Φ110 | JWS65/33 | 45 | 120-200 |
JWPEG-160 | Φ50~Φ160 | JWS65/33 | 45 | 120-200 |
JWPEG-250 | Φ50~Φ250 | JWS75/33 | 75 | 200-350 |
JWPEG-315 | Φ90~Φ315 | JWS75/33 | 75 | 200-350 |
JWPEG-450 | Φ160~Φ450 | JWS90/33 | 110 | 350-550 |
JWPEG-630 | Φ315~Φ630 | JWS120/33 | 355 | 800-1000 |

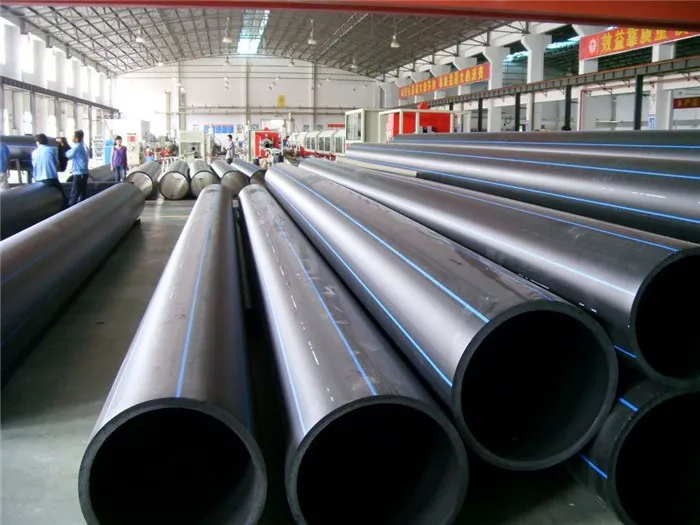

This production line is widely used in HDPE water supply pipe, gas pipe, coal mine double-resistance pipe and non-excavation pipe field. This production line is a new pipe production line successfully developed by our company using European advanced technology. After digesting and absorbing, it is suitable for high-speed extrusion of polyolefin pipes such as HDPE and PP. The production line has beautiful appearance, high degree of automation and stable and reliable production.
Our company
JWELL MACHINERY (CHANGZHOU) CO., LTD-----the subsidiary of JWELL Machinery Group

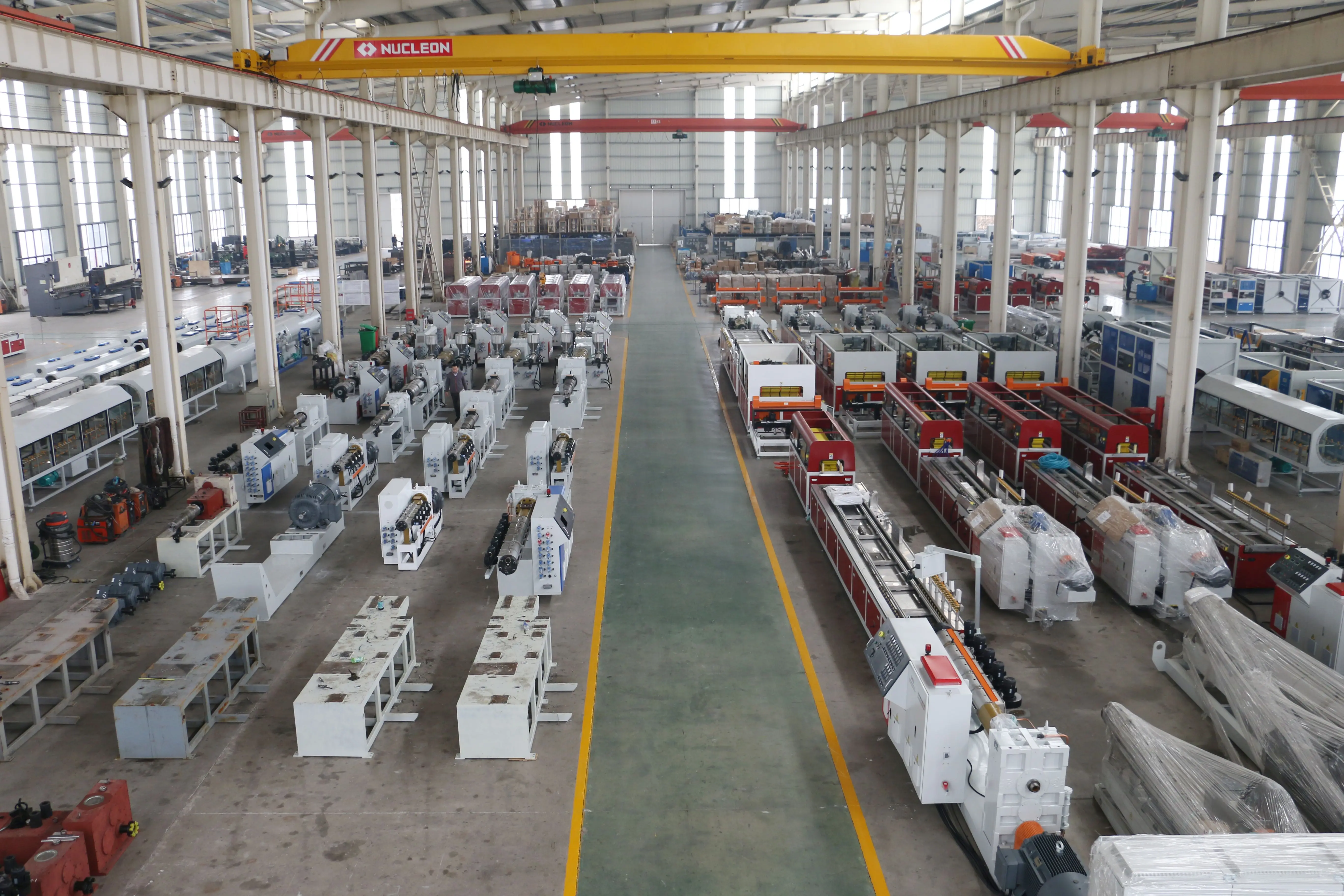

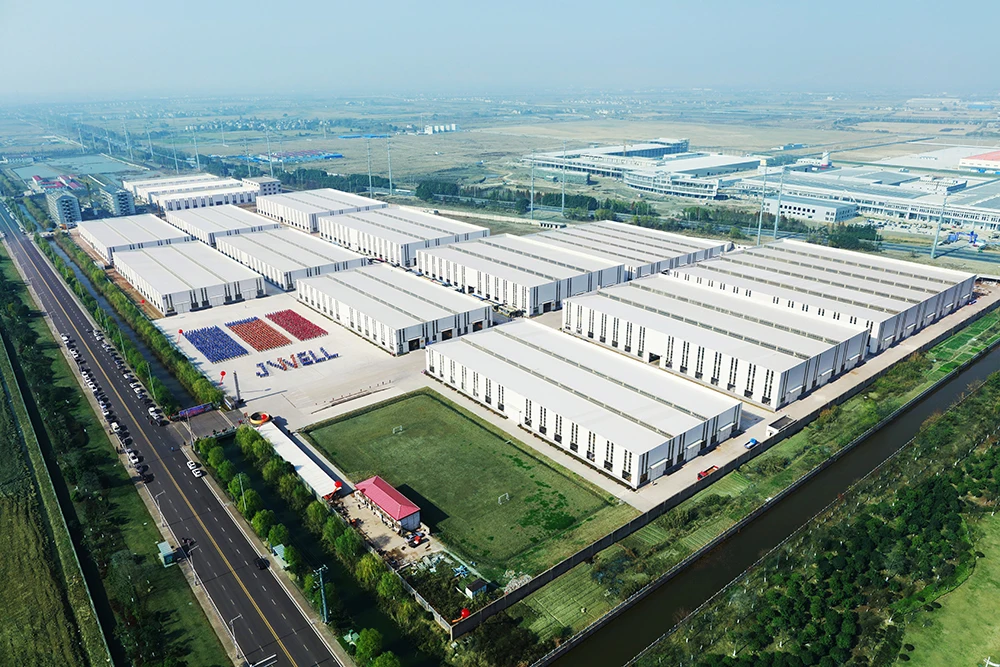

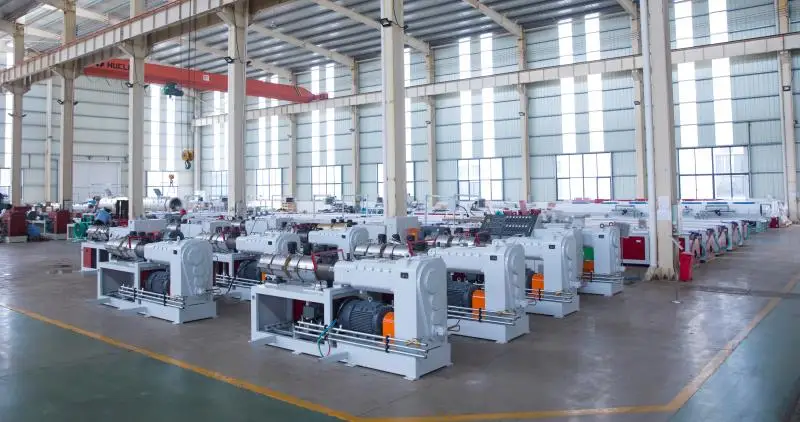

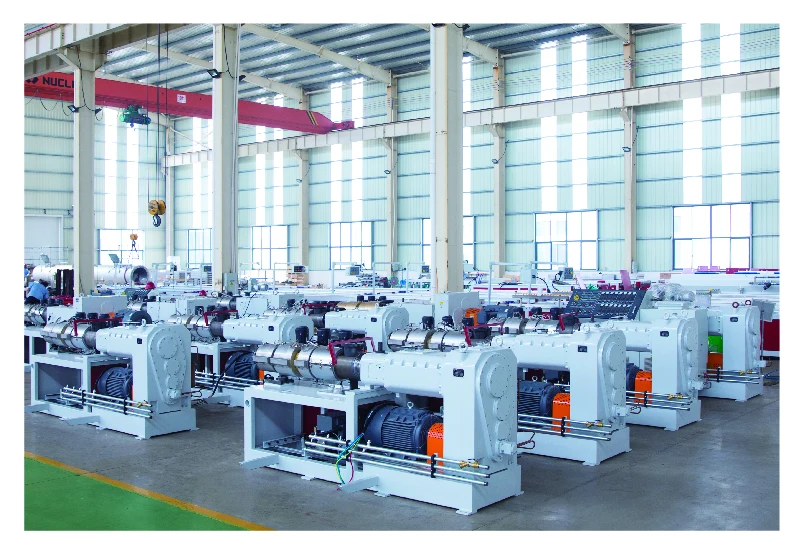

JWELL MACHINERY (CHANGZHOU) CO., LTD is one of subsidiaries of JWELL MACHINERY which was founded in 1997, China Plastics Machinery Industry Association vice president unit.The production bases of Jwell company cover about 700,0000 square meters and are consisted with 7 parts, which are located in Jiading district of Shanghai where the head office of the company locates, Haining and Zhoushan City of Zhejiang Province, Taicang City and Liyang City of Jiangsu Province , Foshan City of Guangdong Province and Thailand. , JWELL has 26 professional companies and nine large-scale gold processing plants and three heat treatment nitriding plants, with an annual output of more than 3000 sets of high-grade plastic extrusion production lines and other complete sets of equipment, marketing in more than 120 countries and regions.
Why Choose Us
1. More professional
Jwell has a high-quality R AND D Team and an experienced team of mechanical and Electrical Commissioning Engineers, as well as an advanced machining base and Standard Assembly Workshop.
2. Rich experience

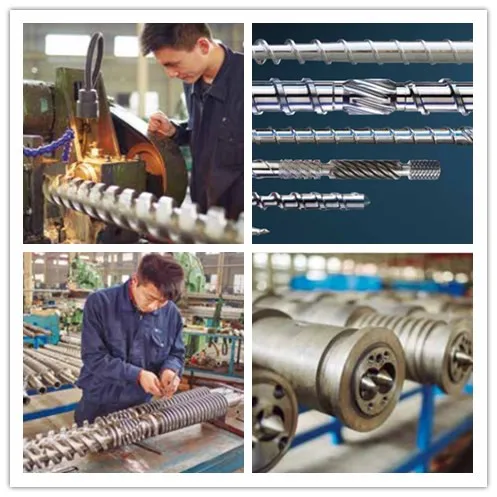

Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo after hundreds time of testing. Nowaday, in this location Zhoushan city, there are more than 300 companies in this reason. After more than 35 years development, JWELL is the famous extrusion machine supplier in China with 7 factories, 300 design&test engineer, 3000 employees locatedin seven factories in
3. Advanced technology
We follow Germany type of business heading as the worldwide reliable supplier of plastic extrusion line. We have already provided more than 500 lines located in all countries because we are providing the lastest technology, qualified machine, reliable component and best after-service. 300 Engineers are travelling around the world for installation and test of machine, the after-service are free and availble forever. That's why we grow up from 10 staff company to 3000 staff Pioneer of Chinese extrusion machine supplier.
Exhibition
Global cooperation
Entrepreneurial Spirit: Hard work, Persistence and innovation.
Corporate Mission: Adhere to hard work and innovation, focus on customer experience.
Build an intelligent global eco-chain of extrusion equipment.
Corporate Mission: Adhere to hard work and innovation, focus on customer experience.
Build an intelligent global eco-chain of extrusion equipment.
High quality and first-class service win the trust and long-term friendship from our customers all around the world. We're looking forward to your join!
Certifications
Delivery
Packed with fumigated wooden pallet and flim,Internal small parts are fixed with wood.
