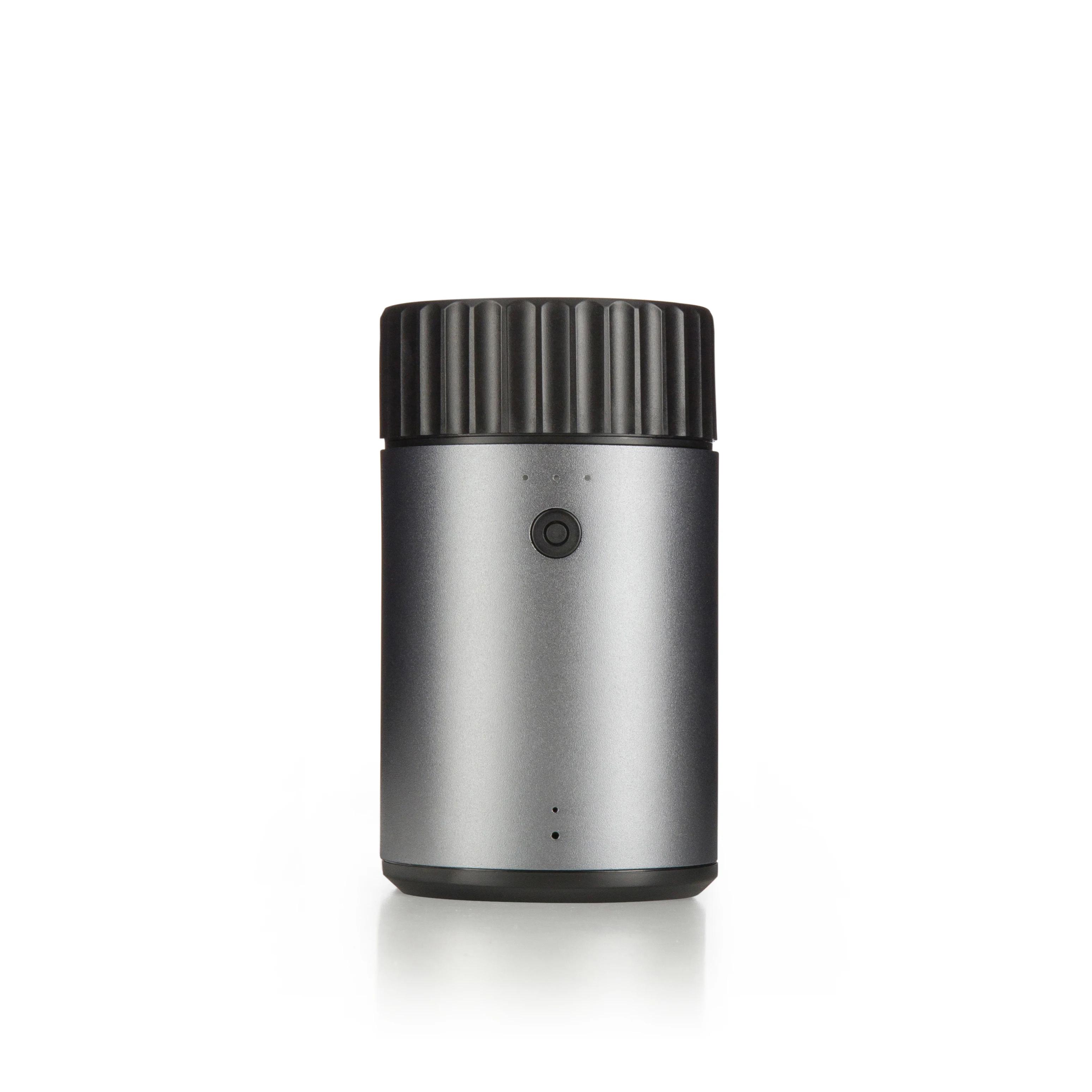

Home scent Scent Diffuser of car Aroma Diffuser stand alone Scent Marketing Machine Fragrance Machine

Product Overview

Description



Products Name	aroma diffuser
Model	TC80
Voltage	DC5V
Power	1W
Weight	380g
Coverage	2-80m³
Color	Gray
Size	121.5*∅68mm
Characteristic	Bluetooth connection
Function	cleaning air, fill the air with fragrance

Essential oil capacity

20ml





Application



hotel, exhibition hall, spa, shop, coffe shop, office, bread shop,car 4S shop,etc..



Features



Using advanced nano technology, essential oil particles is more exquisite, no residue

Strong rapid atomization enjoy the moment possession

Noise reduction design, enjoy comfortable in the quiet environment

Fragrance distribution, and stay for a long time

Atomaization at room temperature, the flavor is more natural

User-friendly design, easy to install

Direct atomization at room temperature without heat treatment

Intermittent work can increase the usefull life of equipment(work 300 seconds then stop 30 seconds)

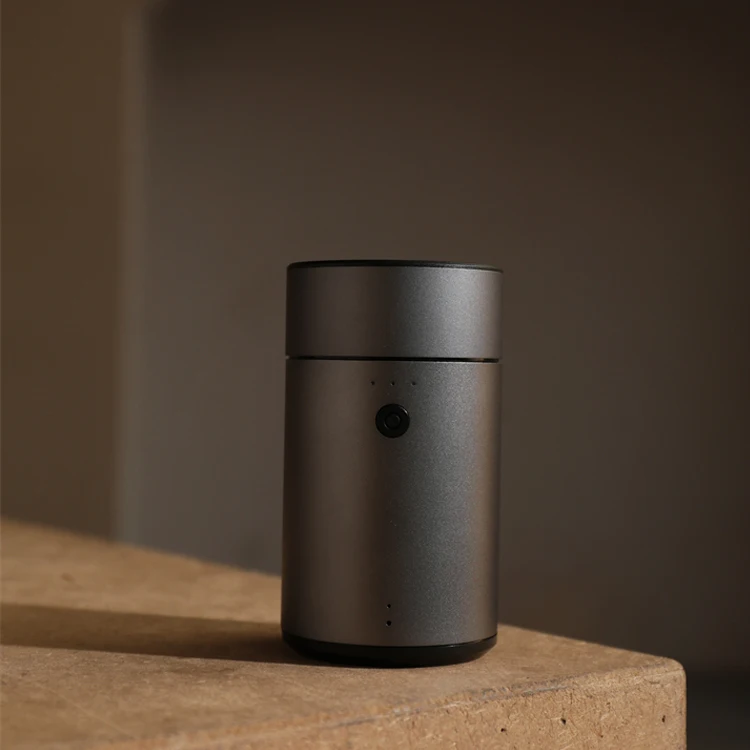

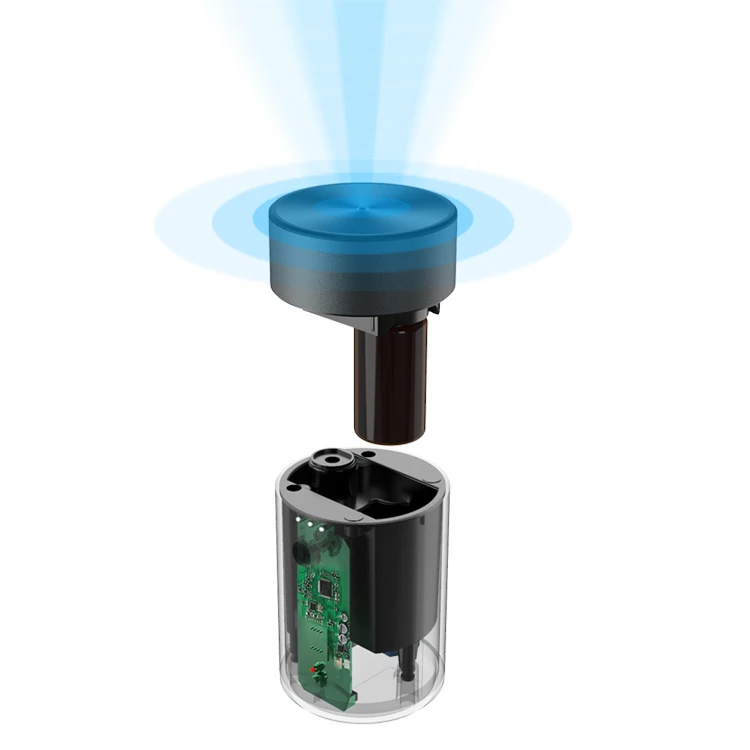

The details of TC80













Gear and setting instructions





Model	Car mode (blue light)	Desktop mode (white light)	Custom mode
Gear	1st gear 2nd gear 3rd gear	1st gear 2nd gear 3rd gear	4th gear
Gear indicator
Work time	2S	4S
Intervals	5min 3min 1min	5min 3min 1min	Bluetooth connected to the mobile phone, you can choose the working time, interval, and power-on time in the APP





• The aroma diffuser cleaning

When the essential oil needs to be replaced or the amount of atomization is reduced after the equipment has been running for a while, the equipment needs to be cleaned.

•  Cleaning steps:

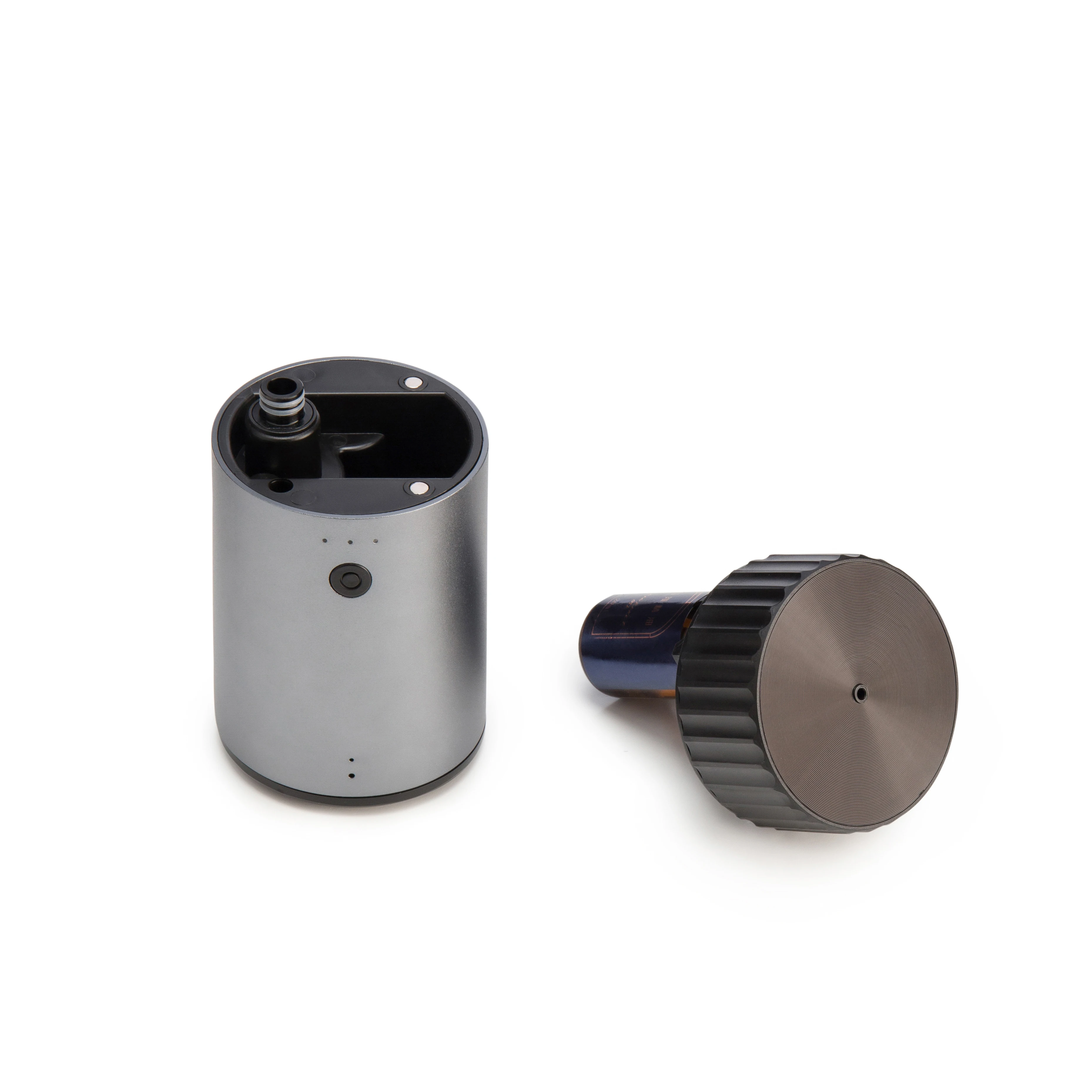

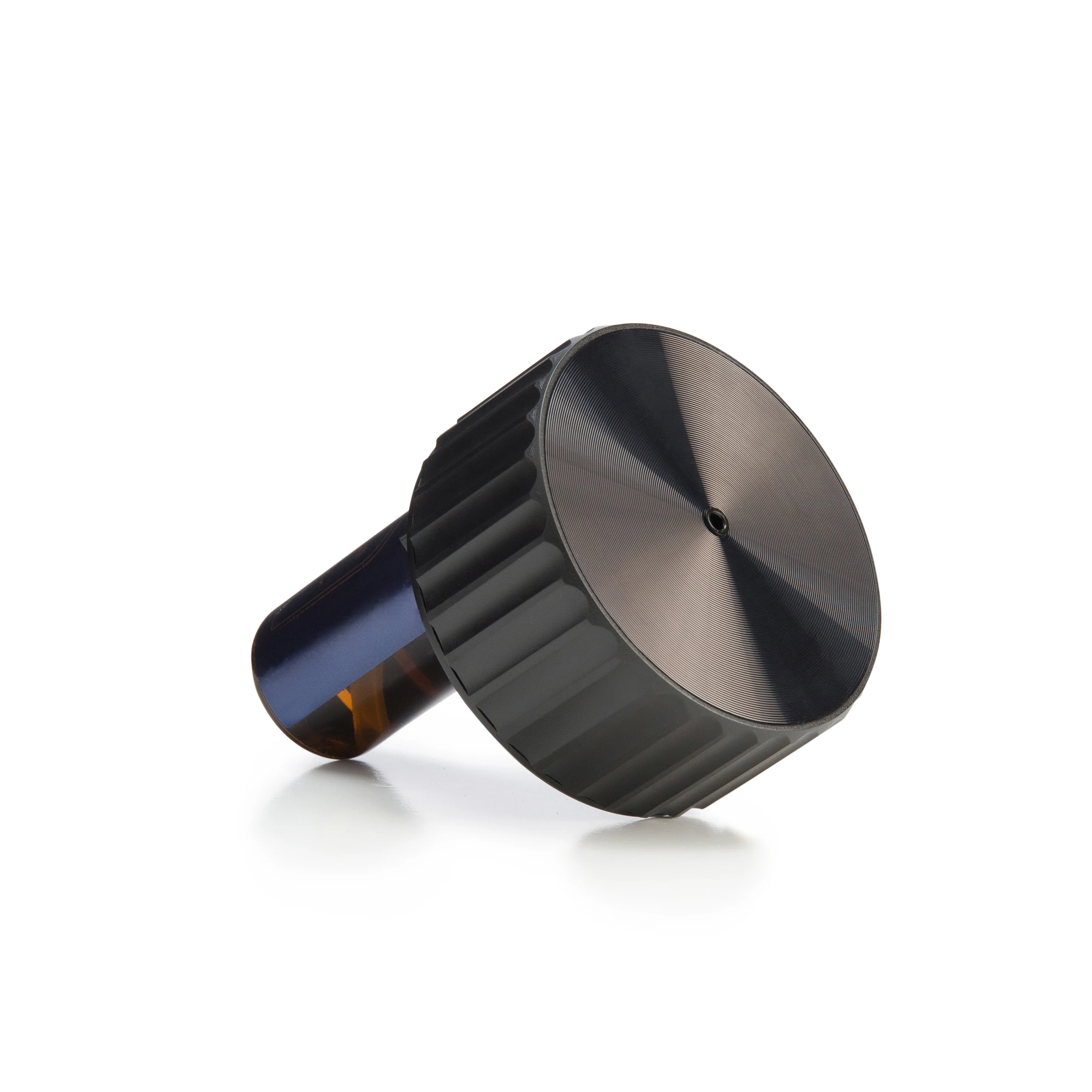

1. Carefully open the aroma diffuser and take out the essential oil bottle, which the essential oil has been run out.


2.


    Add a small amount of alcohol to the essential oil bottle, then install it on the aroma diffuser device and turn on the device for 5-10 minutes.





3.


    After cleaning, turn off the aroma diffuser.





4.


    Take out the essential oil bottle and add the essential oil you need to replace. Carefully install the essential oil bottle onto the device and continue working.






• Common failures and the trouble shooting

The fault	How to checking fault
No Atomizing	Check the power already cnnect or not Check the pump was damaged or not Check the device in the working setting time or not
Spray a little mist	Check the atomized core block or not, using alcohol to clean for confirm Check the pump was aging or not, using your hand feeling the air outlet pressure weak or not.
Spray oils liquid not mist	Check if the device was tile Check if spray head was damaged
Essential oils leak	Check if the refined oil bottle was loosen
Abnormal sound	Check if the air pump was loosen
Connection failed	Check the router is compatible with general mode or not(pls use AP mode) Check whether the distance between router and device is too far.
