Sunlite High Precision 12w 30w 40 watt 50w 100w metal co2 rf laser tube
- Category: >>>
- Supplier: Jilin Sunlite Laser Technology Co. Ltd.
Share on (1600470225362):
Product Overview
Description

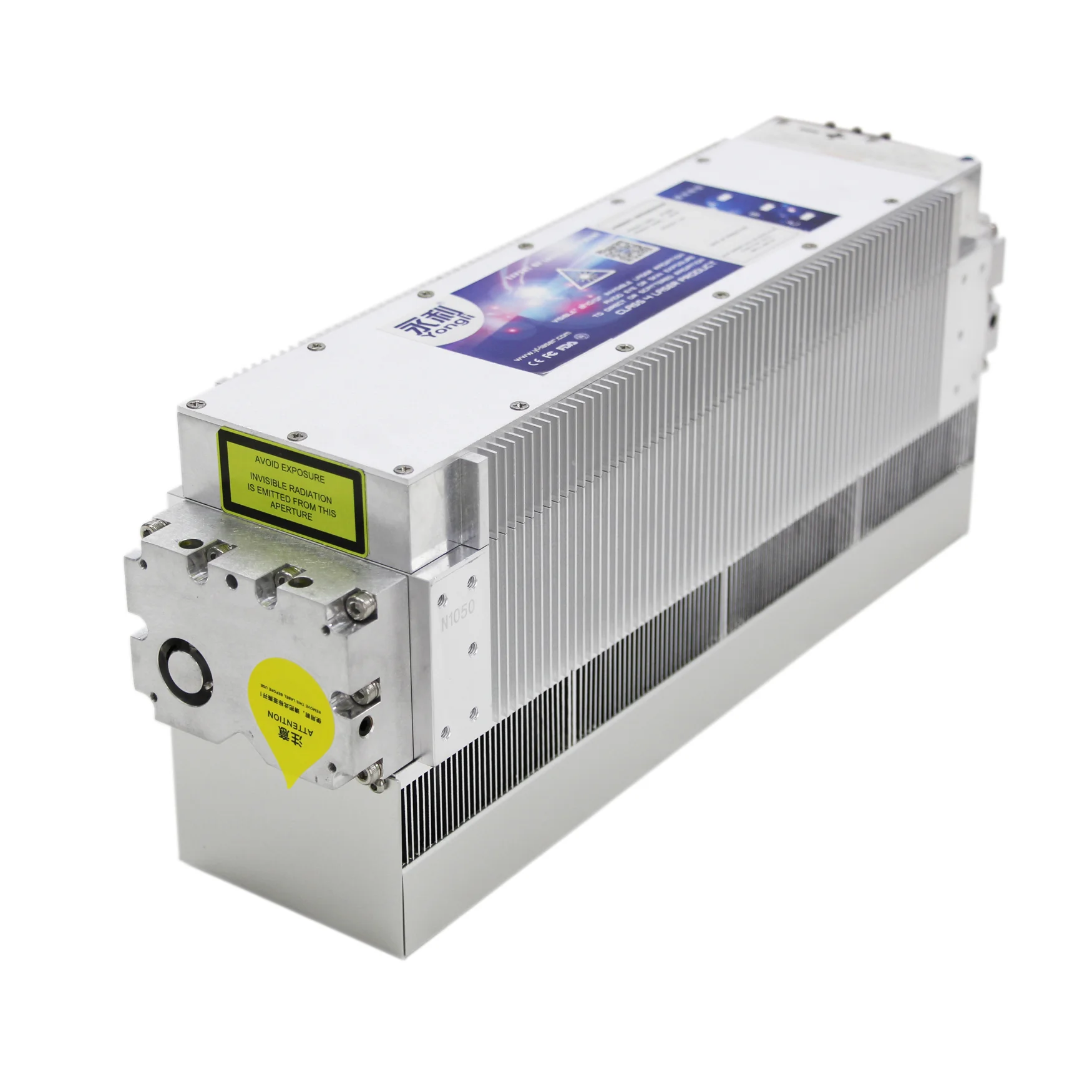

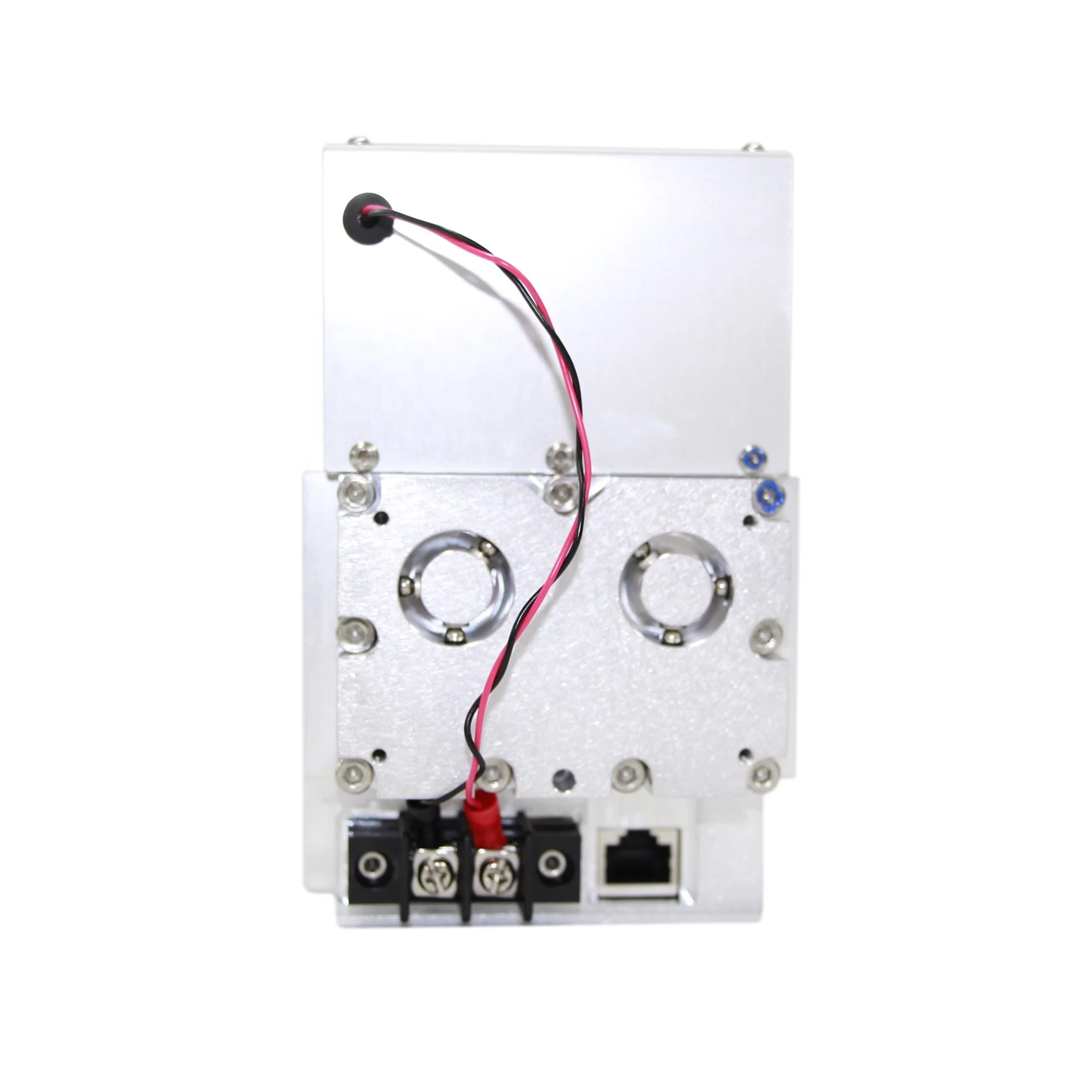

BlueTimes RLT-30 CO2 RF Laser Module 30W 10.6um Laser Source Radio Frequency Co2 Laser Metal Tube for CO2 Laser Engraving Marking Machine
Products Description
Sunlite 30W Co2 RF laser tubes are supplied with energy from power radiated by antennas. As the excitation frequency is in the range of the radio frequencies. The radio frequency provides excitation of the nitrogen molecules (vibration).
Sunlite RF 30W laser metal tube can be operated at much higher repetition rates than co2 glass laser tubes. This enables fast engraving/marking, where each contrasting pixel requires a single laser pulse. If the laser resonator is designed as aluminum-oxide-ceramic, this provides the advantage that this material has a negligible characteristic impedance for the excitation frequency. The resonator can therefore be pumped with low loss. As the antennas are outside the resonator, there are no feed-throughs in the resonator that are problematic for gas impermeability.
Sunlite BlueTimes Co2 RF laser sources can operate at high repetition rates and have low power drift in operation. In addition, they have higher beam quality. For example, if paper needs to be marked, the power is set to a low value. The average service life of our BlueTimes RLT-30 Co2 RF laser metal tubes 30W is expected to be around six years (20,000 Hours Service Life). After that, an exchange for a new or upgraded laser source is required. With ceramic tubes, contamination of the gas mixture by air flowing in from the outside is rarely or never the case. Often the full laser power can be achieved again by adjusting the power electronics (readjusting the frequency for the antenna driver) or by replacing a defective board (typically a power amplifier defect).
model | RLT-30 |
wavelength | 10.6μm |
Continuous rated output power | 30W |
Power stability | ±5% |
Mode quality | M2<1.2 |
Beam diameter | 1.8±0.2mm |
Beam divergence angle | 7.5±0.5m Radian full angle |
polarization | Linear polarization(>100:1)Parallel to the width direction |
Operating frequency and duty cycle | 0~25KHZ,0~100%DC |
weight | 6.2Kg |

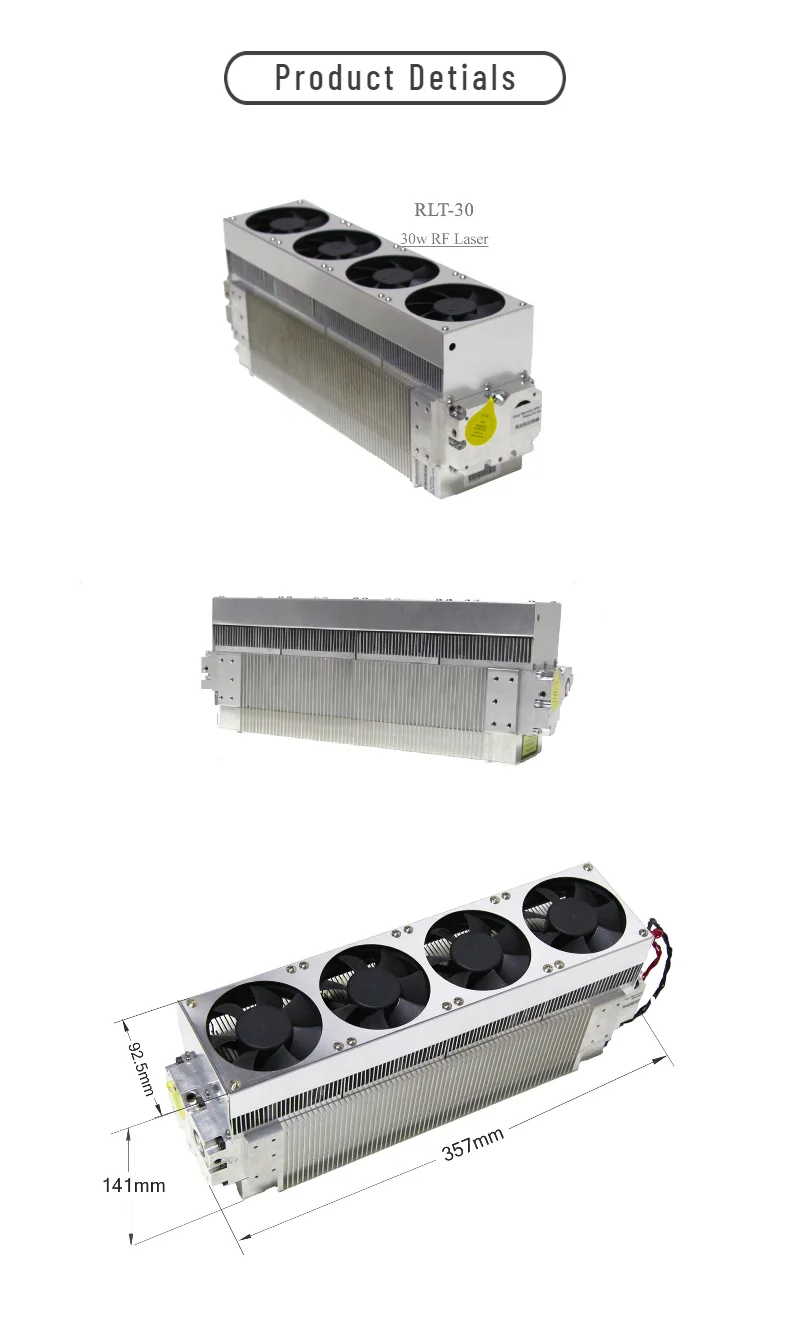

size(L×W×H) | 357×92.5×142mm(14.1×3.64×5.59in.) |
Input voltage | 48DV±2% range,Maximum average current 12A,Requires the power supply to withstand peak current 18A,not less than 1ms. |
Heat load | <575w |
Maximum case temperature | <60ºC(140ºF) |
Ambient temperature at work | 5~40ºC(41~104ºF) |
Operating temperature | <2000m(6,500ft.) |
humidity | Non-condensing |
Shipping and storage environments | -10~60ºC(14~140ºF),Non-condensing |

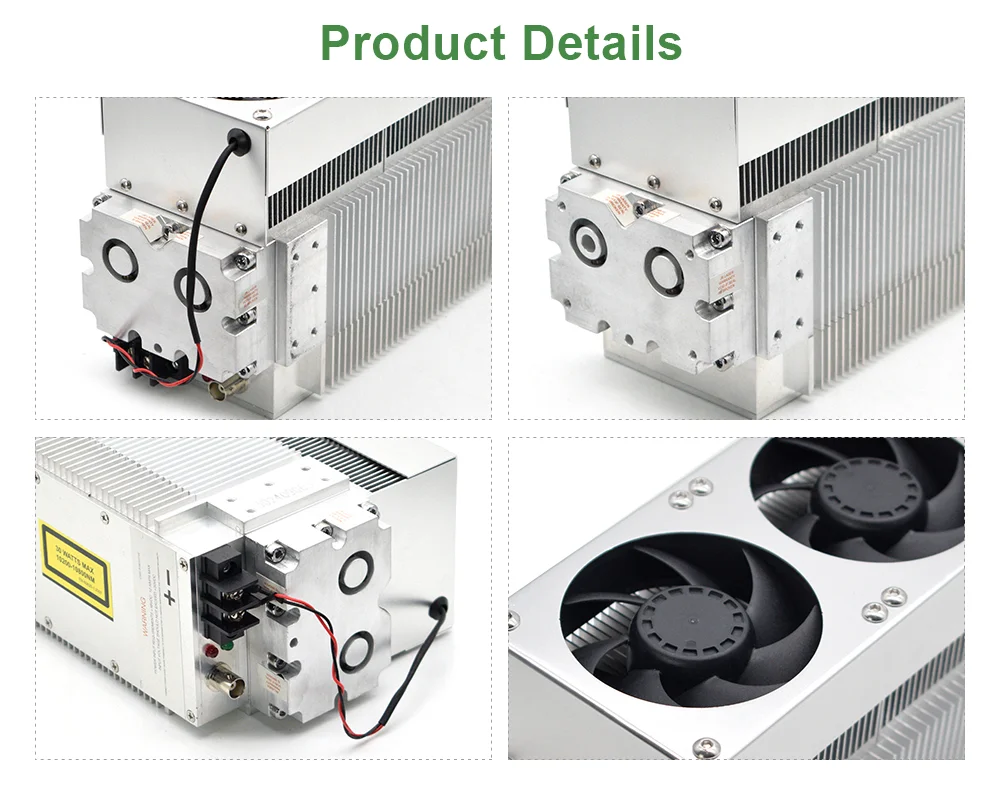

Product Details

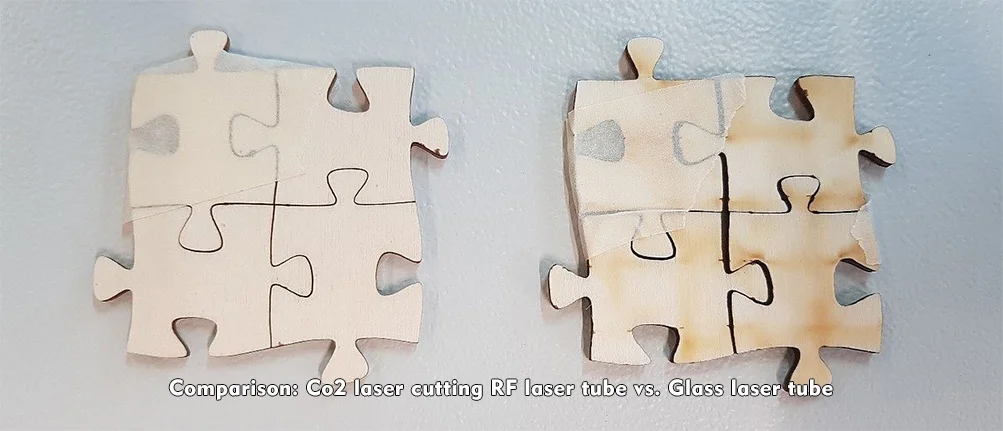

The practical consequence of precision blanking wood:
High beam quality of the BlueTimes Co2 RF laser tube (left) vs. low beam quality and thus larger kerf and more smoke (right), due to the present (and frequently encountered) ellipticity of the glass laser tube laser beam, it is also noticeable that the vertical kerf is significantly larger than the horizontal one (right)
Application
For CO2 Laser
Marking/Engraving Machine
-Achieve high speed static or dynamic online marking code
-Mark/Engrave clearly -Hard-wearing quality
-High engraving and marking
efficiency
efficiency
-Environmentally-friendly
For Medical treatment
-CO2 Fractional Laser Scare Removal Skin Resurfacing Device -CO2 laser therapy
-RF Stretch Marks Removal CO2 Fractional Laser Machine
-RF Tube Laser Generator Vaginal Tightening Laser -Cosmetology surgery apparatus
For CO2 Laser Cutting Machine
-High and stable power
-Cutting better than Fiber laser For Non-metal
-The speed of cutting is faster -Cutting Leather, wood,
plastics etc
plastics etc
-The wavelength influence the cutting effect

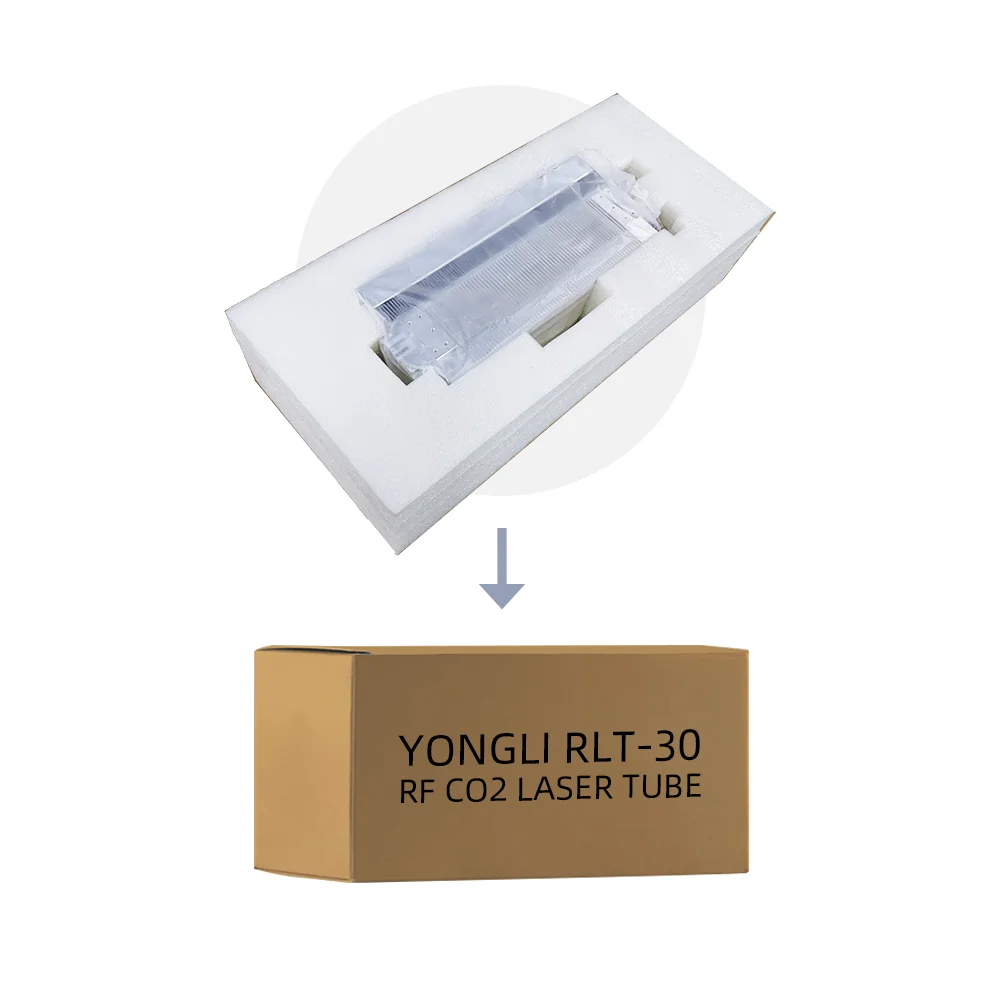

Packaging & Shipping
Trusted Shipping
Our co2 rf laser tube is carefully packed and tightly protected during shipment. If there's any flaw in the product, just tell us with a photo and following confirmation we will get a new co2 laser metal tube to you ASAP.
♦ Packing: Standard export packing, or
customized packing as your request.
customized packing as your request.
♦ Shipping: All products must be 100% tested to ensure their functionality, reliability,
security and durability before shipment.
security and durability before shipment.
♦ Professional transport company /shipping forwarder.
