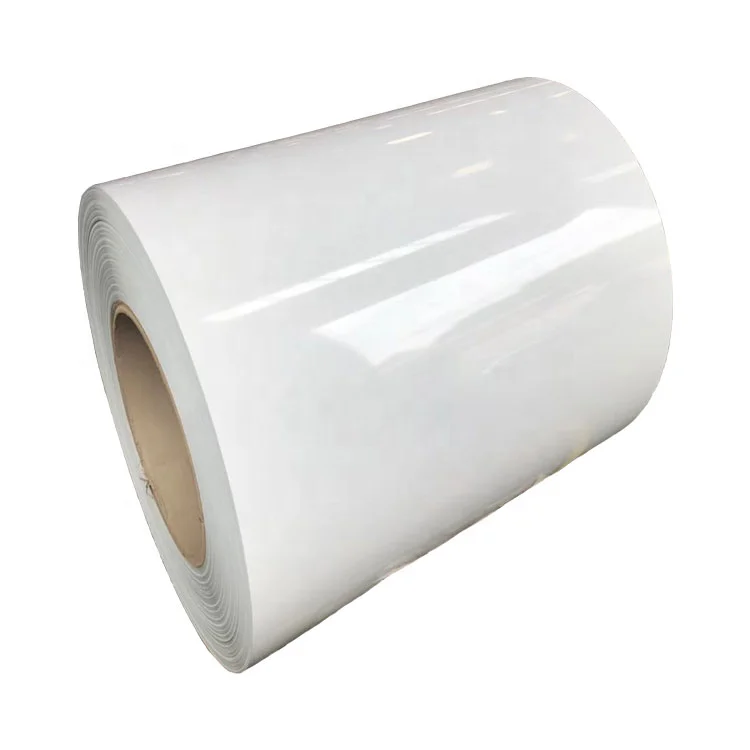

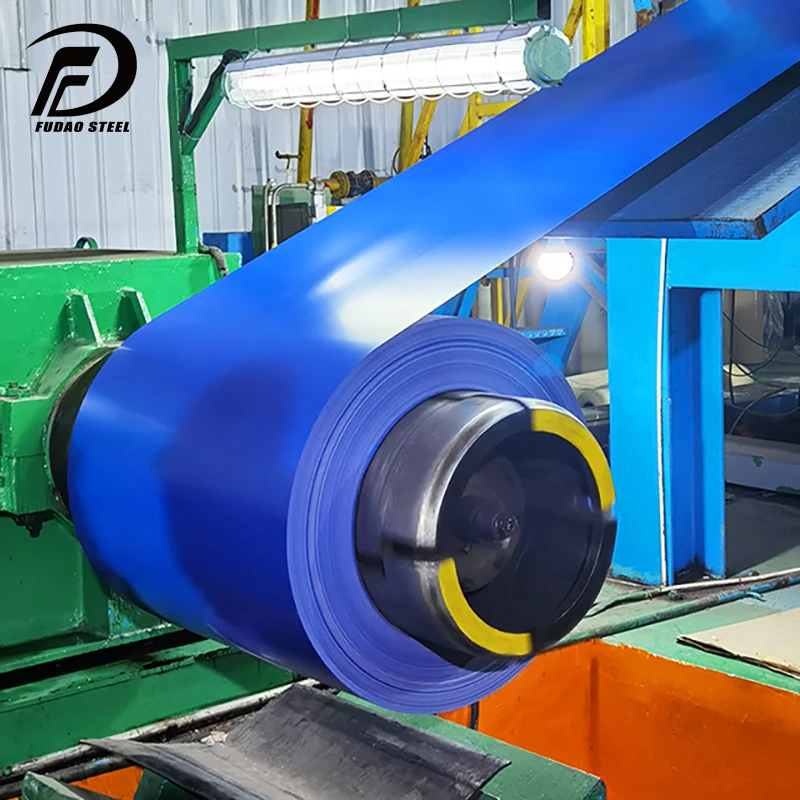

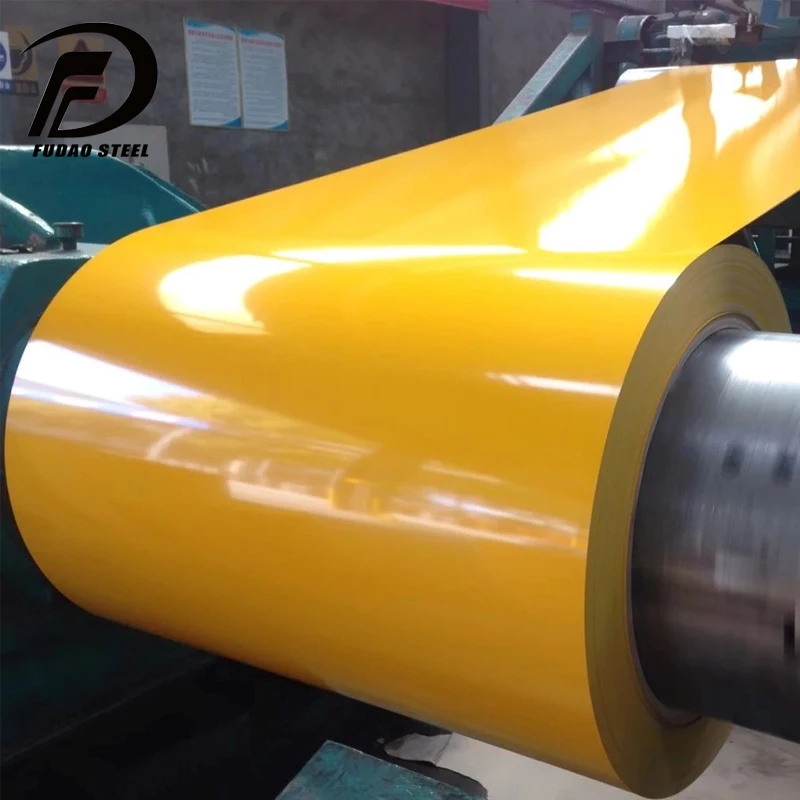

White color code 9016 prepainted galvanized steel coil 0.38mm ppgl in steel coils color coated steel PPGI
- Category: >>>
- Supplier: Shandong Fudao Materials Co. Ltd.
Share on (1600470229001):
Product Overview
Description
PREPAINTED GALVANIZED/ALUZINC STEEL COILS ( PPGI / PPGL )
Generally manufactured with hot dip zinc coated(GI) steel or an aluzinc/galvalume(AZ/GL) substrate, the coil is processed on a continuous paint coating line where in the surface of the metal is cleaned, pre-treated and applied with various layers of organic coatings.At FUDAO STEEL Our product range of color coated material combines the strength and form-ability of steel with the corrosion resistance of zinc and paint. We have the widest range of colors in the market. Further,shades and degree of gloss can also be tailored to suit your requirement.FUDAO STEEL‘s Color Coated Prepainted Galvanized Steel Coils & Prepainted Aluzinc Steel Coils (PPGI / PPGL ) could be supplied as coils, sheets, slit strips or even profiled sheets. Our Installed Annual Coil Coating Capacity is 150,000 Metric Tonnes in thicknesses range of 0.12mm – 1.6mm (for Prepainted Galvanized/Aluzinc Coils) wih 650mm-1500mm width range.
Product name | PPGI steel coil | ||||||
Thickness | 0.12-1.6mm | ||||||
Width | 600-1250mm | ||||||
Grade | DX51D,Q235, SGCC, G550, S550, S350, ECTS | ||||||
TCoating | Top coat: 10-35μm Backing paint: 5-7μm | ||||||
Application | making pipes, cutting sheets, making small tools, making corrugated sheets, making container | ||||||
Certificate | KS, ISO9001 | ||||||
Advantage | 1Resistance to acid rain2Resstance ultraviolet rays 3Resstance to humid heat 4Resistance to low temperature | ||||||
Color | Customers Samples Color | ||||||
Paint type | PE HDP SMP PVDF | ||||||

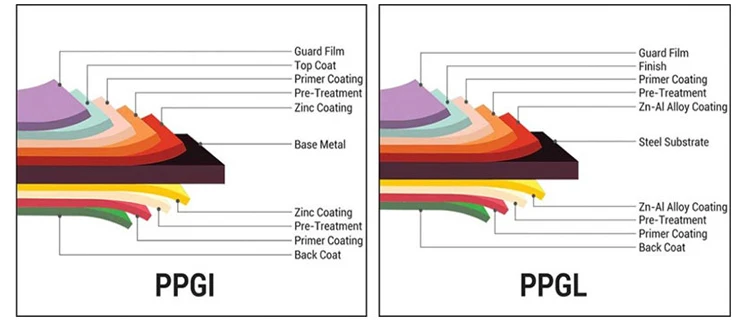

Continuous Coil coating is a continuous and highly automated process for coating galvanized / Aluzinc substrate before fabrication. In one continuous process both the top and bottom sides are cleaned, chemically treated, primed, oven cured, top coated, oven cured again, rewound/recoiled and packaged into final prepainted galvanized steel (ppgi) or prepainted aluzinc(ppaz/ppgl) steel coils.
* Polyester (PE) – This is based on polyether. Products with this coating are resistant to high air temperature and corrosion; have good colour stability, plasticity and longevity; and are available in different colours at a good price. They are used in roofing and wall structures, particularly for multi-storey residential and industrial buildings in different climates.
Key types of colour-coating include:
* Polyester matt (PEMA) – This is based on polyether, but has a smooth and matte surface with micro-roughness. Such material has a longer life than PE, as well as excellent colour stability and mechanical resistance. Such steel keeps its properties in any climate and can imitate natural materials.
* PVDF – This consists of polyvinyl fluoride (80%) and acryl (20%) and has the highest resistance to any non-mechanical environmental exposure. PVDF is used for wall cladding and roofing; offers excellent resistance to water, snow, acids and alkali; and does not fade over time.
* Plastisol (PVC) – This polymer consists of polyvinyl chloride and plasticisers. Its rather thick coating (0.2 mm) offers good mechanical and weather resistance, but relatively poor heat resistance and colour stability.
* Polyurethane (PU) – This coating is made of polyurethane modified with polyamide and acryl. It has improved resistance to ultraviolet radiation and weather exposure, high strength and longevity. Polyurethane is highly resistant to many acids and chemicals typical in an industrial environment.
* Polyester matt (PEMA) – This is based on polyether, but has a smooth and matte surface with micro-roughness. Such material has a longer life than PE, as well as excellent colour stability and mechanical resistance. Such steel keeps its properties in any climate and can imitate natural materials.
* PVDF – This consists of polyvinyl fluoride (80%) and acryl (20%) and has the highest resistance to any non-mechanical environmental exposure. PVDF is used for wall cladding and roofing; offers excellent resistance to water, snow, acids and alkali; and does not fade over time.
* Plastisol (PVC) – This polymer consists of polyvinyl chloride and plasticisers. Its rather thick coating (0.2 mm) offers good mechanical and weather resistance, but relatively poor heat resistance and colour stability.
* Polyurethane (PU) – This coating is made of polyurethane modified with polyamide and acryl. It has improved resistance to ultraviolet radiation and weather exposure, high strength and longevity. Polyurethane is highly resistant to many acids and chemicals typical in an industrial environment.
Application of colour-coated steel coils
The consumers of colour-coated steel products include the construction, home appliance, furniture, consumer goods and automotive industries.
Colour-coated coils are most widely used in construction, which consumes more than half of the amount produced worldwide. The coating type directly depends on the exposure conditions. Colour-coated steel is used in various interior finishing work and facade elements.
In the manufacture of appliances and commodities, both standard cold / hot- rolled steel and galvanised steel of various grades meant for bending and deep-drawing are used as feedstock for colour-coating.
In the automotive industry, colour-coating is used for corrosion protection, noise attenuation, and insulation. Such steel is also used to manufacture dashboards and windscreen wipers for cars, etc.
Colour-coated coils are most widely used in construction, which consumes more than half of the amount produced worldwide. The coating type directly depends on the exposure conditions. Colour-coated steel is used in various interior finishing work and facade elements.
In the manufacture of appliances and commodities, both standard cold / hot- rolled steel and galvanised steel of various grades meant for bending and deep-drawing are used as feedstock for colour-coating.
In the automotive industry, colour-coating is used for corrosion protection, noise attenuation, and insulation. Such steel is also used to manufacture dashboards and windscreen wipers for cars, etc.

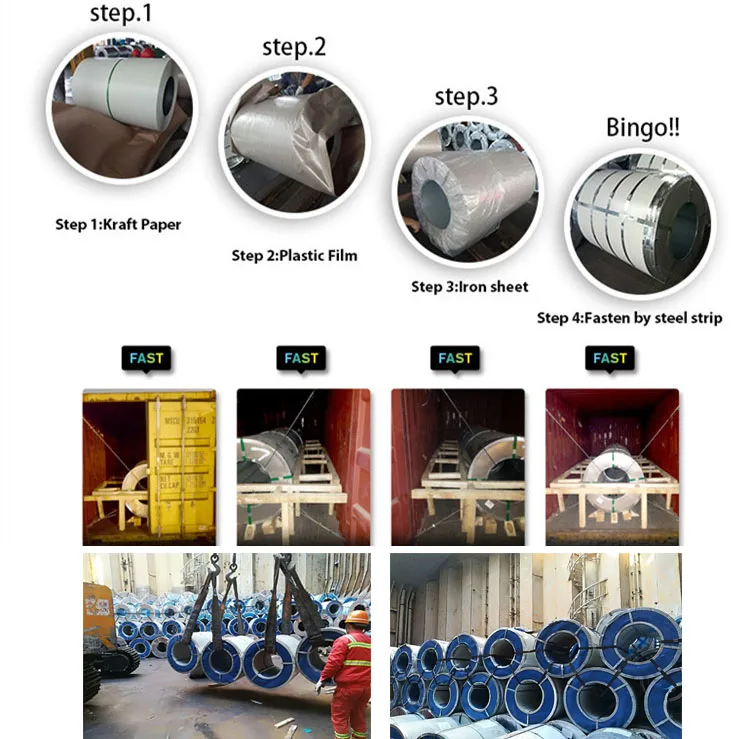

Packing Detail: 3 layers of packing. Inside is craft paper, middle is waterproof plastic film and outside GI steel sheet to becovered by steel strips with lock.

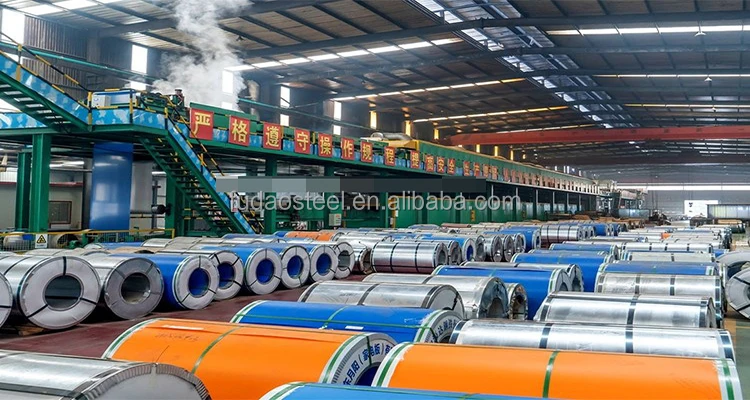

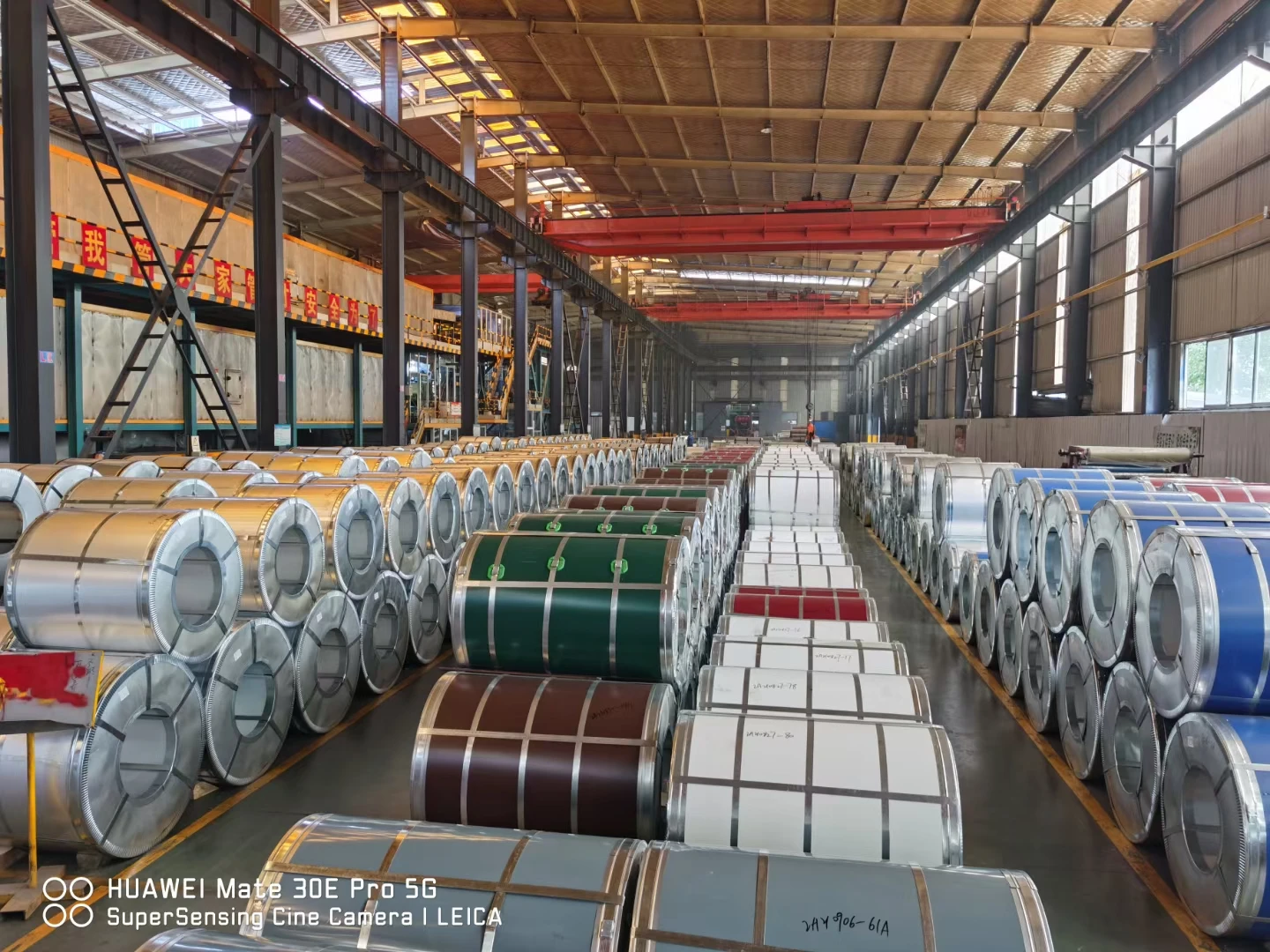

Company Profile
Shandong Fudao Materials Co., Ltd. is located in Jinan City, Shandong Province, China. The company has more than 500 permanent employees and a factory area of more than 70,000 square meters. It is a mature enterprise integrating factory and trade.
Fudao Materials has an independent steel pipe factory, GI/PPGI factory, and hot-rolled steel plate processing factory.
The main products are hot-rolled/cold-rolled steel plates, welded pipes, seamless pipes, galvanized steel plates, color-coated steel plates, aluminum plates and various section steels. Possess a long-term inventory of more than 5,000 tons.
The products produced by Fudao Materials are suitable for engineering, coal mine, textile, electric power, boiler, machinery, military and other fields, and the products are trusted by users.
"Accurate, reliable and professional" is our production spirit and service belief. We rely on stable quality, good reputation and strong strength to provide customers with the best service experience, and enjoy a high reputation both at home and abroad. Fudao Materials' customers are mainly distributed in Europe, South America, North America, Asia, the Middle East and Africa.
If you need it, we can provide you with free samples to check the quality.
Fudao Materials sincerely hope to establish a good long-term cooperative relationship with you for mutual benefit and common development!
Fudao Materials has an independent steel pipe factory, GI/PPGI factory, and hot-rolled steel plate processing factory.
The main products are hot-rolled/cold-rolled steel plates, welded pipes, seamless pipes, galvanized steel plates, color-coated steel plates, aluminum plates and various section steels. Possess a long-term inventory of more than 5,000 tons.
The products produced by Fudao Materials are suitable for engineering, coal mine, textile, electric power, boiler, machinery, military and other fields, and the products are trusted by users.
"Accurate, reliable and professional" is our production spirit and service belief. We rely on stable quality, good reputation and strong strength to provide customers with the best service experience, and enjoy a high reputation both at home and abroad. Fudao Materials' customers are mainly distributed in Europe, South America, North America, Asia, the Middle East and Africa.
If you need it, we can provide you with free samples to check the quality.
Fudao Materials sincerely hope to establish a good long-term cooperative relationship with you for mutual benefit and common development!
FAQ
Q: How do you control quality ?
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get
ISO,SGS,AlibabaVerified.
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get
ISO,SGS,AlibabaVerified.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q:How do you make our business long-term and good relationship?
1.We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them?no matter where they come from.Please feel free to leave us message if you have any question about us and our products
Q:Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge.but the customers have to pay the sample courier cost.
Q:What about your price?
A:Our price is very competitive because we are a factory.Pls feel free to contact us if you are interested in our products.
Q:How can you garantee what I got will be good ?
A:We are factory with 100% predelivery inspection which garantee the quality.And as golden supplier on Alibaba. Alibaba assurance will make garantee,which means alibaba will pay your money back in advance if there is any problem with the products.
A:Of course, we welcome customers from all over the world to visit our factory.
Q:How do you make our business long-term and good relationship?
1.We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them?no matter where they come from.Please feel free to leave us message if you have any question about us and our products
Q:Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge.but the customers have to pay the sample courier cost.
Q:What about your price?
A:Our price is very competitive because we are a factory.Pls feel free to contact us if you are interested in our products.
Q:How can you garantee what I got will be good ?
A:We are factory with 100% predelivery inspection which garantee the quality.And as golden supplier on Alibaba. Alibaba assurance will make garantee,which means alibaba will pay your money back in advance if there is any problem with the products.
