6 inch 15HP Diesel Agricultural Farm Field Centrifugal Water Diesel Engine Irrigation Pump For Sale

Product Overview

Description

150HW-8 6 inch 15HP Diesel Agricultural Farm Field Centrifugal Water Diesel Engine Irrigation Pump For Sale

 Introduction:

The HW(HBC) mixed flow pump is horizontal, single stage, single suction volute type pump; it is suitable for transporting clean water or similar chemical liquid whose temperature is under 50°C. The mixed flow pump has the features of simple structure, reliable in operation, easy installation, high efficiency, small dimension, light weight., and it is in high efficiency and energy saving type, mainly used for agricultural irrigation, sugar factory, paper making factory and can also be used for floods and rain water drainage.

Specification:

Item	Mixed flow pump
mixed flow water pump	HW type diesel mixed flow pump for irrigation
Model	HW (HBC)
Material	Cast iron and customized
Color	Blue and adjustable
Mode	Horizontal
Impeller	Closed impeller
Drive	Belt or coupling
Seal	Soft packing seal or mechanical seal
Medium temperature	<=50°C
Speed	1450r/min,970r/min
Theory	Centrifugal pump
Structure	Single stage pump
Usage	Clean water
Power	Electric or diesel
Standard or Nonstandard	Standard
Application	Irrigation, water supply and drain
Outlet diameter	100-800mm
Capacity	70-9000m³/h
Head	2.8-21.5m
Power	3-550kw
Warranty	1year
Certificate	ISO9001
OEM	Acceptable
Feature	High efficiency, easy maintenance, no clogging



Parameter of mixed flow pump:

Model	Capacity		Head	Speed	Effciency	Power(kw)		NPSHr
	(l/s)	(m³/h)	(m)	(r/min)	(%)	Shaft	Motor	(m)
100HW-5	25	90	5	2900	79	1.55	2.2	4
100HW-8	25	90	8	2900	81	2.42	3	4
100HW-12	25	90	12.5	2900	81	3.78	5.5	4
150HW-5	50	180	5	1450	82	2.99	4	2.7
150HW-8	50	180	8	1450	82	4.78		2.7
150HW-12	50	180	12.5	2900	82	7.47		6
200HW-4	95	340	4	1060	81	4.6		4
200HW-5	100	360	5	1450	81.5	6.01		4
200HW-8	100	360	8	1450	83.5	9.39	11	4
200HW-12	100	360	12.5	1450	83.5	14.68		4
250HW-4	125	450	4.2	980	82.5	6.3		4
250HW-5	150	540	5	1180	82	8.97		4
250HW-7	125	450	7	980	83	10.5	15	4
250HW-8	150	540	8	1180	84	14.01		4
250HW-12	150	540	12.5	1180	84	21.88		4
300HW-4	197	710	4	780	83.5	4.4	11	4
300HW-5	220	792	5	970	83	12.99		4
300HW-7	216	780	7	980	84	17.7	22	4
300HW-8	220	792	8	970	85	20.3		4
300HW-12	220	792	12.5	970	85	31.72		4
350HW-4	278	1000	4.3	980	85	16.6	22	4.5
350HW-8	278	1000	8	980	85.5	25.5		4.5
400HW-5	400	1440	5	730	84	23.34		4
400HW-7	350	1260	6.8	730	86	28.1	30	4
400HW-8	400	1440	8	730	86	36.48		4
400HW-10	390	1400	10	730	86	44.5	55	4
400HW-12	400	1440	12.5	730	86	57		5.5
500HW-6	550	1980	6.2	580	86	38.9	45	5.5
500HW-7	650	2340	7	730	85	52.48		5.5
500HW-11	650	2340	11	730	87	80.57		5.5
650HW-7	940	3400	6.5	450	90	68	90	5.5
650HW-10	923	3322	9.7	490	89	98.6	115	5.5



Feature:

1.It is mainly used in the situation of big capacity and low head.

2.Over-current section is bigger, so it is not easy to block.

3.There are two types of drive assembly available. One is pulley and belt device. The other is coupling direct drive by power.

4.An electrical motor or a diesel engine is most commonly used to drive the pump



Application:

1. It is suitable for transporting clean water or similar chemical liquid whose temperature is

under 50°C.

2. Widely used for agriculture irrigation, industrial, flood draining and municipal drainage etc.



Show:

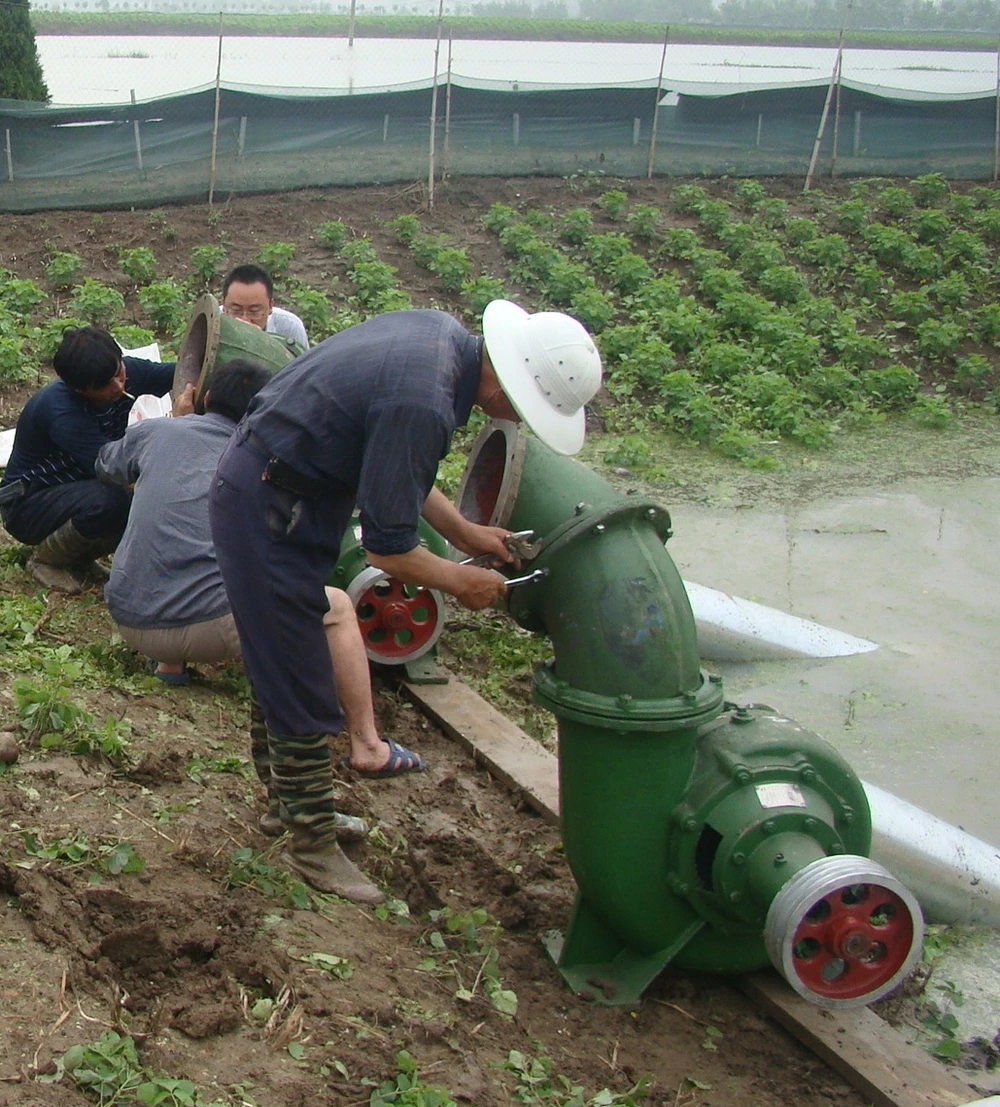

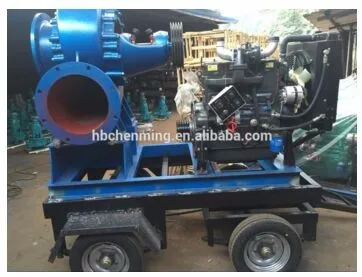

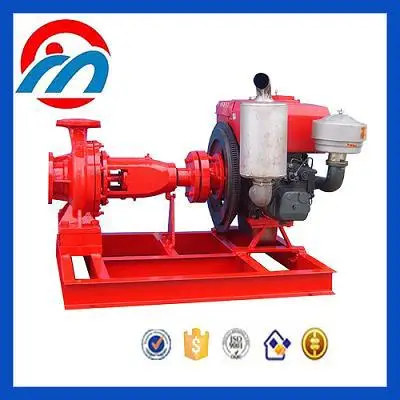

mixed flow pump with diesel engine:

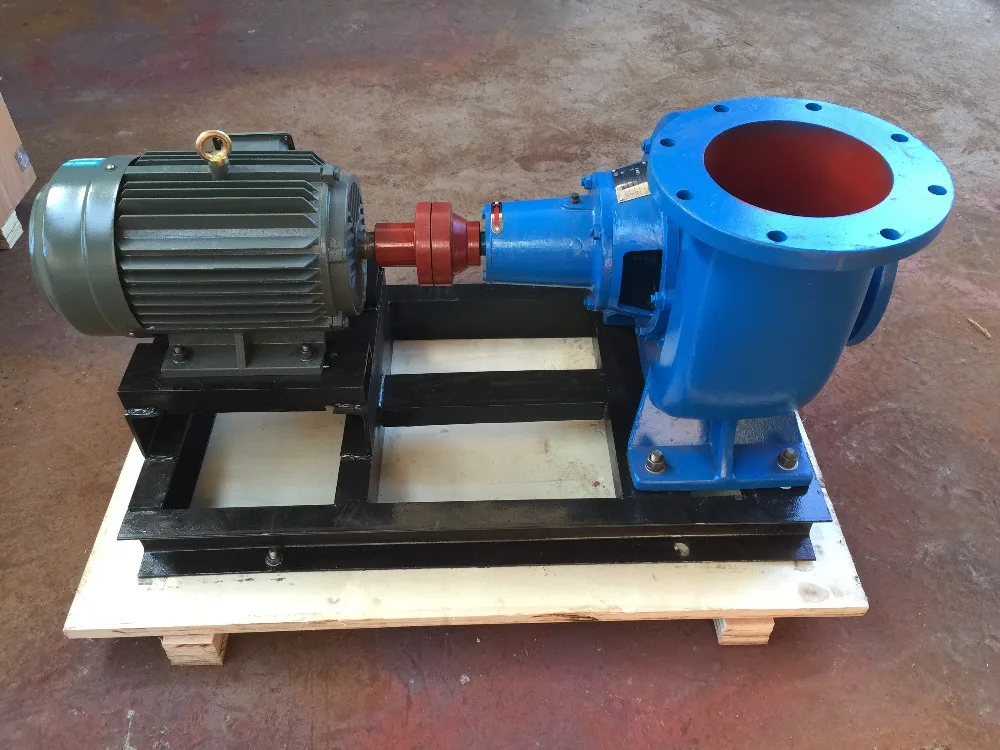

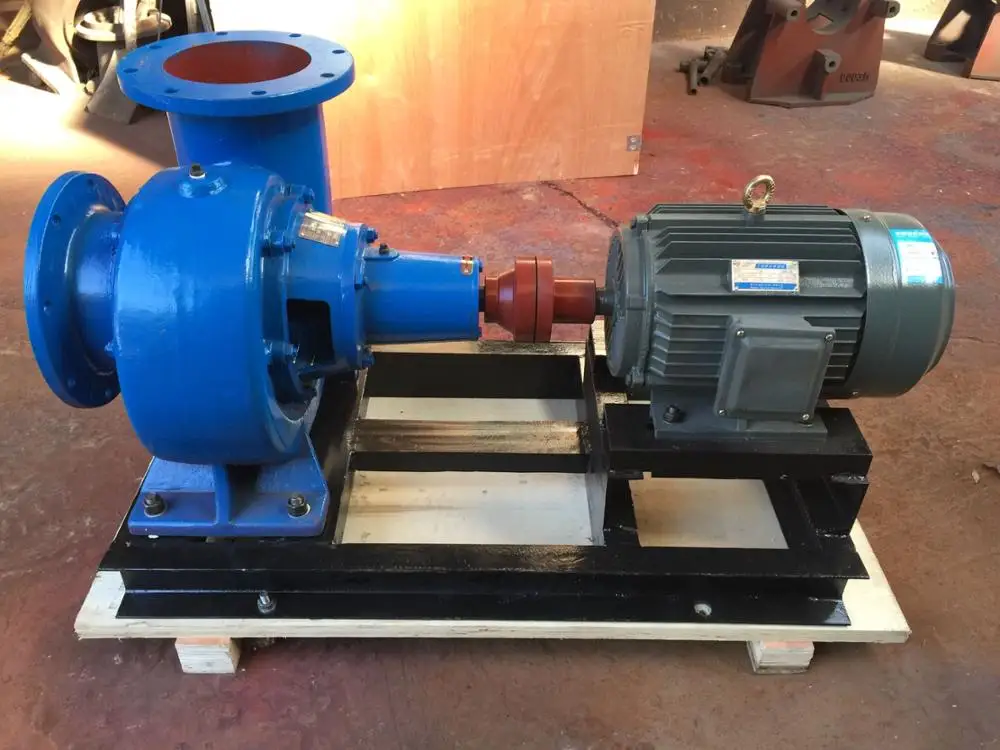

mixed flow pump with electric motor:





OEM	Acceptable
MOQ	1 Set
Price	Negotiable
Port	Tianjin
Payment	T/T, L/C, Western Union
Supply ability	3000sets/Quarter
Packaging	Export wood case or as customer’s request
Delivery time	5-25days according to the order quantity
Shipping	By sea, by air, by train
Order	FCL, LCL









Q1. What is your product range?

Centrifugal pump, slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, single stage pump, double suction pump, industry pump, oil pump, paper pulp pump, mud pump, self-priming pump, pipe water pump, boiler water pump, etc.

Q2. Are you a manufacturer?

Yes, we have been in manufacturing and marketing industry centrifugal pump over 20 years.

Q3. What information should I let you know if I want to get a quotation?

Pump capacity, pump head, medium, medium temperature, pump material, quantity, if possible, please also provide the pump model you are using now, price will be calculated as per the pump model, if not, we will recommend relevant product for reference.

Q4. Do you impact the finished product?

Yes, each batch of production and finished product will be quality checked strictly before deliverin
