power relay 1a 1c 16A 250VAC 30VDC small high power relay PCB 0.2W 0.25W 0.45W 0.6W relay

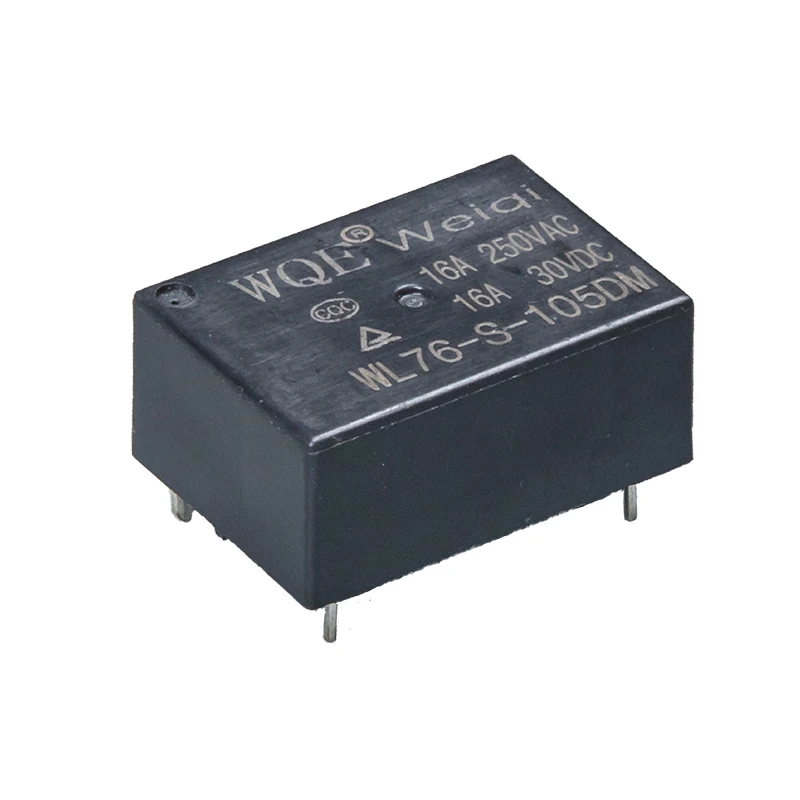

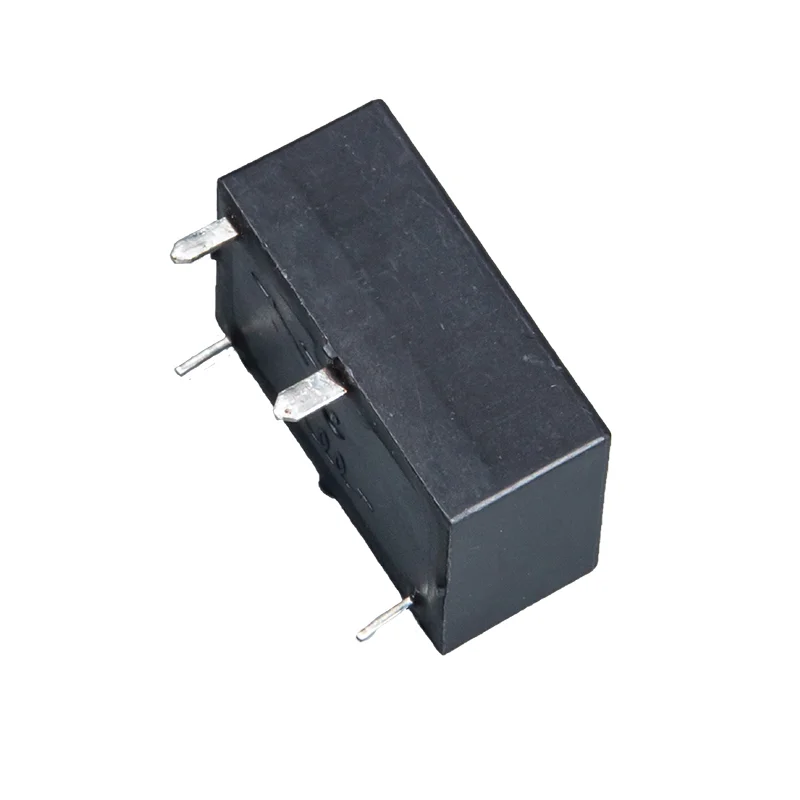

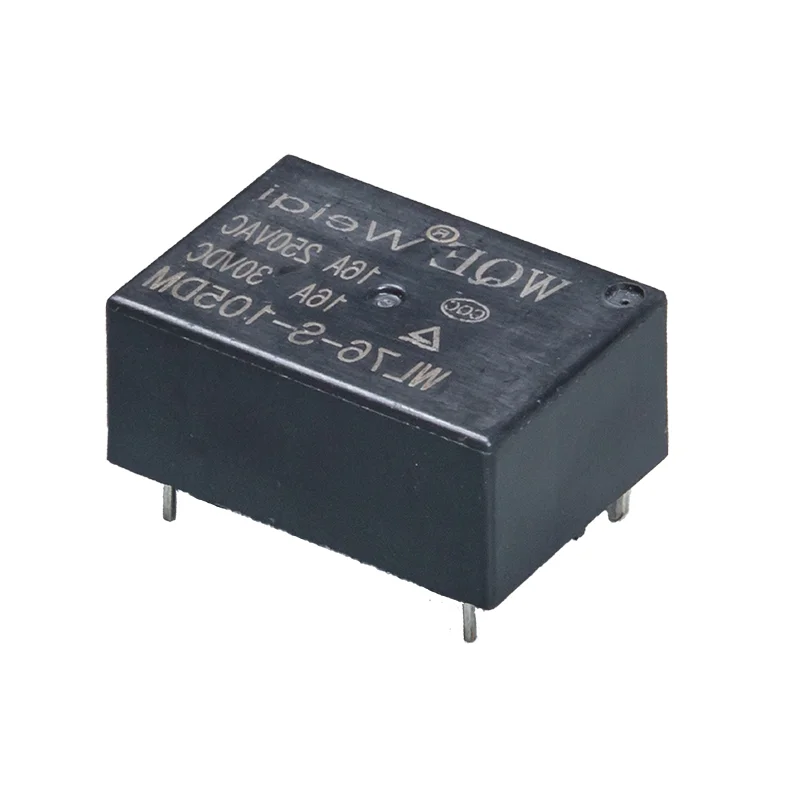

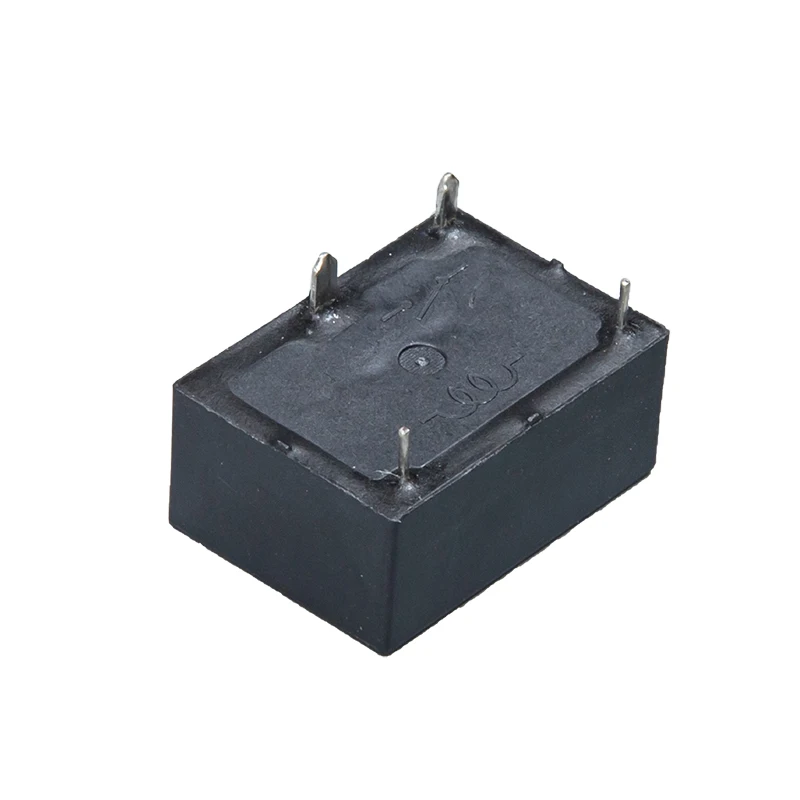

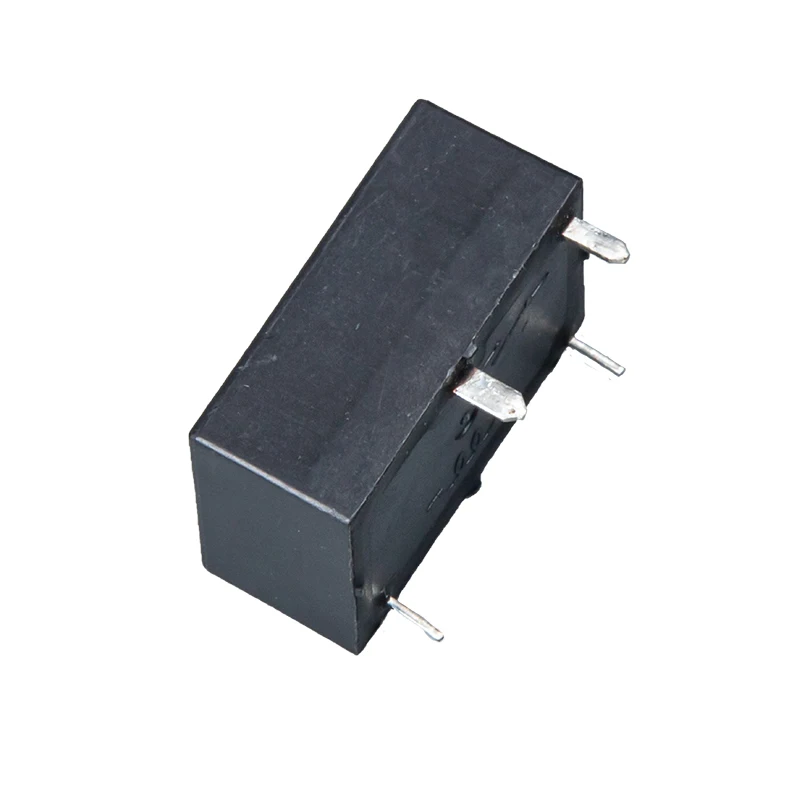

WL76-S-105DM
1.Up to 16A contact switching capability
2. Plastic sealed and flux proofed types)
3. Low height,flat construction

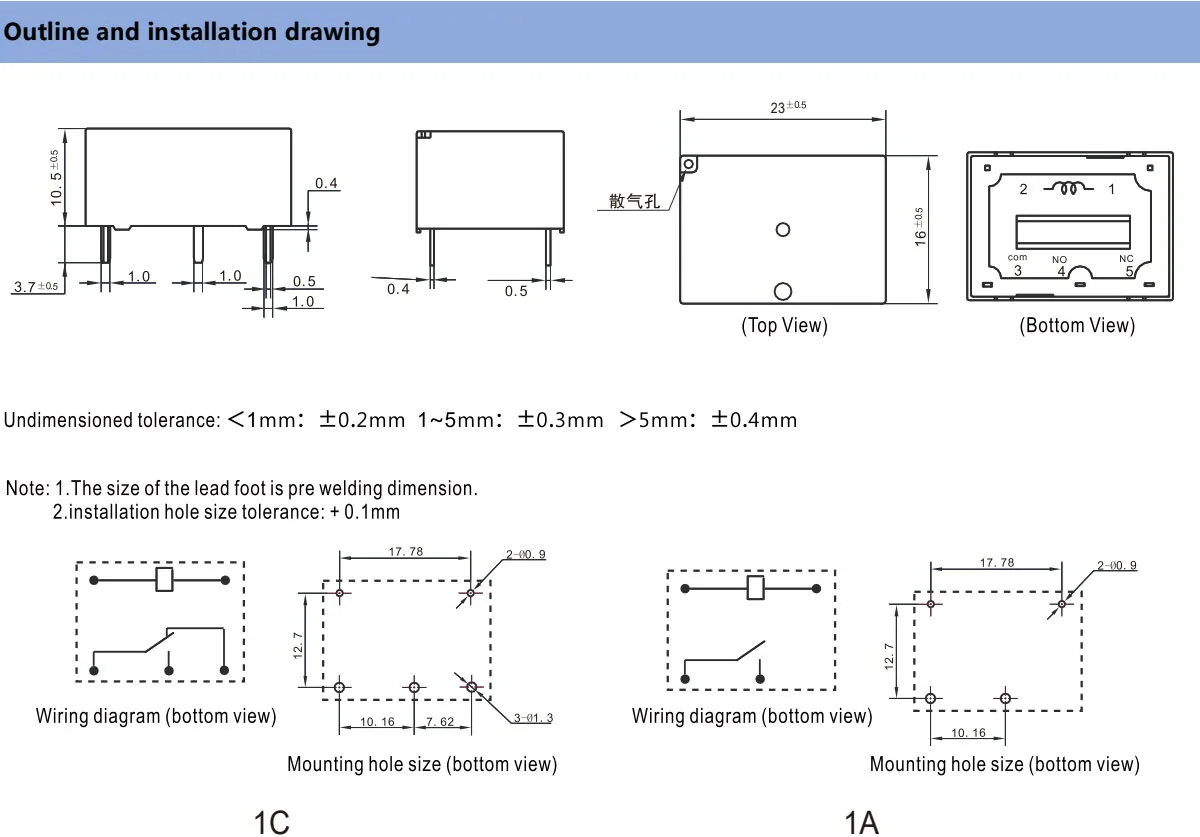

4. Overall dimensions
（23.0×16.0×10.5）mm




Contact load
Model

WL76
Contact Arrangement
1A(SPSTNO)
Maximum switching current
16A
Maximum switching voltage
277VAC/30VDC
Maximum switching power
4432VA/480W
Rated load (resistive)
16A/277VAC;16A/30VDC
Performance parameter
Model
WL76
Contact resistance
Max 100MΩ
Action time
≤10ms
Release time
≤5ms
Insulation resistance
Min 100MΩ （500VDC)

 Dielectric Strength
Between contacts
AC 750VAC 50/60Hz 1min

Between contact coils
AC 2500VAC 50/60Hz 1min

To attack
Stability
98m/S2
Strength
980m/S2
Vibration
10~55Hz 1.5mm Double Amplitude
Mechanical endurance min
2×104
Electrial eddurance min
2×105
Humidity
5%~85%RH
Ambient temperature
-40℃~105℃
Weight
Approx.10g




Coil parameters                                                                                                                                              （at 20°C）
Coil Voltage

Coil Resistance
Pick-up Voltage
70% of rated voltage
Drop-out Voltage
 10% of rated voltage
Coil Power
 Rated
 Max


VDC
Ω±10%
VDC
VDC
W
5
6.5
70
3.75
0.25


0.36
9
6.5
225
6.75
0.45

12
6.5
400
0.9
0.6
24
6.5
1600
18
1.2
5
6.5
56
3.75
0.25


0.45
9
6.5
180
6.75
0.45
12
6.5
320
9
0.6
24
6.5
1280
18
1.2
 Safetu standard

Certification category

CQC

TUV

UL

Certified load
16A 277VAC/30VDC
16A 277VAC/30VDC
16A 277VAC/30VDC






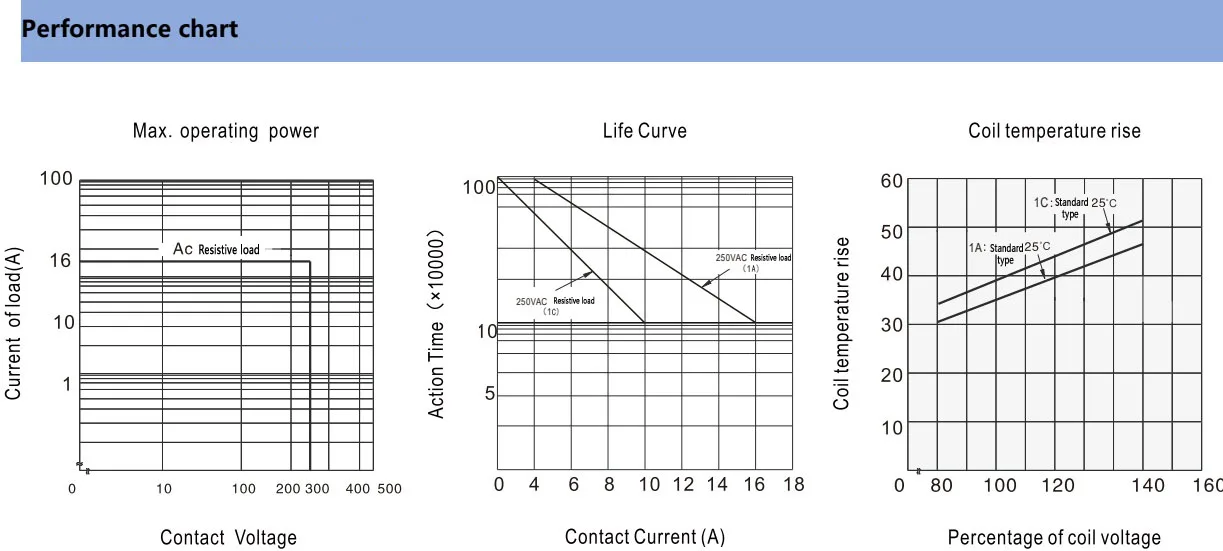

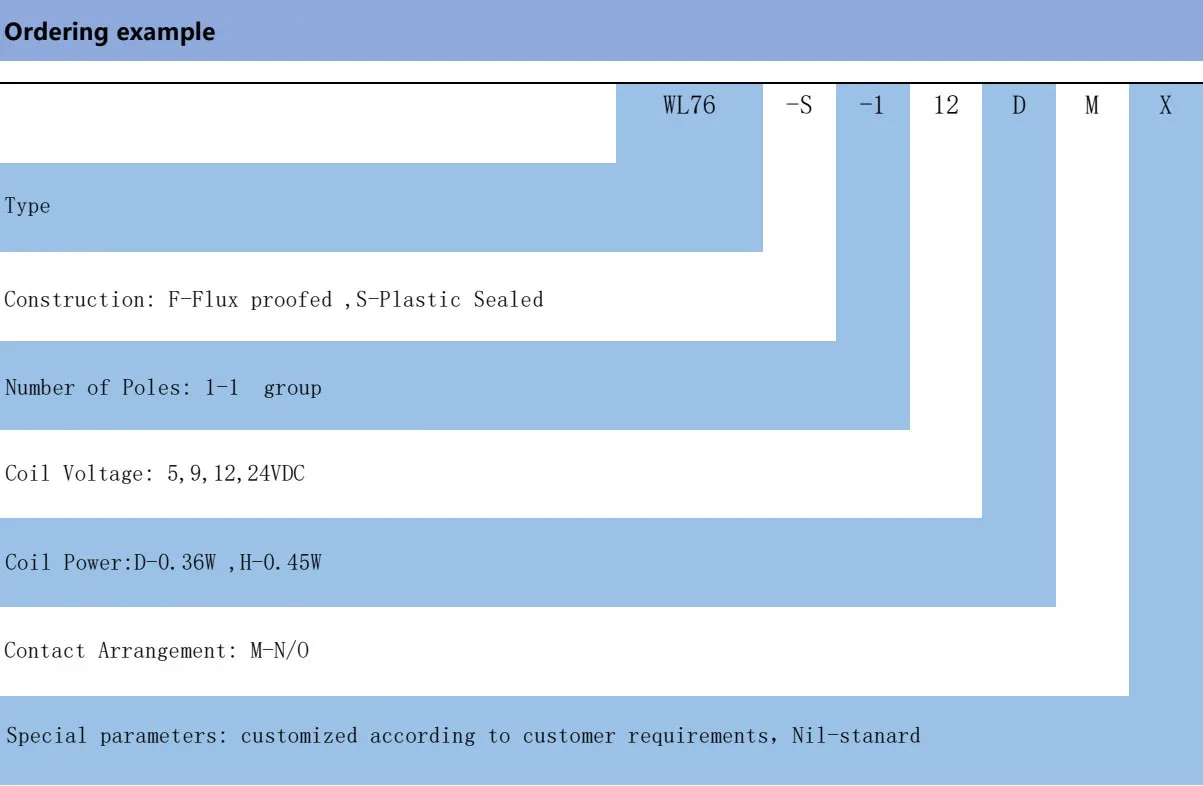

Product Usage
