Products Description




LUYBLOC® MODULE / Monolithic Fiber Module
LuYbloc® module is a blocky monolithic fiber module which is made from high-purity synthetic materials. It is manufactured in a fully automated control continuous production line using ceramic fiber bulk slabs.

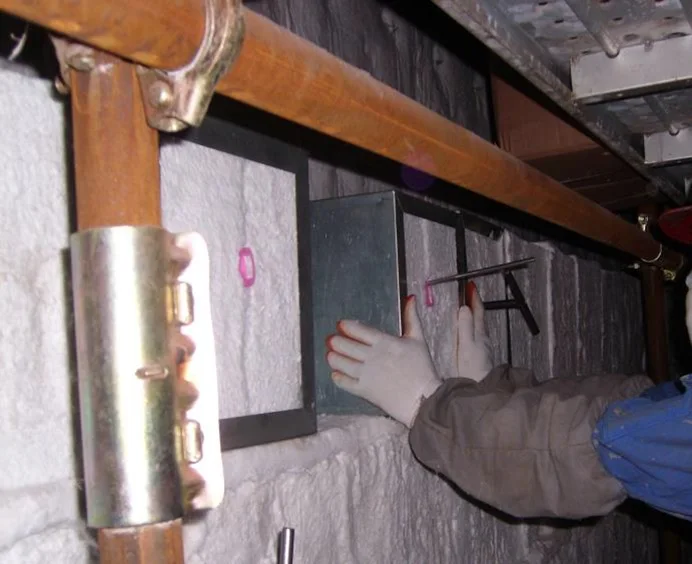

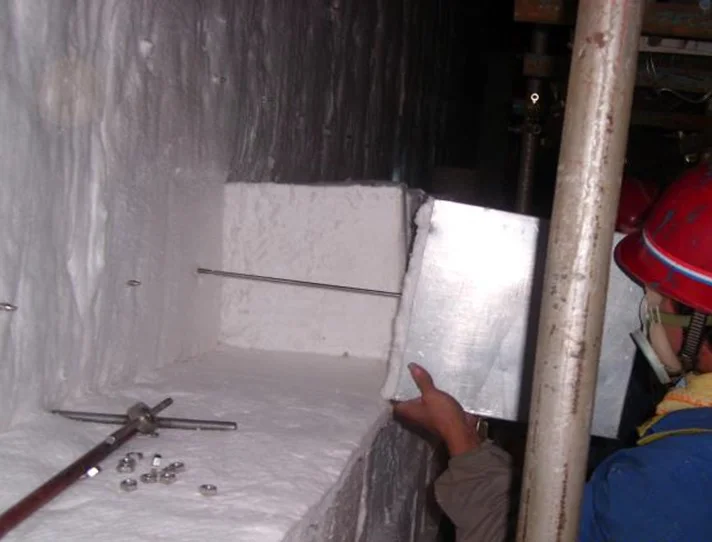

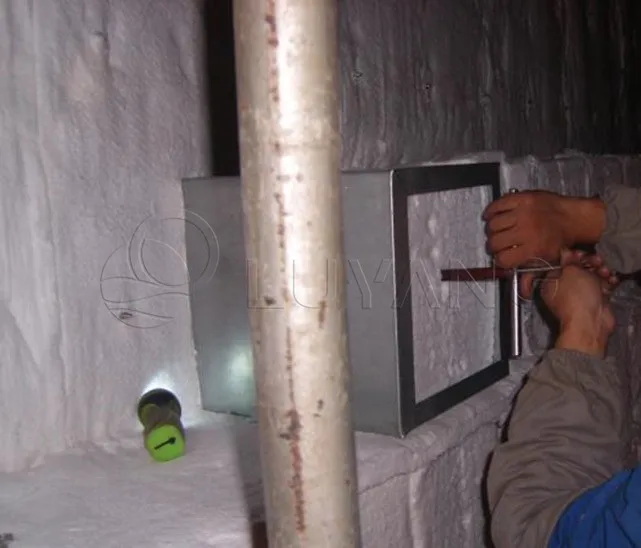

LuYbloc® module is installed with a new special anchor and installation tools to ensure high extrusion between modules, convenient and quick installations, firm positioning and safe structures.
LuYbloc® module is a brand-new and high-end product provided by Luyang to customers. It is a unique product in the application of ceramic fiber linings.




Features
Multiple directions compression-It can be compressed in any direction, which can achieve full expansion of the installation
direction in the furnace lining and good thermal insulation.
Completed seamless structure-After calcination, the product is transformed into a high-strength, seamless and solid structure from ,a soft and compressible monolithic block, which is high integrity and firmed.
Low shrinkage in high temperature-The cold surface of the product can be closely attached to the furnace wall to achieve maximum extrusion between blocks, ensuring low shrinkage in high temperature and achieving structural integrity.
Customized-It is suitable for extensive planar structures and also for cutting and installation of shaped parts. Various shaped products can be manufactured according to the different shapes of the equipment.


Typical Parameters


Description
LuYbloc® Module 24
Classification Temperature (℃ )
1316
Color
White
Shot Content (%)
≤10
Density (kg/m³)
160
192
240
Permanent Linear Shrinkage (%)
1200℃ x 24h ≤3
Thermal Conductivity (W/m·K)
400℃
≤0.09
600℃
≤0.14
800℃
≤0.20
1000℃
-
Standard Size (mm)
Length
305
Width
305
Thickness
76-305


Application




Typical Applications
LuYbloc ® module can be used in various industrial fields for thermal insulation.
The main applied industries are as followings:
Forge furnace
Heat treating furnace
Refining and Petrochemical
Ceramic industry kiln
Incinerators
Reformer, ethylene furnace

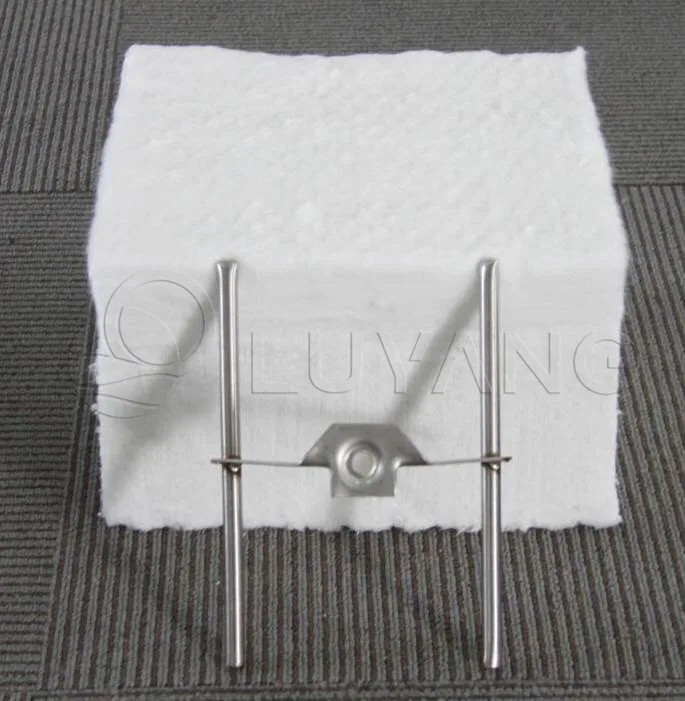

Monolithic Modules are engineered with an internal anchoring hardware system that allows fast and secure attachment to furnace casings. The monolithic blocks can easily be cut to shape on site if necessary.
Monolithic Modules provide easily to use, efficient thermal lining for all types of high temperature processing equipment such as:
* Process heaters
* Heat treating furnaces
* Forge furnaces
* Reformers, ethylene furnaces
* Incinerators
* All furnace linings requiring a pre-weld stud pattern or protective barrier against shell
