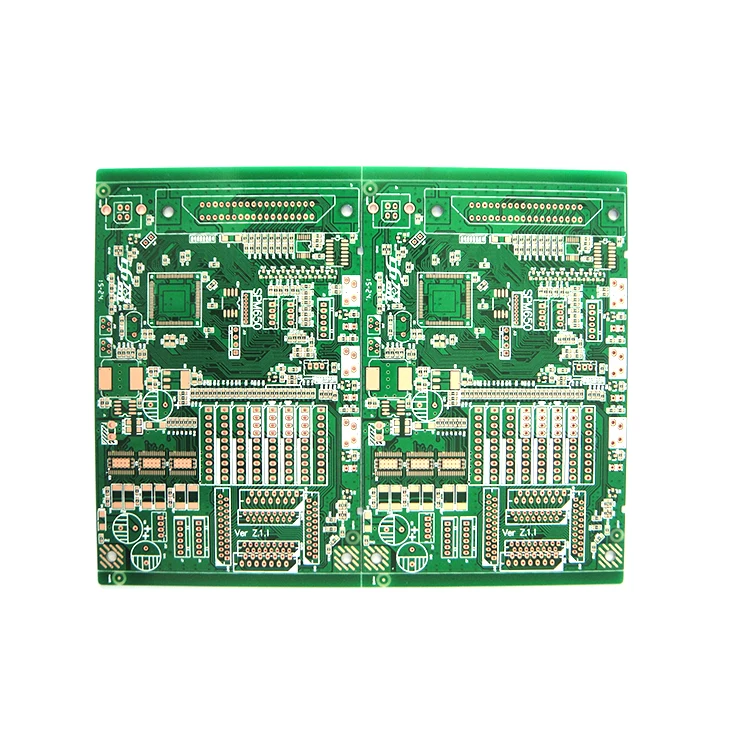

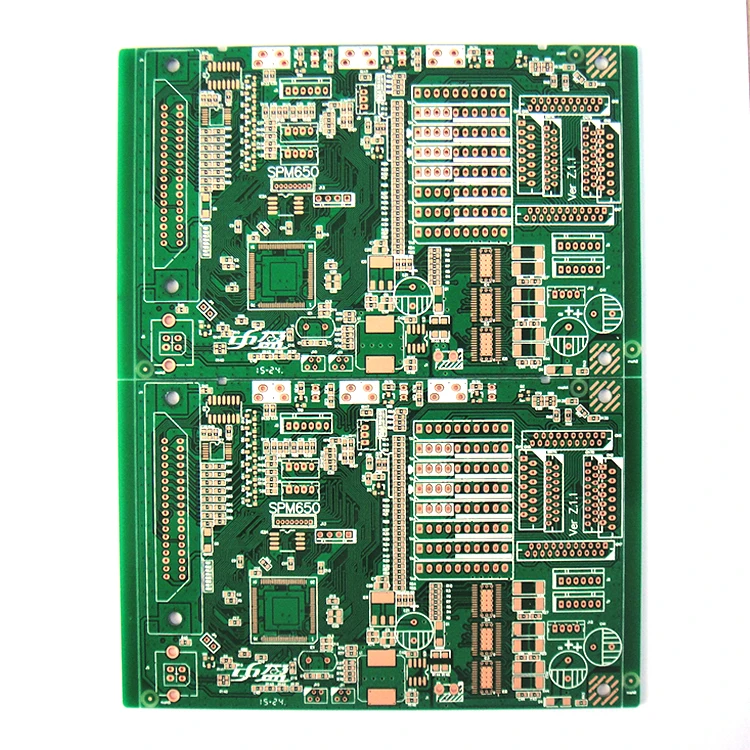

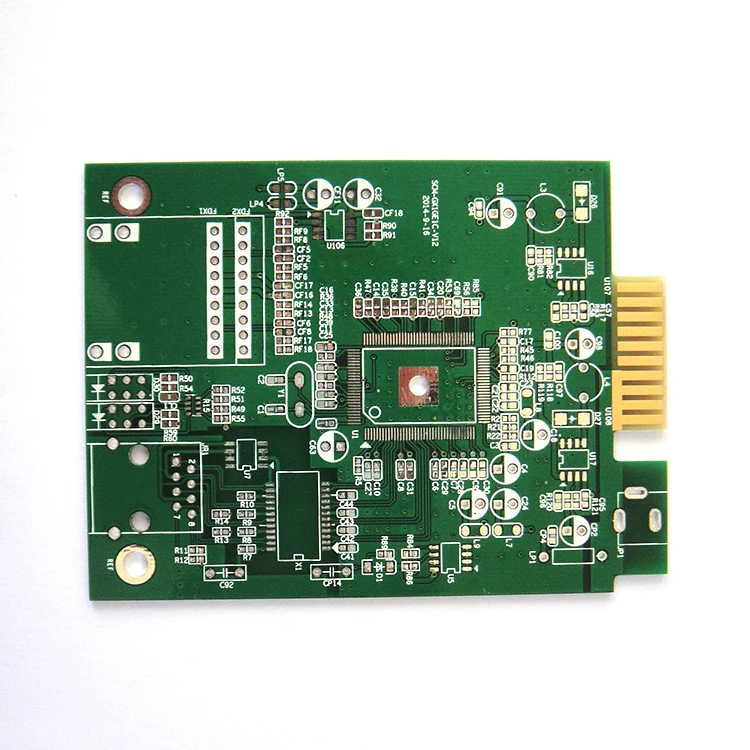

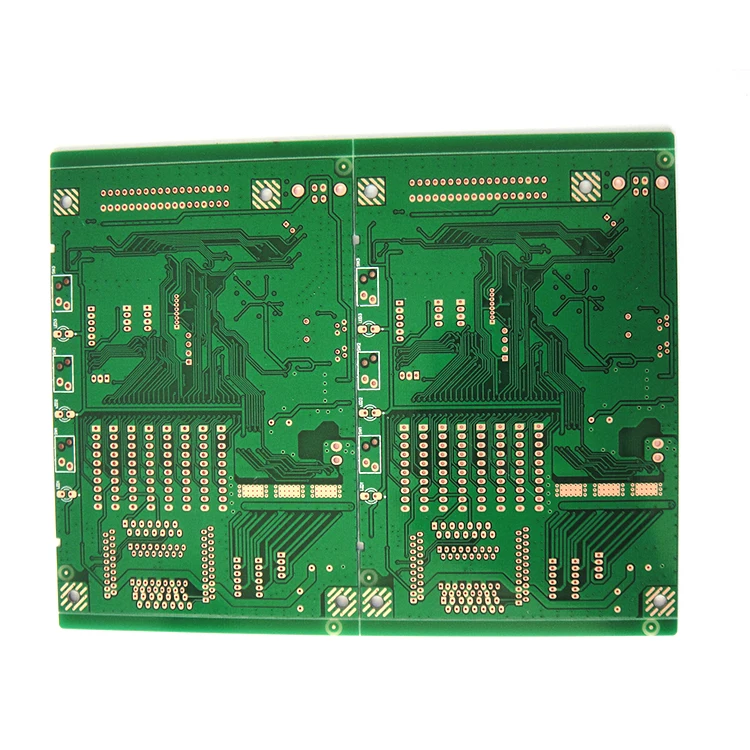

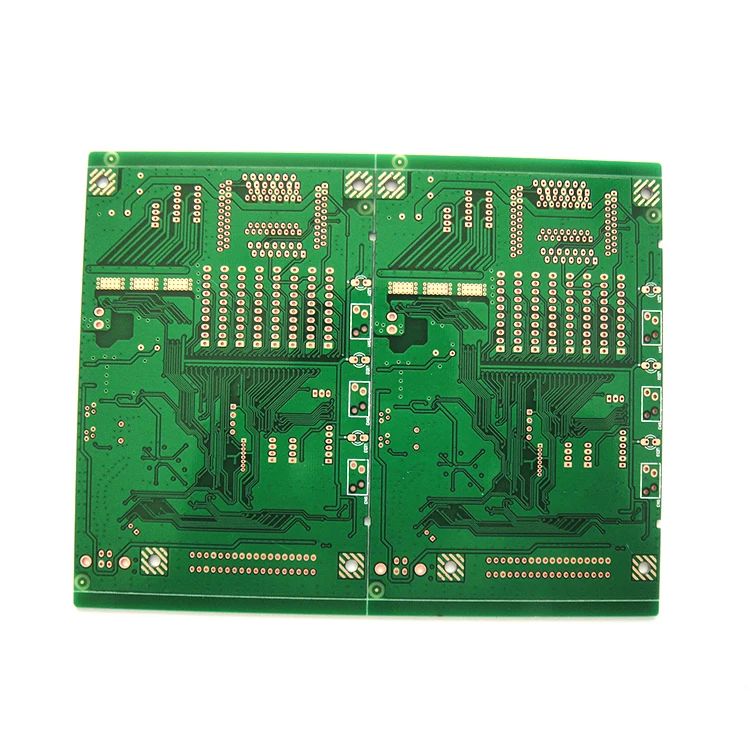

Attractive Price New Type Electronic Components Button Tv Box Pcb
- Category: >>>
- Supplier: Shenzhen Youqin Electronics Co. Ltd.
Share on (1600470253596):
Product Overview
Description
If you have any questions about the product.
For a better price
Click here to communicate directly with us online!
For a better price
Click here to communicate directly with us online!
Products Description
Type: | PCB & PCBA |
Model Number: | Programming Board |
PCB Portfolio: | 1-20 layers, Standard, HDI, High-TG, RF PCBs |
Service: | Prototype service, Material sourcing, PCB assembly, Conformal coating, Function test, Box build |
Application: | Industrial, Automobile, Aviation, Medical, Electronics |
PCB Portfolio: | 1-20 layers, Standard, HDI, High-TG, RF PCBs |
Base Material: | FR4, Modified Epoxy, Polyimide, PTFE, Glass, AL, FPC |
Copper Thickness: | 0.5 OZ, 1 OZ, 1.5 OZ, 2 OZ, 3 OZ |
Board Thickness: | 0.2-5.0 MM |
Surface Finishing: | OSP, HAL leadfree, ENIG, Immersion Tin etc. |
Solder Mask Color: | Blue, Green, Red, Black, White.etc |
Min. Width/Space: | 0.075 MM |
Min. SM Bridge: | 0.1 MM |
Min. Hole Dia: | 0.1 MM |
Min. Component Size: | 01005 |
Solder Printer Accuracy: | ±25um |
Multi-function Mounter Accuracy: | ±30um |
Impedance Control Tolerance: | ±5% |
Max. Stencial Size: | 740 x 740 MM |
IC Package: | DIP, SOP, SOJ, PLCC, QFP, QFN, BGA, POP etc |
PCB Capacity: | 55000 Square Meter/Month |
SMT Capacity: | 14 Million Chips/Day |
DIP Capacity: | 1.2 Million DIP Holes /Day |
Packaging Details: | Vacuum packing, Anti-static package (or in your requirement) |
Port: | Shenzhen, Hongkong |
Our Advantage
1.Strong engineering group and R&D team
2.Conformal coating available to extend product life
3.Test: AOI, In-Circuit Test (ICT), Functional Test (FCT), FAI and Final products test
4.IC programming
5.30% discount of PCBA service cost for PCBA prototype order,or refund all PCBA service cost when placing mass-production PCBA order.
6.No MOQ and quick delivery
7.9 advanced SMT lines 2 DIP lines
Min. chip size down to 01005
SMT capacity: 24 Million chips per day
DIP capacity: 5 Million chips per day
Support precision package including: SOP, QFN, QFP, BGA, uBGA
First-class facilities: automatic solder-paste printer, SPI, pick-up and placement machines,
Online AOI and X-ray instruments
2.Conformal coating available to extend product life
3.Test: AOI, In-Circuit Test (ICT), Functional Test (FCT), FAI and Final products test
4.IC programming
5.30% discount of PCBA service cost for PCBA prototype order,or refund all PCBA service cost when placing mass-production PCBA order.
6.No MOQ and quick delivery
7.9 advanced SMT lines 2 DIP lines
Min. chip size down to 01005
SMT capacity: 24 Million chips per day
DIP capacity: 5 Million chips per day
Support precision package including: SOP, QFN, QFP, BGA, uBGA
First-class facilities: automatic solder-paste printer, SPI, pick-up and placement machines,
Online AOI and X-ray instruments

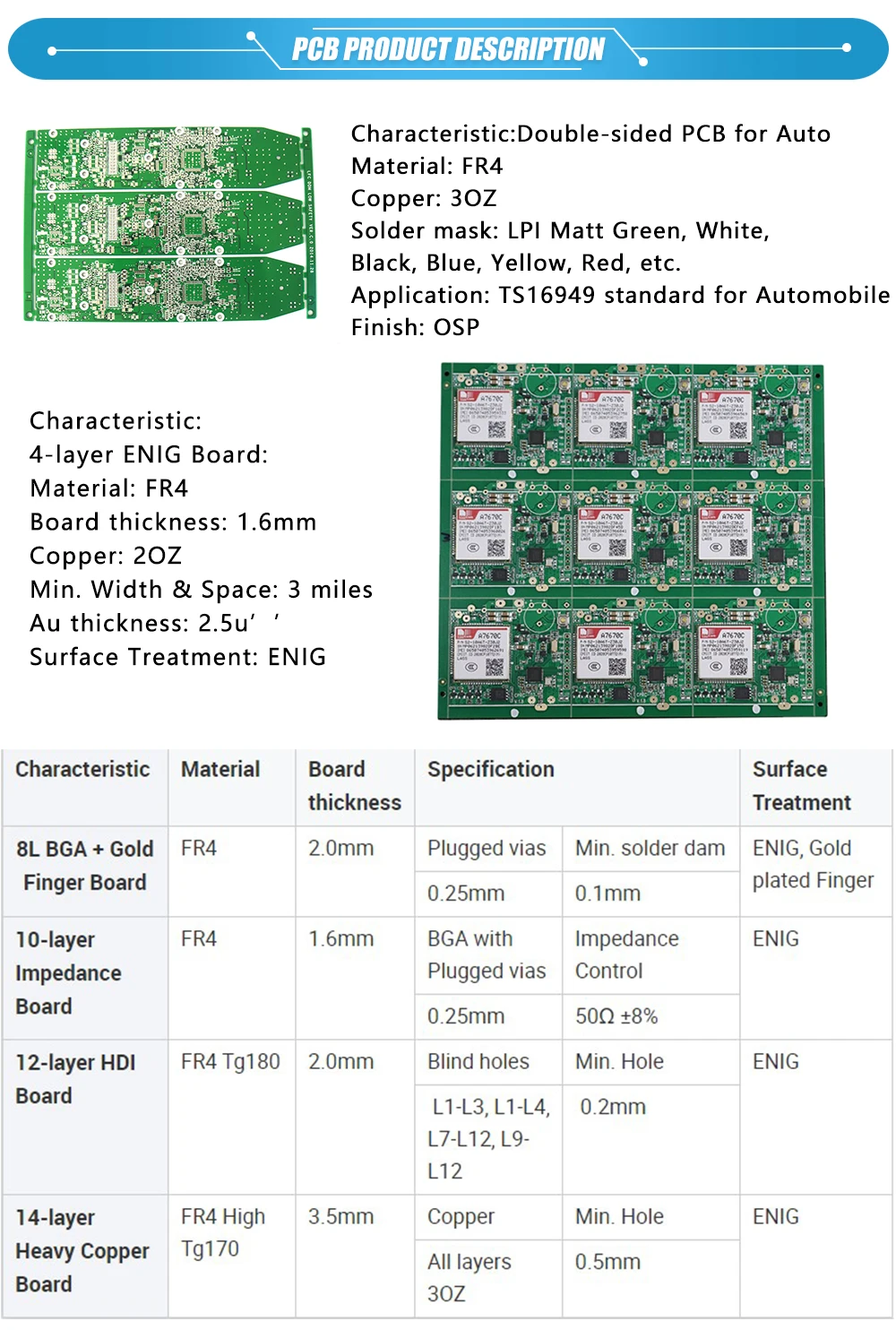

Product Details
