Zetron MIC500 Fast Response Odor Gas Leak Detector O3 For Landfill With Built In Pump
- Category: >>>
- Supplier: Beijing Zetron Technology Co. Ltd.
Share on (1600470278713):
Product Overview
Description
overview

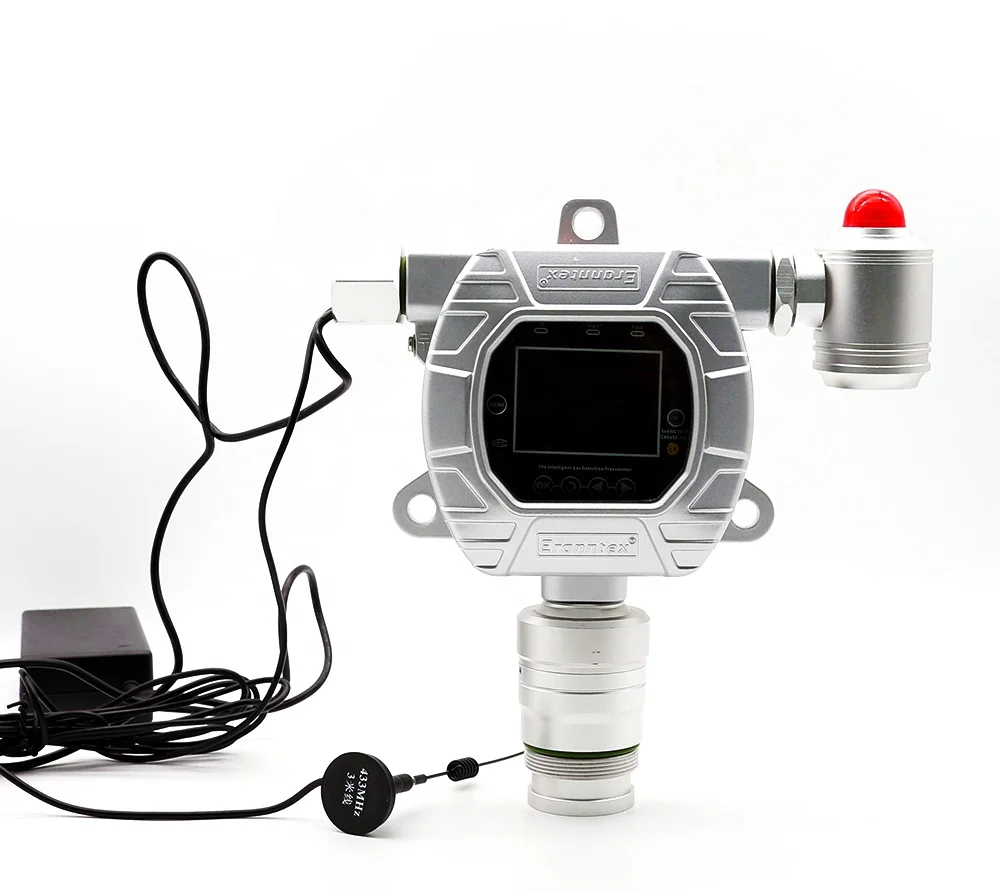

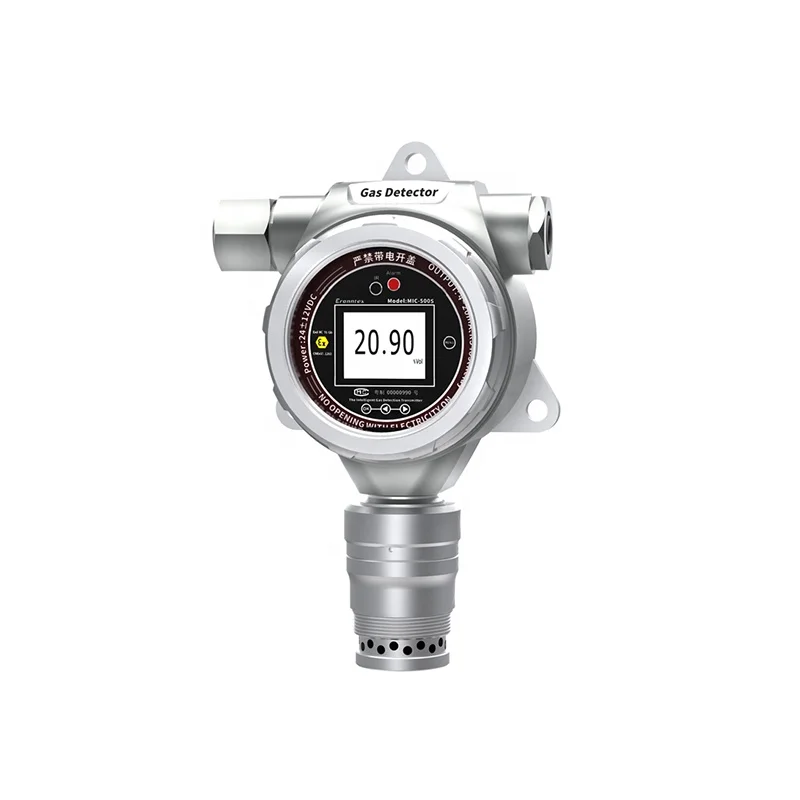

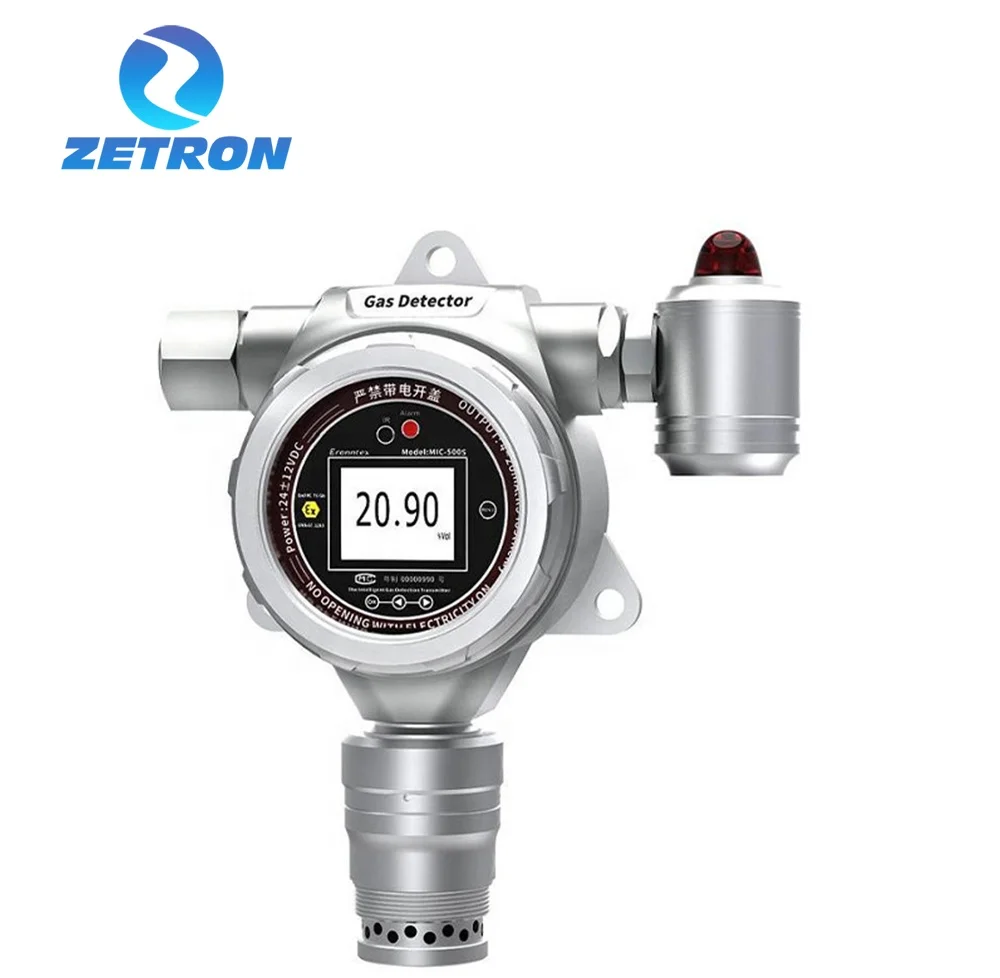

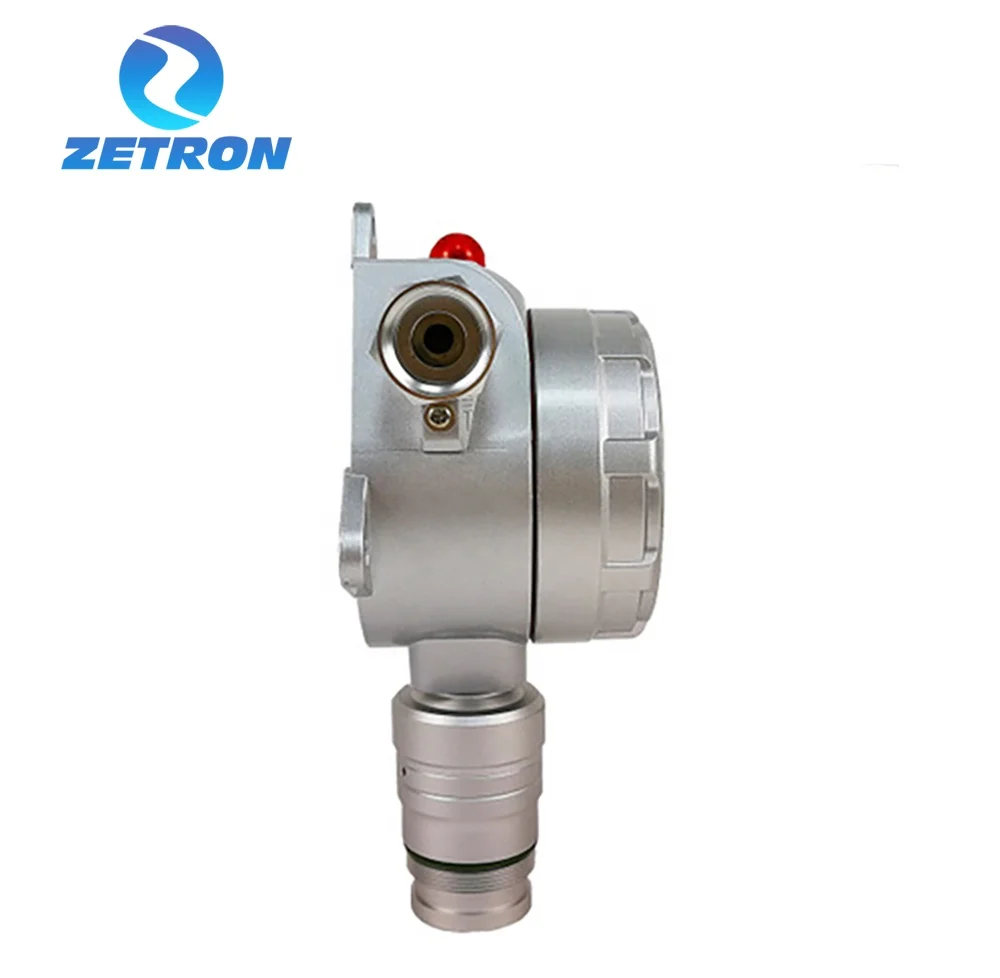

Zetron MIC500 Fast Response Odor Gas Leak Detector
O3 For Landfill With Built In Pump
Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors.
Zero-point automatic tracking; long-term use will not be affected by the zero drift.
Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.
Chinese or English interfaces can be selected.
Broad operating temperatures: -40～+70℃, and temperature compensation is supported.
Record the calibration logs, repair logs, failure history, failure countermeasure solutions, sensor service life due reminder, and function of reminder for the time of next concentration calibration.
Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors.
Zero-point automatic tracking; long-term use will not be affected by the zero drift.
Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.
Chinese or English interfaces can be selected.
Broad operating temperatures: -40～+70℃, and temperature compensation is supported.
Record the calibration logs, repair logs, failure history, failure countermeasure solutions, sensor service life due reminder, and function of reminder for the time of next concentration calibration.
Gases to be detected | Range | Accurancy | Resolution | Response time T90 |
Ozone ( O3 ) | 0-100ppm | ＜±2%(F.S) | 0.01ppm | ≤20 seconds |
Nitrogen oxide ( NOX ) | 0-100ppm | ＜±2%(F.S) | 0.01ppm | ≤30 seconds |
Chlorine gas ( CL2 ) | 0-10ppm | ＜±2%(F.S) | 0.001ppm | ≤30 seconds |
Ammonia gas ( NH3 ) | 0-100ppm | ＜±2%(F.S) | 0.01ppm | ≤30 seconds |
Oxygen gas ( O2 ) | 0-30%Vol | ＜±2%(F.S) | 0.01%Vol | ≤10 seconds |
Nitrogen gas ( N2 ) | 0-100%Vol | ＜±2%(F.S) | 0.01%Vol | ≤10 seconds |
Carbon monoxide ( CO ) | 0-100ppm | ＜±2%(F.S) | 0.1ppm | ≤25 seconds |
Carbon dioxide ( CO2 ) | 0-100%Vol | ＜±2%(F.S) | 0.01%Vol | ≤30 seconds |
Formaldehyde ( CH2O ) | 0-100ppm | ＜±2%(F.S) | 0.01ppm | ≤30 seconds |
Ozone ( O3 ) | 0-100ppm | ＜±2%(F.S) | 0.01ppm | ≤20 seconds |
Note: Not all gases and range are listed, if you need more information, please contact us.
Measuring Parameters
Gas | Ozone ( O3 ) | Range | 0-100ppm other ranges can be customized | ||
Size | 210×170×85mm (L×H×W) | Weight | 1.8 Kg | ||
Installation method | Pipeline Type Wall Mounting Type | Display | 1.7-inch high-definition color screen | ||
Environment | Temperature: -40 ℃ ~ + 70 ℃ Humidity: ≤10 ~ 95% RH (regular) | Approvals | IP65; Exd Ⅱ CT6 | ||

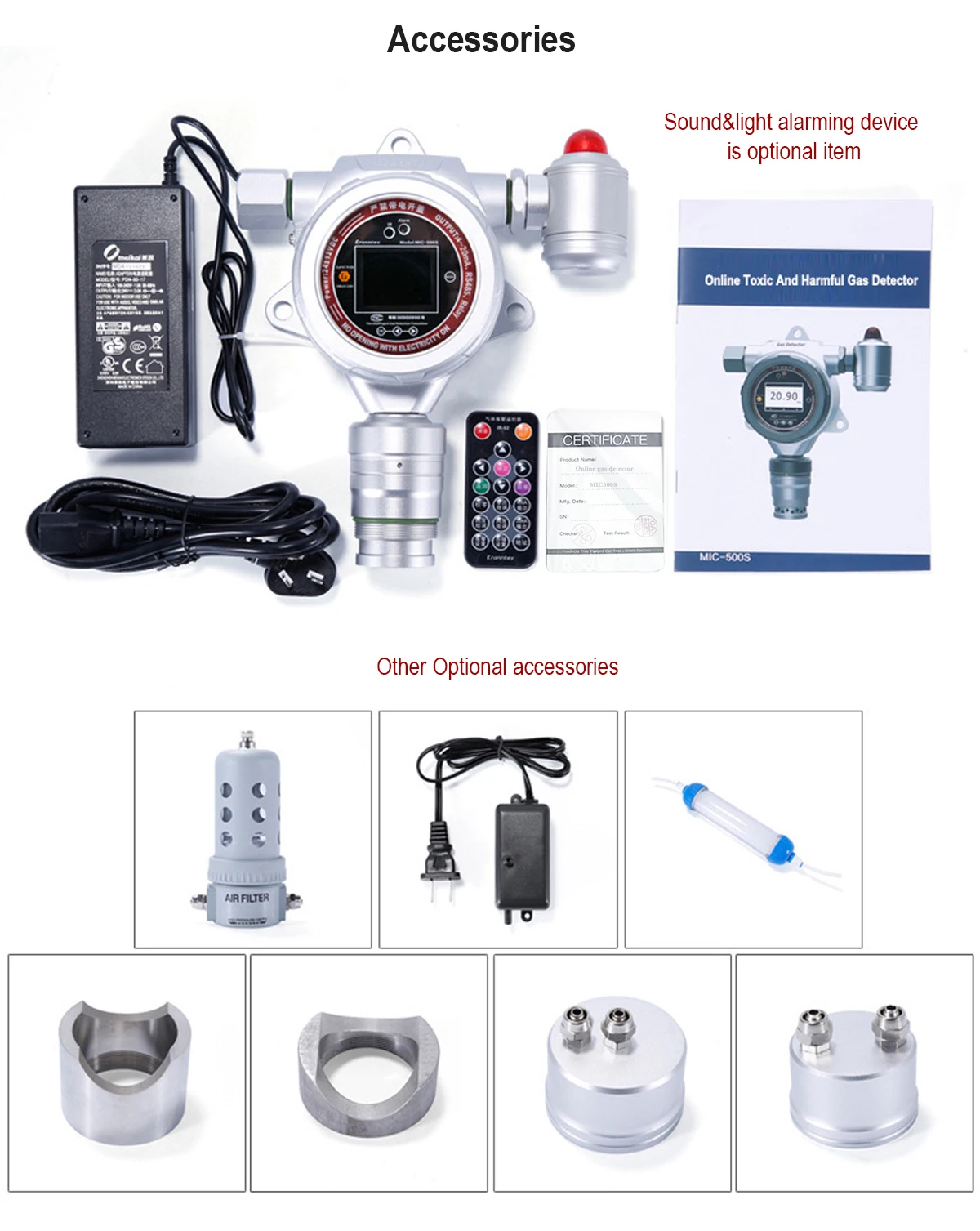

Accessories | Manual, qualification certificate, warranty card, outer packaging box | ||||
Working Voltage | 12 ~ 30VDC direct current, the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A | ||||
Working Method | Fixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type. | ||||
Connecting Cable | Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth. | ||||
Optional items | Alarms;Wireless Transmission;Pretreatment System; SD Card; Temperature and Humidity Measurement; Accessory for connection with computer for monitoring. | ||||
Installation Type Accessories (Optional configuration) | Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe), stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...), rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m), vacuum pump (sampling distance is 40 m), 24V switching power supply, pressure reducing valve, flow meters | ||||

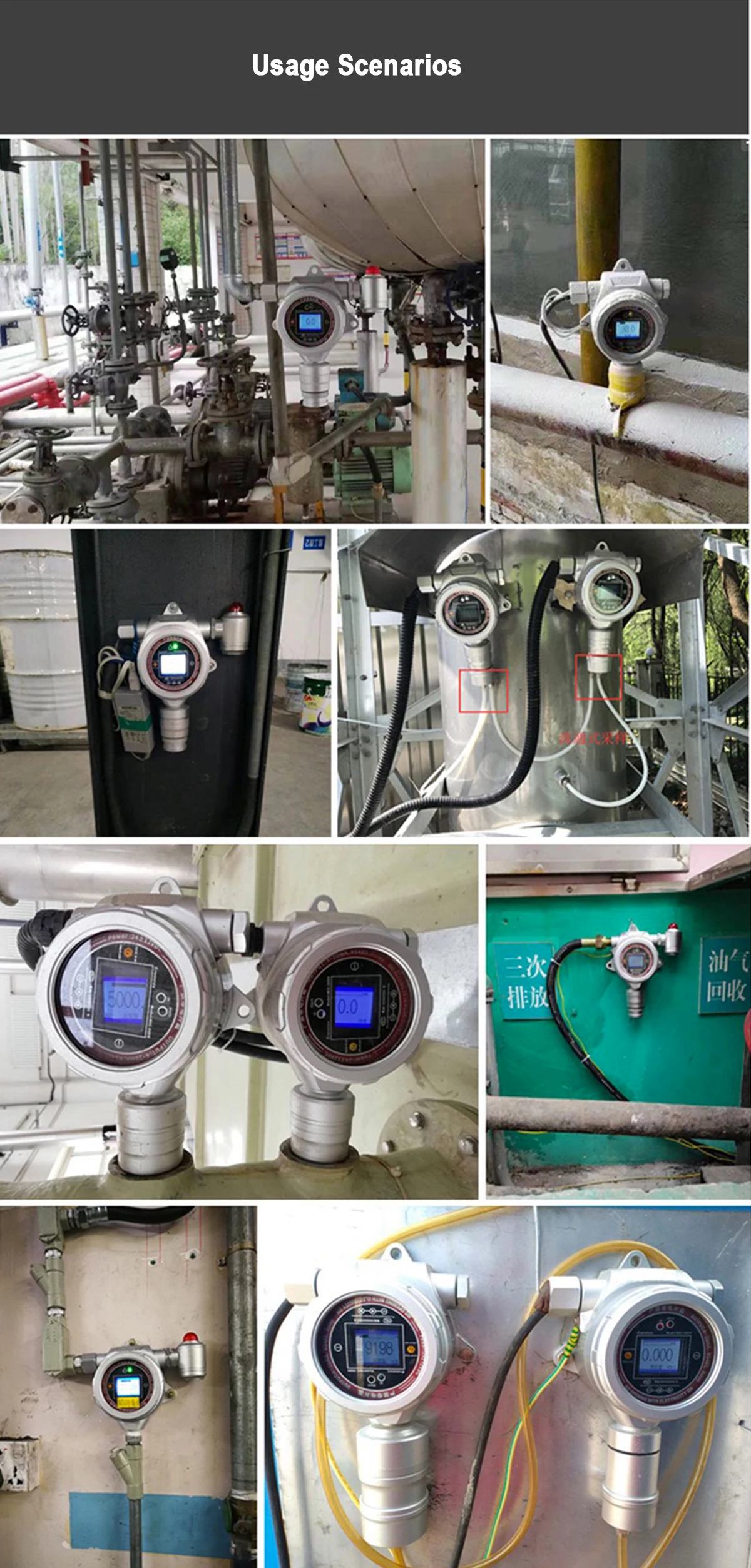

Application Scenes
Why Choose Us
We have almost 10 years experience in the retail, import and export of gas detection and monitoring equipment.
This experience has enabled us to form an organization based on knowledge and expertise and have allowed us to supply a range of gas detectors and monitors that are tailored to our customers needs and budgets.
This experience has enabled us to form an organization based on knowledge and expertise and have allowed us to supply a range of gas detectors and monitors that are tailored to our customers needs and budgets.
Our aim is to provide the best values products with high quality and style.To provide the new affordable and complete service for gas detection needs for the industrial, engineering and shipping market and our friendly staff are here to help with advice and prices.
So far, we have customers/buyers from over 20 countries/regions like Bulgaria, Brazil, Canada, China, Colombia,Germany, Iraq, Japan, Philippines, Russian Federation, Singapore, Taiwan, Thailand, Uruguay, United States, Ukraine, Vietnam, etc.
The list of countries still expanding.....
So far, we have customers/buyers from over 20 countries/regions like Bulgaria, Brazil, Canada, China, Colombia,Germany, Iraq, Japan, Philippines, Russian Federation, Singapore, Taiwan, Thailand, Uruguay, United States, Ukraine, Vietnam, etc.
The list of countries still expanding.....
