Automatic POF Film Thermal Wrapping Heat Shrink Film Packaging Machine
- Category: >>>
- Supplier: Wenzhou Kaixiang Packing Machinery Co. Ltd.
Share on (1600470302530):
Product Overview
Description

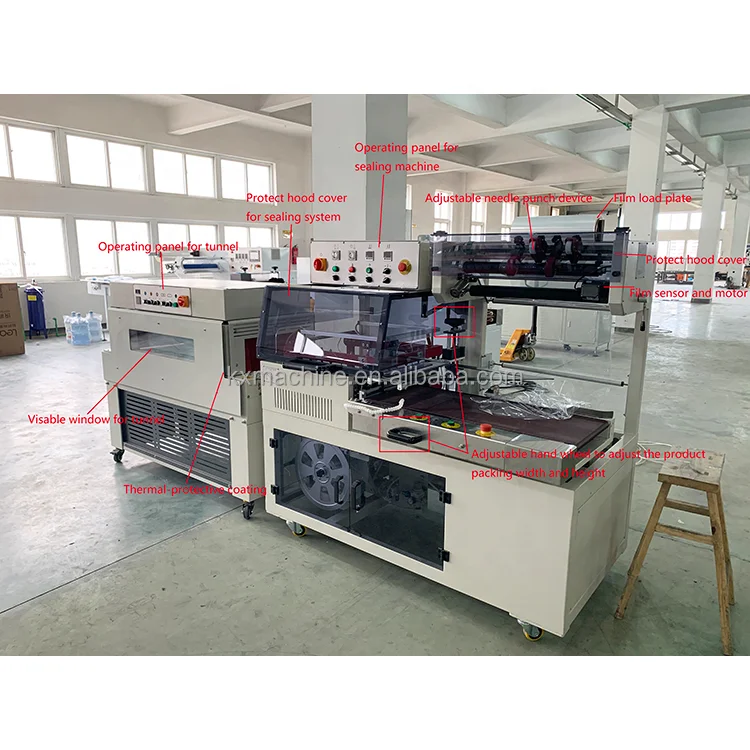

Automatic Heat Shrink Packing Machine
Product Description

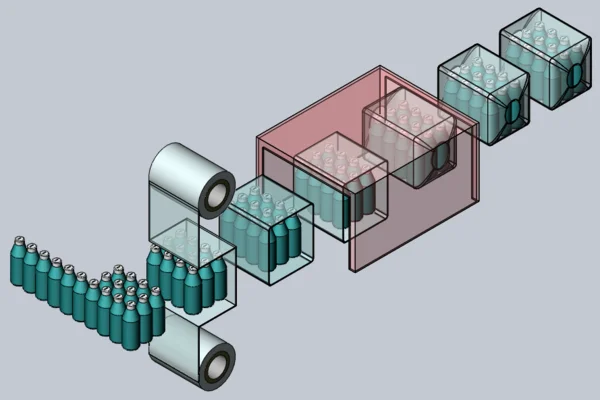

This machine use shrink film pack single or multiple medicine, foodstuff, cosmetic, chemical, auto parts and so on. Its max speed is 30packs/min.It can finish all actions automatically like covering with film, sealing, shrinking and so on. The bag length is controlled by photoelectric stepping motor; shrinking speed is controlled stepless; HMI and PLC control the whole machine. The malfunction can be show automatically when the machine is running. It can be used separately or in line with automatic boxing machine.
Product Sample:
Main Technical Parameters:
| Packed Material | PO, POF Shrinked Film |
| Packed Material Size | 0.012-0.05x200-500 (ThicknessxWidth)mm |
| Packed Material Diameter | Max 250mm |
| Electric | 380V/50Hz 220V/60Hz |
| Power | 8.5KW |
| Air Pressure | 0.5MPa |
| Capacity | 20-30packages/min |
| Max Packing Size | 400x320x125mm (LXWXH), W+H<400mm |
| Shrinking Speed | 0-10m/min |
| Overall Dimension | 3600x850x1600mm (LXWXH) |
| Weight | 550kgs |
| Machine Material | 304 stainless steel |
Contact Information:
Sales Manager:Jessica
Tel:+86 18066313102 (whatapp)
Add: NO.1455 East Songpu Road Nanbin Street, Ruian City
Zhejiang Province, China
Nearest train station: Ruian Station
Nearest airport: wenzhou airport
