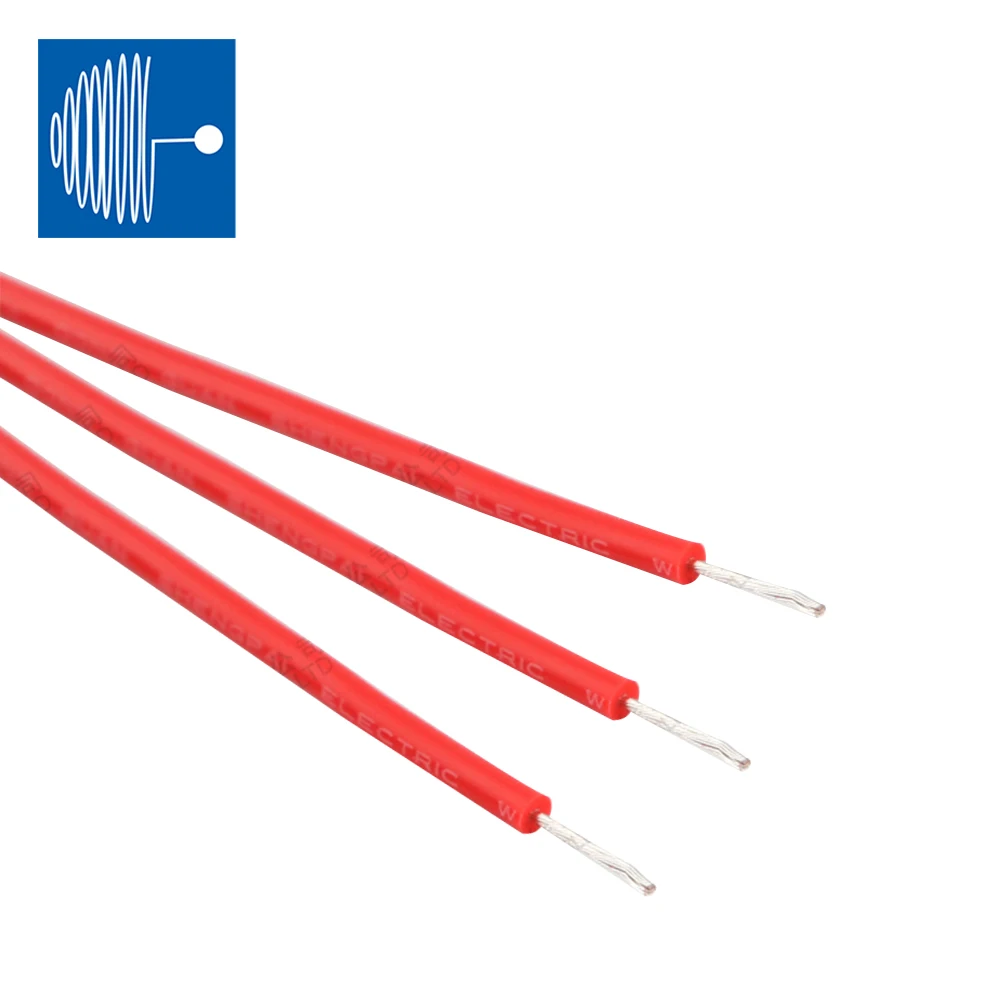

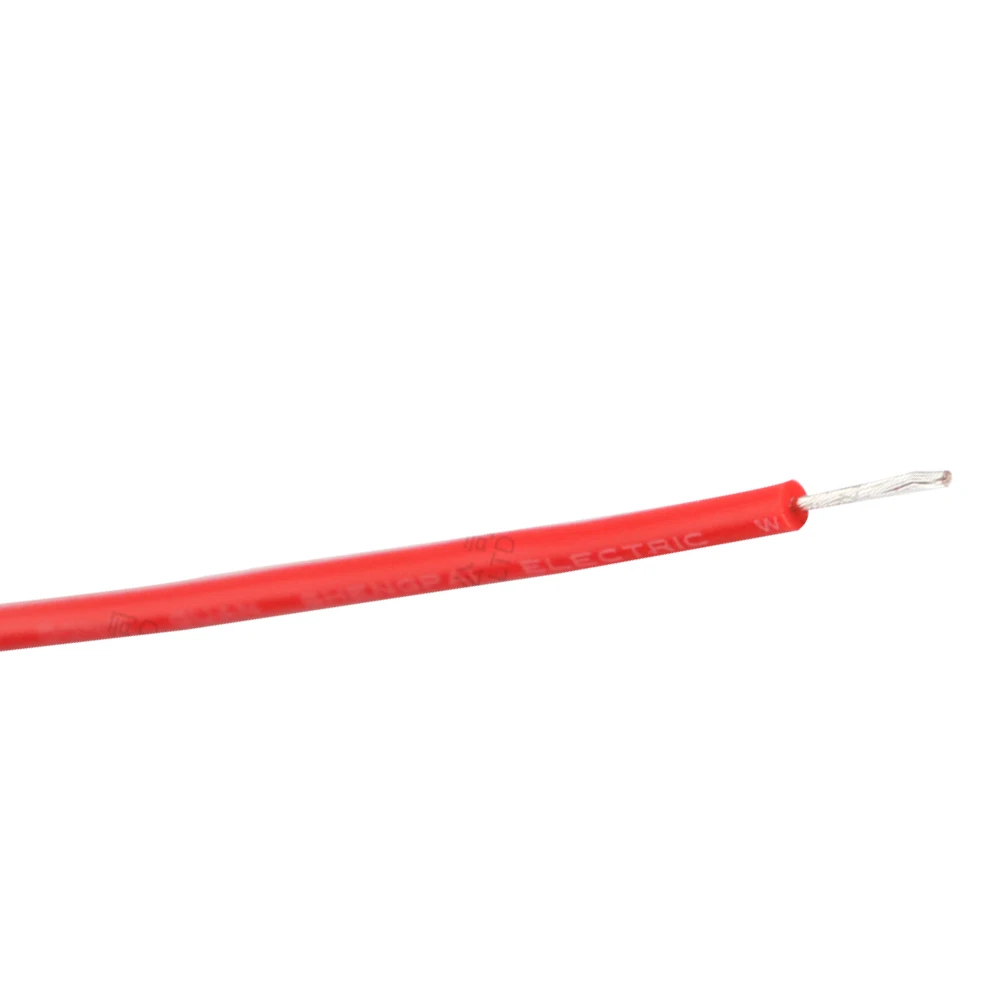

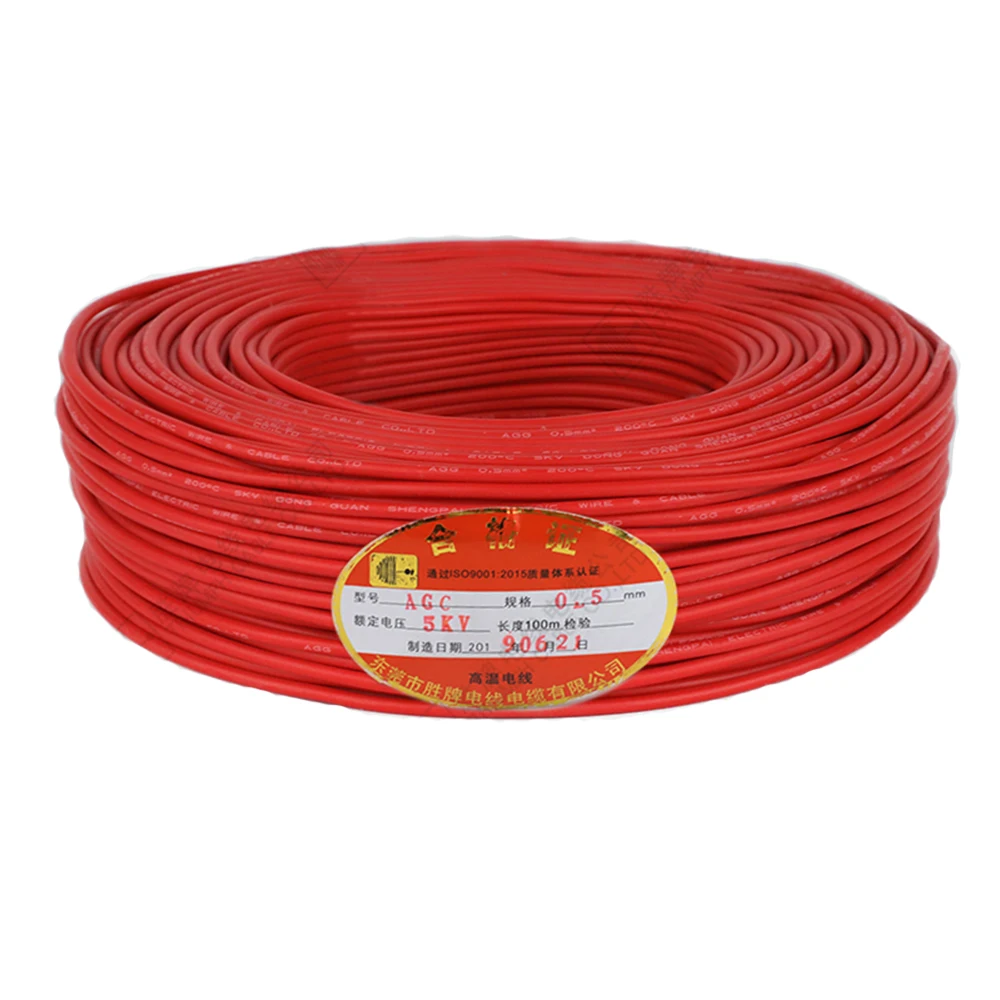

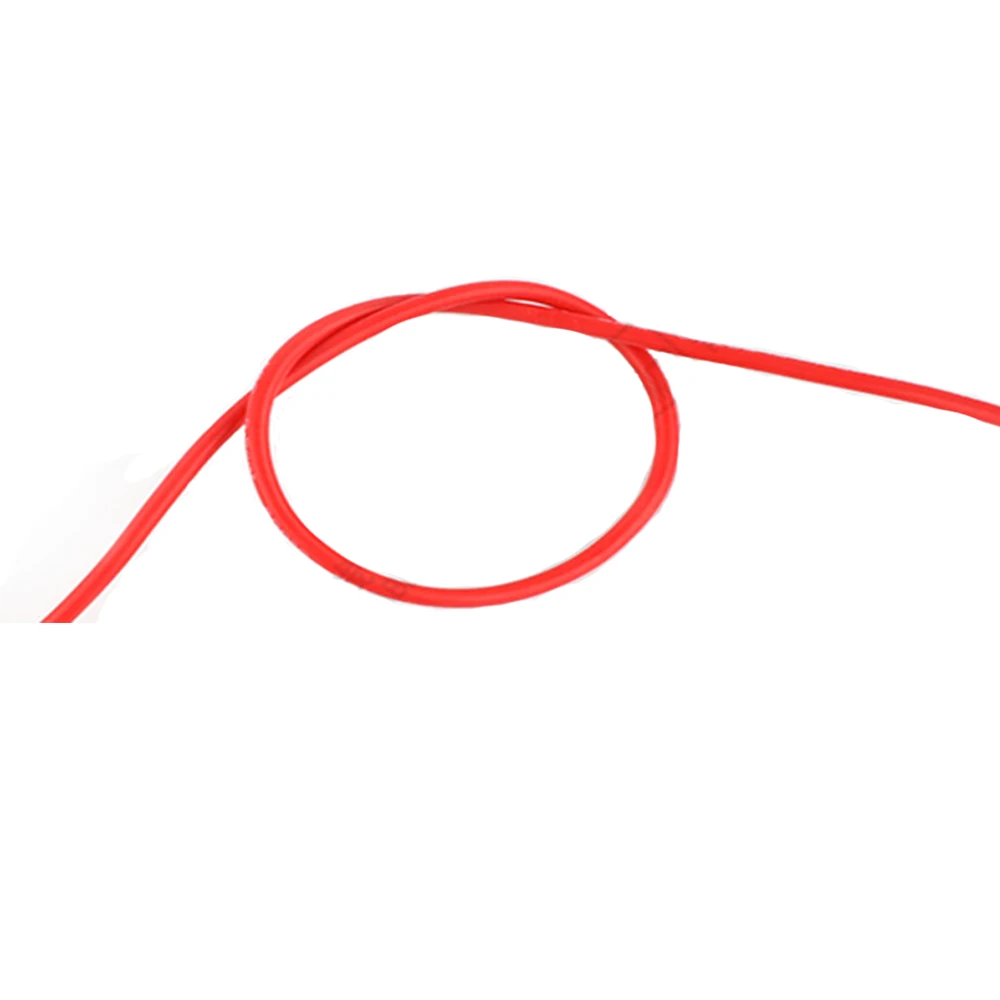

RED color AGG 2.5MM Silicone Rubber Wire 10KV 20KV 25KV 30KV 40KV High Voltage Silicone electrical Cable wire

Product name

AGG high voltage  silicone insulated wire cable

Cable length per roll

100/roll

Conductor material

Tinned copper, bare copper

Insulation material

silicone

AWG

0.5MM-6.0MM

Color

red-black-yellow-green-blue-white-orange-gray-brown-pink-yellow and green

Temperature range

200℃

Rated voltage

600V

OEM

Acceptable

Features

Must pass UL VW-1 and CSA Ft1 vertical flame retardant tests, with uniform insulation thickness

Uses

Lead out connecting wires for household appliances, lighting fixtures, electronic equipment, temperature sensors, etc.

Advantage

Inventory spot, one roll up purchase

Sample

Free sample, customer pays freight

Conductor

Insulator

Packing

MM

Conductor construction NO.Xmm

Diameter

mm

Insulator

Thick

mm

Over

Diameter

M/roll

0.50

20/0.18

0.93

0.82

3.0

100

0.75

24/0.20

1.13

0.98

3.6

100

1.0

32/0.20

1.31

1.07

4.0

100

1.5

30/0.25

1.58

1.20

4.6

100

2.5

49/0.25

2.02

1.32

5.4

100

4.0

56/0.30

2.59

1.52

6.4

100

6.0

84/0.30

3.18

1.60

7.2

100
