Robotic arm coating spraying automatic system

Coating robot arm is the initial choice for maximum flexibility and perfect quality. COLO developed multi-axis robots specially for the coating industry equipped with modern powder application technology or liquid painting technilogy. Once programmed, the coating robots efficiently coat parts to the highest quality with magic.





Work with liquid paint gun

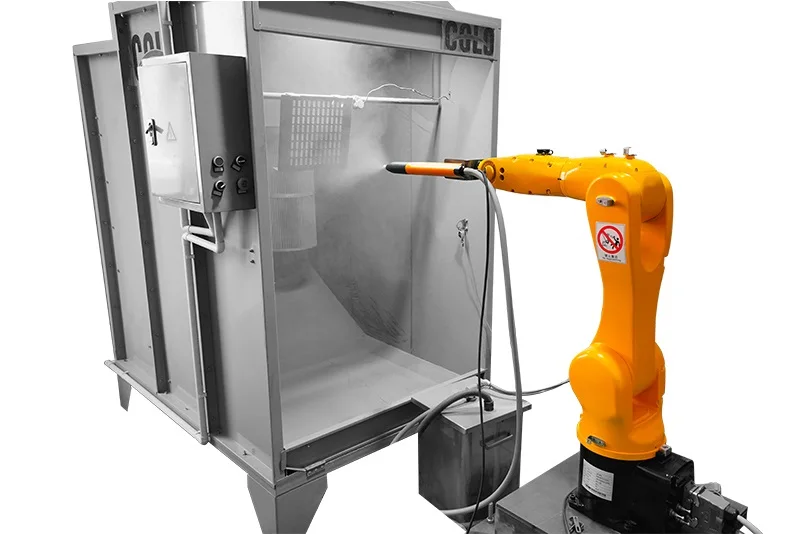

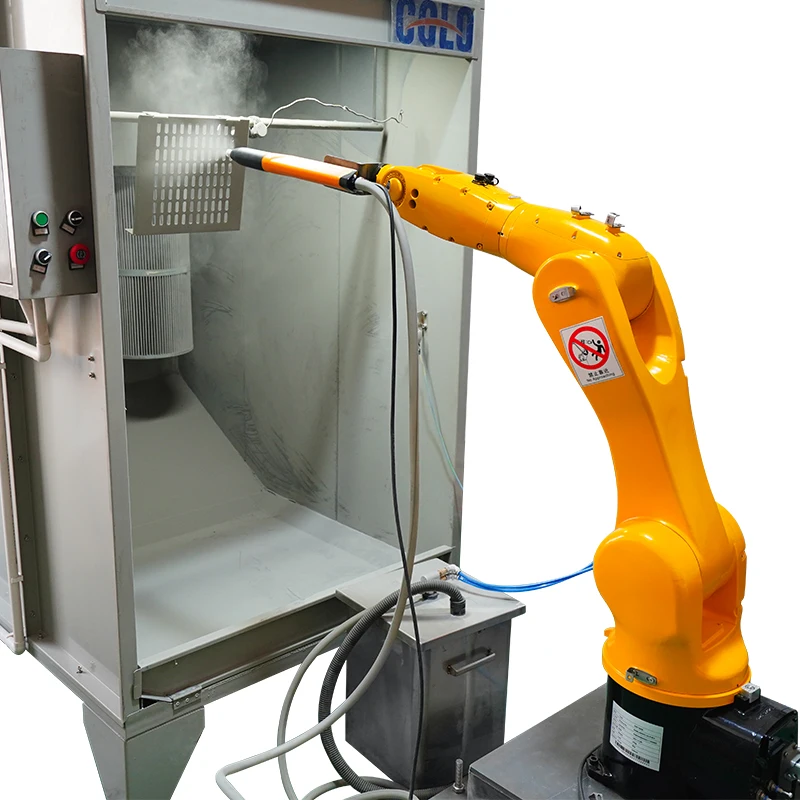

work with powder spray gun


Robotic arm coating spraying automatic system

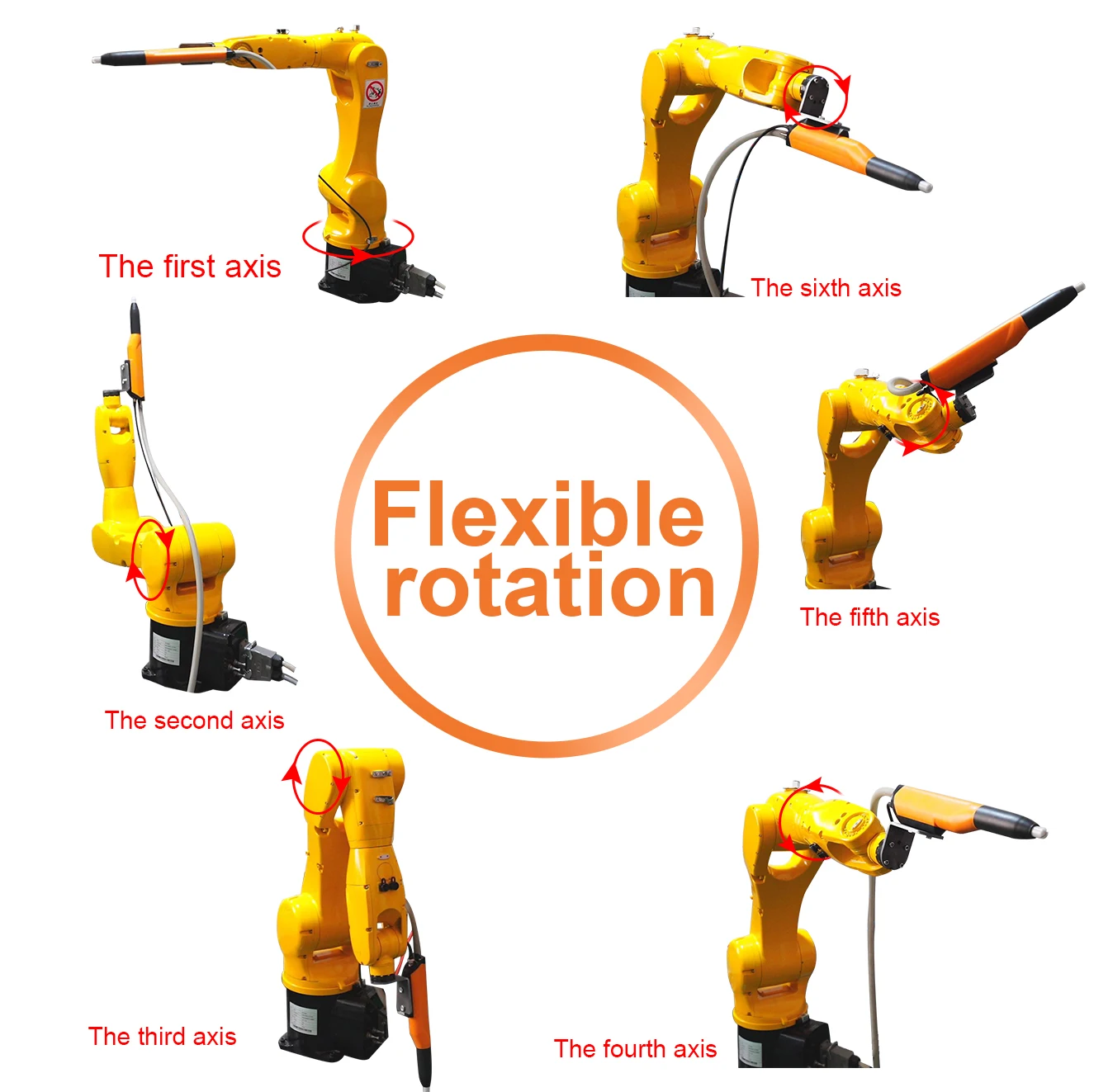

1. COLO coating robot is a six-axis joint structure, with six servo motors driving the rotation of the six joint axises through the reducers and synchronous pulleys

2. Robot joints are made of high-intensity aluminum, ensuring the precision and reliability in high-strength and high-speed working..

3. Designed fully sealed that is dustproof, waterproof and explosion-proof, with an IP grade of 67.

4. Palm-type conversational operation control system easy to learn, very suitable for production use.

5. Highly flexibille robot can realize spraying on the outer surface and inner surface that saves painting materials.

6. Robot body is internal wiring that is safe and environmental-friendly.




Specification


Item
Content
Data
Specifications
Max. Running Radius
1500mm
Max. Loading
10kgs
Repeated Posisioning Accuracy
±0.08mm
Protection Grade
IP67
Total Weight
140kgs
Range of Motion
J1
-180° ~ +180°
J2
-90° ~ +90°
J3
-75° ~ +255°
J4
-180° ~ +180°
J5
-120° ~ +120°
J6
-360° ~ +360°
Max. Speed
J1
150°/s
J2
150°/s
J3
250°/s
J4
450°/s
J5
650°/s
J6
450°/s


Product Details


Benefits of Industrial Coating with Robots
* Precise movement and 100% repeatability for greater process control

* Fast robot movement for high production rate

* Perfect and efficient for coating products of complex shapes

* Flexible, highly targeted, up-close application

* Achieve uniform and reproducible coating results,

* Optimize the labor cost and material cost.


Application

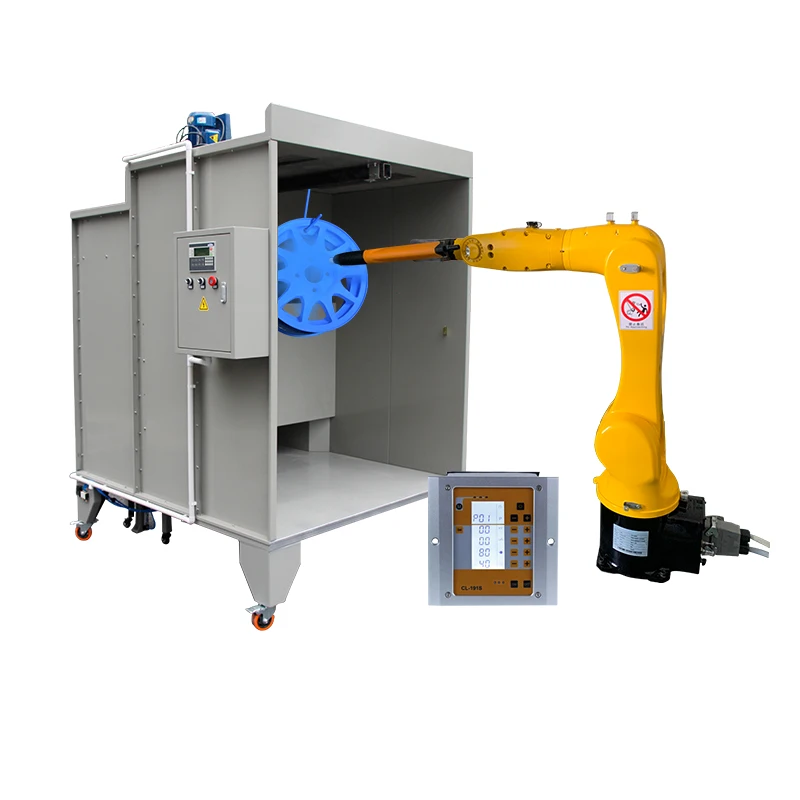

Powder coating systems combines with robots attain the highest levels of productivity and the best possible, operator-independent, endless repeatable coating quality




Company Profile


Hangzhou Color Powder Coating Equipment Co., Ltd
COLO is an innovator of powder coating equipment industry from year 2009, exporting to more than 100 countries. Over the past years we have been recognized as the Top powder coating equipment brand in China because of our professional teams, advanced techologies, productivity solutions, reliable quality and competitive price.

COLO Coating Systems is your source for all of your powder coating equipment needs. COLO conforms to CE, ISO 9001 standards.

Our product range from manual and automatic powder coating machines, powder coating reciporcators, powder spray booths, powder recovery systems, electric/gas/diesel curing ovens, powder coating spare parts, after-market replacement parts, and complete powder coating lines.
