For large amount 2022 low price Allwinner v3 soc integrated circuit ic cpu SDRM DDR2/DDR3/DDR3L/LDDR2/LDDR3 FBGA 259
- Category: >>>
- Supplier: Shenzhen Sochip Technology Co. Ltd.
Share on (1600470369757):
Product Overview
Description
Product Description
Dear friends,
Happy to get your attention for our parts, we are Allwinner's official distributor in China, all our selling parts are original
new, with optimistic , positive pre- and after- sales and technical R&D, we are willing to give you a comfortable shopping
experience, please feel free to contact us at any time.
Happy to get your attention for our parts, we are Allwinner's official distributor in China, all our selling parts are original
new, with optimistic , positive pre- and after- sales and technical R&D, we are willing to give you a comfortable shopping
experience, please feel free to contact us at any time.
Please contact us for best price and service.
Product Description
Specification

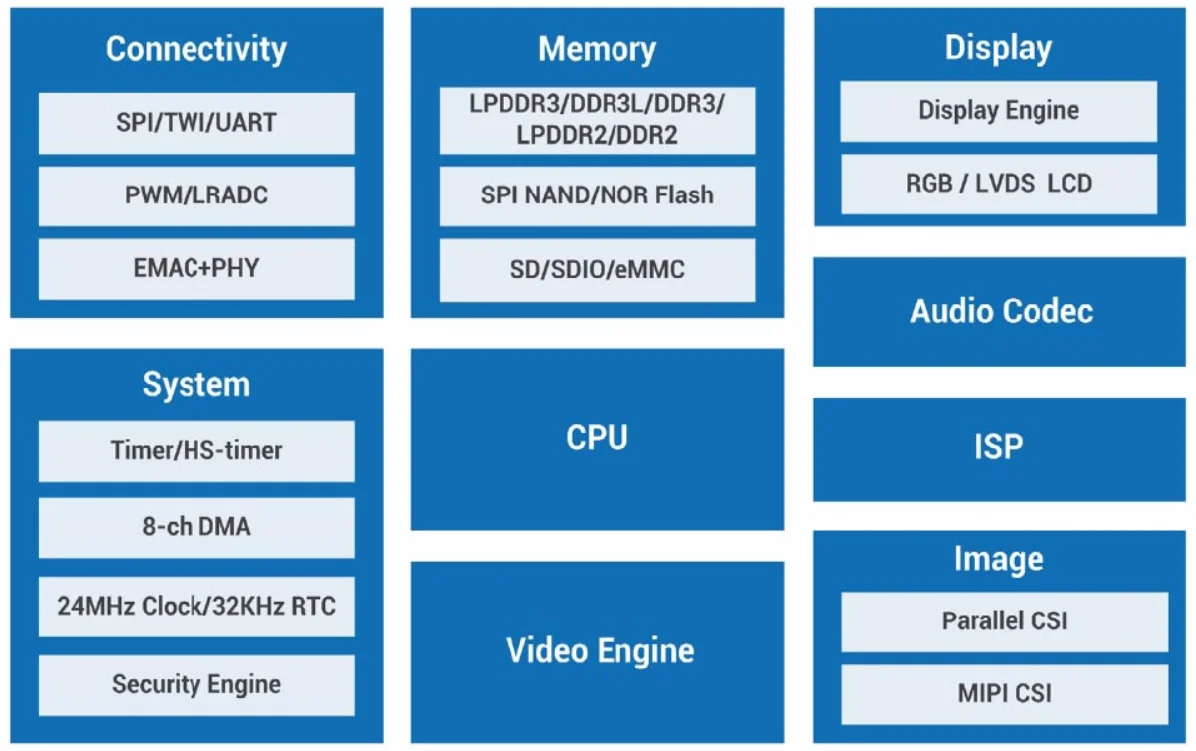

The V3 processor represents Allwinner’s latest achievement in video encoding processors, which integrates a single ARM
TM Cortex -A7 CPU that operates at speed up to 1.2GHz with supporting numerous peripherals. The processor targets the
need of the growing Car Digital Video Record (DVR) and IP Camera (IPC) Monitor System.
The processor has optimized external memory interfaces to SPI NAND/ Nor flash, SD/MMC and SDRAM port. SDRAM port
can be configured to support DDR2, DDR3, DDR3L, LPDDR2 or LPDDR3.
Dedicated video engine and audio subsystem are included to provide an advanced multimedia applications and services.
Video Engine supports multi-format such as H.264 encoder by 1080p@60fps, H.264 decoder by 1080p@60fps, JPEG/MJPEG decoder by 1080p@30fps. Audio subsystem includes a digital audio interface and audio codec with dedicated hardware. To enrich camera feature, V3 equips an 8M HawkViewTM ISP with advanced features like spatial de-noise, chrominance de-noise, zone-based AE/AF/AWB statistics, black level correction, lens ading correction, color correction and anti-flick detection statistics.
To reduce total system cost and enhance overall functionality ,V3 has a broad range of hardware peripherals such as DMA,
Timers, GPIO, UART, SPI, USB HS/FS OTG , TWI, EMAC etc.
TM Cortex -A7 CPU that operates at speed up to 1.2GHz with supporting numerous peripherals. The processor targets the
need of the growing Car Digital Video Record (DVR) and IP Camera (IPC) Monitor System.
The processor has optimized external memory interfaces to SPI NAND/ Nor flash, SD/MMC and SDRAM port. SDRAM port
can be configured to support DDR2, DDR3, DDR3L, LPDDR2 or LPDDR3.
Dedicated video engine and audio subsystem are included to provide an advanced multimedia applications and services.
Video Engine supports multi-format such as H.264 encoder by 1080p@60fps, H.264 decoder by 1080p@60fps, JPEG/MJPEG decoder by 1080p@30fps. Audio subsystem includes a digital audio interface and audio codec with dedicated hardware. To enrich camera feature, V3 equips an 8M HawkViewTM ISP with advanced features like spatial de-noise, chrominance de-noise, zone-based AE/AF/AWB statistics, black level correction, lens ading correction, color correction and anti-flick detection statistics.
To reduce total system cost and enhance overall functionality ,V3 has a broad range of hardware peripherals such as DMA,
Timers, GPIO, UART, SPI, USB HS/FS OTG , TWI, EMAC etc.
To learn more | please contact us for full datasheet |
item | value |
Model Number | V3 |
Type | integrated circuit |
Place of Origin | China |
Brand Name | ALLWINNER |
Ethernet | Integrated an internal 10/100M PHY |
USB | 2.0 |
Package | FBGA 259 balls, 0.65mm ball pitch, 12mm x 12mm |
Video decoding | H.264 output NV21,12,YU12,YV12 JPEG/MJPEG 1080P@30FPS |
Video encoding | H.264 1080P@60fps,720@120fps JPEG 8192*8192 |
Operating Temperature | -20~70 |
Application | Car digital video record(DVR) and IP camera IPC monitor system |
Application
Packing & Delivery
Allwinner standard package
Product Description
As Allwinner's official distributor, We have been rated as excellent partner for many years, below are our honors
Company Profile
Sochip is a high-tech company engaged in the development and design of consumer electronics products with well-equipped testing facilities and strong technical force. It focuses on the development of portable digital entertainment multimedia products.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in DVR, SDV, IPC and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in DVR, SDV, IPC and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
