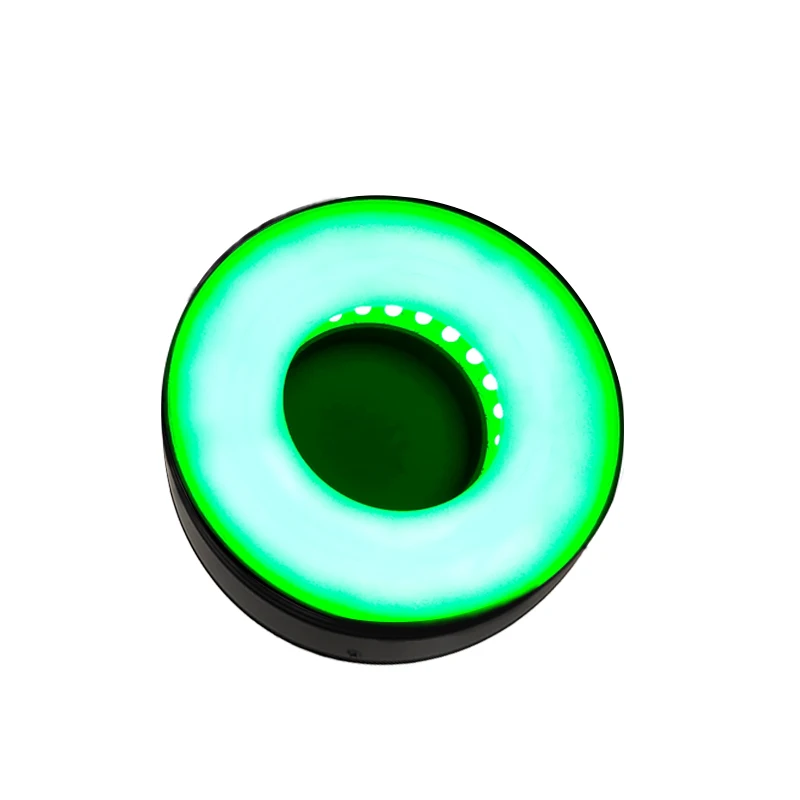

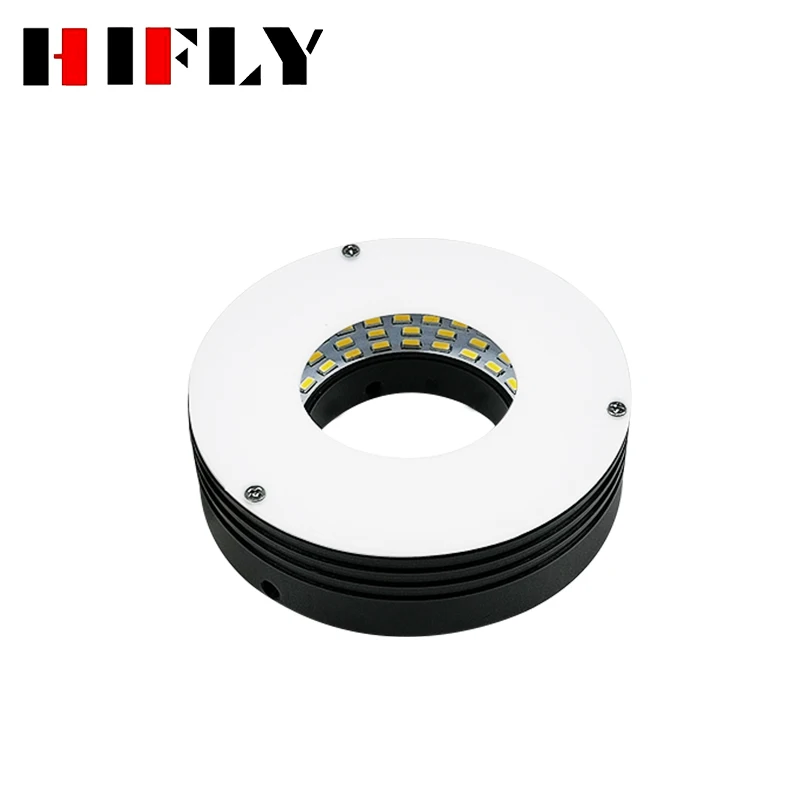

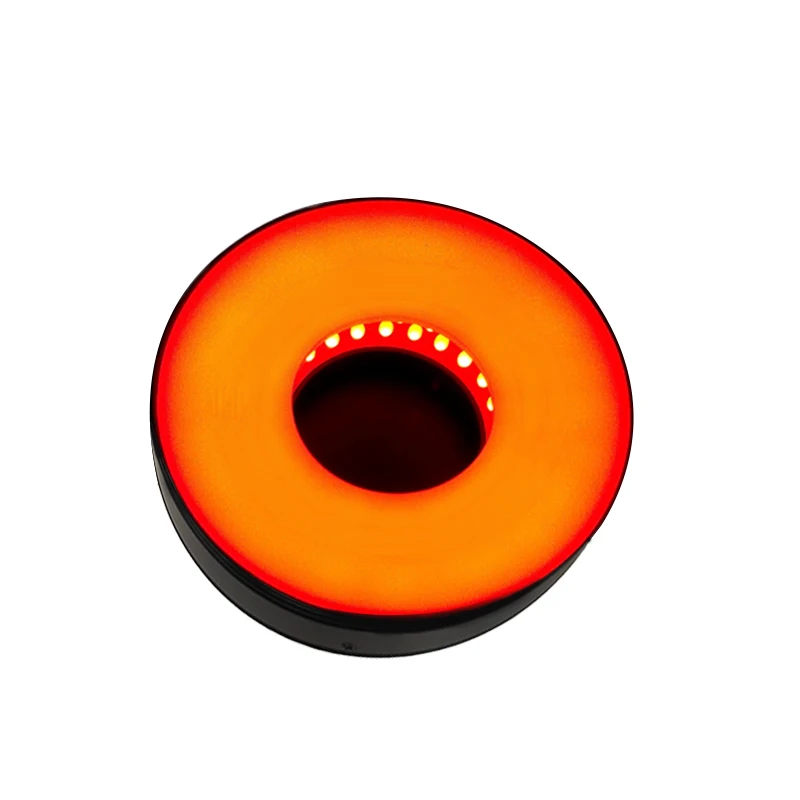

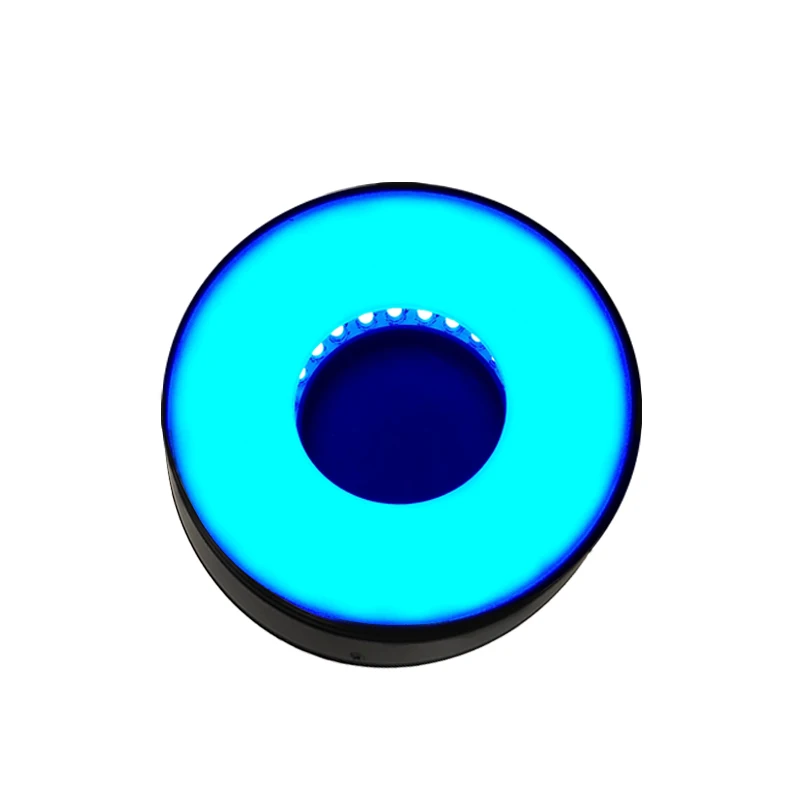

LED Ring Light Machine Vision Illumination Diameter 150*95mm 90 degree for Logo Dents Inspection
- Category: >>>
- Supplier: Shenzhen Hifly Technology Co. Limited
Share on (1600470376324):
Product Overview
Description
Product Description
About this item
100% brand new and high quality.
2nd Generation, better design, more compact and durable.
High quality material--Aluminum alloy and PMMA: This assures a long lifespan, good performance and duration.

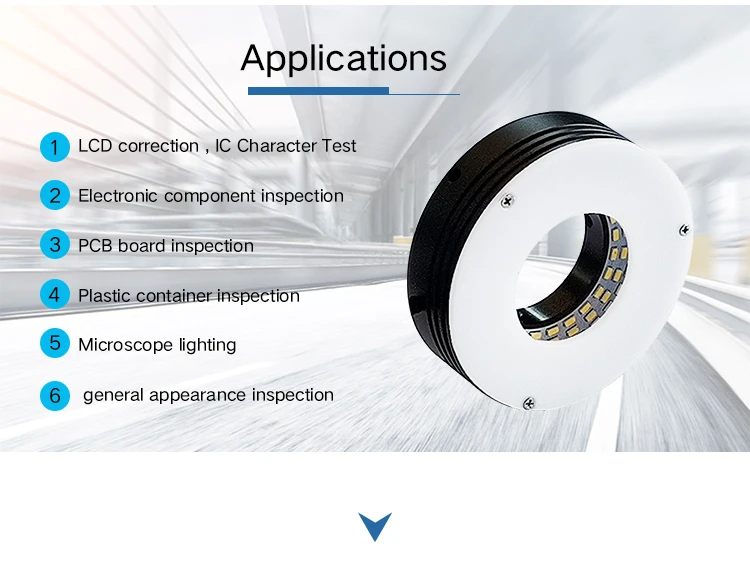

KOMA ring light sources are low power consuming, energy-saving with high uniform brightness that can be an excellent luminous sources for cameras to detect defects/scratches, capture logo / barcode / material outlines, etc. It is an excellent aid for various microscopes and industrial cameras.

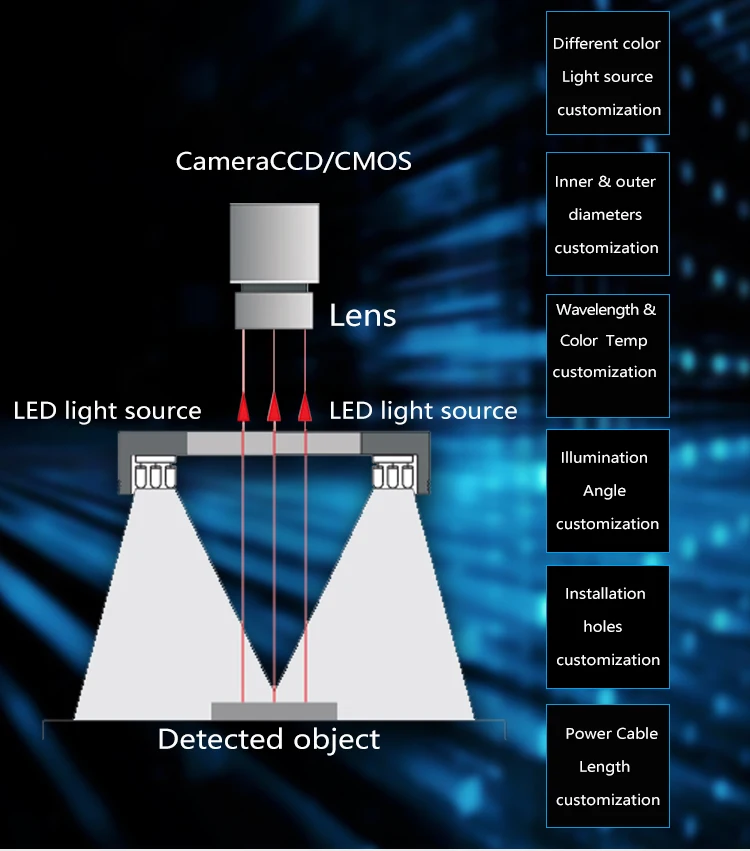

The highly bright ring light is composed of evenly distributed LED luminescence units, light emits from the bottom and is
perfectly uniform and diffuse, it can effectively avoid the reflection of the LED light on the reflective surfaces. Custom design of product power and diameters etc. is available.The light intensity of this removable KOMA LED ring light can be easily controlled by extra connected light brightness dimmer controller.
● This intensity-adjustable Ring Light provides strong and highly uniform light, which is ideal for laboratory and industrial applications.
High quality material--Aluminum alloy and PMMA: This assures a long lifespan, good performance and duration.
KOMA ring light sources are low power consuming, energy-saving with high uniform brightness that can be an excellent luminous sources for cameras to detect defects/scratches, capture logo / barcode / material outlines, etc. It is an excellent aid for various microscopes and industrial cameras.
The highly bright ring light is composed of evenly distributed LED luminescence units, light emits from the bottom and is
perfectly uniform and diffuse, it can effectively avoid the reflection of the LED light on the reflective surfaces. Custom design of product power and diameters etc. is available.The light intensity of this removable KOMA LED ring light can be easily controlled by extra connected light brightness dimmer controller.
● This intensity-adjustable Ring Light provides strong and highly uniform light, which is ideal for laboratory and industrial applications.
● Power supply: Input 24V DC, power 10.6W. Customized power is also supported.
● Outside diameter: 150 mm. Inside diameter: 95 mm. Customized diameters are also supported.
● Energy-saving, Super Low Power Consuming, Highly Bright. It can be an amazing light source for milling machines, microscopes, industrial cameras, close-up photography, etc.
● With extra connected light brightness controller, it's easy to adjust the intensity of KOMA LED ring light source and provides a clear-and-crisp, cool-to-touch light that lasts greatly longer than traditional tungsten bulbs.
Light source color (wavelength) | White (color temperature): 6000-7500K | Red: 620nm-630nm | |
Green: 520nm-530nm | Blue:460nm-470nm | ||
Use environment(indoor) | temperature: 0℃-40℃ | Humidity: 20%-85%RH (non-condensing) | |
Lifespan | 30,000 hours for white and 30,000 hours for red (theoretical reference) | ||
After-sales service | One-year warranty and Lifetime technical support | ||
Optional items or accessories (Charged) | Offering custom design and development services if needed | ||

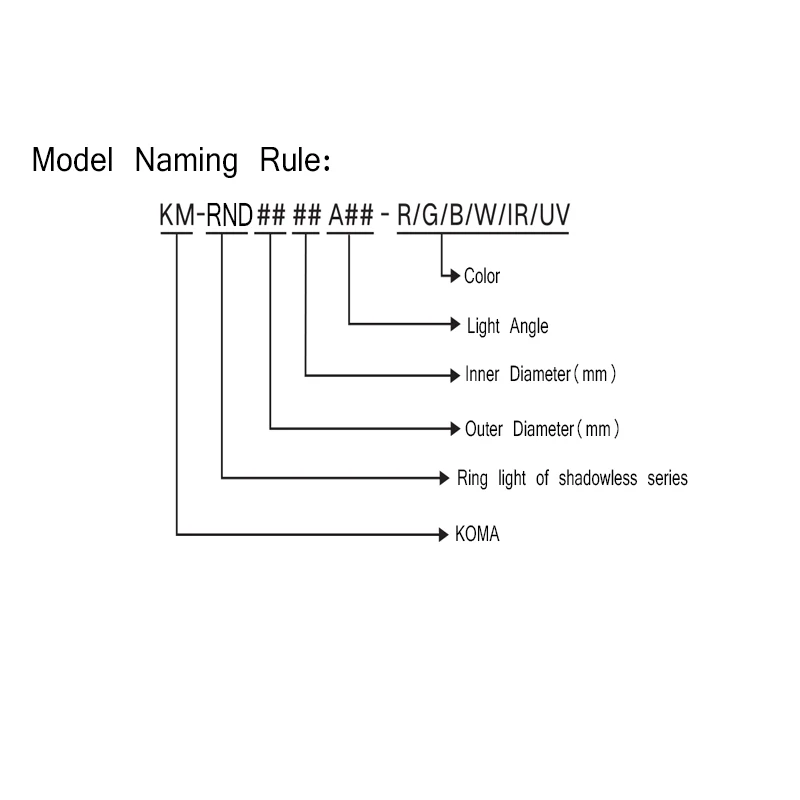

2RND Ring Light Series
Model | Diameters (outer, inner / mm) | Angle | Input Voltage | Power (W) | ||
● ● ● | ● | |||||
KM-2RND6030A90 | Φ60, Φ30 | 90° | 24V | 1.9 | 1.3 | |
KM-2RND7040A90 | Φ70, Φ40 | 90° | 24V | 2.2 | 1.6 | |
KM-2RND8040A90 | Φ80, Φ40 | 90° | 24V | 3.7 | 2.5 | |
KM-2RND9040A90 | Φ90, Φ40 | 90° | 24V | 5.3 | 3.4 | |
KM-2RND10040A90 | Φ100, Φ40 | 90° | 24V | 7.5 | 4.7 | |
KM-2RND12050A90 | Φ120, Φ50 | 90° | 24V | 8.7 | 5.6 | |
KM-2RND15095A90 | Φ150, Φ95 | 90° | 24V | 10.6 | 6.9 | |
KM-2RND180125A90 | Φ180, Φ125 | 90° | 24V | 13.4 | 8.4 | |
KM-2RND7035A30 | Φ70, Φ35 | 30° | 24V | 2.8 | 1.6 | |
KM-2RND8045A30 | Φ80, Φ45 | 30° | 24V | 3.1 | 2.2 | |
KM-2RND9045A30 | Φ90, Φ45 | 30° | 24V | 5.0 | 3.1 | |
KM-2RND10055A30 | Φ100, Φ55 | 30° | 24V | 5.9 | 3.1 | |
KM-2RND12075A30 | Φ120, Φ75 | 30° | 24V | 7.2 | 4.7 | |
KM-2RND7035A45 | Φ70, Φ35 | 45° | 24V | 2.8 | 1.9 | |
KM-2RND8045A45 | Φ80, Φ45 | 45° | 24V | 3.4 | 2.2 | |
KM-2RND9045A45 | Φ90, Φ45 | 45° | 24V | 5.3 | 3.4 | |
KM-2RND10055A45 | Φ100, Φ55 | 45° | 24V | 5.9 | 3.7 | |
KM-2RND12070A45 | Φ120, Φ75 | 45° | 24V | 9.7 | 6.2 | |
KM-2RND7035A60 | Φ70, Φ35 | 60° | 24V | 2.8 | 1.9 | |
KM-2RND8045A60 | Φ80, Φ45 | 60° | 24V | 3.1 | 2.2 | |
KM-2RND9040A60 | Φ90, Φ40 | 60° | 24V | 5.0 | 3.1 | |
KM-2RND10050A60 | Φ100, Φ50 | 60° | 24V | 5.6 | 3.7 | |
KM-2RND12060A60 | Φ120, Φ60 | 60° | 24V | 9.0 | 5.9 | |
KM-2RND150105A30 | Φ150, Φ105 | 30° | 24V | 10.0 | 6.2 | |
KM-2RND180130A30 | Φ180, Φ130 | 30° | 24V | 15.9 | 10.3 | |
KM-2RND150100A45 | Φ150, Φ100 | 45° | 24V | 13.1 | 8.1 | |
KM-2RND180130A45 | Φ180, Φ130 | 45° | 24V | 15.9 | 10.3 | |
KM-2RND15095A60 | Φ150, Φ95 | 60° | 24V | 12.5 | 8.1 | |
KM-2RND180125A60 | Φ180, Φ125 | 60° | 24V | 15.6 | 10.0 | |
KM-2RND6022A30 | Φ60, Φ22 | 30° | 24V | 2.2 | 1.6 | |
KM-2RND5320A45 | Φ53, Φ20 | 45° | 24V | 1.9 | 1.2 | |
KM-2RND6025A45 | Φ60, Φ25 | 45° | 24V | 2.2 | 1.6 | |
KM-2RND6025A60 | Φ60, Φ25 | 60° | 24V | 2.2 | 1.6 | |
