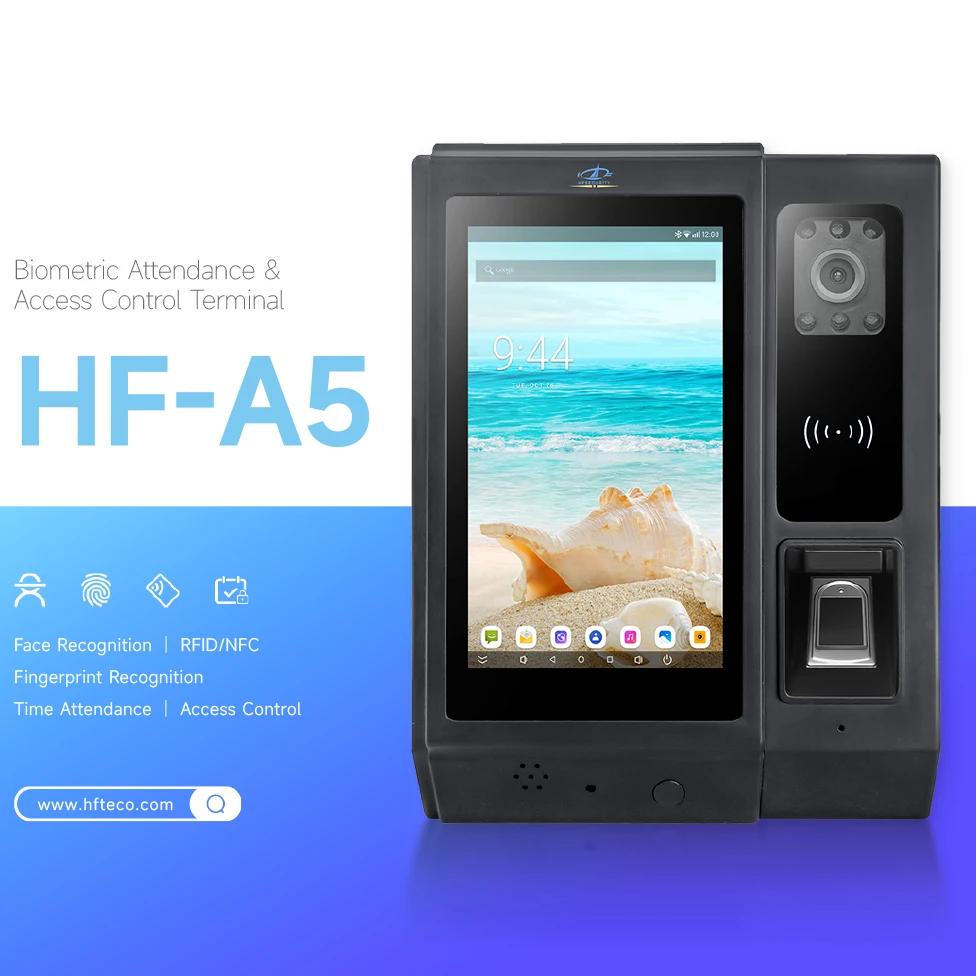

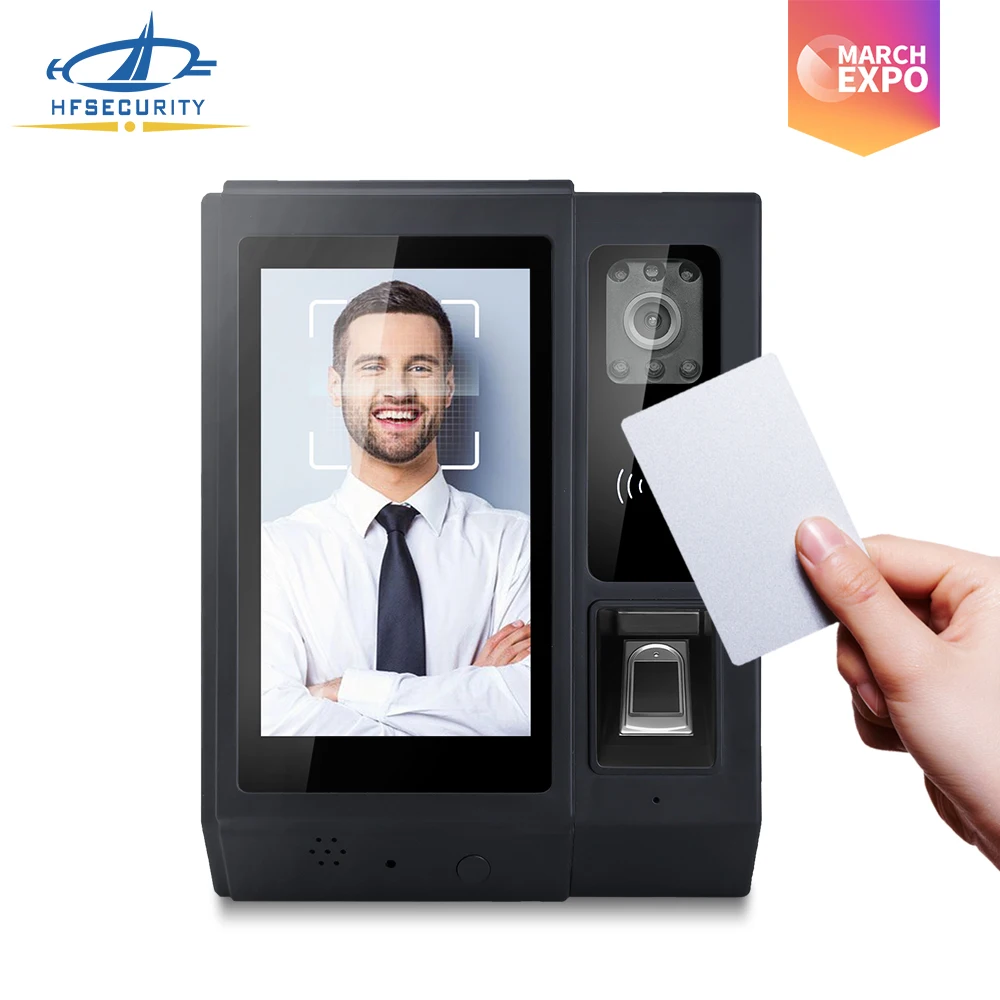

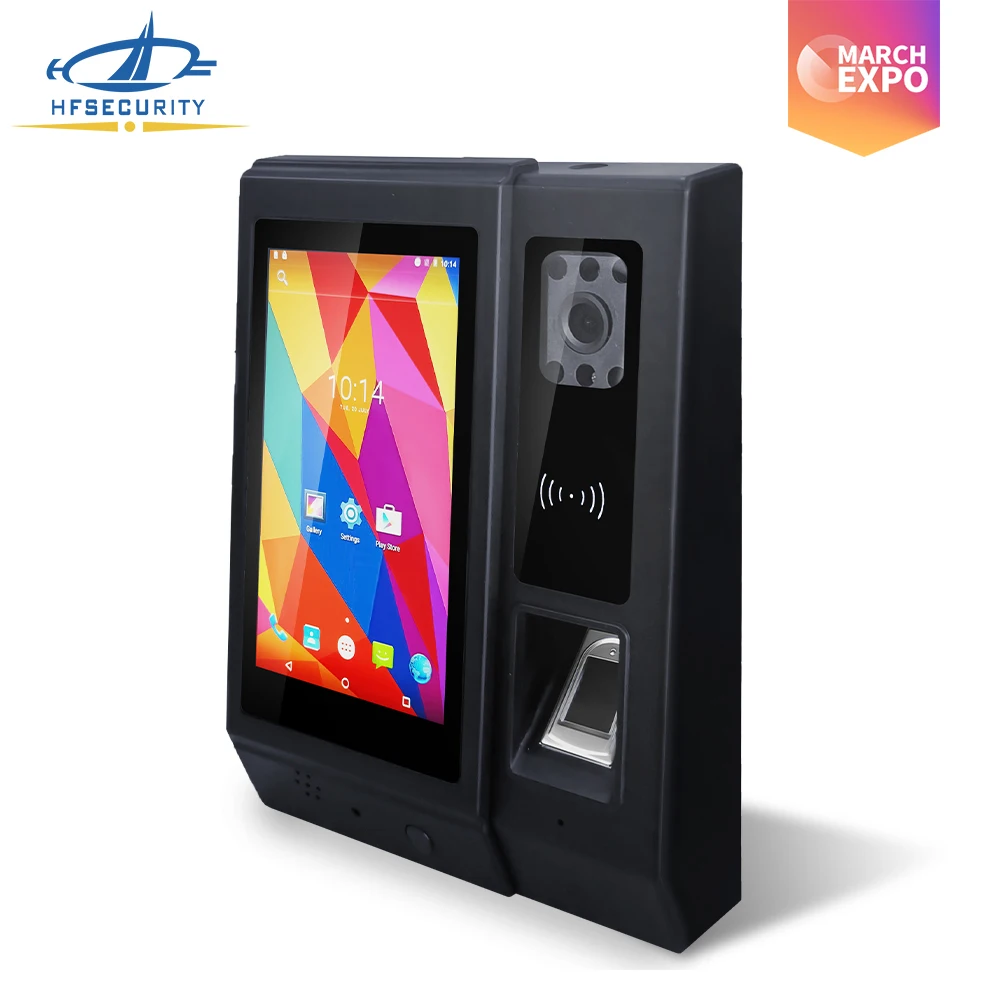

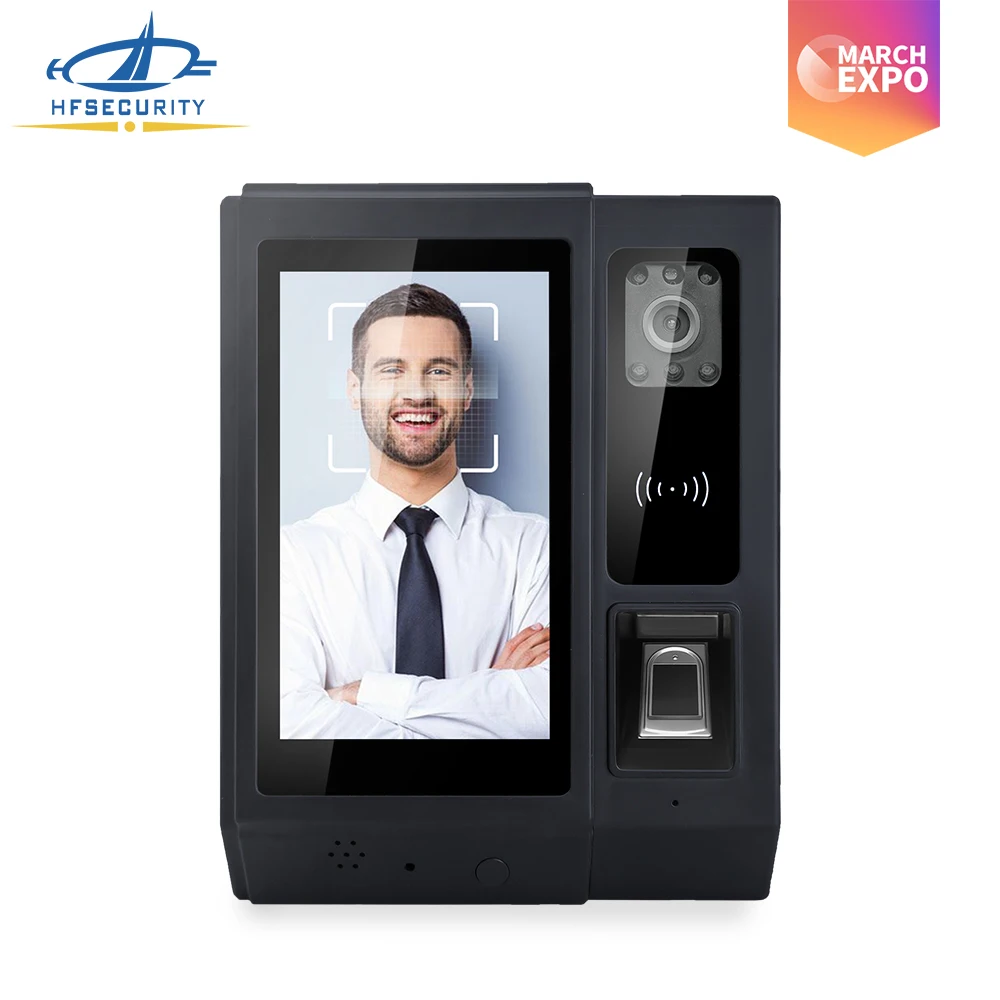

HFSecurity HF A5 Smart Face Recognition Android POE Device Fingerprint Scanner Time Attendance Machine with Card Reader
- Category: >>>
- Supplier: Shenzhen BIO Technology Co. Ltd.
Share on (1600470377006):
Product Overview
Description
HFSecurity Android Fingerprint Time Attendance Face Recognition Module Door Access Control System School Using
HF-A5 is one of best selling Android time attendance and access control device in HFSecurity. 5" touch screen
communication by Ethernet, 3G,WIFI and ble, with fingerprint and RFID card recognition. You can check real time data in software, also we will offer free SDK for further development and 3rd part access control door lock function.
It's widely use for company, government, banking, education, etc.
Hardware | ||
Device Dimension | 175(L)×78(W)×27(H)(mm) | |
RAM/ROM | 2GB / 16GB | |
Storage Capacity | 16G can add 32GB SD card | |
Communication | WIFI, Ble, TCP/IP( POE support), 3G, GPS | |
Bar-code | Support one-dimensional, two-dimensional bar code (optional) | |
RFID Card | Supports 125KHZ ID card, and 13.56MHZ Mifare/NFC Card | |
Camera | Front 5MP camera | |
Screen | 5.0 inches, 1280*720; Optional protection screen glass | |
OTA function | Support ( Can update firmware & app remotely via OTA function ) | |
Battery | Lithium-polymer battery 4000mah, 3.7v | |
Operating temperature range | -20 ° C to + 70 ° C | |
Certification | CE, ISO9001, GSM TAC certificated | |
Package Accessories | Device bag, Screw driver, adapter, USB cable | |
OS | Standard Android 6.0 | |
Processor | Quad-core 1.5GHz | |
SDK | For free, come with sample package | |
Customized | OEM/ODM, LOGO, Different function | |
Fingerprint Sensor | ||
Image Size | 256 * 288 pixel | |
Image Resolution | 500DPI | |
Image Standard | BMP, JPG, WSQ | |
Fingerprint Standard | Support ISO 19794-2 & ANSI378 template standard | |
Communication | ||
Data link(1 SIM Card) | 2G: GSM CDMA 850/900/1800/1900 MHz; | |
3G: WCDMA 2100/1900/900/850MHz ( Can do customization according to clients country details) | ||
WIFI/Ble | Yes | |
TCP/IP | Ethernet (TCP/IP) connection | |
Details Images
A5 Android Fingerprint Time Attendance Access Control System
Rugged Fingerprint Reader
Front Side

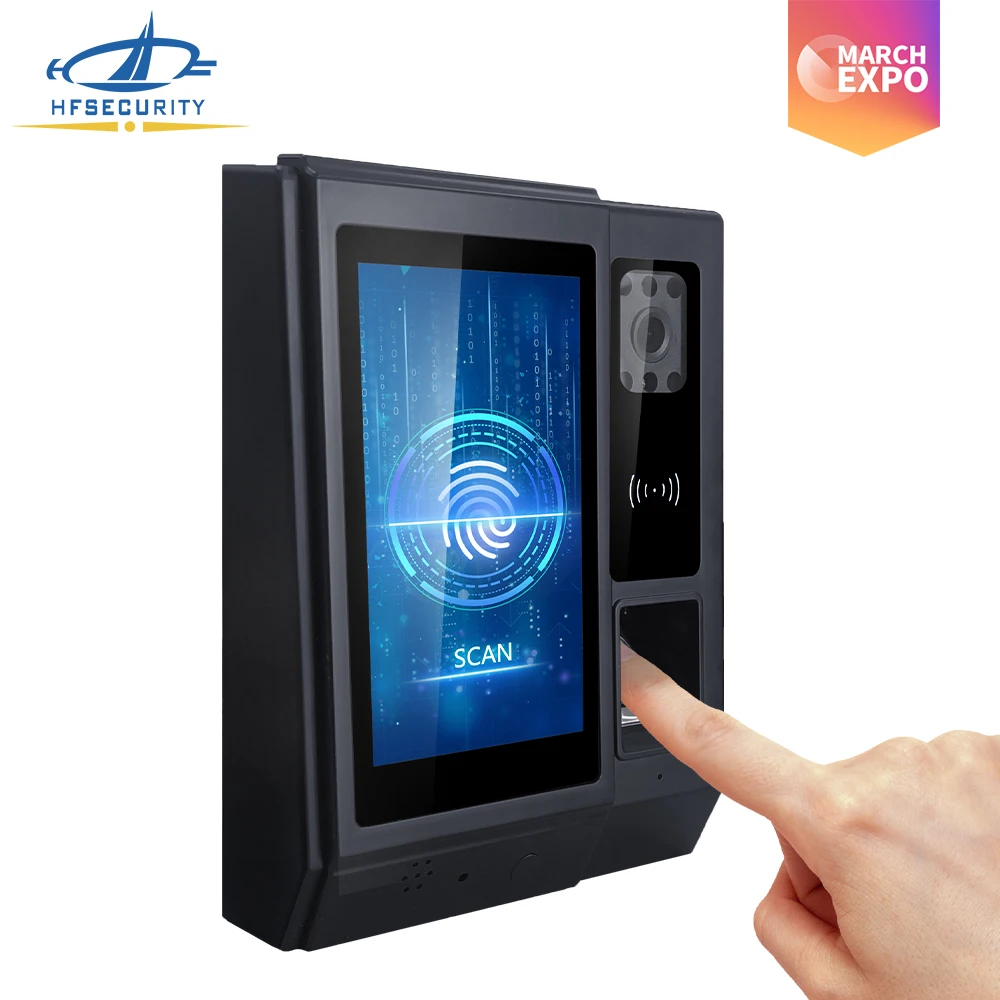

Fingerprint Reader
IR camera( support do face verify)
NFC/Mifare/ID card reader
5'' Touch Screen
Reset hole
Back Side
Wall-mounted shift
RS232/485 connect cable
RJ45 cable ( with POE)
SIM Card slot ( 3G)
Build in battery( 4000mAh)
Button side
USB2.0 Communication cable
Micro USB Communication cable
DC Charger
Power button
Speaker & MIC
Product Usage
A5 Android Fingerprint Time Attendance for Office Staff Management
A5 come with ready demo and SDK, for your further development and system integrate(HR, Payroll etc).
Staff press finger and there will have the attendance records send to cloud server/software, and the door will open at same time. Administrator can calculate the salary based on attendance records.
A5 Fingerprint Time Attendance SMS function for Africa school
When students arriving school, they need press finger to check attendance, and at the same time, here will have a SMS message send out to their parents, that parents will know when their kids arrived school to ensure all children stay in safe
Packing&Shipping
Single Box Size: 27*19*6cm /2kg
Bulk quantity package: 18pcs/CTN, 60*36*30cm / 24KG
Whole solution offer with 1 year warranty and lifetime technical support
