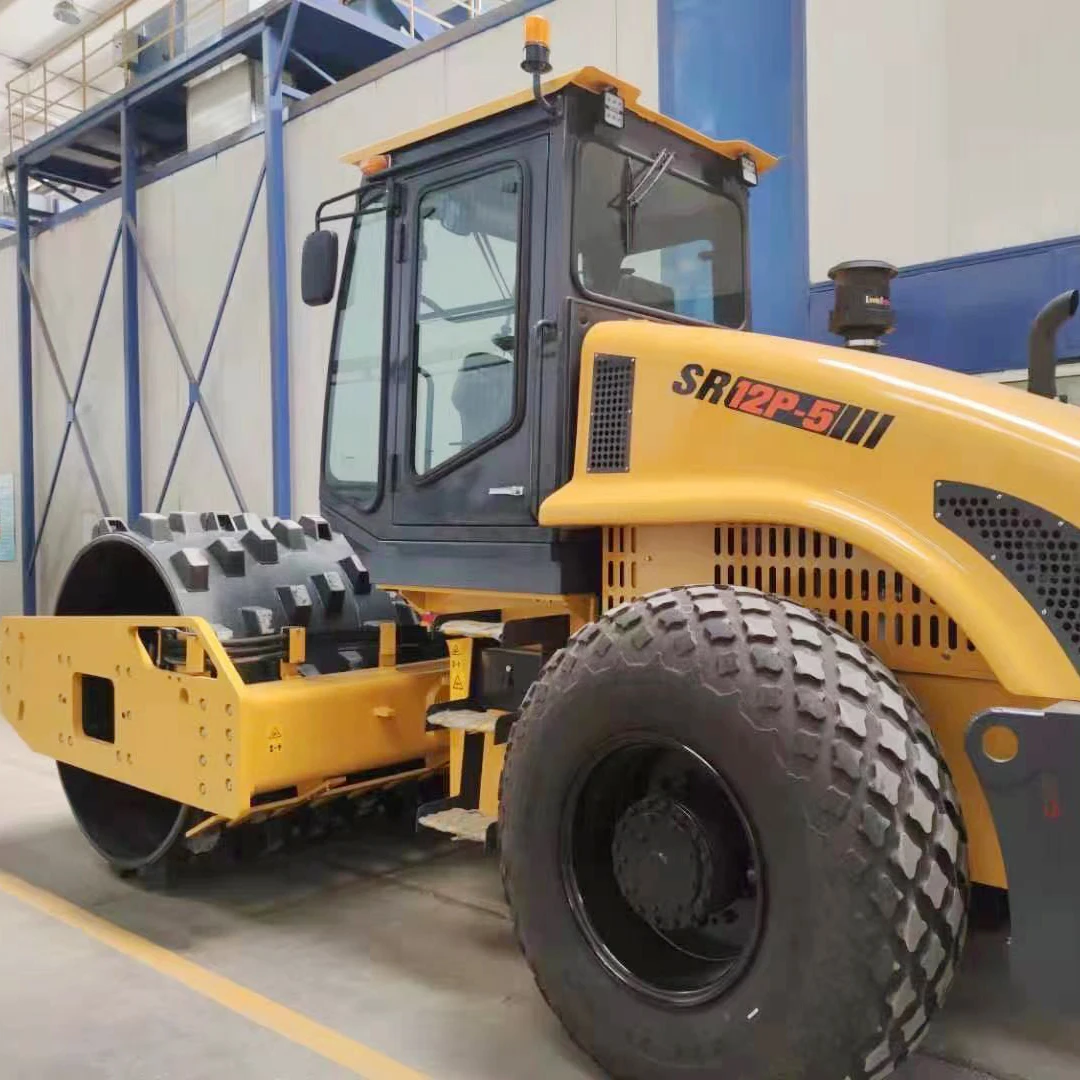

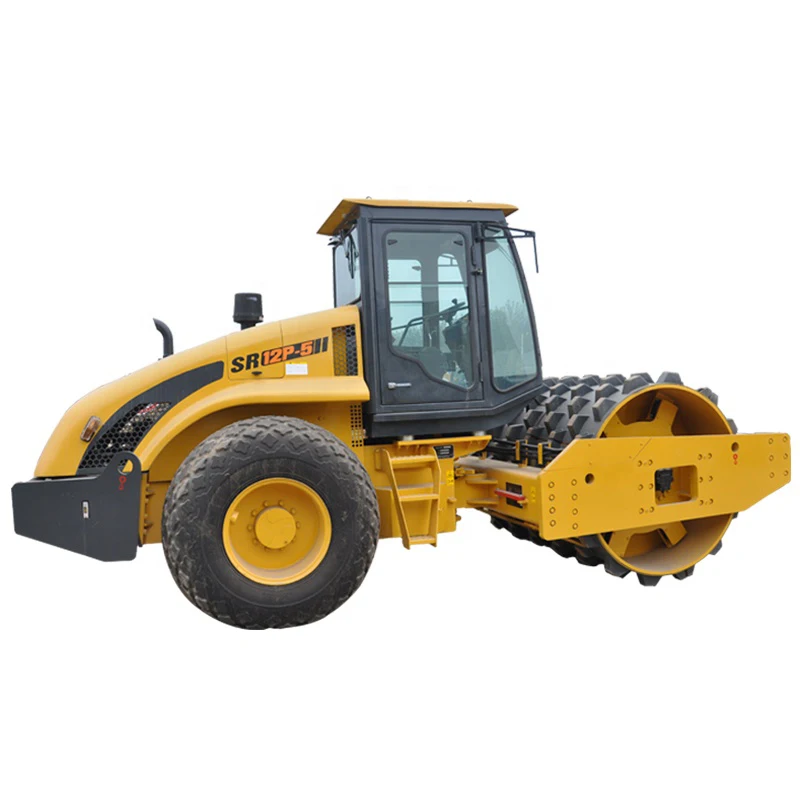

12 Ton Full Hydraulic Shantui SR12P 5 Road Compactor With Low Price For Sale
- Category: >>>
- Supplier: Shandong Panda Construction Machinery Co. Ltd.
Share on (1600470419394):
Product Overview
Description
Product information

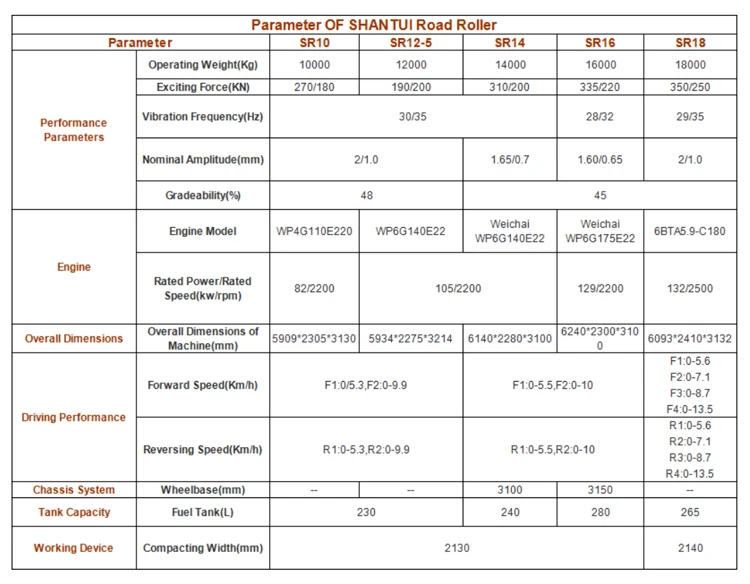

Product parameters
MODEL | SR12-5 | ||
Weights | Operating weight | 12000 kg | |
Axle load, drum Axle load, wheel | 6800 kg 5200 kg | ||
Static linear load (at drum) | 317 N/cm | ||
Maximum working width | 2140 mm | ||
Overall length | Overall length | ||
Overall width | 2305 mm | ||
Overall height | 3127 mm | ||
Minimum turning radius | 5500 mm | ||
Steering angle (Grad) | ±36° | ||
Oscillating angle (Grad) | ±12° | ||
Drum diameter | 1550 mm | ||
Drum and tires | Drum shell thickness Number of padfeet | 30 mm — | |
Height of the padfoot | — | ||
Tire size | 23.1-26-8PR | ||
Frequency | High amplitude Low amplitude | 30 Hz 33 Hz | |
Nominal amplitude | High Low | 1.8 mm 1.0 mm | |
Centrifugal force | Maximum Minimum | 270 kN 180 kN | |
I | 0~5.3 km/h | ||
Forward speed | II III | 0~9.9 km/h – | |
IV | – | ||
I | 0~5.3 km/h | ||
Reverse speed | II III | 0~9.9 km/h – | |
IV | – | ||
Maximum climbing ability | 48% | ||
Drive system | Hydrostatic | ||
Make & model | Weichai Deutz WP6G140E22 | ||
Type | Turbocharged | ||
Fuel | Diesel | ||
Diesel | 240 L | ||
Cool | Water | ||
Water | 6 | ||
Rated power | 105 kW | ||
Rated speed | 2200 rpm | ||
2200 rpm | 24v | ||
Electrical system | Alternator | 28 V, 55 A | |
Batteries | – | ||
Brakes | Service brake Parking brake | Hydrostatic Spring-loaded/mechanical | |
Steering | Steering system Steering method | Oscillating, articulating Hydrostatic | |

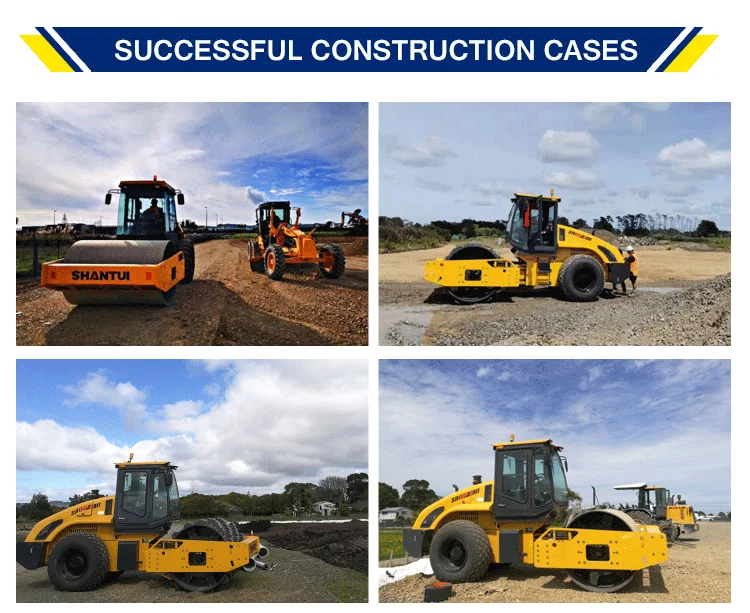

Successful construction cases

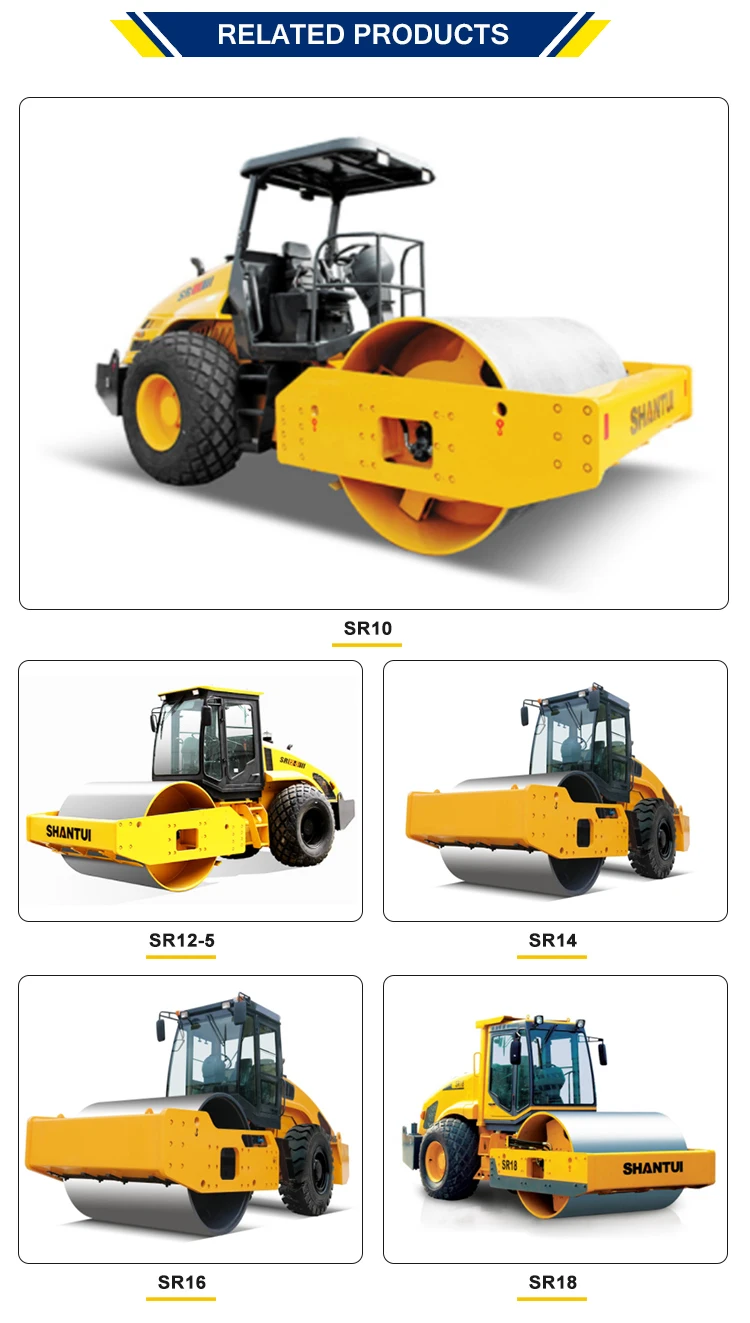

Related products

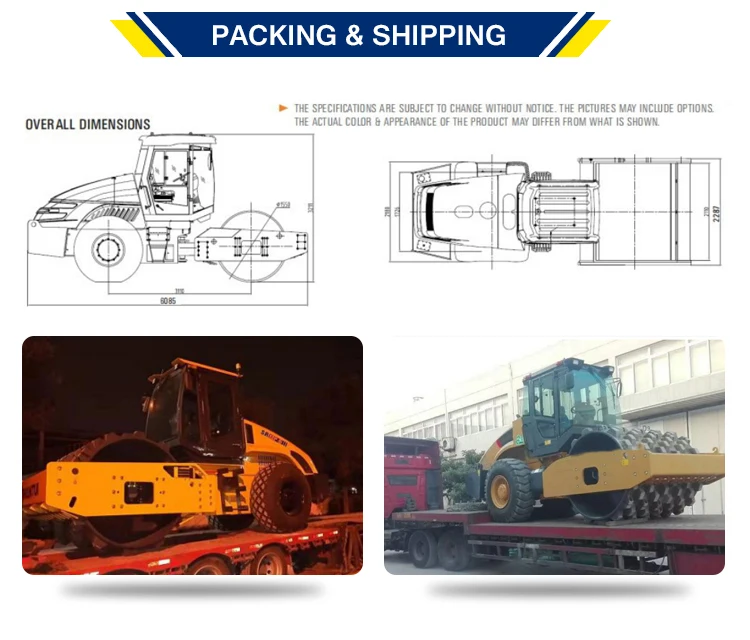

Packing & Delivery
