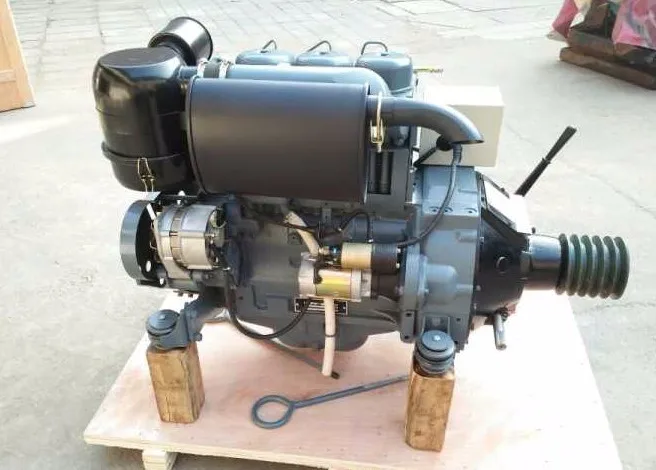

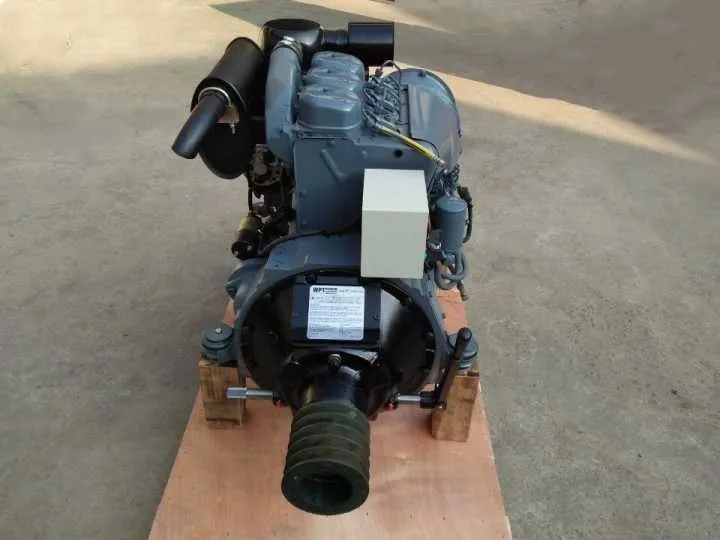

Deutz F3L912 agricultural irrigation engine for water pump
Deutz F3L912 agricultural irrigation engine for water pump
Deutz F3L912 agricultural irrigation engine for water pump
Deutz F3L912 agricultural irrigation engine for water pump
Deutz F3L912 agricultural irrigation engine for water pump
Deutz F3L912 agricultural irrigation engine for water pump
Deutz F3L912 agricultural irrigation engine for water pump

Deutz F3L912 agricultural irrigation engine for water pump

Share on (1600470473628):


Price:

Quantity:


Product Overview

Description












Product Description






























































In-line, 3Cylinder, 4 Cycle Diesel Engine


Bore×Stroke

100mm×120mm


Displacement

2.827 Liters


Compression Ration

17:1


Cooling Way

Air cooled


Combustion system

Direct injection


Inspiration

Natural intake


Direction of rotation

Counterclockwise(face to flywheel end)


Fuel consumption ratio

263.8g/kwh(limit value)


Oil consumption ratio

2.04g/kwh(limit value)


Lubricant Capacity

8Liters


Net Weight

330kg


Overall Dimension(L×W×H)

722mm*664mm*814mm










































































































Useage








Power class





Power


Speed(rpm)



1500


1800


2000


2150


2300


2500















Construction equipment


ISO 3046/1(IFN)

(Highly intermittent)


P(kW)


26


31


34


36


38


40



P(HP)


35


42


46


49


52


54



ISO 3046/1(IFN)


(Intermittent)


P(kW)


25


29


32


35


36


38



P(HP)


34


39


44


48


49


52



ICFN


(Continuous)


P(kW)


24


28


30


32


35





P(HP)


33


38


41


44


48








Genset


ICXN


(Continuous)


P(kW)


24


28











P(HP)


33


38

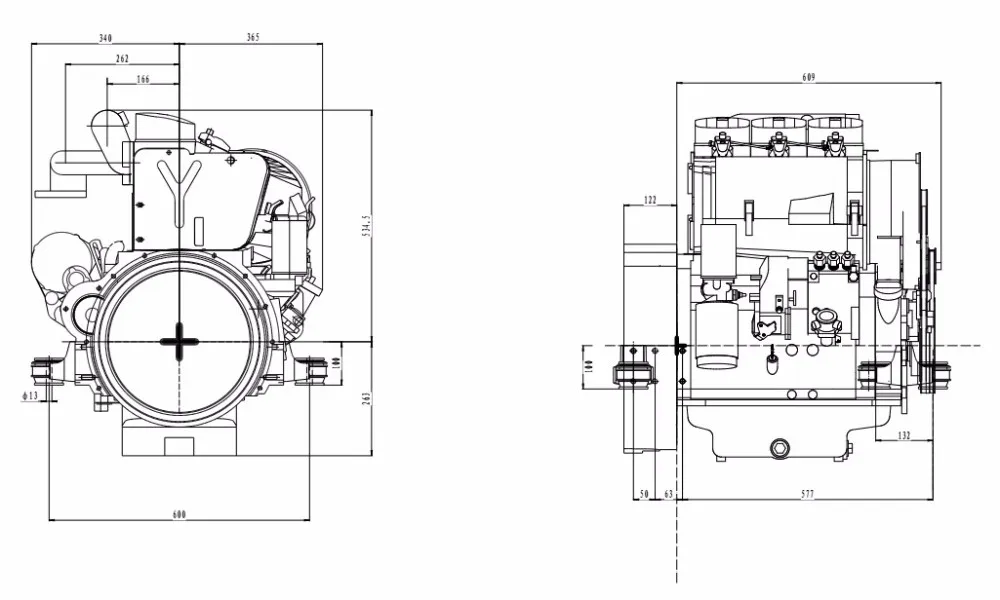

Outline Dimension















Typical Projects

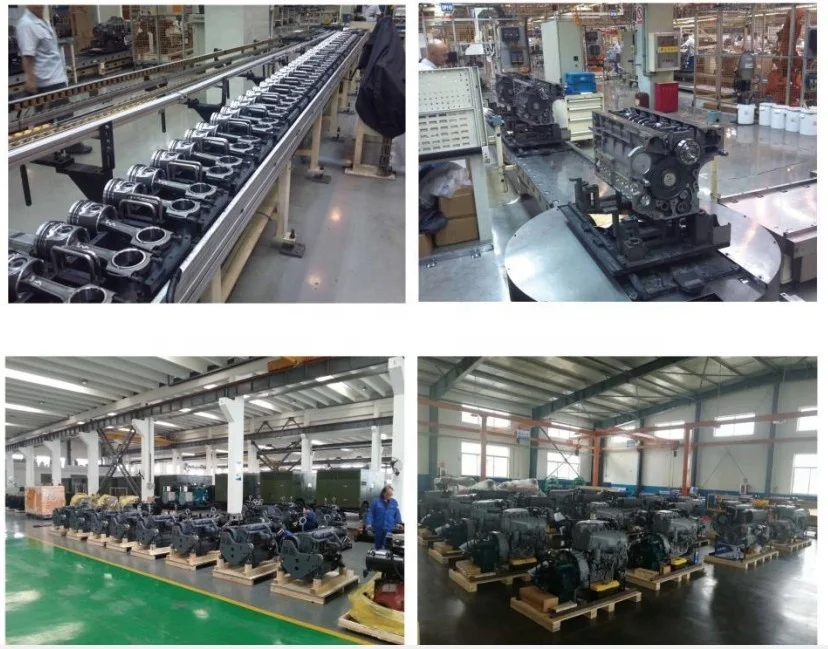

Factory




1. A total area of more than 124 thousands squre meters
2. About 280 technical employees in the factory
3. More than 30 years experience in diesel engine field
4. High quality and competitive price
5. Professional service and prompt reply















Certificate













Packing & Delivery














More Diesel Engine





If you need more deutz engine . plase Click on the below picture, Thanks












deutz F1L511 diesel engine











deutz F2L511 diesel engine











deutz F2L912 diesel engine


















deutz F4L912/913 diesel engine



with clutch










deutz F6L912/913 diesel engine











deutz BF4L913 diesel engine


















deutz BF6L913C diesel engine







deutz F8L413 diesel engine











deutz BF4M2012 diesel engine
