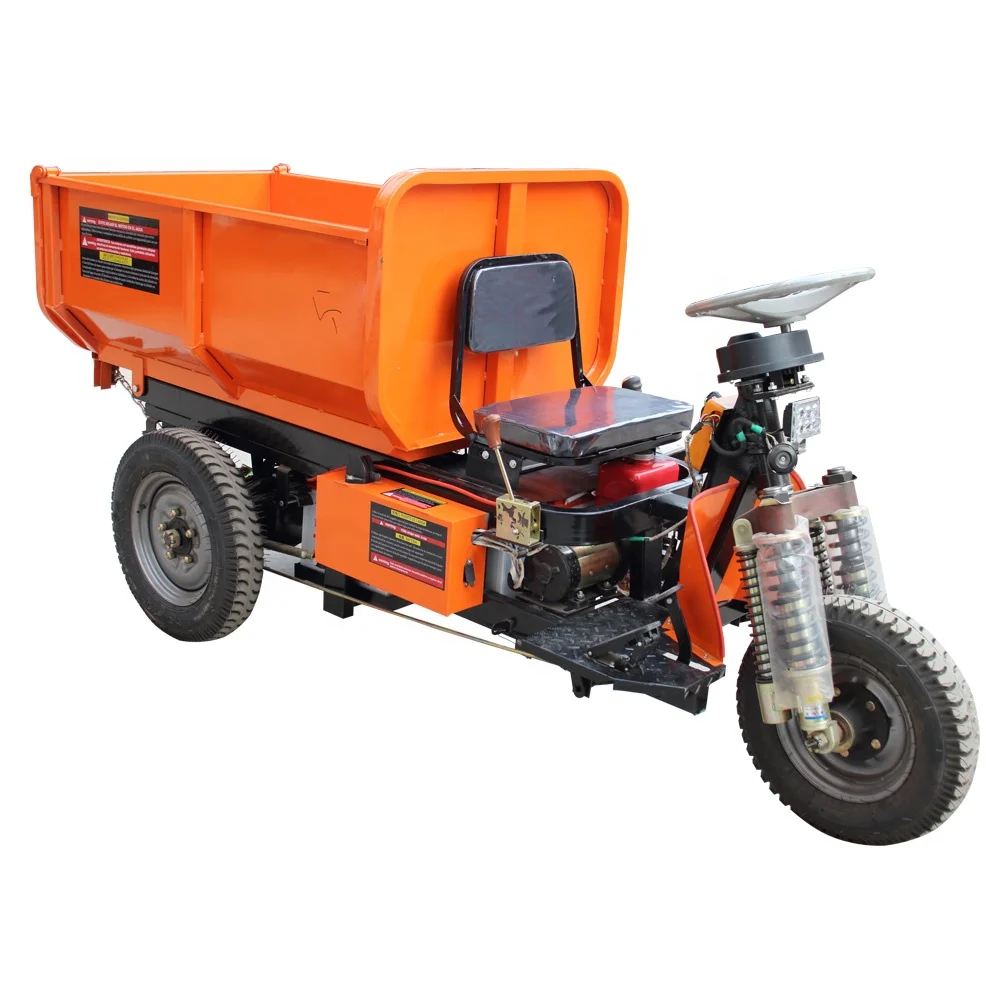

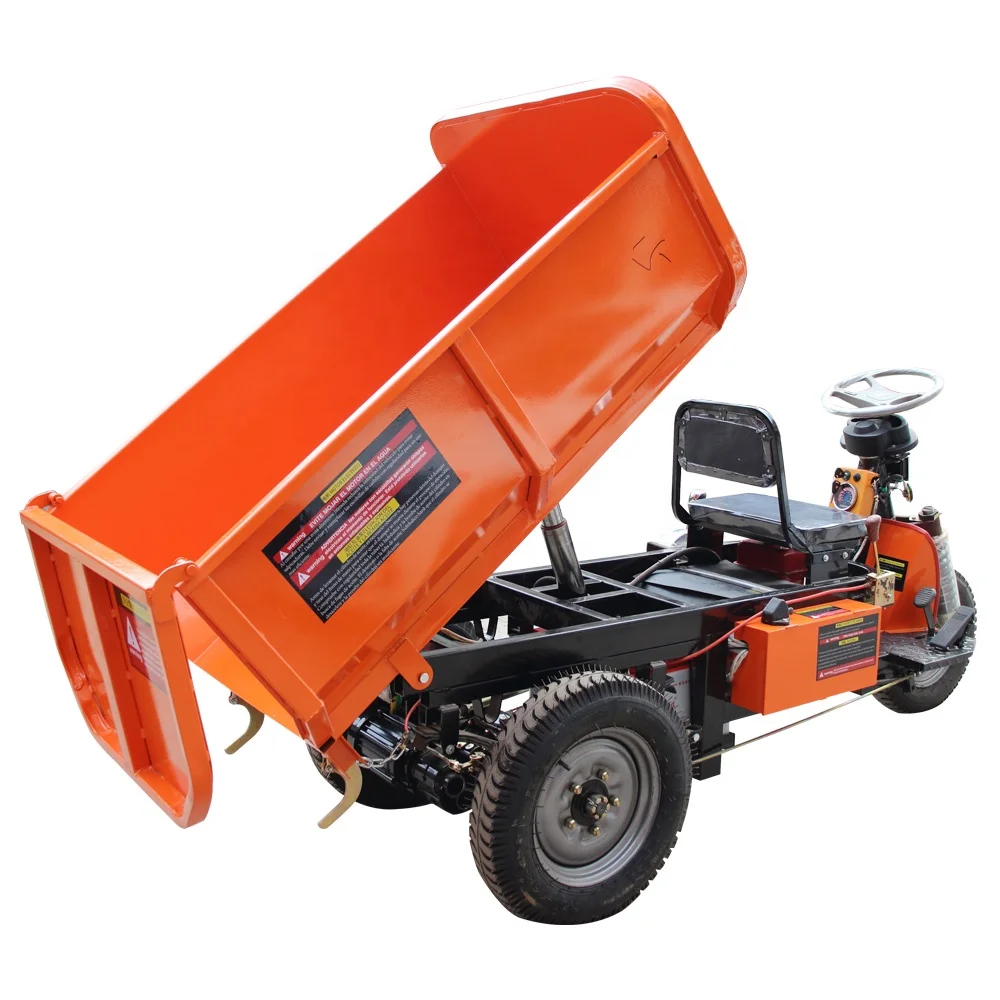

electric dumper truck /dumper trikes/mini dumper 1 tn used HUANYAN brand tire and Direct coupling rear axle
- Category: >>>
- Supplier: Zhengzhou Lianke Machinery Manufacture Co. Ltd.
Share on (1600470504177):
Product Overview
Description
Product Description
electric dumper truck /dumper trikes/mini dumper 1 tn used HUANYAN brand tire and Direct coupling rear axle
Zhengzhou Lianke Machinery Manufacturing Co., Ltd. is a professional factory in the production of electric mini dumpers and other mining machines. The electric dumper is our best-selling product, especially in countries with many mines such as Peru, Chile, Bolivia, etc. this machine improved production efficiency and reduced labor, for detail information, please check following introduce.
Look forward to do business with you
Customer feedback for electric mini dumper and delivery
Our electric dumper belongs to cargo vehicles, mainly for loading rocks, minerals, soil, sands, cement, and other goods. It can be used in a variety of terrain, mainly is used in mine, to be used in farm is also no problem .
LK135 electric mini dumper used Direct coupling rear axle | ||||||
Loading capacity | 1000kg | Net weight | 525kg | |||
Front tire | 4.00-12 (Huanyan tire) | Rear tire | 5.00-14 (Huanyan tire) | |||
Overall size(L*W*H)① | 2800*900*1350mm | Cargo box size(L*W*H)② | 1450*900*500mm | |||
Driving motor power③ | 2500W/60V | Driving motor type④ | Brushless motor | |||
Lifting motor power | 1000W/60V | Lifting motor type | Brushed motor | |||
Batteries type | Lead-acid (water) battery, 30kg/piece | Batteries quantity⑤ | 5 pieces of 12V, total 60V | |||
Rear axle type⑥ | Direct coupling rear axle | Diameter of half shaft | External measurement size 28mm Inner size 30mm | |||
Front shock absorption type | Double row shock absorption | Speed | ≦40km/h | |||
Others | Including front and rear LED lights, horn and reversing notice voice | |||||
Annotation
①Overall size--It can be customized into 900mm in width. The measurement result of this size is also affected by the change in the size of the cargo box. For example, if the cargo box is increased by 100mm in height, the height of the whole vehicle will become 1350mm from 1250mm.
②Cargo box size--Length, width and height can be customized,standard height of the cargo is 400mm,.
②Cargo box size--Length, width and height can be customized,standard height of the cargo is 400mm,.
③ Driving motor and power--Other motor also can be used, such as 3000W60V.3000W72V
④Brushed motor can not be used.
⑤Batteries quantity--5pcs of 52ah dry batteries are available for free replacement.
5pcs of 60ah or 80ah dry batteries are also can be used, but need make-up price difference.
⑥Rear axle type--Double chain rear axle shaft drive rear axle are can be customized
⑤Batteries quantity--5pcs of 52ah dry batteries are available for free replacement.
5pcs of 60ah or 80ah dry batteries are also can be used, but need make-up price difference.
⑥Rear axle type--Double chain rear axle shaft drive rear axle are can be customized
if you want load 1.5 ton or 2 ton,the left is LK200(1.5T),the right is LK270(2-2.5T),please add my number
LK200 electric mini dumper
LK270 electric mini dumper
Rear axle

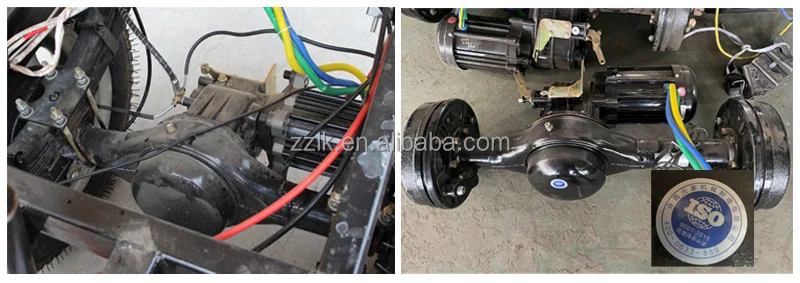

Direct coupling way rear axle
This dumper is customized by Peruvian customers. It uses Direct coupling rear axle, 2500W brushless motor and controller. The motor directly acts on the rear axle without loss and high transmission efficiency.the speed is faster ,and has strong power to climb gear
This dumper is customized by Peruvian customers. It uses Direct coupling rear axle, 2500W brushless motor and controller. The motor directly acts on the rear axle without loss and high transmission efficiency.the speed is faster ,and has strong power to climb gear
Rear axle brand:YUANHAO, this rear axle has ISO9001 certification
Motor brand:60V2500W brushless motor.
Motor brand:60V2500W brushless motor.

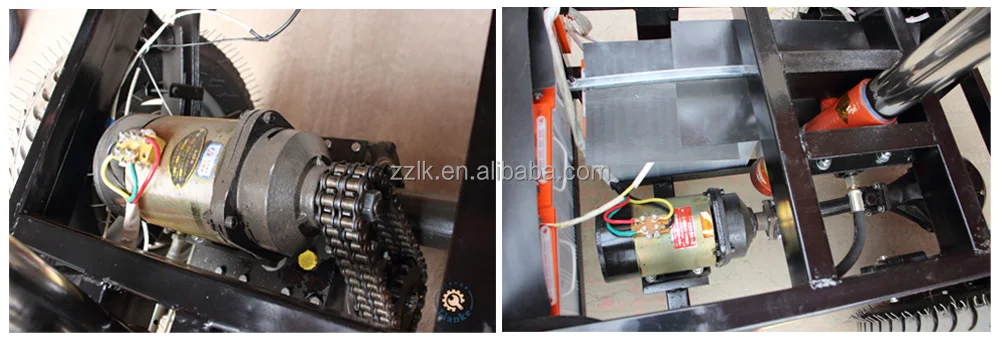

2 other rear axles
In addition, we also electric dumper equip with double-row chain shaft drive.
the left is Gearbox double chains rear axle model and the right is Drive shaft rear axle
More information ,please contact me
the left is Gearbox double chains rear axle model and the right is Drive shaft rear axle
More information ,please contact me
Detailed Images

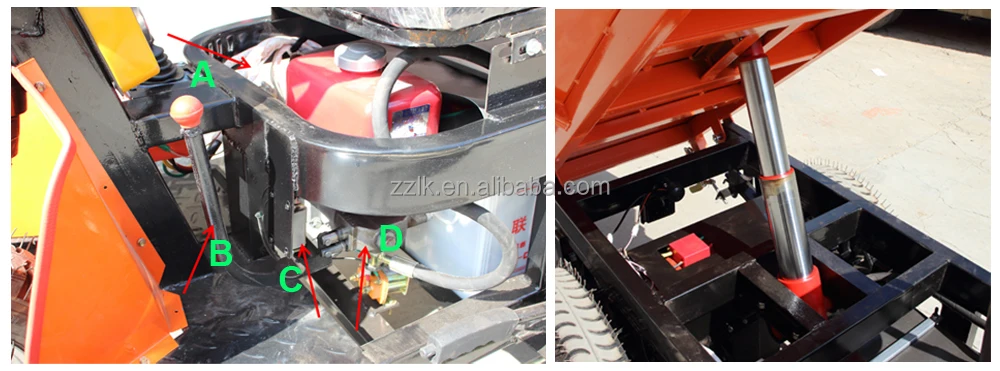

1) Hydraulic system
1) Hydraulic system
A:1000w lifting brush motor,
B: lifting control rod,
C: Limit switch,
D: Hydraulic oil pump
The lifting brush motor combine with oil pump offer power to push the hydraulic oil moving to achieve cargo box's lifting and down;
2) 3-section hydraulic lift cylinder. The chrome-plated cylinder makes lifting and lowering smoother.
A:1000w lifting brush motor,
B: lifting control rod,
C: Limit switch,
D: Hydraulic oil pump
The lifting brush motor combine with oil pump offer power to push the hydraulic oil moving to achieve cargo box's lifting and down;
2) 3-section hydraulic lift cylinder. The chrome-plated cylinder makes lifting and lowering smoother.

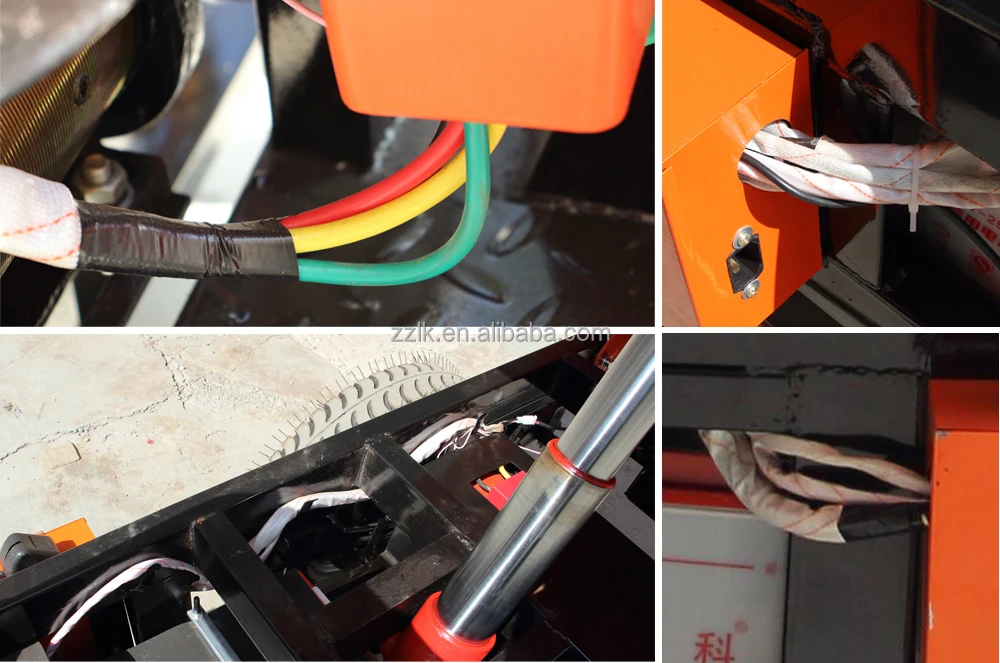

2)Main wires + insulation tube + wires clamp slots
The main line has been upgraded to 8mm ², and all the lines are warpped with fire-resistand and flame-retardanr cloth. The routing of the dumper is more tidy. all wiring positions are welded wires clamp slots to the frame in advance. In this way, the entire fixed lines is easy to view and looks very tidy.

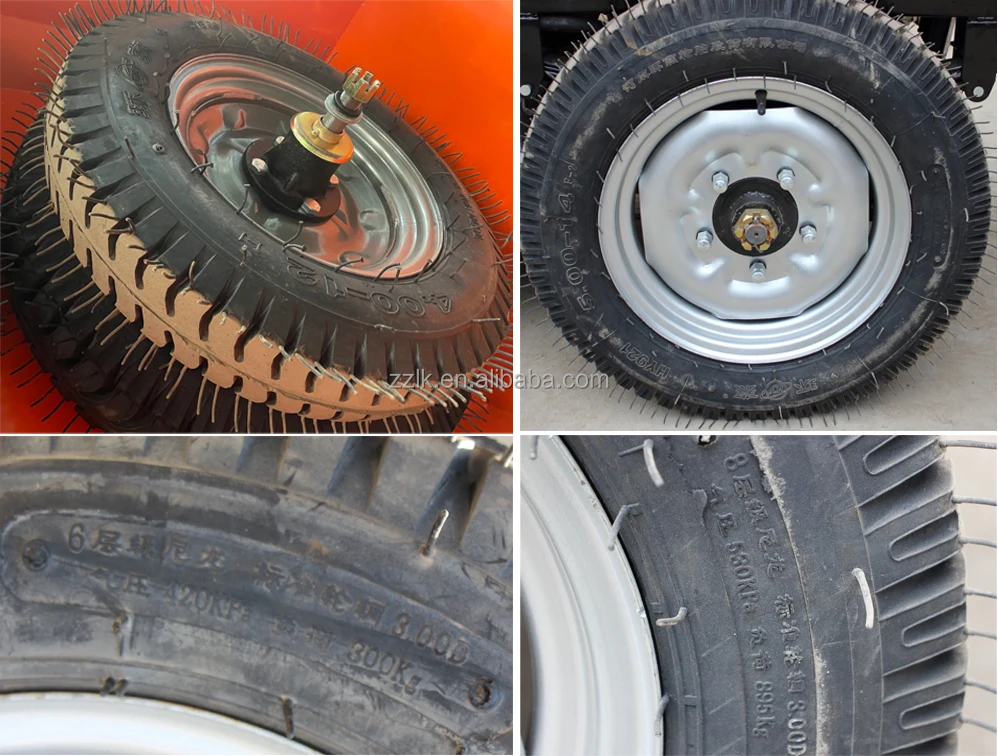

3)Mining tires
Professional mining tires, more durable
Brand:Huanyan
F:4.00-12 Load:300kg
R:5.00-14 Load:895kg
Brand:Huanyan
F:4.00-12 Load:300kg
R:5.00-14 Load:895kg

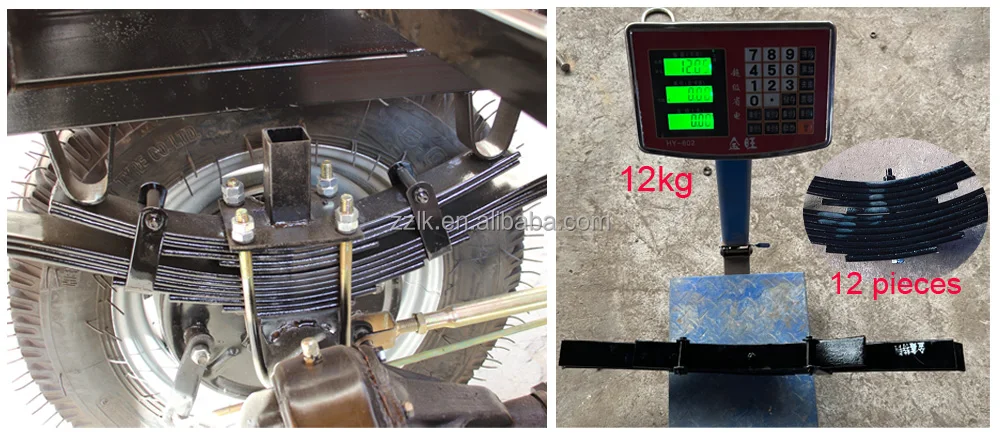

4)12 spring steel plate shock absorption
Because Peruvian customers often use this vehicle in mines and are often overloaded, we have upgraded the thickness and width of the spring steel plate, which has a stronger bearing capacity. The weight is 12kg, which is not easy to damage)

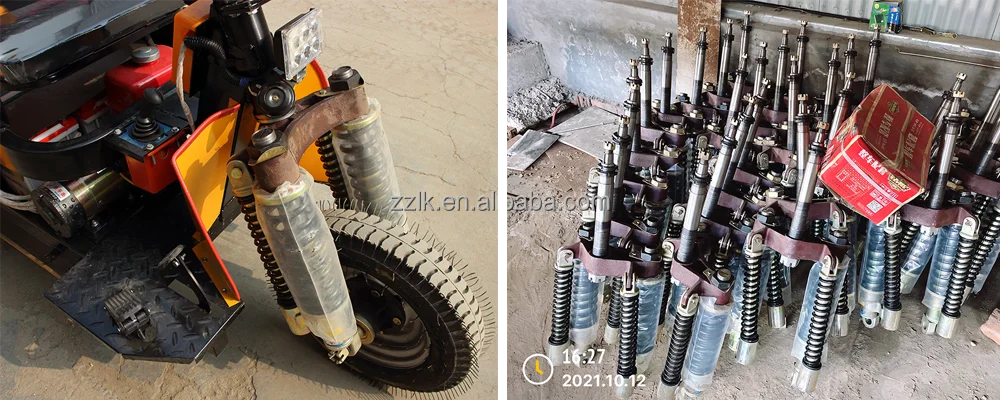

5)Double front shock absorber
Brand: SHIFENG(Famous brand)
This double-row shock absorber is usually used in a dump truck with a load of 3 tons, compared with ordinary external spring damping and single row large damping, it has a strong load-bearing capacity and is not easily damaged.
This double-row shock absorber is usually used in a dump truck with a load of 3 tons, compared with ordinary external spring damping and single row large damping, it has a strong load-bearing capacity and is not easily damaged.

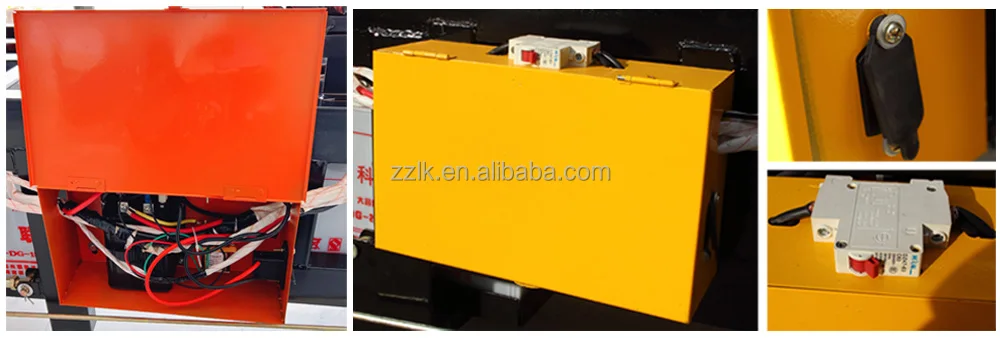

6)Charging socket and air switch
1. Increase the charging socket and black insulating protective cover, which can prevent short circuit caused by moisture or rain.
2. If the vehicle is used for a long time, if the motor or circuit is overheated, it will automatically disconnect to protect the vehicle from damage due to overheating
2. If the vehicle is used for a long time, if the motor or circuit is overheated, it will automatically disconnect to protect the vehicle from damage due to overheating

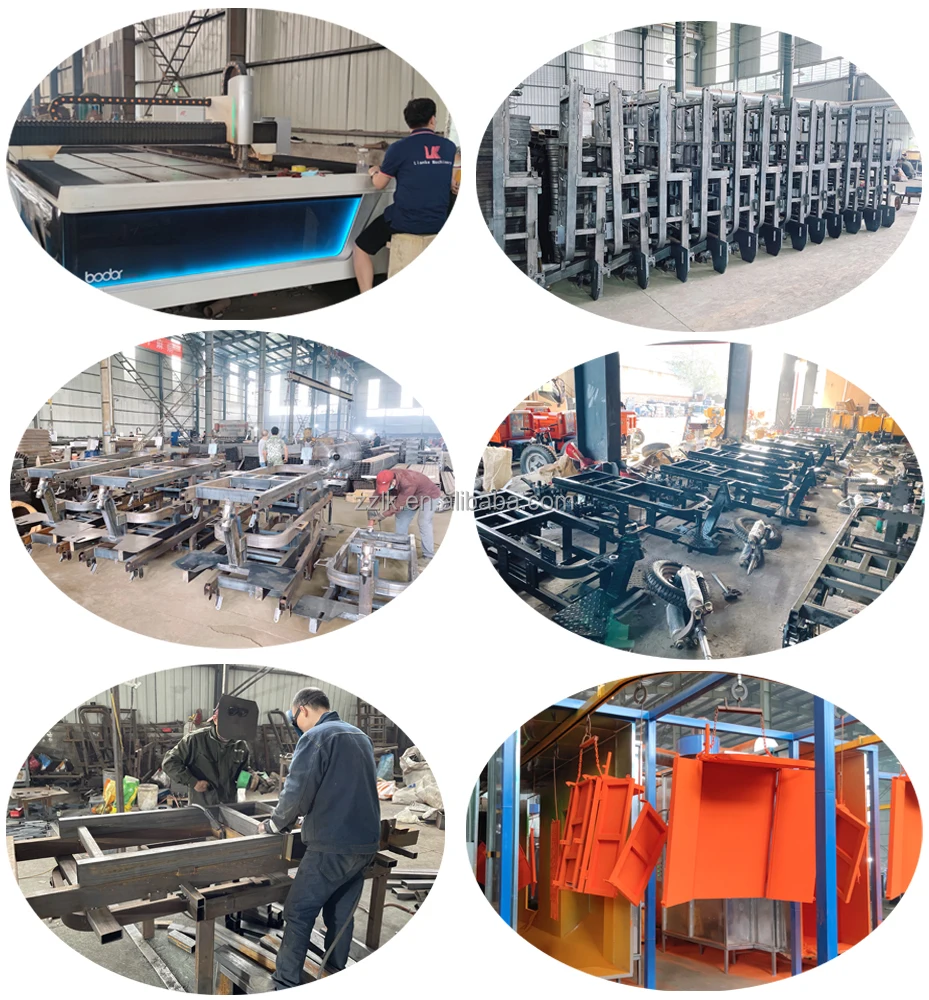

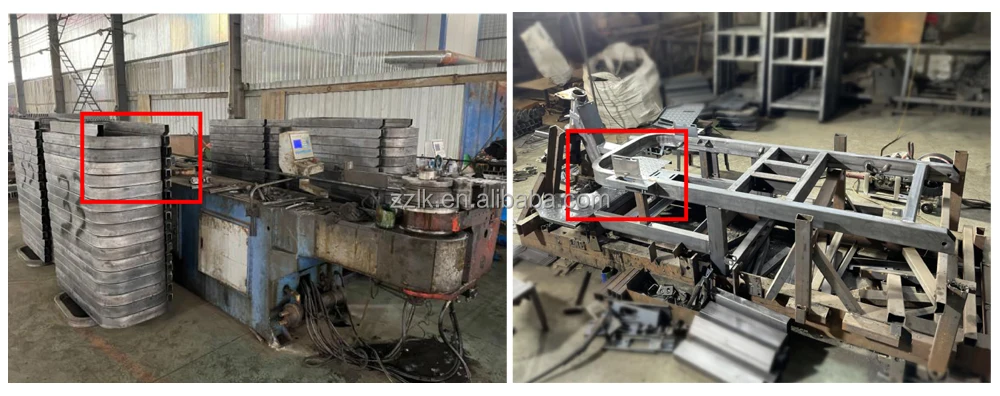

Girder bending
The beam of the dumper is made of a complete rectangular steel, which is bent by a hydraulic pipe bender. There is no weld, it is
not easy to rust, and it will not break due to welding
not easy to rust, and it will not break due to welding

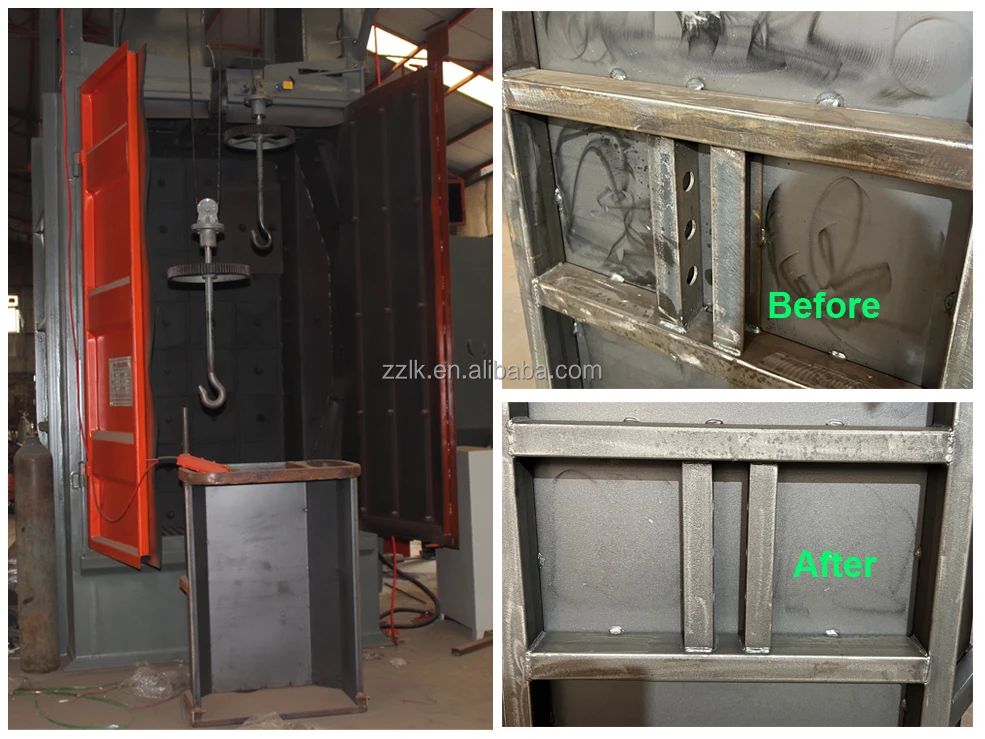

Use shot blasting machine to remove rust
There are many small steel balls inside the shot blasting machine. When the machine is started, these steel balls will continue torub against the box plate in the shot blasting machine in the closed space to achieve the effect of rust removal and polishing.

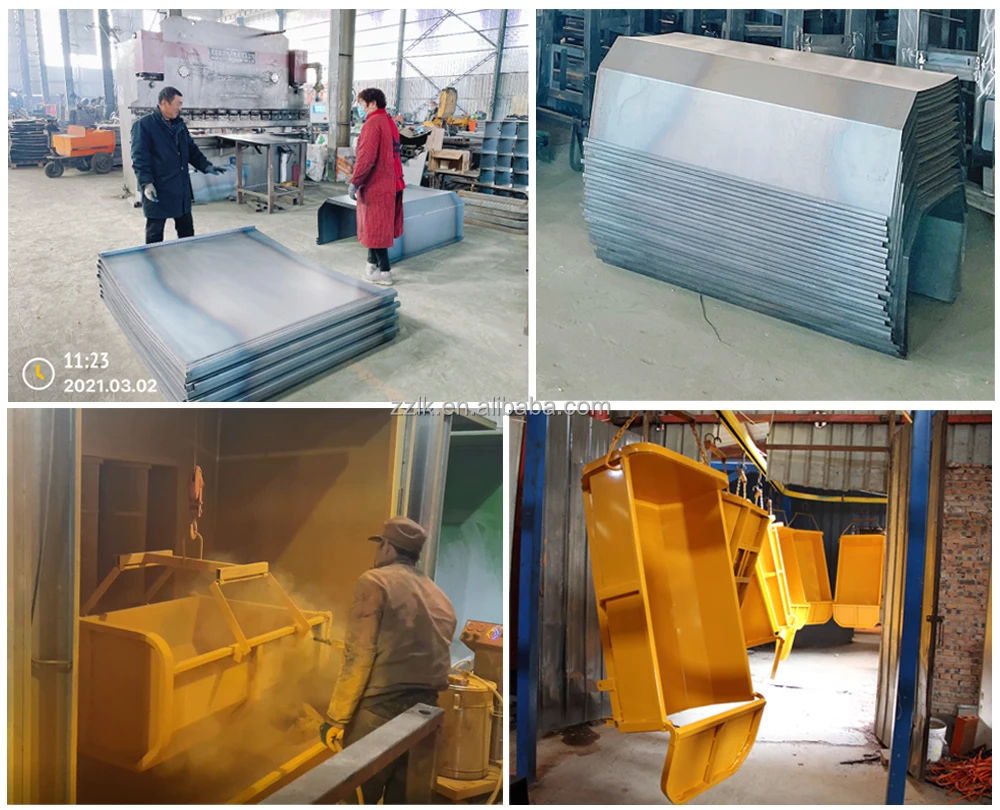

Spray and paint
Use an integrated bending machine to fold the whole board into the shape of the box board we need, without welding. In the
spraying process, a layer of paint powder is applied to the surface of the box board, and then enters the oven on the automatic
line. At a high temperature of 200 degrees, the paint powder will melt and adhere to the box board and frame very uniformly.
Effectively prevent paint from peeling off.
spraying process, a layer of paint powder is applied to the surface of the box board, and then enters the oven on the automatic
line. At a high temperature of 200 degrees, the paint powder will melt and adhere to the box board and frame very uniformly.
Effectively prevent paint from peeling off.
Customized Items

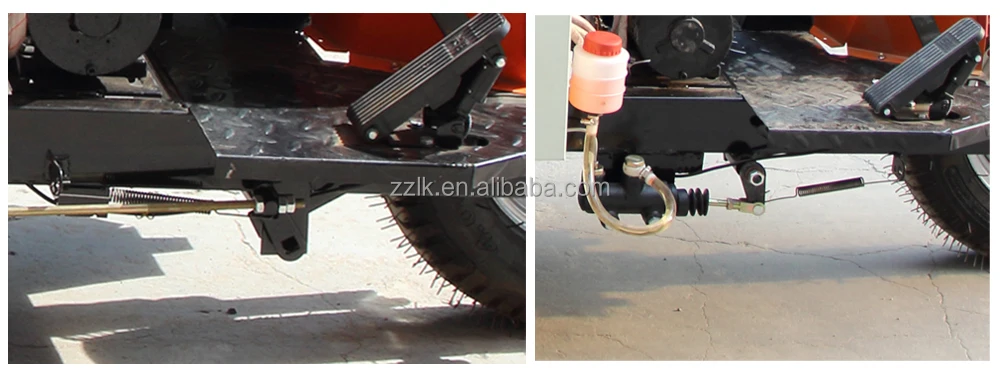

Drum brake or oil brake
This dumper uses ordinary drum brakes. If your local has a lot of slopes, you can choose to upgrade the drum brakes to oil brakes. Oil brakes have better braking performance. When going downhill, they have good braking performance and are not easy to slip under heavy loads.

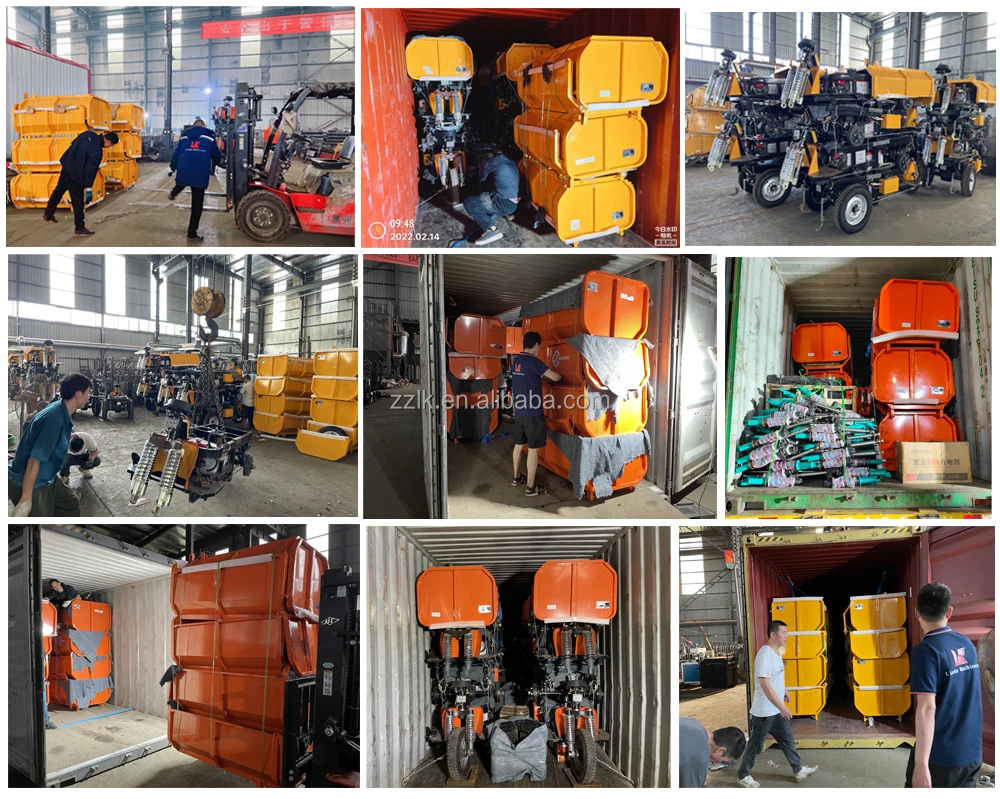

Packing & Delivery

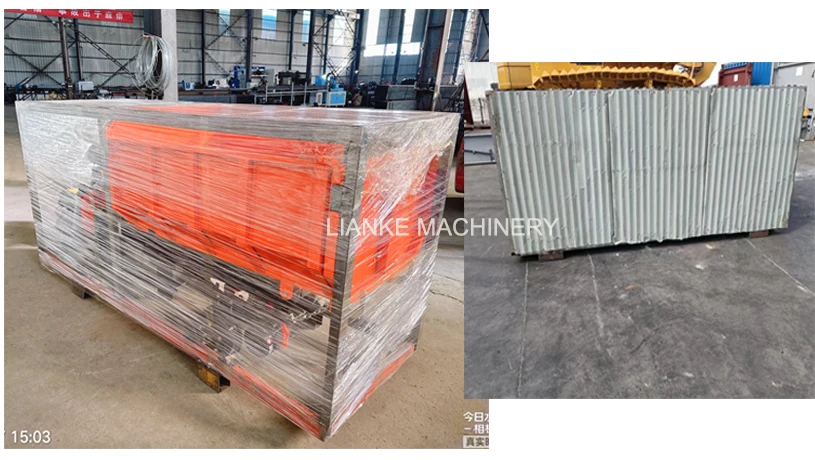

LCL Delivery
For order one unit or order less container load we adopt standard wooden box packing, to convenient package we only remove the wheels.Other parts do not do any demolition, so when arrive you just need to assemble the wheels then can driving directly.
For order one unit or order less container load we adopt standard wooden box packing, to convenient package we only remove the wheels.Other parts do not do any demolition, so when arrive you just need to assemble the wheels then can driving directly.

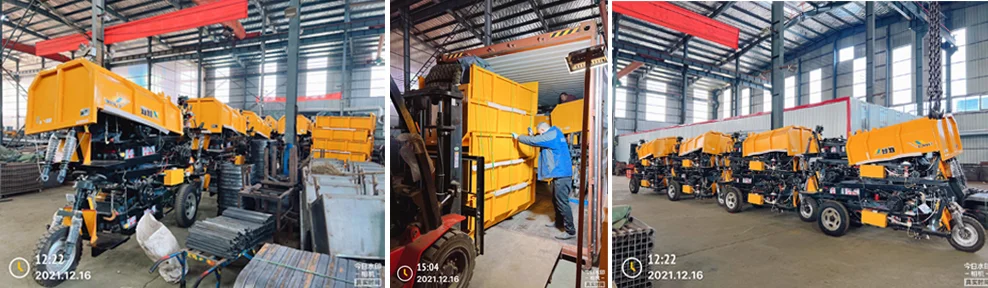

FCL Delivery
For the order quantities more than 10 units electric dumpers, normally we advise to adopt full container load, full container shipment without any demolition, it‘s more convenient transportation and cost savings.
One 20'GP can hold 10 sets. One 40'HQ can hold 16 sets-24 sets
For the order quantities more than 10 units electric dumpers, normally we advise to adopt full container load, full container shipment without any demolition, it‘s more convenient transportation and cost savings.
One 20'GP can hold 10 sets. One 40'HQ can hold 16 sets-24 sets
Company Profile
Company & Warranty
Zhengzhou Lianke Machinery factory is a specialized manufacturer and trade of mucking loader Machine and mini dumper,integrating development and production. We are holding this line for more than 29 years, with well-equipped testing facilities and strong technical force. Our products are exported to many countries all over the world. With a wide range, good quality,
reasonable prices and stylish designs, our mini dumper are extensively used in construction, woodworking and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Warranty
(1)15 months' warranty, Calculated after the goods arrive at the destination port.(Warranty parts will be sent to you when your next order's container is shipped)For the dumper which is damaged under warranty (Non-human damage), Must provide dumper's VIN plate photos, and photos/videos of damaged parts.
(2)We will try our best effort to solve, whenever customers have a problem.
