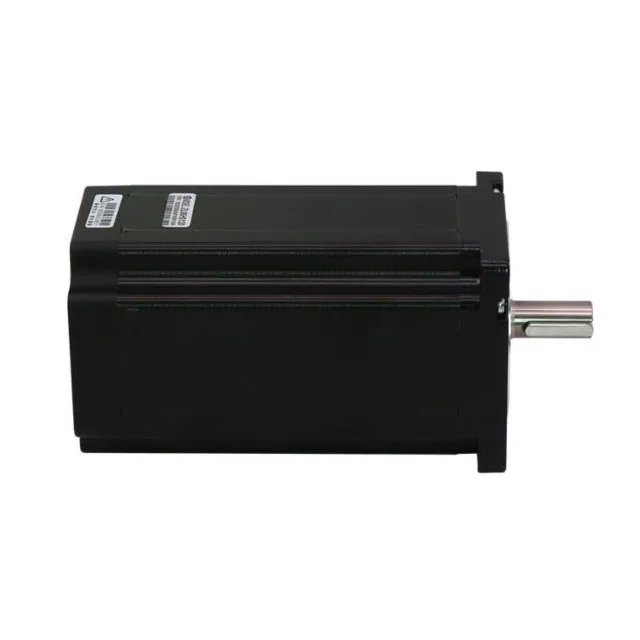

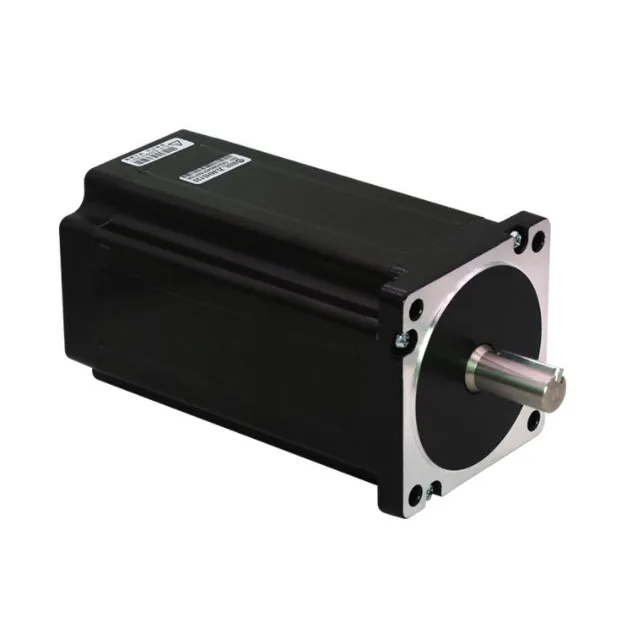

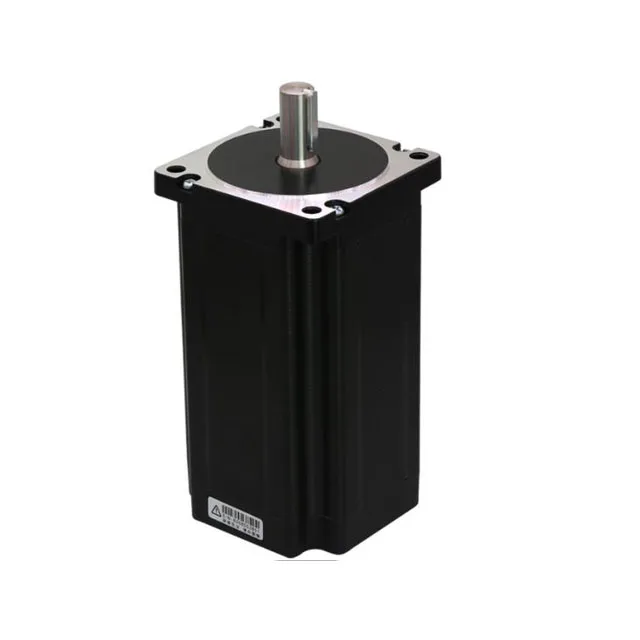

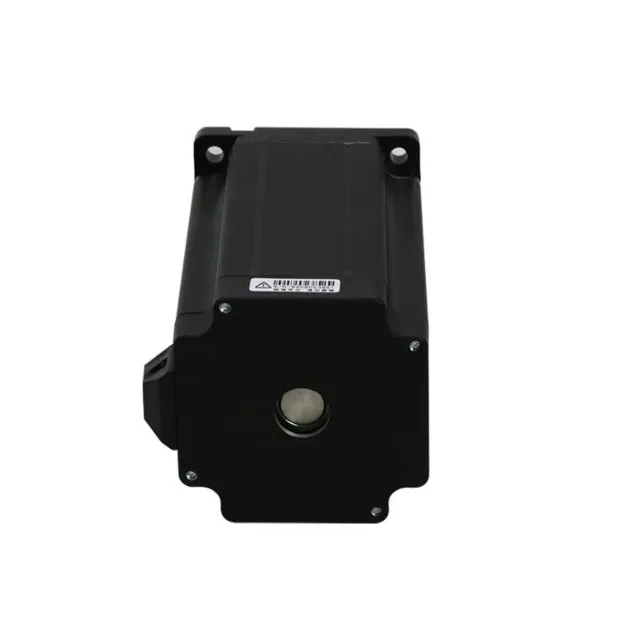

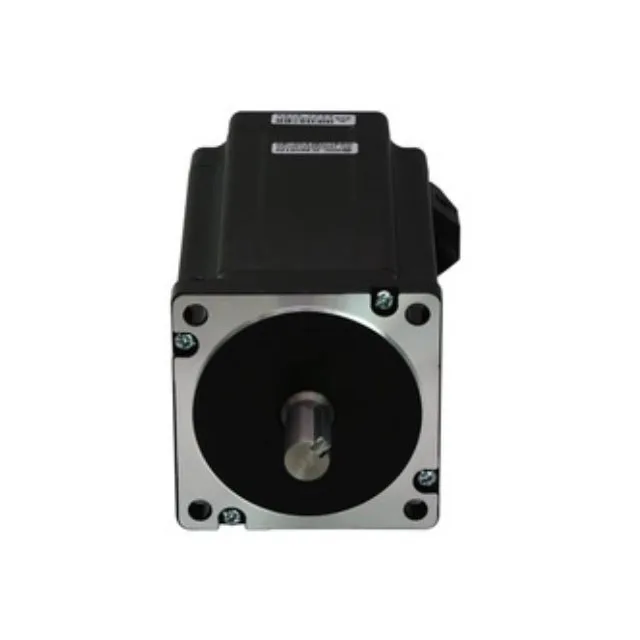

Hot Sales CE ROHS 6A 7N.m 2 phase 86mm nema34 single shaft dc hybrid DC stepper step motor and driver kit for laser machine
- Category: >>>
- Supplier: Shenzhen Xuanze Technology Co. ltd.
Share on (1600470531484):
Product Overview
Description
Product Description
Stepper motor is an open-loop control motor that converts electrical pulse signal into angular displacement or linear displacement. It is the main actuator in modern digital program control systems, which is normally used for CNC, dispenser, laser cutting machine, engraving machine, marking machine, medical equipment, and automatic assembly equipment, etc.
XZ86QB70
Certification standards:
Number of phase: 2
Step Angle accuracy: Plus or minus 5%
The IP rating: 40
Certification: RoHS CE ISO9001
Insulation class: B (130 ℃)
Operating ambient temperature: - 20 ℃ ~ + 50 ℃
Step Angle accuracy: Plus or minus 5%
The IP rating: 40
Certification: RoHS CE ISO9001
Insulation class: B (130 ℃)
Operating ambient temperature: - 20 ℃ ~ + 50 ℃
Electrical parameters:
Motor type | Holding torque (N.m) | Body length(mm) | Axle diameter (mm) | Rated current (A) | Resistance (Ω) | Rated inductance (mH)) | Rated voltage (V) | Rotor inertia (g cm2) |
86 | 3N.m | 65 | 14mm | 6A | 0.3Ω | 2.2mH | 1.8V | 1000g cm2 |
4N.m | 76 | 14mm | 6A | 0.5Ω | 4mH | 3.0V | 1300g cm2 | |
7N.m | 98 | 14mm | 6A | 0.56Ω | 5.4mH | 3.36V | 2100g cm2 | |
8N.m | 114 | 14mm | 6A | 0.6Ω | 8mH | 3.6V | 2500g cm2 | |
9N.m | 128 | 14mm | 6A | 0.7Ω | 9mH | 4.2V | 3200g cm2 | |
12N.m | 152 | 14mm | 6A | 1Ω | 11.5mH | 6V | 4000g cm2 |

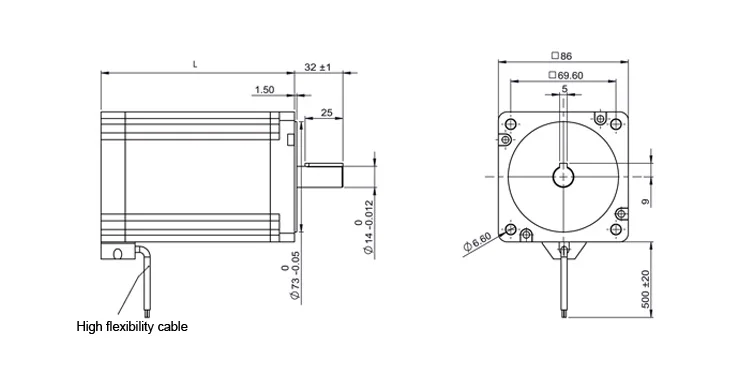

Motor outline drawing:

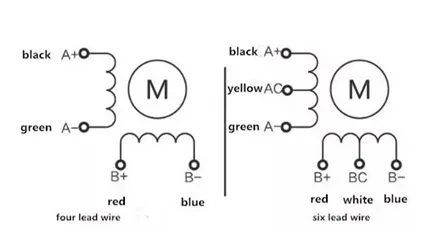

Motor wiring：
1. When installing the motor, be sure to use the front end cover of the motor to install the stop position, and pay attention to
the cooperation, strictly ensure the concentricity of the motor shaft and the load. 2. When the motor is connected to the driver,
do not connect the wrong phase.
the cooperation, strictly ensure the concentricity of the motor shaft and the load. 2. When the motor is connected to the driver,
do not connect the wrong phase.

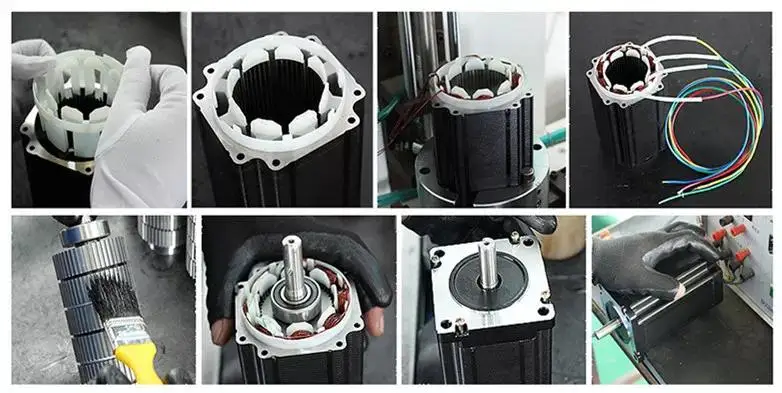

100% pure copper coil
- 3-layer high density molecular paint drip coating.
- Isolation of dust,life is 10 times that of ordinary coating
Silicon steel rotor
- World-class silocon steel
- Large torque
- Stable output
- Low noise
- Long life
International standard design
- Novel design and compact structure
- Easy installation and stable operation
- Large reduction ratio
Low motor noise
- Imported bearings, increase running frictional resistance
- Long-term carrying without deformation and noise

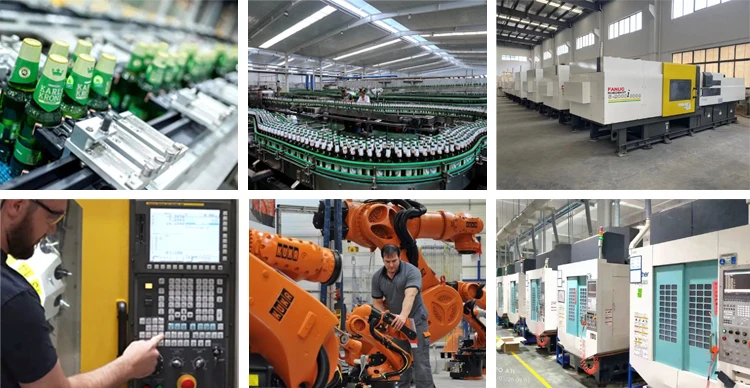

Usage scenario
Company Introduction
Shenzhen Xuanze Technology Co., LTD., founded in 2018 and headquartered in Shenzhen, is a technology-oriented enterprise focusing on intelligent system design and development and engineering implementation. The company is rich in human resources, strong technical strength, with a scientific research and management team composed of a number of industry senior engineers and a group of young and energetic technical personnel. The company also carries out industry-university-research cooperation with a number of universities and scientific research institutions, integrating cutting-edge technology exploration, applied technology development, product engineering realization, mass production, marketing and after-sales service. Industrial automation department for plastic, packaging, printing, electronic electrician, and other industries to provide" motion control + visual + industrial control system integration, system mainly completed three dimensional manipulator system, magnetic levitation carrying manipulator system, electric control system (integrated tinted) printing machines, visual contour detection, 3 c electronic assembly joint visual location, etc.;

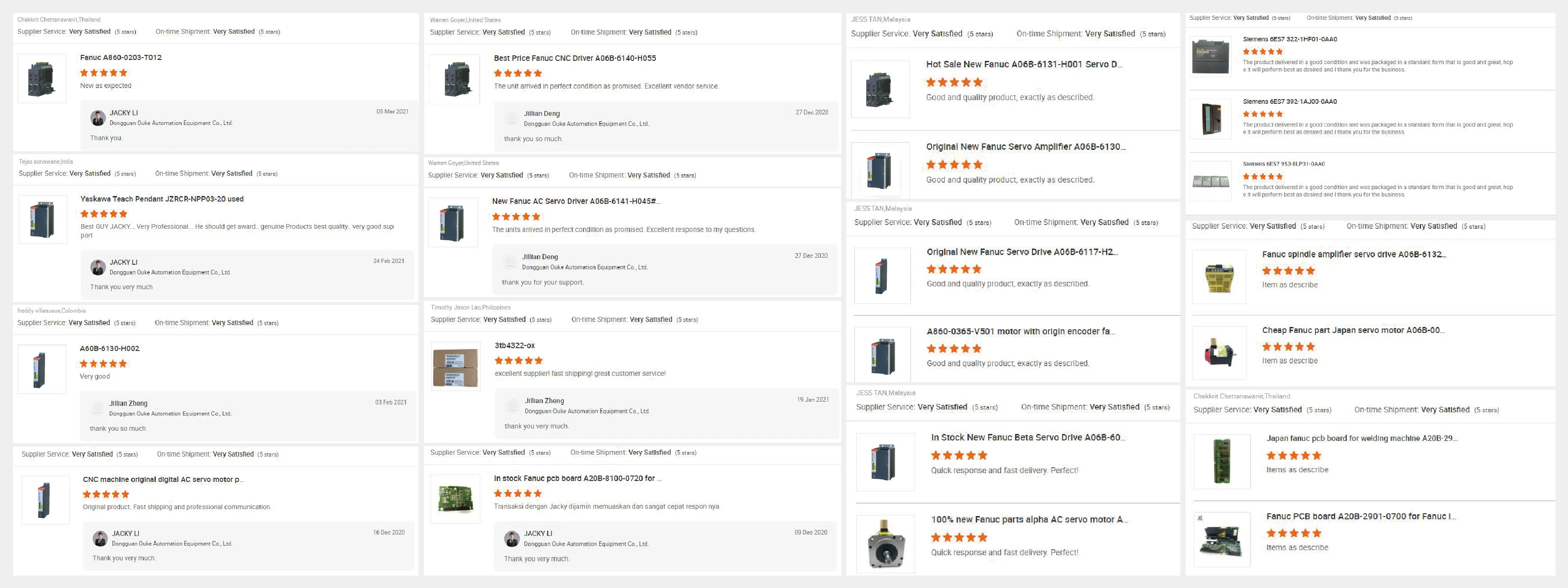

Customer Reviews

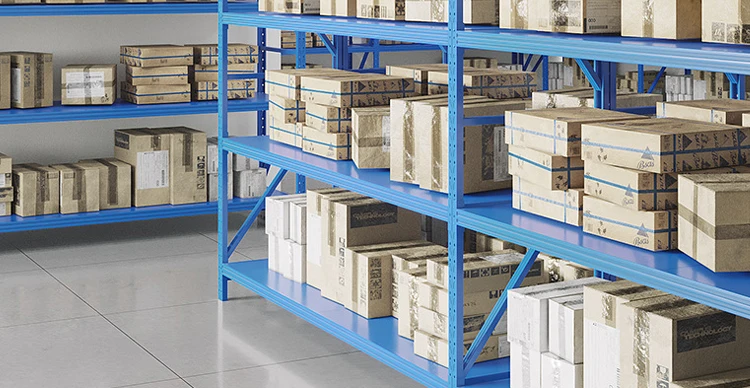

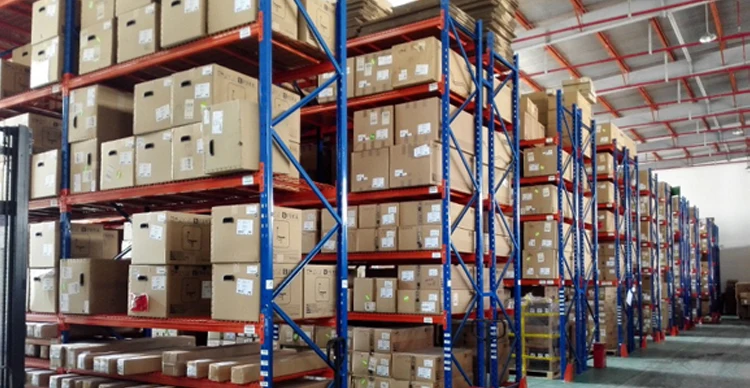

Our Warehouse

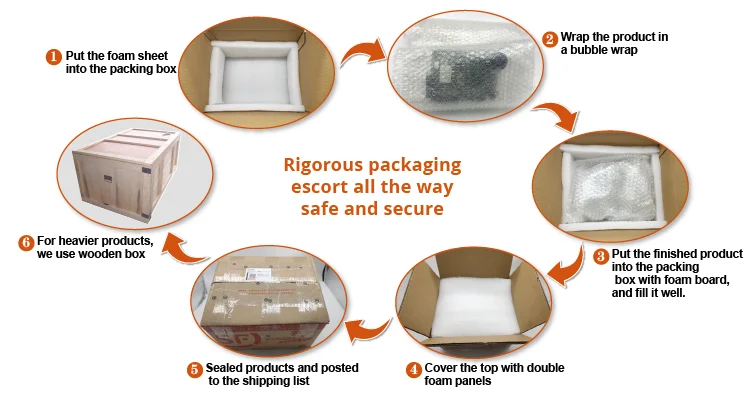

Packaging and transportation
